SAFAVIEH COUTURE CTL1047 User manual

WARNING
* Switch off the main electrical supply from the main fuse box / circuit breaker before installation.
* Inspect item carefully before attempting to install.
* If there is any damages or obvious defects, do not install.
* Item may not be returned once it has been installed.
CARE AND MAINTENANCE
Model#: CTL1047
Product Dimensions: 42.25"L X 4.75"W X
7-79"H
* To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean water, never a
solvent) to wipe the surface of the fixture.
* To clean the inside of the fixture, first disconnect power to the fixture by turning off the circuit breaker or
by removing the fuse at the fuse box. Next, use a dry or slightly dampened clean cloth (use clean water,
never a solvent) to wipe the interior surface of the fixture.
* Do not use any cleaners with chemical, solvents or harsh abrasives. Use only a dry soft cloth to dust or
wipe carefully.
NOTICE& IMPORTANT SAFETY INSTRUCTIONS
** WE RECOMMEND INSTALLATION OF THIS LIGHTING FIXTURE BE DONE BY A LICENSED ELECTRICIAN **
* Please make sure that you have all parts indicated before you begin assembly of this item
* This item should be assembled on a soft surface to prevent scratching the finish during assembly
* To reduce the risk of fire, electrical shock or injury to persons or property, please follow the guideline
below for safe use and installation
*The external flexible cable or cord of this lamp cannot be replaced
If the cord is damaged, the lamp shall be destroyed

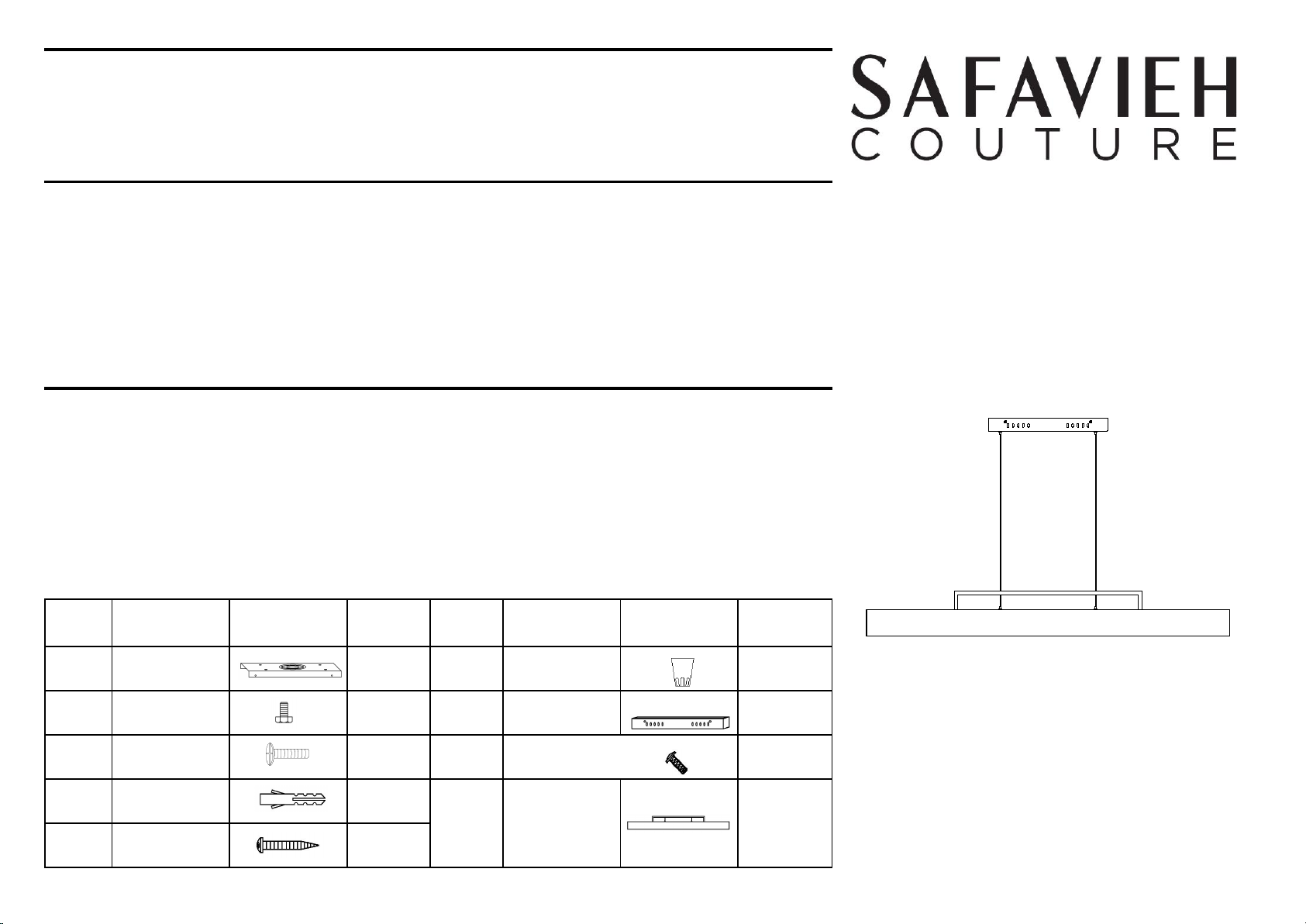

Part List and Hardware List
PIECE DESCRIPTION PICTURE QUANTITY PIECE DESCRIPTION PICTURE QUANTITY
A Mounting Plate 1X F Wire Nut 3X
BGreen Ground
Screw
1X G Canopy 1X
COutlet Box
Screw
2X H
Mounting
Screw 4X
D Anchor 4X
I Fixture Body 1X
E Tapping Screw 4X
1/3

PREPARATION
* Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list.
* If any part is missing or damaged, do not attempt to assemble the product.
* Estimated Assembly Time: 20 minutes.
* Tools Required for Assembly (not included): Screwdriver, Junction box
* If you are having difficulty, our friendly Customer Care team is always here to help. Please email [email protected]
Step 1:
Adjust the cable to be a suitable height.,Unlock the Mounting Screws (H) from
the Mounting Plate (A), remove the Mounting Plate(A) from the Canopy (G).
Step 2:
Punching the hole and install the anchor (D) to the ceiling. Attach the mounting plate
(A) to the junction box with outlet box screw(C), secure with tapping screw (E)
G
H
I
A
C
B
A
D
E
2/3

PREPARATION
* Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list.
* If any part is missing or damaged, do not attempt to assemble the product.
* Estimated Assembly Time: 20 minutes.
* Tools Required for Assembly (not included): Screwdriver, Junction box
* If you are having difficulty, our friendly Customer Care team is always here to help. Please email [email protected]
Dimmable drive can be compatible with the following 10 commonly used dimmers in the United States:
Lutron DVCL-153P Lutron MACL-153MLH-WH
Leviton R02-DW6HD-2RW Lutron P-PKG1W-WH-R
Leviton R68-06674-POT Lutron STCL-153PH-WH
Legrand RHCL453PNICCV4 Leviton R11-DSL06-1TW
TP-link HS220. Leviton R00-RNL06-0TW
Step 3: Wire connection
Connect fixture neutral wire (ribbed) to the outlet box neutral wire (usually white) using a wire
nut.
Connect fixture hot wire (smooth with markings) to the outlet box hot wire (usually black) using
a wire nut.
CAUTION: Do not reverse the hot and neutral connections
Grounding Instructions:
Wrap ground wire from outlet box around green ground screw on mounting bracket, no less
than 2" from wire end. Tighten ground screw. If fixture is supplied with a ground wire, connect
to outlet ground wire with a wire nut.
Step 4:Attach the canopy (G) to the mounting plate (A), secure with
Mounting screw (H).
G
H
A
I
