Safeguard Supply ERA-DCKIT User manual

Pair Transmitter to Receiver:
The transmitter works with all ERA receivers. Basic programming
calls for the user to program the transmitters with a receiver & select
a melody for the transmitter to instruct the receiver to play when
triggered. In the example below, the transmitter will be
programmed to the ERA-RXPG plugin receiver. If you are using a
different ERA receiver, follow the programming instructions for that
receiver to put the receiver in programming mode and to change
the melody.

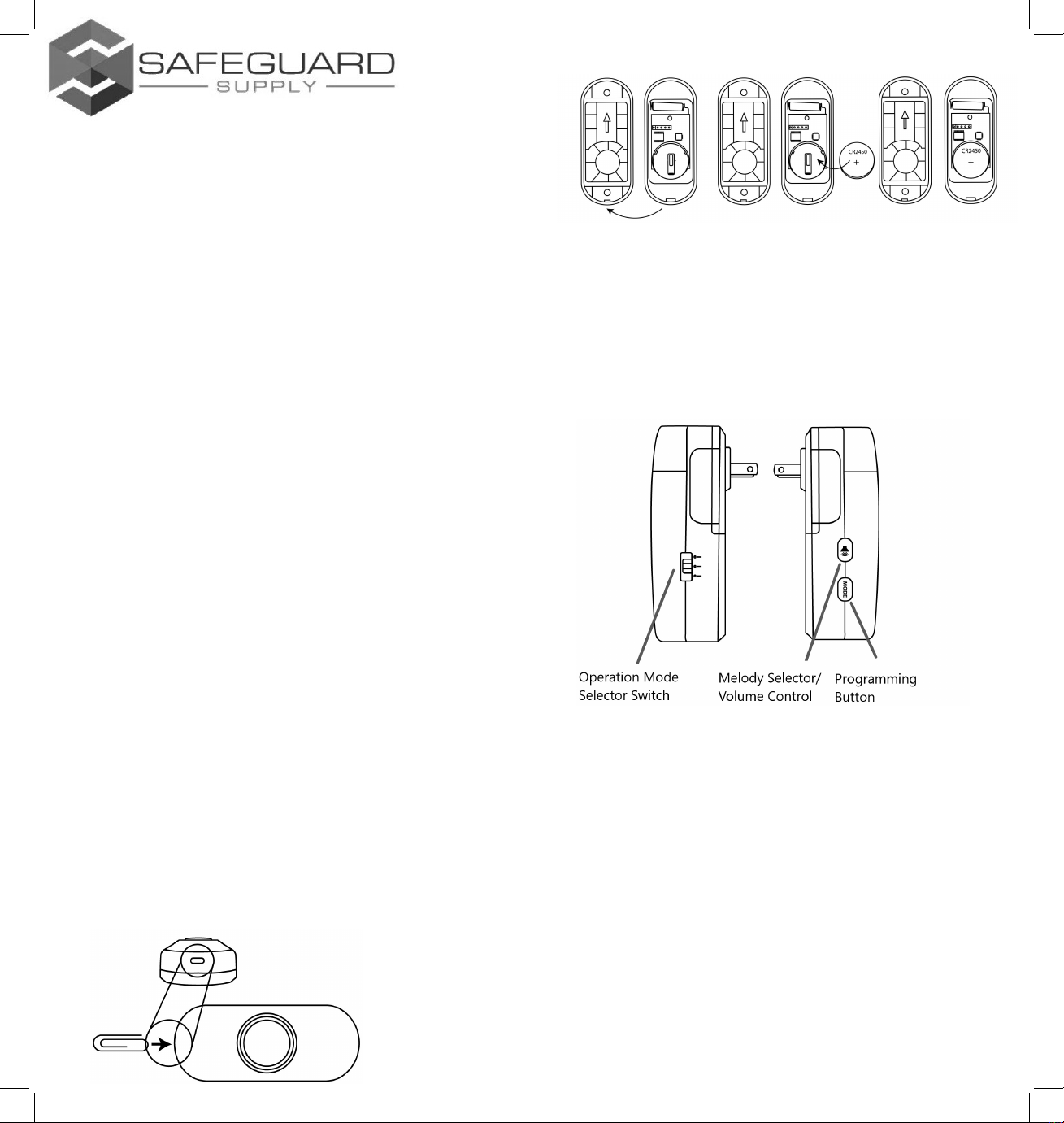

1. Open the front cover by insert a small paper clip into the square
hole on the bottom of the unit (figure 1) & gently push in to separate
the top & bottom half of the case.
2. Remove top half of case from lower case (figure 2).
3. Install the included CR2450Abattery into the holder with positive
(+) facing up (figure 2).
4. Test the battery by pressing the center push. The green halo should
illuminate for approximately 2 seconds, signaling transmission.
Note: Program the push button to a compatible receiver PRIOR to
mounting the push button.
Push Button Battery Installation:
•All ERA transmitters are compatible with all ERA receivers.
•The ERA-PBTX is a push button transmitter that must be
programmed to a ERA compatible receiver to operated.
•The push button is outdoor rated and contains a silicone gasket to
keep moisture out. Mount with the small weep hole pointing
down to ensure any moisture in the unit evaporates out.
•The ERA-RXPG is a plugin receiver and is indoor rated only.
•Push button measures 3.00'' H x 2.25'' W x 1.75'' D.
•The halo ring around the center push is constantly illuminating for
visibility at night, but consumes very little power.
•When triggered (center push button is pressed) the center halo
illuminates brightly for approximately 2 seconds.
•The ERA-RXPG has three operational modes; strobe only, sound
only, strobe + sound.
•The ERA-RXPG may be programmed with up to 12 ERA
transmitters.
•The range (line of site) of a ERA transmitter to receiver is 4,000 ft.
(figure 2)
1. Ensure the ERA-RXPG is plugged into a standard wall outlet.
2. On the ERA-RXPG receiver, hold down the "mode" (bottom
button in figure 3) button until you hear a short tone sound &
the red LED begins to blink (figure 3). This denotes the unit is in
programming mode.
3. Scroll through available melodies by pressing the melody
selector button. Stop pushing this button when you hear the
sound you want the respective push button to play.
4. Push the center push on the push button. The receiver will play
a quick chime sound denoting the receiver is in program mode.
The red LED should still be blinking.
5. If you want to program a second transmitter (push button, door
contact, motion sensor, or driveway sensor) push the sound
button (the button on top) to scroll through available melodies.
Once you have the sound you want, stop pressing the sound
button and repeat step 2 above, trigger the sensor/transmitter.
6. Once you have programmed all the transmitter, exit program
mode by holding down the "mode" button until you hear a short
tone sound and the red LED disappears. (approx 3 sec)
ERA-DCKIT (ERA-RXPG + ERA-
PBTX)
Introduction
The ERA-DCKIT is a long range wireless door chime kit with the
following two components; the ERA-RXPG plugin receiver & the
ERA-PBTX. This manual outlines how to program the ERA-PBTX
push button to the ERA-RXPG receiver, & will serve as the
product manual for the kit & both individual products in the kit.
Helpful Notes:
(figure 1)
Push Button Battery Installation (cont):
(figure 3)

(figure 4)
Mounting the Push Button:
Ensure you have programmed & tested the push button prior to
mounting.
There are two mounting options for the ERA-PBTX. The first
method is to mount the unit using the supplied screws. The
second is using the supplied double-sided tape.
1. Open the front cover by insert a small paper clip into the
square hole on the bottom of the unit (figure 1) & gently
push in to separate the top & bottom half of the case.
2. Remove top half of case from lower case.
3. Place back cover of push button on wall where you want
to mount it. Ensure the arrow on back cover is pointing up.
4. Mount back half of case on wall.
5. Place top half (with battery installed) over bottom half.
Make sure the small opening in top half is down
(battery is down). Place bottom of the top half over the
small protruding clip on bottom half & snap into place.
Test the Programming of Transmitter to Receiver:
•Push the center button of the push button.
•When pressed, the green halo around the center push
should brightly illuminate.
•Ensure the programmed receiver is plugged in. When
triggered it should play the selected melody and/or flash
(depending on operational mode selected on the receiver.)
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
ARI ancer and eproductie arm. o to www.P65Warnings.ca.gov for
more information.
Low Battery Indicator:
When the battery in the ERA-PBTX is low & needs to be replaced, it
will signal the receiver to double play on the programmed receiver
when triggered. For example, if you have programmed the "ding-
dong" sound for the push button to play on the receiver, when the
battery in the push button is low, the receiver will play "ding-dong,"
"ding-dong," double playing to notify you to change the battery.
Programming with Other Receivers:
The ERA-PBTX is compatible with the ERA-VPRX Portable Receiver &
the ERA-DCRX Receiver. The programming is very similar for these
receivers as well. The only change is how to put the respective
receiver into programming mode, choosing a melody, & changing the
zone. Please consult the manual for the specific receiver when
programming.
TECHNICAL SUPPORT
If you encounter any difficulty in the operation of this product after
reading the manual, please contact us. You can reach us by phone at
904-245-1184 from 8:00 AM to 5:00 PM Monday through Friday
(Eastern Standard Time). We will be happy to answer your questions
and help you in any way we can.
WARRANTY
Safeguard Supply warrants this product to be free of defects in material and
workmanship for a period of one year from the date of purchase. This warranty
does not cover damage resulting from accident, abuse, act of God or improper
operation. If this product does become defective, simply return it to Safeguard
Supply. Please include a note describing the troubles along with your name and
return address as well as the original sales receipt. If the product is covered under
warranty it will be repaired or replaced at no charge. If it is not covered by
warranty, you will be notified of any charges before work is done.
Safeguard Supply, 2260 Moon Station Ct. NW #110, Kennesaw, GA 30144
Phone: [phone], www.safeguardsupply.com
Legal Notices
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation. changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
