Safelift Pusharound pa35 User manual

ORIGINAL INSTRUCTIONS

PushAround PA35

32 3

CONTENT

1. Health & safety regulations .................................................. 3

1.1 Notiﬁcation of safety precautions ......................................3

2. Lift components ...................................................................... 4

3. Warning devices...................................................................... 6

3.1 Warning texts .....................................................................6

3.2 User warnings ....................................................................6

4. Machine safety........................................................................ 8

4.1 Requirements for personnel & safety regulations ..............8

4.2 When rebuilding the lift ......................................................9

5. Product information ............................................................... 9

5.1 Load of platform.................................................................9

5.2 Storage compartment for tools..........................................9

5.3 Manufacturer......................................................................9

5.4 Labelling.............................................................................9

6. How to use ............................................................................. 10

6.1 Checks before using the lift .............................................10

6.2 Main power switch...........................................................10

6.3 Key lock ...........................................................................10

6.4 Raising and lowering of platform .....................................10

6.5 Tilt indicator .....................................................................10

6.6 Battery charger switch .....................................................10

6.7 Emergency stop ...............................................................10

6.8 Emergency lowering.........................................................11

6.9 Transport of the lift with a lifting crane.............................11

6.10 Transport of the lift with a forklift......................................11

6.11 Transport of the lift by truck / trailer.................................11

7. Maintenance .......................................................................... 12

7.1 Inspection & maintenance intervals .................................12

7.2 Electrical fuses.................................................................12

7.3 Battery charging...............................................................13

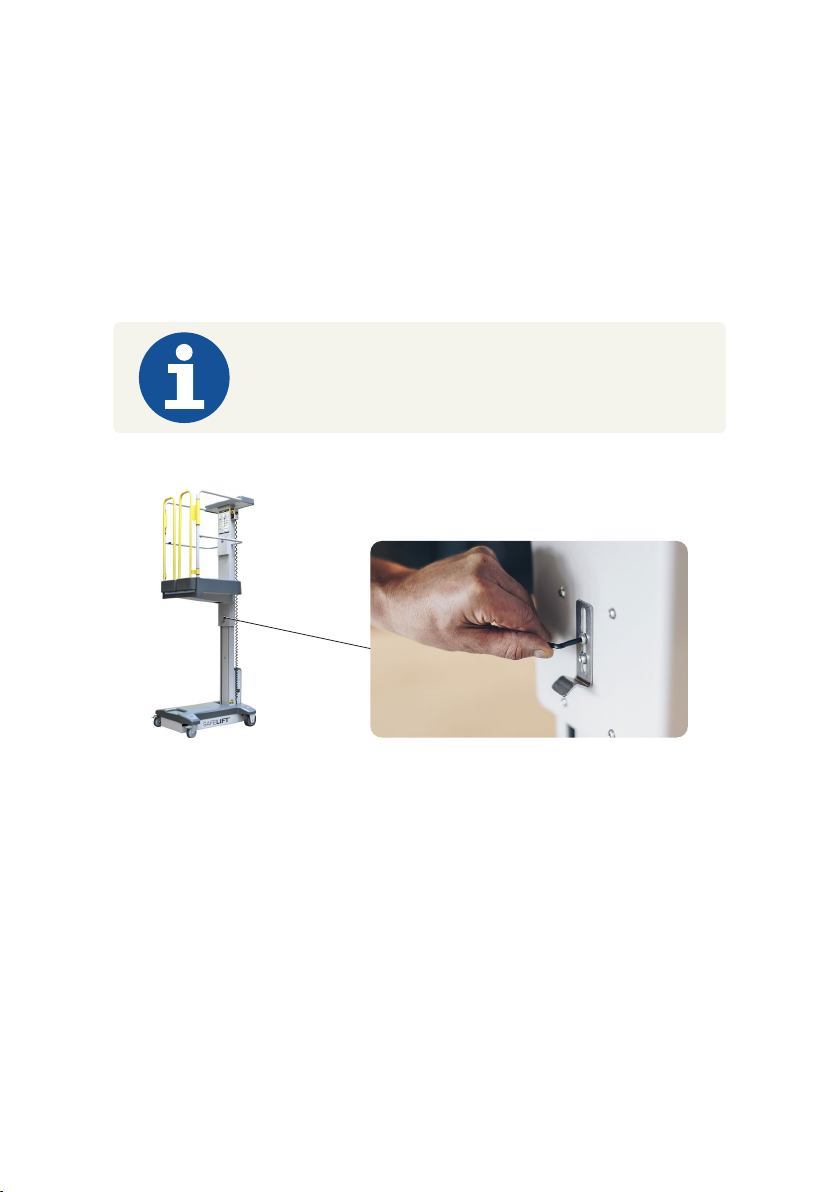

7.4 Adjusting automatic wheel locking ..................................14

8. Technical data ....................................................................... 15

9. Declaration of conformity CE marking ............................. 16

33

1.1 Notiﬁcation of safety precautions

• Before you start using the equipment and performing the

maintenance or service on this equipment, please read the

applicable parts of the instructions.

• Take into account all signs stating Danger, Prohibited,

Requirement and Note that are mentioned in the manual.

• Serious injury to persons and machine damage may occur if this

information is not observed.

• The lift equipment is intended to be used by one operator.

• Consider all electrical equipment as being energized.

• Consider all hoses and pipes as being pressurized.

• For service and maintenance of the equipment / lift, make sure

that the 230V power supply is cut and that the main fuse is in

the OFF position.

• The service and maintenance may only be carried out by

authorized service and maintenance personnel.

• Follow the instructions for maximum load. See the sticker on the

lift and technical data.

1. HEALTH & SAFETY REGULATIONS

The user manual contains instructions for the daily work with

the equipment to be handled and used by the operator. The

user manual must always be available to the operator(s)

working with the equipment.

It is important that:

• The user manual and other applicable documents are retained

throughout the life span of the equipment.

• The user manual and other applicable documents are included

as part of the equipment.

• This user manual is forwarded to other users of the equipment.

• The user manual is updated with any additions or changes to

the equipment.

• The user manual describes the methods used in the use of the

equipment.

4 5

2. LIFT COMPONENTS

1 Safety gates

2 Platform ﬂoor with skirting board

3 Step

4 Swivel wheels, manually lockable

5 Lift platform with safety railing

6 Control panel lift platform

7 Information and warning instructions

8 Storage compartment for operating instructions

9 Adjustment automatic wheel lock

10 Battery charger status

11 Automatic lockable wheels

12 Tool storage compartment

13 Anchorage safety harness

14 Plug 230V for battery charging

10

11

3

4

2

1

5

6

7

8

9

12

13

14

5

15 Emergency stop

16 Key lock

17 Raising and lowering of lift platform

18 Main power switch (24V)

19 Button for emergency lowering

20 Battery charge switch

21 Tilt indicator (spirit level)

15

16

17

18

19

20

21

6 7

3. WARNING DEVICES

Annual inspection of warning devices and protective devices must

be carried out. This refers to the control of their function and status.

WARNING!

Ignoring this information will result in immediate danger to life.

PROHIBITED!

Prohibited action associated with danger or death or serious

injury!

REQUIREMENT!

Prescribed use of personal protective equipment or other aids.

NOTE!

Information that requires special attention.

Read and understand all instructions and safety

information before use

All personnel must carefully read, understand and follow all

safety instructions, as well as operating instructions in this

instruction manual before performing operation or maintenance.

Tilting hazard

NEVER raise the platform or transport with a raised platform on

anything other than a horizontal solid surface.

Risk of collision

NEVER operate the machine before having checked that the

area around the machine is free of obstacles or other hazards.

3.1 Warning texts

3.2 User warnings

7

Never increase the height of the platform by using stairs or

ladders etc.

The lift may only be used indoors on ﬂat and solid surfaces that

are suitable for the load of the lift.

The lift must not be used as a crane.

The lift must not be exposed to liquids, humid environment or a

temperature below 0 °C.

Risk of falling

NEVER climb, sit or stand on the platform railing. If the platform

cannot be lowered, NEVER climb down the mast.

Electricity

This machine is not isolated against electric current. It is

therefore necessary to have a correct safety distance to the

high-voltage conductors or other current carrying objects.

Always lock the swivel wheels to prevent the lift from

being moved unintentionally!

Automatic locking of the front wheels occurs when the platform

is raised.

Risk of crush injury

To prevent crush injuries, make sure that people or other

equipment are not within the lift’s working area. Observe the

danger signs that are placed on the lift.

Make sure that the safety gate is closed when using the

platform.

Make sure that the operator uses appropriate safety equipment.

WARNING!

Do not stand under the platform when this is being secured in

the raised position or when it is removed.

8 9

4. MACHINE SAFETY

The machine is marked with a CE mark. This means that it is

designed, manufactured and described in accordance with EU

Machinery Directive 2006/42/EC (see also page 16).

4.1 Requirements for personnel & safety regulations

To avoid personal injury and machine damage, operator and

operating personnel must be specially instructed or trained

according to the manufacturer’s instructions. Operator and

operating personnel may only handle the parts on which they have

been instructed or trained. All controls and buttons must only be

operated by hand, ie they must never be activated with aids of any

kind, unless otherwise provided. The operator must never leave the

lift unattended so that unauthorized persons can be injured.

• The lift may only be used by personnel who have competence

regarding the lift and may only be used when the user has read

and understood the content of the current user description.

• The lift may only be used for the predetermined purpose and

only with the ﬁtted protective devices. All applicable safety

regulations must be observed.

• Daily maintenance work may only be performed by personnel

who have competence regarding the lift.

• Electrical work may only be performed by a trained professional.

• Work on current-carrying objects is not permitted.

• Modiﬁcations, repairs and alterations to the lift may only be

carried out in accordance with current safety regulations.

• Only original spare parts are allowed for repairs.

Make sure that the working area around the lift is protected from

people or other equipment.

Never push or pull objects with the lift.

Lock the lift when not in use to prevent unauthorized use.

Lock the swivel wheels when the lift is parked.

9

4.2 When rebuilding the lift

If the lift is rebuilt or supplemented with other parts not approved

by the manufacturer, this CE marking does not apply to the parts

that change the function of the lift. Warning decals and CE marking

on the lift must be clearly visible. If any machine part with warning

sticker is replaced, new warning stickers must be mounted in

the same place as before. Damaged decals and CE mark must

be replaced immediately. If the lift is rebuilt after approval from

the manufacturer or supplemented, it is very important that this

instruction is immediately supplemented / adjusted with the

necessary illustrations, photographs and texts.

5. PRODUCT INFORMATION

5.1 Load of platform

The lift may be loaded with a maximum of 130 kg (user + tools). The

load must be evenly distributed over the surface.

5.2 Storage compartment for tools (12)

The tool storage compartment, which is located on top of the lift

platform, may be loaded with a maximum of 10 kg.

5.3 Manufacturer

This lift is made by:

Låglyftar i Sverige AB

Kvarnvägen 14

SE-352 41 Växjö

SWEDEN

5.4 Labelling

The lift is ﬁtted with this nameplate:

Model: PA35

Manufacturing year: 20XX

Serial number: 2XXXXX

Lift weight: 236 kg

Maximum load (SWL): 130 kg / 1 person

Maximum inclination for operation: 0°

Maximum manual force: 200 N

Maximum wind force: 0 m/s

Lågliftar i Sverige AB

Kvarnvägen 14, SE-352 41 Växjö, Sweden

10 11

6. HOW TO USE

6.1 Checks before using the lift

1. Inspect the lift for any damage that may aect safety.

2. Check that the batteries are charged (10). Battery charger

light should be green. NOTE! The charging cord (14) must be

connected to read the status.

3. Disconnect plug (14) to use the lift.

4. Check the function of the automatic wheel lock (11). It should

not be possible to move the lift when the lift platform is raised.

5. Check the function of the wheel brakes on the swivel wheels (4).

6.2 Main power switch (18)

The lift's main power switch must be activated when the lift is in use.

Always switch o the main switch when not in use to save power.

6.3 Key lock (16)

The key lock must be in the "ON" position when the lift is in use and

in the "OFF" position when the lift is locked.

6.4 Raising and lowering of platform (17)

Press the upper part of the control button to raise the platform.

Press the lower part of the control button to lower the platform.

6.5 Battery charger switch (20)

The power switch must be in position "1" when charging batteries.

NOTE! When batteries are not being charged, the power switch

must be in position "0", otherwise power is consumed.

6.6 Tilt indicator (21)

The lift is equipped with a tilt indicator (spirit level), so that the

operator can check that the lift is only used on a level surface. When

the bubble is located in the centre of the spirit level, the lift is safe to

use. Maximum permitted inclination is 0°.

6.7 Emergency stop (15)

The lift is equipped with an emergency stop function. Press the

All safety regulations, operating instructions, labels and national

safety instructions / requirements must be carefully read,

understood and complied with.

11

NOTE!

Lock the swivel wheels manually. Protect the

chassis cover and fasten the lift chassis to the

pallet with at least 2 straps so that it is ﬁrmly

anchored. Do not overtighten the straps as this

may damage the plastic cover of the chassis.

emergency stop button to turn o the power. Rotate the emergency

stop button clockwise to reactivate the power.

6.8 Emergency lowering (19)

The lift is equipped with an emergency lowering system. Emergency

lowering of the platform is done with a switch that is located on the

lift chassis control panel.

6.9 Transport of the lift with a lifting crane

Make sure that the lift is anchored and cannot tip over or come

loose when lifted.

6.10 Transport of the lift with a forklift

6.11 Transport of the lift by truck / trailer

• The lift must be ﬁrmly anchored to a pallet during transport by

truck / trailer.

• The lift must be in the lowered position during transport.

• Cover the lift to protect it from dirt and moisture.

• Load-proof the lift on the truck / trailer.

WARNING!

If the platform can’t be lowered, NEVER climb the mast. Ask

someone on the ground to turn on the emergency lowering

button to lower the platform. Keep a safe distance to the mast

when the emergency lowering is activated.

WARNING!

Lifting with forklift is only for transport of the lift. Must never be

used to increase the lifting capacity. Check the weight of the

machine in the speciﬁcations and make sure the forklift truck

has a sucient lifting capacity to lift the machine. The arms of

the forklift are placed under the machine from the side.

12 13

7. MAINTENANCE

7.1 Inspection & maintenance intervals

A complete inspection consists of periodic visual and functional

checks along with minor adjustments in order to ensure the function.

The daily inspection prevents the abnormal wear and prolongs the

life of all machine systems.

Inspection and maintenance will be performed at speciﬁed

intervals. Inspection and maintenance must be carried out by

trained personnel who are knowledgeable in terms of electrical and

mechanical functions.

7.2 Electrical fuses

The lift has 3 electrical fuses that are located inside the plastic

covers on the chassis:

• Main fuse - 30A (blade fuse)

• Partial fuse - 315mA, 250V (glass fuse 5x20 mm)

• Emergency battery fuse - 30A (blade fuse)

REQUIREMENT!

Before performing daily maintenance, learn how the lift works

and is operated.

VARNING!

Always secure the platform from moving when maintenance is

performed with the platform raised.

13

7.3 Battery charging

The lift’s batteries are located under the chassis control panel. The

batteries are of AGM type, they are leak-proof and cannot be reﬁlled

with battery ﬂuid. When batteries need to be replaced, this should

only be done with batteries approved by the manufacturer.

The status of the battery charge can be seen on a lamp located next

to the chassis pillar (10). The plug (14) must be connected to 230V

to be able to read the status. The lift’s built-in charger optimally

charges the batteries, so that overcharging cannot take place.

Battery acid is very corrosive. Always wear safety goggles

when working with and near the batteries. Immediately rinse

any spilled acid with clean water. Consult a physician in case of

contact with battery acid.

WARNING!

Charge the batteries in a ventilated area. Do not charge the

batteries near open ﬁre or where there is a risk of sparks being

generated.

Red light - Charging in progress

Green light - Charging complete

NOTE!

The charger must be connected to a socket with earth-fault

protection. Do not use the lift while charging.

NOTE!

The switch on the chassis control panel must be in position "1"

for charging to take place. When charging is not required, the

switch should be in position "0".

1514 15

7.4 Adjusting automatic wheel locking

The lift is equipped with an automatic wheel lock (11). The wheel

lock consists of a wire that is pressed down by an adjustable wire

pusher. The wire pusher (9) is located under the platform ﬂoor, see

picture below. After a period of use, the wire may become stretched

and the wire pusher may need to be adjusted downwards (the wire

pusher does not push down the wire suciently to disengage the

wheel lock). This can be solved by loosening the two allen screws

and adjusting the wire pusher down.

DO NOT adjust the wire pusher too far, as the wire may tighten

too hard and fall o. Adjust the cable pusher down in 2 mm

increments, and lower the platform to its lowest position after

each step, to check that the wheel lock is deactivated and the

lift can be moved.

1515

8. TECHNICAL DATA

Total number of people on the platform ........................................................................ 1

Maximum total platform load ............................................................................... 130 kg

Maximum load on tool storage compartment ........................................................ 10 kg

Lifting time (130 kg)............................................................................................... 14.5 s

Weight .................................................................................................................. 236 kg

Maximum wheel load ............................................................................................. 97 kg

Maximum inclination of lift at work...............................................................................0°

Maximum manual lateral force on platform............................................................200 N

Maximum wind speed (indoor use only)................................................................. 0 m/s

Noise level ...................................................................................................... < 70 dB(A)

Power source .............................................2 pcs 12V batteries, 9Ah, maintenance-free

Power source emergency lowering .........................12V battery, 9Ah, maintenance free

System voltage.......................................................................................................... 24V

Battery charger................................................................................ 230V, 50 Hz / 60 Hz

Lifting system .......................................... Electric motor with gear, double lifting chains

Wheels.....................................................Polyurethane wheel coating, leaves no marks

Parking brakes (Front)................................... Automatic locking when platform is raised

Parking brakes (Rear) .................................................Swivel wheels, manually lockable

A Working height ................................................................................. 3500 mm

B Platform height ................................................................................. 1500 mm

C Total lift height (lowered)................................................................... 1550 mm

D Total lift height (raised)...................................................................... 2552 mm

E Total lift width ..................................................................................... 697 mm

F Total lift length .................................................................................... 995 mm

G Width of platform................................................................................ 550 mm

H Length of platform.............................................................................. 645 mm

I Height of platform railing.................................................................. 1100 mm

J Height of skirting board...................................................................... 150 mm

K Height to platform ﬂoor ...................................................................... 422 mm

L Wheel diameter.................................................. Front 160 mm, Rear 125 mm

M Turning radius ..................................................................................... 890 mm

N Stroke length .................................................................................... 1078 mm

16 17

Declaration of conformity

Manufacturer: Låglyftar i Sverige AB

Kvarnvägen 14

SE-352 41 Växjö

SWEDEN

Låglyftar i Sverige AB, VAT-no: SE 556820966101, declares

that the following products:

PushAround PA35

Serial number:

Year of manufacture:

is manufactured in accordance with the following product

directive:

2006/42/EC; 2014/30/EU; 2014/35/EC

and in accordance with the following harmonized standards:

EN ISO 12100:2010, EN ISO 13849-1:2008, EN ISO 13850:2008,

EN ISO 14121-2:2012, EN ISO 60204-1:2006, EN ISO 7731:2008,

EN 280-1:2022

Växjö ..............................

Bo Arrhén

CEO

Låglyftar i Sverige AB

Kvarnvägen 14

SE-352 41 Växjö

SWEDEN

9. DECLARATION OF CONFORMITY

CE MARKING

VAT-no:

SE 556820966101

02

17

NOTES

..............................................................................................................

.............................................................................................................

..............................................................................................................

.............................................................................................................

..............................................................................................................

18 19

NOTES

..............................................................................................................

.............................................................................................................

..............................................................................................................

.............................................................................................................

..............................................................................................................

19

NOTES

..............................................................................................................

.............................................................................................................

..............................................................................................................

.............................................................................................................

..............................................................................................................

20 20

WEBSITE

www.safelift.se

E-MAIL

[email protected]

ADDRESS

Låglyftar i Sverige AB

Kvarnvägen 14

SE-352 41 Växjö

Sweden

Safelift PushAround PA35 User manual

Popular Lifting System manuals by other brands
