Safety Vision SAFEDRIVE 2020 User manual
SAFEDRIVE 2020
USER GUIDE
SAFEDRIVE 2020 uSER guIDE
1
Safety Vision attempts to provide information
contained in this manual based on the latest
product information available at the time of
publication. However, because of Safety Vision’s
policy of continual product improvement, Safety
Vision reserves the right to amend the information
in this document at any time without prior notice.
This material is condential and the property of
Safety Vision. It is shared with your company for the
sole purpose of helping you with the operation of
the described equipment.
Safety Vision makes no warranty of any kind with
regard to this material, including, but not limited
to, the implied warranties of merchantability and
tness for a particular purpose. Safety Vision shall
not be liable for errors
contained herein or for incidental or consequential
damages in connection with the furnishing,
performance, or use of this material.
Safety Vision expressly disclaims all responsibility
and liability for the installation, use, performance,
maintenance, and support of third-party products.
Customers are advised to make their independent
evaluation of such products.
No part of this document may be photocopied,
reproduced, or translated to another language
without the prior written consent of Safety Vision.
Safety Vision® is a registered trademark of Safety
Vision, LLC. All other products or name brands
mentioned in this document are trademarks of their
respective owners. For more information about
Safety Vision and its products, go to
www.safetyvision.com or call 800-880-8855.
Important Notices
Title: SafeDrive 2020 User Guide
Document Version: 1 Revision: 0
SAFEDRIVE 2020 uSER guIDE 4
Explore Surfsight
• CAPTURE THE DRIVE - Simultaneously capture the road and cabin to
detect distracted driving and dangerous driving events.
• LIVE VIDEO - View live video Live from vehicle, from any device.
• AI DRIVER ASSISTANCE - Provide visual and audio alerts of distracted
and dangerous driving events.
• CLOUD MANAGEMENT -
Instant access to view
and download live
video, events and
recordings
SAFEDRIVE 2020 uSER guIDE
5
Components
Road-facing Camera
1 - Mounting bracket
2 - 1080P HD adjustable 140° angle
camera
3 - Auxiliary (USB-C) input
4 - Power input
SAFEDRIVE 2020 uSER guIDE 6

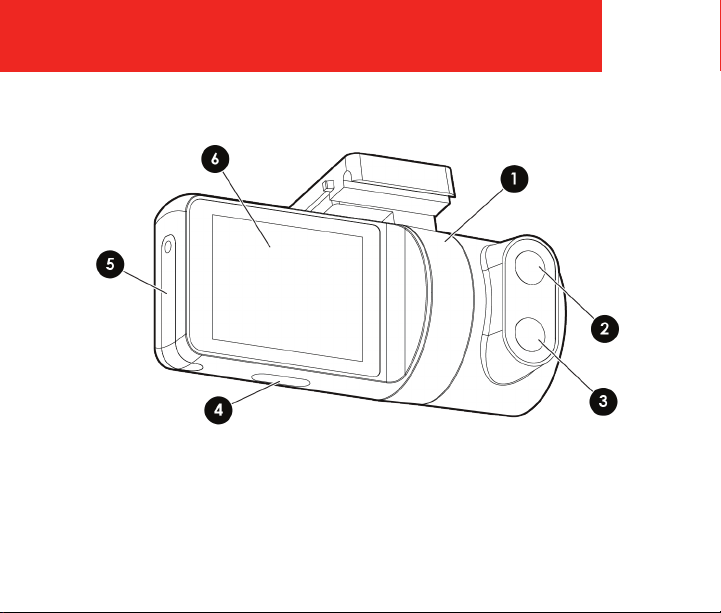

Cabin-facing camera
1 - Rotating and locking rings
2 - 720P HD adjustable wide angle
camera
3 - IR for clear night vision
4 - SOS button
5 - Tamper resistant cover for SIM
and SD card slots
6 - Touch screen
SAFEDRIVE 2020 uSER guIDE
7
Installation
SIM and SD Card Removal / Insertion
The card access door is secured by a safety screw and can only be opened
when the screw is
loosened with the
included specialty
screwdriver.
Do not force either card
into the slot upside down
or backwards.
Do not remove either card
until the SafeDrive 20/20
unit is powered off.

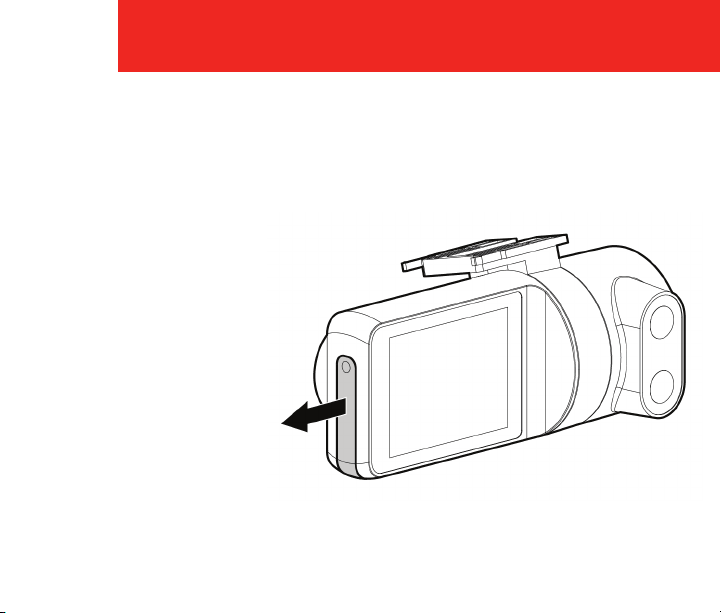

1. Unscrew the safety
screw that locks the tamper proof case using the included specialty
screwdriver and remove the cover.
SAFEDRIVE 2020 uSER guIDE 8

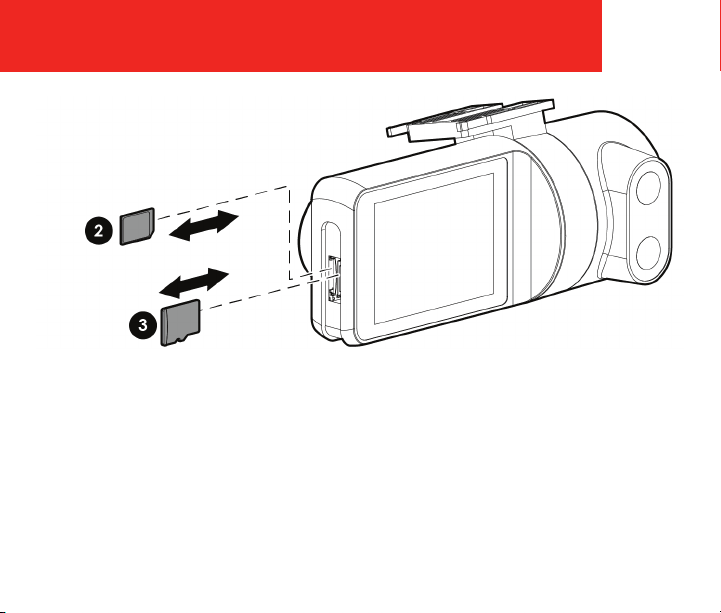

2. Insert a SIM card into the SIM card slot until it clicks in place.
3. Insert an SD card into the SD card slot label-side up, with the notch down,
until it clicks in place.
4. To remove either card, press the card as far as it will go in the slot, then
allow it to “spring” out.
5. Replace the tamper proof cover and screw the safety screw in securely.
SAFEDRIVE 2020 uSER guIDE
9
Camera Mounting
Before you start, make sure that the vehicle is parked on a level surface and
that the windshield is clean and dry.
1. Attach the mounting bracket onto the camera until it clicks in place.
SAFEDRIVE 2020 uSER guIDE 10

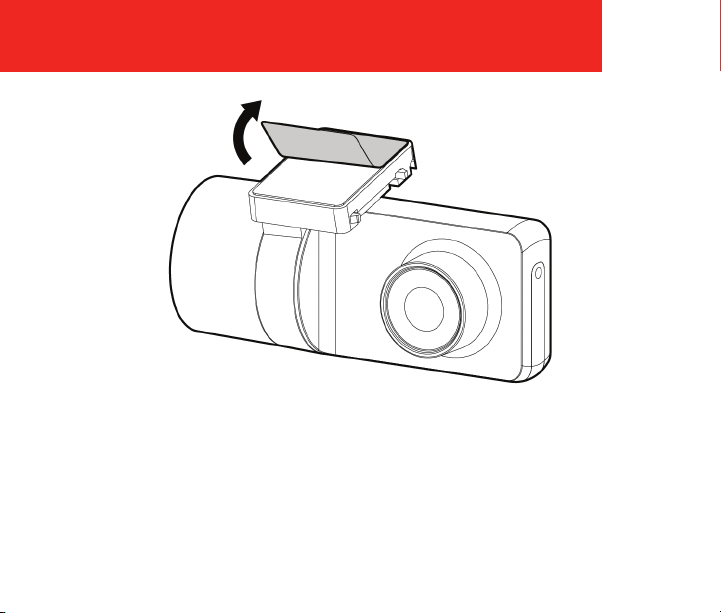

2. Remove the 3M adhesive tape cover, and mount the camera to the
windshield.
3. Place the camera as high as possible on the driver side of the vehicle.
DO NOT INSTALL THE SAFEDRIVE 20/20 IN A LOCATION WHERE IT CAN
OBSTRUCT THE DRIVERS FIELD OF VISION.
SAFEDRIVE 2020 uSER guIDE
11
Adjusting the Viewing Angle
1. Shut down the SafeDrive 20/20 completely and unplug power cable.

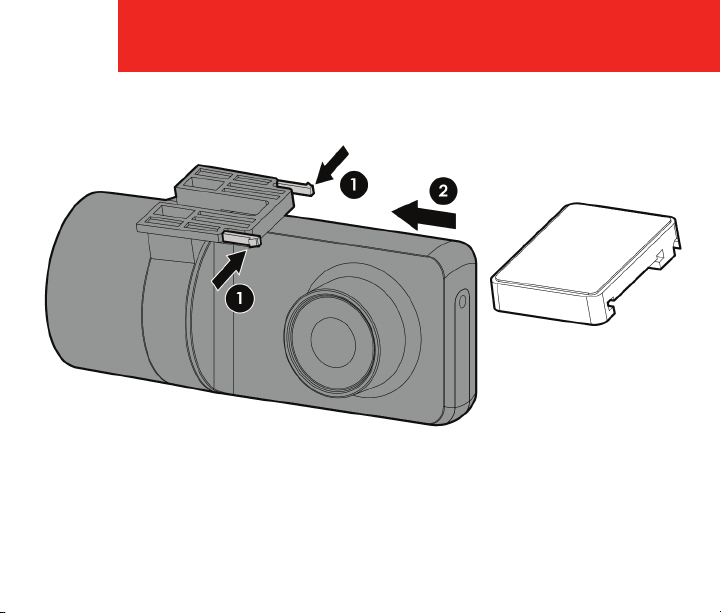

2. Dismount the SafeDrive 20/20 from the mounting bracket on the
windshield. To dismount the camera, press clips inward and slide camera
o of the bracket. Make sure that the mounting bracket is not attached,
as it locks the camera into position.
SAFEDRIVE 2020 uSER guIDE 12

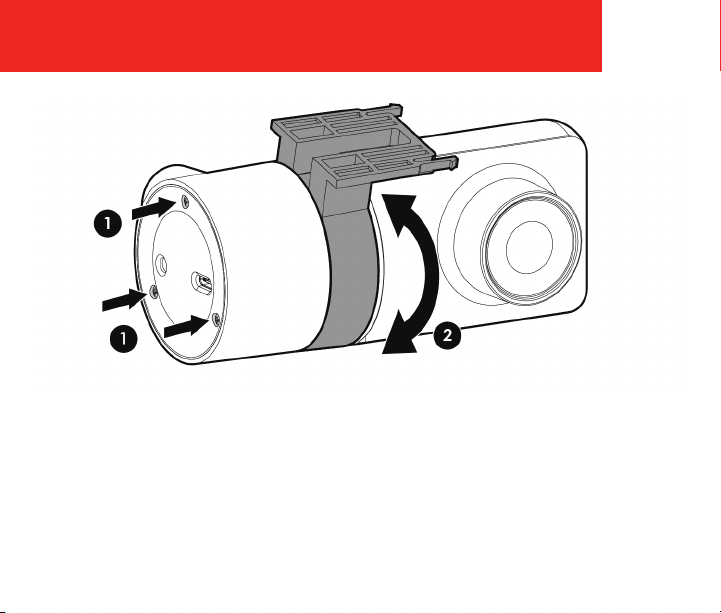

3. Use the included screwdriver to loosen the three security screws on the
round side of the camera. Do not remove the screws completely.
4. Adjust the viewing angle by rotating the body of the SafeDrive 20/20 and
fasten the three side screws when nished.
5. Mount the camera back onto the windshield.
SAFEDRIVE 2020 uSER guIDE
13
6. Re-connect the power cable to the SafeDrive20/20 (See Connecting to a
Power Source).
7. The SafeDrive20/20 will turn on automatically.

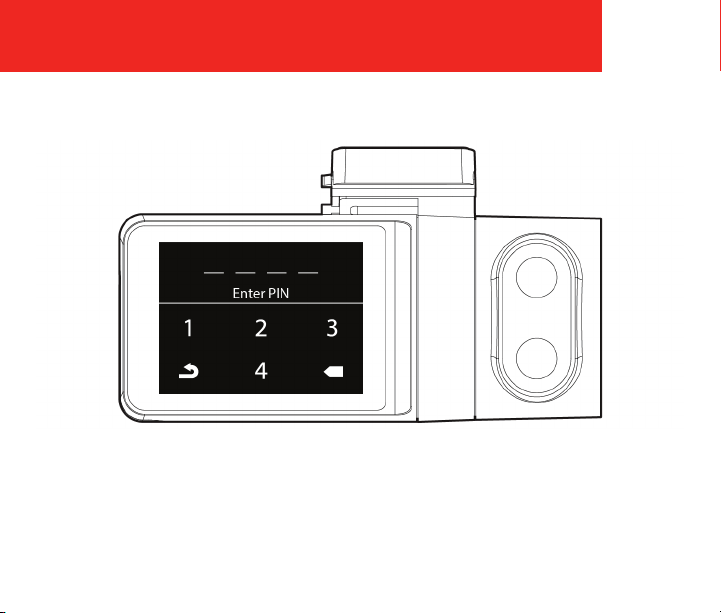

The default PIN number 3333
SAFEDRIVE 2020 uSER guIDE 14
8. On the main screen enter the Live View mode.
9. Use the ‘Live View’ to direct the road facing camera and the cabin facing
camera to the proper direction. You can use the arrow keys to switch
between the views.
10. Dismount the camera from the windshield and screw in the security
screws all the way. Mount the camera back on the windshield.
SAFEDRIVE 2020 uSER guIDE
15
Connecting to a Power Source
• The SafeDrive 20/20 may only
be connected to a power
source using the supplied
cables.
• The camera’s cylinder side
is where the input power
connector is located.
• If using the USB cable as the
power source, it must provide
5V DC and at least 2A.
• In order to utilize the
Safedrive 20/20’s full features such as active standby, the camera must
be connected to a constant 12V power source.
SAFEDRIVE 2020 uSER guIDE 16

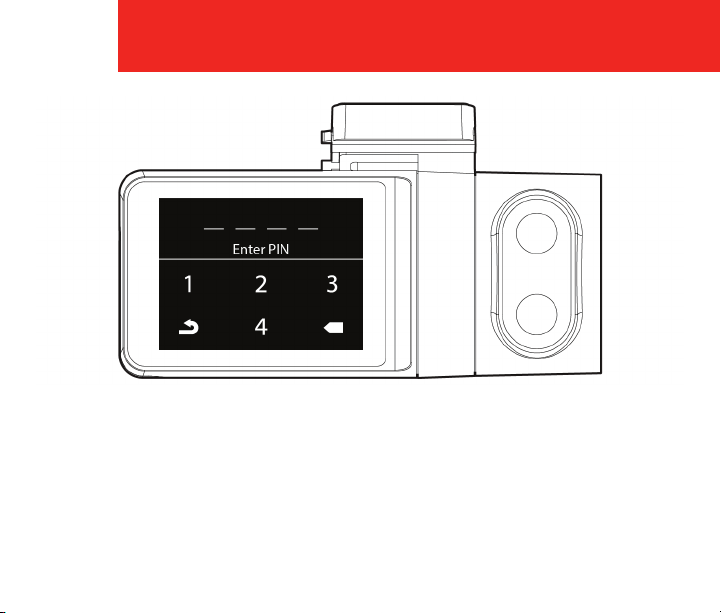

Settings Menu
1. Press the camera touchscreen.
2. Enter the PIN number.
The default PIN number 3333
3. The camera is now unlocked and the Settings menu is now accessible.
SAFEDRIVE 2020 uSER guIDE
17
Calibrating the Sensors
The SafeDrive 20/20 contains an internal accelerometer that detects unsafe
driving events. The accelerometer is not calibrated in advance as the
installation in every vehicle is dierent. Please follow the following steps to
calibrate the accelerometer. Before you start, make sure that the vehicle is
parked on a level surface.
• Turn on the vehicle’s ignition.
• Check that the camera is on.
• Press the touchscreen and enter the security PIN.
• Enter into the Settings menu.
• Select Calibrate.
The calibration process takes about a second.
Note: Recalibration is required in case of transferring the dashcam to another
vehicle.
SAFEDRIVE 2020 uSER guIDE 18
Settings
Enter the Settings mode in the main menu to set the following on the
camera:
• WiFi Hotspot
• Video Preset
• Select APN
• Add APN
• Driver Camera
• Text Overlay
• Distracted Driver
• In-Cabin Recording
• Driver Position
• U.S. Date format
• Speed in MPH
• Audio Alarms
• Notify Live Streaming
• Change PIN
• Change Driver PIN
• Calibration
• Brightness
• Serial Number
• Format SD Card
• Power O
SAFEDRIVE 2020 uSER guIDE
19
View Live Video
1. Enter the Live View mode in the main menu.
2. The live video will be displayed on the screen.
3. Use the arrow keys below the screen to switch between the road and
cabin facing cameras.
4. Use the arrow back button to return to the main menu.
