SAGEMCOM DS186 HD Freesat User manual

User Manual
Freesat HD
Digital Satellite TV receiver
DSI86 HD Freesat
UG 253442997-C DSI86 HD Freesat UK.book Page 1 Jeudi, 13. octobre 2011 10:30 10

DSI86 HD freesat
2
CONGRATULATIONS!
This Receiver is a new generation of Sagemcom receiver dedicated to Digital Satellite Television.
Once you have connected your receiver and performed the initial installation, you will be able to
watch and enjoy freesat HD and SD channels. You can update your receiver if new functions or
services become available.
The Sagemcom Receiver follows a continuous development strategy. Therefore, we reserve the
right to make changes and improvements to the product described in this user manual without
any prior notice.
CE marking:
The CE marking certifies that the product complies with the essential requirements of the
Directive1999/5/EC concerning radio equipment and telecommunication equipment, and of
Directives 2006/95/EC concerning safety, 2004/108/EC concerning electromagnetic compatibility
and ErP 2009/125/EC concerning ecodesign requirements, defined by the European Parliament
and Council to minimize electromagnetic interferences, ensure the safety of users and their
equipment and protect their health, and minimize the impact of products on the environment.
The CE declaration of conformity can be viewed in the support section of the Sagemcom site
www.sagemcom.com, or it can be obtained from the following address:
Sagemcom Broadband SAS - Customer Relation Service
250, route de l’Empereur
92848 Rueil-Malmaison Cedex - FRANCE
Copyright © Sagemcom Broadband SAS
All rights reserved
Sagemcom is a registered trademark.
"freesat" is a registered trademark and the "freesat" logo is a trademark of Freesat (UK) Ltd.
This "HD TV" Television Receiver complies with the "HD TV" Minimum Requirements. The "HD
TV" Logo is a trademark of DIGITALEUROPE. HDMI, HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI Licensing LLC. Dolby Digital and
AC-3 are registered trademarks of Dolby Laboratories Inc.
DTS is a registered trademark of Digital Theater Systems, Inc.
Telephone number for your local store is on your till receipt.
Should your Store be unable to help, please check the following Website Link for reception:
http://www.freesat.co.uk
IMPORTANT NOTICE
Before unpacking this product further
Have you or your local store checked your Postcode for reception?
UG 253442997-C DSI86 HD Freesat UK.book Page 2 Jeudi, 13. octobre 2011 10:30 10

DSI86 HD freesat
3
Table of contents
1. Product overview ........................... 4
Pack Contents............................................. 4
Front panel of the receiver .......................... 5
Rear panel of the receiver........................... 6
Remote control............................................ 7
2. Safety recommendations............... 8
Where to put your receiver?........................ 8
Warnings and safety instructions ................ 8
Batteries ...................................................... 9
Interference ................................................. 9
Cleaning the receiver .................................. 9
3. Environment ................................. 10
Meaning of logos present on the product
or its packaging ......................................... 10
Product recycling and disposal ................. 10
European Directive on Waste Electrical
and Electronic Equipment (WEEE) ........... 11
Directive on the Restriction of use of
certain hazardous substances in
electronic equipment (ROHS) ................... 11
Electrical consumption of the receiver ...... 11
4. Connections.................................. 12
Connection to the satellite dish ................. 12
Connection to the TV set........................... 13
Connection to the VCR/DVD recorder ...... 14
Connection to a home cinema amplifier.... 14
Connection to a hi-fi unit ........................... 15
5. First installation............................ 16
Freesat Settings ........................................ 16
Main Settings ............................................ 17
Channel Search ........................................ 17
6. Everyday Use ................................ 18
Selecting a channel ................................... 18
Adjusting the audio volume........................ 19
Changing the favourites list ....................... 19
Temporarily selecting audio languages
and subtitles............................................... 20
Teletext and interactive services ............... 20
Electronic programme guide...................... 20
7. Recording programmes
to VCR/DVD ................................... 22
Recording programmes manually.............. 22
Recording programmes from
the Electronic programme guide................ 23
8. Installation menus ........................ 24
Icons .......................................................... 24
User settings ............................................. 24
Managing channels and favourite lists ...... 26
Receiver settings ...................................... 27
9. Information Menu.......................... 31
Signal Information...................................... 31
Receiver Information.................................. 31
10. Software Update ........................... 32
11. Troubleshooting ........................... 33
12. Customer support......................... 35
13. Guarantee terms ........................... 36
14. Technical specifications .............. 38
UG 253442997-C DSI86 HD Freesat UK.book Page 3 Jeudi, 13. octobre 2011 10:30 10

DSI86 HD freesat
4
1. Product overview
Your Receiver is a digital receiver that lets you watch freesat HD and SD channels.
Pack Contents
Your new equipment includes:
N° Description
11 freesat HD Digital TV receiver
21 power supply unit (power adapter and power cord)
31 remote control with 2 batteries (AAA)
41 HDMI lead for connection to the HD TV set
51 installation guide
61 freesat presentation leaflet
7This User Manual
UG 253442997-C DSI86 HD Freesat UK.book Page 4 Jeudi, 13. octobre 2011 10:30 10

DSI86 HD freesat
Getting started
5
Front panel of the receiver
Item Description Item Description
1USB port: To allow manual software
updates 4Change channels
2
Digital display
•Shows the current time when the
receiver is in standby.
•Shows the programme number when
the receiver is on.
5
Standby button
•Put the receiver in standby
mode / Wake up the receiver from
standby mode (press and let go).
•Restart the receiver (press and hold
for 5 sec.)
3Status indicator
UG 253442997-C DSI86 HD Freesat UK.book Page 5 Jeudi, 13. octobre 2011 10:30 10

DSI86 HD freesat
6
Rear panel of the receiver
Item Description Item Description
6Satellite dish input 10 Scart connector (to VCR or DVD
recorder)
7Ethernet port (for the use of BBC
iPlayer) 11 Digital audio connector (S/PDIF)
8HDMI Digital video audio connector 12 Analogue audio connectors (to Hi-Fi
unit)
9Scart connector (to TV) 13 Power supply unit connector
UG 253442997-C DSI86 HD Freesat UK.book Page 6 Jeudi, 13. octobre 2011 10:30 10

DSI86 HD freesat
Getting started
7
Remote control
Batteries
The remote control needs two batteries (AAA) to operate. The drawing in the battery compartment
indicates how to install them. The batteries provided are not rechargeable.
Key Functions
1Put the receiver in standby mode / Wake up
the receiver from standby mode
2Access channels and various on-screen
options
3Display programme information and options
4Turn the volume up or down
5Turn the sound off or on
6Move in a page, a menu…
7Go back to the previous screen or mode
8Schedule a recording from the electronic
programme guide (EPG)
9On-screen options (MHEG, Teletext pages and
menu)
10 Select audio tracks and activate/deactivate
audio description
11 Select subtitles
12 Display the electronic programme guide (EPG)
13 Change channels
14 Access menus
15 Display the channel list, confirm a selection
16 Exit a screen, a mode
17 Display Teletext pages when available
Note: Undocumented keys are not used on this product.
UG 253442997-C DSI86 HD Freesat UK.book Page 7 Jeudi, 13. octobre 2011 10:30 10

DSI86 HD freesat
8
2. Safety recommendations
Use of the receiver is subject to safety measures designed to protect users and their environment.
Where to put your receiver?
In order to guarantee the correct operation of your receiver, you must:
•place it indoors to protect it from lightning, rain, and sun rays,
•place it in a dry and well ventilated area,
•keep it away from heat sources such as radiators, candles,
lamps, etc.
•protect it from dampness, place it on a flat surface from where it will
not fall and is out of reach of the children,
•avoid violent shocks. Choose a stable, horizontal surface on
which the receiver will not be exposed to intense vibrations.
•do not place anything on top of your receiver (as it would restrict
ventilation): the ventilation slots located on the casing prevent
your receiver from overheating. If you place the receiver in a
compartment, leave a space of at least 10 cm on each side and
20 cm on the front and back of the receiver,
•connect it directly to the mains with the provided cords, the socket must be near the receiver and
easy to access. The use of an extension cable (with multi-points) is not recommended.
Warnings and safety instructions
NEVER OPEN THE RECEIVER OR THE POWER SUPPLY UNIT! YOU RISK GETTING AN
ELECTRIC SHOCK.
•Use only the power supply unit supplied with the receiver to connect it to the mains.
Other practice may be dangerous.
•As a precaution, in case of danger, the power supply unit act as a disconnecting mechanism
for the 230 V power supply. That is why it is imperative that you connect the receiver to a
power outlet located nearby and easily accessible.
•Connect the receiver to the mains in accordance with the indications mentioned on the identification
label affixed on the receiver (voltage, current, frequency of electricity network).
•The identification label is located under the receiver or on the rear panel.
•You must imperatively connect the power supply unit to the receiver before connecting the power
supply unit to the power socket. Ensure the power cord is correctly connected to the mains power
socket and to the receiver. Otherwise, there is a risk of fire and you risk getting an electric shock
when touching the receiver.
•You must imperatively use the receiver in an environment that complies with the following
requirements:
•temperature of between 0°C [32°F] and 40°C [104°F].
•ambient humidity of between 20% and 90%.
•altitude below 2000 m/ 6562 ft.
•To avoid short-circuits (fire or electrocution hazard), do not expose your receiver to dampness. Do
not place any object containing liquid (vase for example) on the appliance. The receiver must not be
splashed with liquid. If liquid is upset onto the receiver, unplug it immediately from the mains and
consult your supplier.
UG 253442997-C DSI86 HD Freesat UK.book Page 8 Jeudi, 13. octobre 2011 10:30 10

DSI86 HD freesat
Getting started
9
•Take care not to allow liquids or metal objects to enter the receiver through the ventilation slots.
•Avoid reconnecting the receiver after it has been subjected to large changes in temperature.
•The receiver must be disconnected from mains supply (from the power outlet or rear panel) before
any modification of connection between TV, VCR or dish.
•In the event of a storm, it is advisable to unplug the dish. Even if the receiver and the television set
are disconnected from the power supply, lightning can still damage them.
•If you hear unusual noise coming from the mains power socket or from the power cord or adapter,
disconnect immediately the power cord from the mains power socket in accordance with all the
precautions of use, you risk getting an electric shock, and contact your retailer.
•Never connect the receiver to a mains power socket which is loose, shows signs of wear or
damage, you risk getting an electric shock.
•Never touch the power cord with wet hands. You risk getting an electric shock.
•When connecting or disconnecting the power cord, always take hold of the plug without pulling on
the cord. A damaged cord presents a potential risk of fire or electric shock. Never pull the power
cord when disconnecting from the mains power socket.
•Never place objects on the power cord, and never pull on it or fold it. This may cause a risk of fire or
electric shock. Ensure that the receiver never lies on the power cord or any other cables.
•Never place objects on the power adapter, never step on it or roll over it with a rolling device. You
risk damaging the power adapter and creating a risk of fire or electric shock.
•Ensure the receiver is placed on a flat and stable surface, placing it incorrectly may lead to the
power cord being disconnected. This may cause a risk of fire or electric shock.
•Always connect the power adapter cord to the receiver first, then connect the power cord to the
power adapter, and finally connect the power cord to the mains power socket. By not observing the
order indicated, you risk getting an electric shock.
•Ensure the power cord is correctly connected to the power adapter, and that it is firmly inserted in its
slot. It is important that you push the connector into its slot. There is a risk of fire or electric shock in
case of incorrect connection.
•Always keep the power cord and power supply unit out of the reach of children or domestic animals.
•Only personnel approved by the manufacturer can repair the receiver. Failure to comply with these
safety precautions will invalidate the guarantee.
•Have a specialised installer perform all connections if you want to use cables that are not provided
with the receiver.
Batteries
Batteries are easily swallowed by young children. Do not allow young children to play with the remote
control.
Always keep batteries away from excessive heat sources such as sun rays, fire or similar sources.
To avoid damaging the remote control, only use identical batteries or batteries of equivalent type. The
batteries provided are not rechargeable.
Interference
Do not place the receiver near appliances that may cause electromagnetic interferences (for example
loudspeakers). This could affect receiver operation and distort the picture or sound.
Cleaning the receiver
The outer casing of the receiver can be cleaned with a soft and dry cloth. Do not use any type of
abrasive pad, scouring powder or solvents, such as alcohol or turpentine, as they could damage the
surface of the receiver.
UG 253442997-C DSI86 HD Freesat UK.book Page 9 Jeudi, 13. octobre 2011 10:30 10

DSI86 HD freesat
10
3. Environment
Preservation of the environment is an essential concern of the manufacturer. The desire of the
manufacturer is to operate systems observing the environment and consequently it has decided
to integrate environmental performances in the life cycle of its products, from manufacturing to
commissioning, use and elimination.
Meaning of logos present on the product or its packaging
The crossed-out dustbin sign stuck on the product or its accessories means that at the end
of its life, the product is subject to selective collection and must not be thrown away in
unsorted household waste.
The looped arrow sign means that the packaging may be recycled and must not be
disposed of with household waste.
The green logo means that a financial contribution is paid to an approved national
organisation to improve packaging recovery and recycling infrastructures.
The logo with three arrows shown on the plastic parts means that they may be recycled
and that they must not be disposed of with household waste.
Product recycling and disposal
To facilitate recycling, please respect the sorting rules set up locally for this kind of waste.
If your product contains batteries, they must be disposed of at appropriate collection points.
European regulations ask you to dispose of products belonging to the family of electrical and
electronic equipments ( ) selectively:
•At the collection points made available to you locally (drop-off centre, selective collection,
etc.),
•At sales points in the event of the purchase of similar equipment.
In this way you can participate in the re-use and upgrading of Electrical and Electronic
Equipment Waste, which can have an effect on the environment and human health.
UG 253442997-C DSI86 HD Freesat UK.book Page 10 Jeudi, 13. octobre 2011 10:30 10

DSI86 HD freesat
Getting started
11
European Directive on Waste Electrical and Electronic
Equipment (WEEE)
In the context of sustainable development, the reduction of wastes to be eliminated by reusing,
recycling, composting and energy recovery is strongly advised.
In order to comply with this directive which is applicable to EEEs sold after 13/08/2005, your
receiver will be taken back free of charge and recycled by the distributor of the EEE within the
limits of the quantity and types of equipment bought from them. These appliances which contain
substances potentially dangerous to human health and the environment will be recycled.
Directive on the Restriction of use of certain hazardous
substances in electronic equipment (ROHS)
Your receiver along with the batteries supplied comply with the directive relating to the RoHS –
dangerous materials such as lead, mercury or cadmium are not used. This avoids environmental
hazards and any risks to the health of personnel at the recycling centres. The batteries of the
remote control can be removed simply.
Note: When the batteries of the remote control are worn out, please dispose of them at a
collection point and not with household waste.
Electrical consumption of the receiver
To reduce the consumption of your receiver, you are recommended to place it in standby mode
when not in use. We recommend you to turn off the receiver or unplug it from the mains if you will
not be using it for a prolonged period of time.
UG 253442997-C DSI86 HD Freesat UK.book Page 11 Jeudi, 13. octobre 2011 10:30 10

DSI86 HD freesat
12
4. Connections
Before installing your receiver, please check that:
•the delivery is complete (see Product overview, page 4),
•please make sure the appliances to be connected (receiver, TV, VCR…) are unplugged before
making any connections.
Connection to the satellite dish
To get all the freesat HD and SD channels, make sure that your satellite dish is oriented towards
ASTRA 2, facing 28.2° East.
Contact your satellite installer/dealer for more information on your satellite dish installation and
alignment.
Plug the satellite dish cable into the SAT input connector on your receiver.
UG 253442997-C DSI86 HD Freesat UK.book Page 12 Jeudi, 13. octobre 2011 10:30 10

DSI86 HD freesat
Getting started
13
Connection to the TV set
Connection to a High-Definition television using a HDMI lead
1. To take advantage of HD high-quality definition, you must connect the HDMI connector of your
digital receiver to the HDMI connector on your television set.
2. To connect other devices to the receiver (VCR, home cinema...), refer to the following pages.
3. Connect the power adapter to the power cable. Then, connect the power cable into the 12V
connector on the receiver.
4. Plug the power cord into the wall socket.
Connection to a Standard-Definition television
1. You must connect the television set to your receiver using a Scart connector (not supplied). For
optimal quality, preferably connect the Scart lead to the TV Scart socket with 3 dots (RGB).
2. To connect other devices to the receiver (VCR, home cinema...), refer to the following sections.
3. Connect the power adapter to the power cable. Then, connect the power cable into the 12V
connector on the receiver.
4. Plug the power cord into the wall socket.
UG 253442997-C DSI86 HD Freesat UK.book Page 13 Jeudi, 13. octobre 2011 10:30 10

DSI86 HD freesat
14

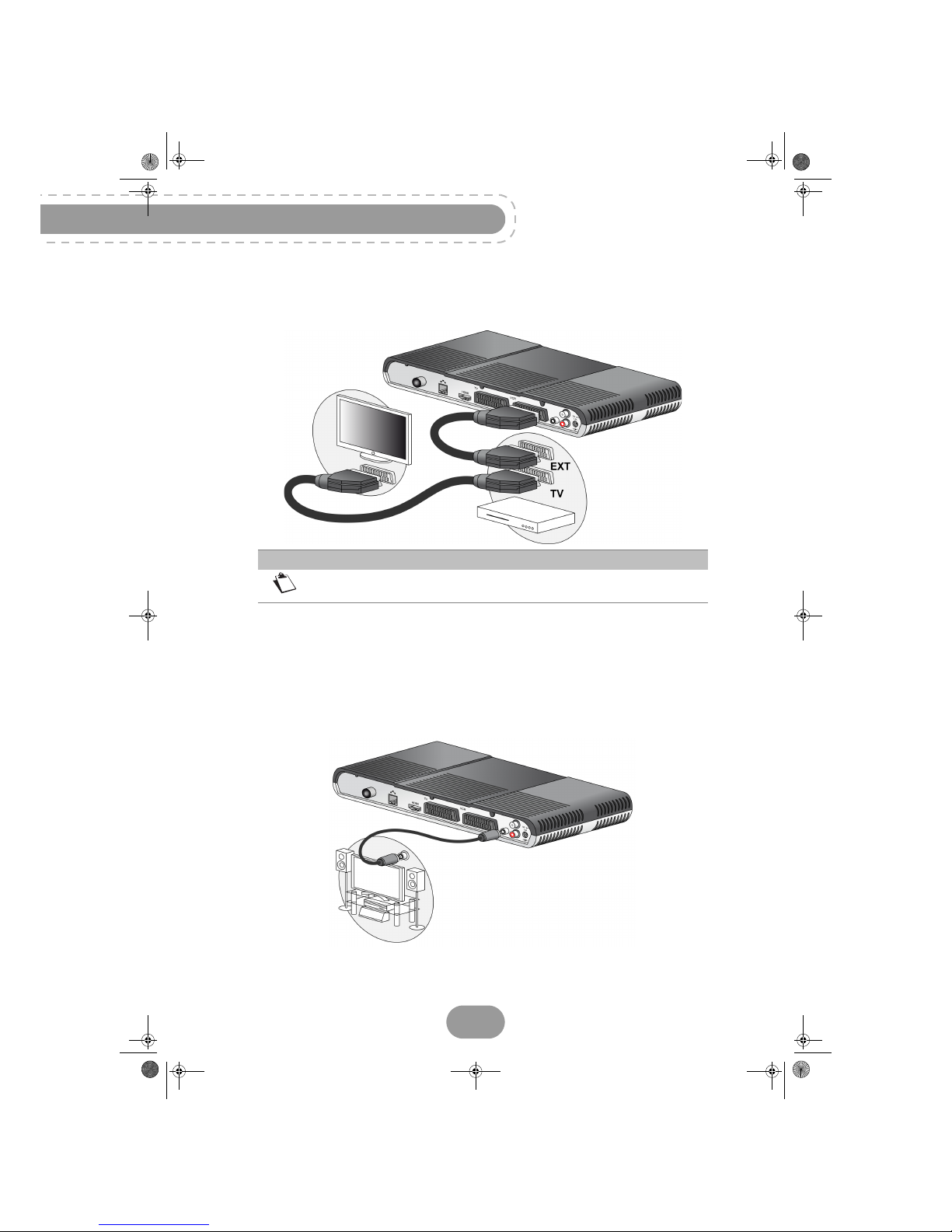

Connection to the VCR/DVD recorder
See the diagram below to connect your receiver to a VCR/DVD recorder.
Connection to a home cinema amplifier
Some digital channels are shown in DTS or DOLBY DIGITAL quality sound. To fully enjoy this sound
quality, it is best to connect your receiver to a home cinema with a coaxial input.
Use a coaxial cable (not supplied) to connect the DIGITAL AUDIO output on the receiver to the input of
your home cinema amplifier.
Note
If your VCR/DVD recorder has more than one Scart connector, choose the TV
or EXT1 socket.
UG 253442997-C DSI86 HD Freesat UK.book Page 14 Jeudi, 13. octobre 2011 10:30 10

DSI86 HD freesat
Getting started
15
Connection to a hi-fi unit
To make the most of the digital quality sound and listen to radio channels with the TV turned off, just
connect the right and left audio outputs of the receiver to the auxiliary input of your hi-fi system (cable
not supplied).
UG 253442997-C DSI86 HD Freesat UK.book Page 15 Jeudi, 13. octobre 2011 10:30 10

DSI86 HD freesat
16
5. First installation
Once the receiver is physically connected, you need to go through the setup procedure to get your
freesat HD and SD channels.
1. Switch on your TV.
2. Press the Standby button on your remote control to wake the receiver up from standby mode.
3. The first installation screen should appear.
Freesat Settings
4. Press to start the installation.
The receiver searches for the freesat satellite signal.
Please wait until the receiver successfully detects it.
5. If the detection fails, press to view the reception
strength and quality of the satellite signal. Check the
dish cable connections.
When the signal level is satisfactory, press to
resume the installation.
If the level and quality of reception remain insufficient,
contact your satellite installer.
6. Enter your full postcode (without space) using the
alphanumeric keys on the remote control.
Example: to enter the letter S, press 4 times key 7.
Use the key to delete an incorrect character.
Press to continue.
Note: the postcode is used to install local TV and radio channels.
UG 253442997-C DSI86 HD Freesat UK.book Page 16 Jeudi, 13. octobre 2011 10:30 10

DSI86 HD freesat
Getting started
17
Main Settings
7. Select the settings better suited to your needs.
Use the and keys to highlight a setting,
use the and keys to select a value.
•PreferredAudio: programmes will be broadcast in
the selected audio language provided it is available.
• TV Screen Size: 16:9 (widescreen) or 4:3
(standard TV).
• HDMI Resolution: 1080i, 720p or 576p, depending
on your HD TV Set. If you have a standard TV set, set the resolution at 576p.
• Parental code: enter a parental four-digit code using the remote control (0000 is not accepted).
Enter the same code to confirm it.
8. Press to continue.
Channel Search
9. The receiver automatically searches for available
freesat TV and radio channels.
You receiver is now set. You can start watching and enjoying all your freesat HD and SD channels.
Should any problem that prevents you from completing the installation arise, please contact your
retailer or the Sagemcom Broadband SAS Hotline.
UK Hotline: [phone]*
* 3.95 pence per minute from all fixed lines, tariff cost effective from 01/09/2009.
Note
The parental code is used to lock access to the receiver. Make sure you
remember it for future use. You can change the code at any time (see
Changing your Parental code, page 25).
UG 253442997-C DSI86 HD Freesat UK.book Page 17 Jeudi, 13. octobre 2011 10:30 10

DSI86 HD freesat
18
6. Everyday Use
Selecting a channel
Using the keys P+ and P-, or keys 0-9
Press or on your remote control to change channel or enter its number on the numeric
keypad to switch to the channel you want.
Using the channel list
Press to display the channel list, select your channel then press again to confirm.
Programme information banner
Each time you switch channels, the information banner appears onscreen. You can also display it by
pressing once while watching a programme.
You can set the display time of the information banner in the Receiver settings (see Picture settings,
page 28).
AChannel number and name
BName of programme
CStart time of programme
DElapsed time
ECurrent time
FEnd time of programme
GSignal level
HFavourite list
IAudio description available
JNumber of subtitle languages available
KAudio output
LNumber of audio tracks available
MProgramme resolution
NProgramme broadcast in HD
Note
The operations described in this section apply to television channels and radio
stations.
Note
The availability and accuracy of the programme information depend on the
channel broadcaster.
UG 253442997-C DSI86 HD Freesat UK.book Page 18 Jeudi, 13. octobre 2011 10:30 10

Using the receiver
DSI86 HD freesat
19
Detailed programme information
If you want more information on the current and
following programme, press twice while
watching a programme to display the extended
information banner.
Adjusting the audio volume
•Volume: Use and to turn the volume up and down.
•Mutemode: Use to turn the sound off. Press the same key again to turn the sound back on.
Changing the favourites list
You can create and manage favourite channels lists in the FAVOURITES menu (see page 26).
To switch from one channel list (main channel list included) to an existing favourite list,
press twice to display the detailed information banner.
Press the blue key to switch to the next available favourite list.
Repeat this operation until the favourite list of your choice is selected, or to return to the main channel
list.
Use ... To...
and View information on the next/current programme.
and See information on the current/next programme on other channels.
Switch to the selected channel.
or Hide the extended information banner.
Note
These operations do not affect the sound on the AUX Scart socket or on the
hi-fi and digital audio outputs.
UG 253442997-C DSI86 HD Freesat UK.book Page 19 Jeudi, 13. octobre 2011 10:30 10

DSI86 HD freesat
20
Temporarily selecting audio languages and subtitles
Press or to display the audio tracks,
subtitles or audio description selection screen.
Use , , or to select your
settings then press to confirm.
To temporarily activate the audio description
feature, select AUDIO DESCRIPTION and set it
to YES. Programmes providing this service will be broadcast in the selected audio preferred language
if available.
Teletext and interactive services
Whenever Teletext or interactive services are available (news, local weather information, etc.), an
invitation to press the red key appears on screen.
You can then press or the red key on your remote control to access available services.
You can then browse the services, teletext pages and local information available following the
onscreen indications.
Electronic programme guide
The electronic programme guide displays programme information for all available channels (depending
on the information provided by channel broadcasters). You can also record programmes onto your
VCR/DVD recorder from the electronic programme guide (see Recording programmes from the
Electronic programme guide, page 23).
Press to access the electronic programme guide.
Note
All modifications take place immediately. However, temporary adjustments are
not retained when you change channel.
UG 253442997-C DSI86 HD Freesat UK.book Page 20 Jeudi, 13. octobre 2011 10:30 10
