Saivod LST-1069 User manual

LST-1069
Washing Machine
Máquina de lavar
Lavadora

2 - EN
1 Warnings
General Safety
• Neverplaceyourmachineonacarpet
coveredfloor.Otherwise,lackofairflow
frombelowofyourmachinemaycause
electricalpartstooverheat.Thismaycause
problemswithyourwashingmachine.
• Ifthepowercableormainsplugis
damagedyoumustcallAuthorizedService
forrepair.
• Fitthedrainhoseintothedischarge
housingsecurelytopreventanywater
leakageandtoallowmachinetotakein
anddischargewaterasrequired.Itisvery
importantthatthewaterintakeanddrain
hosesarenotfolded,squeezed,orbroken
whentheapplianceispushedintoplace
afteritisinstalledorcleaned.
• Yourwashingmachineisdesignedto
continueoperatingwhenthepower
restoresafterapowerinterruption.The
machinewillresumeitsprogramwhenthe
powerrestores.Pressthe“Start/Pause/
Cancel”buttonfor3secondstocancelthe
program(See,CancelingaProgram)
• Theremaybesomewaterinyourmachine
whenyoureceiveit.Thisisfromthequality
controlprocessandisnormal.Itisnot
harmfultoyourmachine.
• Someproblemsyoumayencountermay
becausedbytheinfrastructure.Press
“Start/Pause/Cancel”buttonfor3seconds
tocanceltheprogramsetinyourmachine
beforecallingtheauthorizedservice.
First Use
• Carryoutyourfirstwashingprocess
withoutloadingyourmachineandwith
detergentunder“Cottons90°C”program.
• Ensurethatthecoldandhotwater
connectionsaremadecorrectlywhen
installingyourmachine.
• Ifthecurrentfuseorcircuitbreakerisless
than16Amperes,pleasehaveaqualified
electricianinstalla16Amperefuseor
circuitbreaker.
• Whileusingwithorwithoutatransformer,
donotneglecttohavethegrounding
installationlaidbyaqualifiedelectrician.
Ourcompanyshallnotbeliableforany
damagesthatmayarisewhenthemachine
isusedonalinewithoutgrounding.
• Keepthepackagingmaterialsoutofreach
ofchildrenordisposethembyclassifying
accordingtowastedirectives.
Intended use
• Thisproducthasbeendesignedforhome
use.
• Theappliancemayonlybeusedfor
washingandrinsingoftextilesthatare
markedaccordingly.
Safety instructions
• Thisappliancemustbeconnectedto
anearthedoutletprotectedbyafuseof
suitablecapacity.
• Thesupplyanddraininghosesmust
alwaysbesecurelyfastenedandremainin
anundamagedstate.
• Fitthedraininghosetoawashbasinor
bathtubsecurelybeforestartingupyour
machine.Theremaybeariskofbeing
scaldedduetohighwashingtemperatures!
• Neveropentheloadingdoororremovethe
filterwhilethereisstillwaterinthedrum.
• Unplugthemachinewhenitisnotinuse.
• Neverwashdowntheappliancewitha
waterhose!Thereistheriskofelectric
shock!
• Nevertouchtheplugwithwethands.Do
notoperatethemachineifthepowercord
orplugisdamaged.
• Formalfunctionsthatcannotbesolvedby
informationintheoperatingmanual:
• Turnoffthemachine,unplugit,turnoff
thewatertapandcontactanauthorized
serviceagent.Youmayrefertoyourlocal
agentorsolidwastecollectioncenterin
yourmunicipalitytolearnhowtodisposeof
yourmachine.
If there are children in your
house...
• Keepchildrenawayfromthemachine
whenitisoperating.Donotletthem
tamperwiththemachine.
• Closetheloadingdoorwhenyouleavethe
areawherethemachineislocated.

3- EN
2 Installation
Removing packaging
reinforcement
Tiltthemachinetoremovethepackaging
reinforcement.Removethepackaging
reinforcementbypullingtheribbon.
Opening the transportation locks
ATransportationsafetyboltsmustbe
removedbeforeoperatingthewashing
machine!Otherwise,themachinewillbe
damaged!
1. Loosenalltheboltswithaspanneruntil
theyrotatefreely(“C”)
2. Removetransportationsafetyboltsby
turningthemgently.
3. Fitthecovers(suppliedinthebagwiththe
OperationManual)intotheholesonthe
rearpanel.(“P”)
C
Keepthetransportationsafetyboltsin
asafeplacetoreusewhenthewashing
machineneedstobemovedagaininthe
future.
C
Nevermovetheappliancewithoutthe
transportationsafetyboltsproperlyfixedin
place!
Adjusting the feet
ADonotuseanytoolstoloosenthelock
nuts.Otherwise,theycanbedamaged.
1. Manually(byhand)loosenthelocknutson
thefeet.
2. Adjustthemuntilthemachinestandslevel
andfirmly.
3. Important:Tightenalllocknutsupagain.
Connecting to the water supply.
Important:
• Thewatersupplypressurerequiredtorun
themachinemustbe1-10bar(0,1–1
MPa).
• Connectthespecialhosessuppliedwith
themachinetothewaterintakevalveson
themachine.
• Ifyouaregoingtouseyourdoublewater-
inletmachineasasingle(cold)water-inlet
unit,youmustinstallthestopper*,supplied
withyourmachinetothehotwatervalve.
• Ifyouwanttousebothwaterinletsofthe
product,youcanconnectthehotwater
hoseafterremovingthestopperand
gasketgroupfromthehotwatervalve.
*Appliesfortheproductssuppliedwithablind
stoppergroup.
• Modelswithasinglewaterinletshouldnot
beconnectedtothehotwatertap.
Whenreturningtheappliancetoitsplaceafter
maintenanceorcleaning,careshouldbetaken
nottofold,squeezeorblockthehoses.
Connecting to the drain
Thewaterdischargehosecanbeattachedto
theedgeofawashbasinorbathtub.Thedrain
hoseshouldbefirmlyfittedintothedrainasto
notgetoutofitshousing.
Important:
• Theendofthedrainhosemustbedirectly
connectedtothewastewaterdrainorto
thewashbasin.
• Thehoseshouldbeattachedtoaheightof
atleast40cm,and100cmatmost.
• Incasethehoseiselevatedafterlayingit
onthefloorlevelorclosetotheground
(lessthan40cmabovetheground),water
dischargebecomesmoredifficultandthe
laundrymaycomeoutwet.
• Thehoseshouldbepushedintothe
drainageformorethan15cm.Ifitistoo
longyoumayhaveitshortened.
• Themaximumlengthofthecombined
hosesmustnotbelongerthan3.2m.

4- EN
Electrical connection
Connectthemachinetoanearthedoutlet
protectedbyafuseofsuitablecapacity.
Important:
• Connectionshouldcomplywithnational
regulations.
• Thevoltageandtheallowedfuse
protectionarespecifiedinthesection
“TechnicalSpecifications”.
• Thespecifiedvoltagemustbeequalto
yourmainsvoltage.
• Connectionviaextensioncordsormulti-
plugsshouldnotbemade.
BAdamagedpowercablemustbereplaced
byaqualifiedelectrician.
BTheappliancemustnotbeoperatedunless
itisrepaired!Thereistheriskofelectric
shock!
3 Initial preparations for
washing
Preparing clothes for washing
Laundryitemswithmetalattachmentssuch
as,bras,beltbucklesandmetalbuttons
willdamagethemachine.Removemetal
attachmentsorplacetheitemsinaclothing
bag,pillowcase,orsomethingsimilar.
• Sortthelaundryaccordingtotypeoffabric,
color,anddegreeofsoilingandpermissible
watertemperature.Alwaysfollowthe
adviceonthegarmentlabels.
• Placesmallitemslikeinfants’socksand
nylonstockings,etc.inalaundrybag,
pillowcaseorsomethingsimilar.Thiswill
alsosaveyourlaundryfromgettinglost.
• Wash“machinewashable”or“hand
washable”labeledproductsonlywithan
appropriateprogram.
• Donotwashcolorsandwhitestogether.
New,darkcoloredcottonsmayreleasea
lotofdye.Washthemseparately.
• Useonlydyes/colorchangersandlime
removerssuitableformachinewash.
Alwaysfollowtheinstructionsonthe
packaging.
• Washtrousersanddelicateclothesturned
insideout.
Correct load capacity
CPleasefollowtheinformationinthe
"ProgramSelectionTable".Washing
resultswilldegradewhenthemachineis
overloaded.
Loading door
Thedoorlocksduringprogramoperationand
theDoorLockedSymbollightsup.Thedoor
canbeopenedwhenthesymbolfadesout.

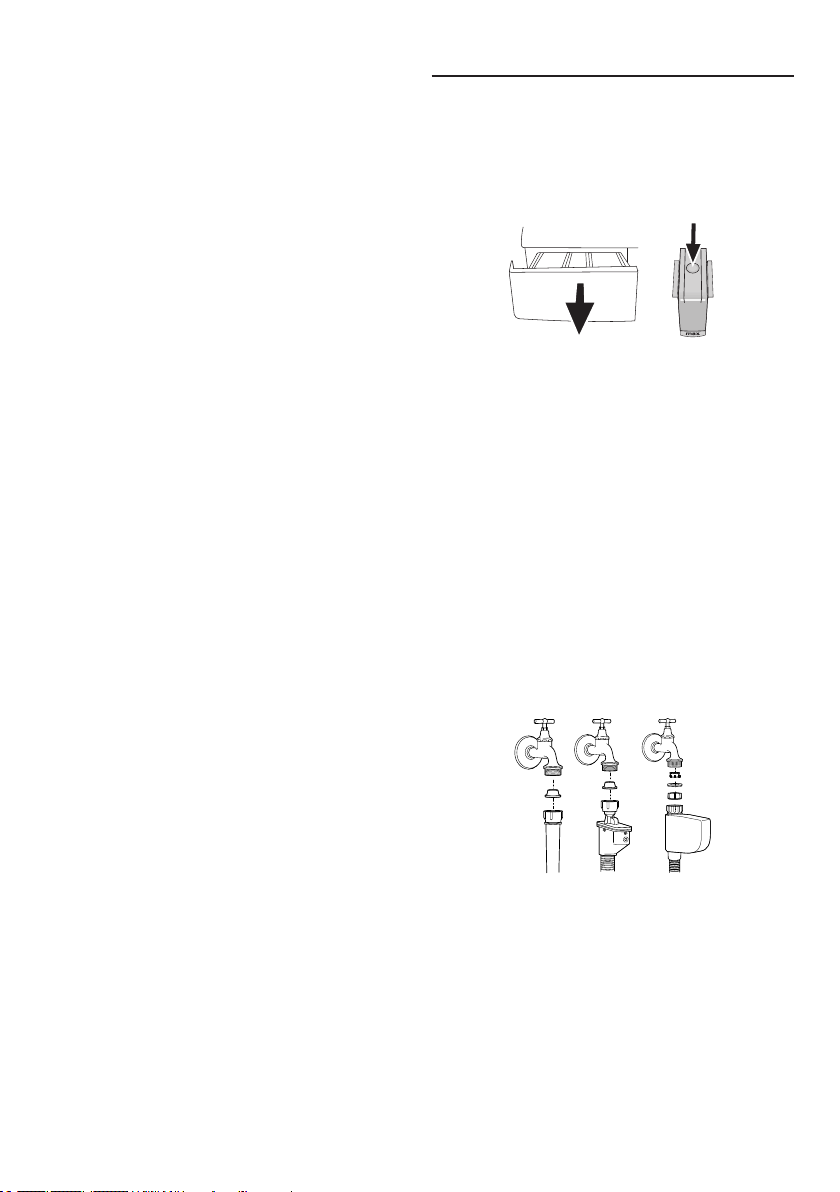

Detergents and softeners

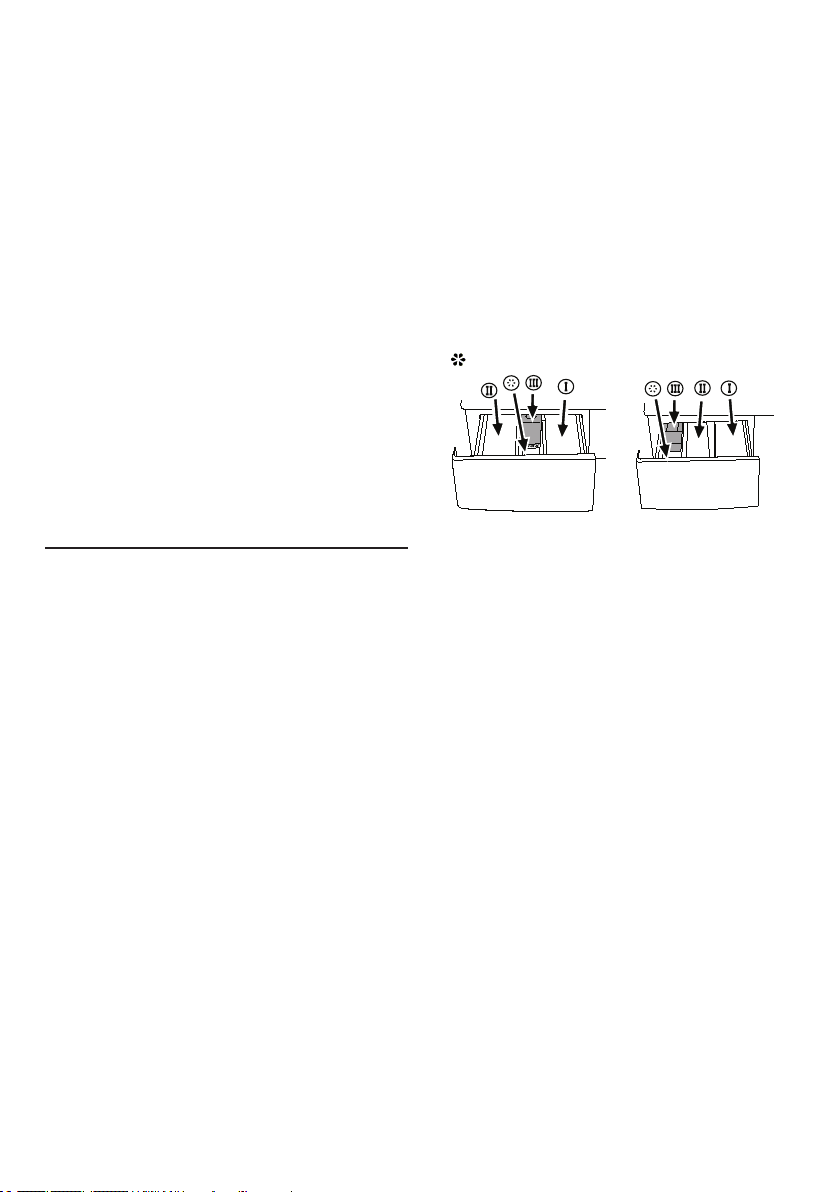

Detergent Drawer
Thedetergentdraweriscomposedofthree
compartments:
Thedetergentdispensermaybeintwo
differenttypesaccordingtothemodelofyour
machine.
–(I)forprewash
–(II)formainwash
-(III)siphon
–( )forsoftener
Detergent, softener and other cleaning
agents
Adddetergentandsoftenerbeforestartingthe
washingprogram.
Neveropenthedetergentdispenserdrawer
whilethewashingprogramisrunning!
Whenusingaprogramwithoutpre-wash,no
detergentshouldbeputintothepre-wash
compartment(Compartmentno.I).
Detergent quantity
Theamountofwashingdetergenttobeused
dependsontheamountoflaundry,thedegree
ofsoilingandwaterhardness.
• Donotuseamountsexceedingthe
quantitiesrecommendedonthepackage
toavoidproblemsofexcessivefoam,
poorrinsing,financialsavingsandfinally,
environmentalprotection.
• Neverexceedthe(>max<)levelmarking;
otherwise,thesoftenerwillbewasted
withoutbeingused.
• Donotuseliquiddetergentifyouwantto
washusingthetimedelayfeature.

5- EN
4 Selecting a program and operating your machine
Control panel
1-SpinSpeedAdjustmentKnob*
2-TemperatureAdjustmentKnob*
3-Start/Pause/CancelButton
4-AuxiliaryFunctionButtons
5-ProgramSelectionKnob
Turning the machine on
Youcanpreparethemachineforprogram
selectionbypressingthe“On/Off”button.
Whenthe“On/Off”buttonispressed,the
“Ready”lightilluminatesindicatingthatthe
doorisulocked.Pressthe“On/Off”button
againtoshutdownthemachine.
Program selection
Selecttheappropriateprogramfromthe
programtableandthefollowingwashing
temperaturetableaccordingtotype,amount
anddegreeofsoilingofthelaundry.Selectthe
desiredprogramwiththeprogramselection
button.
CEachoftheseprogramsconsistofa
completewashingprocess,including
wash,rinseand,ifrequired,spincycles.
90˚C Normallysoiled,whitecottons
andlinens.
60˚C Normallysoiled,fadeproof
coloredlinens,cottonsor
syntheticclothesandlightly
soiledwhitelinens
40˚C
30°C
Cold
Blendedclothesincluding
syntheticsandwoolensaswell
asdelicateclothes.
CProgramsarelimitedwiththehighestspin
speedappropriateforthatparticulartype
ofcloth.
Main programs
Dependingonthetypeoftextile,thefollowing
mainprogramsareavailable:
• Cottons
Youcanwashyourdurableclotheswiththis
program.Yourlaundrywillbewashedwith
6-On/OffButton
7-ProgramFollow-upIndicators
8-Child-proofLockIndicator*
*Accordingtoyourmachine’smodel
5
4
3 76 2
