Salind OBD User manual

SALIND OBD
GPS TRACKER 4G
LTE -M

Salind OBD GPS Tracker 4G by SALIND with Online-Tracking V.1.0 EN
© Salind UG (haftungsbeschränkt)
1
Table of contents
1English
1.1 Scope of delivery ...............................................................................................................2
1.2 Product graphics ...............................................................................................................2
1.3 Supported OBD Protocols..................................................................................................2
1.4 Activation ..........................................................................................................................2
1.5 Connection inside the vehicle............................................................................................3
1.6 Turning on .........................................................................................................................3
1.7 Use ....................................................................................................................................3
1.8 Meaning LED lights............................................................................................................4
1.9 Technical data...................................................................................................................4
1.10 Safety instructions ............................................................................................................4
1.11 Note on the Disposal of Used Batteries.............................................................................8
1.12 Note on the Disposal of Electric Appliances......................................................................8

Salind OBD GPS Tracker 4G by SALIND with Online-Tracking V.1.0 EN
© Salind UG (haftungsbeschränkt)
2
1.1 Scope of delivery
Included in the delivery:
Salind OBD GPS Tracker 4G by SALIND
M2M SIM card (is already inserted/ do not
replace)
Note: The latest version of this manual is available
at:
www.SALIND-gps.de/finder
The SALIND-GPS team wishes you lots of fun with
your Salind OBD GPS Tracker 4G!

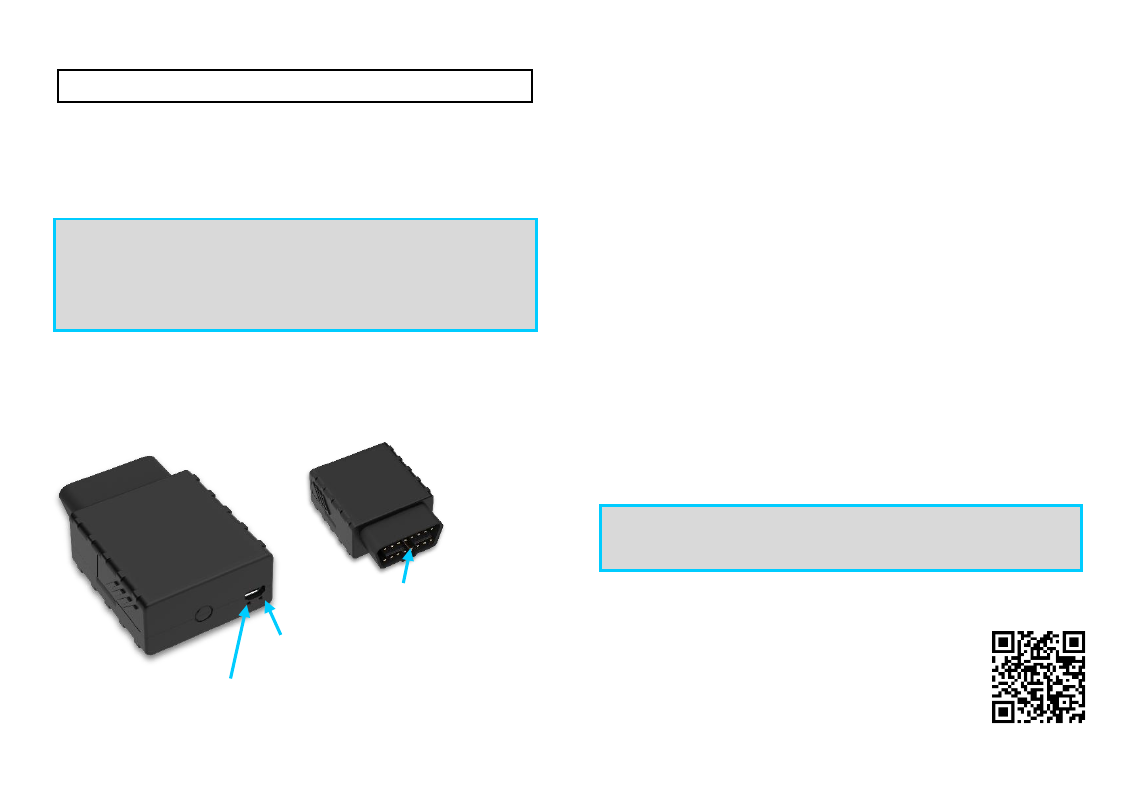

1.2 Product graphics
1.3 Supported OBD Protocols
Before using the FINDER in your car, please check if
your car supports the following protocols:
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud
ISO 9141-2
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
1.4 Activation
Note: To activate you need the device ID. Please
make a note before installing your FINDER.
In order to use SALIND's Salind OBD GPS Tracker 4G,
it must first be activated online.
To do this, please go to
www.start.finder-portal.com
and follow the instructions.
OBD interface
LED signal status
LED battery status

Salind OBD GPS Tracker 4G by SALIND with Online-Tracking V.1.0 EN
© Salind UG (haftungsbeschränkt)
3
1.5 Connection inside the vehicle
The following points must be observed by all means
The Salind OBD GPS Tracker 4G should not be
installed near fuel lines or other combustible
components in the engine compartment.
When mounting the Salind OBD GPS Tracker 4G,
please make sure that no other components in
the vehicle are damaged.
Installing the Salind OBD GPS Tracker 4G may
discharge your vehicle battery. Before
connecting, check whether your vehicle has a
discharge protection and retrofit it if necessary.
Please always observe the manufacturer's
specifications for your vehicle. Compensation
claims due to incorrect connections are hereby
excluded
Connect the Salind OBD GPS Tracker 4G to the
appropriate socket in your vehicle using the OBD
interface. Please make sure that the Salind OBD GPS
Tracker 4G is inserted deep enough.
The OBD interface has no standardized position in
the vehicle. The user manual of your vehicle can
provide you with this information
1.6 Turning on
Once the activation, switching on and the transfer of
a first database has been successful, you can switch
on the Salind OBD GPS Tracker 4G. By connecting the
FINDER to the power supply, which was previously
carried out, it has already been switched on.
For the initial startup of the Salind OBD GPS
Tracker 4G uncovered locations, such as the
garden or the terrace (i. e. not inside the home, the
garage, the cellar or the like) are recommended.
1.7 Use
Once the activation and switching on of the FINDER
has been successful, you can plug the FINDER into
OBD-interface and view the position of the FINDER
using a smartphone, tablet or PC. Please use our app
or go to the following website:
www.finder-portal.com
The portal will support you step by step in its
functions.

Salind OBD GPS Tracker 4G by SALIND with Online-Tracking V.1.0 EN
© Salind UG (haftungsbeschränkt)
4
1.8 Meaning LED lights
Green LED –signal status (right)
SIGNAL
MEANING
The right LED is off
Device is switched off
The right LED lights up
constantly
No signal available.
FINDER is looking for a
signal
The right LED flashes
The signal is available
Green LED –GPS status (left)
SIGNAL
MEANING
The left LED is off
FINDER is switched off
The left LED flashes
Standby mode
1.9 Technical data
Standby time
Approx.12 hours
Dimensions
67,2 mm x 49,6 mm x25 mm
GPS accuracy
Up to 3 meters
Weight
63 g
Time to start
Cold start: 35 s
Standby: 25 s
in operation: 1 s
Connection
OBD 2 Interface
Network/Band
LTE Cat M1/Cat NB1:
LTE FDD: B1/B2/B3/B4/B5/B8
/B12/B13/B18/B19/B20/B28
LTE TDD: B39 (for Cat M1 only)
EGPRS:
GSM 800 MHz (max 2W)
GSM 850 MHz (max. 2W)
GSM 900 MHz (max. 2W)
PCS 1900 MHz (max. 1W)
GPS reception
-165dBm
Built in battery
3,7V 170mAh Li-ion
Storage temperature
from -40 °C to +80 °C
Operating
environment
from -40 °C to +80 °C
Humidity.
10%-90%
1.10 Safety instructions
Signal words
The following signal words are used in this manual:
WARNING! This classifies a hazard of medium risk
level. Failure to comply with the warning may result in
serious injury.
Please note: This is a warning about possible damage
to property.

Salind OBD GPS Tracker 4G by SALIND with Online-Tracking V.1.0 EN
© Salind UG (haftungsbeschränkt)
5
Proper use
Please read the safety instructions for this SALIND
FINDER, hereinafter only referred to as GPS tracker,
carefully before use in order to be able to deploy it
properly. The intended use is to employ the GPS
tracker only as described in this manual to locate an
object or a living being. Please bear in mind that it is
a criminal offence to monitor third parties using a
GPS tracker without their consent. If you use it in any
other way, this is considered improper use and can
lead to damage to property or even personal injury.
Please note that the GPS tracker is not a toy for
children.
In other countries and regions there are different laws
on digital positioning and localization of people,
animals and/or objects. SALIND UG is not responsible
if such laws or regulations are violated, this is the sole
responsibility of the user.
Please note: The manufacturer and dealer accept
no liability for damage caused by improper or
incorrect use.
Safety
WARNING! RISK OF ELECTROCUTION!
A faulty electrical installation or an excessive mains
voltage may cause an electric shock.
Before use, adjust the mains voltage of the socket
with the information on the type plate.
Before use, make sure that the mains voltage of
the socket corresponds with the information on
the type plate.
To be able to disconnect the GPS tracker from the
mains as quickly as possible in the event of a
failure, connect the power supply unit where it is
easily accessible.
If you notice any visible damage to your GPS
tracker, do not use it.
Use only the original parts supplied to charge the
GPS tracker.
Never place the GPS tracker near an open fire or
hot surfaces.
The GPS tracker is not protected against humidity
and water. Please use and store it only in a dry
environment.
Do not open the housing of the GPS tracker.
Leave the repair to qualified specialists. However,
if you carry out repairs yourself, connect the GPS

Salind OBD GPS Tracker 4G by SALIND with Online-Tracking V.1.0 EN
© Salind UG (haftungsbeschränkt)
6
tracker incorrectly or operate it incorrectly,
liability and warranty claims are excluded.
Battery mode
WARNING! DANGER OF EXPLOSION AND FIRE!
Below you will find information and instructions on
how to use the battery:
The GPS tracker runs by a lithium polymer
battery. It is not exchangeable and must not be
removed or opened.
Make sure that the GPS tracker (also when
charging the battery) is kept away from heat
sources and high temperatures, such as direct
sunlight in a vehicle. Disregard of this instruction
may result in destruction of the battery and
overheating, explosion and fire.
Only use the original accessories for the charging
process. If the battery is charged otherwise, this
may result in overheating, explosion or fire.
Do not burn or pierce the GPS tracker. Protect it
from mechanical damage.
Do not remove the battery with sharp or pointed
objects. Do not drop, disassemble or modify it.
If a child swallows the battery, seek medical aid
immediately!
If you want to have the battery replaced, then
please contact our support.
WARNING! DANGER OF CAUTERIZATION!
Batteries that leak due to damage may cause burns in
contact with the skin. Therefore, never open the
battery. However, if the battery leaks, please wear
protective gloves.
Electromagnetic compatibility
Please observe all rules and prohibitions and switch
off the GPS tracker immediately in danger areas and
if it might cause interference. Furthermore, it should
not be used in the vicinity of, for example, medical
equipment, fuels and chemicals, or in blasting areas.
With mobile devices, malfunction due to interference
may occur and affect performance. Transformers and
very strong magnetic fields must be avoided.
Otherwise there may be deviations in the
transmission. Disregard of these instructions may
cause interference or damage to the GPS tracker.
Cleaning
WARNING! RISK OF DAMAGE!

Salind OBD GPS Tracker 4G by SALIND with Online-Tracking V.1.0 EN
© Salind UG (haftungsbeschränkt)
7
Below you will find information and instructions on
how to clean the GPS tracker:
Do not use aggressive cleaning agents or brushes
for cleaning. Do not clean the GPS tracker with
metallic cleaning objects (e.g. knife, metal
sponge). This may damage the surface.
Never put the GPS tracker in water, in a
dishwasher (or the like) and do not use a steam
cleaner.
Correct cleaning:
1. The surface may be wiped clean with a slightly
damped cloth.
2. The GPS tracker should then be wiped dry
completely.
Please note: Improper use of the tracker may
result in damage.
Dangers for children and people in need of help
Please do not let people (including children) with
limited physical, sensory or mental abilities use the
GPS tracker. It is considered an exception if they have
previously received instructions from a person
responsible for their safety on how to use the device.
Please be sure that they not play with small parts (e.g.
accessories, etc.). These may be swallowed, leading
to suffocation. Inform your child about the dangers
and about how to use the GPS tracker.
Storage
If you are not using the GPS tracker for a lengthy
period of time, turn it off. Place the tracker in its
original packaging or in a carton of the same size.
Protect the tracker from dirt and humidity. Keep out
of the reach of children.
Declaration of conformity
Salind UG (haftungsbeschränkt) hereby declares that
the radio equipment type Tracker, model Salind OBD
GPS Tracker 4G complies with Directive 2014/53/EU.
The full text of the EU Declaration of
Conformity is available at: www.SALIND-
gps.de/konformitaetserklaerung/
Disposal of packaging
Dispose of the packaging according to type.
Add cardboard to the paper bank, plastics to
the recyclables collection.
Disregard of these instructions may shorten the
life of the built-in battery or cause damage to the
GPS tracker in general.

Salind OBD GPS Tracker 4G by SALIND with Online-Tracking V.1.0 EN
© Salind UG (haftungsbeschränkt)
8
1.11 Note on the Disposal of Used Batteries
The following instruction is aimed at those who
use batteries or products with built-in batteries
and do not resell them in the form supplied to
them (end users).
Acceptance of returned used batteries free of charge
Batteries must not be disposed of with household
waste. You are legally obliged to return used batteries
so that proper disposal can be guaranteed. You can
dispose of used batteries at a municipal collection
point or at a local retailer. As a distributor of batteries,
we are also obliged to take back used batteries,
whereby our obligation to take back only applies to
the type of used batteries that we have or had as new
batteries in our range. Used batteries of the above
type can therefore either be returned to us with
sufficient prepayment or directly to our shipping
warehouse at the following address free of charge:
Salind UG (haftungsbeschränkt)
Auf der Fuhr 3
51570 Windeck
Germany
e-mail: [e-mail]
Meaning of the battery symbols
Batteries are marked with the symbol of a crossed-
out dustbin (see following illustration). This symbol
indicates that batteries must not be disposed of with
household waste. Batteries containing more than
0.0005 mass percent of mercury, more than 0.002
mass percent of cadmium or more than 0.004 mass
percent of lead additionally bear the chemical name
of the pollutant they contain below the waste bin
symbol. The abbreviation "Cd" stands for
cadmium, "Pb" stands for lead and "Hg"
stands for mercury.
1.12 Note on the Disposal of Electric
Appliances
The Electrical and Electronic Equipment Act
(ElektroG) contains a large number of requirements
for the handling of electrical and electronic
equipment. The most important ones are listed here.
1. Separate collection of old appliances
Electrical and electronic equipment that has become
waste is referred to as old appliances. Owners of
WEEE must have it collected separately from unsorted
municipal waste. In particular, old appliances must
not be disposed of with household waste, but in
special collection and return systems.

Salind OBD GPS Tracker 4G by SALIND with Online-Tracking V.1.0 EN
© Salind UG (haftungsbeschränkt)
9
2. Batteries and accumulators
Owners of WEEE must normally separate used
batteries and accumulators which are not enclosed
by the WEEE from WEEE before returning them to a
collection point. This does not apply if the old
appliances are handed over to public waste
management authorities and separated from other
old appliances for the purpose of preparation for
reuse.
3. Return options for old appliances
Owners of WEEE from private households can hand it
in at the collection points of the public disposal
authorities or at the collection points set up by
manufacturers or distributors within the meaning of
the ElektroG. An online list of collection and return
points can be found here: https://www.ear-
system.de/ear-verzeichnis/sammel-und-
ruecknahmestellen.jsf
4. Data protection notice
WEEE often contains sensitive personal data. This
applies in particular to information and
telecommunications technology devices such as
computers and smartphones. In your own interest,
please note that each end user is responsible for
deleting the data on the old devices to be disposed of.
5. Meaning of the symbol „crossed-out dustbin“
The crossed-out dustbin symbol regularly
displayed on electrical and electronic
equipment indicates that the respective
device must be collected separately from
unsorted municipal waste at the end of its
service life.
6. Manufacturer registration number
As a manufacturer in the sense of the ElektroG we are
registered at the responsible foundation Elektro-
Altgeräte Register (Benno-Strauß-Str. 1, 90763 Fürth)
under the following registration number: DE33887550

Salind OBD GPS Tracker 4G by SALIND with Online-Tracking V.1.0 EN
© Salind UG (haftungsbeschränkt)
10
Do you have any questions?
Just contact us,
we are happy to help you!
Salind UG (haftungsbeschränkt)
Auf der Fuhr 3
51570 Windeck
Germany
e-mail: [e-mail]
phone: [phone]
web: www.SALIND-gps.de
Best wishes,
your SALIND team

SALIND OBD
GPS TRACKER 4G
SALIND UG (HAFTUNGSBESCHRÄNKT)
Auf der Fuhr 3
51570 Windeck
Deutschland
