SALONPRO Multi-Zone Hair Color Processor User manual
Multi-Zone Infrared
Hair Color Processor Dryer
User Manual
Introduction
The SalonPro Multi-Zone Hair Color Processor is a professional salon-grade
dryer with ve independent heating heads, O₃ and a cooling function, used
to accelerates color processing, perms and hair treatments. It reduces the
time needed for mask applications while improving absorption. Quiet and
simple to use, the unit features digital controls for easy operation.

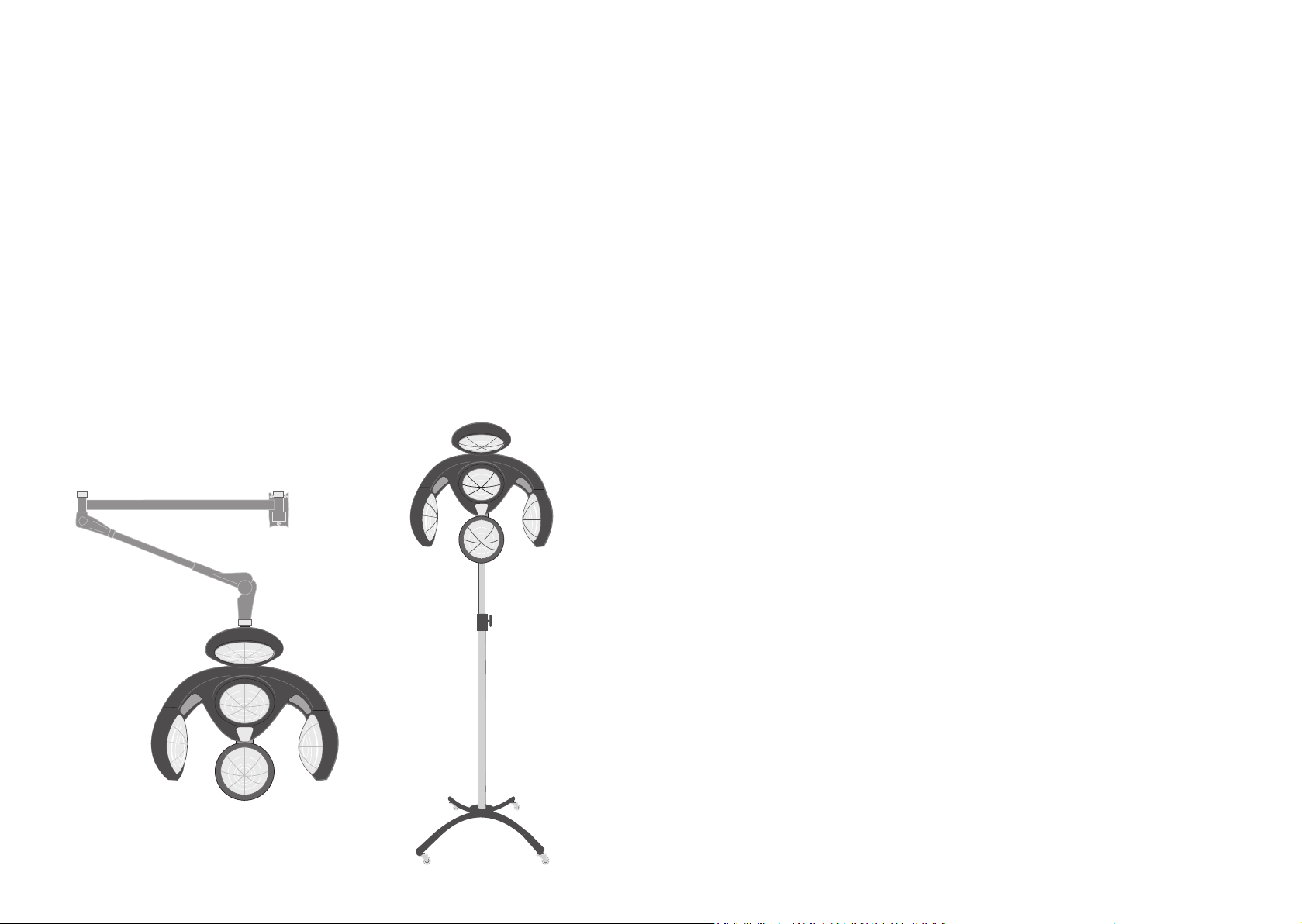

The SalonPro Multi-Zone Hair Color Processor includes either a oor stand or
a wall mounted Swing Arm. This manual covers both congurations.
Warning: Wall mounting should always be performed by a licensed
professional. Pay special attention the structural suitability of the mounting
surface before proceeding.
Warning: Always keep the dryer free of direct contact with water or moisture.
Contents:
Floor Stand Conguration:
• (1) Multi-Zone Hair Color Processor
• (1) Main Stand Assembly w/ Adjustment Knob
• (1) Inner Extension Tube (Chrome)
• (1) H-Shape Base
• (4) Rubber Wheels/Casters
• (1) Main Bolt/Screw
• (1) Metal Washer For Main Bolt/Screw
• (1) Wrench Tool For Wheels/Casters
• (1) Instruction Manual
Wall Mount System:
• (1) Multi-Zone Hair Color Processor
• (1) Adjustable Wall Mount Arm
• (1) Wall Mount Bracket
• (1) Wall Mount Anchor Kit for Brick, Block or
concrete walls. (For drywall installations, see notes.)
• (1) Instruction Manual
1
• Connect to power supply.
• Switch ON the Main Power Switch [12].
• With “00” visible in the Time Display, the machine is ready for
operation.
2
• Use buttons [2] and [3] to set the appropriate time: (Each time button
[2] is pressed, it adds one minute. Each time button [3] is pressed, it
will add ten minutes.)
• Use buttons: [4] [5] [6] [7] and [8] to set an appropriate temperature
for each Heater – each time a heater button is pressed it will go to
the next temperature setting:
3
• Press the O₃ button, [10] when O₃ is required. Press again to stop.
• Press the COOL button, [11] if cooling is required. Press again to
stop.
4
• Press the main START/STOP button, [11] to begin operation.
• Press the main START/STOP button, [11] again to halt operation.
Important:
• Always keep client’s hair and head at least 4 – 8 inches (10 – 20 cm) from
Heater Lamps.
• Always keep the client’s head centered between lamps.
• Always rest equipment for at least 15 minutes during each hour of use.
Operation
+1+10
On O
Timer
Time Setting
Left
Cool O3
Right
Time Setting
Start/Stop
28
1. Time Display/Cooling Display.
2. Press once to increase time by one minute.
3. Press once to increase time by ten minutes.
Temperature setting buttons:
4. Left heater
5. Right heater
6. Top heater
7. Bottom heater
8. Back heater
9. Cooling
10. O₃
11. Start/Stop
12. Power Switch
3. 2.
6.
9.
11.
4.
7.
8.
5.
10.
1.
12.
LED’s: None 1 2 3 4
Temp: None 122°F 144°F 163°F 185°F
Note: The temperature may vary slightly depending on the time in use.
Control Panel
Setting up and attaching the Floor Stand
1
i. Screw the four wheels/casters into the
threaded locations on the base, and
tighten with the wrench (supplied).
i. Insert the mounting bolt with washer
(provided) through the bottom of the
Base and screw it into the Main Post
section.
i. On the Main Post, loosen the Height
Adjustment Knob enough to insert the
upper Extension Tube.
i. Tighten the Adjustment Knob.
2
• Lower the Dryer onto the Stand
assembly as shown.
Assembly and Installation
Adjustment knob
Extension Tube
Main Post
Base
Mounting
Bolt
Wall mounting requires rst anchoring the
Mounting Bracket to a suitable wall surface.
The screws and anchor-bolts supplied are
intended for use in brick, block, or concrete
walls. For mounting on walls using studs and
drywall construction, it may be necessary to add
structural backing, or additional framing before
proceeding. It is also important to verify the
suitability of all hangers, bolts, and screws for
any particular installation. We strongly advise
consulting a licensed professional before pro-
ceeding.
Mounting the Wall Bracket
1
• Verify that the wall is well-built and strong
enough to carry the load of the bracket and
dryer.
• A grounded power outlet (110V/11A) must
be available within 2 feet of the installation.
Using a circuit with ground-fault-protection
is recommended.
• The recommended installation height is 6 ft
(1.8m) above oor level, or as required.
Warning: This unit requires professional installation by a licensed contractor.
Improper installation may result in serious injury or death.
SALONPRO will not be held liable for improper installation of our products.
Brick or Block
Drill 3/8in holes
Mounting Bracket
Bolt, nut, lock-washer, wash-
er and expansion sleeve
Setting up and attaching the Swing Arm
Attaching and Adjusting the Swing-Arm and Dryer.
1
With the Wall Bracket in place and secured:
• Slide the open end of the Swing Arm onto
the bracket and slide into place with a little
downward pressure.
Note: The Swing Arm is spring loaded to
compensate for the weight of the Dryer and will
not adjust properly until the Dryer is attached.
2
To install the Wall Mounting Bracket on a brick,
block or concrete wall:
• Hold the bracket in place and use a level to
ensure it is perfectly vertical.
• Mark the three screws holes.
• Drill holes with a 3/8 in (l 0.5 mm) diameter,
and 2.5 in (65 mm) depth, into the brick or
block wall.
• Insert the anchor-bolts with the sleeves, nuts
and washers attached.
• Remove the nuts and washers and mount the
bracket onto them.
• Replace the washers, lock-washers and nuts in
that order.
• Tighten with a wrench to an appropriate
4.
5.
1.
2.
3.
2
To attach the Dryer:
i. Remove the small Phillips lock-screw above
the release ring. 1.
ii. Hold the Dryer in place, and on the
attachment-point of the Swing Arm, pull
the release-ring up until the ball-clip is
revealed. 2.
iii. Slide the attachment post on the dryer into
the attachment-point of the Swing Arm,
until the ball-clip aligns with the groove on
attachment post on the dryer. 3.
iv. The release clip may now be returned to its
original position, locking the attachment
post in place. 4.
v. Replace the locking screw. 5.
vi. With the Dryer attached, test for free and
easy movement of the Swing Arm.
3
• Connect the Power Cable
Note: In some cases, it may be necessary to
adjust the counterbalance mechanism or the
Max/Min height adjustments on the Swing Arm.
See instructions in the next section.
Note: It is important to inspect the Wall Bracket
and attachments on a regular basis to ensure
proper and safe operation.
Swing Arm Adjustments:
There are three possible adjustments to the swing arm:
1. Adjust the maximum height – this can be useful if there is a low ceiling.
2. Adjust the counter weight force – use this adjustment if the Dryer Unit tends to
drift up or down after being set in position.
3. Adjust the angle of the dryer attachment head to be perpendicular – It
is important that the Dryer attachment post hangs perpendicular, use this
adjustment if required.
1. Max Height
2. Counter Weight
3. Perpendicular
Adjustment
3.
2.
To Adjust Maximum Height:
• Remove screws and cover at 1.
• Using a wrench, loosen the locking
nut.
• To reduce height limit – turn the
adjustment screw anti-clockwise –
To increase, turn clockwise.
• Tighten locking nut
• Replace the cover and retaining
screws.
To Adjust Counter Weight Force:
With the dryer head attached –
• Remove screw and cover at 2/3.
• Using a metal pin turn the nut 2.
• Test the adjustment by raising
or lowering the Dryer Head and
releasing – If the Head remains in
position the adjustment is correct.
• Replace the cover and retaining
screw.
To Adjust The Dryer Head Post
For Perpendicular
With the dryer head attached –
• Remove screw and cover at 2/3
• Loosen hex nut 3
• Bring Dryer Unit to a perpendicular
position
• Tighten lock nut.
• Replace the cover and retaining
screw.
1.
1.
STATUS REASON SOLUTION
Unusual fan noise 1. Foreign object
obstructing fan.
2. Lack of lubrication to
moving parts.
3. Fan is impaired by
debris build -up.
1. Check for
obstructions.
2. Lubricate as
necessary.
3. Clean as necessary.
Heating element not
producing correct heat.
1. Wrong settings.
2. Loose or faulty
connection.
3. Faulty internal parts.
1. Adjust settings.
2. Re-seat cables.
3. Replace parts.
Fan has ceased to
function.
Bad processor or relay. Replace parts.
Trouble Shooting
Technical Specications
Minimum Operating Space: 42”wide
Arm length (closed): 34”
Arm length (extended): 63”
Mounting height: 6’
Ring diameter: 20”
Voltage: 110 V
Hz: 60 Hz
Wattage: 1350 W
Product Liability Disclaimer, Terms Of Use, Warranty, & Liability
Waiver
Millennium Trading LLC offers its products with the terms, conditions and notices as
follows. The following terms and conditions apply to all sales and uses. Please review
carefully. These terms and conditions include limited warranties and disclaimers
of liabilities. Keeping, using or allowing use of Millennium Trading LLC’s products
indicates your agreement to these terms. If you do not wish to agree to these terms,
you have 30 days from the date of purchase to return the unused product.
Terms of use
This product is offered to you conditioned upon your acceptance without modication
of the terms, conditions, and notices contained herein.
Exclusive Obligation
Our products are designed for professional use only, and are not designed nor
manufactured as a product for lethal purposes. Our products may not be used for
unlawful purposes and such use is expressly prohibited under the terms and conditions
of its use.
Use limitation
You may not modify, copy, distribute, transmit, display, perform, reproduce, publish,
license, create derivative works from, transfer, or sell, any information, software,
products or services obtained, from Millennium Trading LLC’s website or its products.
Limited Replacement Warranty
This product is warranted against any manufacturer defect for a period of at least
six or twelve months from date of purchase, depending on where the product was
purchased. If unsure about the warranty period of your product, please contact us.
High Level of Risk
Products sold by Millennium Trading LLC include professional-use equipment used to
dry, condition and process color on hair using heat with high temperatures. Use of our
products for this purpose can be associated with a high level of risk, especially if used
incorrectly. Risks include but are not limited to serious physical injury, burns, disability
and/or death. Users of our products choose to do so at their own risk.
Assumption of Risk
By buying, using, or allowing the use of Millennium Trading LLC’s products, you
understand and agree that professional salon equipment, such as this product can
be associated with a high level of risk and, to the extent permitted by law, YOU
EXPRESSLY AND VOLUNTARILY ASSUME THE RISK OF DEATH OR OTHER PERSONAL
INJURY SUSTAINED WHILE USING OUR PRODUCTS, WHETHER OR NOT CAUSED
BY THE NEGLIGENCE OR OTHER FAULT OF Millennium Trading LLC, including
but not limited to equipment malfunction from whatever cause, or any other fault
of Millennium Trading LLC. Additionally, you agree to indemnify, defend, and hold
Millennium Trading LLC harmless from any third party claims arising from such High
Risk Uses, or any use or misuse of our products.
Limitation Of Liability
As set forth above under the limited warranty provisions, Millennium Trading LLC’s
liability is limited to repair or replacement of its products which are returned to it in
the specied period of time. In no event shall Millennium Trading LLC’s liability exceed
the value of the product(s) sold. In no event shall Millennium Trading LLC be liable for
any direct, indirect, punitive, incidental, special or consequential damages whatsoever
arising out of or connected with the use or misuse of any of its products.
Warning
Use and misuse of products sold by Millennium Trading LLC involves serious risks
including injury, disability and death. Purchasers assume all risks.
Inspect Before Each Use
This product must be inspected for use to ensure it has not been damaged in
shipment. If damaged, do not use and immediately return the product to Millennium
Trading LLC for a replacement.
Entire Obligation
The PRODUCT LIABILITY DISCLAIMER document states the entire obligation of
Millennium Trading LLC with respect to the products. If any part of this disclaimer is
determined to be void, invalid, unenforceable or illegal, including, but not limited to
the warranty disclaimers and liability disclaimers and liability limitations set forth above,
then the invalid or unenforceable provision will be deemed superseded by a valid,
enforceable provision that most closely matches the intent of the original provision and
the remainder of the agreement shall remain in full force and effect.
Applicable Law
Your order from Millennium Trading LLC, and this disclaimer statement are governed
by the laws of the state of California, United States. You hereby consent to the
exclusive jurisdiction and venue of the Superior Court of San Diego in all disputes
arising out of or relating to the use of this product. Use of this product is unauthorized
in any jurisdiction that does not give effect to all provisions of these terms and
conditions, including without limitation to this paragraph.
Modication of Terms and Conditions
Millennium Trading LLC reserves the right to change the terms, conditions, and notices
under which it’s products are offered at any time.
SALONPRO
Phone: 888-536-0087
Email: [email protected]
Table of contents
