SalonTech PediJoy User manual

Whirlpool Pedicure Spa
Manual
Pedi

Important requirements
Requires that you contact your local, licensed plumber and licensed electrician to install your new spa. Installation
MUST be in compliance with all local and state building codes. Your pedicure spa can not operate efficiently or safely unless it is
provided with adequate electrical power, sufficient water pressure, proper water temperature, and required drainage capabilities.
Contact your local building inspector for information and local code compliance procedure that need to be followed when having your
new pedicure spa installed. Subsequent inspections and approvals that may be required are the responsibility of the purchaser.
Thank you for choosing , the leading manufacturer well known worldwide for its innovation and design in
pedicure spas. takes pride in bringing you quality products that meet today’s demand for safety and service.
The Whirlpool Pedicure Spa has been designed for dependability, and to benefit all with a health conscious
clientele.
Precaution
- Do not stand in the basin of the spa.
- Excessive water temperature is dangerous and should be checked before use. Maximum water Temperature should not exceed
150F (65C).
- Always enter and exit the spa slowly and carefully.
- Never bring or operate any electrical device near pedicure spa.
- The unit has a weight capacity of 250 pounds.
Health Warning
Individuals whose feet or legs are inflamed or have open wounds should not be allowed to use the pedicure spa at any time. The
technician should advise clients to consult their physician before using the spa if there is any sign of fungal infection, swelling,
fracture, or persistent pain. In some cases diabetics may experience improved circulation in their feet, but should first consult their
physician prior to receiving a pedicure.
If the client experiences any pain or discomfort, discontinue the use of the pedicure spa
immediately.
Shipment Inspection
Examine the components immediately upon arrival to make sure no damages to the pedicure spa base and chair during the shipment. It
is very important that you notify the driver directly on the face of the freight bill or bill of lading of any damage. Failure to note
damage on the bill of lading may prevent any claims you may have against the carrier.
If concealed or damage is found, you MUST notify the carrier at once and request an inspection. You do so at your own risk and
expense. DO NOT DISCARD THE SHIPPING CARTON until you give the carrier a clear receipt of goods that have been
damaged in transit.
PLEASE TAKE TIME TO READ THIS MANUAL THOROUGHLY BEFORE USE. If you have any questions or
problems with your pedicure spa, please contact our Customer Service and Technical support at 516-484-4937, Monday
thru Friday 9AM - 5PM, or email us at [email protected]

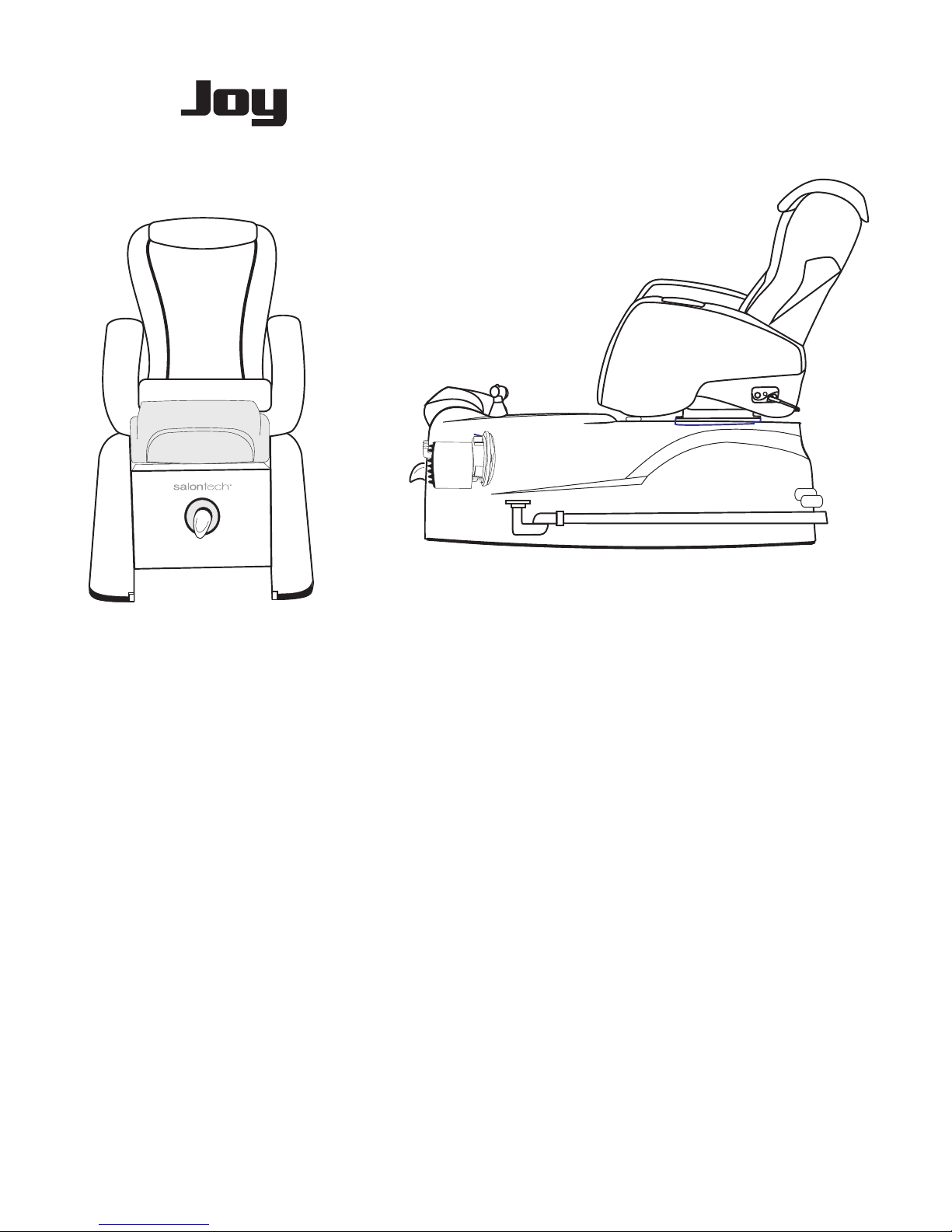

Pedi

53”
29”
Whirlpool Pedicure Spa
Salontech LLC
57 Seaview Blvd.
Port Washington, NY 11050
Tel: [phone]
Fax: [phone]
www.salontech.com
[e-mail]
Serial Number:
Order Number:
Installed by:
Installation date:
Chair Serial Number
IMPORTANT INFORMATION
Pedi

Important Considerations
Electrical Service
A 110V, 60 Hz, 15 Amp GFCI protected grounded circuit must be used to supply power to each individual pedicure spa.
Water Supply
All plumbing connections must conform to local codes.
Water supply to the spa should be provided with adequate water pressure and water temperature.
Water pressure
To fill the basin correctly up to level, Normal water pressure of 30 to 80 P.S.I is required.
Water temperature
The hot water supply temperature must not exceed 140 . Adjust your hot water accordingly. For hot and cold water supply
fittings and drain fittings location, see below diagram .Carefully connect the water supply line to the appropriate fittings
located on the rear of the pedicure spa.
Back flow Preventive Device
All pedicure spas are pre-installed with Dual Back flow Preventive Device for the following state; CA, AZ, NV, OR, WA, and
NE
Hot Water
Supply
Inlet
Cold Water
Supply
Inlet
1-1/2” PVC Drain
Outlet
ALL Fittings are ½”NPS (Male)
Back of the pedicure spa
The pedicure spa Drain must meet local plumbing codes. Check valve for Drain (not Provided) Must be installed by a licensed
plumber.
PLUMBING CONNECTIONS
Specification
Back flow preventive device for faucet: Vacuum Breaker comply with ANSI/NSF - 61-2000, ASMB A112.18.1-2000, ASSE
1014 and CSA standard - B125.98.
Drain Facilities
ANSI/ASME A112.18.3M (performance requirements for back flow preventive device and systems in pluming fixture fittings)
is applicable to plumbing fixture fittings with outlets not protected by an air gap. Included in the possible range of applications
are fittings with hose connected outlets, fitting with pull out spout, hand held showers, shampoo fittings and deck mounted
fittings. ASME A112.18.3M is now referenced in ASME A112.18.1M (plumbing fixture fittings) and CSA B125. Back flow
preventive devices are listed to both standards with the canadien standard association, IAPMO and UL.
ANSI - American National Institute, ASME - American Society of Mechanical Engineers, CSA - Canadian Standard
Association IAPMO - International Association of Plumbing and Mechanical Officials, UL - Underwriters Laboratory

Caution
Warranty will be null and void.
Please DO NOT lift or move the Spa with faucet handle

Components
Due to continuous improvements on all our products, specification, characteristics, packing, color, designs re subject to change without notice
Identifying components
1 - AUTO SLIDER REMOTE CONTROL (AUTOMATIC SLIDER)
2 - CLEAN PIPELESS JET / CLEAN JET COVER
3 - SHOWER SPRAYER
4- SHOWER STAND
5 - DRAIN PLUG
6 - OVERHEAD WASTE KNOB
7 - ADJUSTABLE FOOTREST
8 - FAUCET
9 - ON/OFF WHIRLPOOL AIR ACTIVATE BUTTON
10 - MANUAL SLIDER LEVER (MANUAL SLIDER)
11 - MASSAGE MAIN ON/OFF SWITCH
12 - MASSAGE AND BUILT IN RECLINER REMOTE CONTROL
13 - BACKREST
14 - HEAD PILLOW
15 - FUSE FOR MASSAGE SYSTEM
16- I-JOY CHAIR SERIAL NUMBER
17- LED LIGHT SYSTEM
ON
OFF
Pedi
1
2
6
15
14
13
12
11
10
9
8
7
5
6
16
17
4
3
stop
power
position
partial
percussion
compression
kneading
rolling
lower
upper
full
2
3
5

Dual Clean Pipeless System
with Adjustable air control system for powerful whirlpool action
Dimension & Weight
Capacity of Tub
Switch
Whirlpool
Power Source
Plumbing Source
Warranty
Pedi-Joy (Base unit)
Pedi-Joy (Chair)
Stool
Clean Jet
Air Control
Motor
Discharge Pump (optional)
Massage System
Hot Water
Cold Water
Drain
Unit
Optional Item
58”L x 32”W x 21”H Shipping Wt.130 Lbs
52”L x 32”W x 21”H Shipping Wt. 115 Lbs.
20”L x 12”W x 17”H Shipping Wt. 18 Lbs
4.25 US Gallon
On/off Air Activate switch
Hydro therapeutic clean pipeless system with
dual directional flow system
Air induction system
115V 1.25 Amp
115V. 3.2 Amp. 60Hz
110V-120V 60Hz 90W 5Amp
½ inch (fitting pre-installed)
½ inch (fitting pre-installed)
1-1/2 inch ( see plumbing instruction)
One Year ( see warranty)
180 days
Specification ( PipeLess Clean Jet System)
Specification ( PipeLess Clean Jet System)
14
Due to continuous improvements on all our products, specification, characteristics, packing, color, designs are subject to
change without notice.
Pedi
P-tr ap and 1 -1 /2” exten sion PVC pipe

Salontech,LLC Pedi-Joy
Salontech,LLC

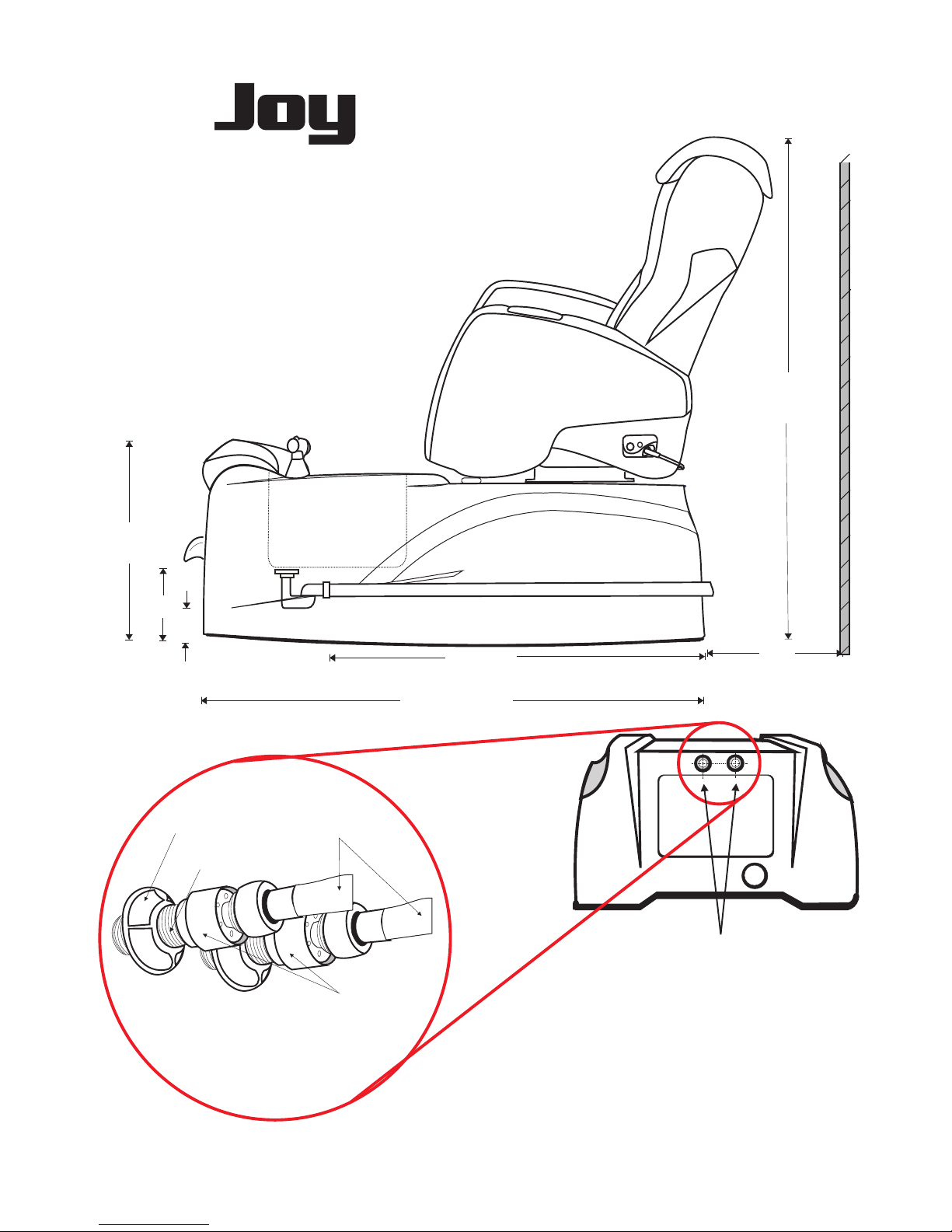

Top / Rear view
Pedi
Wall
2-3/4”
3”
10”
2”
Plumbing Fitting
15”
42”
38”
29”
27”
26”
Plumbing connection
area
Drain Pipe extension
Center of drain to end of drain pipe
Required space
for installation
54”

Installation Specifications Summary
Warning: Failure to comply with federal, state or local codes and ordinances will result in warranty being null and void.
As stated, the pedicure spa installation must comply with all plumbing and electrical codes. A licensed plumber and
licensed electrician must complete the applicable connections of the pedicure spa.
Location and support
Select a level location. The floor structure beneath the pedicure spa must be capable of supporting the occupied pedicure
spa.
For the seat back to fully recline, the pedicure spa base must be mounted 15 inches from the wall as shown below:
15”
How to use adjustable footrest
Place left hand on the back of the footrest and gently
pull up toward to front as shown Fig.2
Fig 2.
Fig 1.
And place right hand on the front of the footrest,
gently pull up for desirable height and use locking
lever to secure the footrest.
Due to continuous improvements on all our products, specification, characteristics, packing, color, designs are subject to
change without notice.
Wall

Note:
The requirement for the vacuum breaker varies
from state to state and province to province,
Please consult with the licensed plumber.
Pedi
Wall Drain
Floor Drain
Power Drain
Manufacturer installation recommended
Note: Plumber must utilize hot & cold water valves
Pedi ½”Hot&Cold
water inlet
21”
2-3/4” 37-1/2”
41-1/2”
15”
46-1/2”
Pedi ½”Hot&Cold
water inlet
15”
46-1/2”
41-1/2”
37-1/2”
2-3/4”
21”
Pedi ½”Hot&Cold
water inlet
½”Discharge
outlet
3/4”
inlet
1” Extension Pipe
21”
2-3/4” 37-1/2” 15”
46-1/2”

15”
Back Flow Preventive Device located in front
of the hot / Cold water inlet 2” above the water level of the tub.
Model # V00275
Class 6811 61 - Plumbing fitting and Accessories
- Fitting - Certified to ANSI/NSF - 61
Breaded flex hose
½”Brass Nipples
Plastic faucet lock Nut
Back Flow Preventive Device Requirement
ANSI/NSF - 61 -2000
ASME A112.18.1-2000
ASSE 1014
The back flow preventive device will not be mandated for us to install, But it is an
optional item. If your state requires back flow preventive device on the pedicure
unit, you MUST specify in your order. We recommended to pre-install by MFG.
The specification, back flow preventive device description, requirement and
certificate numbers are as indicated below.
P-trap with 1-1/2” PVC extension
1-1/2” PVC extension
21”
2-3/4”
8”
46-1/2”
37-1/2”
54”
Back Flow Preventive Device
Pedi
3”

Position
Partial: Press kneading or compression and then
Partial to have a partial stroke up/down 3.
Massage System
Important Safety Instructions
To reduce risk of burns, fire, electric shock or injury
Read all instructions before using; burns will result from improper use, never remove cover other than authorized from the
manufacturer.
Close supervision is necessary when unit is used by, on, or near children, and disabled people.
Use this unit only for its intended use as described in this manual. Do not use any attachment/s not
recommended by the MFG.
●Keep the cord away from heated surfaces.
●Do not use outdoors.
●Do not operate where aerosol products are being used or where oxygen is being administered.
●Never operate this unit if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. To disconnect, press power button to turn
off, then remove plug from outlet.
●Take a break every 30 minutes of operation.
●Do not place any heavy object on the chair and do not let children play with it.

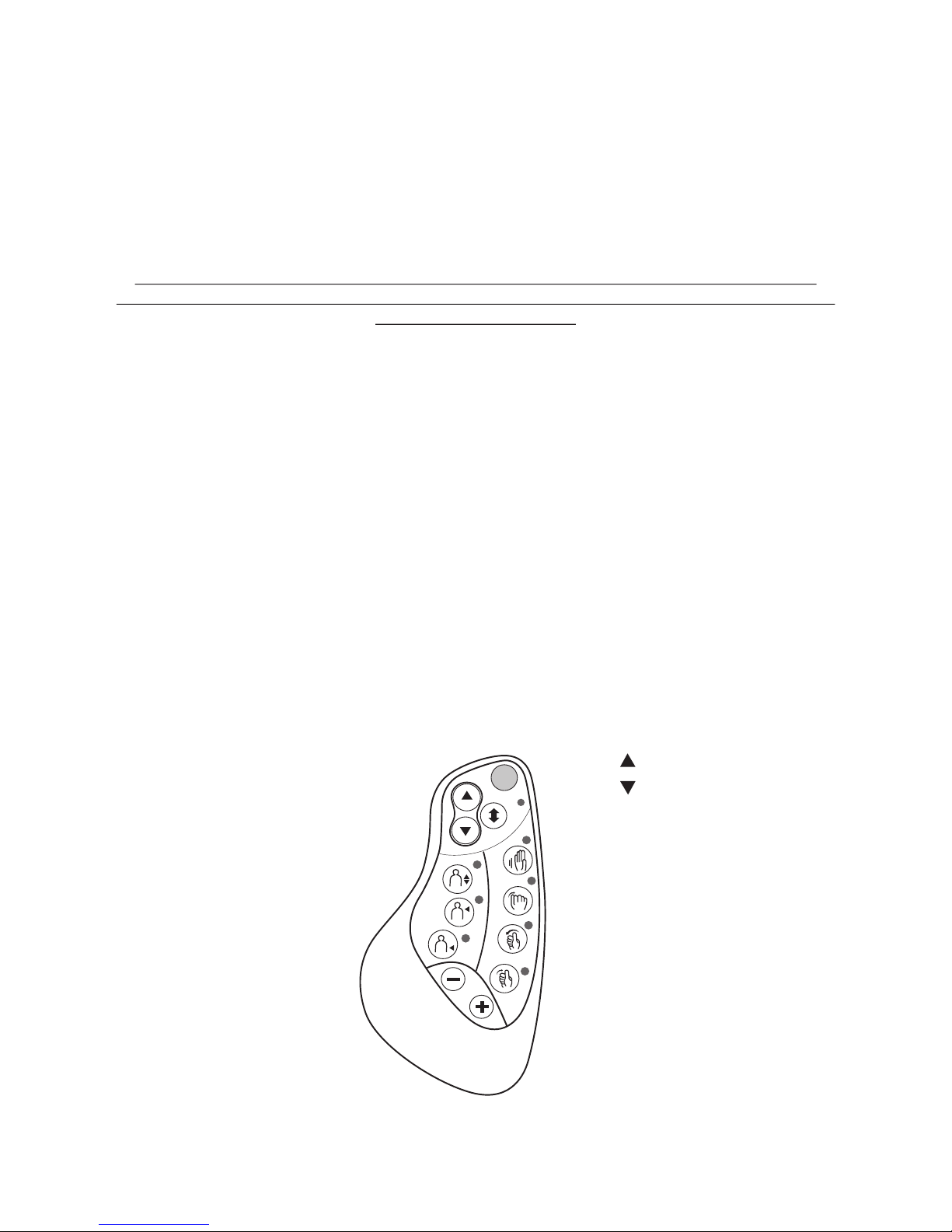

Your massage chair is simple to operate using the handheld controller included with your chair.
Before you use your chair, we recommend that you familiarize yourself with the remote control and the basic
massage functions.
Warning: ;
Manual
Moves the massage rollers up the backrest.
Moves the massage rollers down the backrest.
Basic Operating Instru ctio ns
Massage System Instructions
POWER LED will be Green when main switch ON,
Stop / Auto Park Stops all massage function and parks the
massage roller in its highest position
Pre-Program
FULL: A continuous 15 minute program consisting of
a series of combined functions for entire back.
Upper: A continuous 15 minute program consisting of
a series of combined functions for back upper
portion.
Lower: A continuous 15 minute program consisting of
a series of combined functions for back lower
portion.
All pre program starts with rolling mechanism and combination of
rolling and kneading, compression, percussion in that sequence.
Rolling - Push to start the massage rollers rolling
up/down.
Kneading - Press to start the kneading massage at
any given point. Press positioning button for desire
position. Or press rolling with Kneading combine,
it’ll move up/down continuously with kneading.
Compression - Press to start the compression
massage at any given position. Press positioning
button for desire position. Or press rolling with
compression combine, it’ll move up/down
continuously with compression.
Percussion - Press to start the percussion massage at
Any given position. Press positioning button to move
desire position.
Selective Functions
Recliner
Minus Button - Move back seat upward.
Plus Button - Move back seat to recline.
power
stop
position
partial
percussion
compression
kneading
rolling
lower
upper
full

R
E
A
R
R
E
A
R
Chair assembly
Bottom view (Chair)
Align rear of the hole onto the swivel and
tighten one at a time.
Swivel
Pre-install swivel to the base.
Base (Body)
Base with spacer for reinforcement and support
swivel as well as chair.
Tool Required
13 mm rachet
Vise Grip plier

Maintenance
Suction
It is important to keep the suction screen from any blockage or obstructions at all times, due to they may reduce the whirlpool
action and may cause damage to the pump.
To Clean: Take off suction screen by removing two screws and clean with soft brush while immersed in disinfectant.
After each customer (Standard Jet System Users)
1. Drain completely and remove residual debris from basin.
2. Clean the surfaces and basin with mild detergent, rinse with fresh water.
3. Disinfect with an EPA-registered disinfectant with bactericidal, Fungicidal, and virucidal activity used according to MFG
recommendation.
4. Wipe the pedicure spa dry with clean cloth.
After each customer (Standard System Users)
1. Drain completely and remove debris from the basin.
2. Spray disinfectant on the basin and flush out with fresh water.
3. Remove (see clean jet system) and immerse jet cover into disinfectant for 5 minutes.
4. Placing jet cover ( see clean jet system) and please follow direction.
Daily ( Standard Users & Clean Jet System Users)
1. Remove the intake suction screen. All debris trapped on or behind the screen must be removed. The Suction screen and the
suction inlet must be free of debris.
2. Before placing the screen, The screen must be immersed with EPA - Registered disinfectant.
3. Flush out the whirlpool with low foaming detergent and warm water for 10 minutes.
4. With fresh water, EPA - registered cleanser for 5 minutes.
5. Rinse with fresh water.
Manufacturer requires that the pedicure spa be thoroughly cleaned at the end of the day in following manner.
Weekly ( Standard users & Pipless System users)
1. Fill the basin Hot water up to its level.
2. Add 3 to 4 table spoons of a low foaming agent and 1 to 2 table spoon of powder bleach.
3. Run whirlpool for 5 minutes.
4. Stop whirlpool and sit for 5 to 7 minutes.
5. Open Air control and whirlpool for 5 minutes.
6. Drain completely.
7. Fill the basin with warm water up to its level.
8. Apply EPA-registered disinfectant according to its direction.
9. Run whirlpool for 5 minutes.
10. Drain completely.
11. Wipe out excessive water with soft cloth.
12. Repeat step 7 to 10, If necessary.

Clean Jet System - Clean Jet System users
To Open
1. Hold the Jet cover as shown left.
2. Gently rotate to left to open.
3. Pull gently outward.
4. Clean jet component, Remove all debris from jet cover
and locking mechanism.
5. Clean all debris inner side of the jet as shown below left.
6. All jet cover must be remove and follow the cleaning
instruction.
Open
Close
1
Impeller
2
Maintenance
Keep the screen of the jet inlet free of debris. Any blockage of the screen reduces the whirlpool action and may cause
damage to the jet motor.
Disassemble
Assemble
1. Place Jet cover over the housing at two o’clock position.
2. Push in gently.
3. As push in to the housing rotate to right to close.
Warning
Individuals whose feet or legs are inflamed or have open wounds should not be allowed to use the pedicure spa at any time. The
technician should advise clients to consult their physician before using the spa if there is any sign of fungal infection, swelling,
fracture, or persistent pain. In some cases diabetics may experience improve circulation in their feet, but should first consult their
physician prior to receiving a pedicure.
To Open
Clean Jet Pipeless System
To Close
DO NOT USE abrasive pads or cleaner/s that will scratch or dull the
FRP surface or the metal accessories.
Failure to follow these cleaning instructions may result in voiding warranty coverage!
Pedi

Chair Maintenance
Note: Always clear passage of the up/down movement.
1- As shown, Lubrication is MUST be applied quarterly.
2- Check loose wire on limited switch.
3- Do not lubricated excessively.
4- No debris on moving track or the main shaft.
Outside Cover Open zipper
to either side
Under the head
rest, you will find
zippers to open
outside cover. As
shown
Mechanism Cover
Zipper Location
Inner cover lining for
easy access to the
mechanism.
Removable Padding
location
For high density of
massage, remove
extra padding. As
shown
Full view Massage Mechanism
Lubricate Quarterly
Limited switch
Carbon brush
Front view
Top view
Sensor
Location
Massage sensor replacement
Two screw
ON
Off
1- Move down roller by pressing full mode on the remote
Control and turn off on the chair main switch (fig.3).
2- Remove two screws as shown fig.1
3- Gently pull out the PC board (fig.2)
4- And gently pull out wire receptacle (fig.2)
**Reverse the process for replacing the massage sensor**
On/Off
Fig.1 Fig.2
Fig.3
Main Shaft

Cautions
To Reduce the potential risk of fire, electrical shock or injury :
1. All electrical wiring (both installation and repair) must be done by a licensed electrician and in accordance with local and
state ordinances.
2. No modifications, addition or deletions should be made to the pump without MFG approval.
3. Before starting motor, fill the tub with water to the level recommended by MFG. Never run dry.
4. Motor have built in automatic reset overload protector that guards against damage from mechanical or electrical problems
such as low voltage, locked pump or similar abnormal conditions. Remember, if the timer device is still on, these motor will
restart automatically - as soon as they cool down.
5. Do not relocate pump without prior approval from manufacturer.
Warning
●To reduce the risk of injury, DO NOT permit children to use this product unless they are
closely supervised at all time.
●To reduce the electric shock, replace damage cord immediately, and DO NOT use extension
cord to connect unit to electric supply.
SYMPTOMS PROBABLE CAUSES RECOMMENDED ACTION
Will not turn on No power to motor Check switch and circuit breaker / connection
Pump runs slow Note wired required voltage Correction voltage from power source
Pump humms Particle stuck in the impeller Clean out impeller / check terminal connection
Pump humms Pump jammed If unable to turn, please send for repair
but will not turn
Noisy pump Particle in the pump Remove debris in the volute
Pump leaks Loose union Tighten union
Worn seal Replace shaft seal
Pump cavitation Air from jets getting in suction Direct directional flow fitting away from suction
Pump runs but Air lock Turn on and off the pump up to 10 times / take out air by opening
no jet action the union and bleed out the air. Tighten union after air is out.
Union Nut
Union Male 1 ½ in.
O Ring
Front Volute
Front Discharge
Impeller
Seal
Volute O Ring
Back Volute
Power Cord
Airswitch
TROUBLE SHOOTING

Installation Instruction
Operation Instruction
Please! DO NOT run dry
1. Turn to open drain plug.
2. Press On/Off switch to activate timer.
3. At any time, water drain completely from the basin. Press
On/Off switch to stop or built in two minute timer.
On/Off
Switch
Fastner
1-3/8” Hole
for On/Off Switch
Figure 1
1. Make a hole ( size 1-3/8”) for the On/Off switch as shown (see fig 1).
Pre-drill required.
2. Placed a 1/8” clear hose into the rear of the switch and on/off switch into
the hole.
3. The discharge pump kit is made to fit onto the pedicure unit. (see fig 2)
4. Connect E-Z connector onto the drain elbow.
5. Plug discharge pump outlet into the two minute timer outlet
6. Plug two minute timer into the wall outlet.
7. It is very important that tip of the clear tub remain above the water Level
with one loop as shown.
** Please cut to fit 1” Flex hose to your size**
Drain Elbow
Discharge
Pump
1/8” clear tubing
Figure 2
Two Minute Timer
1” PVC Pipe
1-1/4" E-Z Connector
1-1/4” Drain Elbow
3/4”x1” adapter
½”Check Valve
Tip of the clear hose
MUST be above the
water level.
Discharge Pump
On/Off
Switch
Fastner
(Provided by MFG)
Power Cord
Air Tubing Outlet Pluggs
Loop
to connect
Main
Drain
Pedi

Return Address: Salontech LLC
57 Seaview Blvd.
Port Washington NY 11050
T: 516.484.4937
F: 516.484.4938
E-mail: [email protected]
Web : www.salontech.com
Salon Name:
Telephone#: Alt. Tel:
Contact Name:
Address :
Are you interest in purchasing additional equipments in near future?
If so, how many?
Comment on equipment:
Warranty Form
Customer MUST fill in blank and return to us with sale receipt in order to obtain warranty service.
The sales receipt MUST indicate the purchase date and distributor.
Model: Standard PipeLess
PipeLess
Pedi
Date of Purchase: ________________________________________________
Place of Purchase: ________________________________________________
QTY / Color: ________________________________________________
Please have all information available, when requesting service. If We do not receive warranty for with copy of sales receipt
within 15 days from the purchase date, We have the right to nullify and void the warranty without notifying the customer.
Customer Information
This survey is for us to serve you better in efficient manner. Please fill out blanks and return to us. Thank you.
No distributor or other person has any authority to bind to change or add this warranty or its products.
is not responsible for such warranties or representations.

No distributor or other person has any authority to bind to change or add this warranty or its products.
is not responsible for such warranties or representations.
If receives defective product notice during the applicable warranty period, shall either repair or replace
the defective parts at salontech’s option. Replacement product (part) may be either new or equivalent in performance. NO
CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGE WILL BE ALLOWED WHATSOEVER. This warranty is
null and void if the spa is remove from its place of initial installation, or is not in accordance with federal, State or local codes and
ordinances. Furthermore, This warranty does not apply if th spa has been subject to misapplication, improper installation or
maintenance, negligence, improper cleaning or other circumstances beyond salontech’s control.
Manufactures the PediJoy, Whirlpool Pedicure Spa with the highest standards for quality materials , which UL listed
components and highest workmanship for duration of the warranty period, which duration begins on the date of purchase by the
customer (end-user). Each customer is responsible for maintaining, proof of purchase (invoice) and to initiate the warranty. The
customer MUST send in warranty card in the manual booklet. Read and fill out (warranty form) carefully and return to
within 15 days from purchase.
Warranty period
* All components: One (1) year from date of shipment.
* All optional items: 180 days from date of shipment.
Not Covered
1. Damage to pump parts and/or motor parts due to obstruction in plumbing, etc.
2. Staining , fading or discoloration pf surfaces due to exposure and/or the use of harmful cleaning Agents or chemical.
3. Staining, fading or discoloration caused by improper or poor water additives not related to maintenance of proper water.
4. Malfunctions or damage caused by improper installation; including NOT meeting local and state Plumbing, electrical, and
building codes.
5. Staining, fading or discoloration of the pleather chair and urethane footrest.
6. Damage resulting from standing in basin.
7. Freight damage, misuse, neglect, accident, natural disaster, and abuse.
8. Unauthorized repairs.
Technical support
57 Seaview Blvd.
Port Washington NY 11050
T:516-484-4937 F: 516-484-4938
E-mail: [email protected] / web: www.salontech.com
SALONTECH LIMITED WARRANTY
Should service be required for any reason or any question on our product/s, Please contact
Due to continuous improvements on all our products, specifications, characteristics, packing, color, designs are
subject to change without notice.
