INSTRUCTION MANUAL
Gragon
5820

2
DIR
www.dirgroup.co.uk
CONTENTS
Please read the operation manual before using the product.
Please put the operation manual in the place easy for you to read and you can read it at any time.
Introduction
Warranty
Warranty
Safety & Precaution
Aftercare Instructions
3
4
5
6
Assembly Instructions
Operation Instructions
Control Panel
Pedicure Spa Parts
7
12
14
16
17
Contact Us 18

3
DIR
www.dirgroup.co.uk
PRODUCT INTRODUCTION
Product Name:Dragon
Product Code: 5820
Thank you for selecting DIR, the leading salon and beauty Furniture company in the UK.
The Toya pedicure spa comes with four-wheel driven muted massage system which gives
you the experience of ultimate relaxation. Please take time to read this entire manual
before assembly and use. If you have any problems or have questions regarding your pedi-
cure spa, please contact our technical support on: [phone].

4
DIR
www.dirgroup.co.uk
WARRANTY
66 Rea Street South
Birmingham
B5 6LR
UK
-----------------------------
Tel:
[phone]
-----------------------------
Email:
[email protected]
DIR BIRMINGHAM
Unit 1 River Road
Business Park
33 River Road, Barking
Greater London
IG11 0DA
UK
------------------- ----------
Tel:
[phone]
--------- --------------------
Email:
[e-mail]
DIR LONDON
24 Woodward Ave.
Suite C
Queens, NY 11385
USA
------------------- ----------
Tel:
[phone]
[phone]
-------- ---------------------
Email:
[e-mail]
DIR NEW YORK
Konrad-Adenauer-Straße 25
50996 Köln
Germany
------------------------------
Tel:
+ 49 (0) 221/88888.128
------------------------------
Email:
[email protected]
DIR COLOGNE
Unit 5 Block E,
Riverview Business Park,
Nangor Road, Dublin 12
Republic of Ireland
------------------------------
Tel:
[phone]
------------------------------
Email:
[e-mail]
DIR IRELAND
The warranty period is one year. DIR warrants to you, the original buyer, that goods shall be free of
defects in material and/or workmanship attributable to manufacture for one year from date of buyer′s
receipt of product. Damage resulting from improper handling after merchandise is received, or from
exposure to weather or extreme atmospheric conditions is not covered by the warranty.
For any other information please contact our support team:

5
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS
The Dragon pedicure spa requires that you contact a local, licensed plumber to install your new pedicure spa.
Installation must be in compliance with all your building codes. Your pedicure spa cannot operate efficiently or
safely unless it is provided with adequate electrical power, sufficient water pressure, proper water temperature, and
required drainage capabilities. Subsequent inspections and approvals that may be required are the responsibility
of the purchaser.
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using the pedicure spa
1. Use the pedicure spa only for its intended use as described in this manual. Do not use attachments not recom-
mended by the manufacturer.
2. Never operate the pedicure spa if it has a damaged cord or plug, if it is not working properly, if it has been
dropped or damaged, or dropped into water.
3. Never drop or insert any object into any opening.
4. The unit must be connected to an electrical supply circuit that is protected by a ground fault circuit interrupter.
5. Do not block jets during whirlpool operation.
6. To reduce the risk of injury, do not permit children to use this unit unless they are supervised at all times.
7. The pedicure spa is for indoor use only. Disconnect power supply cord before servicing and cleaning.
8. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
1. Excessive water temperature is dangerous and should be checked BEFORE use.
2. Maximum temperature of the water should never exceed 100 degrees F.
3. Always enter and exit the pedicure spa slowly and carefully.
4. NEVER bring and / or operate any electrical devices into or near the pedicure spa.
Safety & Precaution
Important
Requirements
Important
Safety
Instructions
Warning

6
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS

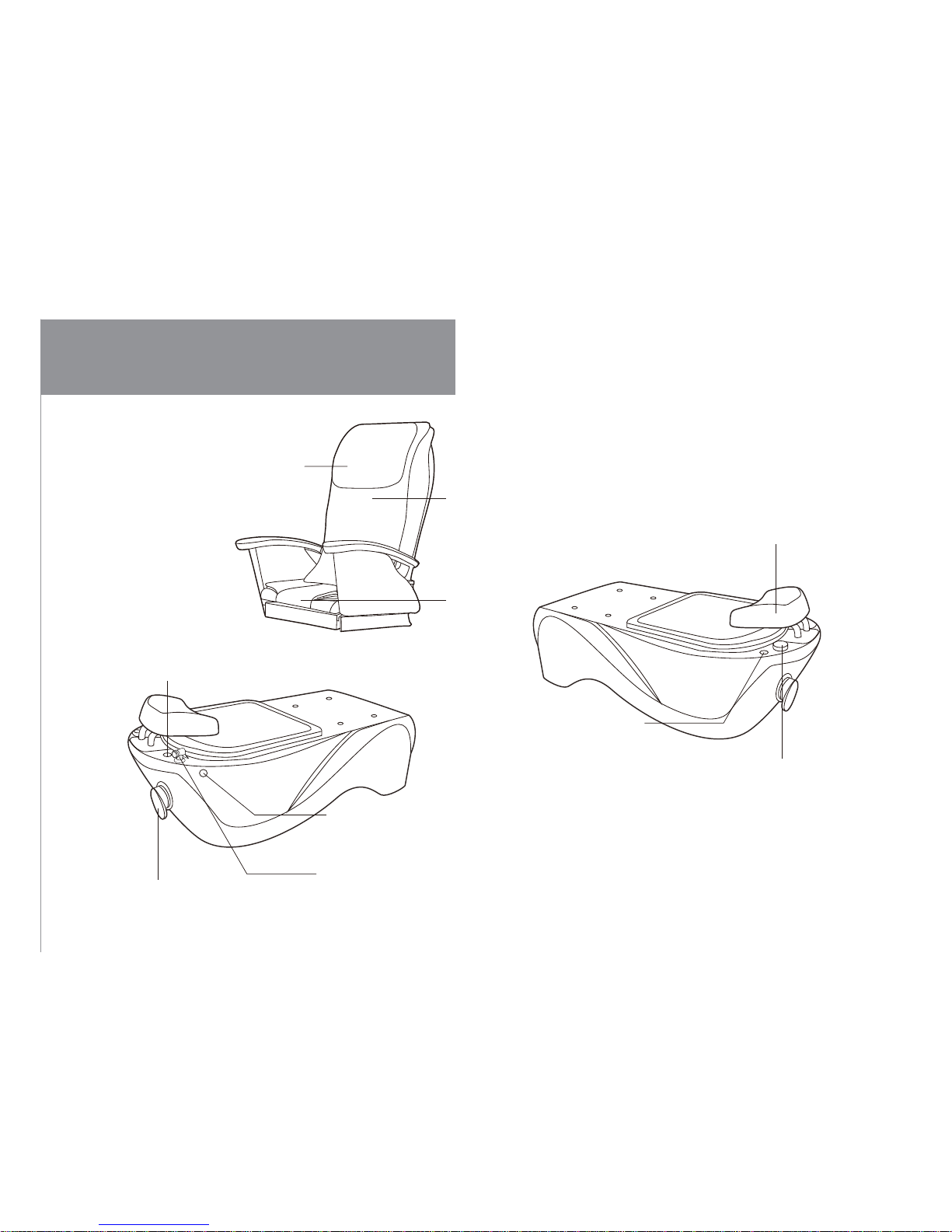

Headrest Cushion
Backrest Cushion
Seat
Faucet Handle
Min Max Adjuster
Tap
Shower Head
Drain Button
Power on/off
Legrest
Pedicure Spa Parts

7
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS
Headrest Cushion
Backrest Cushion
Seat

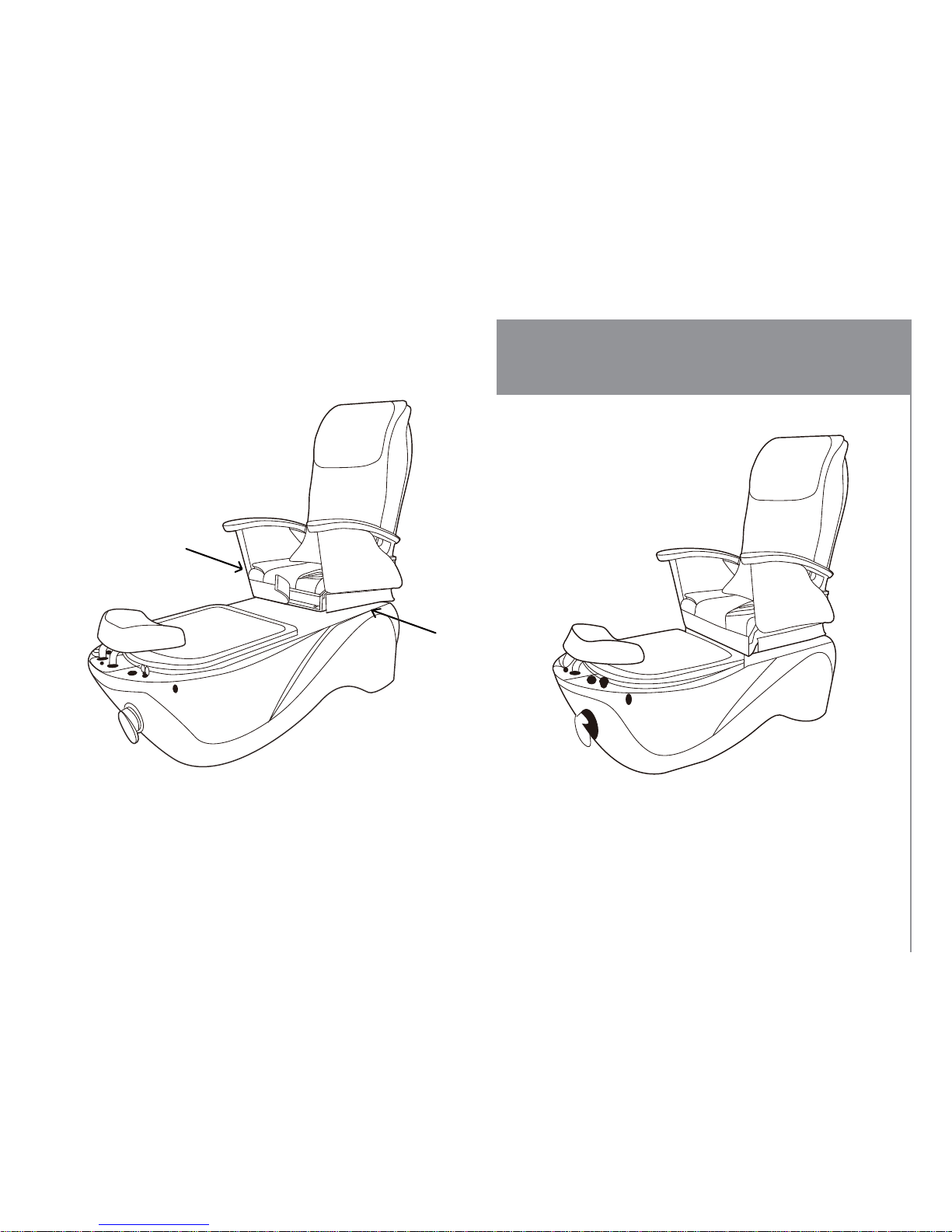

The backrest cushion and the
seat are connected by a zip.
The headrest cushion and the
backrest cushion are connect-
ed by velcro.
Assembly Instructions
Step 1

8
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS

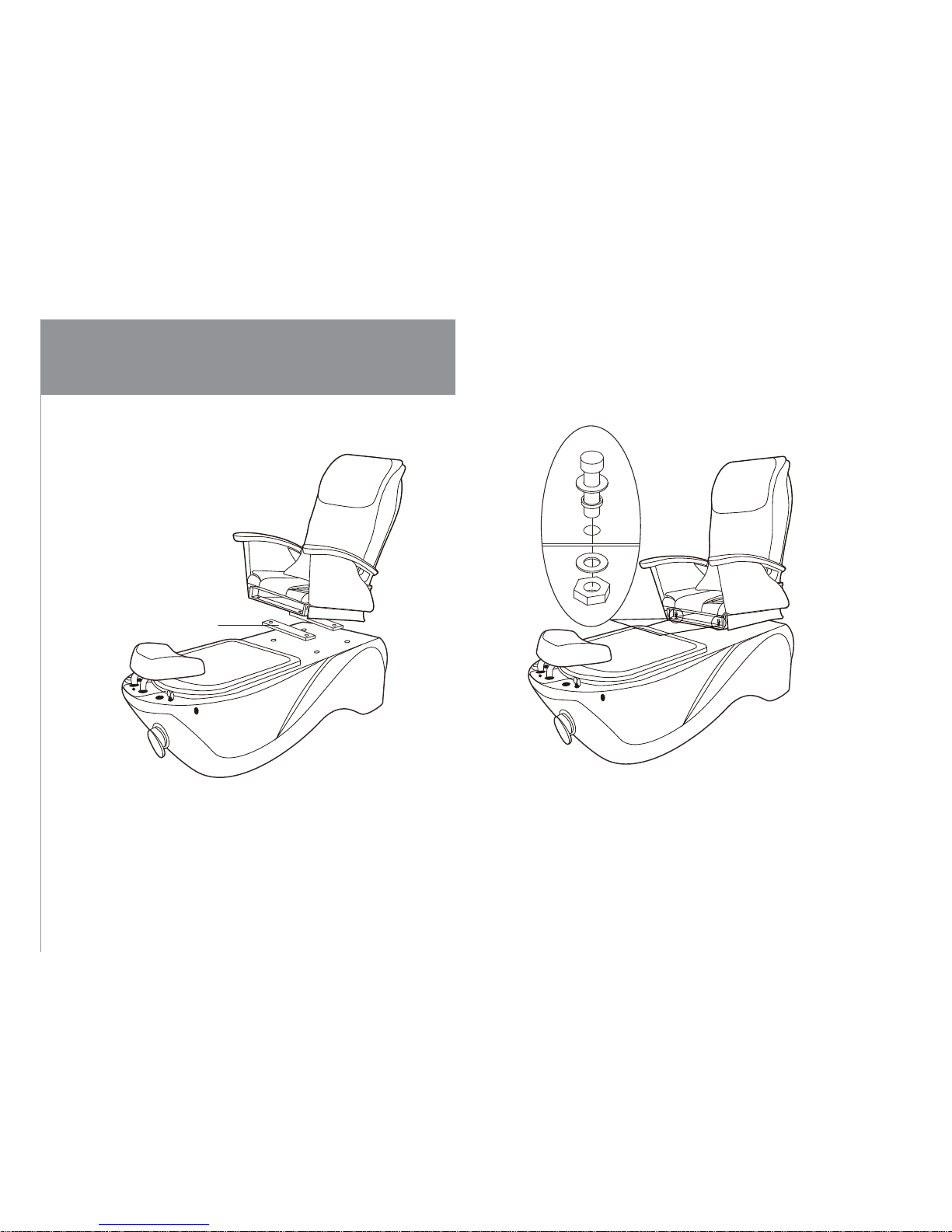

Align the seat with the pre-drilled holes on the base then tightly
secure with the nuts and bolts provided. (use the alan key provided)
Need two person assembly.
Step 2 Step 3
Rubber

9
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS
Attach the covers for the seat to the front and both sides of the seat.
Step 4

10
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS

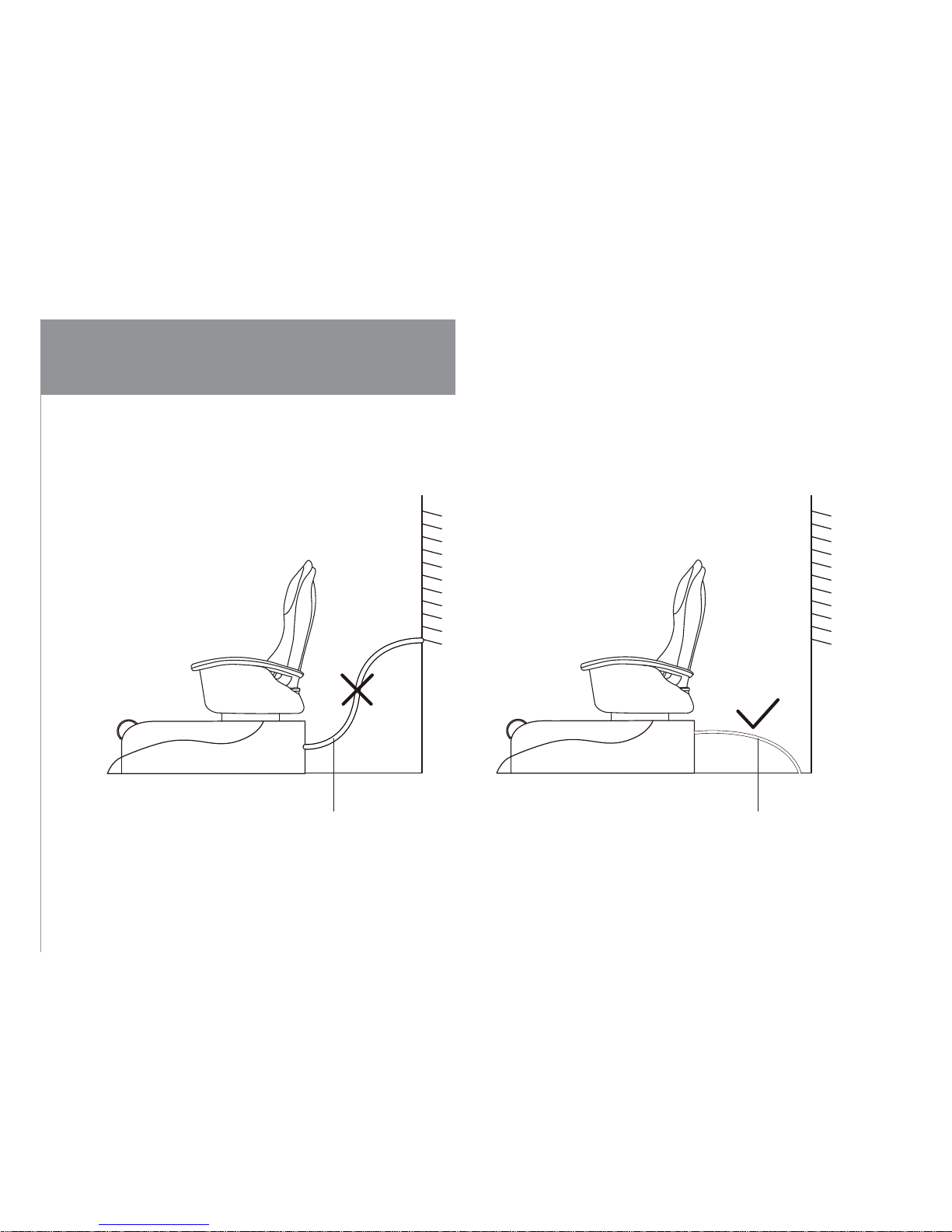

Waste Pipe Connection
Waste Pipe Waste Pipe
NOTE: waste pipe must be on a downward flow.

11
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS
Wall
26 in
15.7 in400 mm
2 Meter a part

12
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS
Operation Manual
Filling Spa
a. Lift the tap located on the front of the spa.
b. Adjust water temperature by moving the tap left or right.
c. Fill the spa to the height of the client’s ankles. Caution there is no
overflow protection
Water Movement On/Off
a. To start the Jacuzzi jets, press the “Power On/Off” button locat-
ed on the front panel of the spa.
b. To control the air flow use turn the adjuster to either min or max.
Drain Water
a. To drain water from the Dragon pedicure spa, turn the faucet
handle located on the front panel on the left hand side.
b. Press the drain button on the side panel.

13
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS
Operation Manual
Adjust Legrest
Lift the legrest to meet customer’s needs.

14
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS

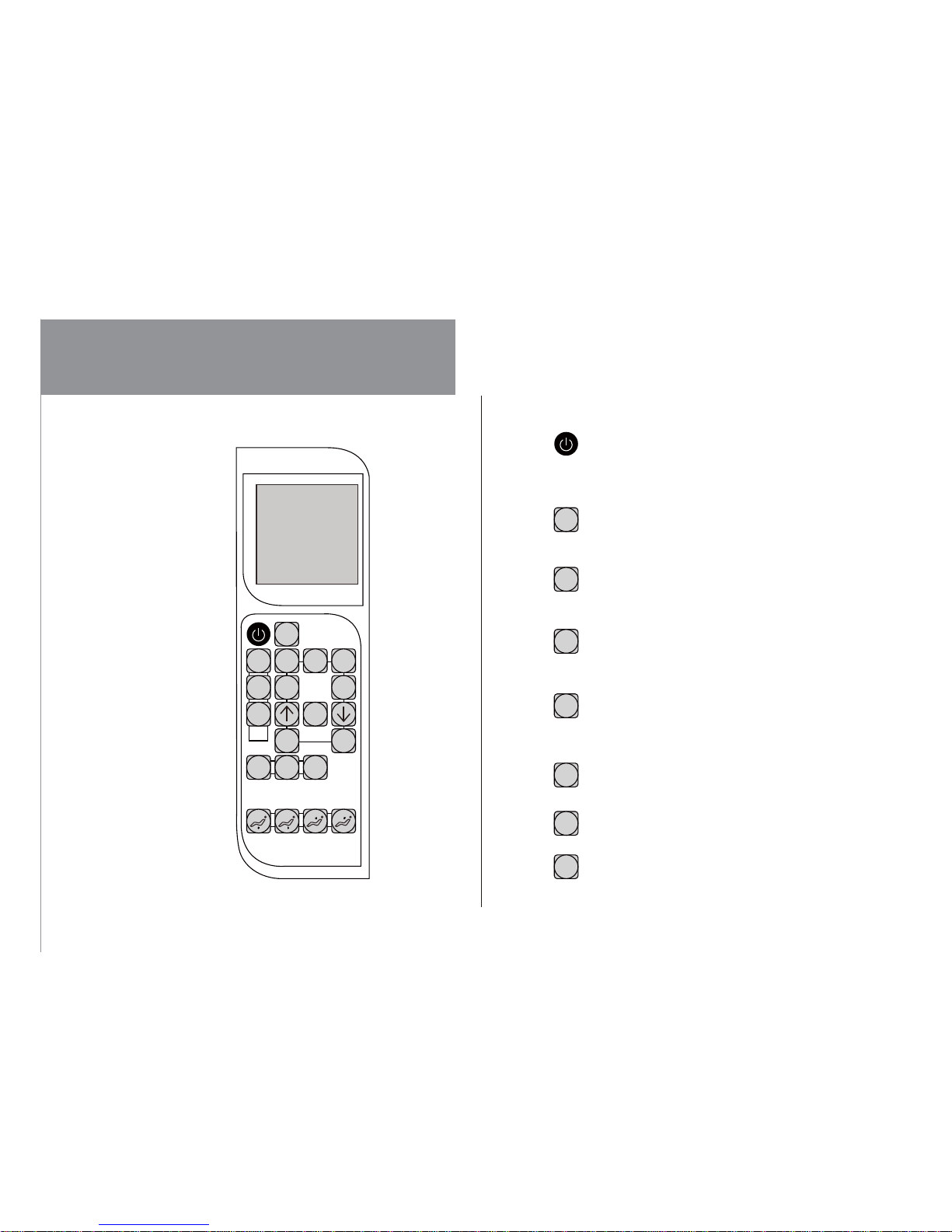

Power: to start or stop message of the
upper body. The button will not work
when the massage device is at its
position of recovery.
Timing: to set the massage time, three
period for choice: 10 minutes, 20
minutes, 30minutes.
Upper Body: the massage device
works with various techniques at differ-
ent body zone of your upper body.
Neck & Shoulder: the massage device
mainly automatically covers your neck
or shoulder.
Back & Waist: the massage device
mainly automatically covers your back
and waist.
Control Panel
1
1
A
D
2
2
3
3
44
6
CB
98 0
9
8
0
5
E
7
Buttock
Mode
Intensify

15
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS
Up Arrow: when fixed massage has been chosen,
press this button to move the massage device upward
to suit precise massage points, not available under
auto state.
Down Arrow: when fixed massage has been chosen,
press this button to move the massage device down-
ward to suit precise massage points, not available
under auto state.
Width: when massage treatment of flapping, shiatsu,
or knocking has been chosen, press this button to
adjust the width of the massage hands, three options,
not available under auto kneading state.
Press the button continually and the seat
frame will move forward, release your
finger and the movement will stop.
Press this button continually and the seat
frame will move backward, release your
finger and the movement will stop.
Press this button continually and the
backrest frame will move upward, release
your finger and the movement will stop.
Press this button continually and the
backrest frame will move downward,
release your finger and the movement
will stop.
Speed: for speed and massage treatments selection.
Five speed options available. The indicators are as
follows:(black stands for on)
Back Stretching: to select full-range, partial or fixed
massage. (overall, fixed, partial )
5
6
7
AKNEAD
BFLAP
CKNEAD & FLAP
DPRESS
EKNOCK

16
DIR
www.dirgroup.co.uk
Caring for the cushion and covers
Soak a piece of soft cloth in lukewarm water in which a small amount of mild detergent has
been added. Then thoroughly wring it out before cleaning off any spots or grime.
Caring for the remote control
Wipe dirt off the remote control with a dry cloth. Never use a moistened or wet cloth as it
may result in mechanical failure.
Caring for other plastic parts
Soak a piece of soft cloth in lukewarm water in which a small amount of mild detergent has
been added. Then thoroughly wring it out before cleaning off any spots or grime. Then wipe
with a dry cloth so that no detergent residue remains.
Do not use alcohol based or other household cleaning products or abrasives because they
can scratch or crack the finish and / or cause colour to fade.
Caution: When cleaning or caring for the product, make sure to
unplug the product from the wall outlet first. Do not plug or unplug
the power cord with wet hands.
AFTERCARE INSTRUCTIONS

17
DIR
www.dirgroup.co.uk
ASSEMBLY INSTRUCTIONS
Warranty
Dream In Reality Group offers a one year warranty starting from the date of purchase,
which is liable to the original buyer only.
The warranty is under the condition that the goods shall be received free of defects, in
its original condition when purchased and manufactured faults. Damage resulting from
general wear and improper usage will not be covered under the warranty.
Should you require further information or technical support please contact DIR on:
[phone]
Exclusions
1. Damage to pump parts and / or motor parts due to obstruction in plumbing lines etc.
2. Staining, fading or discolouration of plastic surfaces due to exposure and / or the use
of harmful cleaning agents or chemicals.
3. Staining, fading or discolouration caused by improper or poor water additives not relat-
ed to the maintenance of proper water are not covered by this warranty.
4. Staining, fading or discolouration of the seat, armrests or footrests.
5. Freight damage, misuse, neglect, accidents, natural disaster and abuse.
6. Unauthorised repairs.

18
DIR
www.dirgroup.co.uk
CONTACT US
If you have any enquires regarding the product warranty, please contact our customer services team.
66 Rea Street South
Birmingham
B5 6LR
UK
Sales: [phone]
Customer Service: [phone]
Fax: [phone]
Email: [email protected]
Website: www.dirgroup.co.uk
Unit 1 River Road Business Park
33 River Road, Barking
Greater London IG11 0DA
UK
Sales: [phone]
Fax: [phone]
Email: [email protected]
Website: www.dirgroup.co.uk
DIR BIRMINGHAM (HEADQUATERS)
DIR LONDON
24 Woodward Ave.
Suite C
Queens, NY 11385
USA
Sales: [phone]
[phone]
Fax: [phone]
Email: [email protected]
Website: www.dirsalonfurniture.com
Konrad-Adenauer-Straße 25
50996 Köln
Germany
Sales: + 49 (0) 221 / 88888.128
Fax: + 49 (0) 221 / 88888.122
Email: [email protected]
Website: www.dirgroup.de
DIR NEW YORK
DIR COLOGNE
Unit 5 Block E
Riverview Business Park
Nangor Road
Dublin 12
Republic of Ireland
Sales: [phone]
Email: [email protected]
Website: www.dirgroup.ie
DIR IRELAND
