Sampo DVE-560 User manual

1
DDVVDDPPllaayyeerr
UUsseerrMMaannuuaall

WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOTEXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
:TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT
REMOVE COVER. NO USER-
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
This symbol warns the user of
uninsulated voltage within the
unit that can cause dangerous
electric shocks.
This symbol alerts the user that
there are important operating and
maintenance instruction in the
literature accompanying this unit.
CAUTION
:
THIS DVD VIDEO PLAYER IS A CLASS1 LASER PRODUCT. USE OF CONTROLS
ORADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSESPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE｡DDO NOTOFEN COVERS AND
DO NOT REPAIR YOUSELF. REFER SERVICING TO QUALIFIEDPERSONNEL.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1)This device may not cause harmful interference, and (2) this device must accept any
interference received, Including interference that may cause undesired operation.
FCC NOTE:
This equitment has been tested and found to comply with the limits for a Class B device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communication. However, there is no quarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try correct the interference by one or more of the following measures
lReorient or relocate the receiving antenna.
lIncrease the separation between the equipment and receiver.
lConnect this equipment into an outlet on a circuit different from that to which the
receiver is connected.
lConsult the dealer or an experienced radio/TV technician for help.
Note
: This product incorporates copyright protection technology that is protected by method claims
of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must be authorized by Marcovision
Corporation, and is intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

IMPORTANT SAFETY INSTRUCTION
READ THE SAFETY AND OPERATING INSTRUCTION before operating your DVD player
FOLLOW INSTRUCTIONS AND HEED ALL WARNINGS on your DVD player in this manual.
1. Save these instructions for later use
2. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
3. Do not use this DVD player near water
4. Do not place this DVD player on an unstable cart, stand or table. The DVD Player may fall, causing
serious damage to the DVD player.
5. Slots and openings in the cabinet and the back or bottom are provided for ventilation . To ensure reliable
operation of the DVD player and to protect it from overheating, those openings must not be blocked or
covered. The openings should never be blocked by placing the DVD player on a bed, sofa, rug, or other
similar surface. This DVD player should never be placed near or over a radiator or heat register. This DVD
player should not be placed in a built-in installation unless proper ventilation is provided.
6. This DVD player should be operated from the type of power source indicated on the marketing label
you are not sure of the type of power available, consult your dealer or local service.
7. This DVD player is equipped with a3-wire grounding type plug, a plug having a third (grounding) pin. This
plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the
plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of
the grounding-type plug.
8. Do not allow anything to rest on the power cord. Do not locate this DVD player where persons will walk
on the cord.
9. If an extension cord is used with this DVD player, make sure that the total of the ampere ratings on the
products plugged into the extension cord do not exceed the extension cord ampere rating.
10. Never push objects of any kind into this DVD player through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a risk of fire or electric shock.
Never spill liquid of any kind on the DVD player.
11. Do not attempt to service this DVD player yourself, as opening or removing covers may expose you to
dangerous voltage points or other risks. Refer all servicing to service personnel.
12. An appliance and cart combination should be moved with care. Quick stop, excessive force, and uneven
surfaces may cause the appliance and cart combination to overturn.
13. Unplug this DVD player during lightning storms or unused for long periods of time.
14. Unplug this DVD player from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
A. When the power cord or plug is damaged or frayed
B. If liquid has been spilled into the DVD player
C. If the DVD player has been exposed to rain or water
D. If the product has been dropped or the cabinet has been damaged
E. If the product exhibits a distinct change in performance, indicating a need for service

2
FEATURES
pCompatible with Video CD, CD, Super
VCD, and CVD as well as DVD-video
This DVD player can playback not only the Video CD,
CD, and DVD-video but also the super VCD and CVD,
which are popular in China. In addition, it also can
playback the MP3 audio recorded in CD-ROM.
pCompatible with NTSC-video Disc and
PAL-video disc
This unit can playback NTSC and PAL discs and
converts the video format to match its video output.
For example, when the video output is set to PAL and
a NTSC disc is played back, the unit will convert
NTSC video to PAL video to output terminal.
pMultiple video output formats including
NTSC, PAL, or AUTO (Factory setting)
When NTSC or PAL is set for video output format,
the other video will be converted to NTSC or PAL,
respectively. When AUTO is set, the output video
format will be the same as the video on the disc.
This is just suitable for multiple-format TV set.
pHigh quality audio
1Built-in decoder for Dolby Digital (AC-3), MPEGII
audio/Linear PCM up to 96KHz/24bit.
1Bypassed DTS digital audio.
pMany convenient features
1In-time OSD message is always displayed for the
disc information and operation status.
1Multiple-speed fast forward/reverse scan -- 2X, 4X,
8X, 12X, 15X, 30X.
1Multiple-speed slow-motion forward/reverse scan –
1/2X, 1/4X, 1/8X.
1Supporting Up to five markers for program memory.
1Repeated playback –chapter/track, title/disc, A-B.

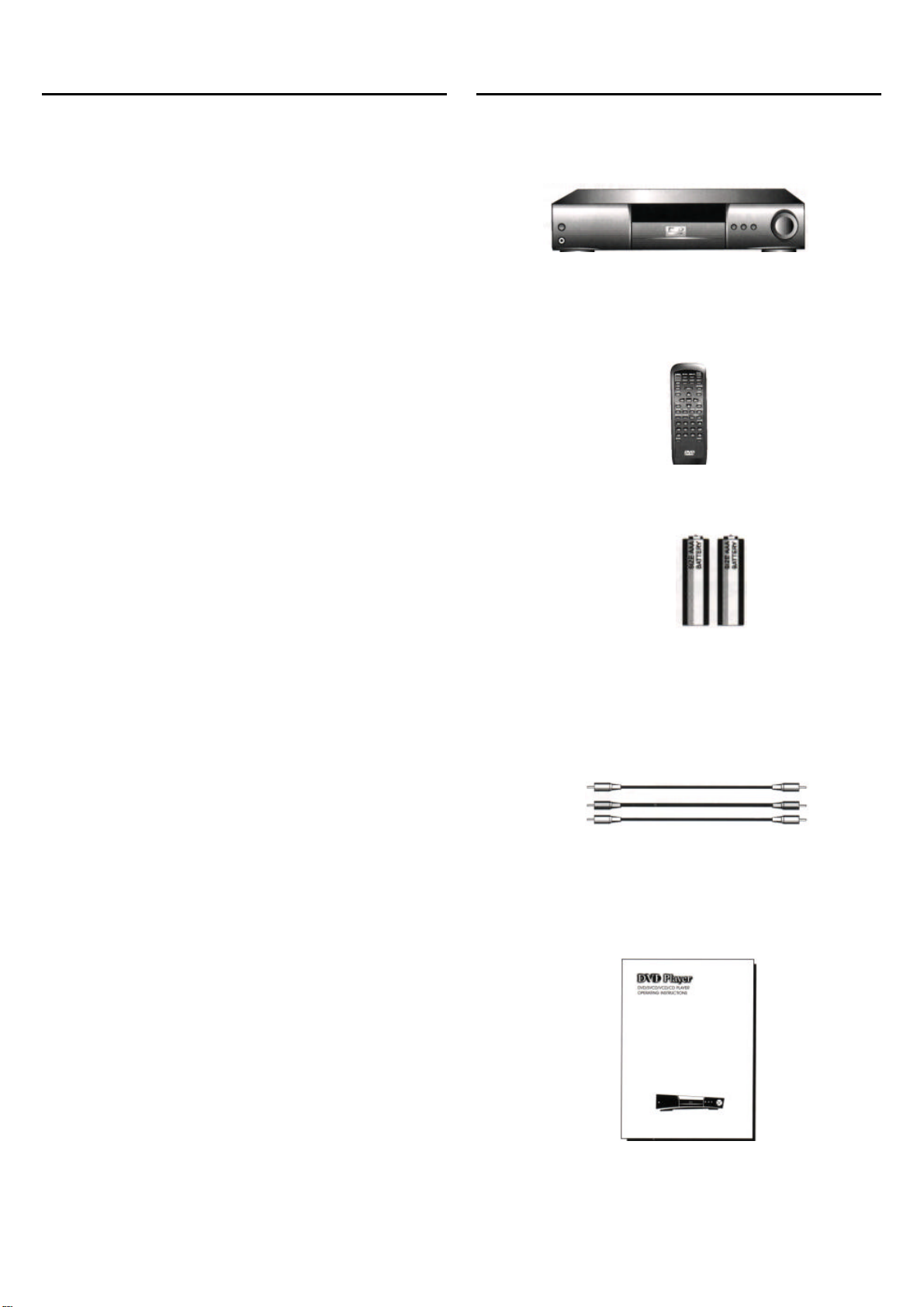

Package Contents
pMain Unit 1
pRemote control unit 1
pBatteries (R6 AA) 2
pVideo and Stereo sound
signal lines 1
pInstructions manual 1

3
INDEX
FEATURES..................................................................................1
PACKAGE CONTENTS............................................................2
INDEX...........................................................................................3
PRECAUTIONS..........................................................................4
BACKGROUND INFORMATION..........................................6
FRONTPANEL/DISPLAY WINDOW....................................7
FRONT PANEL ........................................................................7
DISPLAY WINDOW .................................................................8
REMOTE CONTROL UNIT.....................................................9
REAR PANEL AND CONNECTIONS..................................11
INITIAL SETTING...................................................................13
GENERAL SETUP .................................................................13
TV Display...........................................................................13
Angle Mark..........................................................................13
OSD Language....................................................................14
Audio Output........................................................................14
Video Output........................................................................14
SCART Out...........................................................................14
ScreenSaver........................................................................15
SPEAKER SETUP..................................................................15
Center Speaker....................................................................15
Rear Speaker........................................................................15
Subwoofer............................................................................15
Center Delay........................................................................16
Rear Delay...........................................................................16
DIGITAL AUDIO OUT...........................................................16
PREFERENCES......................................................................16
Audio....................................................................................17
Subtitle.................................................................................17
Disc Menu............................................................................17
Parental................................................................................17
Password..............................................................................17
Defaults................................................................................18
ON-SCREEN DISPLAY (OSD)...............................................19
DVD OSD MODES ..............................................................19
CD/VCD OSD MODES .......................................................19
BASIC OPERATION................................................................20
START PLAYBACK................................................................20
STOP PLAYBACK ..................................................................20
SKIP PLAYBACK...................................................................20
STILL/PAUSE PLAYBACK .....................................................20
STEP PLAYBACK...................................................................20
FAST FORWARD/REVERSE SCAN .........................................20
SLOW-MOTION FORWARD/REVERSE PLAYBACK .................21
ADVANCED OPERATION .....................................................22
REPEATED PLAYBACK .........................................................22
A-B REPEATED PLAYBACK .................................................22
RANDOM PLAYBACK ...........................................................22
PROGRAM PLAYBACK..........................................................22
MARK.................................................................................23
TITLE MENU (DVD ONLY).................................................24
DVD MENU (DVD ONLY)...................................................24
MULTI-ANGLE PLAYBACK ...................................................24
CHANGING SUBTITLE DURING PLAYBACK ..........................25
CHANGING AUDIO DURING PLAYBACK...............................25
SEARCH................................................................................25
DVD search functions..........................................................25
VCD/CD search functions...................................................25
VCD’S PLAYBACK CONTROL (PBC)...................................26
TROUBLESHOOTING............................................................27
SPECIFICATION......................................................................28
Label.....................................................................................28
Dolby License......................................................................28
REGION MANAGEMENT INFORMATION......................29
DESCRIPTION OF SCART TERMINAL............................29

4
Precautions
Please read the followings carefully so that this DVD
player can be used correctly and safely.
pPower supply
Make sure that the correct power outlet is used
(AC100~240V)
pPower cord
1Do not put any heavy objects on top of the power
cord to avoid fires or current leaks caused by the
cord damage.
1Please unplug the power cord if the unit will not be
used for a long time.
pLocation
1Do not place this unit at the following locations :
üProne to be affected by vibrations
üWith high humidity
üWith poor ventilation
üWith direct sunlight
üWith extremely high or low temperatures
1This unit should be placed on a horizontal surface.
1Please keep this unit away from television sets,
radios, computers and loudspeakers to avoid
magnetic field interference
pUsage and storage
1Do not remove the top cover by yourself to avoid
possible electric shock resulting from touching the
inside of this unit
1Do not place any heavy objects on top of this unit.
pCondensation
Please turn on the power for 1~2 hours before using
this unit if condensation happens, which may result
from moving the unit from a cold place to a hot one.

5
pDisc usage
1Please hold all discs by their edges or the center
opening as shown below. Do not touch the shiny
signal surface of the discs.
1Do not stick labels or tapes on the discs, and do not
scratch or damage the discs.
1The unit spins the disc at high speed during playback.
Do not use damaged discs such as cracked or
warped ones because they could let the unit
damaged
pDisc cleaning
1Fingerprints or dirt on disc surface can directly
influence the signal quality. That is because the
laser light being reflected from the disc surface may
be weakened. The poor the signal quality, the poor
the playback performance. Therefore, do keep the
disc clean by wiping straight out from the center with
a dry soft cloth.
1
1If the disc is very dirty, apply a moist soft cloth to wipe
it first and then clean it with another dry soft cloth.
1Do not use record cleaning sprays, benzene, thinner,
anti-static electricity liquids or any other solvent.
Those may make the disc surface damaged.
pDisc storage
1Please keep the discs in boxes to avoid the discs
bent. Do not keep the discs in the locations with high
temperature, high humidity, or direct sunshine. Those
may cause damage to the discs.
1Please read carefully the instructions on the disc
label.
pUnit cleaning
Please clean the front panel and the body of the unit
by dry soft clothes. The other areas can be cleaned
using soft clothes moistened with neutral detergent.
Do not clean by the evaporative solutions to avoid
possible damage to the unit.

6
BACKGROUND INFORMATION
This DVD player can play the following types of discs
Disc type/Logo Dimension/side/layer Max. playback time(storage capacity)
DVD
12 cm/single sided/single layer
12 cm/single sided/double layer
12 cm/double sided/single layer
12 cm/double sided/double layer
MPEG2 TYPE
133 min. (4.7 GB)
242 min. (8.5 GB)
266 min. (9.4 GB)
484 min. (17 GB)
DVD Video
8 cm/single sided/single layer
8 cm/single sided/double layer
8 cm/double sided/single layer
8 cm/double sided/double layer
41 min.
75 min.
82 min.
150 min.
VCD
12 cm/single sided/single layer MPEG1 TYPE 74 min.
Video CD
8cm/single sided/single layer 20 min.
CD-DA
12 cm/single sided/single layer 74 min.
CD-DA
8 cm/single sided/single layer 20 min.
ØDVD and VCD: Discs with both images and sounds, including multiple sounds
ØCD-DA: Disks with audio only.
ØPlease do not insert DVD-ROM, CD-ROM or Photo CD in this DVD player to avoid some playback problems.
ØThis unit complies with VCD ver. 1.1, ver. 2.0, and ver. 3.0.
ØThis unit support 128Kbps/44.1KHz MP3 disc that formatted by ISO9660 CD-ROM mode 1 file type.

7
Front panel/Display window
pFront panel
1. Headphone volume level control
Adjust the volume level of the headphone
2. Headphone jack
Connect the headphone
3. Display window
Display the operation information
4. Disc tray
5. OPEN/CLOSE button
Open/close the disc tray
6. STILL button
Go into “Step” playback mode
7. POWER button
Turn on/off the unit
8. STANDBY indicator
Light up in standby mode and go out when the unit is
turned on.
9. PREVIOUS button
Go to the previous chapter/track during playback
DVD/VCD/CD. However, it works as “Go to the
previous page” in the PBC menu of VCD disc.
10. PLAY button
Play the inserted disc.
11. STOP button
Stop playback
12. NEXT button
Go to the next chapter/track during playback except it
works as “Go to the next page” in the PBC menu of
VCD disc.

8
pDisplay window
1. CD/VCD indicator
2. PBC indicator for VCD disc
3. DVD indicator
4. Operation status indicator -playback
5. Operation status indicator –pause or stop
6. Title number indicator
7. Chapter/track number indicator
8. Elapsed playback time /remaining playback time
indicator
9. Multi-angle indicator
10. Dolby AC-3 audio indicator
11. Repeat playback mode indicator
12. Random playback indicator
13. Program playback indicator
14. Marker setting indicator

9
Remote Control Unit
In order to use the remote control unit to operate the DVD
player, please insert two R6 batteries (size AA) into the
remote control unit. Make sure that the + and –ends of
the batteries are matched to the +/-marks inside the
battery compartment.
Please point the remote control unit at the remote sensor
of the DVD player unit during remote control operation.
Notes on the remote control unit
i Do not use different types of batteries together, or mix
old and new ones.
i When the remote control unit does not function
correctly or its operation range reduces, please
replace both batteries at the same time.
i If the remote control unit will be not used for a long
time, please remove the batteries to avoid possible
damage from battery leakage or corrosion.
i Keep the remote control away from an extremely hot
or humid location.
i Do not open the remote control unit
1.

10
POWER button
Turn on/off the DVD player unit
2. SETUP button
Customize the settings. Refer to p. 12
3. DISPLAY button
Display the operation status
4. OPEN/CLOSE button
Open or close disc tray
5. SEARCH button
Title search, chapter search, and time search. Refer
to p. 24
6. ANGLE button
Change the view angle. Refer to p. 23.
7. AUDIO button
Change the soundtrack. Refer to p. 24.
8. SUB-Tbutton
Change the subtitle. Refer to p. 24.
9. PBC/MENU button
Enter the menu for DVD title or turn on/off the PBC
function for VCD. Refer to pp.23/25
10. TITLE button
Enter the title menu for DVD disc. Refer to p.23.
11. RETURN button
Go back to the previous page of the menu
12. PREV button
Go back to the previous chapter during playback
13. NEXT button
Skip to the next chapter during playback
14. ENTER button
Select an item in the menu
15. 5button
Move upward on the menu window
16. 6button
Move downward on the menu window
17. 3button
Move left on the menu window
18. 4button
Move right on the menu window
19. REV button
Fast reverse playback during playback
20. FWD button
Fast forward playback during playback
21. SLOW button
Slow forward/reverse playback. Refer to p. 20
22. PLAY button
Start playing the disc.
23. STOP button
Stop playback
24. STILL/STEP button
Step playback.
25. PROGRAM button
Program playback for CD/VCD. Refer to p.21
26. RANDOM button
Random playback for CD/VCD. Refer to p.21
27. 1/ALL button
Repeat playback a title or all on the disc. Refer to p.21
28. A-Bbutton
A-B Repeat playback. Refer to p.21
29. CLEAR button
Clear the program playback, the repeat playback, the
input password, or marker.
30. Digits
Directly make a selection on the menu, select the
sound track during playback, or input the time and the
password.
31. ZOOM button
Zoom the playback picture.
32. MARK button
Enter the menu of markers . Refer to p.22

11
REAR PANEL AND CONNECTIONS
pRear panel
There are the following AV output terminals in the rear panel
1Video output terminals including
ü0ne Y/Cb/Cr Component-video terminal Œ
üOne S-video terminal •
üOne composite video terminal. Ž
1Audio output terminals including
üOne with two jacks for stereo sound •
üOne terminal with six RCA jacks for Dolby AC3 5.1ch analog audio outputs •
üOne optical jack for digital audio out ‘
üOne coaxial jack for digital audio out ’
1One SCART terminal for RGB-video, S-video, or Composite-video with stereo sound. “
pAudio Connection
There are stereo audio output terminal Œand
analog 5.1ch audio output terminal •for you to
connect with the TV set or AV amplifier with up to
6ch inputs. Also, an optical terminal Žand a
coaxial one •are equipped for digital audio
output, which you can connect with a standalone
AV amplifier with Dolby AC-3 and DTS decoder
for the better audio quality

12
pVideo Connection
1Y/Cb/Cr component video output terminal can be connected to the TV set equipped with a component video
input terminal for the best possible picture quality Œ.
iWhenever the component video output terminal is equipped for display, please set the VIDEO OUT setting to
Y/CR/CB in the initial setting (Refer to p. 13)
1S-Video output terminal can be connected to the TV set equipped with an S-video input terminal for the better
possible picture quality.•
iWhenever the S-video output terminal is equipped for display, please set the VIDEO OUT setting to S-VIDEO in
the initial setting (Refer to p. 13)
1Composite Video output terminal always supports the video signal at all time no matter what VIDEO OUT
setting is. It can be connected to the TV set for the normal picture quality Ž.
pSCART Connection
The SCART terminal can be connected to the TV set equipped with SCART connectors •. The audio transmitted on
the SCART is stereo sound and the video can be selected among RGB-video, S-video and Composite video.
iWhenever the SCART terminal is connected for display, please set the VIDEO OUT to SCART and choose the
correct video format by setting SCART OUT among RGB-video, S-video and Composite video (Refer to p. 13).
If the VIDEO OUT is not at SCART, the SCART terminal also supports AV signal output, but the AV format is
“composite video + stereo audio”

13
INITIAL SETTING
Press the SETUP button on the remote control into the
initial setting, while the OSD for initial setting will be
displayed as follows,
Four items are available in initial setting, which are
1. General Setup : general function setting for this unit
2. Speaker Setup : speaker output mode setting
3. Digital Audio Out : digital audio output setting
4. Preferences : your personal preferences
pGeneral Setup
There are seven items in the general setup, which are
TV Display
This DVD player provides three TV video modes :
14:3
4:3 pan & scan video output for normal TV set
14:3
4:3 letter box video output for normal TV set
116:9
16:9 video out for wide screen TV set
Angle Mark
During playback of a title with multi-angle section, the
message " " will appear on the lower corner of the
screen.
1When ANGLE MARK is set at "ON", the angle mark
always stays on the screen until the end of the
playback title.
1When ANGLE MARK is set at "OFF", the angle mark
also appears on the screen but just lasts 3 seconds.
SETUP MENU –MAIN PAGE
4GENERAL SETUP
4SPEAKER SETUP
4DIGITALAUDIO OUT
4PREFERENCES
3EXIT SETUP
GOTO SPEAKER SETUP PAGE
--GENERAL PAGE—
TV DISPLAY
ANGLE MARK >> ON
OSD LANGUAGE OFF
AUDIO OUTPUT
VIDEO OUT
SCART OUT
SCREEN SAVER
ANGLE MARK ON/OFF
--GENERAL PAGE—
TV DISPLAY >>
ANGLE MARK
OSD LANGUAGE
AUDIO OUTPUT
VIDEO OUT
SCART OUT
SCREEN SAVER
GENERAL SETUP
4:3
4:3
16:9
--GENERAL PAGE—
TV DISPLAY >>
ANGLE MARK
OSD LANGUAGE
AUDIO OUTPUT
VIDEO OUT
SCART OUT
SCREEN SAVER
GENERAL SETUP
4:3
4:3
16:9

14
OSD Language
There are three OSD languages, which can be selected in
this DVD player. They are ENGLISH, FRANCH, and
GERMAN
Audio Output
Two audio output modes can be set
1Analog : Analog audio is output from Dolby AC3
5.1audio terminal and stereo audio terminal. There is
no digital audio output
1Digital : Digital audio is output from the optical
terminal and the coaxial terminals simultaneously.
There is no analog audio output.
Video Output
The unit has four video output terminals, Y/Cb/Cr
component video terminal, S-video terminal, composite
video terminal, and SCART terminal. All these terminals
can not output the related videos simultaneously.
Therefore, the VIDEO OUTPUT setting is used to set what
video terminal can output video.
When S-video terminals is used to connect with TV, set
VIDEO OUTPUT at "S-VIDEO"
1When Component video terminal is used, set VIDEO
OUTPUT at "Y/CB/CR"
1When composite video terminal is used, any setting
of VIDEO OUTPUT is available.
1When SCART terminal is used, if VIDEO OUTPUT is
set at "S-VIDEO" or "Y/CB/CR", the composite video
is output from the SCART terminal. If VIDEO
OUTPUT is set at " SCART", the video output from
the SCART terminal can be set by SCART OUT
setting as shown below.
SCART Out
This DVD player has only one SCART terminal but
supports three different types of video output from this
terminal. They are composite video, RGB video, and
S-video, which are dedicated by setting SCART OUT at
"COMPOSITE", "RGB", and "S-VIDEO", respectively.
--GENERAL PAGE—
TV DISPLAY
ANGLE MARK
OSD LANGUAGE>> ENGLISH
AUDIO OUTPUT 中文
VIDEO OUT FRANCAIS
SCART OUT DEUJSCH
SCREEN SAVER
SETUP OSD LANGUAGE
--GENERAL PAGE—
TV DISPLAY
ANGLE MARK
OSD LANGUAGE
AUDIO OUTPUT >> ANALOG
VIDEO OUT DIGITAL
SCART OUT
SCREEN SAVER
SELECT AUDIO OUTPUT
--GENERAL PAGE—
TV DISPLAY
ANGLE MARK
OSD LANGUAGE
AUDIO OUTPUT
VIDEO OUT
SCART OUT >> COMPOSITE
SCREEN SAVER RGB
S-VIDEO
SET VIDEO OUTPUT TYPE
--GENERAL PAGE—
TV DISPLAY
ANGLE MARK
OSD LANGUAGE
AUDIO OUTPUT
VIDEO OUT >> S-VIDEO
SCART OUT Y/CR/CB
SCREEN SAVER SCART
SET VIDEO OUTPUT TYPE

15
Screen Saver
When this DVD player is idle such as stop, stay at setup
menu, or no disc inserted, the screen saver can be
triggered to prolong the TV life-time.
pSpeaker Setup
This setting is only available for the models with analog
Dolby AC3 5.1ch audio output. All the settings are
dependent on the number of your speakers. For example,
if you have no the center speaker in your AV system, set
CNTR SPEAKER at “OFF”. The DVD player will down-mix
the disabled audio channels into the other audio ones
according to the Dolby AC3 decoding rule.
Because the center speaker or the surround speakers
may not be installed at an equal distance compared with
the front speakers for the listening position. Here, this
DVD player also supports the delay time setting for center
speaker and the surround speakers.
Center Speaker
Enable/Disable the center channel output. “ON” means
“enable output” and “OFF” means “disable output”.
Rear Speaker
Enable/Disable the surround channels output.
Subwoofer
Enable/Disable the subwoofer channel output. However,
this setting also controls the bass management of Dolby
digital.
When SUBWOOFER is “ON”, the bass of all the other
channels will be redirected to Subwoofer speaker
When SUBWOOFER is “OFF”, all the bass signals will be
redirected to the front L/R channels.
--GENERAL PAGE—
TV DISPLAY
ANGLE MARK
OSD LANGUAGE
AUDIO OUTPUT
VIDEO OUT
SCART OUT
SCREEN SAVER>> ON
OFF
SCREEN SAVER
SPEAKER SETUP PAGE –
CNTR SPEAKER >> ON
REAR SPEAKER OFF
SUBWOOFER
CNTR DELAY
REAR DELAY
3MAIN PAGE
SETUP CENTER SPEAKER
SPEAKER SETUP PAGE –
CNTR SPEAKER >> ON
REAR SPEAKER OFF
SUBWOOFER
CNTR DELAY
REAR DELAY
3MAIN PAGE
SETUP CENTER SPEAKER
SPEAKER SETUP PAGE –
CNTR SPEAKER
REAR SPEAKER >> ON
SUBWOOFER OFF
CNTR DELAY
REAR DELAY
3MAIN PAGE
SETUP REAR/SURROUND SPEAKER
SPEAKER SETUP PAGE –
CNTR SPEAKER
REAR SPEAKER
SUBWOOFER >> ON
CNTR DELAY OFF
REAR DELAY
3MAIN PAGE
SUBWOOFER ON/OFF

16
Center Delay
This unit supports the center time delay range of 0 to 5 ms
in 1ms steps.
Rear Delay
This unit supports the surround time delay range of 0 to
15 ms in 3ms steps.
pDigital Audio Out
This setting concerns the audio output format from the
unit’s optical/coaxial digital audio output terminal.
Disc Audio encoding format Digital output format
DVD Dolby Digital
(AC-3) Bit stream(2-5.1ch) or 48kHz/2ch LPCM
(up to 20bits)
DTS Bit stream or
OFF
Linear PCM (48/
96kHz up to 24bits)
LPCM up to 48kHz/20bit
or up to 96kHz
MPEG 2ch LPCM (16bits)
Video
CD MPEG I LPCM
CD Linear PCM LPCM
Where the digital output format is dedicated by this
DIGITAL AUDIO OUT setting.
In the LPCM setting,
1“48K” means “the maximum output sampling rate is
48KHz”. Therefore, when the encoding sampling rate
is 96KHz, the audio will be converted to 48kHz.
1“96KHz” means “ the maximum output sampling rate
is 96KHz”. There is no converting process.
pPreferences
Here, you can set the default audio/subtitle/disc language,
and the parental level for a DVD disc. This setting is only
available when the DVD player is in the STOP mode by
pressing the STOP button twice.
SPEAKER SETUP PAGE –
CNTR SPEAKER
REAR SPEAKER
SUBWOOFER
CNTR DELAY >>
REAR DELAY
3MAIN PAGE
SET CENTER DELAY
SPEAKER SETUP PAGE –
CNTR SPEAKER
REAR SPEAKER
SUBWOOFER
CNTR DELAY
REAR DELAY >>
3MAIN PAGE
SET REAR DELAY
-- DIGITAL AUDIO OUT –
AC-3>> BITSTREEM
DTS LPCM
MPEG
LPCM
3MAIN PAGE
SETAC
-
3 DIGITAL OUT
-- PREFERENCES PAGE–
AUDIO >> ENGLISH
SUBTITLE FRENCH
DISC MENU SPANISH
PARENTAL CHINES
PASSWORD JAPANES
DEFAULTS
3MAIN PAGE
PREFERRED AUDIO LANGUAGE

17
Audio
This unit supports five audio selections, as shown below,
for your preferred default audio.
Subtitle
This unit supports five subtitle selections, as shown below,
for your preferred default subtitle. When “OFF” is selected,
there will be no subtitle to display default.
Disc Menu
This unit supports five disc languages for your default.
Parental
1At ”KIDS SAFE” rating level, DVDs for children can
be played back, but those for adults/general
audiences are prohibited
1At ”THEATER” rating level, DVDs for children/
general audiences can be played back, but those for
adults are prohibited
1At ”ADULT” rating level, all DVDs can be played
back.
When you want to change the parental rating level, you
will be asked to enter the password as shown below.
Password
Here is the password setting and the password is 4 digit.
When you want to change the current password, select
“CHANGE” as shown below.
You will be first asked to enter the old password, then
enter the new password, and confirm it again.
-- PREFERENCESPAGE–
AUDIO
SUBTITLE >> ENGLISH
DISC MENU FRENCH
PARENTAL SPANISH
PASSWORD CHINESE
DEFAULTS JAPANESE
OFF
3MAIN PAGE
PREFERRED SUBTITLE LANGUAGE
-- PREFERENCESPAGE–
AUDIO
SUBTITLE
DISC MENU
PARENTAL >> KIDS SAFE
PASSWORD THEATER
DEFAULTS AUDLT
3MAIN PAGE
SE
T PARENTAL CONTROL
-- PREFERENCESPAGE–
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD >> CHANGE
DEFAULTS
3MAIN PAGE
CHANGE
-- PREFERENCES PAGE–
AUDIO >> ENGLISH
SUBTITLE FRENCH
DISC MENU SPANISH
PARENTAL CHINESE
PASSWORD JAPANESE
DEFAULTS
3MAIN PAGE
PREFERRED AUDIO LANGUAGE
-- PREFERENCESPAGE–
AUDIO
SUBTITLE
DISC MENU >>ENGLISH
PARENTAL FRENCH
PASSWORD SPANISH
DEFAULTS CHINESE
JAPANESE
3MAIN PAGE
PREFERRED MENU LANGUAGE

18
Defaults
When you select “RESET’, all the initial setting will be
reset to the default setting.
-- PREFERENCESPAGE–
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
DEFAULTS RESET
3MAIN PAGE
LOAD FACTORY SETTINGS
PASSWORD CHANGE PAGE
OLD PASSWORD
NEW PASSWORD
CONFIRM PASSOWRD
PLASE ENTER OLD PASSWORD
