Samsung DIGIMAX 202 User manual

Thank you for buying a Samsung Camera.
This manual will guide you through using the Digimax 202, including capturing images, downloading images and
using the MGI PhotoSuite III SE software. Please read this manual carefully before using your new camera.
6806-1747
R4040290
SAMSUNG TECHWIN CO., LTD.
OPTICS & DIGITAL IMAGING DIVISION
145-3, SANGDAEWON 1-DONG, JUNGWON-
GU,SUNGNAM-CITY, KYUNGKI-DO, KOREA
462-121
TEL : [phone],8088, 8090, 8092, 8099
FAX : [phone], 8111
SAMSUNG OPTO-ELECTRONICS AMERICA, INC.
HEADQUARTERS
40 SEAVIEW DRIVE, SECAUCUS, NJ07094, U.S.A.
TEL : [phone]
FAX : [phone]
WESTERN REGIONAL OFFICE
18600 BROADWICK ST.,
RANCHO DOMINGUEZ, CA 90220, U.S.A.
TEL : [phone]
FAX : [phone]
SAMSUNG OPTO-ELECTRONICS UK LIMITED
SAMSUNG HOUSE
1000 HILLSWOOD DRIVE
HILLSWOOD BUSINESS PARK
CHERTSEY KT16 OPS U.K.
TEL : [phone]
FAX : [phone]
SAMSUNG OPTO-ELECTRONICS GMBH
AM KRONBERGER HANG 6
D-65824 SCHWALBACH/TS., GERMANY
TEL : [phone]
FAX : [phone]
SAMSUNG FRANCE S.A.S.
BP 51 TOUR MAINE MONTPARNASSE
33, AV .DU MAINE
75755, PARIS CEDEX 15, FRANCE
HOTLINE PHOTO NUMÉRIQUE :
00 800 22 26 37 27(Numéro Vert-Appel Gratuit)
TEL : [phone]
FAX : [phone]
SAMSUNG TECHWIN MOSCOW OFFICE
KORP. 14 37-A LENNINGRADSKY PR-KT
MOSCOW, 125167, RUSSIA
TEL : [phone], 9298, 9299
FAX : [phone]
TIANJIN SAMSUNG OPTO-ELECTRONICS CO.,LTD.
7 PINGCHANG ROAD NANKAI DIST., TIANJIN
P.R CHINA
POST CODE:300190
TEL : [phone]
FAX : [phone]
Internet address - http : //www.samsungcamera.com/
The CE Mark is a Directive conformity
mark of the European Community (EC)
ENGLISH

2
Instructions
Use this camera in the following order
Insert the
USB cable
Set up the
camera driver
Before connecting the camera to a PC, via the
USB cable, you will need to set up the camera
driver. Install the camera driver that is contained in
the Application S/W CD-ROM.(p.73)
Take a picture (p.21)
Insert the supplied USB cable into the PC’s USB
port and the camera’s USB connection
terminal.(p.80)
Check the camera’s power
If the power is turned off, press the camera button
to power it on.(p.25)
Take a picture
Check the
camera’s power
Check
[Removable Disk]
Open Window s EXPLORER and search for
[Removable Disk].(p.81)
If you use a card reader to copy the images on the memory card to your PC, the images could
be damaged. When transferring the images taken with the camera to your PC, be sure to use
the supplied USB cable to connect the camera to your PC. Please note that the manufacturer
holds no responsibility for loss or damage of images on the memory card due to the use of a
card reader.

3
Contents
Getting to know your camera 5
About the icons 5
Danger 6
Warning 6
Caution 7
An FCC warning 7
This digital camera can be used for 8
Manufacturer's contents 10
Identification of features 11
Front & Top 11
Back & Bottom 11
Side/ 5-function button 12
Mode dial 12
Connecting to a Power Source 14
Using the AC power adapter
(3.3V 2.0A) 15
Using the batteries 16
Using the Digimax battery pack
( Optional : SBP-3603, 3.3V) 16
Instructions on how to use the memory card 17
Maintenance of the memory card 17
Preserving the memory card data 17
Inserting the memory card 19
Removing the memory card 19
LCD monitor indicator 20
Starting the recording mode 21
Using the camera buttons to adjust the
camera 25
POWER button 25
SHUTTER button 25
WIDE / TELE button 25
Up/Down button 27
FLASH / LEFT button 27
Self-timer / Right button 28
+/- button 30
Focus lever 31
MENU/ OK button 32
LCD button 32
Using the LCD monitor to adjust the camera
settings 33
How to use the menu 34
Size 35
Quality 35
Metering 36
Sharpness 37
White balance 38
Effect 39
Photo Frame 39
LCD monitor indicator 40
Starting play mode 41
Playing back a still image 41
Playing back a movie clip 42
Using the camera buttons to adjust the
camera 42
Thumbnail / Enlargement button 42
Play & Pause / Down button 44
UP/LEFT / RIGHT/ MENU/ OK button 44
LCD button 45
READY
RECORDING
PLAY

4
Contents
Delete button 45
Setting up the play back function using the
LCD monitor 46
Starting the slide show 47
Protecting images 48
Deleting all images 49
Copy to card 50
DPOF : Setting the Number of
Copies to Print 51
Rotating an image 52
Resize 53
Setup menu 54
File name 55
Auto power off 56
Language 57
Formatting a memory card 57
Setting up the Date type 58
Date Setup 59
Time Setup 59
Imprinting date recording 60
Beep 60
Frequency 61
Quick view 62
Initialization(RESET ALL) 62
Latest 63
Setting up the MYCAM menu 63
Start up sound 64
Start up image 64
Important notes 65
Warning indicator 67
Before contacting a service center 68
Specifications 70
Software Notes 72
System Requirements 72
About the software 73
Setting up the application software 74
Starting PC Mode 80
Removing the USB Driver for
Windows 98SE 83
Removable Disk 84
Removing the removable disk 85
Setting up the USB Driver for MAC 86
Using the USB Driver for MAC 86
Digimax Viewer 87
MGI PhotoSuite III SE 88
FAQ 98
SOFTWARE
SETUP

5
Getting to know your camera
Thank you for buying a Samsung Digital Camera.
Prior to using this camera, please read the user manual thoroughly.
When you require After Sales service, please bring the camera and the cause of the camera
malfunction (such as Batteries, Memory card etc.) to the A/S center.
Please check that the camera is operating properly prior to when you intend to use it (e.g. for
a trip or an important event) to avoid disappointment. Samsung camera takes no
responsibility for any loss or damages that may result from camera malfunction.
Keep the manual in a safe place.
Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation
incorporated in the United States and/or other countries.
All brand and product names appearing in this manual are registered trademarks of their
respective companies.
This manual contains instructions on using this camera that will help you to use this camera
safely and correctly. This will help prevent danger and injury to others.
About the icons
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation, which, if not avoided,
may result in a minor or moderate injury.

6
Danger
Do not attempt to modify this camera in any way. This may result in fire, injury, electric shock
or severe damage to you or your camera. Internal inspection, maintenance and repairs
should be carried out by your dealer or Samsung Camera Service Center.
Please do not use this product in close proximity to flammable or explosive gases, as this
could increase the risk of explosion.
Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the
camera, and then disconnect the power source (batteries or AC Power Adapter). You must
contact your dealer or Samsung Camera Service Center. Do not continue to use the camera
as this may cause a fire or electric shock.
Do not insert or drop metallic or inflammable foreign objects into the camera through access
points e.g. the memory card slot and battery chamber. This may cause a fire or electric
shock.
Do not operate this camera with wet hands. This could pose a risk of electric shock.
Do not use the flash in close proximity to people or animals. Positioning the flash too close to
your subject’s eyes, may cause eyesight damage.
When taking photographs, never point the lens of the camera directly into very strong light.
This may result in permanent damage to your eyesight.
For safety reasons keep this product and accessories out of reach of children or animals to
prevent accidents e.g.:
Swallowing batteries or small camera accessories. If an accident should occur, please
consult a doctor immediately.
There is the possibility of injury from the camera’s moving parts.
Batteries and camera may become hot during prolonged use and it may result in camera
malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it
time to cool.
Do not recharge non rechargeable batteries. This may cause an explosion.
Do not leave this camera in places subject to extremely high temperatures, such as a sealed
vehicle, direct sunlight or other places of extreme variances in temperature. Exposure to
extreme temperatures may adversely affect the camera s internal components and could
cause a fire.
When in use, do not cover the camera or AC Power Adapter. This may cause heat to build up
and distort the camera body or cause a fire. Always use the camera and its accessories in a
well-ventilated area.
Warning

7
Caution
Leaking, overheating, or burst batteries could result in fire or injury.
Use batteries with the correct specification for the camera.
Do not short circuit, heat or dispose of batteries in fire.
Do not insert the batteries with the reverse polarities.
Remove the batteries when not planning to use the camera for a long period of time.
Batteries may leak corrosive electrolyte and irreparably damage the camera's components.
Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after
using it continuously. It may cause burns.
Do not move the camera while it is switched on, if you are using the AC Power Adapter.
After use, always switch off the camera before unplugging the adapter from the wall socket.
Then make sure that any connector cords or cables to other devices are disconnected before
moving the camera. Failure to do so may damage the cords or cables and cause a fire or
electric shock.
An FCC warning
This device has been tested in accordance with the limits of a class B digital device
under item 15 of the FCC rules. These limits are designed to provide protection against
harmful interference in commercial installation. This equipment generates, absorbs and
can emit radio frequency energy. If it is not installed and used in accordance with the
instructions, it may cause harmful interference to radio communication. There is
however, no guarantee that interference will not occur in some situations. Should any
interference occur when this device is in operation, please try one or more of the
following measures.
Change the location and direction of any aerial.
Increase distance between the camera and the affected device.
Use a different socket away from the affected device.
Please contact a Samsung agent or a radio/TV engineer.
This device complies with part 15 of the FCC Rules.
Changes or modifications not expressly approved by the party responsible for
compliance could void user's authority to operate the equipment.

8

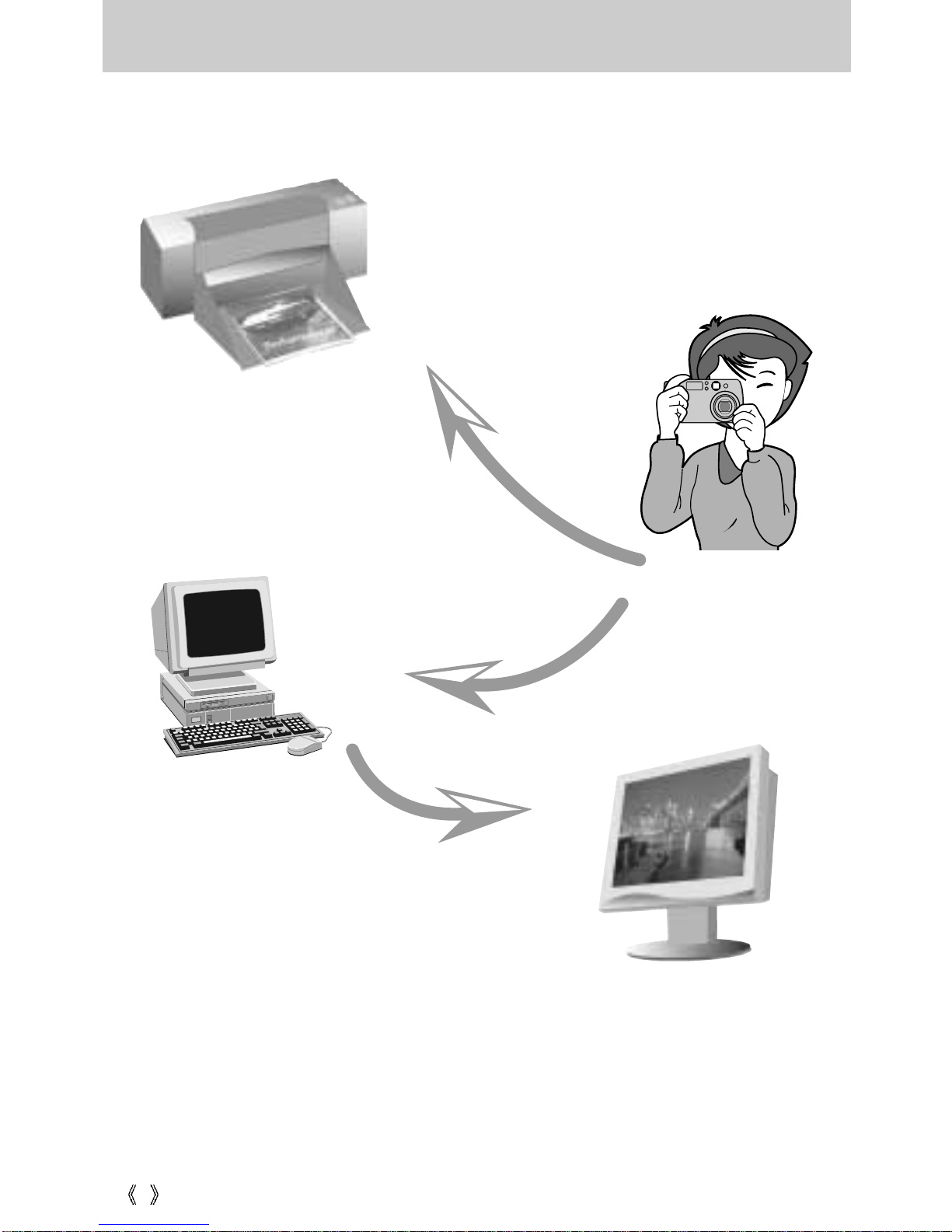

This digital camera can be used for
Printing images using a dedicated
printer, DPOF-compatible printer or
DPOF-equipped photo lab.
(refer to page 51)
Downloading image files from
camera to computer.
(refer to page 81)
Editing images on a PC.
(refer to page 88)
Taking a picture.
(refer to page 21)

9
This digital camera can be used for
Inserting images directly
into any electronic
document.
Taking a self-portrait
and using the image
to personalize name
cards.
You can even create your own unique
gift wrap paper by using your digital
images.
Creation of a digital photo album.
Recording a movie clip
(refer to page 22)

10
Manufacturer's contents
Please check that you have the correct contents before using this product.
marked contents are optional.
Digital Camera USB cablePouch
2 AA Alkaline
Batteries
Camera strap Software CDProduct warrantyUser manual
AC adapter (3.3V)
Battery pack
(SBP-3603)
SD memory card
Battery charger AC adapter (5V)Rechargeable battery
Digimax Battery I-Pack : SBP-1103 KIT

11
Identification of features
Front & Top
Back & Bottom
* When using the digital zoom to take a picture, the composition of the picture may be different
depending on whether you are using the LCD monitor or the viewfinder. The picture will be
taken in the composition of the picture as it appears on the LCD monitor.
Shutter button
Self-timer
lamp
Viewfinder
DC input
connection point
USB
connection
terminal
Focus lever
Lens
Flash
Power button
LCD monitor
Viewfinder
Mode dial
Camera status lamp
WIDE/THUMBNAIL button
TELE/Digital
zoom button
5-function
button
Strap eyelet
Tripod socket
LCD button
Play mode
button
+&-/ DELETE
button

12
Identification of features

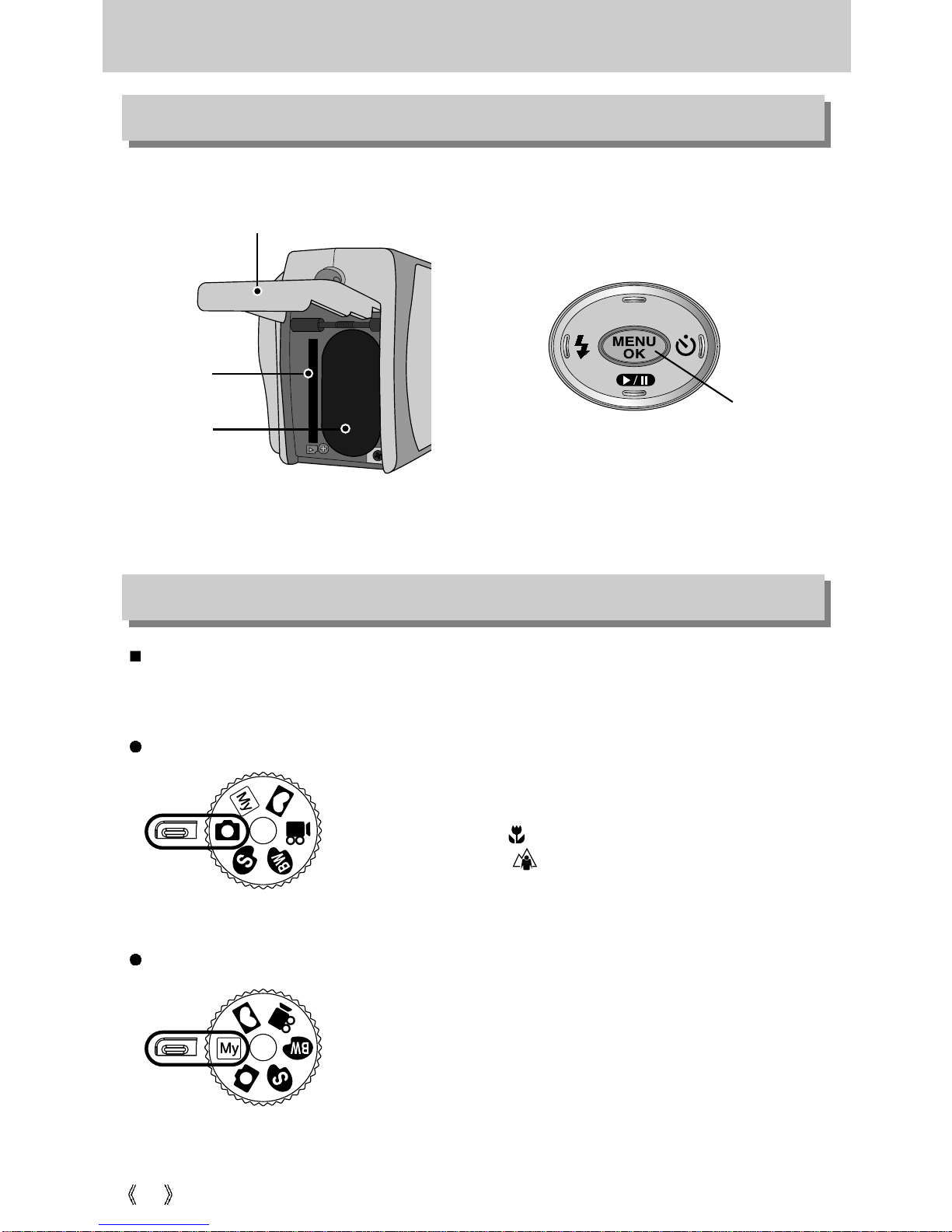

You can select the desired working mode by using the mode dial located on the back of the
camera. This digital camera has 6 recording modes. These are listed below.
Side/ 5-function button
Mode dial
Memory
card slot
Battery
chamber
Memory card cover/
Battery chamber cover
FLASH/
LEFT
button MENU/ OK
button
Play & Pause/ DOWN button
SELF-TIMER/
RIGHT button
UP button
MySET mode
Two types of focus modes allow users to shoot still images
from 0.19 m to infinity. Their focus ranges are as follows:
- Macro mode ( ) : 0.19 ~ 0.21m
- Normal mode ( ) : 1.0m ~ infinity
This mode allows users to save frequently used shooting
settings for later use.
Still image mode

13
Identification of features
The meaning of the camera operation mode icons used in this manual are as follows:
This mode allows users to add frame-like borders to a still
image and save it. 4 types of frames are available.
Photo Frame mode
A movie clip can be recorded for as long as the available
recording time of the memory capacity allows.
- Image size : 320X240
- Movie clip file type : *.avi
Movie clip mode
Converts the image to black and white.
B&W mode
Captured images will be stored in a sepia tone(a gradient of
yellowish brown colours).
SEPIA mode
Icon Mode dial Camera working mode Icon Mode dial Camera working mode
Still image mode MySET mode
Photo Frame mode Movie clip mode
B&W mode SEPIA mode
Play mode

14
Identification of features
Camera status lamp
Color Status Camera Status
Blinking and off Power on processing
When the LCD monitor is turned off
When the USB cable is connected
Blinking slowly Flash recharging
Image processing(compression/decompression)
USB busy
On
Blinking fast
Green
Self-timer lamp (Based on 10-second Self-timer; see p.29)
Color Status Camera Status
- For the first seven seconds, the LED blinks at 1second intervals.
- For the final three seconds, the LED blinks quickly at 0.5-second intervals.
Blinking once time When the camera’s power is on / when the shutter button is released.
Red Blinking
Beep
Beep sound Camera condition
Error beep (long beep twice and
short beep twice)
Normal beep (a short beep)
When an error occurs
Rotating the mode dial/
pressing the camera buttons
Power beep When the camera power is turned on/off.
Self-timer beep Beeps simultaneously with the Self-timer lamp blinking.
- To hear the beep sound, you have to set the beep sound to on in the setup mode menu.
There are two ways in which to provide the camera with power. You can use batteries or
alternatively, you can use an AC(100 ~ 250V) Adapter (DC 3.3V 2.0A).
We recommend using batteries for a digital camera.(Within a year from the date of
manufacture) The batteries are listed below.
Non rechargeable batteries : AA type –Alkaline, Ni-Mn, Ni-Zn, Lithium
CR-V3 type –Lithium
Rechargeable batteries : AA type –Ni-MH, Ni-Cd (over 1000mA)
CR-V3 type –Digimax Battery I-Pack(SBP-1103)
Battery pack –Digimax Battery Pack(SBP-3603)
Connecting to a Power Source

15
Connecting to a Power Source
If you have access to a mains supply, using an AC
Adapter (3.3V 2.0A) allows the camera to be used
for long periods of time.
Plug the adapter into the connection point
(DC IN 3.3V) on the camera.
Remove the batteries from the camera when using
an AC adapter.
Important information about battery usage
It is easy to buy alkaline batteries. However, the duration for using batteries varies in
accordance with the battery manufacturer or the photographic conditions.
When the camera is not used, turn off the camera power.
Do not recharge the non rechargeable batteries. It may cause an explosion.
Please remove the batteries if the camera will not be used for long periods.
Batteries can lose power over time and are prone to leaking if kept inside the camera.
We recommend high capacity ALKALINE batteries as manganese batteries cannot
deliver sufficient power.
Low temperatures (below 0 ) can affect the performance of the batteries and you
may experience reduced battery life.
Batteries will usually recover at normal temperatures.
Do not use old and new batteries at the same time.
During extended use of the camera, the camera body may become warm. This is
perfectly normal.
Always turn off the power before taking the AC adapter out of the mains supply.
As with all mains powered devices, safety is important. Ensure that neither the camera
nor adapter comes into contact with water or metallic materials.
Please ensure that you use an AC adapter (3.3V 2.0A) with the correct specification
for the camera. Failure to do so may affect your warranty.
INFORMATION
DANGER
Using the AC power adapter (3.3V 2.0A)

16
Connecting to a Power Source
Battery status
Battery indicator
The batteries are fully
charged. Prepare new batteries.
There is no battery capacity.
Replace with new batteries.
There are 3 indicators for battery condition that are displayed on the LCD monitor.
3. To close the battery chamber cover, push it until it clicks.
2. Insert the batteries taking note of the
polarity (+ / -).
1. Open the battery chamber cover by pushing in the direction of
the arrow.
: If the camera does not turn on after you have inserted batteries,
please check whether the batteries are inserted with the correct
polarity(+ and-).
Using the batteries
[ Inserting the AA type battery ] [ Inserting the CR-V3 type battery ]
The Digimax Battery Pack is a rechargeable
external Li-ion battery for use with most digital
cameras. These optional battery packs provide
long lasting power and their operating
performances are much improved over Ni-MH and
Alkaline batteries. This is due to the mass storage
lithium ion cell. Refer to the illustrations.
Using the Digimax battery pack ( Optional : SBP-3603, 3.3V)

17
Instructions on how to use the memory card
The camera comes with 6MB of internal flash memory, allowing you to store images and
movie clips in the camera. However, you can expand the memory capacity by using an
optional memory card so that you can store more images and movie clips.
Be sure to format the memory card (see p. 58) if you are using a newly purchased
memory for the first time, if it contains data that the camera cannot recognize, or if it
contains images captured with a different camera.
Turn off the camera power whenever the memory card is being inserted or removed.
Repeated use of the memory card will eventually reduce the memory card’s
performance. Should this be the case, you will need to purchase a new memory card.
Wear and tear on the memory card is not covered by the Samsung warranty.
The memory card is an electronic precision device. Do not bend, drop or subject the
memory card to any heavy impact.
Do not store the memory card in an environment with strong electronic or magnetic
fields, e.g. near loud speakers or TV receivers.
Please do not use or store in an environment where there are extremes in temperature.
Do not allow the memory card to become dirty or to come into contact with any liquid.
Should this happen, clean the memory card with a soft cloth.
Please keep the memory card in its case when not in use.
During and after periods of extended use, you may notice that the memory card is
warm. This is perfectly normal.
Do not use a memory card that is used in another digital camera or memory card reader.
Do not use a memory card formatted by another digital camera or memory card reader.
Maintenance of the memory card
If the memory card is subjected to any of the following, the recorded data may
become corrupted :
- When the memory card is used incorrectly.
- If the power is switched off or the memory card is removed while recording, deleting
(formatting) or reading.
Samsung cannot be held responsible for lost data.
It is advisable to copy important data onto other media as back-up e.g. floppy disks,
hard disks, CD etc.
If there is insufficient memory available :If you press the shutter button for the shot, a
[CARD FULL !] message will appear and the camera will not operate. To optimize the
amount of memory in the camera, replace the memory card or delete unnecessary
images stored on the memory.
Preserving the memory card data

18
Instructions on how to use the memory card
If you open the memory card cover when the camera power is turned on, the power
will turn off automatically.
Don't remove the memory card when the camera status lamp(Green) is blinking as
this may cause damage to data in the memory card.
INFORMATION
[ SD(Secure Digital) memory card ]
Write protect
switch
Label
Card
pins
Recorded image size Super fine Fine Normal
1600X1200 (1600) 8 15 22
1024X7684 (1024) 17 31 45
6400X4804 (640) 37 65 90
You can use an SD memory card and MMC(Multi Media Card).
The SD memory card has a write protect
switch that prevents image files from being
deleted or formatted.
By sliding the switch to the bottom of the SD
memory card, the data will be protected. By
sliding the switch to the top of the SD memory
card, the data protection will be canceled.
Slide the switch to the top of the SD memory
card before taking a picture.
When using a 6MB internal memory, the specified shooting capacity will be as follows.
(These figures are intended as an indication of expected performance). These figures are
approximate as image capacities can be affected by variables such as subject matter.

19
Inserting the memory card
Do not insert the memory card the wrong way round . Doing so may damage the
memory card slot.
INFORMATION
1. Turn the power off using the power button.
Open the battery chamber cover and press the memory card
as shown in the image and release.
2. Remove the memory card and close the memory card cover.
3.To close, push the card cover until you hear a click.
If the memory card does not slide in smoothly, do not attempt
to insert it by force. Check the direction of insertion, and then
insert it correctly.
2. Have the front of the memory card facing toward the front of
the camera (lens) and the card pins toward the back of the
camera (LCD monitor), and then push the memory card into
the card slot until you hear a click.
1. Turn off the camera’s power and push the memory card
cover in the direction of the arrow to open.
Removing the memory card

LCD monitor indicator
20
[ Image & Full Status ]
No. Description Icons Page
1 Battery p.16
2 Recording mode p.12~13
3 Camera shake warning p.24
4 Flash p.28
5 Self-timer p.29
6 Macro p.31
7 Metering p.36~37
8 Time 01:00 PM p.59
9 Date 2004/ 01/ 01 p.59
10 Exposure compensation -2.0 ~ 0 ~ +2.0 EV p.30
11 White Balance p.38
12 Card Inserted indicator p.19
13 Sharpness p.37
The LCD monitor displays information about the shooting functions and selections.
