Samsung SNC-B5395 User manual

SNC-B5395
SNC-B5395
user manual
ENG TUR CZE
imagine the possibilities
Thank you for purchasing this Samsung product. To receive
more complete service, please register your product at
www.samsung.com/global/register
Cover-SNC-B5395-ENG_02.indd 1 2008-07-14 오후 5:47:21

safety precautions
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)NO USER-SERVICEABLE PARTS
INSIDEREFER SERVICING TO QUALIFIED SERVICE PERSONNEL
This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this
unit.
This symbol indicates that there are important operating and maintenance instructions in the literature
accompanying this unit.
WARNING
• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• The camera is to be only connected to PoE networks without routing to the outside plant.
WARNING
1. Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the product.
2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire,
electric shock, or damage to the product.
3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause
abnormal heat generation or fire.
4. Securely plug the power cord into the power receptacle. Insecure connection may cause fire.
5. When installing the camera, fasten it securely and firmly. A falling camera may cause personal
injury.
6. Do not place conductive objects (e.g. screwdrivers, coins, metal things, etc.) or containers
filled with water on top of the camera. Doing so may cause personal injury due to fire, electric
shock, or falling objects.
7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric
shock.
8. If any unusual smells or smoke come from the unit, stop using the product. In such case,
immediately disconnect the power source and contact the service center. Continued use in
such a condition may cause fire or electric shock.
EU-B5395-ENG_080714.indd 2 2008-07-14 오후 3:46:59

9. If this product fails to operate normally, contact the nearest service center. Never disassemble
or modify this product in any way. (SAMSUNG is not liable for problems caused by
unauthorized modifications or attempted repair.)
10. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire
or electric shock.
CAUTION
1. Do not drop objects on the product or apply strong shock to it. Keep away from a location
subject to excessive vibration or magnetic interference.
2. Do not install in a location subject to high temperature (over 50°C), low temperature (below
-10°C), or high humidity. Doing so may cause fire or electric shock.
3. If you want to relocate the already installed product, be sure to turn off the power and then
move or reinstall it.
4. Remove the power plug from the outlet when then there is a lightning. Neglecting to do so
may cause fire or damage to the product.
5. Keep out of direct sunlight and heat radiation sources. It may cause fire.
6. Install it in a place with good ventilation.
7. Avoid aiming the camera directly towards extremely bright objects such as sun, as this may
damage the CCD image sensor.
8. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,
such as vases, shall be placed on the apparatus.
9. The Mains plug is used as a disconnect device and shall stay readily operable at any time.
10. When using the camera outdoors, moisture may occur inside the camera due to temperature
difference between indoors and outdoors. For this reason, it is recommended to install the
camera indoors. For outdoor use, use the camera with built-in fan and heater.
EU-B5395-ENG_080714.indd 3 2008-07-14 오후 3:46:59

important safety instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s instructions.
8.Do not install near any heat sources such as radiators, heat registers, or other apparatus
(including amplifiers) that produce heat.
9.Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong is provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus.
13.Unplug this apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
14.Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally,
or been dropped.
EU-B5395-ENG_080714.indd 4 2008-07-14 오후 3:46:59

Contents _01
contents
Preparation
03
Installation and Connection
08
Network Connection & Setup
26
Setting Static IP
36
Setting Dynamic IP
.40
03 Features
04 Precautions – Installation and Use
04 Recommended PC Specifications
04 Compatible IP Routers
05 Compatible PoE Switches
05 Checking the components in the package
06 Names of each part

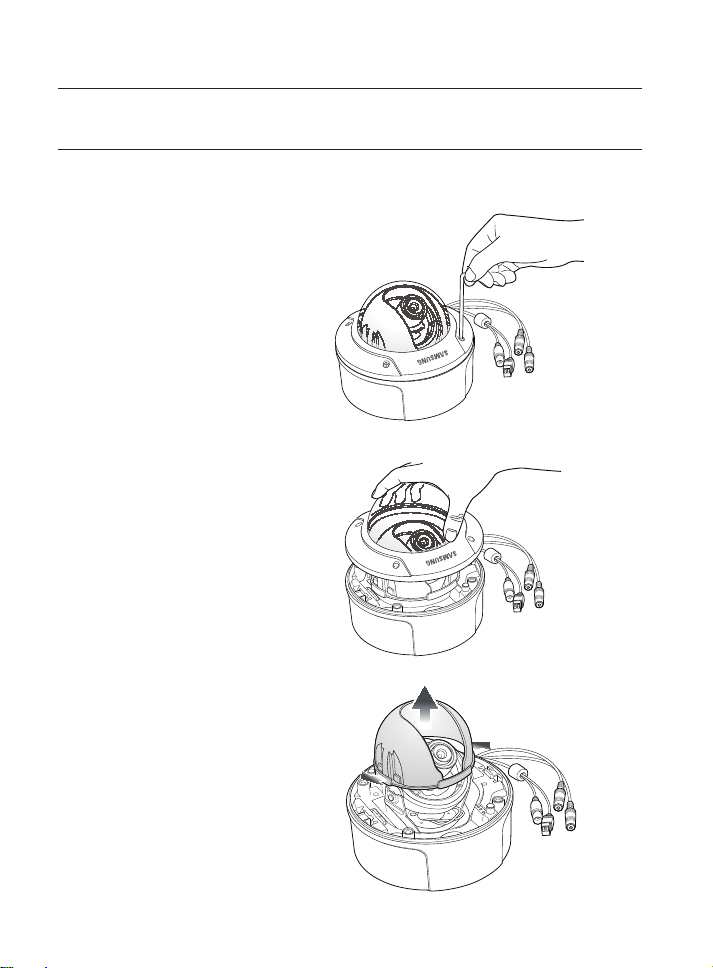

08 Removing the cover
09 Setting switches
14 Installing camera
21 Connecting
27 Connecting the camera to an IP router with
the xDSL/Cable modem
30 Connecting the camera to an IP router with
local area networking
32 Connecting the camera directly to a DHCP-
based xDSL/Cable modem
34 Connecting the camera directly to local area
networking
35 Searching for the camera
36 Manual Network Setting
39 Automatic Network Setting
40 Dynamic IP Setting
41 Port Forwarding (Port Mapping) Setting
NA-B5395-ENG.indd 1 2008-07-14 오후 3:45:39

02_ Contents
Using the Camera
42
Setting Up
55
Appendix
77
42 Connecting to the camera
44 Installing ActiveX
46 Using the Viewer Screen
50 Using the Search Viewer Screen
55 Setting the camera
57 Basic Configuration
63 System Configuration
67 Layout Configuration
68 Event Configuration
75 Network Configuration
77 Troubleshooting
79 Specifications
NA-B5395-ENG.indd 2 2008-07-14 오후 3:45:39

Preparation _03
01 PREPARATION
FEATURES
Various Communication Protocol Support
This product supports various communication protocols such as ARP, HTTP and DHCP as well as
TCP/IP, UDP, SMTP for Email transmission and FTP protocol.
Monitoring Through Web Browser
Monitoring Through Web Browser This product enables watching a video through an Internet web
browser so that you can watch a video through the Internet as you can within the local network.
Automatic Local IP Setting Function
This function offers an easy way of configuring the network settings with a minimal key input for
those who are not familiar with it.
Alarm Function
If this product is connected with a motion sensor and the sensor detects a motion, a recorded
video clip is sent through the FTP/Email(SMTP) registered by the user or saved on the SDHC
memory card and a signal is sent to an alarm output port.
Motion Detection Function
If the user specifies a target area to monitor and the motion sensor detects a motion within that
area, a still image is sent to the FTP/Email(SMTP) server designated by the user or saved on the
SDHC memory card, and signals are sent to the alarm output terminal.
preparation
NA-B5395-ENG.indd 3 2008-07-14 오후 3:45:39

04_ Preparation
PRECAUTIONS – INSTALLATION AND USE
Do not disassemble your camera.
Always be cautious when handling your camera.
Do not subject the camera to impact or vibration and always be cautious of damaging the camera
due to neglectful storage and/or operation.
Do not install the camera at a location where it would become exposed to rain or humidity and do
not operate the camera in a wet environment.
Do not clean the camera’s main body using harsh abrasives or similar substances. If dirty, use a dry
piece of cloth to clean instead.
Install the camera in a shaded area or environment, protected from direct sunlight.
Direct sunlight exposure has a negative effect on the camera.
Do not bend or throw the SDHC memory card.
Do not store or use the SDHC memory card in a hot, humid, or dusty environment.
Protect the contacts of the SDHC memory card from foreign substance buildup.
If foreign substances have been built up on the contacts, remove using a soft piece of cloth.
When removing the SDHC memory card, disable SD Card Recording to protect against data loss
(refer to page 70 for instruction on disabling SD Card Recording).
Data cannot be stored on SDHC memory cards whose service life has expired.
Please purchase a new SDHC memory card if you experience this.
The manufacturer will not be held responsible for data loss incurred by the customer due to im-
proper use.
Using non-recommended PoE device may cause malfunction of either the camera or PoE device
itself. (Refer to page 5 for the compatible PoE Switch)
RECOMMENDED PC SPECIFICATIONS
CPU: Pentium4/2.4GHz or higher
Operating System: Windows XP(Service Pack2) / Windows Vista
Resolution: 1024X768 pixels or higher
RAM: 512MB or higher
Web Browser: Internet Explorer 6.0 or higher
Video Card: Radeon, Nvidia
Video Memory: 128MB
DirectX 8.1 or higher
COMPATIBLE IP ROUTERS
Linksys
D-Link
Netgear
󳫴
󳫴
󳫴
󳫴
󳫴
󳫴
󳫴
󳫴
󳫴
󳫴
󳫴
󳫴
󳫴
󳫴
󳫴
󳫴
󳫴
󳫴
󳫴
󳫴
󳫴
󳫴
󳫴
NA-B5395-ENG.indd 4 2008-07-14 오후 3:45:39

Preparation _05
01 PREPARATION
COMPATIBLE POE SWITCHES
Linksys SRW224G4P
D-Link DES-1316
SMC SMCPWR-INJ3

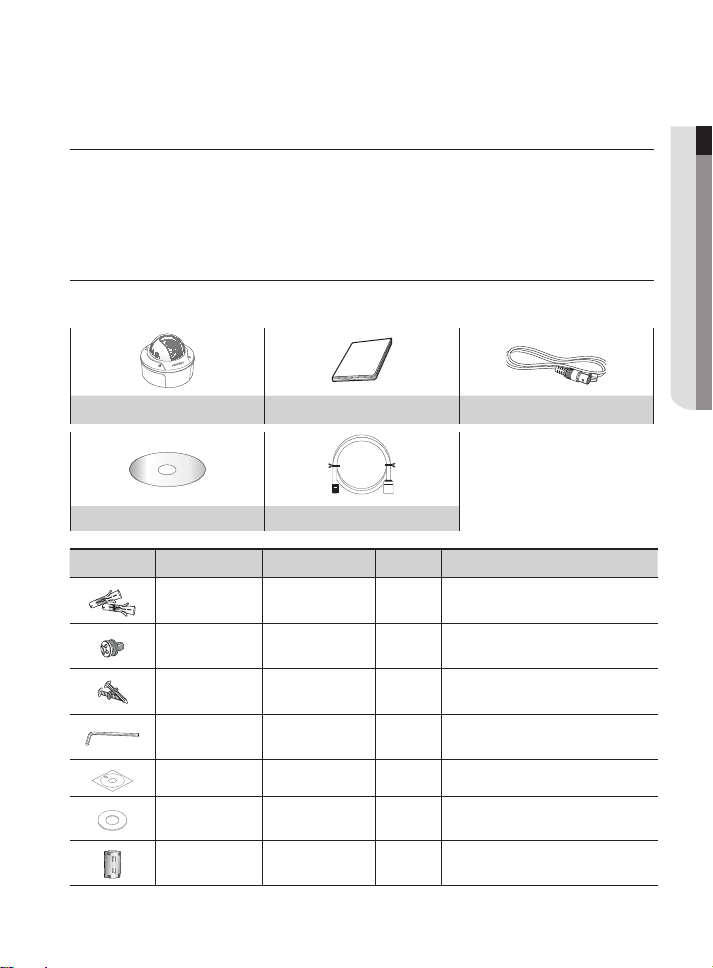

CHECKING THE COMPONENTS IN THE PACKAGE
Make sure that the following items are included in the package.
Camera User's Manual Test Monitor Cable
CD External Cable
Image Part name Standard Quantity Usage
PLASTIC ANCHOR HUD 5 4EA Attach each piece to screw connection
holes for strengthening connection
ASSY SCREW
MACHINE
BH M5 X L6.
(WHITE+O RING) 8EA Used for filling in the holes when installing
pipe and wall mount
ASSY SCREW
TAPPING
TH M4 X L30 (BLK+O
RING) 4EA Used when installing your camera on the
ceiling or wall
L-Wrench TROX T-20 1EA Used for assembling/ disassembling the
Dome cover
TEMPLATE 1EA Used for guiding the installation
Gasket-pipe hole T2.5 W56 1EA Used to make a wiring hole when installing
the camera on the ceiling or wall
Ferrite-Core ZCAT2132-1130-M-K 1EA Wrap the EMI suppression ferrite core with
the power adapter cord three times.
󳫴
󳫴
󳫴
NA-B5395-ENG.indd 5 2008-07-14 오후 3:45:41

06_ Preparation

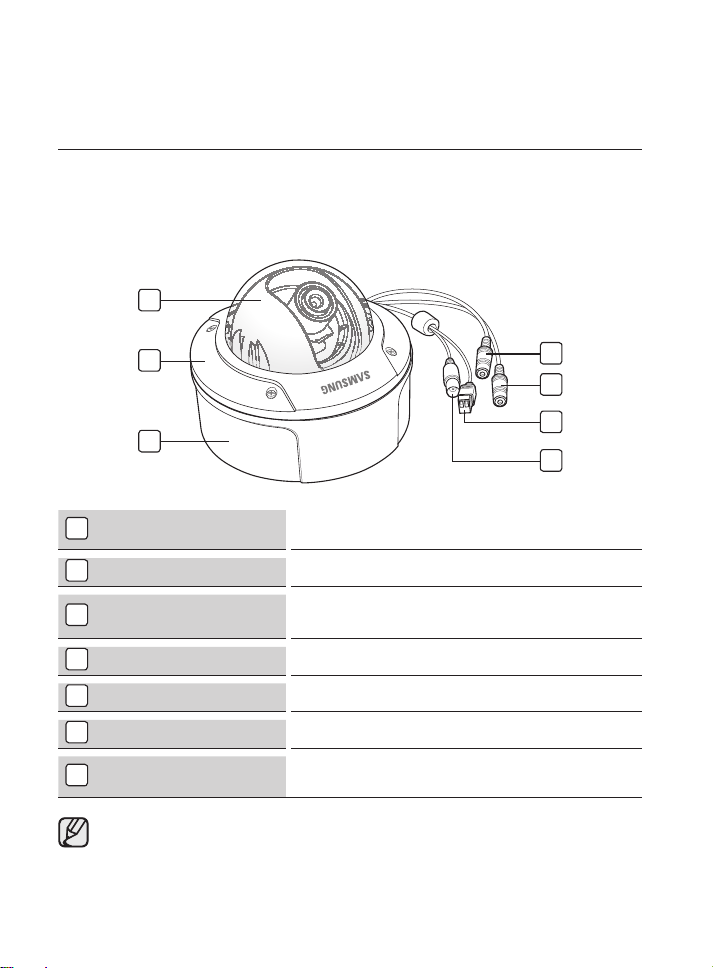

Front
1
Inner Cover Covers the main body to protect it.
2
Dome Cover Covers the inner cover, lens, and main body to protect them.
3
Main Body Includes a lens, a switch board, a PCB board, screws, and
such.
4
Audio Out For outgoing audio signals.
5
Audio In For incoming audio signals.
6
Power Port Connect the power cable to this port.
7
Video Out For outgoing video signals from the camera.
This port connects to the monitor’s video in port.
When the camera lens becomes dirty, softly clean it with a lens tissue or a cloth soaked in pure
ethanol.
󳫴
NAMES OF EACH PART
2
1
3
4
5
6
7
NA-B5395-ENG.indd 6 2008-07-14 오후 3:45:41

Preparation _07
01 PREPARATION

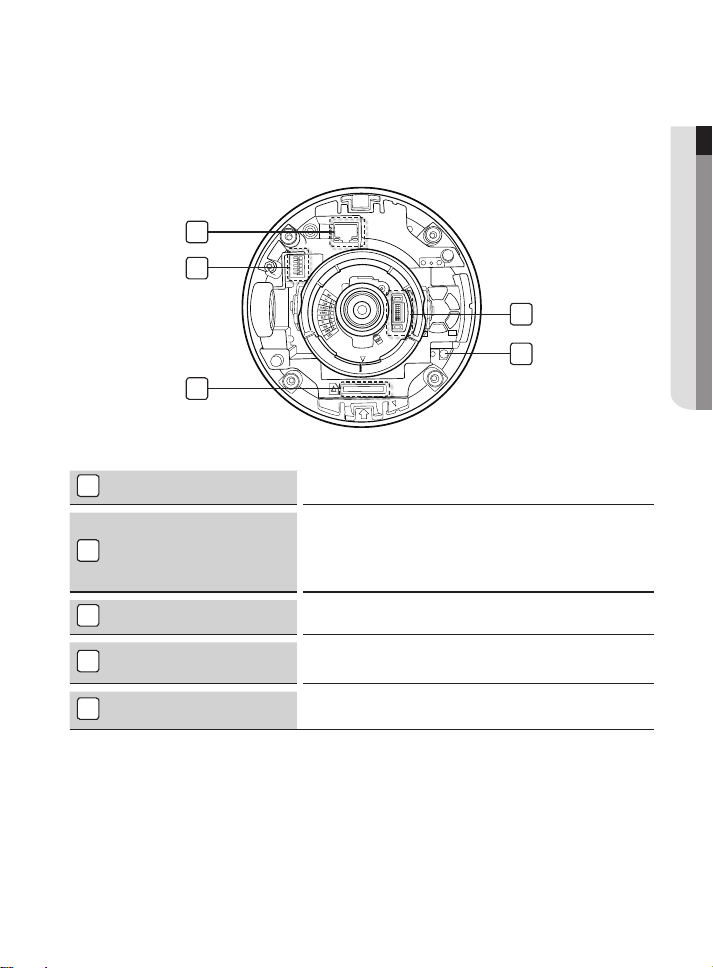

Inside
1
Ethernet Port Ethernet cable port.
2
I/O Port
Used to connect the camera to an external device.
- ALARM IN : These are alarm in ports.
- ALARM OUT : These are alarm out ports.
- GND : This is the GND port.
3
SDHC Memory Card Slot This is where you insert your SDHC memory card.
4
Function Switch Used to set the camera function.
5
Reset Button Reverts all camera settings to their default.
Refer to the Reset section for more information.
4
3
2
1
5
NA-B5395-ENG.indd 7 2008-07-14 오후 3:45:41

08_ Installation and Connection
REMOVING THE COVER
To connect the SDHC memory card, Ethernet cable, alarm input/output and etc., remove the
Dome Cover and Lens Cover.
1 Remove 4 screws using L-Wrench.
2 Lift the dome cover upward and
remove it.
3 Pull both sides of the lens cover and
lift it up to remove.
installation and connection
NA-B5395-ENG.indd 8 2008-07-14 오후 3:45:42

Installation and Connection _09
02
INSTALLATION AND CONNECTION
SETTING SWITCHES
Setting function switches

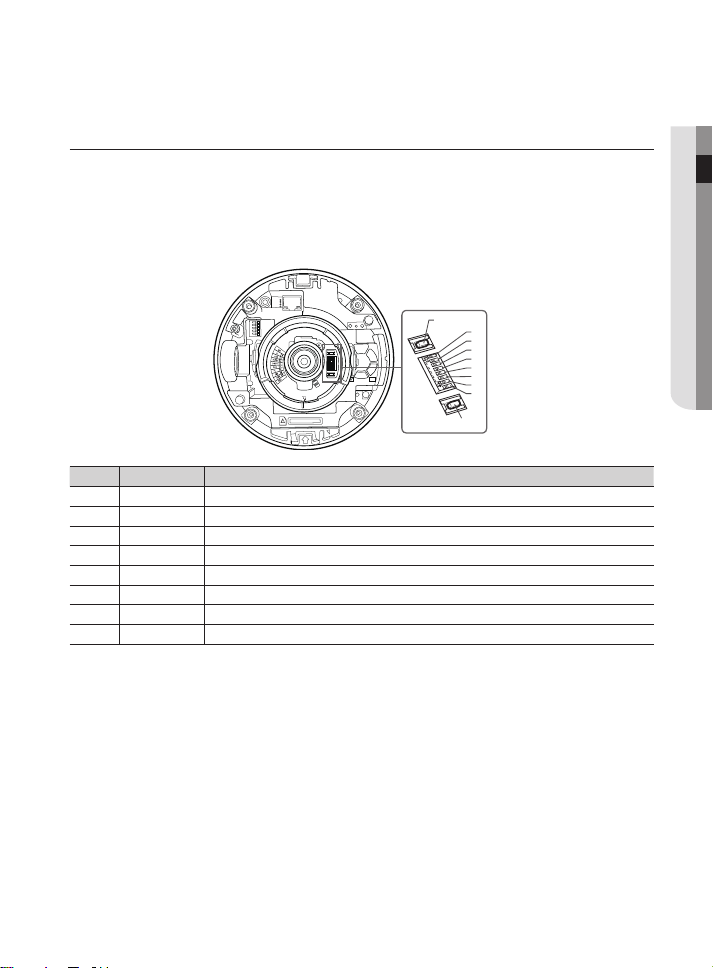

To set the available functions on your camera, adjust eight switches as shown below:
No Name Brief description
1N/A This is unavailable function.
2LSS Sens-up or Low speed shutter ON/OFF
3H-REV Horizontal reverse ON/OFF
4V-REV Vertical reverse ON/OFF
5BLC Backlight compensation ON/OFF
6FL Flickerless ON/OFF
7D/N Automatic switching between color and black & white ON/OFF
8AWB Automatic white balance ON/OFF
2 Switch 2 (LSS) : This sens-up mode accumulates the image fields in memory to reduce
noise but increase the brightness and contrast rate. When this switch is set to ON, the
camera automatically switches to a maximum of 128 times of image acquisition speed to
implement a clear picture for darker image.
1
2
3
4
5
6
7
8
DEC
INC
NA-B5395-ENG.indd 9 2008-07-14 오후 3:45:42

10_ Installation and Connection
3 Switch 3 (H-REV) : When this switch is set to ON, the camera image is reversed
horizontally. If you want to monitor your site using a mirror, you can use this feature to see
the right image.
4 Switch 4 (V-REV) : When this switch is set to ON, the camera image is reversed
vertically. If your camera reluctantly displays the vertically reversed image, you can use
this feature to see the right image.
5 Switch 5 (BLC) : When this switch is set to ON, you can view a clear image even though
the camera faces any excessive light such as sunlight and fluorescent light. When it is set
to OFF, the subject with excessive light is not clearly shown.
6 Switch 6 (FL) : When this switch is set to ON, the shutter speed is fixed to 1/100 sec
(for NTSC) or 1/120 sec (for PAL) to prevent screen from flickering by the disaccordance
between vertical synchronous frequency (50Hz for NTSC, 60Hz for PAL) and on-and-off
frequency of a light.
7 Switch 7 (D/N) : When this switch is set to ON, the camera automatically switches
between color and B&W according to the brightness of the vicinity.
8 Switch 8 (AWB) : This switch adjusts white balancing. When this switch is set to ON, this
camera operates in ATW mode, and in case of OFF, this camera operates in AWC mode.
ATW (Auto Tracking White Balance):
The color temperature is automatically adjusted according to the environmental change.
(Approx. 2000°K to 11,000°K)
AWC (Auto White Balance Control):
It stores the color temperature just when the switch is changed to OFF. Accordingly color temperatures
are adjusted by the stored value.
󳫴
󳫴
NA-B5395-ENG.indd 10 2008-07-14 오후 3:45:42

Installation and Connection _11
02
INSTALLATION AND CONNECTION
Inserting/Removing an SDHC Memory Card
Inserting an SDHC Memory Card

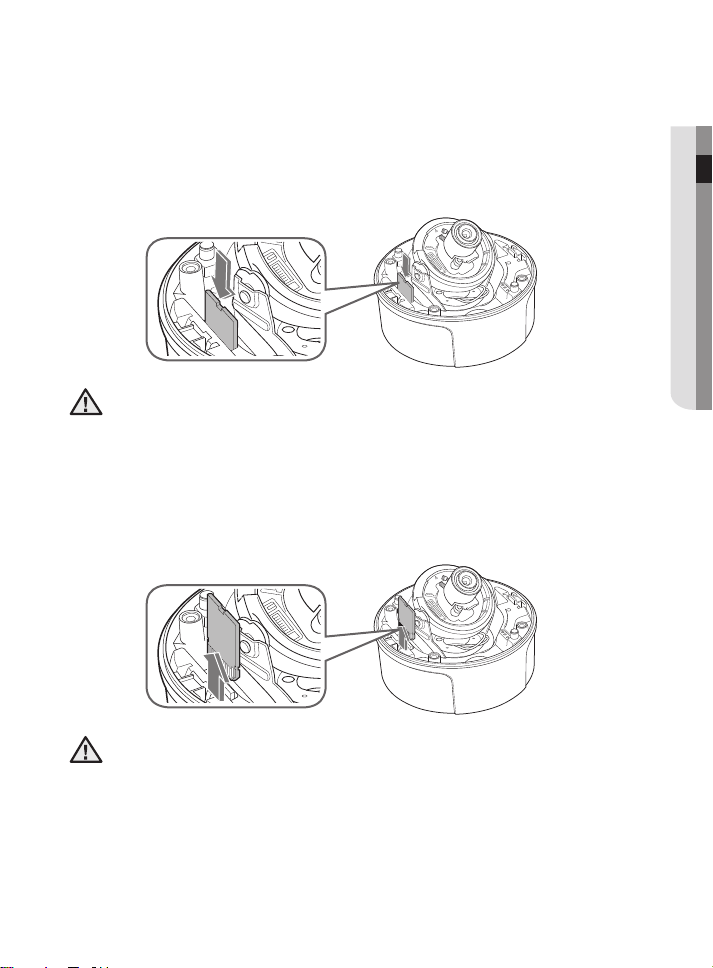

Push the SDHC memory card in the direction of the arrow shown in the diagram.
Do not force the memory card in. If you can’t insert the memory card into the slot with ease,
you might be inserting the card in the wrong direction. Forcibly inserting a memory card could
lead to its damage.
󳫴
Removing an SDHC Memory Card
Gently press down on the exposed end of the memory card as shown in the diagram to eject
the memory card from the slot.
Pressing too hard on the SDHC memory card can cause the card to shoot out uncontrollably
from the slot when released.
󳫴
When removing the SDHC memory card, disable the SD Card Recording feature (refer to
page 70 for instructions on disabling SD Card Recording).
Removing the SDHC memory card while recording is in progress can damage the data.
󳫴
NA-B5395-ENG.indd 11 2008-07-14 오후 3:45:43

12_ Installation and Connection
Memory Card Information (not included)
What is a memory card?
The memory card is an external data storage device that has been developed to offer an entirely
new way to record and share video, audio, and text data using digital devices.
Selecting a memory card that’s suitable for you
Your camera supports SDHC memory cards.
You may, however, experience compatibility issues depending on the model and make of the
memory card.
Your camera supports SD memory cards.
However, the maximum supported SD memory card capacity is 2GB and ver 1.1, 4GB or
above SD memory cards are incompatible.
For your camera, we recommend you use a memory card from the following manufacturers:
SDHC/SD Memory Card: Panasonic®, SanDisk®, and Toshiba®
Your camera supports 128MB to 16GB of memory card capacity.
Playback performance can be affected depending on the speed of memory card, so use the
high-speed memory card. To ensure proper recording of video data, we recommend you use a
memory card that supports at least read/write speed 10Mbps and Class 6
Memory Card Use
SD and SDHC memory cards feature a switch that disables writing data on to the media.
Having this switch to the Lock position will prevent accidental deletion of data stored in the
memory card but at the same time will also prevent you from writing data on to the media.
Memory Card Components
SDHC
Lock Switch
Contacts
NA-B5395-ENG.indd 12 2008-07-14 오후 3:45:43

Installation and Connection _13
02
INSTALLATION AND CONNECTION
Connecting Ethernet Cable
Connect the Ethernet cable to the network port as shown.

Connecting Molded Cable directly
Circuit Board can be affected by stress due to a limited space, which can cause a
malfunction. For this reason, use non-molded UTP cable when connecting directly to the
camera.

Connecting Molded Cable using UTP Cable
Connect the supplied UTP cable to the camera first, then connect molded cable to the
UTP cable.
< X > < O >
NA-B5395-ENG.indd 13 2008-07-14 오후 3:45:43

14_ Installation and Connection
INSTALLING CAMERA
Before installation
Before installing your camera, you have to read the following cautions:
You have to check whether the location (ceiling or wall) can bear five times the weight of your camera.
Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise
it may cause a breakdown or fire. You can use wall mount adaptor (SADT-102WM), and pole mount
adaptor (SADT-100PM) for installing the camera on the wall or pipeline.
When installing your camera, don’t allow any person to approach the installation site. If you have any
valuable things under the place, move them away.

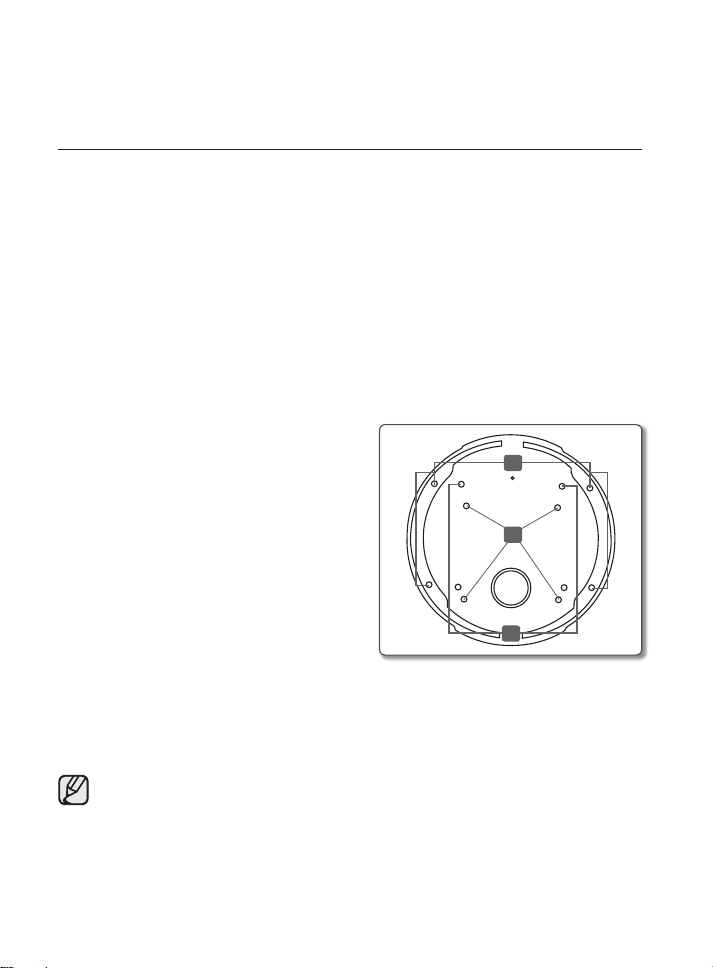

About the installation holes
A: Use these holes when directly installing
your camera on the ceiling or wall.
While those are not used, fill in the holes
using the screw machine (M5 X L6.) for
waterproofing.
B: Use four holes when directly installing
your camera on the junction box
You can use the 4 1/8 diameter round
type junction box for assembly.
(The junction box, gasket, and cover are
separately purchased items.)
C: Use these holes when installing the wall
mount adapter (SADT-102WM)
While those are not used, fill in the holes
using the screw machine (M5 X L6.) for
waterproofing.
The holes that are not used should be tightly sealed up using the screws provided for
waterproofing. When the screws don’t have rubber rings inside or are not closely attached, note
that it can cause waterproofing problem. For attaching screws, see page 19 “Disassembling/
assembling the Main body from the Case.”
󳫴
󳫴
󳫴
󳫴
A
B
C
NA-B5395-ENG.indd 14 2008-07-14 오후 3:45:44

Installation and Connection _15
02
INSTALLATION AND CONNECTION
Installing on a pipe
Before installation, you have to be familiar with the cautions on page 14 and fill in the holes
that are not used for installation. The holes that are not used should be tightly sealed up using
the screws provided for waterproofing. (Refer to page 14)
To install your camera bottom on a pipe

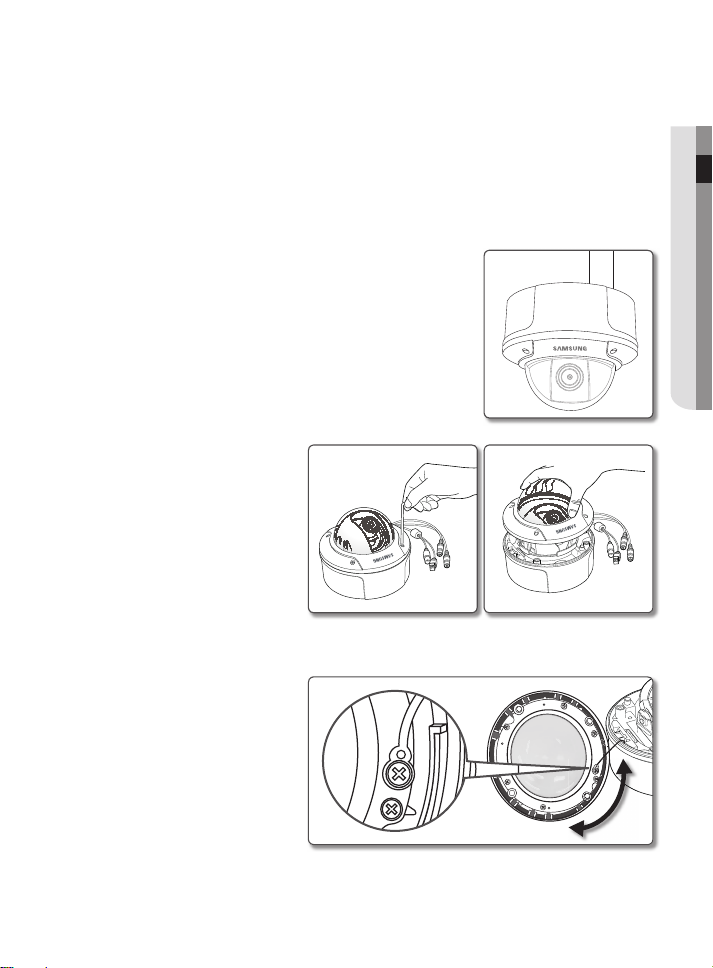

1 After connecting the power and video cables, throw them
inside the pipeline and screw the male thread pipe into the
female pipe thread in your camera tightly to fix the Main
body. (In this case, be sure to tape with Teflon tape before
assembly for waterproofing. Be careful for the wiring cable
not to be stuck in the connection area.)
2 Adjust the angle of the camera
in search of a better view.
1. Separate the Dome cover using the
L-Wrench provided.
(To make loose the screws, rotate
counterclockwise.)
2. Adjust the lens direction. For more
information, see page 20 “Adjusting
the camera direction.”
3 Attach the Dome cover.
(Screw the connection bolts
tightly using the L-Wrench for
waterproofing.))
To change the SAMSUNG logo
position, move the location of the
connection rubber band as show
below and rotate for assembly.
(The rotation limit is 180 degree.)
NA-B5395-ENG.indd 15 2008-07-14 오후 3:45:45

16_ Installation and Connection
To install the camera side on a pipe

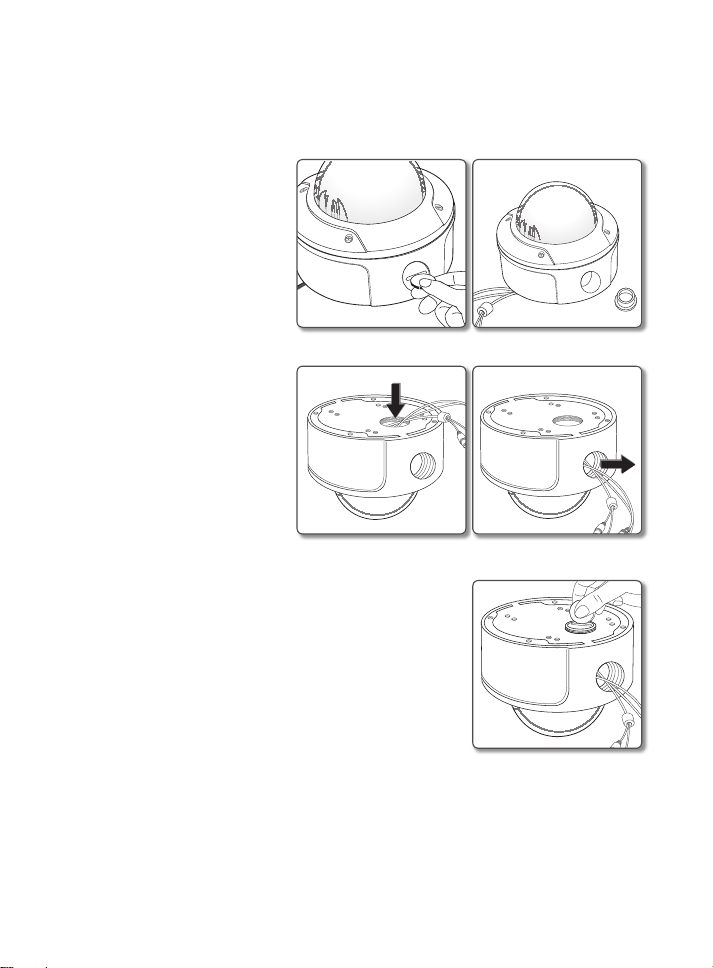

1 Pull the power and video cables
through the pipe connection hole
on the camera side.
1. Remove the side cover from the
Case using a coin or minus (-) driver.
(Rotate counterclockwise.)
2. Push the power and video cables
stretched outside of the bottom hole
into the Case. And pull them out from
the side cover of the Case.
2 Attach the removed side cover to the bottom hole and
rotate it clockwise using a coin or minus (-) driver.
(Be sure to insert the O-ring (P22 T2.4) into the hole before
assembly. The ring is necessary for waterproofing.)
NA-B5395-ENG.indd 16 2008-07-14 오후 3:45:46
