Samsung NV100HD User manual

CONTENTS
1. Specification
2. Installation
3. Exploded view and Part list
4. Firmware
5. Adjustment
6. Block Diagram
7. Pattern Diagram
8. Circuit Diagram
9. Service Information
DIGITAL CAMERA
SERVICE
Manual
DIGITAL CAMERA
B-Type : SAMSUNG TL34
NV100HD

2- This Document can not be used without Samsung's authorization -
目 录
.规格
1. 制品规格 ……………………………………………………………………… 4
2. 存储卡容量 ……………………………………………………………… 8
3.
ＬＣＤ显示器 …………………………………………………………………………… 10

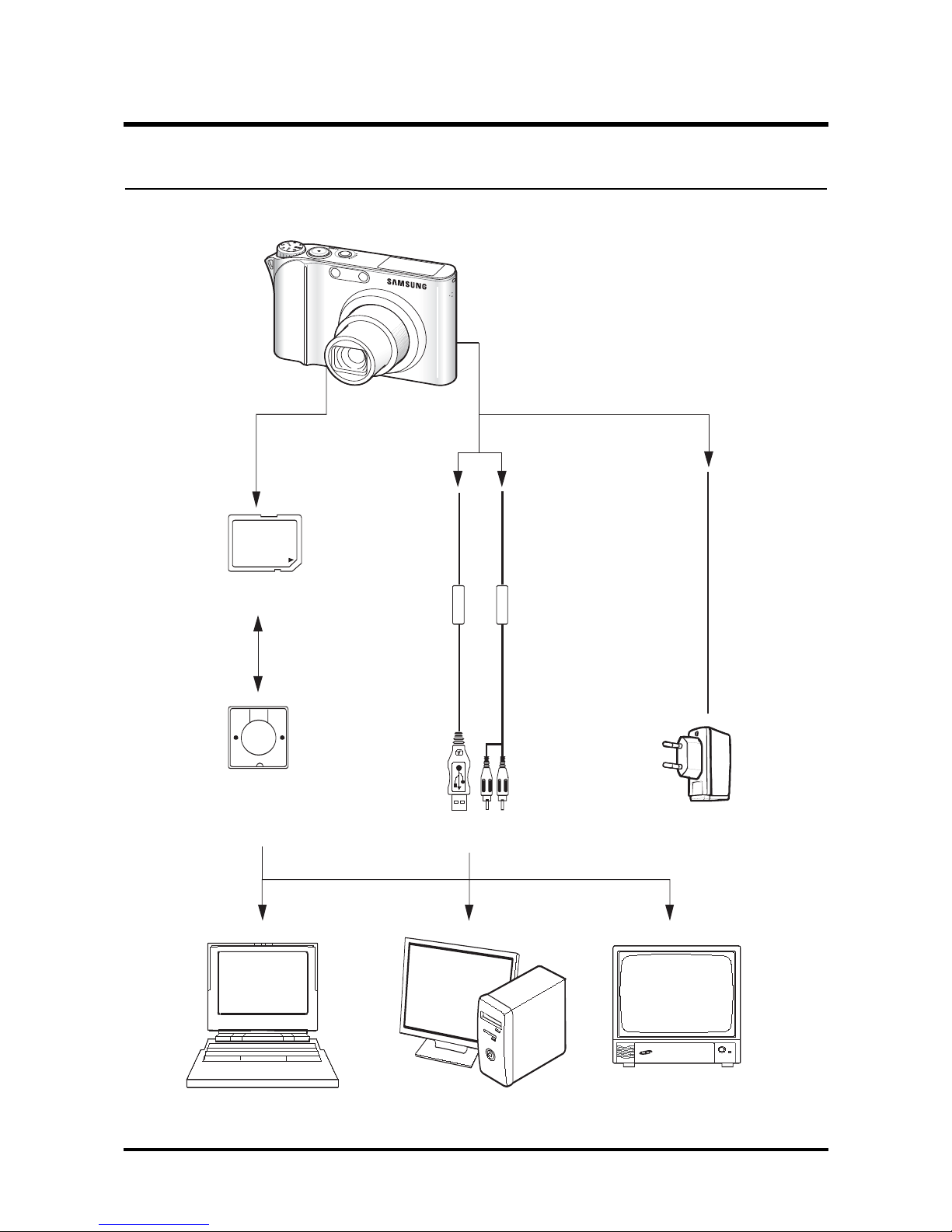

4. 连接图 ……………………………………………………………………… 16
5. 相机各部位名称 …………………………………………………………… 17
.安装
1. 将文件拷入电脑 …………………………………………………………… 20
2. USB : FAQ ……………………………………………………………………………………… 24
.分解图和零件清单
1. MAIN ASSEMBLY ……………………………………………………………………………… 26
2. BODY ASSEMBLY-1 …………………………………………………………………………… 28
3. BODY ASSEMBLY-2 …………………………………………………………………………… 30
4. TOP COVER ASSEMBLY ……………………………………………………………………… 32
5. FRONT COVER ASSEMBLY…………………………………………………………………… 34
6. BACK COVER ASSEMBLY …………………………………………………………………… 36
7. BARREL ASSEMBLY …………………………………………………………………………… 38
8. PACKING ITEM ………………………………………………………………………………… 42
.固件程序
1. 开发模式 ………………………………………………………………………………… 46
2. 初始化相机 ……………………………………………………………………………… 47
3. 确认版本 …………………………………………………………………………… 49
4. 升级固件程序 ………………………………………………………………………… 50
5. 触摸屏 …………………………………………………………………………………… 52
6. 触摸屏修复 ……………………………………………………………………… 53
7. OIS 升级 …………………………………………………………………………………… 54
.ADJUSTMENT
1. Adjustment Precautions ………………………………………………………………………… 56
2. Adjustment Data Backup and Restoration for Main Board Replacement …………………… 58
3. OIS Centering ADJ ……………………………………………………………………………… 59
4. Battery Level Test ……………………………………………………………………………… 60
5. CCD Gain Adjustment ………………………………………………………………………… 62

3
- This Document can not be used without Samsung's authorization -
CONTENTS
6. 快门关闭调整 ……………………………………………………………………… 64
7. 镜头周围曝光补偿调整 ……………………………………………………………………… 66
8. 闪光调整 ………………………………………………………………………… 68
9. 相面调整 ……………………………………………………………………………… 70
10. 耐久测试 …………………………………………………………………………………… 72
11. ＣＣＤ坏像素测试 ……………………………………………………………………… 73
12. ＣＣＤ黑色水平（ＯＢ）调整 …………………………………………………………… 74
.BLOCK DIAGRAM
………………………………………………………………………………………………… 78
.PATTERN DIAGRAM
1) MAIN_TOP ……………………………………………………………………………………… 79
2) MAIN_BOTTOM ………………………………………………………………………………… 80
.CIRCUIT DIAGRAM
1) MAIN_PCB_1 …………………………………………………………………………………… 81
2) MAIN_PCB_2 …………………………………………………………………………………… 82
3) MAIN_PCB_3 …………………………………………………………………………………… 83
4) MAIN_PCB_4 …………………………………………………………………………………… 84
5) MAIN_PCB_5 …………………………………………………………………………………… 85
6) MAIN_PCB_6 …………………………………………………………………………………… 86
7) MAIN_PCB_7 …………………………………………………………………………………… 87
8) MAIN_PCB_8 …………………………………………………………………………………… 88
9) MAIN_PCB_9 …………………………………………………………………………………… 89
10) MAIN_PCB_10 ………………………………………………………………………………… 90
11) MAIN_TOP_FPCB_1 …………………………………………………………………………… 91
12) MAIN_TOP_FPCB_2 …………………………………………………………………………… 92
13) MAIN_CARD_PCB_1 …………………………………………………………………………… 93
14) MAIN_CARD_PCB_2 …………………………………………………………………………… 94
15) MAIN_CCD_FPCB ……………………………………………………………………………… 95
16) MAIN_STROBO_FPCB ………………………………………………………………………… 96
17) KEY_FPCB …………………………………………………………………………………… 97
18) TOP_FPCB …………………………………………………………………………………… 98
.维修知识
…………………………………………………………………………………………………99

4- This Document can not be used without Samsung's authorization -
. SPECIFICATION
Image Sensor - Type : 1/1.72" (1.49cm) CCD
- Effective Pixel : Approx. 14.7 Mega-pixel
- Total Pixel : Approx. 15.0 Mega-pixel
Lens - Focal Length : Schneider - KREUZNACH lens f = 6.0 - 21.6mm
(35mm film equivalent : 28 - 102 mm)
- F-stop range : F2.8 (W) - F5.9 (T)
- Digital Zoom :·Still Image mode : 1.0X ~ 5.0X
·Play mode : 1.0X ~ 13.7X (depending on image size)
LCD Monitor - 3.0" (7.62cm) hVGA colour TFT LCD (460,000 pixels) (Touch)
Focusing - Type : TTL auto focus (Multi AF, Center AF, Touch AF, Face Detection AF)
- Range
Shutter speed - AUTO : 1 - 1/2,000 sec.
- MANUAL : 16 - 1/2,000 sec.
- NIGHT : 8 - 1/2,000 sec.
- FIREWORK : 4 sec.
Exposure - Control : Program AE
- Metering : Multi, Spot, Center Weighted, Face Detection AE
- Compensation : ±2EV (1/3EV steps)
- ISO Equivalent : Auto, 80, 100, 200, 400, 800, 1600,
3200 (Photo size of 3200 is fixed as 3M)
Flash - Mode : Off, Auto, Red Eye, Fill in, Slow Sync, Red Eye Fix
- Range : Wide: 0.3m - 5.5m (ISO Auto), Tele: 0.5m - 2.6m (ISO Auto)
- Recharging Time : Approx. 5 sec
1. CAMERA SPECIFICATION
Wide(W) Tele(T)
Normal 80cm - infinity 80cm - infinity
Macro 5cm - 80cm 50cm - 80cm
Auto Macro 5cm - infinity 50cm - infinity

5- This Document can not be used without Samsung's authorization -
. SPECIFICATION
Shake reduction - Dual IS [Optical Image Stabilisation (OIS) + Digital Image Stabilisation (DIS)]
Sharpness - Soft+, Soft, Normal, Vivid, Vivid+
Effect - Shooting mode :
·Photo Style Selector : Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic
·Color : Normal, B & W, Sepia, Blue,Red, Green, Negative
·Image adjust : Sharpness, Contrast, Saturation
- Playback mode :
·Image edit : Resize, Rotate, Trimming
·Color effect : Normal, B & W, Sepia, Blue, Red, Green, Negative
·Special color : Color Filter, Shaded, Elegant, Add Noise
·Image adjust : Face retouch, Brightness, Contrast, Saturation, Red Eye Fix, ACB
White Balance - Auto WB, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom Set
Voice Recording - Voice Recording (Max 10 hours)
- Voice Memo in Still Image (Max. 10 sec.)
Date Imprinting - Date & Time, Date, Off (user selectable)
Shooting - Photos :
·Modes : AUTO, PROGRAM, MANUAL, DUAL IS, NIGHT, BEAUTY SHOT, SCENE
(PORTRAIT, CHILDREN, LANDSCAPE, CLOSE UP, TEXT, SUNSET,
DAWN, BACKLIGHT, FIREWORK, BEACH & SNOW, SELF SHOT, FOOD,
CAFÉ)
·Continuous : Single, Continuous, High Speed, M. Capture, AEB
·Timer : 10 sec, 2 sec, Double, Remote
- Videos :
·With Audio or without Audio (Max Recording time : 25min)
·Size : 1280x720 High Quality, 1280x720 Standard Quality, 640x480, 320x240
·Frame rate : 60 FPS, 30 FPS, 15 FPS
·3.6X Optical Zoom and Mute in Zooming
(sound is muted when operating the zoom function)
·Color Effect & WB selectable

6- This Document can not be used without Samsung's authorization -
. SPECIFICATION
·Video Editing (embedded) : Pause during recording, Still Image Capture,
Time Trimming
*Due to the noise while optical zooming, user can select to record sound or not.
Storage - Media :
·Internal memory : approx. 40MB
·External Memory (Optional) : SD card (up to 4GB guaranteed)
SDHD card (up to 8GB guaranteed)
MMC Plus (up to 2GB guaranteed, 4bit 20MHz)
*Internal memory capacity is subject to change without prior notice.
- File Format :
·Still Image : JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0
·Video : MP4 (H.264(MPEG4.AVC))
·Audio : WAV
- Image Size
- For 1GB SD
These figures are measured under Samsung’s standard conditions and may vary
depending on shooting conditions and camera settings.
Image Play - Type : Single image, Thumbnails, Advanced slide show (with effect and music)
Interface - Digital output connector : USB 2.0 (30pin)
- Audio output : Mono(Internal Speaker), Stereo(Microphone)
- Video output : AV: NTSC, PAL (selectable)
HDMI 1.2: NTSC, PAL (selectable)
* HDMI is available when it is connected to the optional cradle.
Super fine 136 153 180 240 370 807 1655
Fine 265 296 347 457 685 1374 2438
Normal 386 430 501 653 957 1794 2894
4384x3288 4384x2920 4384x2464 3264x2448 1920x10802592x1944 1024x768

7- This Document can not be used without Samsung's authorization -
. SPECIFICATION
- DC power input connector : 30 pin, 4.2V
Power Source - Rechargeable battery : Lithium-ion battery SLB-1137D (1100mAh)
- AC adapter : Power adapter (SAC-47), USB cable (SUC-C4)
- Cradle (Optional) : SCC-NV5 HD
The power source may differ depending on your region.
Dimensions (WxHxD)
- 94.9 x 59.5 x 19.9mm (without projection part)
Weight - 138g (without battery and memory card)
Operating Temperature
- 0 ~ 40°C
Operating Humidity
- 5 ~ 85%
Software - Samsung Master, QuickTime® Player 7.4, Adobe Reader

8- This Document can not be used without Samsung's authorization -
. SPECIFICATION

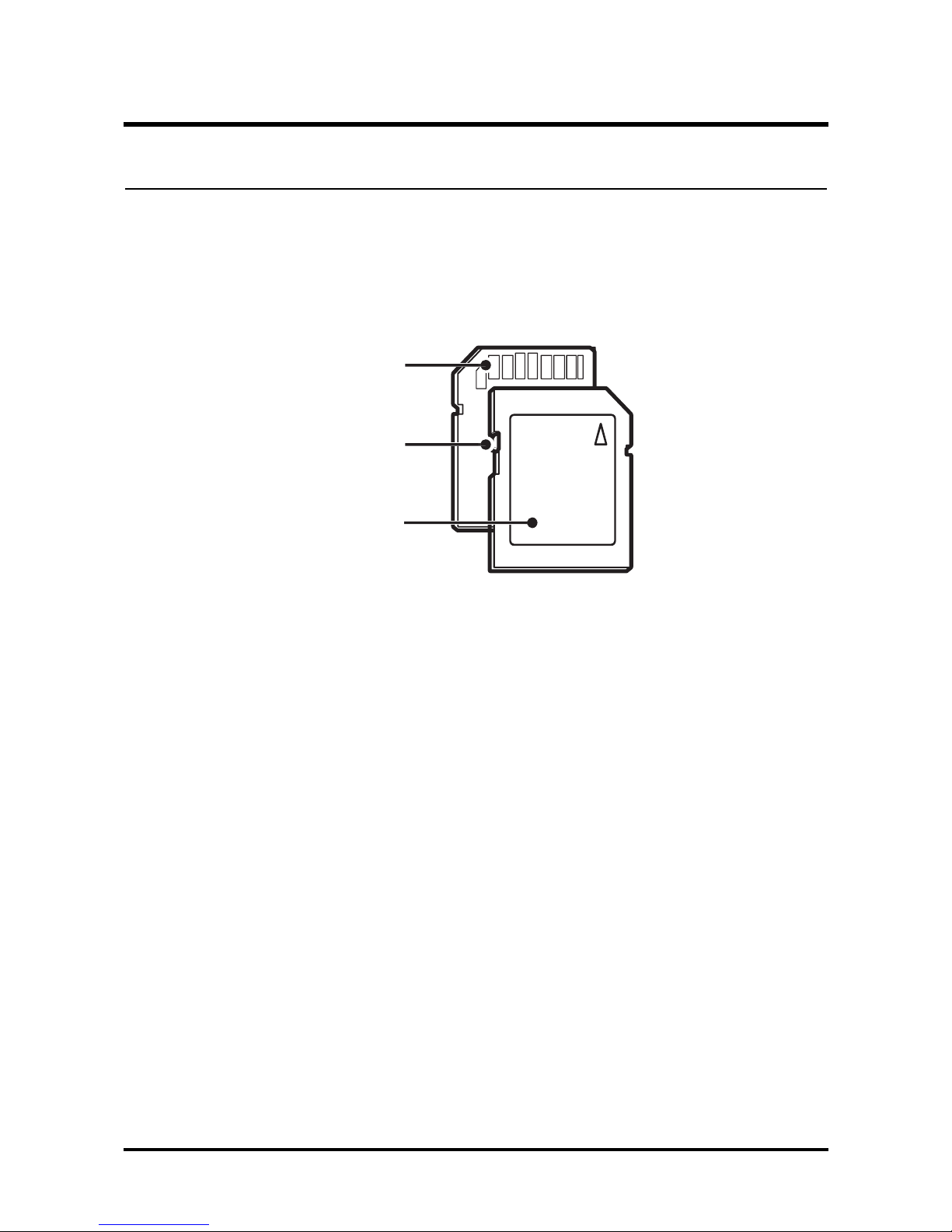

2. The capacities of the memory card
You can prevent files from being deleted by using a write-protect switch on the SD or SDHC card.
Slide the switch down to lock or slide it up to unlock.
Unlock the card when shooting.
You can use SD (Secure Digital), SDHC (Secure Digital HighCapacity), or MMC (MultiMedia Card)
memory cards.
Terminal
Write-protect switch
Label (front)
[SD (Secure Digital) memory card]

9- This Document can not be used without Samsung's authorization -
. SPECIFICATION
The zoom button doesn’t function during the movie recording.
The recording times can be changed by the zoom operation.
The memory capacity may differ depending on shooting scenes or shooting conditions.
For 1GB SD card:
Size
P
h
o
t
o
s
*
V
i
d
e
o
s
Super Fine
136
153
180
240
370
807
1655
Fine
265
296
347
457
685
1374
2438
Fine
386
430
501
653
957
1794
2894
60 FPS
About 25'
30 FPS
About 10' 33"
About 20' 47"
About 25'
About 25'
15 FPS
About 20' 47"
About 25'
About 25'
About 25'

10 - This Document can not be used without Samsung's authorization -
. SPECIFICATION
3. LCD monitor indicator
Recording mode
[ Image & Full Status ]

11- This Document can not be used without Samsung's authorization -
. SPECIFICATION
A Information
Selected shooting mode
Icon Description
Internal memory
Memory card inserted
Available number of photos
Available recording time
Current date and time
Zoom ratio
Voice memo
Auto focus frame
Camera shake
Option set 1
: Partially charged
: Fully charged
: Charging needed
Optical Image Stabilisation (OIS)

12 - This Document can not be used without Samsung's authorization -
. SPECIFICATION
B Touch icons
Selected photo style
Select a white balance
Adjust the exposure with ACB
Select a display type
Return to the previous screen
Select a scene
Select an ISO speed
Adjust the brightness of the face
Adjust the exposure manually
Adjust the shutter speed
Adjust imperfections of the face
Select an aperture value
Select an auto focus option
Select a flash option
Select a video resolution
Icon Description

13- This Document can not be used without Samsung's authorization -
. SPECIFICATION
Select a photo resolution
Select a frame rate
Select a face detection option
Select a focus area option
Select a burst type
Select a metering option
Select photo quality
Select a timer option
Add a voice memo to a photo or record a voice memo
Set the Optical Image Stabilisation option
Apply a colour effect
Adjust sharpness
Adjust contrast
Adjust saturation
Display another row of options
Icon Description

14 - This Document can not be used without Samsung's authorization -
. SPECIFICATION

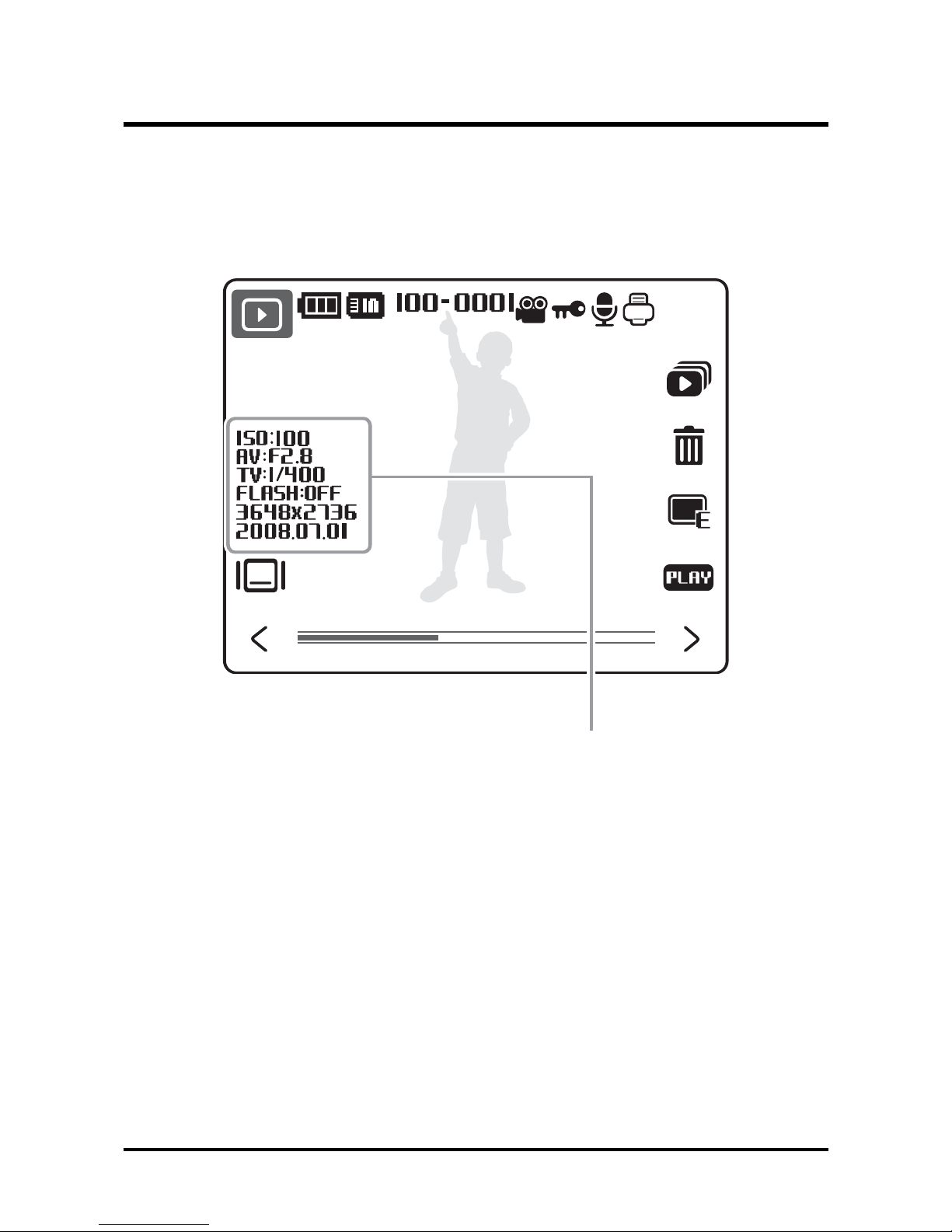

Play mode
[ Image & Full Status ]
Information

15- This Document can not be used without Samsung's authorization -
. SPECIFICATION
Display in Playback mode
Icon Description
Folder name – File name
Video file
Protected file
Photo includes a voice memo
Print order has been set (DPOF)
Select a display type
Slide show
Delete files
Edit menu for photos
Play videos or voice memos

16 - This Document can not be used without Samsung's authorization -
. SPECIFICATION
4. CONNECTION DIAGRAM
Card Reader
SD Card
USB Cable
AV Cable
TV Monitor
IBM / MAC
Lap top
AC Adaptor

17- This Document can not be used without Samsung's authorization -
. SPECIFICATION
5. IDENTIFICATION OF FEATURES
Remote control
sensor
Mode dial
See below
Microphone
POWER button
Shutter button
Lens
AF-assist light/Timer lamp
Flash unit
MENU button
Access the
camera
settings menu
Touch
screen
Speaker
Status lamp
•Blinking: When saving a photo or video, recording a
voice memo, being read by a computer or
printer, or out of focus
•Steady: When connecting to a computer or in focus
Strap eyelet
Zoom T/Expand button
Zoom W/Thumbnail button
Playback button
Front & Top
Back & Bottom
When the flash is needed, the
flash unit opens automatically
when you press [Shutter](Press
down gently to close).

18 - This Document can not be used without Samsung's authorization -
. SPECIFICATION
Battery chamber cover
Insert a memory card and
battery USB and A / V port
Tripod mount
Battery chamber cover
Memory card slot
Battery holder
Battery chamber
 To open the battery chamber cover, slide it in the direction shown above.
Back & Bottom

19- This Document can not be used without Samsung's authorization -
. SPECIFICATION
 You can recharge your rechargeable battery, transfer a captured image to print, and download images with the cradle
(optional).
DC connection terminal/
USB port
HDMI connection terminal
AV connection terminal
Camera connection terminal
Cradle (Optional)

20 - This Document can not be used without Samsung's authorization -
. INSTALLATION
1. Transferring files to your computer
For Windows users
Transfer files by connecting your camera to your PC. Use the supplied USB cable after installing any
programs you need from the CD.
Installing programs
Hardware and software requirements
Pentium III 500MHz or better
(Pentium III 800MHz or better recommended)
256 MB or more (512MB or more recommended)
Windows 2000 / XP / Vista
250MB or more (1GB or more recommended)
•USB port
•CD-ROM drive
•1024x768 pixels, 16-bit colour display compatible monitor
(24-bit colour display recommended)
•Microsoft Direct X 9.0 or later
Hard disk capacity
CPU
RAM
OS
Others
Requirements for QuickTime Player 7.4
Intel Pentium 4, 3.2GHz or higher / AMD Athlin 64FX, 2.6GHz or higher
Windows XP service pack2 or Vista
Minimum 512MB RAM (1GB and above recommended)
64MB or greater video card (nVIDIA Geforce 7600GT or higher / ATIX1600 series or higer recommended)
