Samsung NV24HD User manual

2- This Document can not be used without Samsung's authorization -
CONTENTS
Ⅰ. SPECIFICATION
1. CAMERA SPECIFICATION ……………………………………………………………………… 4
2. SYSTEM REQUIREMENTS …………………………………………………………………… 8
3. QuickTime Player 7.4 : H.264(MPEG4.AVC) playback Requirements ……………………… 9
4. The capacities of the memory card …………………………………………………………… 10
5. LCD monitor indicator …………………………………………………………………………… 12
6. CONNECTION DIAGRAM……………………………………………………………………… 16
7. IDENTIFICATION OF FEATURES …………………………………………………………… 17
Ⅱ. INSTALLATION
1. About the software ……………………………………………………………………………… 20
2. Setting up the application software …………………………………………………………… 22
3. USB : FAQ ……………………………………………………………………………………… 27
Ⅲ. EXPLODED VIEW AND PART LIST
1. MAIN ASSEMBLY ……………………………………………………………………………… 28
2. BODY ASSEMBLY-1 …………………………………………………………………………… 30
3. BODY ASSEMBLY-2 …………………………………………………………………………… 32
4. FORNT COVER ASSEMBLY…………………………………………………………………… 34
5. BACK COVER ASSEMBLY …………………………………………………………………… 36
6. TOP COVER ASSEMBLY ……………………………………………………………………… 38
7. BARREL ASSEMBLY …………………………………………………………………………… 40
8. PACKING ITEM ………………………………………………………………………………… 44
Ⅳ. FIRMWARE
1. Resetting Camera ……………………………………………………………………………… 48
2. Checking the Version …………………………………………………………………………… 50
3. Upgrading the Firmware………………………………………………………………………… 53
4. Slide button ……………………………………………………………………………………… 56
5. OIS Upgrading …………………………………………………………………………………… 58
Ⅴ. ADJUSTMENT
1. Adjustment Precautions ………………………………………………………………………… 60
2. Adjustment Data Backup and Restoration for Main Board Replacement …………………… 64

3
- This Document can not be used without Samsung's authorization -
CONTENTS
3. OIS Centering ADJ ……………………………………………………………………………… 65
4. Battery Level Test ……………………………………………………………………………… 66
5. CCD GAIN Adjustment ………………………………………………………………………… 68
6. Shutter Close Adjustment ……………………………………………………………………… 70
7. Lens Shading Adjustment ……………………………………………………………………… 72
8. Flash Gno. Adjustment ………………………………………………………………………… 74
9. AWB STROBO Adjustment …………………………………………………………………… 76
10. PUNT Adjustment ……………………………………………………………………………… 78
11. Burning Test …………………………………………………………………………………… 80
12. CCD Defect Pixel Test ………………………………………………………………………… 82
13. CCD Black Level(OB) Adjustment …………………………………………………………… 84
14. Slide Button Adjustment ……………………………………………………………………… 85
Ⅵ. BLOCK DIAGRAM
………………………………………………………………………………………………… 87
Ⅶ. PATTERN DIAGRAM
1) MAIN_TOP ……………………………………………………………………………………… 88
2) MAIN_BOTTOM ………………………………………………………………………………… 89
Ⅷ. CIRCUIT DIAGRAM
1) MAIN_SUB CONNECTOR ……………………………………………………………………… 90
2) MAIN_PRE_LAYOUT …………………………………………………………………………… 91
3) MAIN_AFE BLOCK ……………………………………………………………………………… 92
4) MAIN_MEMORY ………………………………………………………………………………… 93
5) MAIN_MICOM …………………………………………………………………………………… 94
6) MAIN_MOTOR ………………………………………………………………………………… 95
7) MAIN_EXP-I/F & HDMI 30P ……………………………………………………………………… 96
8) MAIN_POWER IC ……………………………………………………………………………… 97
9) MAIN_AM O-LED LCD …………………………………………………………………………… 98
10) MAIN_TOP/STROBO CONNECTOR …………………………………………………………… 99
11) MAIN_CARD B/D COM ……………………………………………………………………… 100
Ⅸ. SERVICE INFORMATION
…………………………………………………………………………………………………101

Image Sensor - Type : 1/2.3" CCD
- Effective Pixel : Approx. 10.20 Mega-pixel
- Total Pixel : Approx. 10.30 Mega-pixel
Lens - Focal Length : Schneider Lens f = 4.3 ~ 15.5mm (35mm film equivalent : 24 ~ 86.5mm)
- F No. : F2.8(W) ~ F5.9(T)
- Digital Zoom :·Still Image mode : 1.0X ~ 5.0X
·Play mode : 1.0X ~ 11.4X (depends on image size)
LCD Monitor - 2.5" AMOLED (230,000 pixel)
Focusing - Type : TTL auto focus (MULTI AF, CENTER AF, SELF PORTRAIT,
FACE DETECTION )
- Range
Shutter - Speed : AUTO : 1 ~ 1/2,000 sec.
MANUAL : 16 ~ 1/2,000 sec.
NIGHT : 8 ~ 1/2,000 sec.
FIREWORKS : 4 sec.
Exposure - Control : AE, Manual Exposure
- Metering : CENTER, SPOT, MULTI, FACE DETECTION
- Compensation : ±2EV (1/3EV steps)
- ISO Equivalent : Auto, 80, 100, 200, 400, 800, 1600,
3200 (image size of 3200 is fixed as 3M))
Flash - Modes : RED EYE FIX, SLOW SYNC, FILL IN, RED EYE, AUTO, OFF
- Range :
Wide : 0.4m ~ 5.6m , Tele : 0.5m ~ 2.8m (ISO AUTO)
- Recharging Time : Approx. 5 sec.
4- This Document can not be used without Samsung's authorization -
Ⅰ. SPECIFICATION
1. CAMERA SPECIFICATION
Focus Type Wide(W) Tele(T)
Normal 40cm ~ Infinity 80cm ~ Infinity
Macro 5cm ~ 40cm 50cm ~ 80cm
Auto Macro 5cm ~ Infinity 50cm ~ Infinity

Shake Reduction - Dual IS (OIS + DIS)
* OIS (Optical Image Stabilization), DIS (Digital Image Stabilization)
Effect - Effect :
·Photo Style Selector : NORMAL, CLASSIC, CALM, COOL, RETRO, FOREST,
VIVID, SOFT
·Color Effect : NEGATIVE, GREEN, RED, BLUE, SEPIA, B & W
·Image Adjust : CONTRAST, SATURATION, SHARPNESS
- Edit :
·Image Edit : ROTATE, RESIZE, EFFECT
·Color Effect : NEGATIVE, GREEN, RED, BLUE, SEPIA, B & W
·Special Color : ADD NOISE, ELEGANT, SHADED, COLOR FILTER
·Image Adjust : SATURATION, CONTRAST, BRIGHTNESS, ACB, RED EYE FIX
White Balance - Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom
Voice Recording - Stereo
- Voice Recording (Max 10 hour)
- Voice Memo in Still Image (Max. 10 sec.)
Shooting - Still Image :
·Modes : AUTO, PROGRAM, MANUAL, DUAL IS, NIGHT, PORTRAIT, SCENE
·Scene : SMILE SHOT, BLINK DETECTION, CHILDREN, LANDSCAPE, CLOSE-UP,
TEXT, SUNSET, DAWN, BACKLIGHT, FIREWORKS, BEACH & SNOW,
SELF-SHOT, FOOD, CAFÉ
·Continuous : AEB, M. CAPTURE, HIGH SPEED, CONTINUOUS, SINGLE
·Self-timer : REMOTE, DOUBLE, 2 SEC, 10 SEC
- Movie Clip :
·With Audio or without Audio (Max Recording time : 25min)
·Size : 1280x720, 640x480, 320x240
·Frame rate : 60 FPS, 30 FPS, 15 FPS
·3.6X Optical Zoom and Mute in Zooming
(Sound goes mute when operating the zoom function)
·Movie Editing (Embedded) : Pause during recording, Still Image Capture,
Time Trimming
5
- This Document can not be used without Samsung's authorization -
Ⅰ. SPECIFICATION

Storage - Media :
·Internal Memory : About 16MB
·External Memory (Optional) : SD (up to 4GB guaranteed)
SDHC Card (up to 8GB guaranteed)
MMC Plus (Up to 2GB, 4bit 20MHz)
* Internal memory capacity is subject to change without prior notice.
- File Format :
·Still Image : JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0
·Movie Clip : MP4 (H.264(MPEG4.AVC))
·Audio : WAV
- Image Size
- Capacity (256MB MMC)
※These figures are measured under Samsung’s standard conditions and may vary
depending on shooting conditions and camera settings.
Image Play - Type : Single image, Thumbnails, Slide show
* SLIDE SHOW : with selected Effect & Music by folders
SUPER FINE 49 55 68 64 93 143 418
FINE 94 105 129 122 173 255 617
NORMAL 136 151 183 174 242 345 732
6- This Document can not be used without Samsung's authorization -
Ⅰ. SPECIFICATION
3648x2736 3648x2432 3072X2304 3648x2056 2048x15362592x1944 1024x768

7
- This Document can not be used without Samsung's authorization -
Ⅰ. SPECIFICATION
Interface - Digital output connector : USB 2.0 (30pin)
- Audio : Mono(Internal Speaker), Stereo(Microphone)
- Video output : Stereo Output
AV: NTSC, PAL (user selectable),
HDMI 1.2 : NTSC, PAL (user selectable)
* Remarks : HDMI function is available when connected to the
cradle(optional).
- DC power input connector : New 30 pin Connector, 4.2V
Power Source - Rechargeable battery : SLB-1137D (1,100mAh)
- Adaptor : SAC-47, SUC-C4
- Cradle : SCC-NV4HD (Optional)
※Included battery may vary depending on sales region.
Dimensions (WxHxD)
- 98.5 x 61 x 18.95mm
Weight - 145.5g (without batteries and card)
Operating Temperature
- 0 ~ 40°C
Operating Humidity
- 5 ~ 85%
Software - Samsung Master, QuickTime Player 7.4, Adobe Reader

8- This Document can not be used without Samsung's authorization -
Ⅰ. SPECIFICATION
For Windows For Macintosh
2. System Requirements
PC with processor better than Pentium III 450MHz
(Pentium 800MHz recommended) Power Mac G4 or later
250MB of available hard-disk space
(1GB recommended)
Minimum 128MB RAM (512MB recommended)
250MB of available hard-disk space
Minimum 256MB RAM (256MB recommended)
Windows 98SE/ 2000/ ME/ XP/ Vista Mac OS 10.2 or later
USB port USB port
CD-ROM drive CD-ROM drive
1024x768 pixels, 16-bit color display compatible
monitor (24-bit color display recommended),
Microsoft DirectX 9.0 or later

For Windows For Macintosh
3. QuickTime Player 7.4 : H.264(MPEG4.AVC) playback Requirements
Intel Pentium 4, 3.2GHz or later /
AMD Pentium Athlon 64FX, 2.6GHz or later
1.8GHz Power Mac G5 or
1.83 GHz Intel Core Duo or
later Macintosh
Minimum 512MB RAM (1GB recommended)
nVIDIA Geforce 7600GT or later /
ATI X1600 series or later
Minimum 256MB RAM (1GB recommended)
64MB video card
Windows XP service pack2/Vista
9
- This Document can not be used without Samsung's authorization -
Ⅰ. SPECIFICATION

10 - This Document can not be used without Samsung's authorization -
Ⅰ. SPECIFICATION
4. The capacities of the memory card
● The SD/ SDHC memory card has a write protect switch that prevents image fi les from being deleted or
formatted. By sliding the switch to the bottom of the SD memory card, the data will be protected.
By sliding the switch to the top of the SD memory card, the data protection will be cancelled.
● Slide the switch to the top of the SD memory card before taking a picture.
■The camera can use SD/ SDHC Memory Cards and MMC (Multi Media Cards).
Card pins
Write protect switch
Label
[SD (Secure Digital) memory card]

11
- This Document can not be used without Samsung's authorization -
Ⅰ. SPECIFICATION
■When using a 256MB MMC memory, the specified shooting capacity will be as follows.
These figures are approximate as image capacities can be affected by variables such as subject matter and
memory card type.
●The zoom button doesn’t function during the movie recording.
●The recording times can be changed by the zoom operation.
Recorded image size
Still
*Movie
clip
Super Fine
49
55
68
64
93
143
418
Fine
94
105
129
122
173
255
617
Normal
136
151
183
174
242
345
732
60FPS
About 20' 18"
30FPS
About 5' 23"
About 16' 14"
About 25'
15FPS
About 10' 47"
About 25'
About 25'

12 - This Document can not be used without Samsung's authorization -
Ⅰ. SPECIFICATION
5. LCD monitor indicator
■Recording mode
[ Image & Full Status ]

13
- This Document can not be used without Samsung's authorization -
Ⅰ. SPECIFICATION

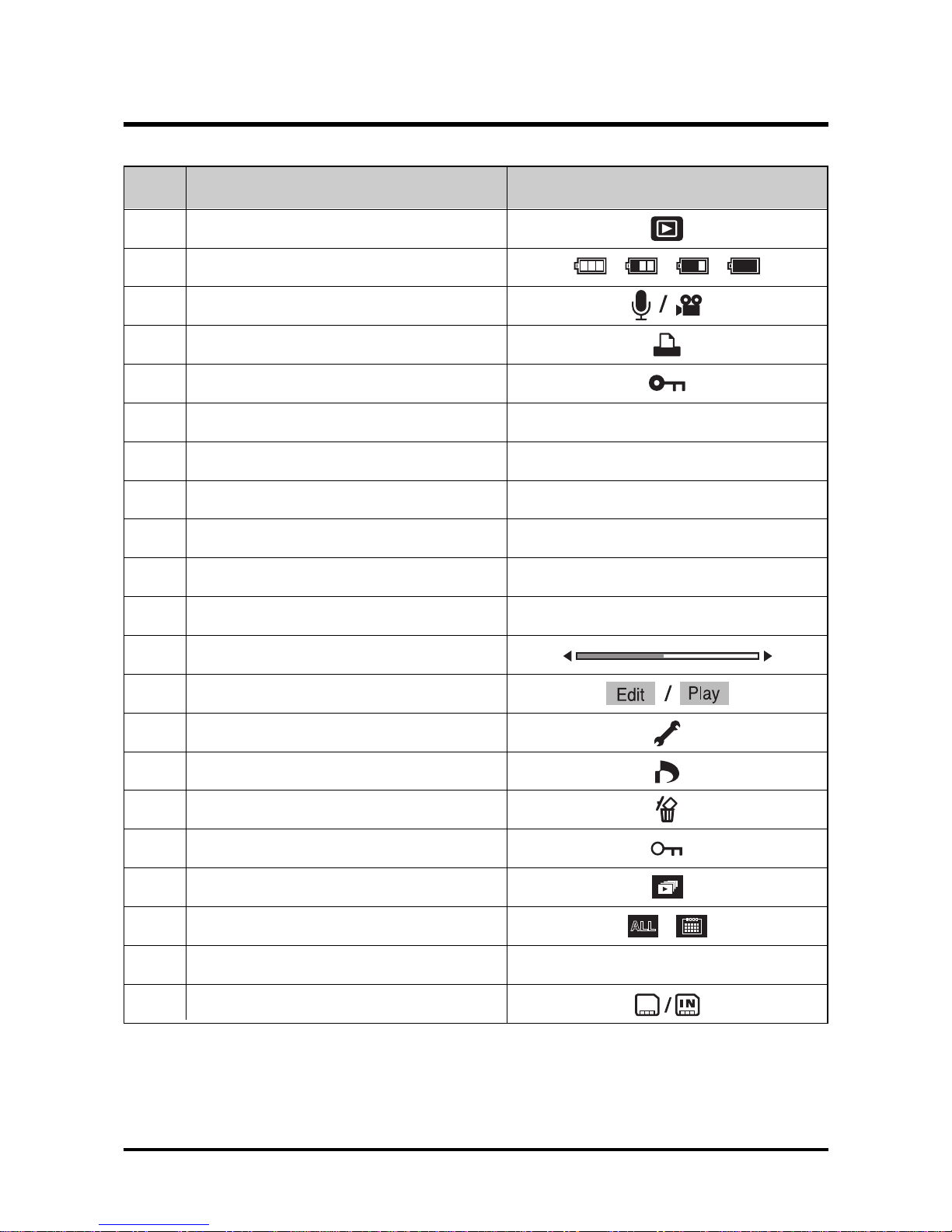

No. Description Icons
1Recording mode
2Photo Style Selector
3Battery
4OIS (Optical Image Stabilization)
5Focus mode
6Flash
7Image size
8 Face detection / Self portrait / Focus Area
9Shooting mode
10 Metering
11 Image adjust
12 Effect
13 Image quality / Frame rate
14 Self-timer
15 Voice recording / Voice memo / Without Sound
16 Setup menu
17 Extension menu
18 ACB
19 Aperture Value
20 Exposure compensation / Shutter Speed
21 ISO
22 White Balance / Scene mode
23 Date / Time
24 Optical / Digital Zoom bar / Digital Zoom rate
25 Number of available shots remaining
Remaining time (Movie clip / Voice recording)
26 Memory card icon / Internal memory icon
27 Auto focus area

14 - This Document can not be used without Samsung's authorization -
Ⅰ. SPECIFICATION
ISO : 160
AV : F2.8
TV : 1/40
FLASH : OFF
3648x2736
2008.01.01

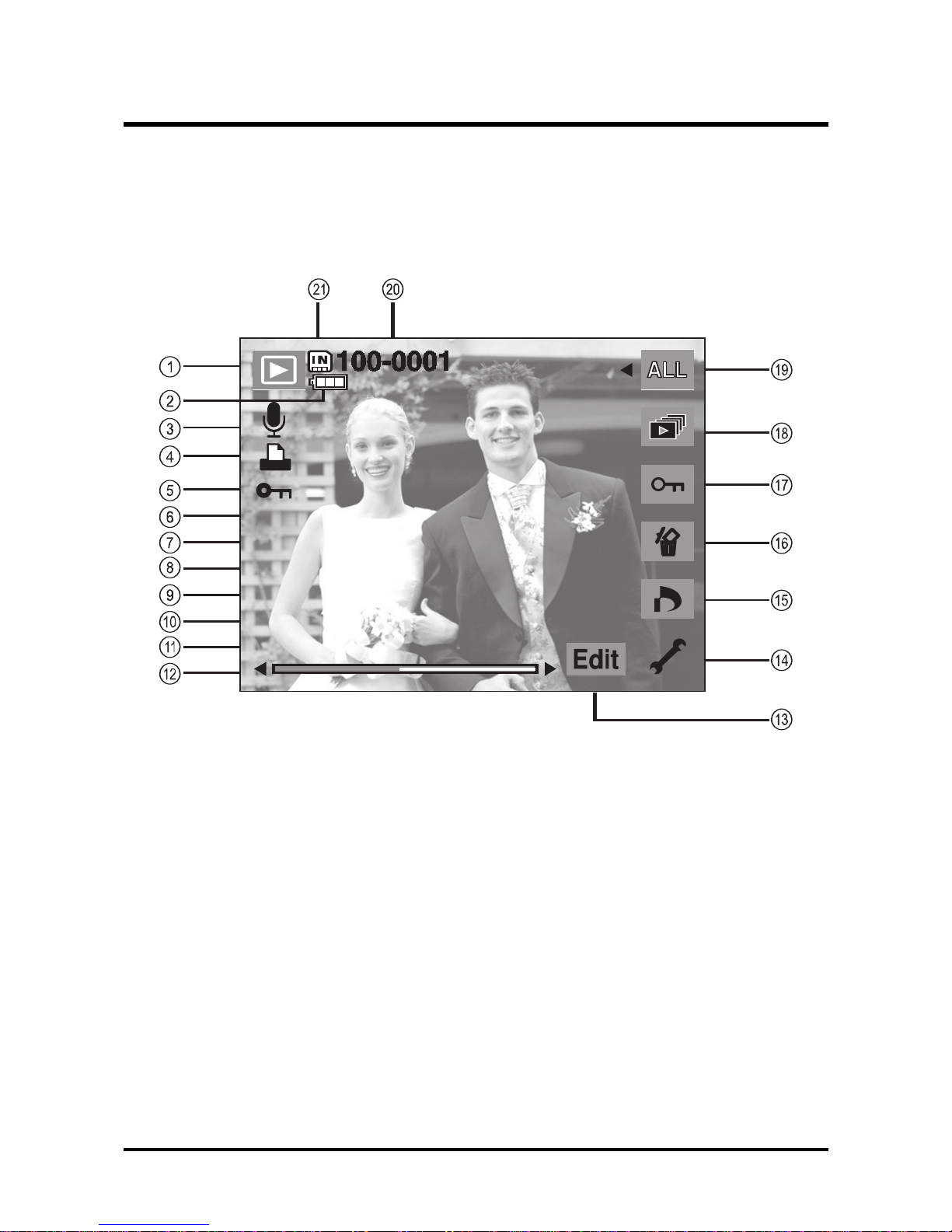

■Play mode
[ Image & Full Status ]

15
- This Document can not be used without Samsung's authorization -
Ⅰ. SPECIFICATION
No. Description Icon
1 Play back mode icon
2 Battery
3 Voice memo / Movie
4 DPOF
5Protecting images
6 ISO
7 Aperture value
8Shutter speed
9Flash
10 Image size
11 Recording date
12 Slide Bar
13 Press the smart button
14 Setup menu
15 DPOF menu
16 Delete menu
17 Protect menu
18 Slide show menu
19 Playing Images
20 Folder name and Stored image number
21 Memory card icon / Internal memory icon
80 ~ 3200
F2.8 ~ F14.7
16 ~ 1/2000
ON/OFF
3648x2736 ~ 320x240
2008.01.01
100-0001

16 - This Document can not be used without Samsung's authorization -
Ⅰ. SPECIFICATION
6. CONNECTION DIAGRAM
Card Reader
SD Card
USB Cable
AV Cable
TV Monitor
IBM / MAC
Lap top
AC Adaptor

17
- This Document can not be used without Samsung's authorization -
Ⅰ. SPECIFICATION
7. IDENTIFICATION OF FEATURES
Remote control
sensor
Mode dial Speaker
Power button
Shutter button
Lens
AF sensor
Self-timer lamp
Flash
AMOLED monitor
Microphone
Photo style
selector dial
Camera status lamp
Eyelet for camera strap
BACK button / OIS button
Play mode button
Smart buttons
Zoom W button (Thumbnail)/
Zoom T button (Digital zoom)
Front & Top
Rear

18 - This Document can not be used without Samsung's authorization -
Ⅰ. SPECIFICATION

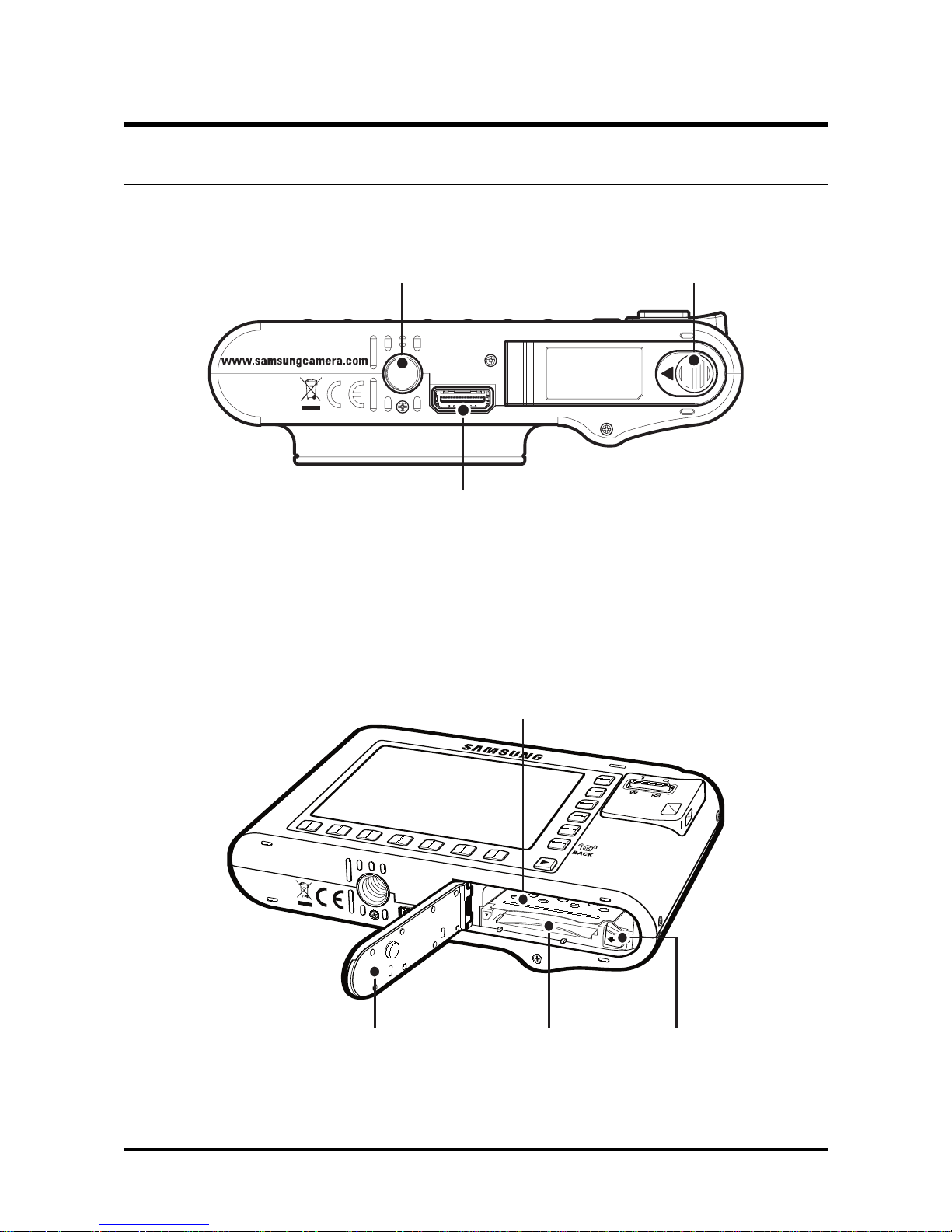

Battery cover lever
USB port/AV connection terminal
Tripod socket
Battery chamber cover Memory card slot Battery holder
Battery chamber
※ To open the battery chamber cover, slide it in the direction shown above.
Bottom

19
- This Document can not be used without Samsung's authorization -
Ⅰ. SPECIFICATION
※ You can recharge your rechargeable battery, transfer a captured image to print, and download images with the cradle
(optional).
DC connection terminal/
USB port
HDMI connection terminal
AV connection terminal
Camera connection terminal
Cradle (Optional)

20 - This Document can not be used without Samsung's authorization -
Ⅱ. INSTALLATION
1. About the software
After inserting the CD-ROM provided with this camera into the CD-ROM drive, the following window
should automatically run.
■Camera driver : This enables images to transfer between the camera and PC.
This camera uses the USB Storage Driver as the camera driver.
You can use the camera as a USB card reader. After installing the driver and connecting this camera to the
PC, you can fi nd [Removable Disk] in [Windows Explorer] or [My computer]. A USB Storage Driver is
provided only for Windows. A USB Driver for MAC is not included with the Application CD.
You can use the camera with Mac OS 10.1~10.4.
■Samsung Master : This is the all-in-one multi media software solution.
You can download, view, edit and save your digital images and movie files with this software.
It does not support H.264(MPEG4.AVC) movie clip.
This software is only compatible with Windows.
■QuickTime Player 7.4 : The movie viewing program
QuickTime Player is a movie viewing program and is provided for the Windows OS only.
Before connecting the camera to the PC, you should first
install the camera driver.
