Samsung SAMSUNG D760 User manual

ENGLISH
1
Getting to know your camera
Getting to know your camera
Identification of features / Contents of camera
Battery life & Number of shots (Recording time)
LCD monitor indicator
Mode dial
Taking a picture
Playing back / Deleting images
Downloading images
Specifications
1
4
5
6
7
8
9
10
11
Contents

Declaration of Conformity
Trade Name : SAMSUNG TECHWIN
Model No. : SAMSUNG D860/D760
Responsible Party : Samsung Opto-Electronics America, INC.
Address : 40 Seaview Dr. Secaucus,NJ 07094
Telephone No. : 201-902-0347
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

NOTE :
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interfer-
ence to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the distance between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

CAUTION :
Changes or modifications not expressly approved by the manufac-
turer responsible for compliance could void the user’s authority to
operate the equipment.
FCC notice
Microsoft, Windows and Windows logo are registered trade-
marks of Microsoft Corporation incorporated in the United States
and/or other countries
All brand and product names appearing in this manual are regis-
tered trademarks of their respective companies.
The contents and illustrations of this manual are subject to
change without prior notice for upgrading the camera functions.
Refer to the user manual included on the Software CD for more
information.
PDF documents of user manual are included in the Software
CD-ROM supplied with this camera. Search the PDF files with
Windows explorer. Before opening the PDF files, you must install
the Adobe Reader included in the Software CD-ROM.

2
Getting to know your camera
DANGER WARNING
Do not attempt to modify this camera in any way. To do so
may result in fire, injury, electric shock or severe damage
to you or your camera. Internal inspection, maintenance
and repairs should only be carried out by your dealer or
Samsung Camera Service centre.
Should any form of liquid or a foreign object enter the
camera, do not use it. Switch off the camera, and then
disconnect the power source. You must contact your deal-
er or Samsung Camera Service centre. Do not continue
to use the camera as this may cause a fire or electric
shock.
Please do not use this product in close proximity to flam-
mable or explosive gases, as this could increase the risk
of explosion.
Do not insert or drop metallic or inflammable foreign
objects into the camera through access points e.g. the
memory card slot and battery chamber. This may cause a
fire or electric shock.
Do not operate this camera with wet hands. This could
pose a risk of electric shock.
Do not use the flash in close proximity to people or animals.
Positioning the flash too close to your subject’s eyes may
cause eyesight damage.
For safety reasons keep this product and accessories out
of reach of children or animals to prevent accidents e.g.:
-Swallowing battery or small camera accessories. If an ac-
cident should occur, please consult a doctor immediately.
- There is the possibility of injury from the camera’s moving
parts.
Battery and camera may become hot during prolonged use
and it may result in camera malfunction. Should this be the
case, allow the camera to sit idle for a few minutes to allow
it time to cool.
Do not leave this camera in places subject to extremely
high temperatures, such as a sealed vehicle, direct sunlight
or other places of extreme variances in temperature. Ex-
posure to extreme temperatures may adversely affect the
camera’s internal components and could cause a fire.
When in use, do not cover the camera or Charger. This
may cause heat to build up and distort the camera body or
cause a fire. Always use the camera and its accessories in
a well-ventilated area.
DANGER indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.

ENGLISH
3
Getting to know your camera
Take care not to touch the lens or lens cover to avoid
taking an unclear image and possibly causing camera
malfunction.
Do not fire the flash while it is in contact with hands or
objects. Do not touch the flash after using it continu-
ously. It may cause burns.
Leaking, overheating, or damaged battery could result
in fire or injury.
- Use battery with the correct specification for the camera.
- Do not short circuit, heat or dispose of battery in fire.
- Do not insert the battery with the polarities reversed.
Remove the battery when not planning to use the cam-
era for a long period of time.
Otherwise the battery may leak corrosive electrolyte and
permanently damage the camera’s components.
CAUTION
CAUTION indicates a potentially hazardous situation which, if
not avoided, may result in a minor or moderate injury.
Before an important event or going on a trip, you should
check the camera condition. Samsung cannot be held
responsible for camera malfunctions.
Be sure to format the memory card if you are using a
newly purchased memory for the first time, if it contains
data that the camera cannot recognise, or if it contains
images captured with a different camera.
Do not insert the memory card the wrong way round.
Credit cards may be demagnetized if left near a camera
case. Avoid leaving magnetic strip cards near the case.
Using an AC adapter that doesn’t match with the cam-
era specification may cause camera malfunction. We
recommend supplied battery or exclusive rechargeable
battery.
ÄAvailable AC adapter :
Voltage: 3.3V, Ampere: 2.0A, Diameter: 2.35
- After turning on the camera, Check whether the bat-
tery type and the camera setting set on the [Settings]
> [Battery Type] menu are same.

4
ÄPlease check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy
the optional equipment, contact your nearest Samsung dealer or Samsung service centre.
Identification of features / Contents of camera
Rechargeable Battery
(SNB-2512)
SD / SDHC memory card /
MMC
USB Cable
AV Cable
Camera strap
Camera AA Alkaline Batteries
Charger (SBC-N2) AC Cord Camera case
Software CD
User manual,
Product warranty
Included
items
Optional
items
DC input connection port
Shutter button
Mode dial
Lens / Lens cover
Speaker
Power button
Flash AF sensor/
Self-timer lamp
USB / AV connection terminal
Microphone
Zoom T button (Digital zoom)
Zoom W button (Thumbnail)
E (Effects) button
Strap eyelet
LCD monitor
5 function button
Play mode / Printer button
Fn / Delete button
Camera status lamp
Face Detection(FD) button

ENGLISH
5
Battery life & Number of shots (Recording time)
When using a 256MB MMC memory, the specified shooting capacity will
be as follows. These figures are approximate as image capacities can be
affected by variables such as subject matter and memory card type.
ÄThe zoom button doesn't use during the movie recording.
The recording times can be changed by the zoom operation.
We recommend batteries for a digital camera (Within a year from
the date of manufacture). The batteries are listed below.
- Non rechargeable batteries : 2 X AA Alkaline (High Capacity)
- Rechargeable batteries (Optional) : SNB-2512 (Ni-MH)
SNB-2512 rechargeable battery Specification
Model SNB-2512
Type Ni-MH
Capacity
25 00mAh
Voltage 1.2V x 2
C harging time Approximately 300 Minutes (Use for SBC-N2)
ÄIncluded battery may vary depending on sales region.
- D860
Recorded
image size Super Fine Fine Normal 30FPS 15FPS
Still
Ÿ
About 58 About 83 About 118 - -
¬
About 64 About 132 About 186 - -

About 76 About 151 About 195 - -
✩
About 91 About 179 About 252 - -
✨
About 140 About 269 About 372 - -

About 459 About 600 About 744 - -
*Movie
clip
ì---
About 2'3" About 4'7"
❪---
About 7'44" About 13'24"
- D760
Recorded
image size Super Fine Fine Normal 30FPS 15FPS
Still
+
About 65 About 130 About 190 - -
þ
About 74 About 147 About 205 - -

About 88 About 173 About 248 - -
✩
About 88 About 173 About 248 - -
✨
About 140 About 274 About 372 - -

About 538 About 710 About 744 - -
*Movie
clip
ì---
About 2'3" About 4'7"
❪---
About 7'44" About 13'24"

6

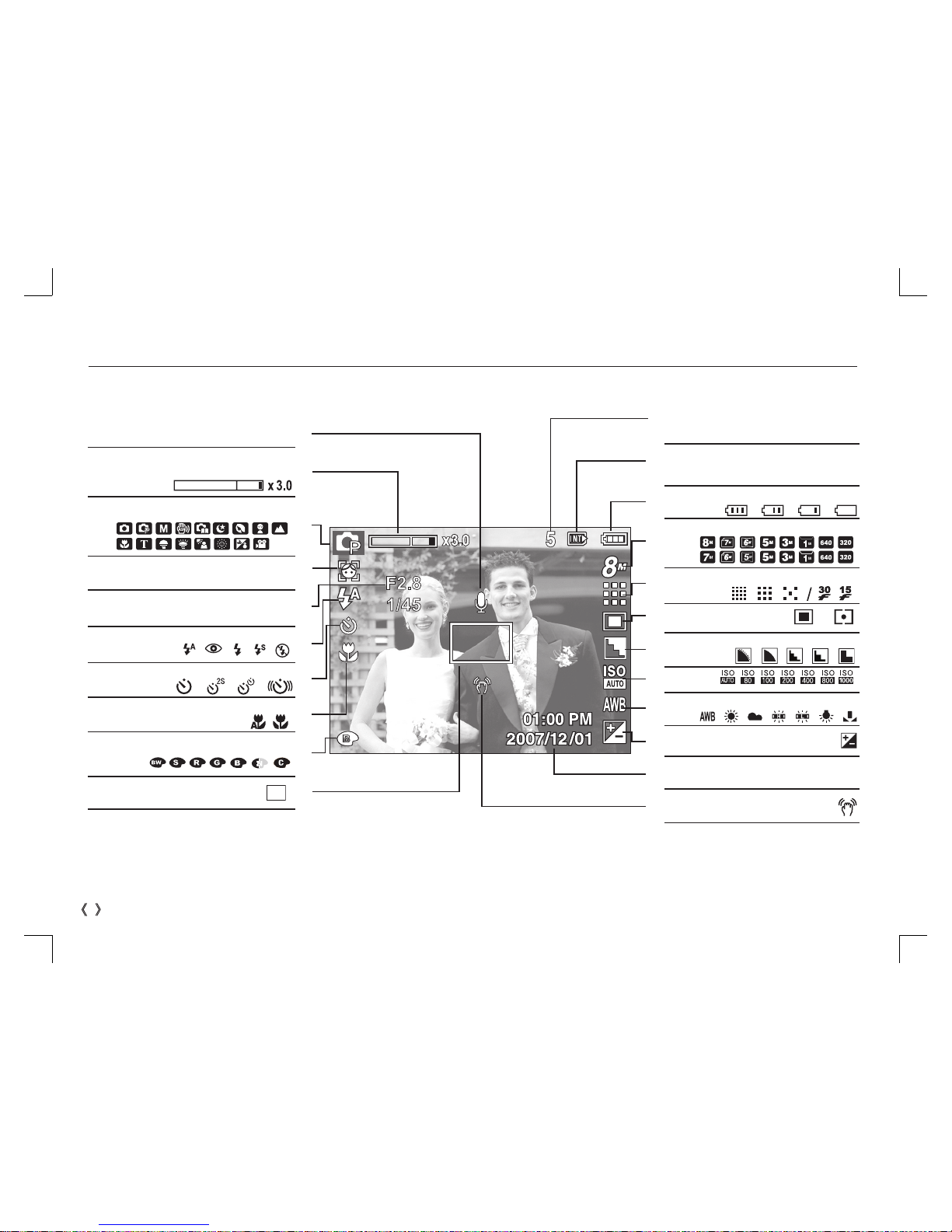

LCD monitor indicator
ÄRefer to the user manual included on the Software CD for more information.
Voice memo / Without Sound Ï/ ÇÌ
Optical / Digital Zoom bar /
Digital Zoom rate Í
Recording mode 
Face Detection / Self Portrait
/ 
Aperture Value / Shutter Speed
F2.8, 1/45 
Flash

Self-timer

Macro 
Color 
Auto Focus Frame 

Number of available shots remaining /
Remaining time
5/00:00:00
Memory card icon /
Internal memory icon Ö/×
Battery
Image Size
D860
D760
Image Quality / Frame Rate
Metering
Sharpness
ISO
White Balance
Exposure compensation
Date / Time
2007/12/01 01:00 PM
Camera shake Warning

ENGLISH
7
Mode dial
You can select a desired camera mode by using the Mode dial on the top of the camera.
AUTO
Selects this mode for quick and easy picture tak-
ing with minimal user interaction.
PROGRAM
Selecting the program mode will configure the
camera with optimal settings. You can still manu-
ally configure all functions except the aperture
value and shutter speed.
DIS
This mode will reduce the effect of camera shake
and help you get a well-exposed image in dim
conditions.
MANUAL
You can manually configure all functions with the
aperture value and shutter speed.
SCENE
Use the menu to easily configure optimal settings
for a varisty of shooting situations.
PORTRAIT
Use this menu to take a picture of a person.
MOVIE CLIP
A movie clip can be recorded for as long as the
available recording time.
PHOTO HELP GUIDE
Helps the user to learn the correct picture taking
method. This includes solutions for potential
problems that may occur, and enables the user to
practice shooting.

8
Taking a picture
How to take a picture
How to record a movie
Rotate the Mode dial and select ( ´).
1. Turn on the camera and select
a camera mode by rotating the
mode dial.
2. Hold the camera as shown
3. Confirm the composition
4. Take a picture.
Pressing halfway down
Focus and Flash status
are checked.
Pressing fully
Image is taken
1. Confirm the composition
2. Start the recording
Press the Shutter button and the
recording starts and press the
Shutter button again to stop the
recording.

ENGLISH
9
Deleting images
- This deletes images stored on the memory card.
1. Select an image that you want to delete by pressing the Left /
Right button and press the DELETE ( Õ) button.
Playing back / Deleting images
[Single Image] [Thumbnail Image]
2. To add images to delete, press the T
button.
- Left / Right button : Selects images
- T button : Checks for deletion
- OK button : deletes the selected
images.
3. Select the submenu values by pressing the Up / Down button
and then press the OK button.
- If [No] is selected : cancels "Delete Image".
- If [Yes] is selected : deletes the selected images.
Playingback the images
-The last image stored on the memory is displayed.
Press the play button ( Î).
Select an image that you want to play
back by pressing the Left/ Right button
ÄManner mode : Pressing the play mode button for more than
3 seconds changes the buzzer and start-up
sound setting to OFF, even though you may
have set these to ON.
Delete?
No
Yes
Comfirm
OK
Delete?
No
Yes
Select Confirm
T OK
Prev Next
Select Delete
T OK

10
For Windows For Macintosh
PC with processor better than
Pentium 450MHz
(Pentium 800MHz recommended)
Power Mac G3 or later
Windows 98SE / 2000 / ME /
XP/Vista Mac OS 9.2 ~ 10.4
Minimum 128MB RAM
(Over 512MB recommended)
200MB of available hard disk
space (Over 1GB recommend)
Minimum 64MB RAM
(Over 256MB recommended)
110MB of available hard-disk space
USB port USB port
CD-ROM drive CD-ROM drive
1024x768 pixels, 16bit color
display compatible monitor
(24bit color display recommended)
MicroSoft DirectX 9.0C
PC connection mode
2. Download the images
1. Install the supplied Software.
- Connect the camera and Com-
puter with supplied USB cable
and download the image on your
computer to save them.
Downloading images

ENGLISH
11
Specifications
Image Sensor - Type : 1/2.5" CCD
- Effective Pixel : D860 : Approx. 8.2 Mega-pixel
D760 : Approx. 7.2 Mega-pixel
- Total Pixel : D860 : Approx. 8.3 Mega-pixel
D760 : Approx. 7.2 Mega-pixel
Lens - Focal Length : SHD Lens f = 6.3 ~ 18.9mm
(35mm film equivalent : 38 ~ 114mm)
- F No. : F2.8(W) ~ F5.2(T)
- Digital Zoom : ·Still Image mode :1.0X ~ 3.0X
·Play mode : 1.0X ~ 12.8X
(depends on image size)
LCD Monitor - 2.4" color TFT LCD (230,000 dots)
Focusing
- Type : TTL auto focus (Multi AF, Center AF, Face Detection AF)
- Range
Normal Macro Auto Macro
Wide 80cm ~ Infinity 10cm ~ 80cm 10cm ~ Infinity
Tele 50cm ~ 80cm 50cm ~ Infinity
Shutter - Speed 1 ~ 1/2,000 sec.
(Manual / Night : 8~1/2,000 sec., Firework : 4 sec.)
Exposure - Control : Program AE
- Metering : Multi, Spot, Face Detection AE
- Compensation : ±2EV (1/3EV steps)
- ISO : Auto, 80, 100, 200, 400, 800, 1000
Flash - Modes : Auto, Auto & Red-eye reduction, Fill-in
flash, Slow sync, Flash off
- Range : Wide : 0.3m ~ 4.0m,
Tele : 0.5m ~ 2.1m
- Recharging Time : Approx. 5.5 sec
Sharpness - Soft+, Soft, Normal, Vivid, Vivid+
Color Effect - Normal, B&W, Sepia, Red, Green, Blue,
Negative, Custom Color
White Balance - Auto, Daylight, Cloudy, Fluorescent_H,
Fluorescent_L, Tungsten, Custom
Voice Recording - Voice Recording (max. 10 hours)
- Voice Memo in Still Image (max. 10 sec.)
Date Imprinting - Date, Date & Time, Off (user selectable)
Shooting - Still Image
·Mode : Auto, Program, Manual, DIS,
Photo Help Guide, Portrait, Scene
·Scene : Night, Children, Landscape,
Close-up, Text, Sunset, Dawn,
Backlight, Firework, Beach & Snow
·Self-timer : 10 sec., 2 sec., Double,
Motion Timer

12
Specifications
- Movie Clip
·With Audio (recording time : memory capacity dependent)
·Size : 640x480, 320x240
·Frame rate : 30 fps, 15 fps
·3X Optical Zoom and Mute in Zooming
·Movie Editing (Embedded): Pause during
recording, Still Image Capture
Storage - Media
·Internal memory : About 11MB flash memory
·External Memory (Optional) :
MMC card (Up to 1GB guaranteed)
SD card (Up to 2GB guaranteed)
SDHC card (Up to 4GB guaranteed)
- File Format
·Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1,
PictBridge 1.0
·Movie Clip : AVI (MJPEG)
·Audio : WAV
- Image Size
· D860
Ÿ¬✩✨
3264X
2448
3264X
2176
3264X
1836
2592X
1944
2048X
1536
1024X
768
· D760
+þ✩✨
3072X
2304
3072X
2048
3072X
1728
2592X
1944
2048X
1536
1024X
768
- Capacity (256 MB Size)
· D860
Ÿ¬✩✨
Super Fine About 58 About 64 About 76 About 91 About 140 About 459
Fine About 83 About 132 About 151 About 179 About 269 About 600
Normal About 118 About 186 About 195 About 252 About 372 About 744
· D760
+þ✩✨
Super Fine About 65 About 74 About 88 About 88 About 140 About 538
Fine About 130 About 147 About 173 About 173 About 274 About 710
Normal About 190 About 205 About 248 About 248 About 372 About 744
ÄThese figures are measured under Samsung standard condi-
tions and may vary depending on shooting conditions and
camera settings.
“E” Button - Effect : Color
- Editing : Resize, Rotate, Color
Image Play - Type : Single image, Thumbnails,
Multi Slide Show, Movie Clip
Interface - Digital output connector : USB 2.0
- Audio : Mono
- Video output : NTSC, PAL (user selectable)
- DC Adapter : 3.3V

ENGLISH
13
Specifications
Power Source - Primary Battery : 2 X AA Alkaline
- Rechargeable battery (Optional) :
SNB-2512B KIT ( 2xAA Ni-MH Battery & Charger )
ÄIncluded battery may vary depending on sale region.
Dimensions (WxHxD) - 93 X 62 X 26.5mm
(excluding protrusions)
Weight - Approx. 123g
(without batteries and card)
Operating Temperature - 0 ~ 40°C
Operating Humidity - 5 ~ 85%
Software - Samsung Master, Adobe Reader
Specifications are subject to change without prior notice.
All trademarks are the property of their respective owners.

14
Correct Disposal of This Product
Samsung Techwin cares for the environment at
all product manufacturing stages to preserve the
environment, and is taking a number of steps to
provide customers with more environment-friendly
products. The Eco mark represents Samsung
Techwin's will to create environment-friendly prod-
ucts, and indicates that the product satisfies the
EU RoHS Directive.
Correct Disposal of This Product (Waste Electrical &
Electronic Equipment)
(Applicable in the European Union and other European
countries with separate collection systems) This mark-
ing shown on the product or its literature, indicates
that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm
to the environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes and
recycle it responsibly to promote the sustainable re-use of mate-
rial resources. Household users should contact either the retailer
where they purchased this product, or their local government
office, for details of where and how they can take this item for
environmentally safe recycling. Business users should contact
their supplier and check the terms and conditions of the purchase
contract. This product should not be mixed with other commercial
wastes for disposal.

ENGLISH
15
MEMO

16
MEMO

-1-
FRANÇAIS
Découvrir votre appareil photo
Caractéristiques/Accessoires de l’appareil photo
Durée de vie de la pile et nombre de prises de
vue (durée d’enregistrement)
Indicateur de l’écran LCD
Sélecteur de mode
Prendre une photo
Visionnage / Suppression des images
Téléchargement d’images
Caractéristiques
1
4
5
6
7
8
9
10
11
Table des matières
Découvrir votre appareil photo
Microsoft Windows et le logo Windows sont des marques dépo-
sées appartenant à Microsoft Corporation incorporated aux États
Unis et/ou dans d’autres pays.
Tous les noms de marque et de produits qui apparaissent dans
ce manuel sont des marques déposées appartenant aux sociétés
respectives.
Le contenu et les illustrations de ce manuel sont susceptibles d’
être modifiés sans avertissement préalable.
Reportez-vous au manuel d’utilisation se trouvant sur le CD de
logiciels pour davantage d’informations.
Les documents PDF du manuel d’utilisation sont fournis sur le
CD-ROM fourni avec cet appareil photo. Cherchez les fichiers
PDF à l’aide de l’explorateur de Windows. Avant d’ouvrir les
fichiers PDF, vous devez installer Adobe Reader fourni sur le CD-
ROM.

-2-
Découvrir votre appareil photo
DANGER
N’essayez pas de faire une quelconque modification sur votre ap-
pareil photo. Toute modification pourrait causer un choc électrique,
un incendie, des blessures corporelles ou des dommages à l’
appareil photo. L’inspection interne de l’appareil, l’entretien et les
réparations doivent être uniquement réalisées par votre revendeur
ou le Centre de service après-vente de Samsung.
Si un liquide ou un objet pénètre dans l’appareil, prenez garde de
ne pas utiliser ce dernier. Éteignez l’appareil photo, puis coupez l
’alimentation (piles ou adaptateur secteur). Prenez contact avec
votre revendeur ou le Centre de service après-vente de Samsung.
D’ici là, n’utilisez en aucun cas l’appareil pour éviter tout incendie
et toute électrocution.
Veillez à ne pas utiliser cet appareil à proximité de produits inflam-
mables ou de gaz explosifs, car cela pourrait augmenter les risques
d’explosion.
N’insérez pas et ne laissez pas tomber d’objets métalliques ou
inflammables dans l’appareil photo par les points d’accès, par
exemple le logement de la carte mémoire et le compartiment de
piles. Cela peut provoquer un incendie ou un choc électrique.
Ne manipulez pas cet appareil avec des mains humides. Cela
pourrait causer un incendie ou un choc électrique.
Le symbole «DANGER» avertit d’un danger imminent qui, si vous ne
suivez pas les consignes de sécurité, peut entraîner des blessures
graves, voire mortelles.
AVERTISSEMENT
N’utilisez pas le flash à proximité des personnes ni des ani-
maux. Le positionnement du flash trop près des yeux du sujet
peut causer des dommages à la vue.
Pour des raisons de sécurité, rangez cet appareil et ses ac-
cessoires dans un endroit hors de la portée des enfants et des
animaux afin de prévenir tout accident et notamment:
-Ingestion des piles ou des petits accessoires de l’appareil
photo. En cas d’accident, veuillez consulter un médecin im-
médiatement.
-Les pièces mobiles de l’appareil photo peuvent provoquer des
blessures.
Il se peut que la pile et l’appareil chauffent lors d’une utilisation
prolongée. Cela peut provoquer un mauvais fonctionnement de
l’appareil. Si cela devait se produire, laissez l’appareil au repos
quelques minutes afin qu’il refroidisse.
Ne laissez pas cet appareil dans des endroits très chauds, tels
que les véhicules fermés, en exposition à la lumière directe du
soleil ou exposés à des variations extrêmes de température. L’
exposition à des températures extrêmes risque d’endommager
les composants internes de l’appareil photo et provoquer un
incendie.
En cours d’utilisation, ne couvrez pas l’appareil photo ou le
chargeur. Cela risque de provoquer un réchauffement et la dé-
formation du boîtier ou provoquer un incendie. Utilisez toujours
votre appareil photo et ses accessoires dans un endroit bien
ventilé.
Le symbole «AVERTISSEMENT» indique un danger éventuel qui, si
vous ne suivez pas les consignes de sécurité, peut entraîner des
blessures graves, voire mortelles.

-3-
FRANÇAIS
Découvrir votre appareil photo
MISE EN GARDE
Faites attention à ne pas toucher l’objectif ou le couvercle
de l’objectif afin d’éviter de prendre des images floues et de
provoquer un mauvais fonctionnement de l’appareil.
Ne déclenchez jamais le flash tant que vous le touchez ou qu’
il est en contact avec un objet. Ne pas toucher le flash après l’
utilisation. Cela causerait un incendie.
Les fuites, la surchauffe ou l’explosion des piles pourraient
causer des blessures ou un incendie.
- Assurez-vous d’utiliser uniquement des piles comportant les
caractéristiques qui conviennent à votre appareil photo.
- Ne mettez pas les piles en court-circuit, ne les chauffez pas
et ne les jetez pas au feu.
- N’insérez pas la pile en inversant les polarités.
Retirez les piles lorsque vous prévoyez de ne pas utiliser l’
appareil photo pendant une longue période.
En cas contraire, il se peut qu’il y ait une fuite d’électrolyte
corrosif au niveau de la pile, ce qui peut endommager les
composants de l’appareil photo de manière permanente.
Le symbole «MISE EN GARDE» avertit d’un danger éventuel qui, si
vous ne suivez pas les consignes de sécurité, peut entraîner des
blessures légères ou assez graves.
Avant un événement important ou un voyage, vérifiez l’état de l
’appareil photo. Samsung ne saurait être tenu responsable des
conséquences en cas de mauvais fonctionnement de l’appareil
photo.
Assurez-vous de formater la carte mémoire si vous l’utilisez
pour la première fois ou si elle contient des données que l’ap-
pareil photo ne peut pas reconnaître ou encore, si elle contient
des photos prises avec un appareil photo différent.
Vérifiez le sens d‘insertion de la carte mémoire et insérez-la
ensuite correctement.
Les cartes de crédit risquent d’être démagnétisées lorsqu’elles
se trouvent à proximité de l’appareil photo.
Évitez donc de laisser des cartes magnétiques près de l’ap-
pareil photo.
Utiliser un adaptateur secteur qui ne correspond pas aux caractéri-
stiques de l’appareil photo risque d’endommager celui-ci. Nous recom-
mandons l’utilisation de la pile fournie ou d’une batterie rechargeable
exclusive.
ÄAdaptateur secteur disponible
Tension : 3.3V, Ampérage : 2.0A, Diamètre: 2.35
Avant de mettre l’appareil photo sous tension, vérifiez le type de la bat-
terie et assurez-vous que le réglage de l’appareil photo [PARAMÈTRES]
> [TYPE BAT.] est identique au type de la batterie.
