Samsung ST45 User manual

1
Thank you for buying a Samsung Digital Camera.
Prior to using this camera, please read the user manual
thoroughly.
If you require After Sales service, please bring the camera and
the cause of the camera malfunction (such as battery, Memory
card etc.) to the A/S centre.
Please check that the camera is operating properly prior to when
you intend to use it (e.g. for a trip or an important event) to avoid
disappointment. Samsung takes no responsibility for any loss or
damage that may result from camera malfunction.
Keep this manual in a safe place.

If you use a card reader to copy the images on the memory card to
your PC, the images could be damaged. When transferring the
images taken with the camera to your PC, be sure to use the
supplied USB cable to connect the camera to your PC. Please note
that the manufacturer holds no responsibility for loss or damage of
images on the memory card due to the use of a card reader.
The contents and illustrations of this manual are subject to
change without prior notice for upgrading the camera functions.
ÄMicrosoft, Windows and Windows logo are registered trademarks
of Microsoft Corporation incorporated in the United States and/or
other countries.
ÄAdobe and Reader are either trademarks or registered
trademarks in the United States and/or other countries.
ÄAll brand and product names appearing in this manual are
registered trademarks of their respective companies.
Getting to Know your camera
Setting up the application
software
Instructions

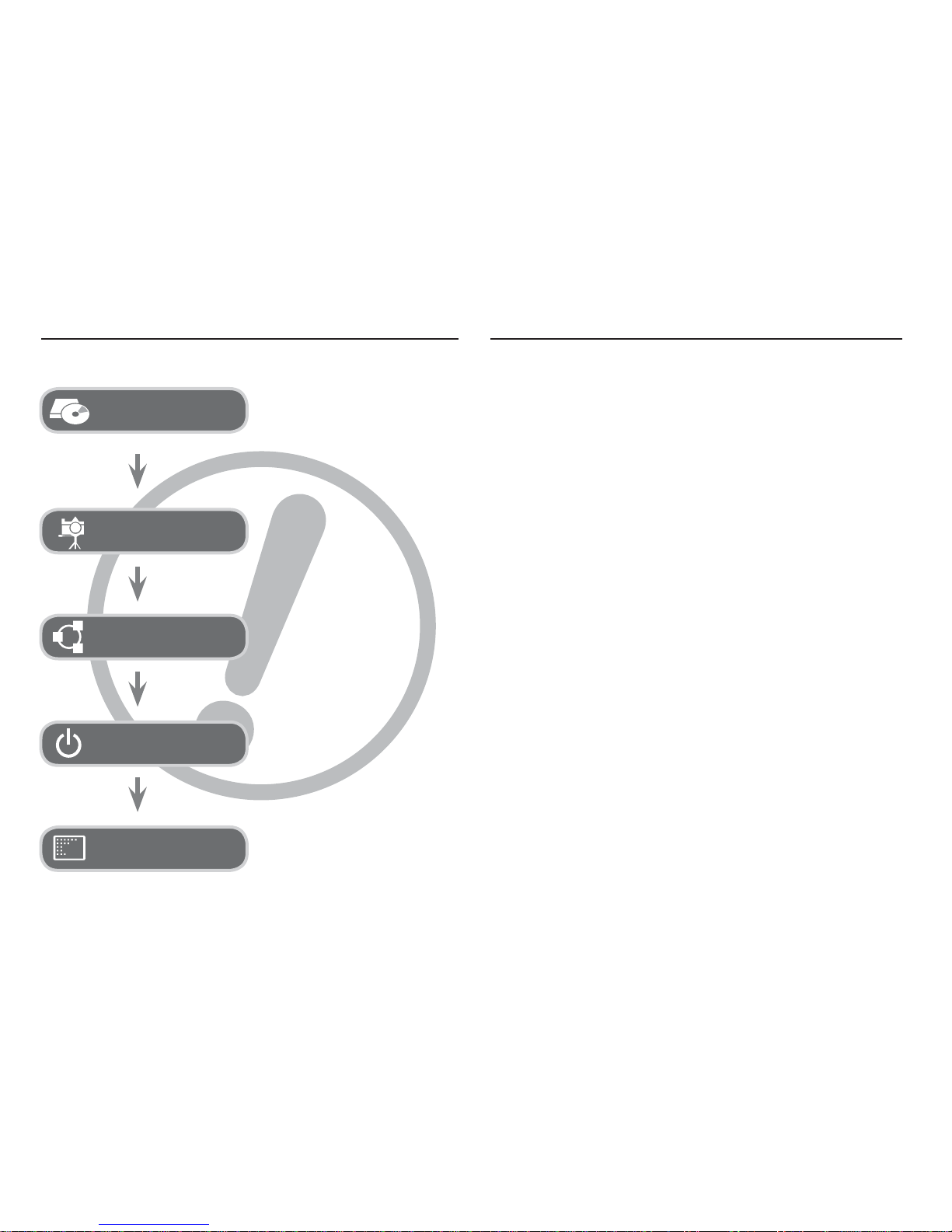

Use this camera in the following order.
To use this camera with a PC,
install the application software
first. After this has been done, the
stored images in the camera can be
moved to the PC and can be edited
by an image editing program. (p.92)
Take a picture. (p.19)
Insert the supplied USB cable
into the PC’s USB port and the
camera’s USB connection
terminal. (p.94)
Check the camera’s power. If the
power is turned off, preset the
camera button to turn it on.
Open Windows’s EXPLORER
and search for [Removable Disk].
(p.95)
Take a picture
Insert the USB cable
Check the camera's power
Check [Removable Disk]

2
Warning
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
Do not use the flash in close proximity to people or animals.
Positioning the flash too close to your subject’s eyes may cause
eyesight damage.
For safety reasons keep this product and accessories out of
reach of children or animals to prevent accidents e.g.:
- Swallowing battery or small camera accessories. If an accident
should occur, please consult a doctor immediately.
- There is the possibility of injury from the camera’s moving parts.
Battery and camera may become hot during prolonged use and it
may result in camera malfunction. Should this be the case, allow
the camera to sit idle for a few minutes to allow it time to cool.
Do not leave this camera in places subject to extremely high
temperatures, such as a sealed vehicle, direct sunlight or other
places of extremes in temperature. Exposure to extreme
temperatures may adversely affect the camera’s internal
components and could cause a fire.

When in use, do not cover the camera or Charger. This may cause
heat to build up and distort the camera body or cause a fire. Always
use the camera and its accessories in a well-ventilated area.
Danger
DANGER indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
Do not attempt to modify this camera in any way. To do so may
result in fire, injury, electric shock or severe damage to you or
your camera. internal inspection, maintenance and repairs should
only be carried out by your dealer or Samsung Camera Service
centre.
Please do not use this product in close proximity to flammable or
explosive gases, as this could increase the risk of explosion.
Should any form of liquid or a foreign object enter the camera,
do not use it. Switch off the camera, and then disconnect the
power source. You must contact your dealer or Samsung Camera
Service centre. Do not continue to use the camera as this may
cause a fire or electric shock.
Do not insert or drop metallic or inflammable foreign objects into
the camera through access points e.g. the memory card slot and
battery chamber. This may cause a fire or electric shock.
Do not operate this camera with wet hands. This could pose a
risk of electric shock.

3
Caution
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in a minor or moderate injury.
Leaking, overheating, or damaged battery could result in fire or injury.
- Use battery with the correct specification for the camera.
- Do not short circuit, heat or dispose of battery in fire.
- Do not insert the battery with the polarities reversed.
Remove the battery when not planning to use the camera for a
long period of time. Otherwise the battery may leak corrosive
electrolyte and permanently damage the camera’s components.
Do not fire the flash while it is in contact with hands or objects. Do
not touch the flash after using it continuously. It may cause burns.
Do not move the camera while it is switched on, if you are using
the AC adapter. After use, always switch off the camera before
unplugging the cable from the wall socket. Then make sure that
any connector cords or cables to other devices are disconnected
before moving the camera. Failure to do so may damage the
cords or cables and cause a fire or electric shock.
Take care not to touch the lens or lens cover to avoid taking an
unclear image and possibly causing camera malfunction.
Avoid obstructing the lens or the flash when you capture an image.
When using this camera in low temperatures, you may experience
the following. These are not camera malfunctions and usually
recover at normal temperature.
- It takes longer to turn on the LCD monitor and the colour may
differ from the subject.
- When changing the composition, there may be an after image on
the LCD monitor.
Credit cards may be demagnetized if left near case. Avoid leaving
magnetic strip cards near the case.
Never connect the 20 pin connector to the USB port of a PC. This
carries a high risk of computer malfunction.
Contents
READY
RECORDING
007 System chart
007 Package Contents
007 Sold Separately
008 Identification of features
008 Front & Top
009 Back
010 Bottom
010 5 Function button
011 Self-timer lamp
011 Camera Status Lamp
011 Mode icon
012 Connecting to a Power Source

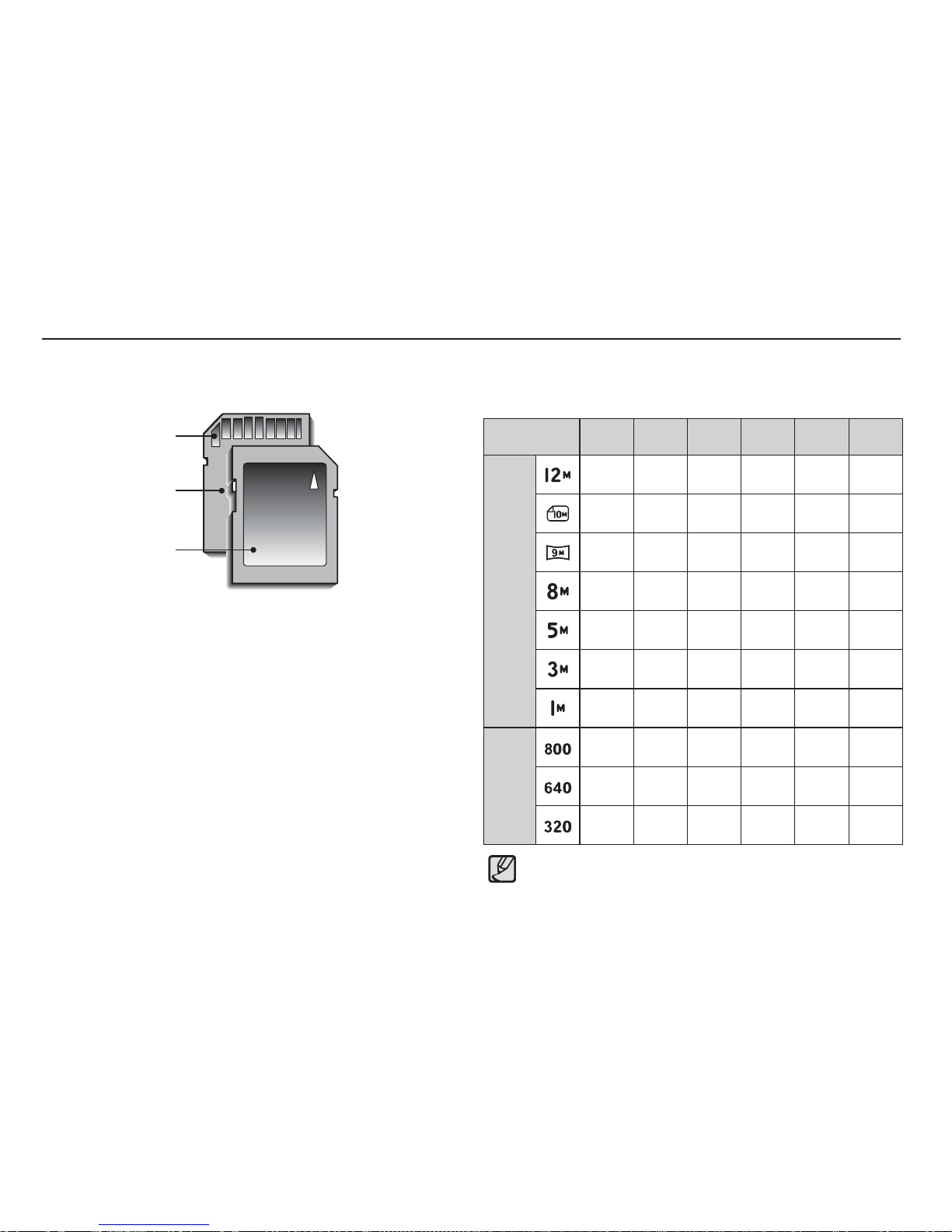

014 Inserting the memory card
015
Instructions on how to use the memory card
017 LCD monitor indicator
018 How to use the menu
019 Starting the recording mode
019 Selecting modes
019 How to use the Program mode
020 How to use the Movie clip mode
020
Recording the movie clip without sound
021 Pausing while recording a movie clip
(Successive Recording)
021 Things to Watch Out for When Taking
Pictures

4
Contents
039 Frame Guide
039 Auto Focus type
040 Photo Style Selector
041 Image Adjust
042 DIS
042 Movie Clip frame stabiliser
043 Voice Memo
043 Voice Recording
044
Recording the movie clip without voice
045 Sound menu
045 Sound
045 Volume
045 Start up sound
045 Shutter sound
045 Beep Sound
046 AF sound
046 Self Portrait
046 Setup menu
046 Display
046 Language
046 Function Description
047 Start up image
047 Display Bright
047 Quick view
SETUP
022 Using the camera buttons to set the camera
022 POWER button
023 SHUTTER button
023 Smart button
023 Mode switch
024 Zoom W/T Lever
025 Info (DISP) / Up button
026 Macro / Down button
027 Focus lock
027 Flash / Left button
029 Self-timer / Right button
031 MENU button
031 OK button
031 Functions
032 How to Enable Functions Using the
MENU Button
032 Exposure compensation
033 White balance
034 ISO
034 Face Detection
036 Image Size
037 Quality / Frame rate
037 ACB
038 Metering
038 Drive mode

5
047 Display SAVE
048 Settings
048 Formatting a memory
048 Initialisation
049 Setting up the Date / Time / Date type
049 Time Zone
049 File name
050 Imprinting the recording date
050 Auto power off
051 Auto Focus lamp
051 Selecting Video out type
052 Setting the USB
053 Starting play mode
053 Playing back a still image
053 Playing back a movie clip
054 Movie clip capture function
054 Playing back a recorded voice
055 Playing back a voice memo
055 LCD monitor Indicator
056
Using the camera buttons to set the camera
056 Play mode button
056 Thumbnail / Enlargement Lever
056 Smart Album
059 Info (DISP) / Up button
PLAY
059 Play & Pause / OK button
060 Left / Right / Down / MENU button
060 Delete button
061 Setting up the play back function using
the LCD monitor
063 Edit
063 Resize
064 Rotating an image
064 Photo Style Selector
065 Image Adjust
067 View
067 Starting the Multi Slide Show
067 Start the Multi Slide Show
068 Selecting Images
068 Configure Multi Slide Show effects
069 Setting play interval
069 Setting Background Music
069 File Options
069 Deleting images
070 Protecting images
070 Voice memo
071 DPOF
073 Copy To Card
Contents

6
Contents
074 Smart mode
074 Smart mode display
075 Starting Smart mode
075 Selecting modes
076 How to use Smart Auto mode
077 How to use Smart Movie Clip mode
077 Setting up the Smart menu
079 Smart Play mode display
079 Setting up the Smart Play menu
080 PictBridge
081 PictBridge : Picture Selection
081 PictBridge : Print Setting
082 PictBridge : Reset
082 Important notes
084 Warning indicator
085 Before contacting a service centre
087 Specifications
090 Software Notes
090 System Requirements
091 About the software
SOFTWARE
APPENDIX
PICTBRIDGE
092 Setting up the application software
094 Starting PC mode
097 Removing the removable disk
098 Samsung Master
101 Setting up the USB Driver for MAC
101 Using the USB Driver for MAC
102 FAQ
SMART
SETUP MODE
SMART
PLAY MODE
SMART MODE

7
System chart
Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the
optional equipment, contact your nearest Samsung dealer or Samsung service centre. Parts and accessories illustrated below may differ
from exact appearance.

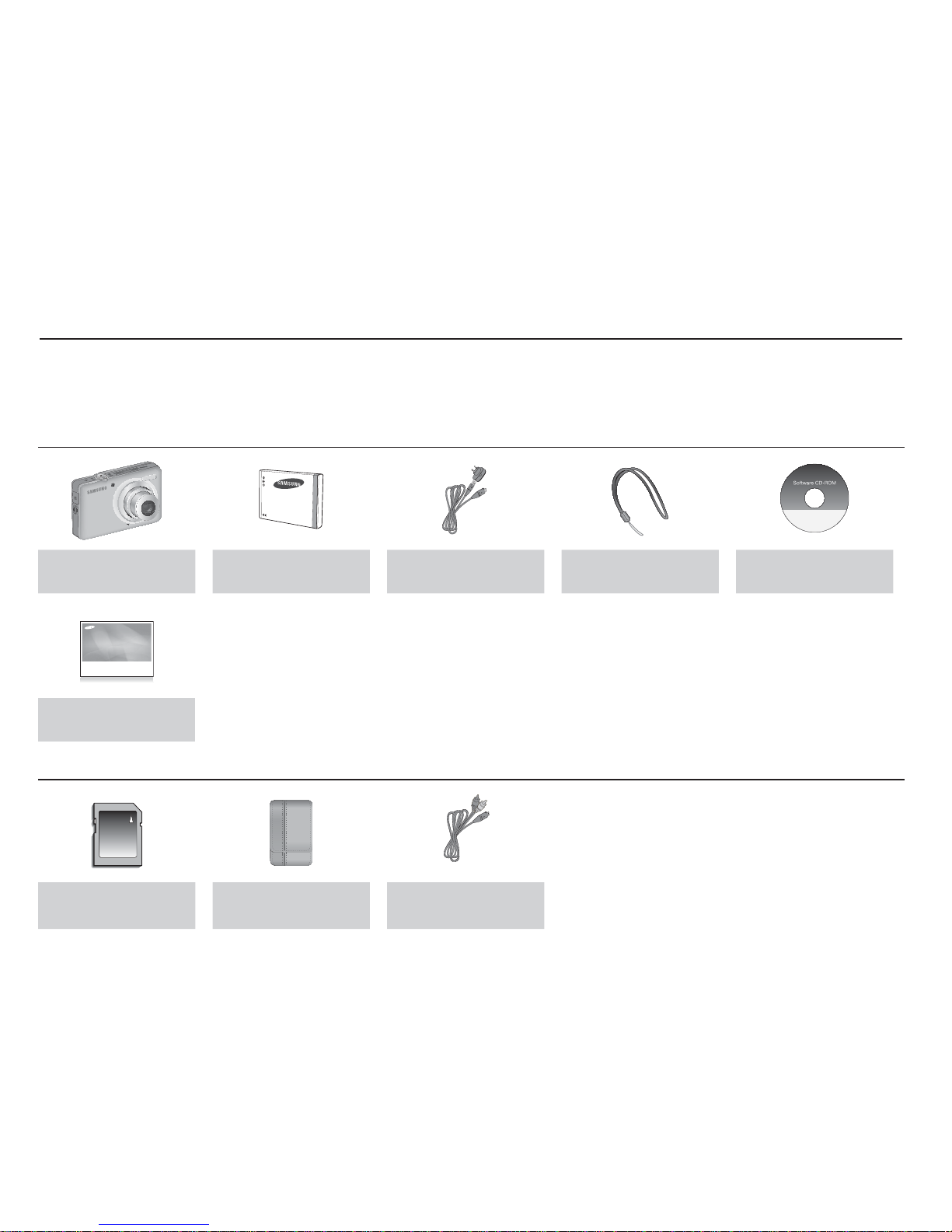

Package Contents
Camera Rechargeable battery AC adapter / USB cable Camera strap Software CD
(see p.91)
User manual,
Product warranty
Sold Separately
SD/SDHC memory card / MMC
(see p.16) Camera case AV cable

8
Identification of features
Front & Top
Shutter button
Lens/ Lens cover
Flash
Power button
Zoom T Lever (Digital zoom)
Zoom W Lever (Thumbnail)
Self-timer lamp /
AF Lamp
Microphone
Speaker
Smart button
USB / AV / DC terminal

9
Identification of features

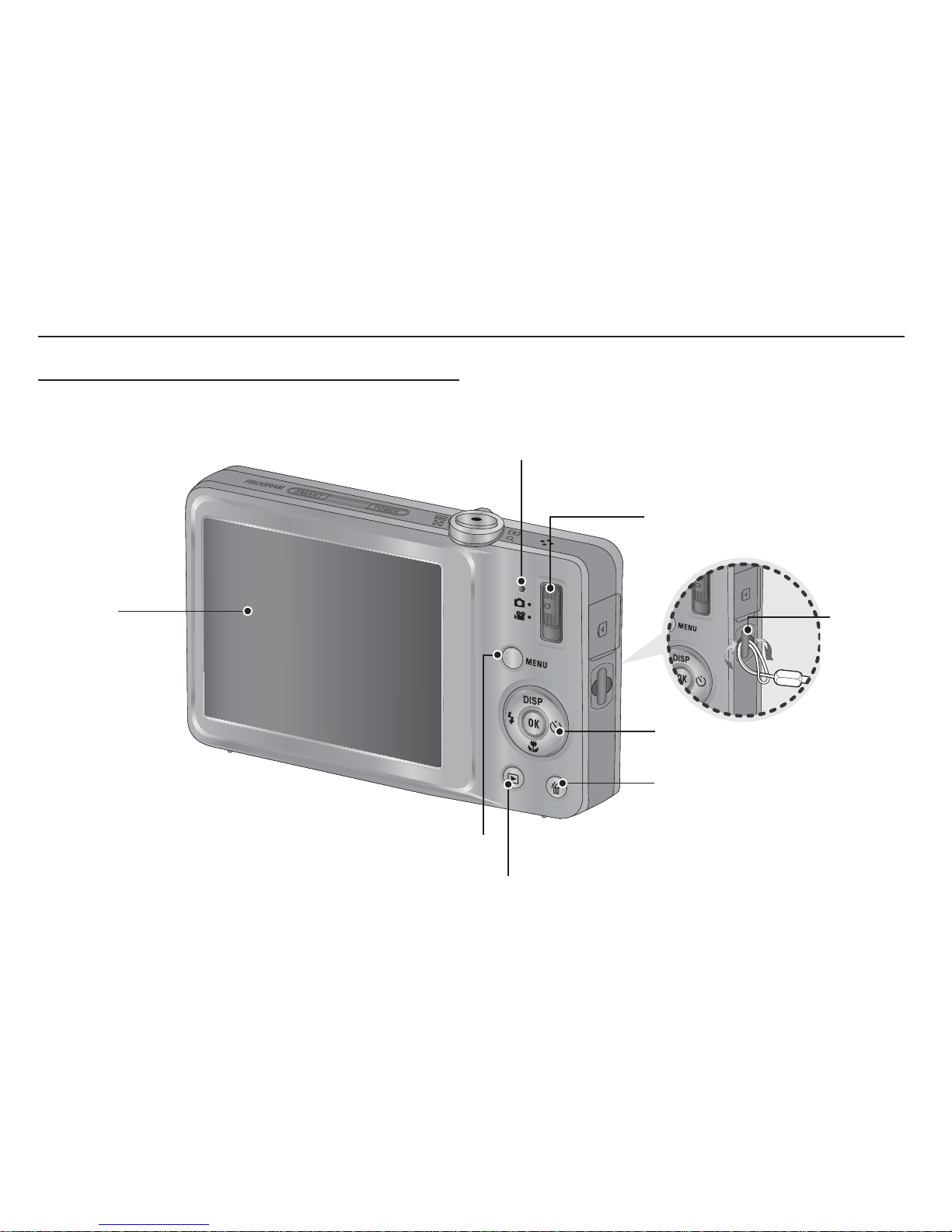

Back
Strap eyelet
5 function button
Play mode button
MENU button
LCD monitor
Camera status lamp
Delete button
Mode switch

10
Bottom
Identification of features
5 Function button
Ä
To open the battery chamber cover, slide it in the direction shown
above.
Information / Up button
Flash /
Left button
Self-timer /
Right button
Macro / Down button
OK / Play & Pause
button
Tripod socket
Memory card slot
Battery chamber
Battery chamber cover
Battery
holder

11
Self-timer lamp
Icon Status Description
Blinking
- For the first 8 seconds, the lamp blinks at 1 second
intervals.
- For the final 2 seconds, the lamp blinks quickly at
0.25-second intervals.
Blinking For the 2 seconds, the lamp blinks quickly at
0.25-second intervals.
Blinking A picture will be taken after about 10 seconds and 2
seconds later a second picture will be taken.
Blinking After pressing the Shutter button, the image is taken
in accordance with the subject’s movement.
Camera Status Lamp
Status Description
Power on The lamp turns on and off when the camera
is ready to take a picture
After taking a picture
The lamp blinks while saving the image data and
turns off when the camera is ready to take a picture
When flash battery is charging The lamp blinks
When the USB cable is
inserted to a PC
The lamp lights up
(LCD monitor turns off after initializing the device)
Transmitting Data with a PC
The lamp blinks (LCD monitor turns off)
When the USB cable is
inserted into a printer The lamp blinks
When the printer is printing The lamp blinks
When the AF activates
The lamp turns on
(The camera focus on the subject)
The lamp blinks
(The camera doesn’t focus on the subject)
Identification of features
Mode icon
Refer to page 19/75 for more information about the camera mode
setting.
MODE Program Movie
ICON
SMART
MODE Smart Auto Smart Movie
ICON

12
Connecting to a Power Source
SLB-07A rechargeable battery Specification
Model SLB-07A
Type Lithium lon
Capacity 720mAh
Voltage 3.7V
C harging time Approximately 120 Minutes
You should use the rechargeable battery SLB-07A supplied with the
camera. Be sure to charge the battery before using the camera.
Number of images and battery life: Using the SLB-07A
Battery life /
Number of images Conditions
Still image Approx. 100 MIN /
Approx. 200 shots
Using the fully charged battery, Auto
mode, 12M image size, Fine image
quality, Shot to shot interval: 30Sec.
Changing the zoom position between
the Wide and the Tele after every shot.
Using the flash on every second shot.
Using the camera for 5 minutes and
then powering it off for 1 minute.
Movie Approx. 80 MIN
Using the fully charged battery
800x592 image size
20fps frame rate
ÄThese figures are measured under Samsung’s standard conditions
and shooting conditions and may vary depending on the user’s
methods.
Important information about battery usage.
When camera is not in use, turn off the power.
Please remove the battery if the camera will not be used
for long periods. Batteries can lose power over time and are
prone to leaking if kept inside the camera.
Low temperatures (below 0°C) can affect the performance
of the battery and you may experience reduced battery life.
Batteries will usually recover at normal temperatures.
During extended use of the camera, the camera body may
become warm. This is perfectly normal.
If you connect the AC adapter to the USB cable, you can use it
as an AC cable and recharge the spare battery with it.
- Using an AC cable
: Connect the AC adapter to the
USB cable. It can be used as a
power cable.
- Using a USB cable
: Remove the AC adapter.You can
download stored images to your
PC (p.94) or supply the power
to your camera through the USB
cable.

13
Connecting to a Power Source
Important information about USB cable usage.
Use a USB cable with the correct specification.
If the camera is connected to the PC through a USB hub :
connect the camera directly to the PC.
If the camera and other devices are connected to the PC at
the same time : remove other device.
Camera can not be detected using the front side USB port
of computer. In this case, use the back side USB port of
computer.
If the USB port of the PC doesn’t meet the Power output
standard (5V, 500mA), the camera may not be charged.
How to charge the rechargeable battery
Before inserting any cables or AC adapter, check the directions and
do not insert by force. It may cause breakage of cable or camera.
If the charging LED of the AC Charger does not turn on or blink
after inserting the rechargeable battery, please check whether the
battery is inserted correctly.

If you charge the battery with the camera power on, the battery won’t
be fully charged. Turn the camera off while charging the battery.
Charging LED of the AC Adapter
Charging LED
Being Charged Red LED is on
Charging is complete Green LED is on
Charging error Orange colored LED is off or blinking

If you insert the fully discharged battery to charge it, do not turn on
the camera at the same time. The camera may not be turned on
because of the low battery capacity. Charge the battery for more
than 10 minutes before using the camera.

Do not use the flash frequently or take a movie clip with the fully
discharged battery charged for a short time. Even if the charger
is inserted, the camera power may be turned off because the
rechargeable battery is discharged again.

14
Connecting to a Power Source
There are 4 indicators for battery condition that are displayed on
the LCD monitor.
Battery
indicator
Battery
status
The battery is
fully charged
Low battery
capacity
(Prepare to
recharge or use
spare battery)
Low battery
capacity
(Prepare to
recharge or use
spare battery)
Battery empty.
(Recharge
or use spare
battery)
ÄWhen using the camera and the battery in a place that is excessively cold or hot,
the battery status on the LCD may be different from the actual battery status.
Insert the battery as shown
Inserting the memory card
Insert the memory card as shown.
- Turn off the camera’s power
before inserting the memory card.
- Have the front of the memory
card facing toward the back of
the camera (LCD monitor) and
the card pins toward the front of
the camera (Lens).
- Do not insert the memory card
the wrong way round. Doing so
may damage the memory card
slot.
- If the camera does not turn on
after you have inserted battery,
please check whether the
battery (+ / -).
- When the battery chamber
cover is opened, do not force
the battery chamber cover,
this may damage it.

15
Instructions on how to use the memory card
If the memory card is subjected to any of the following, the
recorded data may become corrupted :
- When the memory card is used incorrectly.
- If the power is switched off or the memory card is removed
while recording, deleting (formatting) or reading.
Samsung cannot be held responsible for lost data.

It is advisable to copy important data onto other media as back-up
e.g. floppy disks, hard disks, CD etc.
If there is insufficient memory available :
A [Memory Full] message will appear and the camera will not
operate. To optimise the amount of memory in the camera,
replace the memory card or delete unnecessary images stored
on the memory card.
Don't remove the memory card when the camera status lamp is
blinking as this may cause damage to data in the memory card.
Be sure to format the memory card (see p.48) if you are using
a newly purchased memory card for the first time, if it contains
data that the camera cannot recognise, or if it contains images
captured with a different camera.
Turn off the camera power whenever the memory card is being
inserted or removed.
Repeated use of the memory card will eventually reduce the
memory card’s performance. Should this be the case, you will
need to purchase a new memory card. Wear and tear on the
memory card is not covered by the Samsung warranty.
The memory card is an electronic precision device.
Do not bend, drop or subject the memory card to any heavy
impact.
Do not store the memory card in an environment with strong
electronic or magnetic fields, e.g. near loud speakers or TV
receivers.
Please do not use or store in an environment where there are
extremes in temperature.
Do not allow the memory card to become dirty or to come into
contact with any liquid. Should this happen, clean the memory
card with a soft cloth.
Please keep the memory card in its case when not in use.
During and after periods of extended use, you may notice that the
memory card is warm. This is perfectly normal.
Do not use a memory card that is used in another digital camera.
To use the memory card in this camera, format the memory card
using this camera.
Do not use a memory card formatted by another digital camera or
memory card reader.

16
Instructions on how to use the memory card
The camera can use SD/SDHC Memory Cards and MMC (Multi
Media Cards).
The SD/SDHC memory card has a write protect switch that
prevents image files from being deleted or formatted. By sliding
the switch to the bottom of the SD/SDHC memory card, the data
will be protected. By sliding the switch to the top of the SD/SDHC
memory card, the data protection will be cancelled.
Slide the switch to the top of the SD/SDHC memory card before
taking a picture.
When using a 1GB SD memory, the specified shooting capacity will be
as follows. These figures are approximate as image capacities can be
affected by variables such as subject matter and memory card type.
Recorded image
size
Super
Fine Fine Normal 30 FPS 20 FPS 15 FPS
Still
About
169
About
240
About
365 ---
About
196
About
270
About
411 ---
About
231
About
308
About
481 ---
About
246
About
328
About
519 ---
About
365
About
493
About
705 ---
About
548
About
680
About
759 ---
About
986
About
1095
About
1232 ---
*Movie
clip
----
About
32'48" -
---
About
33'43" -
About
01:03'47"
---
About
01:55'08"
-
About
02:00'00"
Card pins
Write protect switch
Label
[SD (Secure Digital) memory card]
The Zoom W/T lever doesn’t function during the movie recording.
The recording times can be changed by the zoom operation.
Several videos were recorded in succession to determine the
total recording time.

17
LCD monitor indicator
No. Description Icons Page
1 Recording mode p.19
2
Optical / Digital Zoom bar /
Digital Zoom rate
p.24
3
Voice Memo p.43
4
Number of available shots
remaining 00001 p.16
Remaining time 00:00:00 p.16
[Image & Full Status]
No. Description Icons Page
5Memory card icon /
Internal memory icon -
6 Battery p.14
7 Flash p.27
8 Self-timer p.29
9 Macro p.26
10 Photo Style Selector p.40
11 Face Detection p.34
12 DIS p.42
13 Image Adjust /
Without Sound
p.41/44
14 Date / Time 2009/08/01 01:00 PM p.49
15 Camera shake Warning p.21
16 Auto Focus Frame p.39
17 Drive mode p.38
18 Metering p.38
19
Image Quality / Frame Rate p.37
20 Image Size p.36
21 ISO p.34
22 White Balance p.33
23
Exposure compensation p.32

The LCD monitor displays information about the shooting functions
and selections.

18
How to use the menu
1. Turn on the camera and press the MENU button. A menu for each camera mode appears.
2. Use the up or down buttons to navigate through the menus.
3. Use the left or right buttons to select a sub menu.
4. Select a submenu and click the OK button to save settings and return to the previous window.
Press the
LEFT or
RIGHT button.
Press the
LEFT or
RIGHT button.
Back Set
Start Sound :Off
Shutter Sound :1
Beep Sound :1
AF Sound :On
Self-Portrait :On
Volume :Medium
Off
Low
Medium
High
Start Sound :Off
Shutter Sound :1
Beep Sound :1
AF Sound :On
Self-Portrait :On
Volume :Medium
Exit Back
Start Sound
Shutter Sound
Beep Sound
AF Sound
Self-Portrait
Volume
Functions
Sound
Display
Settings
Exit Change
Functions
Sound
Display
Settings
Exit Change
White Balance
ISO
Face Detection
Photo Size
Quality
EV
ACB
Press the
UP or DOWN
button.
Start Sound
Shutter Sound
Beep Sound
AF Sound
Self-Portrait
Volume
Functions
Sound
Display
Settings
Exit Change
Functions
Sound
Display
Settings
Exit Change
White Balance
ISO
Face Detection
Photo Size
Quality
EV
ACB

19
Starting the recording mode
Selecting modes
Mode selection using the Mode switch
You can use the Mode switch on the back of your camera to select
the correct mode.
[Program mode] [Movie Clip mode]
If the auto focus frame turns to red when you press the shutter
button down half way, it means that the camera cannot focus
on the subject. Should this be the case, the camera is unable to
capture an image clearly.
Avoid obstructing the lens or the flash when you capture an image.
Selecting the automatic mode will configure the camera with
optimal settings. You can still manually configure all functions
except the aperture value and shutter speed.
1. Insert the batteries (p.14). Insert the
batteries taking note of the polarity
(+ / -).
2. Insert the memory card (p.14).
As this camera has a 31MB internal
memory, you do not need to insert
the memory card. If the memory
card is not inserted, an image will be
stored in the internal memory. If the memory card is inserted,
an image will be stored on the memory card.
3. Close the battery chamber cover.
4. Press the power button to turn on the camera.
5. Use the Mode switch to select Program mode (p.19).
6. Press the Menu button to configure advanced functions.
(See p.31 for further details.)
How to use the Program mode ( )
