Samsung ST70 User manual

DIGITAL CAMERA CONTENTS
1. Product Specification
2. Operation Instruction & Installation
3. Exploded View and Parts List
4. Firmware Update
5. Alignment
6. Block Diagram
7. PCB Diagrams
8. Schematic Diagrams
9. Disassembly and Reassembly
SAMSUNG ST70/ST71
B Type : SAMSUNG TL110
DIGITAL CAMERA
SERVICE
Manual
www.electronicsrepair.net

Contents
1. Product Specification
1-1 Specifi cations......................................................................1-1
1-2 Instructions on how to use the memory card ..........................1-4
1-3 LCD monitor indicator ...........................................................1-5
1-4 Camera Connection Diagram.................................................1-7
1-5 Identifi cation of features.......................................................1-8
2. Operation Instruction & Installation
2-1 Install...................................................................................2-1
2-2 About the software................................................................2-2
2-3 FAQ .....................................................................................2-4
3. Exploded View and Parts List
3-1 BODY ASSEMBLY.................................................................3-1
3-2 MAIN ASSEMBLY..................................................................3-2
3-3 MAIN SUB ASSEMBLY..........................................................3-3
3-4 CHAMBER ASSEMBLY .........................................................3-4
3-5 TOP COVER ASSEMBLY.......................................................3-5
3-6 TOP FPCB ASSEMBLY .........................................................3-7
3-7 FRONT COVER ASSEMBLY..................................................3-8
3-8 BACK COVER ASSEMBLY ....................................................3-9
3-9 BARREL ASSEBLY ............................................................. 3-10
3-10 PACKING ITEMS ..............................................................3-13

Contents
4. Firmware update
4-1 Product reset........................................................................4-1
4-2 Version check.......................................................................4-2
4-3 Upgrade ...............................................................................4-3
4-4 Full upgrade .........................................................................4-5
5. Adjustment
5-1 Basic guide for adjustment....................................................5-1
5-2 OB Setting............................................................................5-3
5-3 Lens Shading .......................................................................5-4
5-4 Shutter Close Time ADJ ........................................................5-5
5-5 CCD Gain ADJ......................................................................5-6
5-6 Flash ADJ.............................................................................5-7
5-7 PUNT ADJ............................................................................5-8
5-8 B/T Level ADJ..................................................................... 5-10
5-9 CCD Defect ADJ................................................................. 5-10
5-10 BackLash ADJ .................................................................. 5-11
5-11 Burning ADJ...................................................................... 5-11
5-12 IRIS adjustment................................................................5-12
5-13 OIS Centering adjustment .................................................5-13
5-14 Serial number writing process............................................ 5-14
6. Block Diagram

Contents
7. PCB Diagrams
7-1 Main PCB(TOP)....................................................................7-1
7-2 Main PCB(BOTTOM).............................................................7-2
7-3 CCD FPCB ...........................................................................7-3
7-4 TOP FPCB............................................................................7-4
7-5 KEY FPCB............................................................................7-5
8. Schematic Diagrams
8-1 Main PCB-1..........................................................................8-1
8-2 Main PCB-2..........................................................................8-2
8-3 Main PCB-3..........................................................................8-3
8-4 Main PCB-4..........................................................................8-4
8-5 Main PCB-5..........................................................................8-5
8-6 Main PCB-6..........................................................................8-6
8-7 Main PCB-7..........................................................................8-7
8-8 Main PCB-8..........................................................................8-8
8-9 CCD FPCB ...........................................................................8-9
8-10 TOP FPCB-1..................................................................... 8-10
8-11 TOP FPCB-2..................................................................... 8-11
8-12 Key FPCB......................................................................... 8-12
9. Disassembly and reassembly
9-1 Disassembly of main unit ......................................................9-1
9-2 Disassembly of barrel ...........................................................9-8
9-3 Assembly of barrel..............................................................9-16

Product Specication
SAMSUNG 1-1
1. Product Specification
1-1 Specifi cations
Image Sensor
Type 1/2.3" CCD
Effective Approx. 14.2 Mega-pixel
Total Pixel Approx. 14.48 Mega-pixel
Lens
Focal Length SAMSUNG Lens f = 4.9 ~ 24.5mm
(35mm lm equivalent : 27 ~ 135mm)
F No. F3.5(W) ~ F5.9(T)
Digital Zoom
· Still Image mode :1.0X ~ 5.0X
· Play mode : 1.0X ~ 13.5X
(depends on image size)
LCD Monitor
Type 2.7” color TFT LCD (230,000 dots)
Focusing
Type TTL auto focus
(Multi AF, Center AF, Tracking AF)
Range
Normal Macro Auto Macro
Wide 80cm ~ Innity 10cm ~ 80cm 10cm ~ Innity
Tele 50cm ~ 80cm 50cm ~ Innity
Shutter
· Smart Auto : 1/8 ~ 1/2,000 sec.,
· Program : 1 ~ 1/2,000 sec.,
· Night : 8 ~ 1/2,000 sec.
Exposure
Control Program AE
Metering Multi, Spot, Center-weighted
Compensation Compensation : ±2EV (1/3EV steps)
ISO ISO : Auto, 80, 100, 200, 400, 800, 1600, 3200
Flash
Modes Auto, Auto & Red-eye reduction, Fill-in
ash, Slow sync, Flash off, Red Eye Fix
Range · Wide : 0.2m ~ 3.5m,
· Tele : 0.5m ~ 2.1m
Recharging Time Approx. 4 sec
Sharpness
Soft+, Soft, Normal, Vivid, Vivid+
White Balance
Auto, Daylight, Cloudy, Fluorescent_H,
Fluorescent_L, Tungsten, Custom
Voice Recording
· Voice Recording (max. 10 hours)
· Voice Memo in Still Image (max. 10 sec.)
Date Imprinting
Date, Date & Time, Off (user selectable)

Product Specication
1-2 SAMSUNG
Shooting
Still Image
· Mode : Smart Auto, Program, DUAL IS, Scene
(Beauty Shot, Frame Guide, Night, Portrait, Children, Landscape,
Close Up, Text, Sunset, Dawn, Backlight, Fireworks, Beach & Snow)
· Smart Auto : Portrait, Night Portrait, Night, Backlight Portrait, Backlight,
Landscape, White, Macro, Macro Text, Tripod, Action,
Sunset Sky, Blue Sky, Natural Green, Macro Color, Macro Portrait
· Shooting : Single, Continuous, Motion Capture, AEB
· Self-timer : 10 sec., 2 sec., Double, Motion Timer
Movie Clip
· With Audio or without Audio
(user selectable, recording time : max 20 min.)
· Size : 1280x720HQ (30 fps & 15 fps),
1280x720 (30 fps & 15 fps),
640x480 (30 fps & 15 fps),
320x240 (60 fps & 30 fps & 15 fps)
· Frame rate : 60 fps, 30 fps, 15 fps
· 5X Optical Zoom and Mute in Zooming, sound recording on/ off selectable
· Smart Movie : Landscape, Blue Sky, Natual Green, Sunset Sky
· Smart Filter : Miniature, Vignetting, Fish-eye 1, Fish-eye 2
· Movie Editing (Embedded): Pause during recording, Still Image Capture,
Time Trimming
Image Play
Type · Single image, Thumbnails, Multi slide show,
Movie Clip, Smart Album
Storage
Media
· Internal memory : About 27MB ash memory
· External Memory (Optional) :
microSDTM card (up to 4 GB guaranteed)
File Format
· Still Image : JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0
· Movie Clip : MP4 (H.264)
· Audio : WAV
- Image Size
4320X
3240
4272X
2848 4272X 2403
3264X
2448 2592X 1944
2048X
1536
1024X
768
- Capacity (1GB Size)
Super Fine About 129 About 154 About 183 About 232 About 412 About 600 About 1584
Fine About 240 About 255 About 291 About 391 About 583 About 802 About 1765
Normal About 292 About 321 About 367 About 510 About 824 About 965 About 1993
Interface
Digital output connector USB 2.0
Audio Mono
Video output NTSC, PAL(user selectable)
DC power input connector 20 pin

Product Specication
SAMSUNG 1-3
Power Source
Rechargeable battery BP70A
Dimensions (WxHxD)
96.3 × 55.8 × 16.6(16.1)mm(excluding protrusions)
Weight
Approx. 120 g (without battery and card)
Operating Temperature
0 ~ 40°C
Operating Humidity
5 ~ 85%
Software
Intelli-studio, Adobe Reader

Product Specication
1-4 SAMSUNG
1-2 Instructions on how to use the memory card
<Table 1-1>
■ The Zoom W/T lever doesn’t function during the movie recording.
■ The recording times can be changed by the zoom operation.
■ Several videos were recorded in succession to determine the total recording time.
17
Instructions on how to use the memory card
When using a 1GB microSD
TM
memory, the specied shooting capacity
will be as follows. These gures are approximate as image capacities can
be affected by variables such as subject matter and memory card type.
Recorded
image size
Super
Fine Fine Normal 60 FPS 30 FPS 15 FPS
Still
About
129
About
240
About
292 ---
About
154
About
255
About
321 ---
About
183
About
291
About
367 ---
About
232
About
391
About
510 ---
About
412
About
583
About
824 ---
About
600
About
802
About
965 ---
About
1584
About
1765
About
1993 ---
*Movie
clip
----
About
00:12'49"
About
00:23'23"
----
About
00:14'27"
About
00:26'04"
----
About
00:25'00"
About
00:48'02"
---
About
00:50'54"
About
01:13'27"
About
01:34'20"
The Zoom W/T lever doesn’t function during the movie recording.
The recording times can be changed by the zoom operation.
Several videos were recorded in succession to determine the total
recording time.
Memory cards you can use
You can use microSD
TM
(Secure Digital) memory cards.
You can use microSD
TM
(Secure Digital) memory cards.
Fig. 1-1 microSDTM memory cards
CARD ADAPTOR
MICRO SD CARD
When using a 1GB microSD
TM
memory, the speci ed shooting capacity will be as follows. These gures are
approximate as image capacities can be affected by variables such as subject matter and memory card type.

Product Specication
SAMSUNG 1-5

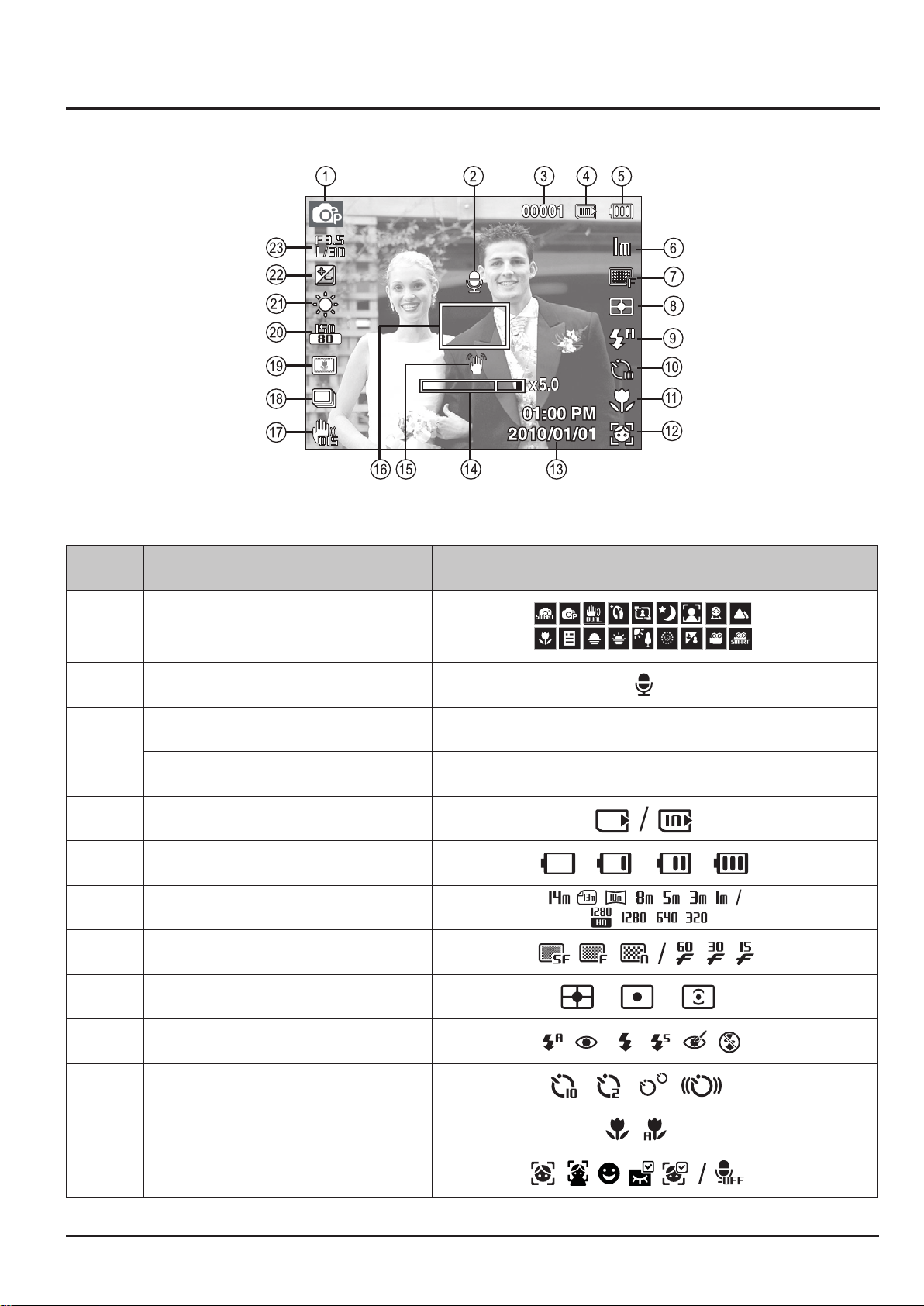

1-3 LCD monitor indicator
■ The LCD monitor displays information about the shooting functions and selections.
Fig. 1-2
No. Description Icons
q
Recording mode
w
Voice Memo
e
Number of available shots
remaining
emaining time
r
Memory card icon /
Internal memory icon
t
Battery
y
Photo Size / Movie Size
u
Image Quality / Frame Rate
i
Metering
o
Flash
a
Self-timer
s
Macro
d
Face Detection /
Without Sound
18
LCD monitor indicator
No. Description Icons Page
1 Recording mode p.20
2
Voice Memo p.49
3
Number of available shots
remaining 00001 p.17
Remaining time 00:00:00 p.17
4Memory card icon /
Internal memory icon -
[Image & Full Status]
No. Description Icons Page
5 Battery p.15
6
Photo Size / Movie Size p.39
7
Image Quality / Frame Rate p.39
8 Metering p.45
9 Flash p.33
10 Self-timer p.35
11 Macro p.31
12 Face Detection p.42
13 Date / Time 2010/01/01 01:00 PM p.58
14
Optical / Digital Zoom bar /
Digital Zoom rate
p.29
15 Camera shake Warning p.26
16 Auto Focus Frame p.44
17 OIS p.48
18 Drive mode p.46
19 Photo Style Selector /
Image Adjust / Voice
p.46/47
/50
20 ISO p.40
21 White Balance p.41
22
Exposure compensation p.40
23
Aperture Value / Shutter Speed F3.4, 1/30 p.24
�
The LCD monitor displays information about the shooting functions
and selections.
18
LCD monitor indicator
No. Description Icons Page
1 Recording mode p.20
2
Voice Memo p.49
3
Number of available shots
remaining 00001 p.17
Remaining time 00:00:00 p.17
4Memory card icon /
Internal memory icon -
[Image & Full Status]
No. Description Icons Page
5 Battery p.15
6
Photo Size / Movie Size p.39
7
Image Quality / Frame Rate p.39
8 Metering p.45
9 Flash p.33
10 Self-timer p.35
11 Macro p.31
12 Face Detection p.42
13 Date / Time 2010/01/01 01:00 PM p.58
14
Optical / Digital Zoom bar /
Digital Zoom rate
p.29
15 Camera shake Warning p.26
16 Auto Focus Frame p.44
17 OIS p.48
18 Drive mode p.46
19 Photo Style Selector /
Image Adjust / Voice
p.46/47
/50
20 ISO p.40
21 White Balance p.41
22
Exposure compensation p.40
23
Aperture Value / Shutter Speed F3.4, 1/30 p.24
�
The LCD monitor displays information about the shooting functions
and selections.
18
LCD monitor indicator
No. Description Icons Page
1 Recording mode p.20
2
Voice Memo p.49
3
Number of available shots
remaining
00001
p.17
Remaining time 00:00:00 p.17
4Memory card icon /
Internal memory icon -
[Image & Full Status]
No. Description Icons Page
5 Battery p.15
6
Photo Size / Movie Size p.39
7
Image Quality / Frame Rate p.39
8 Metering p.45
9 Flash p.33
10 Self-timer p.35
11 Macro p.31
12 Face Detection p.42
13 Date / Time 2010/01/01 01:00 PM p.58
14
Optical / Digital Zoom bar /
Digital Zoom rate
p.29
15 Camera shake Warning p.26
16 Auto Focus Frame p.44
17 OIS p.48
18 Drive mode p.46
19 Photo Style Selector /
Image Adjust / Voice
p.46/47
/50
20 ISO p.40
21 White Balance p.41
22
Exposure compensation p.40
23
Aperture Value / Shutter Speed F3.4, 1/30 p.24
�
The LCD monitor displays information about the shooting functions
and selections.
18
LCD monitor indicator
No. Description Icons Page
1 Recording mode p.20
2
Voice Memo p.49
3
Number of available shots
remaining 00001 p.17
Remaining time
00:00:00
p.17
4Memory card icon /
Internal memory icon -
[Image & Full Status]
No. Description Icons Page
5 Battery p.15
6
Photo Size / Movie Size p.39
7
Image Quality / Frame Rate p.39
8 Metering p.45
9 Flash p.33
10 Self-timer p.35
11 Macro p.31
12 Face Detection p.42
13 Date / Time 2010/01/01 01:00 PM p.58
14
Optical / Digital Zoom bar /
Digital Zoom rate
p.29
15 Camera shake Warning p.26
16 Auto Focus Frame p.44
17 OIS p.48
18 Drive mode p.46
19 Photo Style Selector /
Image Adjust / Voice
p.46/47
/50
20 ISO p.40
21 White Balance p.41
22
Exposure compensation p.40
23
Aperture Value / Shutter Speed F3.4, 1/30 p.24
�
The LCD monitor displays information about the shooting functions
and selections.
18
LCD monitor indicator
No. Description Icons Page
1 Recording mode p.20
2
Voice Memo p.49
3
Number of available shots
remaining 00001 p.17
Remaining time 00:00:00 p.17
4Memory card icon /
Internal memory icon -
[Image & Full Status]
No. Description Icons Page
5 Battery p.15
6
Photo Size / Movie Size p.39
7
Image Quality / Frame Rate p.39
8 Metering p.45
9 Flash p.33
10 Self-timer p.35
11 Macro p.31
12 Face Detection p.42
13 Date / Time 2010/01/01 01:00 PM p.58
14
Optical / Digital Zoom bar /
Digital Zoom rate
p.29
15 Camera shake Warning p.26
16 Auto Focus Frame p.44
17 OIS p.48
18 Drive mode p.46
19 Photo Style Selector /
Image Adjust / Voice
p.46/47
/50
20 ISO p.40
21 White Balance p.41
22
Exposure compensation p.40
23
Aperture Value / Shutter Speed F3.4, 1/30 p.24
�
The LCD monitor displays information about the shooting functions
and selections.
18
LCD monitor indicator
No. Description Icons Page
1 Recording mode p.20
2
Voice Memo p.49
3
Number of available shots
remaining 00001 p.17
Remaining time 00:00:00 p.17
4Memory card icon /
Internal memory icon -
[Image & Full Status]
No. Description Icons Page
5 Battery p.15
6
Photo Size / Movie Size p.39
7
Image Quality / Frame Rate p.39
8 Metering p.45
9 Flash p.33
10 Self-timer p.35
11 Macro p.31
12 Face Detection p.42
13 Date / Time 2010/01/01 01:00 PM p.58
14
Optical / Digital Zoom bar /
Digital Zoom rate
p.29
p.26
16 Auto Focus Frame p.44
17 OIS p.48
18 Drive mode p.46
19 Photo Style Selector /
Image Adjust / Voice
p.46/47
/50
20 ISO p.40
21 White Balance p.41
22
Exposure compensation p.40
23
Aperture Value / Shutter Speed F3.4, 1/30 p.24
�
The LCD monitor displays information about the shooting functions
and selections.
18
LCD monitor indicator
No. Description Icons Page
1 Recording mode p.20
2
Voice Memo p.49
3
Number of available shots
remaining 00001 p.17
Remaining time 00:00:00 p.17
4Memory card icon /
Internal memory icon -
[Image & Full Status]
No. Description Icons Page
5 Battery p.15
6
Photo Size / Movie Size p.39
7
Image Quality / Frame Rate p.39
8 Metering p.45
9 Flash p.33
10 Self-timer p.35
11 Macro p.31
12 Face Detection p.42
13 Date / Time 2010/01/01 01:00 PM p.58
14
Optical / Digital Zoom bar /
Digital Zoom rate
p.29
p.26
16 Auto Focus Frame p.44
17 OIS p.48
18 Drive mode p.46
19 Photo Style Selector /
Image Adjust / Voice
p.46/47
/50
20 ISO p.40
21 White Balance p.41
22
Exposure compensation p.40
23
Aperture Value / Shutter Speed F3.4, 1/30 p.24
�
The LCD monitor displays information about the shooting functions
and selections.
18
LCD monitor indicator
No. Description Icons Page
1 Recording mode p.20
2
Voice Memo p.49
3
Number of available shots
remaining 00001 p.17
Remaining time 00:00:00 p.17
4Memory card icon /
Internal memory icon -
[Image & Full Status]
No. Description Icons Page
5 Battery p.15
6
Photo Size / Movie Size p.39
7
Image Quality / Frame Rate p.39
8 Metering p.45
9 Flash p.33
10 Self-timer p.35
11 Macro p.31
12 Face Detection p.42
13 Date / Time 2010/01/01 01:00 PM p.58
14
Optical / Digital Zoom bar /
Digital Zoom rate
p.29
p.26
16 Auto Focus Frame p.44
17 OIS p.48
18 Drive mode p.46
19 Photo Style Selector /
Image Adjust / Voice
p.46/47
/50
20 ISO p.40
21 White Balance p.41
22
Exposure compensation p.40
23
Aperture Value / Shutter Speed F3.4, 1/30 p.24
�
The LCD monitor displays information about the shooting functions
and selections.
18
LCD monitor indicator
No. Description Icons Page
1 Recording mode p.20
2
Voice Memo p.49
3
Number of available shots
remaining 00001 p.17
Remaining time 00:00:00 p.17
4Memory card icon /
Internal memory icon -
[Image & Full Status]
No. Description Icons Page
5 Battery p.15
6
Photo Size / Movie Size p.39
7
Image Quality / Frame Rate p.39
8 Metering p.45
9 Flash p.33
10 Self-timer p.35
11 Macro p.31
12 Face Detection p.42
13 Date / Time 2010/01/01 01:00 PM p.58
14
Optical / Digital Zoom bar /
Digital Zoom rate
p.29
p.26
16 Auto Focus Frame p.44
17 OIS p.48
18 Drive mode p.46
19 Photo Style Selector /
Image Adjust / Voice
p.46/47
/50
20 ISO p.40
21 White Balance p.41
22
Exposure compensation p.40
23
Aperture Value / Shutter Speed F3.4, 1/30 p.24
�
The LCD monitor displays information about the shooting functions
and selections.
18
LCD monitor indicator
No. Description Icons Page
1 Recording mode p.20
2
Voice Memo p.49
3
Number of available shots
remaining 00001 p.17
Remaining time 00:00:00 p.17
4Memory card icon /
Internal memory icon -
[Image & Full Status]
No. Description Icons Page
5 Battery p.15
6
Photo Size / Movie Size p.39
7
Image Quality / Frame Rate p.39
8 Metering p.45
9 Flash p.33
10 Self-timer p.35
11 Macro p.31
12 Face Detection p.42
13 Date / Time 2010/01/01 01:00 PM p.58
14
Optical / Digital Zoom bar /
p.29
p.26
16 Auto Focus Frame p.44
17 OIS p.48
18 Drive mode p.46
19 Photo Style Selector /
Image Adjust / Voice
p.46/47
/50
20 ISO p.40
21 White Balance p.41
22
Exposure compensation p.40
23
Aperture Value / Shutter Speed F3.4, 1/30 p.24
�
The LCD monitor displays information about the shooting functions
and selections.
19
촬영 모드의 화면표시
번호 설 명 아이콘 페이지
1 촬영 모드 p.21
2 음성 메모 p.52
3
촬영 가능 매수 00001 p.17
동영상 촬영/
음성 녹음 가능 시간 00:00:00 p.17
4메모리 카드 삽입 표시
/내장 메모리 표시 -
[ 이미지 및 전체 정보 표시 ]
번호 설 명 아이콘 페이지
5 전지 상태 p.15
6사진 사이즈 /
동영상 사이즈 p.40
7 화질 / 촬영 속도 p.40
8 측광방식 p.48
9 플래시 p.34
10 셀프 타이머 p.36
11 매크로 p.32
12 얼굴 인식 / 무음
p.43/54
13 날짜 / 시간 2010/01/01 01:00 PM p.62
14 광학/ 디지털 줌 표시/
디지털 줌 배율 표시 p.30
p.28
16 자동 초점 마크 p.47
17 OIS p.52
18 촬영 방식 p.51
19
스마트 필터 / 이미지 보정
/ 사진 스타일
p.49/50
/48
20 ISO p.41
21 화이트 밸런스 p.42
22 노출 보정 p.41
23 조리개 값 / 셔터 속도 F3.5, 1/30 p.25
■ 현재 설정된 촬영 정보를 액정모니터를 통해 확인하실 수 있습니다.
19
촬영 모드의 화면표시
번호 설 명 아이콘 페이지
1 촬영 모드 p.21
2 음성 메모 p.52
3
촬영 가능 매수 00001 p.17
동영상 촬영/
음성 녹음 가능 시간 00:00:00 p.17
4메모리 카드 삽입 표시
/내장 메모리 표시 -
[ 이미지 및 전체 정보 표시 ]
번호 설 명 아이콘 페이지
5 전지 상태 p.15
6사진 사이즈 /
동영상 사이즈 p.40
7 화질 / 촬영 속도 p.40
8 측광방식 p.48
9 플래시 p.34
10 셀프 타이머 p.36
11 매크로 p.32
12 얼굴 인식 / 무음
p.43/54
13 날짜 / 시간 2010/01/01 01:00 PM p.62
14 광학/ 디지털 줌 표시/
디지털 줌 배율 표시 p.30
p.28
16 자동 초점 마크 p.47
17 OIS p.52
18 촬영 방식 p.51
19
스마트 필터 / 이미지 보정
/ 사진 스타일
p.49/50
/48
20 ISO p.41
21 화이트 밸런스 p.42
22 노출 보정 p.41
23 조리개 값 / 셔터 속도 F3.5, 1/30 p.25
■ 현재 설정된 촬영 정보를 액정모니터를 통해 확인하실 수 있습니다.
19
촬영 모드의 화면표시
번호 설 명 아이콘 페이지
1 촬영 모드 p.21
2 음성 메모 p.52
3
촬영 가능 매수 00001 p.17
동영상 촬영/
음성 녹음 가능 시간 00:00:00 p.17
4메모리 카드 삽입 표시
/내장 메모리 표시 -
[ 이미지 및 전체 정보 표시 ]
번호 설 명 아이콘 페이지
5 전지 상태 p.15
6사진 사이즈 /
동영상 사이즈 p.40
7 화질 / 촬영 속도 p.40
8 측광방식 p.48
9 플래시 p.34
10 셀프 타이머 p.36
11 매크로 p.32
12 얼굴 인식 / 무음
p.43/54
13 날짜 / 시간 2010/01/01 01:00 PM p.62
p.30
15 손떨림 경고 p.28
16 자동 초점 마크 p.47
17 OIS p.52
18 촬영 방식 p.51
19
스마트 필터 / 이미지 보정
/ 사진 스타일
p.49/50
/48
20 ISO p.41
21 화이트 밸런스 p.42
22 노출 보정 p.41
23 조리개 값 / 셔터 속도 F3.5, 1/30 p.25
■ 현재 설정된 촬영 정보를 액정모니터를 통해 확인하실 수 있습니다.

Product Specication
1-6 SAMSUNG
■ The LCD monitor displays information about the shooting functions and selections.
Fig. 1-3
No. Description Icons
f
Date / Time
g
Optical / Digital Zoom bar /
Digital Zoom rate
h
Camera shake Warning
j
Auto Focus Frame
k
OIS
l
Drive mode
;
Smart Filter / Image Adjust
/ Photo Style Selector
2)
ISO
2!
White Balance
2@
Exposure compensation
2#
Aperture Value / Shutter Speed
18
LCD monitor indicator
No. Description Icons Page
1 Recording mode p.20
2
Voice Memo p.49
3
Number of available shots
remaining 00001 p.17
Remaining time 00:00:00 p.17
4Memory card icon /
Internal memory icon -
[Image & Full Status]
No. Description Icons Page
5 Battery p.15
6
Photo Size / Movie Size p.39
7
Image Quality / Frame Rate p.39
8 Metering p.45
9 Flash p.33
10 Self-timer p.35
11 Macro p.31
12 Face Detection p.42
13 Date / Time 2010/01/01 01:00 PM p.58
14
Optical / Digital Zoom bar /
Digital Zoom rate
p.29
15 Camera shake Warning p.26
16 Auto Focus Frame p.44
17 OIS p.48
18 Drive mode p.46
19 Photo Style Selector /
Image Adjust / Voice
p.46/47
/50
20 ISO p.40
21 White Balance p.41
22
Exposure compensation p.40
23
Aperture Value / Shutter Speed F3.4, 1/30 p.24
�
The LCD monitor displays information about the shooting functions
and selections.
18
LCD monitor indicator
No. Description Icons Page
1 Recording mode p.20
2
Voice Memo p.49
3
Number of available shots
remaining 00001 p.17
Remaining time 00:00:00 p.17
4Memory card icon /
Internal memory icon -
[Image & Full Status]
No. Description Icons Page
5 Battery p.15
6
Photo Size / Movie Size p.39
7
Image Quality / Frame Rate p.39
8 Metering p.45
9 Flash p.33
10 Self-timer p.35
11 Macro p.31
12 Face Detection p.42
13 Date / Time 2010/01/01 01:00 PM p.58
14
Optical / Digital Zoom bar /
Digital Zoom rate
p.29
15 Camera shake Warning p.26
16 Auto Focus Frame p.44
17 OIS p.48
18 Drive mode p.46
19 Photo Style Selector /
Image Adjust / Voice
p.46/47
/50
20 ISO p.40
21 White Balance p.41
22
Exposure compensation p.40
23
Aperture Value / Shutter Speed F3.4, 1/30 p.24
�
The LCD monitor displays information about the shooting functions
and selections.
18
LCD monitor indicator
No. Description Icons Page
1 Recording mode p.20
2
Voice Memo p.49
3
Number of available shots
remaining 00001 p.17
Remaining time 00:00:00 p.17
4Memory card icon /
Internal memory icon -
[Image & Full Status]
No. Description Icons Page
5 Battery p.15
6
Photo Size / Movie Size p.39
7
Image Quality / Frame Rate p.39
8 Metering p.45
9 Flash p.33
10 Self-timer p.35
11 Macro p.31
12 Face Detection p.42
13 Date / Time 2010/01/01 01:00 PM p.58
14
Optical / Digital Zoom bar /
Digital Zoom rate
p.29
15 Camera shake Warning p.26
16 Auto Focus Frame p.44
17 OIS p.48
18 Drive mode p.46
19 Photo Style Selector /
Image Adjust / Voice
p.46/47
/50
20 ISO p.40
21 White Balance p.41
22
Exposure compensation p.40
23
Aperture Value / Shutter Speed F3.4, 1/30 p.24
�
The LCD monitor displays information about the shooting functions
and selections.
19
촬영 모드의 화면표시
번호 설 명 아이콘 페이지
1 촬영 모드 p.21
2 음성 메모 p.52
3
촬영 가능 매수 00001 p.17
동영상 촬영/
음성 녹음 가능 시간 00:00:00 p.17
4메모리 카드 삽입 표시
/내장 메모리 표시 -
[ 이미지 및 전체 정보 표시 ]
번호 설 명 아이콘 페이지
5 전지 상태 p.15
6사진 사이즈 /
동영상 사이즈 p.40
7 화질 / 촬영 속도 p.40
8 측광방식 p.48
9 플래시 p.34
10 셀프 타이머 p.36
11 매크로 p.32
12 얼굴 인식 / 무음
p.43/54
13 날짜 / 시간 2010/01/01 01:00 PM p.62
14 광학/ 디지털 줌 표시/
디지털 줌 배율 표시 p.30
15 손떨림 경고 p.28
16 자동 초점 마크 p.47
17 OIS p.52
18 촬영 방식 p.51
19
스마트 필터 / 이미지 보정
/ 사진 스타일
p.49/50
/48
20 ISO p.41
21 화이트 밸런스 p.42
22 노출 보정 p.41
23 조리개 값 / 셔터 속도 F3.5, 1/30 p.25
■ 현재 설정된 촬영 정보를 액정모니터를 통해 확인하실 수 있습니다.
19
촬영 모드의 화면표시
번호 설 명 아이콘 페이지
1 촬영 모드 p.21
2 음성 메모 p.52
3
촬영 가능 매수 00001 p.17
동영상 촬영/
음성 녹음 가능 시간 00:00:00 p.17
4메모리 카드 삽입 표시
/내장 메모리 표시 -
[ 이미지 및 전체 정보 표시 ]
번호 설 명 아이콘 페이지
5 전지 상태 p.15
6사진 사이즈 /
동영상 사이즈 p.40
7 화질 / 촬영 속도 p.40
8 측광방식 p.48
9 플래시 p.34
10 셀프 타이머 p.36
11 매크로 p.32
12 얼굴 인식 / 무음
p.43/54
13 날짜 / 시간 2010/01/01 01:00 PM p.62
14 광학/ 디지털 줌 표시/
디지털 줌 배율 표시 p.30
15 손떨림 경고 p.28
16 자동 초점 마크 p.47
17 OIS p.52
18 촬영 방식 p.51
19
스마트 필터 / 이미지 보정
/ 사진 스타일
p.49/50
/48
20 ISO p.41
21 화이트 밸런스 p.42
22 노출 보정 p.41
23 조리개 값 / 셔터 속도 F3.5, 1/30 p.25
■ 현재 설정된 촬영 정보를 액정모니터를 통해 확인하실 수 있습니다.
19
촬영 모드의 화면표시
번호 설 명 아이콘 페이지
1 촬영 모드 p.21
2 음성 메모 p.52
3
촬영 가능 매수 00001 p.17
동영상 촬영/
음성 녹음 가능 시간 00:00:00 p.17
4메모리 카드 삽입 표시
/내장 메모리 표시 -
[ 이미지 및 전체 정보 표시 ]
번호 설 명 아이콘 페이지
5 전지 상태 p.15
6사진 사이즈 /
동영상 사이즈 p.40
7 화질 / 촬영 속도 p.40
8 측광방식 p.48
9 플래시 p.34
10 셀프 타이머 p.36
11 매크로 p.32
12 얼굴 인식 / 무음
p.43/54
13 날짜 / 시간 2010/01/01 01:00 PM p.62
14 광학/ 디지털 줌 표시/
디지털 줌 배율 표시 p.30
15 손떨림 경고 p.28
16 자동 초점 마크 p.47
17 OIS p.52
18 촬영 방식 p.51
19
스마트 필터 / 이미지 보정
/ 사진 스타일
p.49/50
/48
20 ISO p.41
21 화이트 밸런스 p.42
22 노출 보정 p.41
23 조리개 값 / 셔터 속도 F3.5, 1/30 p.25
■ 현재 설정된 촬영 정보를 액정모니터를 통해 확인하실 수 있습니다.
19
촬영 모드의 화면표시
번호 설 명 아이콘 페이지
1 촬영 모드 p.21
2 음성 메모 p.52
3
촬영 가능 매수 00001 p.17
동영상 촬영/
음성 녹음 가능 시간 00:00:00 p.17
4메모리 카드 삽입 표시
/내장 메모리 표시 -
[ 이미지 및 전체 정보 표시 ]
번호 설 명 아이콘 페이지
5 전지 상태 p.15
6사진 사이즈 /
동영상 사이즈 p.40
7 화질 / 촬영 속도 p.40
8 측광방식 p.48
9 플래시 p.34
10 셀프 타이머 p.36
11 매크로 p.32
12 얼굴 인식 / 무음
p.43/54
13 날짜 / 시간 2010/01/01 01:00 PM p.62
14 광학/ 디지털 줌 표시/
디지털 줌 배율 표시 p.30
15 손떨림 경고 p.28
16 자동 초점 마크 p.47
17 OIS p.52
18 촬영 방식 p.51
19
스마트 필터 / 이미지 보정
/ 사진 스타일
p.49/50
/48
20 ISO p.41
21 화이트 밸런스 p.42
22 노출 보정 p.41
23 조리개 값 / 셔터 속도 F3.5, 1/30 p.25
■ 현재 설정된 촬영 정보를 액정모니터를 통해 확인하실 수 있습니다.
19
촬영 모드의 화면표시
번호 설 명 아이콘 페이지
1 촬영 모드 p.21
2 음성 메모 p.52
3
촬영 가능 매수 00001 p.17
동영상 촬영/
음성 녹음 가능 시간 00:00:00 p.17
4메모리 카드 삽입 표시
/내장 메모리 표시 -
[ 이미지 및 전체 정보 표시 ]
번호 설 명 아이콘 페이지
5 전지 상태 p.15
6사진 사이즈 /
동영상 사이즈 p.40
7 화질 / 촬영 속도 p.40
8 측광방식 p.48
9 플래시 p.34
10 셀프 타이머 p.36
11 매크로 p.32
12 얼굴 인식 / 무음
p.43/54
13 날짜 / 시간 2010/01/01 01:00 PM p.62
14 광학/ 디지털 줌 표시/
디지털 줌 배율 표시 p.30
15 손떨림 경고 p.28
16 자동 초점 마크 p.47
17 OIS p.52
18 촬영 방식 p.51
19
스마트 필터 / 이미지 보정
/ 사진 스타일
p.49/50
/48
20 ISO p.41
21 화이트 밸런스 p.42
22 노출 보정 p.41
23 조리개 값 / 셔터 속도 F3.5, 1/30 p.25
■ 현재 설정된 촬영 정보를 액정모니터를 통해 확인하실 수 있습니다.
19
촬영 모드의 화면표시
번호 설 명 아이콘 페이지
1 촬영 모드 p.21
2 음성 메모 p.52
3
촬영 가능 매수 00001 p.17
동영상 촬영/
음성 녹음 가능 시간 00:00:00 p.17
4메모리 카드 삽입 표시
/내장 메모리 표시 -
[ 이미지 및 전체 정보 표시 ]
번호 설 명 아이콘 페이지
5 전지 상태 p.15
6사진 사이즈 /
동영상 사이즈 p.40
7 화질 / 촬영 속도 p.40
8 측광방식 p.48
9 플래시 p.34
10 셀프 타이머 p.36
11 매크로 p.32
12 얼굴 인식 / 무음
p.43/54
13 날짜 / 시간 2010/01/01 01:00 PM p.62
14 광학/ 디지털 줌 표시/
디지털 줌 배율 표시 p.30
15 손떨림 경고 p.28
16 자동 초점 마크 p.47
17 OIS p.52
18 촬영 방식 p.51
19
스마트 필터 / 이미지 보정
/ 사진 스타일
p.49/50
/48
20 ISO p.41
21 화이트 밸런스 p.42
22 노출 보정 p.41
23 조리개 값 / 셔터 속도 F3.5, 1/30 p.25
■ 현재 설정된 촬영 정보를 액정모니터를 통해 확인하실 수 있습니다.
19
촬영 모드의 화면표시
번호 설 명 아이콘 페이지
1 촬영 모드 p.21
2 음성 메모 p.52
3
촬영 가능 매수 00001 p.17
동영상 촬영/
음성 녹음 가능 시간 00:00:00 p.17
4메모리 카드 삽입 표시
/내장 메모리 표시 -
[ 이미지 및 전체 정보 표시 ]
번호 설 명 아이콘 페이지
5 전지 상태 p.15
6사진 사이즈 /
동영상 사이즈 p.40
7 화질 / 촬영 속도 p.40
8 측광방식 p.48
9 플래시 p.34
10 셀프 타이머 p.36
11 매크로 p.32
12 얼굴 인식 / 무음
p.43/54
13 날짜 / 시간 2010/01/01 01:00 PM p.62
14 광학/ 디지털 줌 표시/
디지털 줌 배율 표시 p.30
15 손떨림 경고 p.28
16 자동 초점 마크 p.47
17 OIS p.52
18 촬영 방식 p.51
19
스마트 필터 / 이미지 보정
/ 사진 스타일
p.49/50
/48
20 ISO p.41
21 화이트 밸런스 p.42
22 노출 보정 p.41
23 조리개 값 / 셔터 속도 F3.5, 1/30 p.25
■ 현재 설정된 촬영 정보를 액정모니터를 통해 확인하실 수 있습니다.
19
촬영 모드의 화면표시
번호 설 명 아이콘 페이지
1 촬영 모드 p.21
2 음성 메모 p.52
3
촬영 가능 매수 00001 p.17
동영상 촬영/
음성 녹음 가능 시간 00:00:00 p.17
4메모리 카드 삽입 표시
/내장 메모리 표시 -
[ 이미지 및 전체 정보 표시 ]
번호 설 명 아이콘 페이지
5 전지 상태 p.15
6사진 사이즈 /
동영상 사이즈 p.40
7 화질 / 촬영 속도 p.40
8 측광방식 p.48
9 플래시 p.34
10 셀프 타이머 p.36
11 매크로 p.32
12 얼굴 인식 / 무음
p.43/54
13 날짜 / 시간 2010/01/01 01:00 PM p.62
14 광학/ 디지털 줌 표시/
디지털 줌 배율 표시 p.30
15 손떨림 경고 p.28
16 자동 초점 마크 p.47
17 OIS p.52
18 촬영 방식 p.51
19
스마트 필터 / 이미지 보정
/ 사진 스타일
p.49/50
/48
20 ISO p.41
21 화이트 밸런스 p.42
22 노출 보정 p.41
23 조리개 값 / 셔터 속도
F3.5, 1/30
p.25
■ 현재 설정된 촬영 정보를 액정모니터를 통해 확인하실 수 있습니다.

Product Specication
SAMSUNG 1-7
1-4 Camera Connection Diagram
Card Reader
USB Cable
AV Cable
TV Monitor
PC(OS: Windows)/
Mac(OS 9, OS X)
Lap top Computer
AC Adaptor
microSD™
Memory
Fig. 1-4 Camera Connection Diagram

Product Specication
1-8 SAMSUNG
1-5 Identifi cation of features
Fig. 1-5 Front & Top
Fig. 1-6 Bottom
Front & Top
Bottom
8
Identication of features
Front & Top
Lens / Lens cover
Self-timer lamp /
AF Lamp
POWER button
Microphone
Smart button
Shutter button
Flash
Speaker
USB / AV / DC terminal
Zoom T Lever (Digital zoom)
Zoom W Lever (Thumbnail)
10
Bottom
Identication of features
5 Function button
Ä
To open the battery chamber cover, slide it in the direction shown
above.
Information / Up button
Flash /
Left button
Self-timer /
Right button
Macro / Down button
OK / Play & Pause
button
Tripod socket
Memory card slot
Battery chamber
Battery chamber cover
Battery
holder

Product Specication
SAMSUNG 1-9
Back
Fig. 1-7 Back
9
Identication of features
Back
5 function button
Play mode button
MENU button
LCD monitor
Camera status lamp
Fn / Delete button
MODE button
Strap eyelet

Operation Instruction & Installation
SAMSUNG 2-1
2. Operation Instruction & Installation
2-1 Install
CPU Intel® Pentium®4 3.2 GHz or higher
AMD Athlon™ FX 2.6 GHz or higher
RAM 512 MB or more (1 GB or more recommended)
OS Windows XP/Vista/7
Others
● USB port
● CD-ROM drive
● nVIDIA Geforce 7600GT or higher
Ati X1600 series or higher
● 1024 X 768 pixels, 16-bit color display compatible
monitor (1280 X 1024 pixels, 32-bit color display recommended)
● Microsoft DirectX 9.0c or later
CPU Power Mac G3 or later
RAM Minimum 256MB RAM (Over 512MB recommended)
OS Mac OS 10.3 or later
Available hard disk space Minimum 256MB RAM
(Over 512MB recommended)
The other
●USB port
● CD-ROM Drive
● 1024x768 Pixels, 16bit color
display compatible monitor (24bit color display recommended)
2-1-1 System Requirements
<Table 2-1 For Windows>
<Table 2-2 For Macintosh>
Caution
■It is not compatible with Windows XP and Vista 64-bit Edition.
■Samsung is not responsible for any defects or damages caused by the use of unauthorized computer
including an assembled PC.

Operation Instruction & Installation
2-2 SAMSUNG
2-2 About the software
Fig. 2-1
qInsert the installation CD in a compatible CD-ROM drive.
w When the setup screen is displayed, click Samsung Digital Camera Installer to start installation.
eSelect programs to install and follow the onscreen instructions.
r Click Exit to complete the installation and restart your computer.
2-2-2 Transferring les by connecting the camera as a removable disk
2-2-1 Installing program
1. You can connect the camera to your computer as a removable disk.
q
Connect the camera to your computer with the USB cable.
w Turn on the camera.
• The computer recognizes the camera automatically.
e On your computer, select My Computer → Removable Disk → DCIM → 100PHOTO.
r Select the les you want and drag or save them to your computer.
■ If the camera fails to connect, a pop-up window will appear. Select Computer.

Operation Instruction & Installation
SAMSUNG 2-3
Fig. 2-2
2-2-3 Using Intelli-studio
■ If you install Intelli-studio on your computer, the program will launch more quickly. To install the program, select Menu →
Install Intelli-studio on PC.
■ You cannot edit les directly on the camera. Transfer les to a folder on your computer before editing.
■ You cannot copy les in your computer to the camera.
■ Intelli-studio supports the following formats:s
- Videos: MP4 (Video: H.264, Audio: AAC), WMV (WMV 7/8/9)
- Photos: JPG, GIF, BMP, PNG, TIFF
1. Intelli-studio is a built-in program that allows you to play back and edit les. You can also upload les to websites, such as Picasa or
YouTube. For details, select Menu → Help in the program.
Playback/Editing
84
Transferring files to your computer (for Windows)
Using Intelli-studio
Intelli-studio is a built-in program that allows you to play back and edit files. You can also upload files to websites, such as Flickr or YouTube.
For details, select Menu ¢Help in the program.
If you install Intelli-studio on your computer, the program will launch more quickly. To install the program, select t Menu ¢ Install Intelli-studio on PC.
You cannot edit files directly on the camera. Transfer files to a folder on your computer before editing.t
You cannot copy files in your computer to the camera.t
Intelli-studio supports the following formats:st
- Videos: MP4 (Video: H.264, Audio: AAC), WMV (WMV 7/8/9)
- Photos: JPG, GIF, BMP, PNG, TIFF
1
7
8
2 3 4 5
6
13
9
14
15
11
12
10
Playback/Editing
80
Transferring files to your computer (for Windows)
Transferring files by connecting the camera
as a removable disk
You can connect the camera to your computer as a removable
disk.
In Shooting or Playback mode, press [
1
m ].
Select
2
Settings PC SoftwareOff.
Turn off the camera.
3
Connect the camera to your computer with the USB
4
cable.
You must plug the end of the cable with the indicator light (S) into
your camera. If the cable is reversed, it may damage your files. The
manufacturer is not responsible for any loss of data.
Icon Description
1 Open menus
2 Display files in the selected folder
3 Change to the Photo edit mode
4 Change to the Video edit mode
5 Change to the Sharing mode (You can send files by email
or upload files to websites, such as Flickr or YouTube.)
6 Enlarge or reduce the thumbnails in the list
7 Select a file type
8 View files of the selected folder on your computer
9 Show or hide files of the connected camera
10
View files of the selected folder on the camera
11
View files as thumbnails, in Smart Album, or on a map
12
Browse folders in the connected device
13
Browse folders in your computer
14
Move to the previous or next folder
15
Print files, view files on a map, store files in My Folder, or
register faces
2-2-4 Disconnecting the camera (for Windows XP)
q
If the status lamp on your camera is blinking, wait until it stops.
w
Click on the tool bar at the bottom right of your PC screen.
e
Click the pop-up message.
r
Remove the USB cable.
■ The camera may not be removed safely when Intelli-studio is running. End the program before disconnecting the camera.
1. The way to disconnect the USB cable for Windows Vista/7 is similar.

Operation Instruction & Installation
2-4 SAMSUNG
2-3 FAQ
■ Please check the following if the USB connection malfunctions.
Case 1
Case 2
Case 3
Case 4
Case 5
QUSB cable is not connected or it is not the supplied USB cable.
QThe camera is not recognised by your PC. Sometimes, the camera may appear under
[Unknown Devices] in Device Manager.
QThere is an unexpected error during le transfer.
QWhen using the USB hub.
QAre other USB cables connected to the PC?
AConnect the supplied USB cable.
ATurn off the camera, remove the USB cable, plug in the USB cable again, and then turn on the camera.
ATurn the camera power off and on again. Transfer the le again.
AThere may be a problem in connecting the camera to the PC through the USB hub if the PC and the hub are
not compatible. Wherever possible, connect the camera to the PC directly.
AThe camera may malfunction when it is connected to the PC at the same time as another USB cable.
In this case, disconnect the other USB cable, and connect only one USB cable to the camera.

Operation Instruction & Installation
SAMSUNG 2-5
Case 6
Case 7
Case 8
QWhen I open the Device Manager (by clicking Start -> (Settings) -> Control Panel -> (Performance and Maintenance)
-> System -> (Hardware) -> Device Manager), there are Unknown Devices or Other Devices entries with a yellow
question mark(?) beside them or devices with an exclamation mark(!) beside them.
QIn some security programs (Norton Anti Virus, V3, etc.), the computer may not recognise the camera
as a removable disk.
QThe camera is connected to the USB port located on the front of the computer.
ARight-click on the entry with the question (?) or exclamation (!) mark and select “Remove”. Restart the PC
and connect the camera again.
AStop the security programs and connect the camera to the computer. Refer to the security program
instructions about how to temporarily disable the program.
AWhen the camera is connected to the USB port located on the front of the computer, the computer may not
recognise the camera. Connect the camera to the USB port located on the back of the computer.

SAMSUNG 3-1
Exploded View and Parts List
3. Exploded View and Parts List
3-1 BODY ASSEMBLY
1-2
1-2
1-2
1-3
1-4
Loc. No Parts No. Description Q ty Available Remark
1-1
AD97-18531A
ASSY HOLDER-STRAP 1 O SILVER
AD97-18532A ASSY HOLDER-STRAP 1 O BLACK
AD97-18533A ASSY HOLDER-STRAP 1 O ORANGE
AD97-18534A ASSY HOLDER-STRAP 1 O BLUE
1-2 6001-002159 SCREW MACHINE 6 X
1-3 6001-002165 SCREW MACHINE 2 X
1-4 6003-002158 SCREW MACHINE 1 X
1-1

Exploded View and Parts List
3-2 SAMSUNG
3-2 MAIN ASSEMBLY
Loc. No Parts No. Description Q ty Available Remark
2-1 AD92-01067A MAIN PCB ASSY 1 O
2-2 6003-001710
SCREW TAPTITE 2 X
2-3 6003-001660 SCREW-TAPTYPE 3 X
2-4 AD63-03625A CUSHION-IR CUT FILTE 1 O
2-5 AD63-04594A CUSHION-IR FILTER 1 O
2-6 AD92-01034A SMD FPCB ASSY 1 X
2-7 AD61-04433A PLATE-CCD HOLDER 1 X
2-8 AD97-18986A FPCB ASSY-CCD 1 O
2-9 AD97-18218A BARREL ASSY 1 O BLACK
AD97-18308A BARREL ASSY 1 O SILVER
2-1
2-9 2-4
2-5
2-3
2-8
2-2
2-6 2-7
2-2
