Samsung WB200F User manual

SERVICE
Manual
SAMSUNG WB200F/WB201F/WB202F
DIGITAL CAMERA
DIGITAL CAMERA CONTENTS
1. Repair information
2. Product specifications
3. Disassembly and reassembly
4. Troubleshooting
5. PCB diagrams
6. Block diagram
7. Firmware update
8. Adjustment
9. Exploded view and parts list

Contents Contents
Contents
1. Repair information
1-1 Customer satisfaction statement .....................................1-1
1-2 Warranty and repair service information ..........................1-1
1-3 Precaution for disassembly and reassembly ...................1-4
2. Product specifications
2-1 Specifications...................................................................2-1
2-2 Product comparison.........................................................2-2

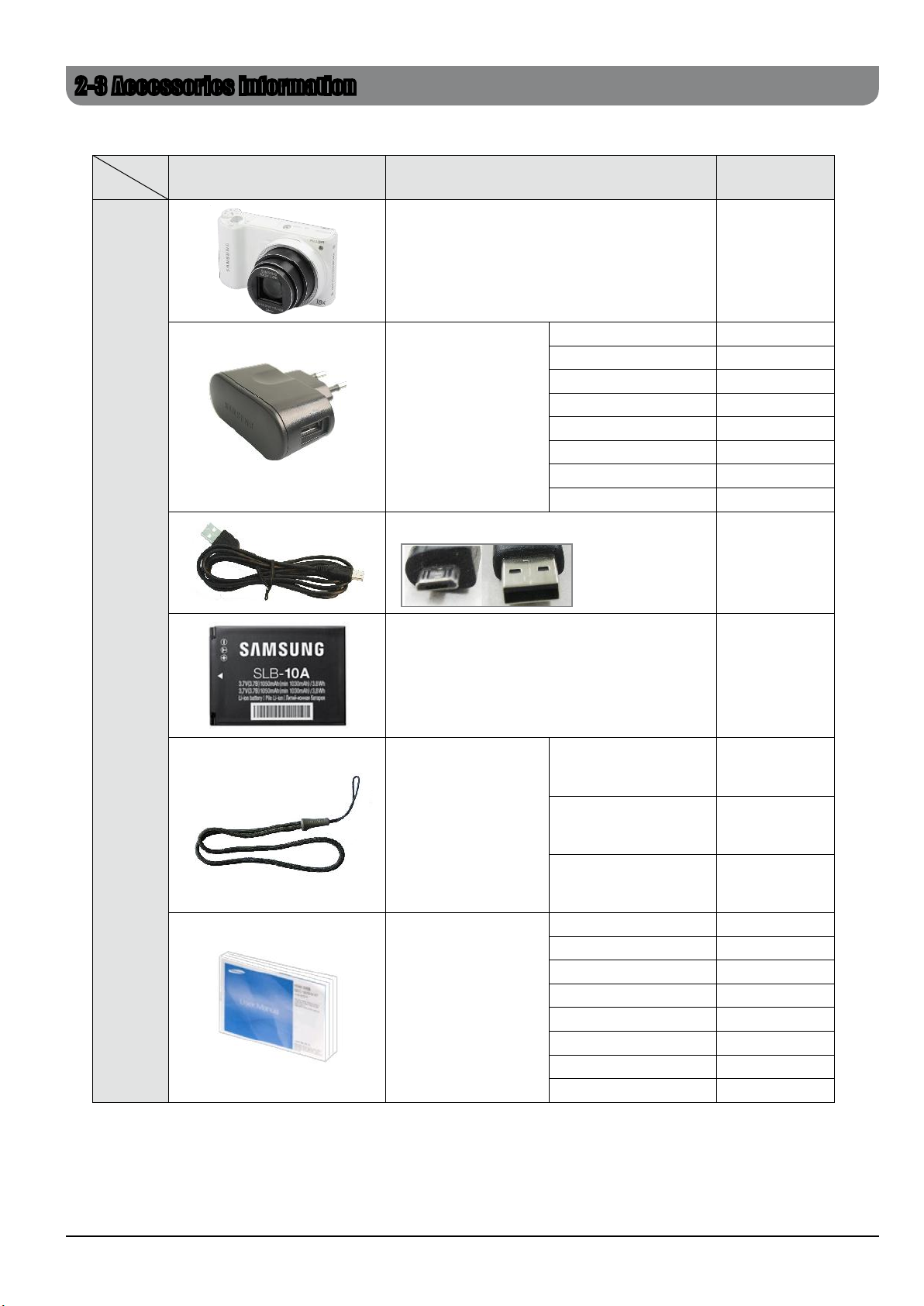

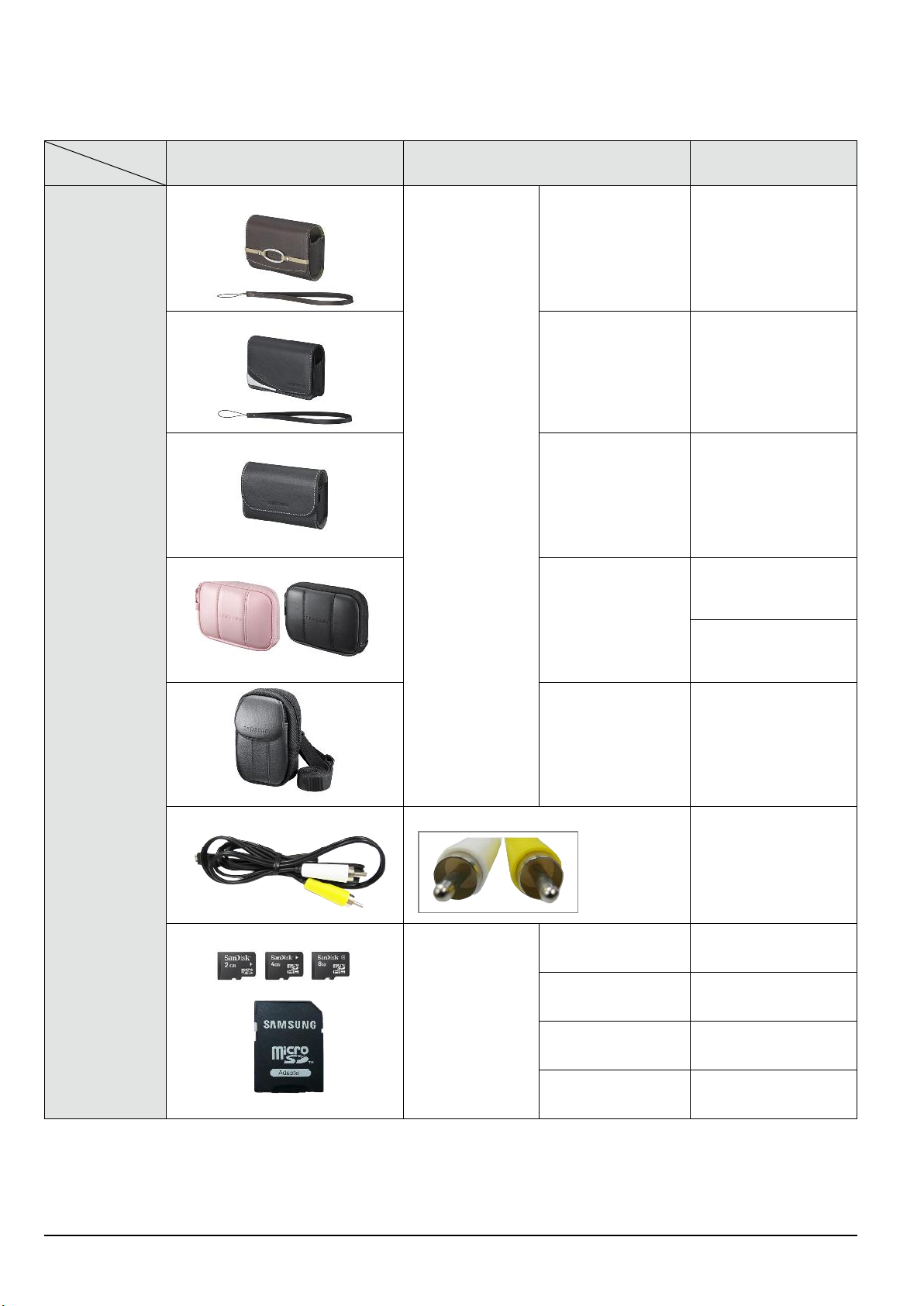

2-3 Accessories information...................................................2-3
2-4 About the memory card....................................................2-5
2-5 About the battery..............................................................2-6
3. Disassembly and reassembly

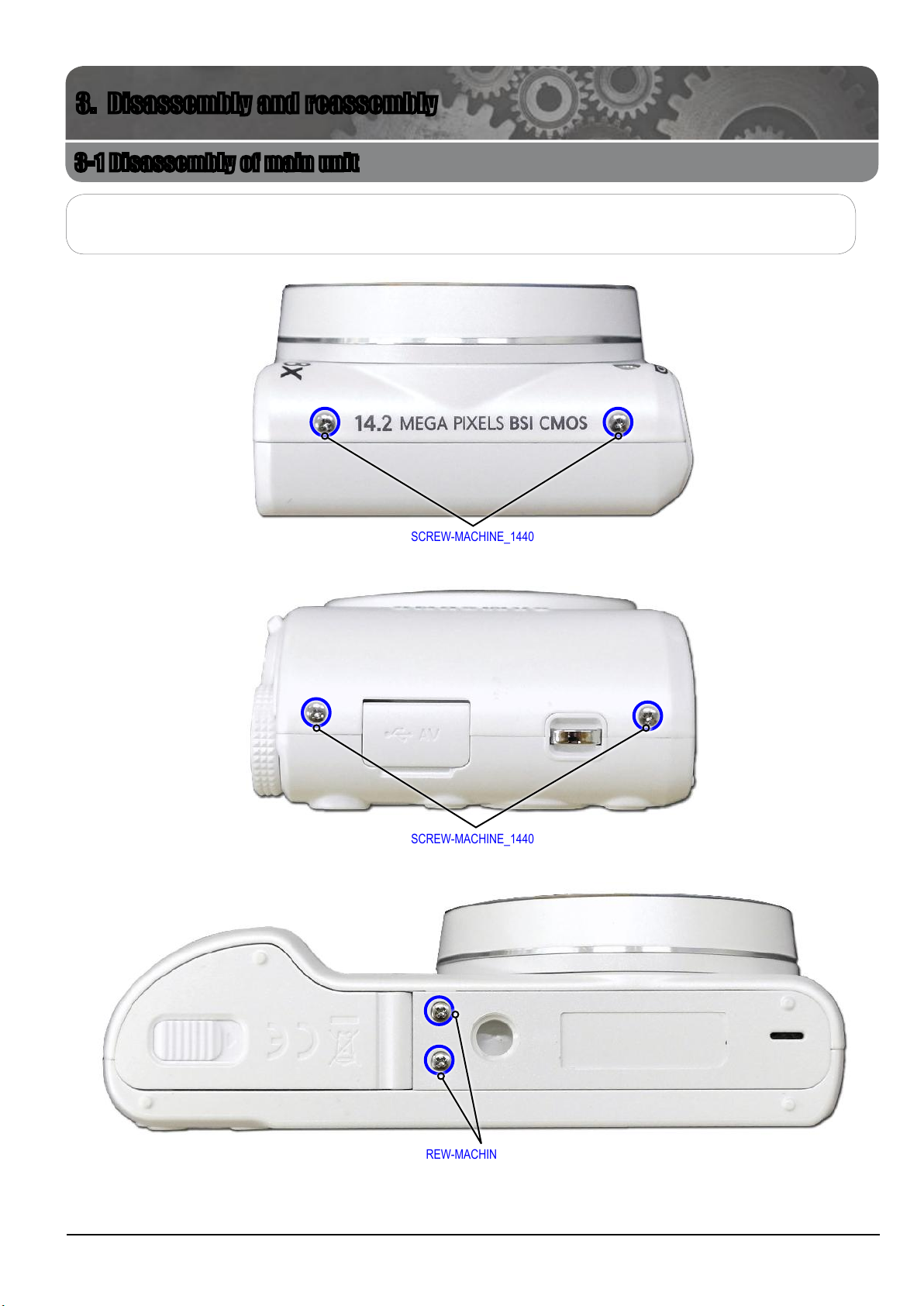

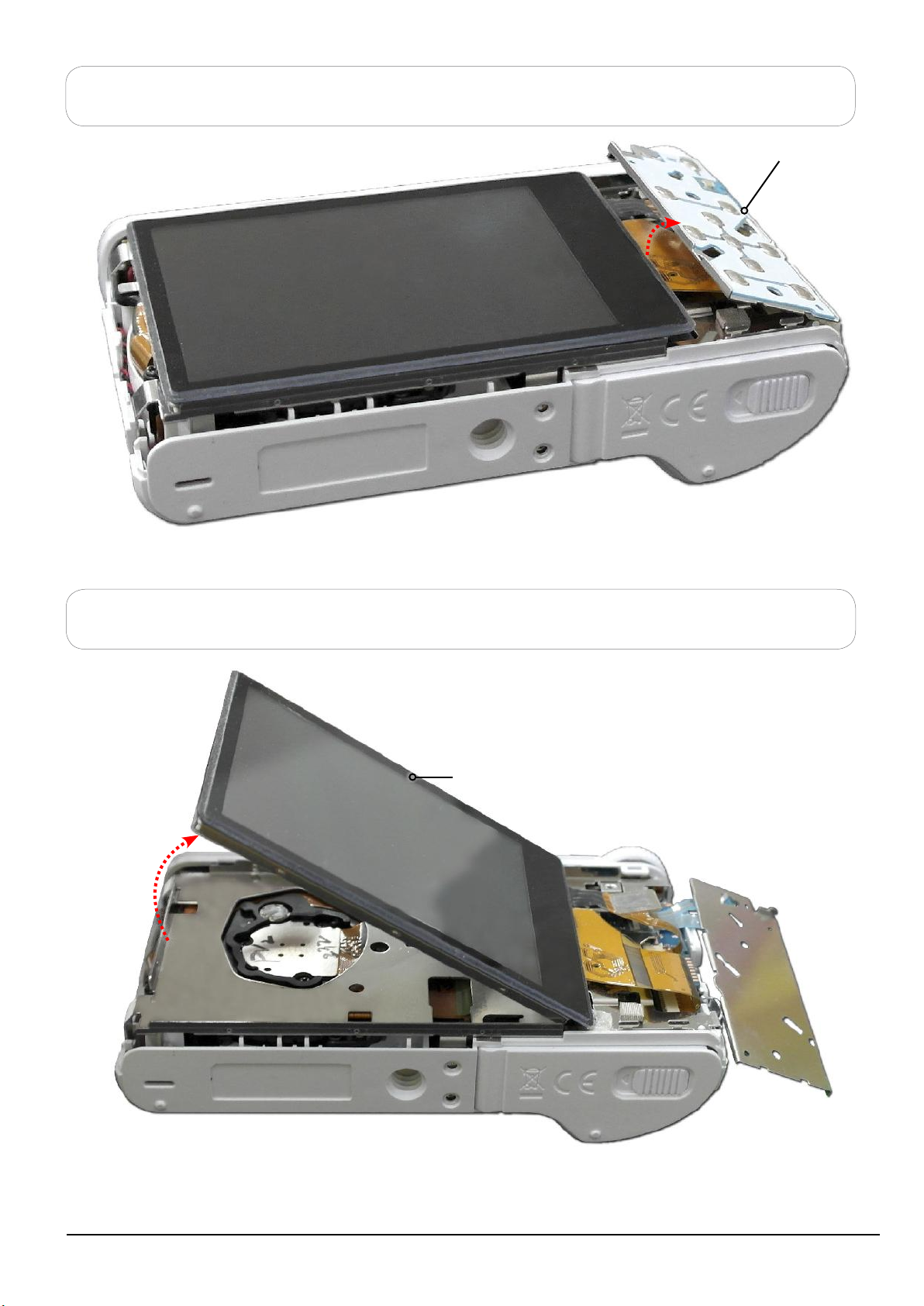

3-1 Disassembly of main unit.................................................3-1
3-2 Barrel Disassembly........................................................3-13
3-3 Reassembly of barrel.....................................................3-18
3-3-1 How to use the lubricant for anti-friction to the
ASSY BARREL assembly............................................3-18
3-3-2 Reassembly of BARREL ASSY...................................3-21
4. Troubleshooting
4-1 SD CARD detect failA/error .............................................4-1
4-2 Switch problems on TOP (Power/Release/Zoom) ...........4-2
4-3 MAIN PCB connection issues..........................................4-3
4-4 Flash related problems ....................................................4-4
4-5 Image output related problems ........................................4-6
4-6 When you cannot hear the recorded sound.....................4-7
5. PCB diagrams
5-1 MAIN PCB .......................................................................5-1
5-2 POPUP PCB....................................................................5-2
5-3 TOP PCB .........................................................................5-2
5-4 CIS FPCB ........................................................................5-2

Contents
Contents
6. Block diagram
7. Firmware update
7-1 Product reset ...................................................................7-1
7-2 Version check ..................................................................7-3
7-3 Update .............................................................................7-4
7-4 How to recover the MAIN PCB ........................................7-6
8. Adjustment
8-1 Basic guide for adjustment ..............................................8-1
8-2 OIS CENTERING ADJ.....................................................8-3
8-3 PUNT(Auto Focus) ADJ...................................................8-3
8-4 SHUTTER CLOSE, CIS GAIN, IRIS ADJ ........................8-5
8-5 LENS SHADING ADJ ......................................................8-6
8-6 FLASH & AWB ADJ .........................................................8-7
8-7 CIS DEFECT PIXEL ADJ.................................................8-8
8-8 COUNTRY CODE(Wi-Fi) Input .......................................8-8
8-9 MAC ADDRESS(Wi-Fi) Input ..........................................8-9
8-10 SERIAL NO. Input..........................................................8-9
8-11 Input confirm ...............................................................8-10
9. Exploded view and parts list
9-1 BODY ASSEMBLY...........................................................9-1
9-2 MAIN ASSEMBLY............................................................9-2
9-3 CHAMBER ASSEMBLY...................................................9-3
9-4 TOP COVER ASSEMBLY................................................9-5
9-5 TOP PCB ASSEMBLY .....................................................9-6
9-6 BARREL ASSEMBLY.......................................................9-7

Precautions
Copyright© 1995-2011 SAMSUNG. All rights reserved. 1-1
We listen carefully to our customers’ requirements and always nd an optimum solution for their needs.
We are committed to your satisfaction and have procedures in place to provide you with a fair, timely and effective
means to resolve problems. It combines industry leading preventive assistance with responsive support that helps
us address problems quickly and effectively. We will continuously maintain and improve our services to satisfy the
needs of our customers.
■ Combining perfect technical solutions with a customer-oriented approach is our top priority.
■ We treat our customers we serve with kindness, loyalty, respect and dignity.
■ We are committed to earn customers’ trust continuously through excellence in repair solutions.
■ We keep our promises and commitments to our customers.
■ Committed to quick and easy resolution of all support issues, we deliver industry-leading
response times.
(1) General terms and conditions
It is guaranteed to be free of charge from defects in material and workmanship under normal use for a period
of one year from date of purchase.
Digital Camera and lens come with a one year limited warranty from the date of purchase.
* The duration of the warranty depends on the laws in the country in which it was purchased.
The following information will be required to process warranty requests:
a. We imply warranties to one year from the original date of purchase. In the event that the purchaser is
unable to provide a warranty card or proof of purchase, the warranty period will be determined by the
date of manufacture. The warranty period shall be decreased to three months from the original product
manufactured date.
b. The coverage under this warranty begins on the date of your purchase of the product. In the event
that a warranty card or proof of purchase is not available, a purchase receipt, preferably the purchase
invoice, to conrm the date of purchase is required for warranty service.
c. In the event that a valid date of purchase is not available, the warranty period will be determined by
the date of manufacture. The warranty period shall be decreased to three months from the original
product manufactured date.
Guide
1-1 Customer satisfaction statement
1. Repair information
We hold ourselves to the highest standards of customer satisfaction and service.
1-2 Warranty and repair service information

Precautions
1-2 Copyright© 1995-2011 SAMSUNG. All rights reserved.
<Table. 1-1 Warranty Periods for Parts>
(2) Limited Warranty
It reserves the right to retain any parts or components replaced at its discretion in the event of a defect no-
ticed in the product. The period with respect to retaining components may vary respectively depending on its
components. We are not liable to repair or replace its faulty product after the Warranty Period has expired.
* We warrant its retaining camera and lenses for ve years and three years for the accessories.
a. If a warranty claim is led after the product has been discontinued, we reserves the right to honor the
components warranty. Warranty period may vary depending on the type of components.
b. In the event that no identical warranty information is available for service repair, company has the right to provide warranty.
The warranty does not affect the consumers' rights against the company related to its information.
For the length of the period indicated on the chart below, it starts with the date of original purchase.
Part Name Warranty Period
Battery Charger
Six months
AC Adaptor
Battery
Remote Control
CD Software Three months
Earphone
Pouch for camera Not applicable
Cable
(3) Warranty Period for components
Our liability under this warranty shall be limited to the following:
a. In the event of a same malfunction problem within two months after repair service by Samsung authorized technician,
we will repair or replace free of charge the component of the product which is found to be defective.
b. In the event of the component that you have paid the replacement cost is returned under normal use within one year at our premises,
such components will be replaced free of charge component of the product which is found to be defective.

Precautions
Copyright© 1995-2011 SAMSUNG. All rights reserved. 1-3
<Table. 1-2 Warranty Period for components>
Types of consumer damages Compensation
Failing to perform or
failing to function properly
under normal use
Required for essential repair within 10 days
after the purchase
Replace the prod-
uct or refund -
Required for essential repair within one
month after the purchase
Replace the
product or repair
at free of charge
Repair charges
Applicable
to repair
Problem occurred twice
due to same malfunction Free of charge
Problem occurred three
times due to same
malfunction
Replace the prod-
uct or refund
Repair charges
Problem occurred four
times due to some other
malfunction
Not applicable
to repair
Within the period with
respect to retaining
components
Replace the product at the cost of the
depreciated value or refund its price
added 10% of depreciation
Failing to perform or
failing to function properly
as a result of willful intent
and negligence of
customer
Applicable repair Repair charges
Not applicable to repair
(Except for defects or malfunction as a result
of re or ood or other natural disasters
Replacement
charge
Repair charge and replace the prod-
uct at the cost of the depreciated value
(4) Repair Claims
1) Repair free of charge
Essentially, the following causes of damage are covered:
a. Failing to function properly under normal use during the limited warranty period.
b. Repair Services free of charge is granted for the performance of a specic contract.
2) Repair charges
This warranty does not cover damage caused by:
a. Defect occurring after the expiration of the Warranty Period.
b. Damage due to negligence, immersion in water, impact, loss and tampering.
c. Repair or alteration performed by any party other than Samsung authorized technicians.
d. Misuse or other improper use of the power button.
e. Exhausted parts such as batteries, lamps and lters, etc.
f. Defect that occurs due to sand, dirt liquid, etc. entering the inside of the product casing.
g. Consumable parts which have ceased working through normal use such as as earphone, battery discharger and various accessories.
h. Products purchased second hand or any damage that occurs due to a second hand or repair performed
by anyone other than Samsung or a Samsung authorized service station.
i. Fire, earthquake, ood or other natural disasters.
The warranty cover period for components is listed below as per table 1-2.

Precautions
1-4 Copyright© 1995-2011 SAMSUNG. All rights reserved.
Component Precautions
FPCB FPCB is brittle material. It can be easily damaged thus it should be handled with care.
It is recommended to use wooden or plastic tweezers for manual placement.
CCD (CMOS)
IR CUT Filter
LCD, LENS
Be careful not to stained your nger. It is recommended to use wooden or plastic tweezers
for manual placement. Stain is often caused by the Alcohol used in these components.
Find a clean, well-ventilated place to do your work.
PCB Use an anti-static mat as well as an anti-static wrist strap to avoid ESD damage to PCB.
CONNECTOR The use wooden or plastic tweezers is recommended for manual placement.
Metal tip tweezer might make marks or damage.
BARREL Always follow proper direction while assembling the components of the barrel.
<Table. 1-3 Precaution for disassembly and reassembly>
CAUTION
!
1. Use the anti-static handing procedures included with the anti-static mat to ensure that there is no electrostatic
discharge and component damage.
2. Static electricity is the biggest danger to the PCB parts you are about to disassemble or assemble. It’s important
to use your anti-static wrist strap to prevent damage to these components.
3. Dismantling a discrete electronic component such as main capacitor is dangerous.
The capacitor contains high voltage, which can cause a severe electric shock if you touch it. This holds a
charge even when the unit is not plugged in and is capable of delivering a fatal shock.
4. Using excessive force during disassembly and assembly can damage locking parts. Use care when handling
“Locking parts” to avoid damage to FPCB or wire. Apply pressure only at the points designated in the maintenance
instructions.
5. Due to increasing environmental concerns, a number of restrictions have been placed on the material content
of electronic components and electronic assemblies. It requires utilizing Lead-Free (Pb-free) Soldering.
6. The following precautions must be observed when handling such components below.
1-3 Precaution for disassembly and reassembly

Product specications
Copyright© 1995-2012 SAMSUNG. All rights reserved. 2-1
Image sensor
Type 1/2.3” (Approx. 7.76 mm) CCD
Effective pixels Approx. 14.2 mega-pixels
Total pixels Approx. 16.4 mega-pixels
Lens
Focal length Samsung Lens f = 4.0–72.0 mm
(35 mm lm equivalent: 24–432 mm)
F-stop range F3.2(W)–F5.8(T)
Zoom • Still image mode: 1.0–18.0X
• Playback mode: 1.0–14.4X (depending on image size)
Display
Type TFT LCD
Feature 3.0” (75.0 mm) 460K
Shutter speed
Shutter speed
• Smart Auto: 1/8–1/2,000 sec.
• Program: 1–1/2,000 sec.
• Night: 8–1/2,000 sec.
• Manual: 16–1/2,000 sec.
Exposure
ISO equivalent Auto, ISO 100, ISO 200, ISO 400, ISO 800, ISO 1600, ISO 3200
Flash
Range • Wide: 0.3–3.38 m (ISO Auto)
• Tele: 0.5–1.51 m (ISO Auto)
Shake reduction
Type Optical Image Stabilization (OIS)
Storage
Media
• Internal memory: Approx. 9.5 MB
• External memory (Optional):
- SD card (2 GB guaranteed)
- SDHC card (up to 32 GB guaranteed)
- SDXC card (up to 64 GB guaranteed)
Interface
Digital output connector USB 2.0
DC power input connector 5.0 V
Power source
Rechargeable battery Lithium-ion battery (SLB-10A, 1,030 mAh)
Connector Type Micro USB (5 pin)
Wight & Dimensions
Wight 6.49 oz(without battery and memory card)
Dimensions 4.18 X 2.43 X 0.85 in(excluding protrusions)
<Table. 2-1 Specications>
2-1 Specifications
2. Product specifications

Product specications
2-2 Copyright© 1995-2012 SAMSUNG. All rights reserved.
<Table. 2-2 Product comparison>
Model
Specs WB200F WB150F
Product
Image Sensor 1/2.3” (Approx. 7.76 mm) CCD 1/2.3” (Approx. 7.76 mm) CCD
Effective pixels Approx. 14.2 mega-pixels Approx. 14.2 mega-pixels
Total pixels Approx. 16.4 mega-pixels Approx. 16.4 mega-pixels
Wight 6.49 oz(without battery and memory card) 6.64 oz(without battery and memory card)
Dimensions 4.18 X 2.43 X 0.85 in(excluding protrusions) 4.19 X 2.36 X 0.92 in(excluding protrusions)
LCD TFT LCD, 3.0” (75.0 mm) 460K TFT LCD, 3.0” (7.62 cm) 460K
Zoom • Still image mode: 1.0–18.0X
• Playback mode: 1.0–14.4X
• Still image mode: 1.0–18.0X
• Playback mode: 1.0–14.4X
Shutter
Speeds
• Auto: 1/8-1/2,000 sec.
• Program: 1-1/2,000 sec.
• Manual: 16-1/2,000 sec.
• Night: 8-1/2,000 sec.
• Auto: 1/8-1/2,000 sec.
• Program: 1-1/2,000 sec.
• Manual: 16-1/2,000 sec.
• Night: 8-1/2,000 sec.
ISO Range Auto, ISO 100, ISO 200, ISO 400, ISO 800,
ISO 1600, ISO 3200
Auto, ISO 80, ISO 100, ISO 200, ISO 400, ISO 800,
ISO 1600, ISO 3200
Focal Length Samsung Lens f = 4.0–72.0 mm
(35 mm lm equivalent: 24–432 mm)
Schneider-KREUZNACH Lens f = 4.0–72.0 mm
(35 mm lm equivalent: 24–432 mm)
Storage
• Internal memory: Over 9.5 MB
• External memory (Optional):
- SD card (2 GB guaranteed)
- SDHC card (up to 32 GB guaranteed)
- SDXC card (up to 64 GB guaranteed)
• Internal memory: Approximately 18 MB
• External memory (Optional):
- SD card (1–2 GB guaranteed)
- SDHC card (up to 32 GB guaranteed)
- SDXC card (up to 64 GB guaranteed)
Stabilization Optical Image Stabilization (OIS) Optical Image Stabilization (OIS)
Wireless network
MobileLink, Remote Viewnder, SNS & Cloud, Email,
S/W Upgrade Notier, AllShare Play, Auto Backup,
AutoShare
Social Sharing, Email, MobileLink, Remote Viewnder,
Cloud, Auto Backup, TV Link, Wi-Fi Direct, Authentication
Browser
Battery Source Lithium-ion battery (SLB-10A, 1,030 mAh) Lithium-ion battery (SLB-10A, 1,030 mAh)
Power source
connect type Micro USB (5 pin) Micro USB (5 pin)
2-2 Product comparison

Product specications
Copyright© 1995-2012 SAMSUNG. All rights reserved. 2-3
<Table. 2-3 Packing items information>
image Description Parts No.
Packing
items
Camera
WB200F
/WB201F
/WB202F
AC adapter
AD5055_EXP AD44-00183A
AD5055_CHI AD44-00184A
AD5055_USA AD44-00179A
AD5055_UK AD44-00182A
AD5055_AUS AD44-00185A
AD5055_ARG AD44-00181A
AD5055_INDIA AD44-00205A
AD5055_BRA AD44-00180A
USB cable
AD39-00190A
Battery 4302-001221
Strap
BLACK AD63-07111A
SILVER AD63-07112A
WHITE AD63-07284A
Quick Start Guide
QSG_S.CHI_WB200F AD68-07669A
QSG_EUR1_WB200F AD68-07670A
QSG_EUR2_WB200F AD68-07671A
QSG_EUR3_WB200F AD68-07672A
QSG_ASIA_WB200F AD68-07673A
QSG_CANADA_WB200F AD68-07674A
QSG_SEA_WB200F AD68-07675A
QSG_TUR_WB200F AD68-07676A
2-3 Accessories information

Product specications
2-4 Copyright© 1995-2012 SAMSUNG. All rights reserved.
<Table. 2-4 Optional items information>
image Description Parts No.
Optional
items
Camera case
CC9S71N AD69-03285A
CC9S70B AD69-03284A
CC9S30B AD69-03283A
CC9U21B/P
AD69-02964A
AD69-03010A
CC9U11B AD69-02397B
A/V cable
AD39-00191A
Memory card
2G 1109-001378
4G 1109-001420
8G 1109-001396
Memory card adapter 3719-001319

Product specications
Copyright© 1995-2012 SAMSUNG. All rights reserved. 2-5
<Table. 2-5 Memory card capacity>
* The gures above are measured without using the zoom function. Available
recording time may vary if you use the zoom. Several videos were recorded
in succession to determine the total recording time.
The memory capacity may differ depending on shooting scenes or shooting conditions.
These capacities are based on a 2 GB microSD card:
Size Super Fine Fine Normal
P
h
o
t
o
s
4,320 X 3,240 248 489 722
4,320 X 2,880 277 546 805
4,320 X 2,432 325 638 940
3,648 X 2,736 341 669 984
2,832 X 2,832 418 817 1,196
2,592 X 1,944 638 1,228 1,777
1,984 X 1,488 1,006 1,897 2,692
1,920 X 1,080 1,329 2,461 3,437
1,024 X 768 2,508 4,359 5,780
Size 30 FPS
*V
i
d
e
o
s
1,280 X 720 Approx. 25' 53"
640 X 480 Approx. 46' 12"
320 X 240 Approx. 257' 31"
For Sharing Approx. 257' 31"
2-4 About the memory card

Product specications
2-6 Copyright© 1995-2012 SAMSUNG. All rights reserved.
<Table. 2-6 Battery specications>
<Table. 2-5 Battery life>
Specication Description
Model SLB-10A
Type Lithium-ion battery
Cell capacity 1,030 mAh
Voltage 3.7 V
Charging time
*(when the camera is switched off) Approx. 240 min
* Charging the battery by connecting it to a computer may take longer.
Average shooting time/ Number of photos Test conditions (when the battery is fully charged)
Photos Approx. 170 min/
Approx. 340 photos
The battery life was measured under the following conditions: in Pmode,
in darkness, resolution, Fine quality OIS on.
1. Set the ash option to Fill in, take a single shot, and zoom in or out.
2. Set the ash option to Off , take a single shot, and zoom in or out.
3. Perform steps 1 and 2, waiting 30 seconds between each step.
Repeat the process for 5 minutes, and then turn off the camera for 1 minute.
4. Repeat steps 1 to 3.
Videos Approx. 130 min Record videos at resolution and 30 FPS.
• The gures above are measured by Samsung’s standards. Your results may differ,
depending on your actual usage.
• Several videos were recorded in succession to determine the total recording time.
• When using network functions, the battery will be depleted more quickly.
2-5 About the battery

Copyright© 1995-2012 SAMSUNG. All rights reserved. 3-1
Disassembly and reassembly
3-1 Disassembly of main unit
3. Disassembly and reassembly
1. Remove the two SCREWS on the right side, two SCREWS on the left side, two SCREWS on the bottom side.
Fig. 3-1
SCREW-MACHINE_1440
6001-002152
SCREW-MACHINE_1440
6001-002152
SCREW-MACHINE_1440
6001-002152

Disassembly and reassembly
3-2 Copyright© 1995-2012 SAMSUNG. All rights reserved.
Fig. 3-3
Fig. 3-2
2. Insert open pry tool around the join of locking structure part to release
the ASSY COVER BACK as illustrated in image below.
3. Remove the ASSY COVER FRONT with ASSY COVER BACK.
ASSY COVER BACK
ASSY COVER BACK
ASSY COVER FRONT

Copyright© 1995-2012 SAMSUNG. All rights reserved. 3-3
Disassembly and reassembly
4. Remove the four SCREWS of ASSY COVER FRONT.
5. Remove the ASSY DECO RING.
Fig. 3-4
Fig. 3-5
ASSY DECO RING
SCREW-TAPTYPE_1425
6003-001674

Disassembly and reassembly
3-4 Copyright© 1995-2012 SAMSUNG. All rights reserved.
Fig. 3-6
Fig. 3-7
6. Discharge.
7. Remove the one SCREW of ASSY-KEY_FPCB.
CAUTION
!
It must be processed for discharge to the main condenser as shown in the below picture.
Discharging
SCREW

Copyright© 1995-2012 SAMSUNG. All rights reserved. 3-5
Disassembly and reassembly
8. Flip over direction of the right a ASSY-KEY_FPCB.
9. Flip over direction of the right a ASSY LCD.
Fig. 3-8
Fig. 3-9
ASSY-KEY_FPCB
ASSY LCD

Disassembly and reassembly
3-6 Copyright© 1995-2012 SAMSUNG. All rights reserved.
Fig. 3-10
Fig. 3-11
10. Remove the two FPCB as illustrated in " Fig. A", " Fig. B".
11. Remove the three SCREW.
CAUTION
!
Use extra care when removing the FPCB from the connector.
1. It is installed. 2. Remove.
Fig. A
1. Open. 2. Remove.
② Remove the FPCB from the connector.①Remove the FPCB.
Fig. B
①
②
SCREW
FPCB
FPCB

Copyright© 1995-2012 SAMSUNG. All rights reserved. 3-7
Disassembly and reassembly
①
②
Fig. 3-12
Fig. 3-13
12. Remove theASSY FRAME-MAIN.
ASSY FRAME-MAIN
13. Remove the WI-FI antena and FPCB adhesion part as illustrated in " Fig. C".
14. Remove the FPCB from the CONNECTOR as indicated in " Fig. D", " Fig. E".
CAUTION
!
Use extra care when removing the FPCB from the connector.
Remove the WiFi antenna.
1. It is installed.
2. Remove.
Fig. C Fig. D
1. Open. 2. Remove.
① Remove the FPCB from the connector.
FPCB FPCB
②Remove theFPCB.
FPCB
FPCB
1. It is installed
Fig. E
2. Remove.
