Samsung DMT800 Series User manual

These installation instructions are intended
for use by qualified installers,
!f you are having problems installing this dishwasher
Please call : 1_800_SAMSUNG (726,7864)
for assistanCe: Wwwlsamsung:com
the possibilities
Thank you for purchasing this Samsung
product. To recewe more complete service.
please register your product at
www.samsung.com/register
DMT800_installation_DD68-00046A.indb 1 2010-05-04 d]4:07:00

Throughout this manual, you'll see Warning and Caution notes. These warnings,
cautions, and the important safety instructions that follow do not cover all
possible conditions and situations that may occur. It's your responsibility to use
common sense, caution, and care when installing, maintaining, and operating the
dishwasher. Samsung is not liable for damages resulting from improper use.
IMPORTANT SAFETY INSTRUCTIONS
What the icons and signs in this installation guide mean:
Z_ Hazards or unsafe practices that may result in severe personal injury or
WARNING death.
/_ Hazards or unsafe practices that may result in personal injury or property
CAUTION damage.
To reduce the risk of fire, explosion, electric shock, or personal injury when
CAUTION using the dishwasher, follow these basic safety precautions:
Follow directions explicitly.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
Read all instructions before using the appliance.
Install and store the dishwasher inside, away from exposure to weather.
z_Do not install the dishwasher near electrical components. Keep the dishwasher away from
oAoT,o,open flames.
Do NOT install the dishwasher on a carpet as this is a fire hazard.
Do NOT install the dishwasher in a location where the water may freeze (where the
temperature falls below 32 °F (0 °C)).Frozen water in the hoses or pipes may damage the
dishwasher.
@
As with all any equipment using electricity, water and moving parts, potential hazards exist.
Tosafely operate this appliance, become familiar with its operation and exercise care when
using it.
The dishwasher must be properly grounded. Never connect it to an ungrounded outlet.
Prior to removal of original dishwasher and the installation of your new unit, make sure to
switch off your circuit breaker. Do not connect the dishwasher until you have completed the
installation. Connecting the power cable is the last step when installing the dishwasher.
All wiring and grounding must be done in accordance with the electrical code applicable to
the region.
2 safety instmctons

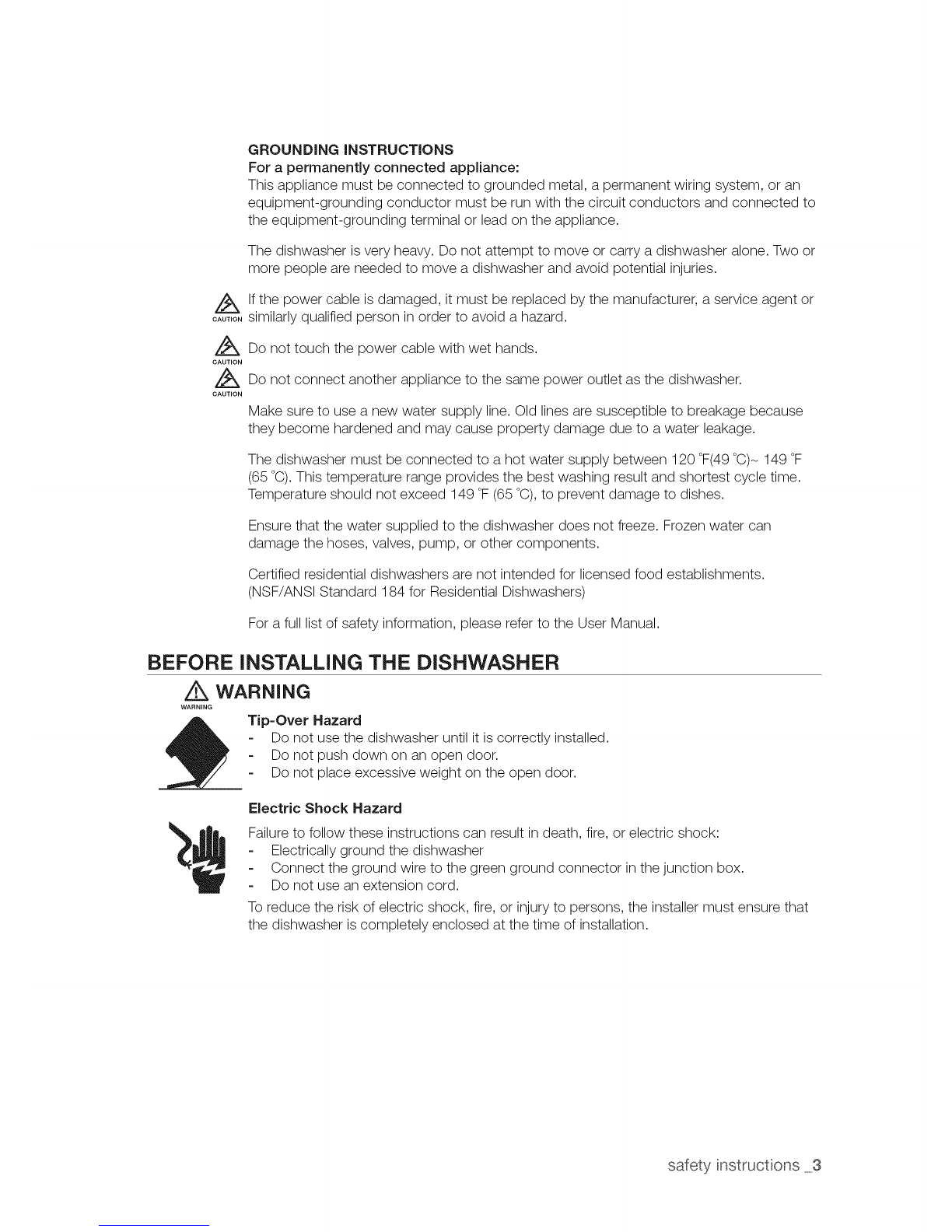

GROUNDING iNSTRUCTiONS
For a permanently connected appliance:
This appliance must be connected to grounded metal, a permanent wiring system, or an
equipment-grounding conductor must be run with the circuit conductors and connected to
the equipment-grounding terminal or lead on the appliance.
The dishwasher is very heavy. Do not attempt to move or carry a dishwasher alone. Two or
more people are needed to move a dishwasher and avoid potential injuries.
_lf the power cable is damaged, it must be replaced by the manufacturer, a service agent or
....... similarly qualified person in order to avoid a hazard.
CAUTION
CAUTION
Do not touch the power cable with wet hands.
Do not connect another appliance to the same power outlet as the dishwasher.
Make sure to use a new water supply line. Old lines are susceptible to breakage because
they become hardened and may cause property damage due to a water leakage.
The dishwasher must be connected to a hot water supply between 120 °F(49°C)- 149 °F
(65 °C).This temperature range provides the best washing result and shortest cycle time.
Temperature should not exceed 149 °F (65 °C),to prevent damage to dishes.
Ensure that the water supplied to the dishwasher does not freeze. Frozen water can
damage the hoses, valves, pump, or other components.
Certified residential dishwashers are not intended for licensed food establishments.
(NSF/ANSI Standard 184 for Residential Dishwashers)
For a full list of safety information, please refer to the User Manual.
BEFORE INSTALLING THE DISHWASHER
Z_ WARNING
WARNING Tip-Over Hazard
Do not use the dishwasher until it is correctly installed.
Do not push down on an open door.
Do not place excessive weight on the open door.
Electric Shock Hazard
Failure to follow these instructions can result in death, fire, or electric shock:
Electrically ground the dishwasher
Connect the ground wire to the green ground connector in the junction box.
Do not use an extension cord.
To reduce the risk of electric shock, fire, or injury to persons, the installer must ensure that
the dishwasher is completely enclosed at the time of installation.
safety instructons 3

COAt AtS
PREPARING THE DISHWASHER
ENCLOSURE 5 Product dimensions
5 Cutout dimensions
INSTALLING THE DISHWASHER 6 STEP
8 STEP
9 STEP
10 STEP
11 STEP
12 STEP
13 STEP
14 STEP
15 STEP
17 STEP
18 STEP
1 Checking the parts and tools
2 Selecting the best location for the
dishwasher
3 Water supply requirements
4 Electrical requirements
5 Preparing the dishwasher
6 Placing the dishwasher and
connecting water supply line
7 Leveling the dishwasher
8 Securing the dishwasher
9 Connecting the drain hose
10 Wiring connections
11 Completing the installation
SPECIFICATIONS
s
4 contents

prep rncj the d
PRODUCT DiMENSiONS
Rear view .............................................................................
Side view i 27"(686mm)
(DMTS00 series/i
DMT400 series) i_
Side view
(DMT700 series)
; The water supply
line, power cable
and drain hose
should go through
this space.
CUTOUT DIMENSIONS
[_) This dishwasher is designed to be enclosed on
top and on both sides by a standard residential
kitchen unit.
24" (610 mm)
minimum
24" (610 mm)
minimum
preparng the dishwasher enclosure 5

Be sure that you or your installer follow these instructions closely so that the new
dishwasher works properly and that you're not at risk of injury when washing
dishes,

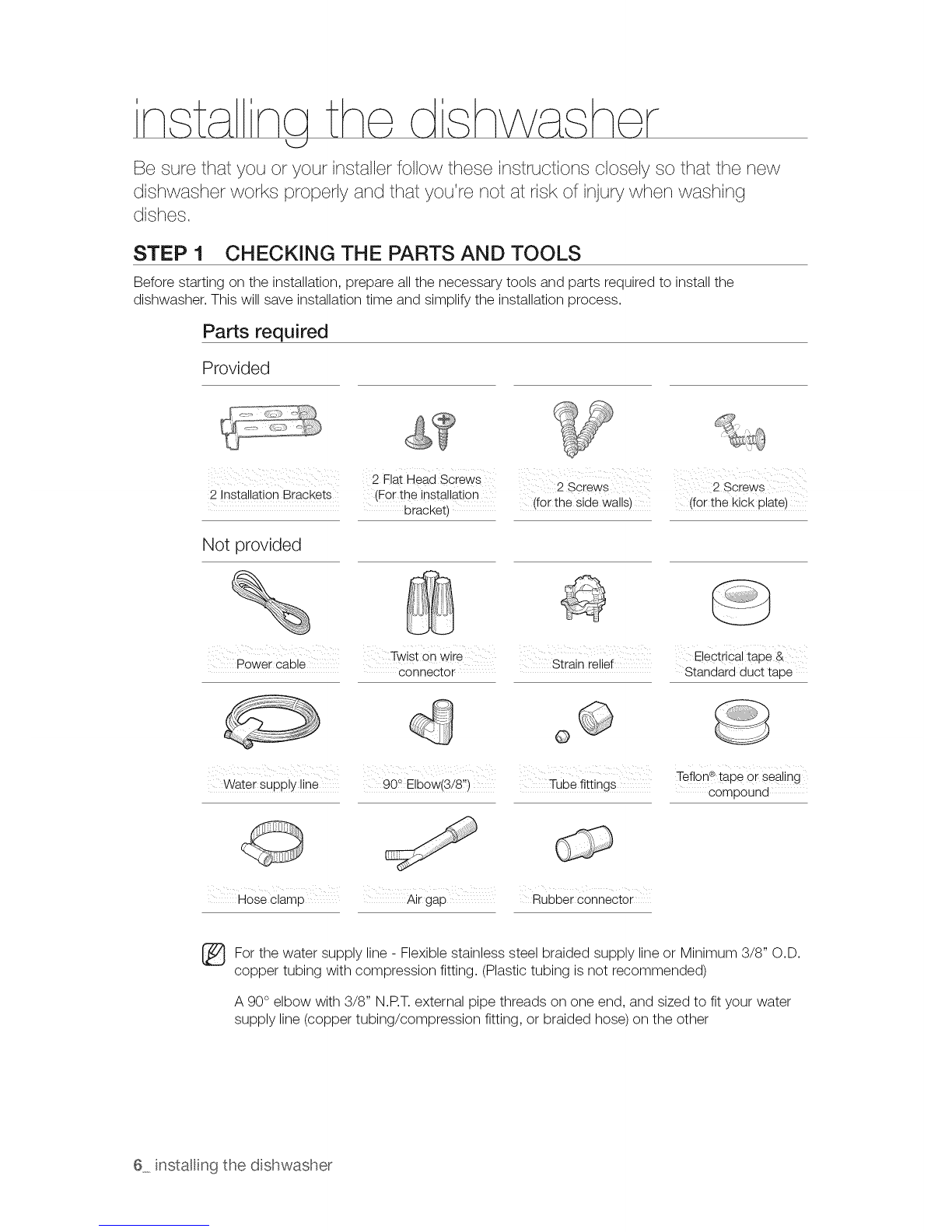

STEP 1 CHECKING THE PARTS AND TOOLS
Before starting on the installation, prepare all the necessary tools and parts required to install the
dishwasher. This will save installation time and simplify the installation process.
Parts required
Provided
2 InstallationBrackets
Not provided
2FlatHeadscrews
(E0rthe installation
bracket)
2 screws
(forthe sidewalls) 2screws
(forthe kiCkplate)
Power cable
Water Supply line
Twist on wire Strain relief
connector
90i ElboW(3/81') Tubefittings
EleCtriCal tape &
Standard duct tape
®
TeflonFtape Or.sealing
compound
Hoseclamp Air gap Rubberconnector
For the water supply line - Flexible stainless steel braided supply line or Minimum 3/8" O.D.
copper tubing with compression fitting. (Plastic tubing is not recommended)
A 90° elbow with 3/8" N.P.T.external pipe threads on one end, and sized to fit your water
supply line (copper tubing/compression fitting, or braided hose) on the other
6 instaling the dshwasher

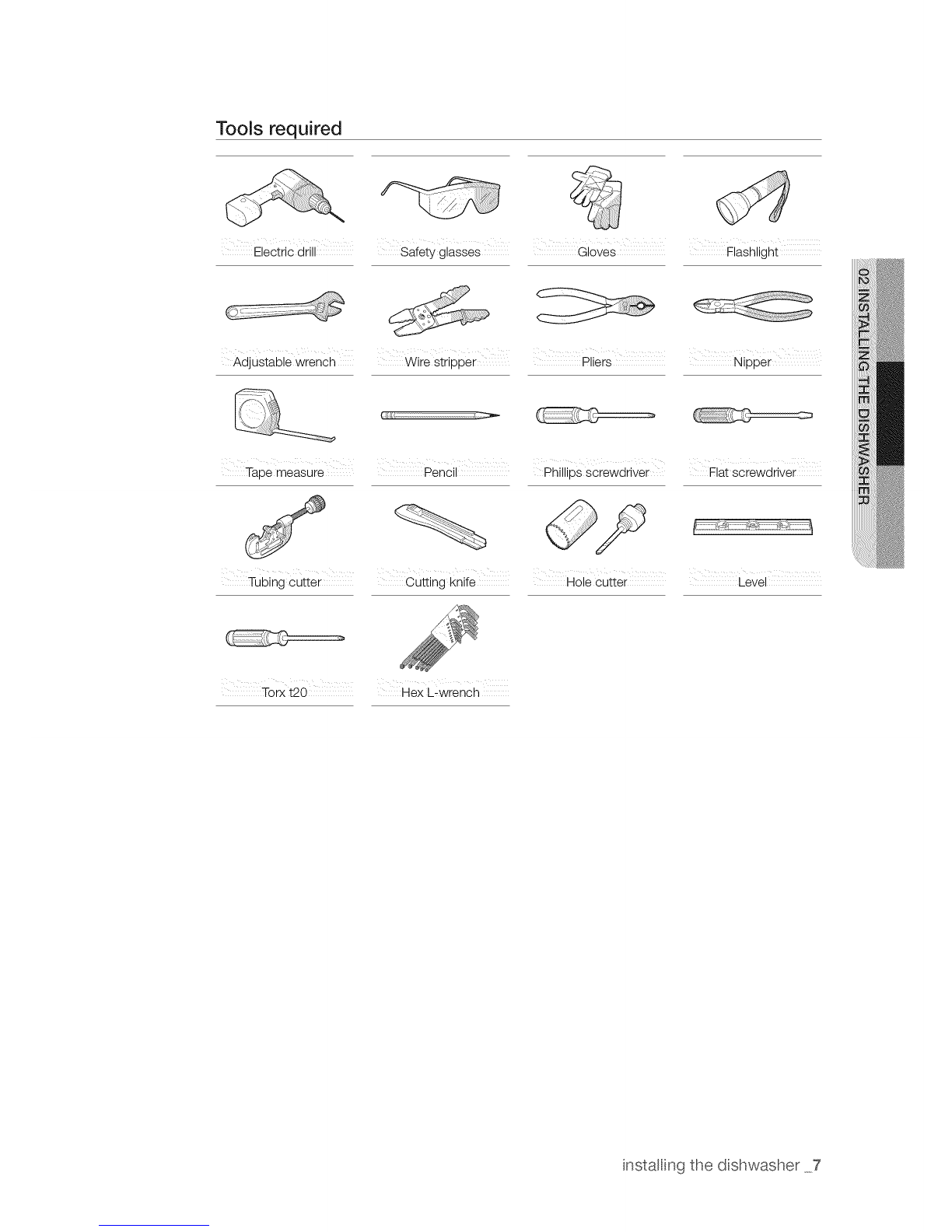

Tools required
Electric drill Safety glasses Gloves Flashlight
Adjustable wrench Wire stripper Pliers Nipper
(/i/((; A
Tape measure Pencil Phillips screwdriver Flat screwdriver
Tubing cutter Cutting knife H0ie cutter Level
Terx t20 Hex Dwrench
instaling the dshwasher 7

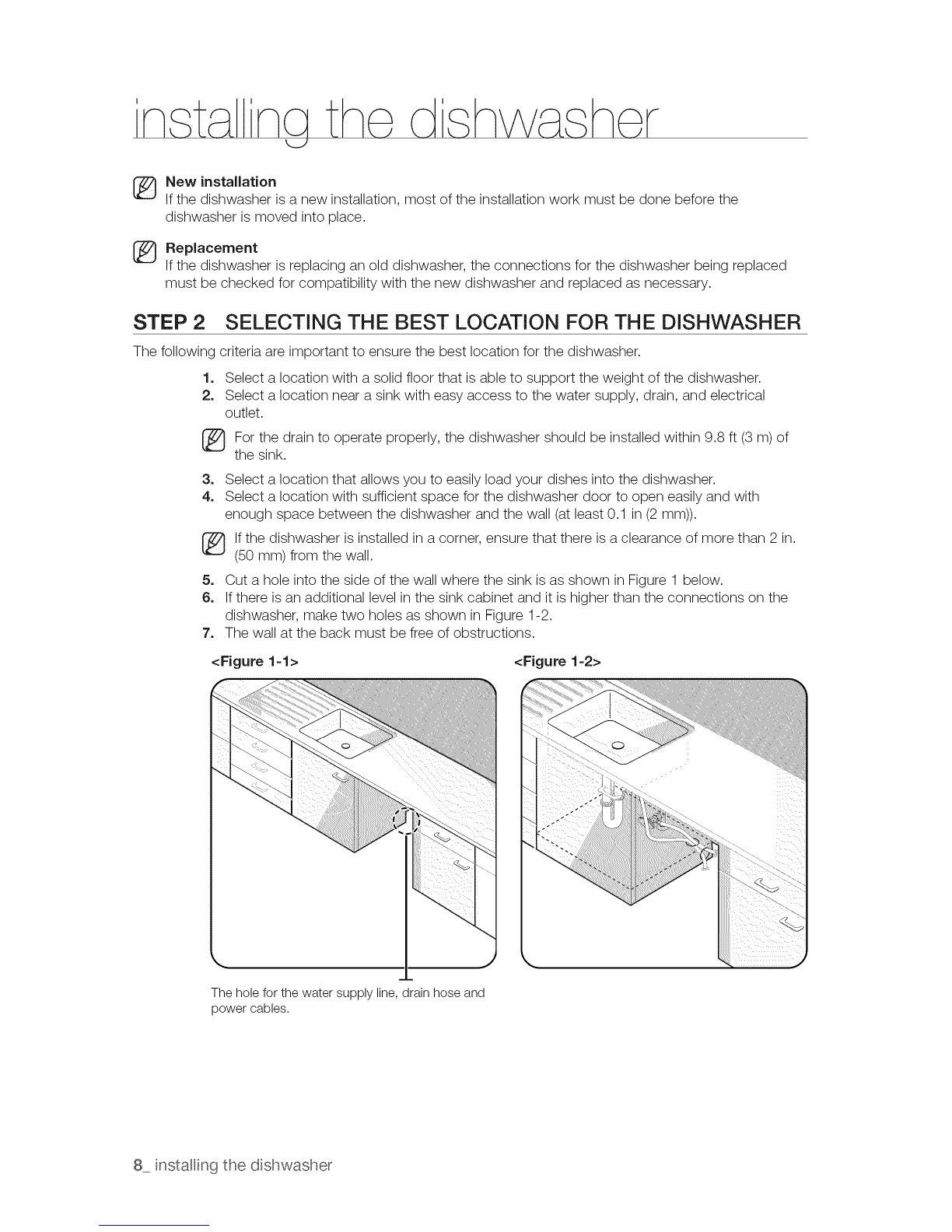

New installation
Ifthe dishwasher is a new installation, most of the installation work must be done before the
dishwasher is moved into place.
Replacement
Ifthe dishwasher is replacing an old dishwasher, the connections for the dishwasher being replaced
must be checked for compatibility with the new dishwasher and replaced as necessary.
STEP 2 SELECTING THE BEST LOCATION FOR THE DISHWASHER
The following criteria are important to ensure the best location for the dishwasher.
1. Select a location with a solid floor that is able to support the weight of the dishwasher.
2. Select a location near a sink with easy access to the water supply, drain, and electrical
outlet.
For the drain to operate properly, the dishwasher should be installed within 9.8 ft (3 m) of
the sink.
3. Select a location that allows you to easily load your dishes into the dishwasher.
4. Select a location with sufficient space for the dishwasher door to open easily and with
enough space between the dishwasher and the wall (at least 0.1 in (2 mm)).
Ifthe dishwasher is installed in a corner, ensure that there is a clearance of more than 2 in.
(50 mm) from the wall.
5. Cut a hole into the side of the wall where the sink is as shown in Figure 1 below.
6. If there is an additional level in the sink cabinet and it is higher than the connections on the
dishwasher, make two holes as shown in Figure 1-2.
7. The wall at the back must be free of obstructions.
<Figure 1-1> <Figure 1-2>
The hole for the water supply line, drain hose and
power cables.
8 instaling the dshwasher

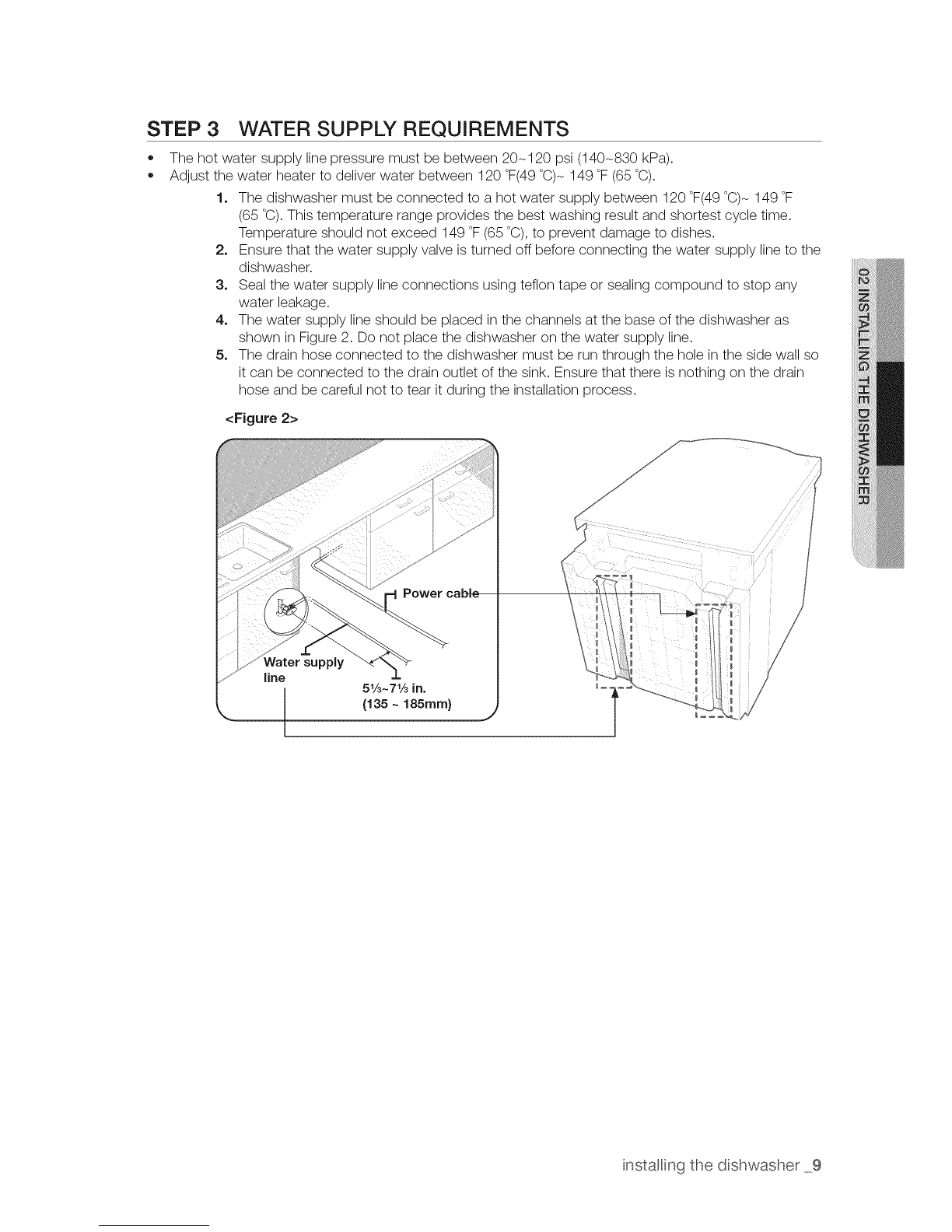

STEP 3 WATER SUPPLY REQUIREMENTS
The hot water supply line pressure must be between 20-120 psi (140-830 kPa).
Adjust the water heater to deliver water between 120 °F(49°C)- 149 °F(65 °C).
1, The dishwasher must be connected to a hot water supply between 120 °F(49°C)- 149 °F
(65 °C).This temperature range provides the best washing result and shortest cycle time.
Temperature should not exceed 149 °F(65 °C), to prevent damage to dishes.
2, Ensure that the water supply valve is turned off before connecting the water supply line to the
dishwasher.
3, Seal the water supply line connections using teflon tape or sealing compound to stop any
water leakage.
4, The water supply line should be placed in the channels at the base of the dishwasher as
shown in Figure 2. Do not place the dishwasher on the water supply line.
5, The drain hose connected to the dishwasher must be run through the hole in the side wall so
it can be connected to the drain outlet of the sink. Ensure that there is nothing on the drain
hose and be careful not to tear it during the installation process.
<Figure 2>
i
f_
i
l
f
/
I
/
/
installing the dishwasher _9

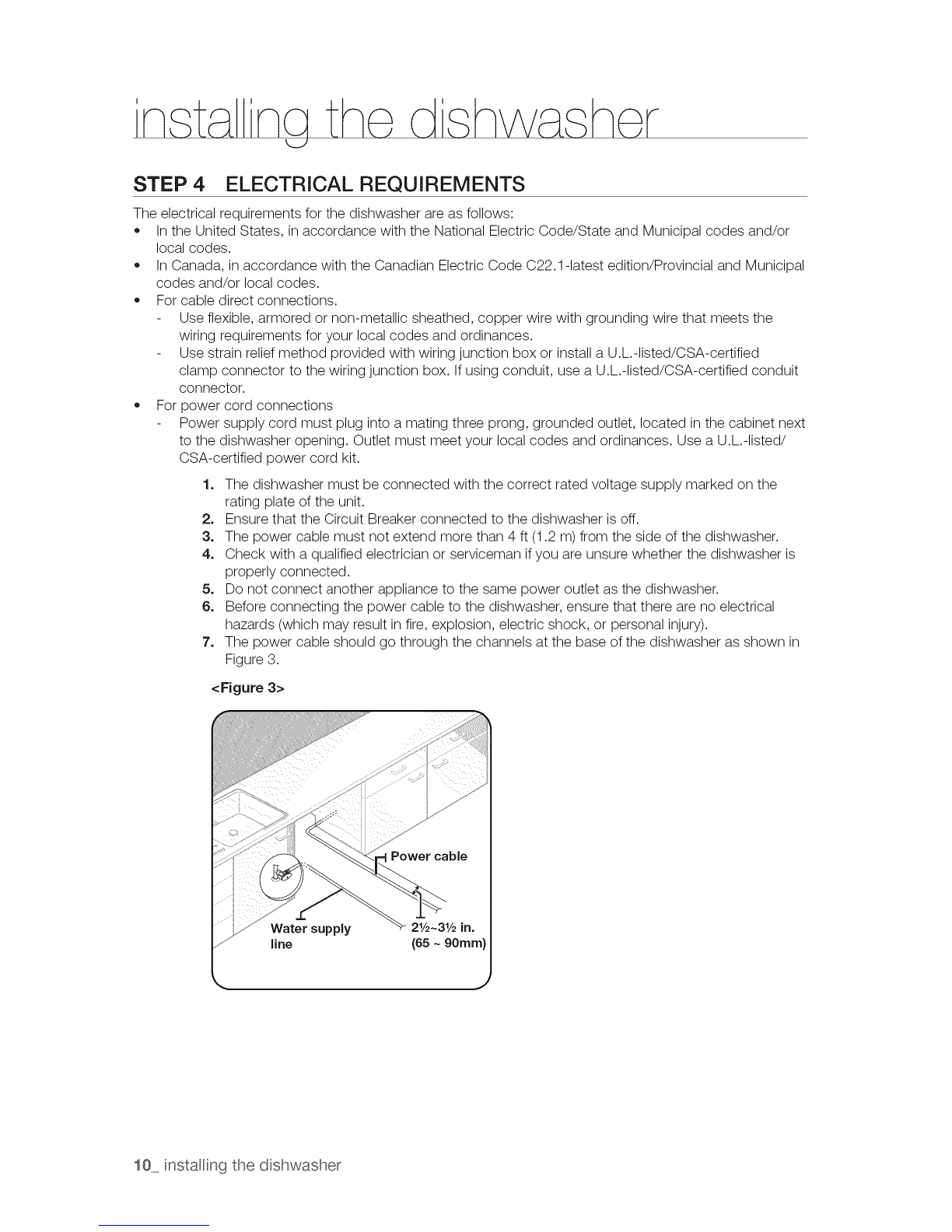

STEP 4 ELECTRICAL REQUIREMENTS
The electrical requirements for the dishwasher are as follows:
In the United States, in accordance with the National Electric Code/State and Municipal codes and/or
local codes.
In Canada, in accordance with the Canadian Electric Code C22.1-1atest edition/Provincial and Municipal
codes and/or local codes.
For cable direct connections.
Use flexible, armored or non-metallic sheathed, copper wire with grounding wire that meets the
wiring requirements for your local codes and ordinances.
Use strain relief method provided with wiring junction box or install a U.L.-listed/CSA-certified
clamp connector to the wiring junction box. If using conduit, use a U.L.-listed/CSA-certified conduit
connector.
For power cord connections
Power supply cord must plug into a mating three prong, grounded outlet, located in the cabinet next
to the dishwasher opening. Outlet must meet your local codes and ordinances. Use a U.L.-listed/
CSA-certified power cord kit.
1. The dishwasher must be connected with the correct rated voltage supply marked on the
rating plate of the unit.
2. Ensure that the Circuit Breaker connected to the dishwasher is off.
3. The power cable must not extend more than 4 ft (1.2 m) from the side of the dishwasher.
4. Check with a qualified electrician or serviceman if you are unsure whether the dishwasher is
properly connected.
5. Do not connect another appliance to the same power outlet as the dishwasher.
6. Before connecting the power cable to the dishwasher, ensure that there are no electrical
hazards (which may result in fire, explosion, electric shock, or personal injury).
2. The power cable should go through the channels at the base of the dishwasher as shown in
Figure 3.
<Figure 3>
10 installing the dishwasher

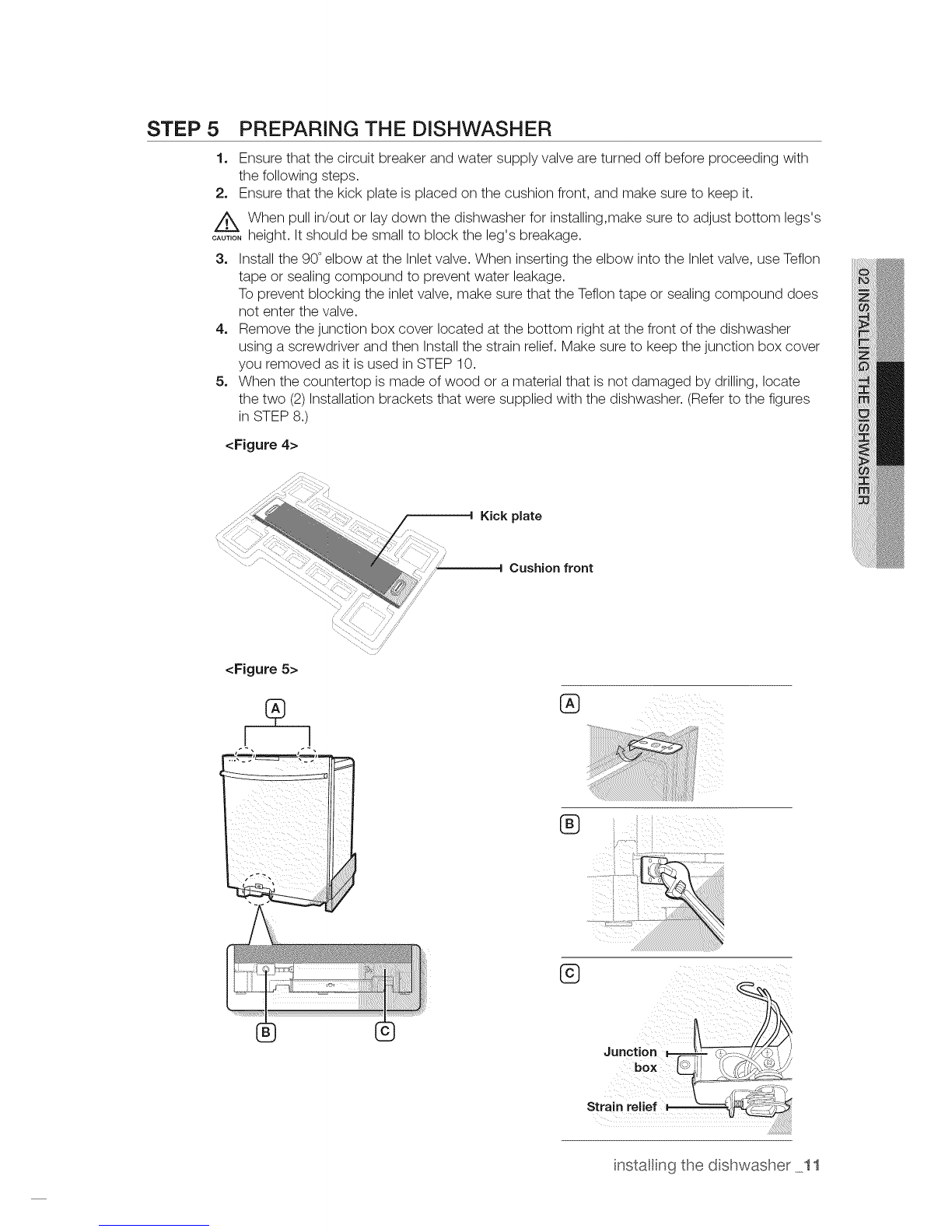

STEP 5 PREPARING THE DISHWASHER
1. Ensure that the circuit breaker and water supply valve are turned off before proceeding with
the following steps.
2. Ensure that the kick plate is placed on the cushion front, and make sure to keep it.
Z_ When pull in/out or lay down the dishwasher for installing,make sure to adjust bottom legs's
....... height. It should be small to block the leg's breakage.
3. Install the 90° elbow at the Inlet valve. When inserting the elbow into the Inlet valve, use Teflon
tape or sealing compound to prevent water leakage.
To prevent blocking the inlet valve, make sure that the Teflon tape or sealing compound does
not enter the valve.
4. Remove the junction box cover located at the bottom right at the front of the dishwasher
using a screwdriver and then Install the strain relief. Make sure to keep the junction box cover
you removed as it is used in STEP 10.
5. When the countertop is made of wood or a material that is not damaged by drilling, locate
the two (2) Installation brackets that were supplied with the dishwasher. (Refer to the figures
in STEP 8.)
<Figure 4>
Kick plate
<Figure 5>
®
I
|Cushion front
®
®
®
installing the dishwasher 11

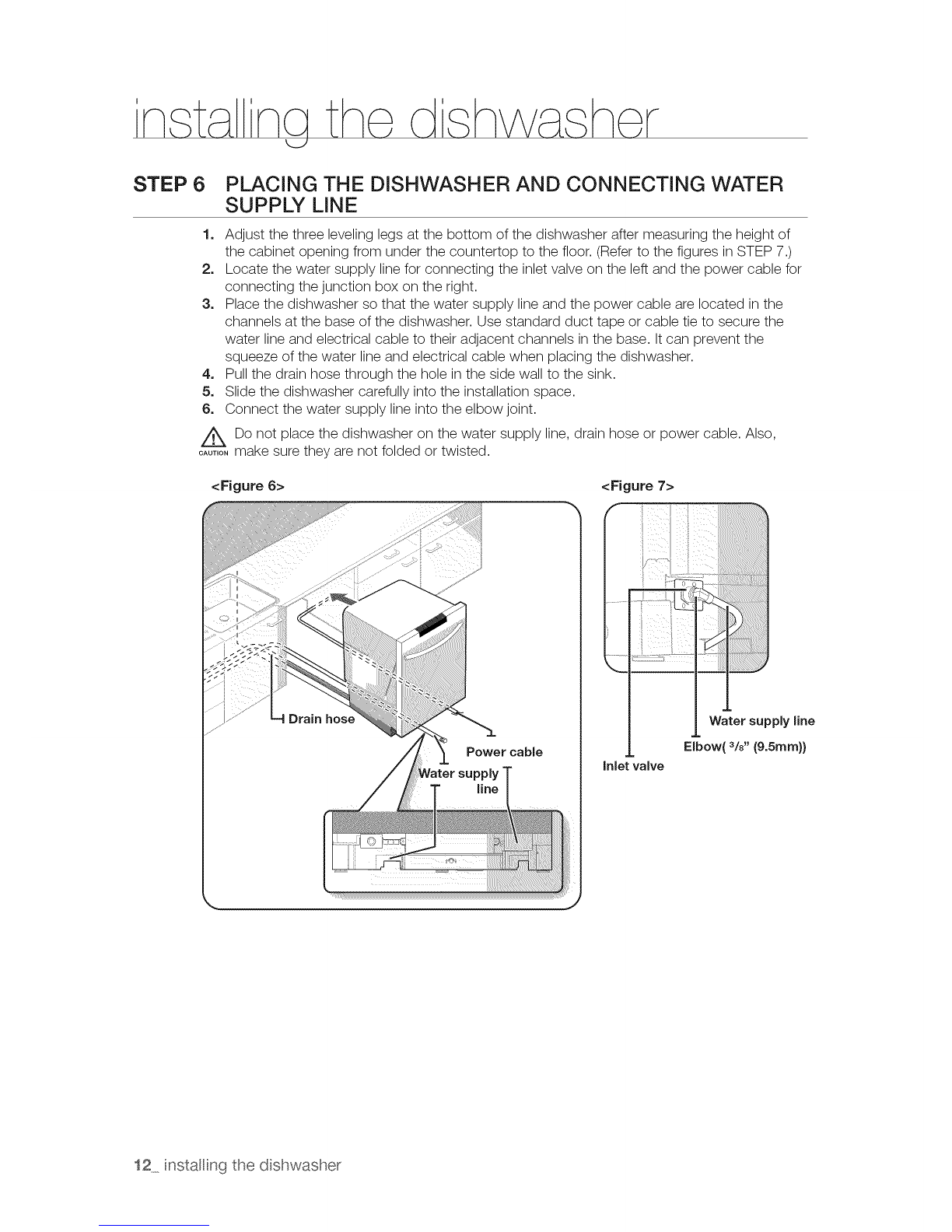

STEP 6 PLACING THE DISHWASHER AND CONNECTING WATER
SUPPLY LINE
1. Adjust the three leveling legs at the bottom of the dishwasher after measuring the height of
the cabinet opening from under the countertop to the floor. (Refer to the figures in STEP 7.)
2. Locate the water supply line for connecting the inlet valve on the left and the power cable for
connecting the junction box on the right.
3. Place the dishwasher so that the water supply line and the power cable are located in the
channels at the base of the dishwasher. Use standard duct tape or cable tie to secure the
water line and electrical cable to their adjacent channels in the base. It can prevent the
squeeze of the water line and electrical cable when placing the dishwasher.
4. Pull the drain hose through the hole in the side wall to the sink.
5. Slide the dishwasher carefully into the installation space.
6. Connect the water supply line into the elbow joint.
_Do not place the dishwasher on the water supply line, drain hose or power cable. Also,
....... make sure they are not folded or twisted.
<Figure 6> <Figure 7>
r
Water supply line
Elbow( 3/8" (9.5ram}}
Inlet valve
12 instaling the dishwasher

STEP 7
1.
2=
LEVELING THE DISHWASHER
Open the door and place the level against the top of the
tub from inside and check whether the dishwasher is level.
If it is not level, rotate the leveling legs at the bottom front
of the dishwasher until the dishwasher is level.
Check whether the dishwasher is upright (perpendicular),
as shown in the figure to the right.
3= Open the door of the dishwasher and
check whether both the tub and door
clearances are correct.
If not, rotate the leveling legs at the bottom
front of the dishwasher.
!
®Ifthe leveling legs are rotated to the left (counter
clockwise), they are loosened and the front of the
dishwasher is raised. Ifthey are rotated to the right
(clockwise), they are tightened and the front of the
dishwasher is lowered.
®Toadjusttheheightofarearleg, turntheHexbolt(at _ .> _
the front of the base) to the left to raise the back of .........................................................................................................
the dishwasher using the proper tool(Hex L-wrench or ......... .....
similar tool). 2,
_When pull out or lay down the dishwasher for installing,
....... make sure to adjust bottom leg's height. It should be tightened to block the leg's breakage.
installing the dishwasher 13

STEP 8 SECURING THE DISHWASHER
The dishwasher should be fixed to the countertop or side walls for additional stability and safety.
1, When the countertop is made of wood or the material will not be damaged by drilling, follow
the instructions in 2-1 below.
When the countertop is made of granite, marble or any other kind of material that can be
damaged by drilling, follow the instructions in 2-2 below.
2-1, Check to connect the Installation brackets to the front top of the dishwasher as shown in
Figure 8. (If the Brackets are exposed under the countertop, cut them using a tool as shown
in Figure 8. Be careful that you are not hurt by the cutting plane.)
Attach the dishwasher to the countertop by fastening the screw through the hole.
2-2, Open the door and remove the tub spacer caps on both sides of the tub. Insert the screws
into both sides of the tub except for the tub spacer cap and secure the dishwasher to the
side walls by fastening them as shown in Figure 9. At this time, fasten the screws and ensure
that the tub is not distorted.
After fastening the screws, place the tub spacer caps into original location of the dishwasher.
The screws or tub spacer cap may fall into the dishwasher while you are working
with the door open. Cover the interior of the dishwasher with a towel to prevent any
screws from falling into the dishwasher. If any foreign items such as a screw get into
the dishwasher, it may cause noise, an abnormal operation, damage, or a product
malfunction.
Use a magnetic screwdriver to help prevent screws from falling into the dishwasher.
Ifa foreign item such as a screw gets into the dishwasher and you are unable to remove
it, it needs to be disassembled. Contact a qualified service technician for this.
<Figure 8>
Screw to countertop
<Figure 9>
Q
Tub spacer cap
Screw to side wall
14 instaling the dishwasher

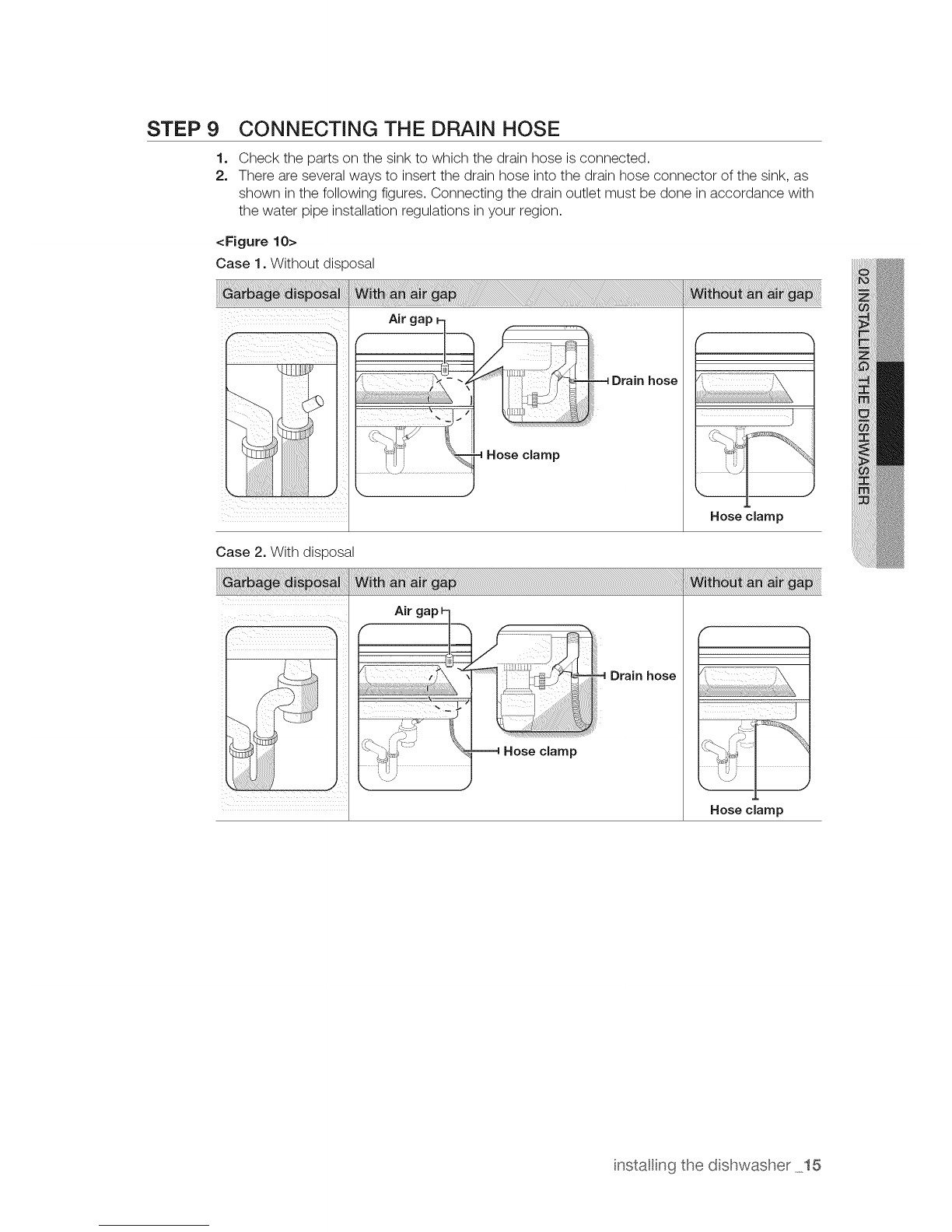

STEP 9 CONNECTING THE DRAIN HOSE
1,
2. Check the parts on the sink to which the drain hose is connected.
There are several ways to insert the drain hose into the drain hose connector of the sink, as
shown in the following figures. Connecting the drain outlet must be done in accordance with
the water pipe installation regulations in your region.
<Figure 10>
Case 1. Without disposal
Drain hose
-_ Hose clamp
Hose clamp
Case 2. With disposal
',__/'
Hose clamp
Hose clamp
installing the dishwasher 15

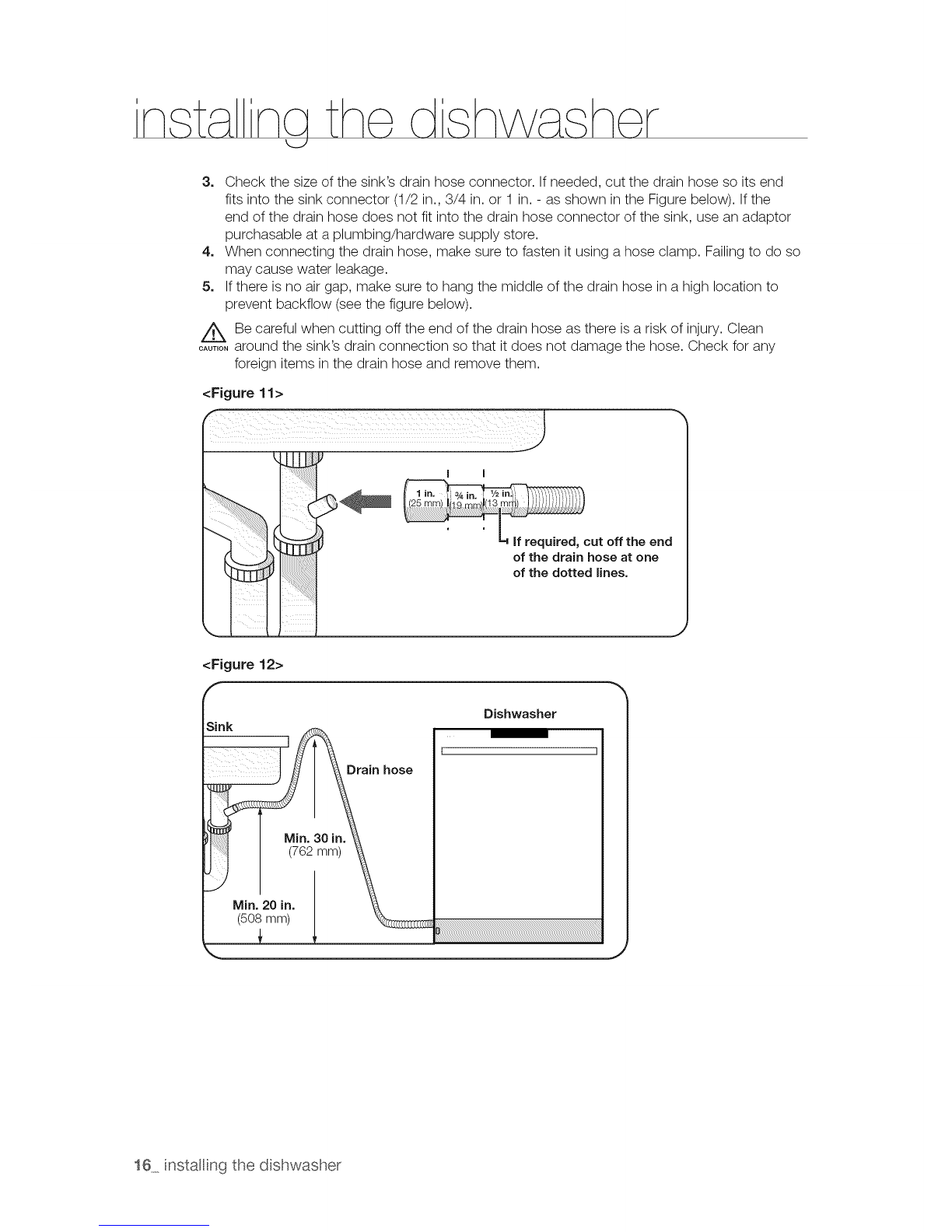

3, Check the size of the sink's drain hose connector. If needed, cut the drain hose so its end
fits into the sink connector (1/2 in., 3/4 in. or 1 in. - as shown in the Figure below). If the
end of the drain hose does not fit into the drain hose connector of the sink, use an adaptor
purchasable at a plumbing/hardware supply store.
4, When connecting the drain hose, make sure to fasten it using a hose clamp. Failing to do so
may cause water leakage.
5, If there is no air gap, make sure to hang the middle of the drain hose in a high location to
prevent backflow (see the figure below).
_Be careful when cutting off the end of the drain hose as there is a risk of injury. Clean
....... around the sink's drain connection so that it does not damage the hose. Check for any
foreign items in the drain hose and remove them.
<Figure 11>
I I
__ ut off the end
of the drain hose at one
ofthe dotted lines.
J
<Figure 12>
f
Sink
Drain hose
Dishwasher
Min. 30 in.
(762 mm)
Min. 20 in.
(508 mm)
J
16 instaling the dishwasher

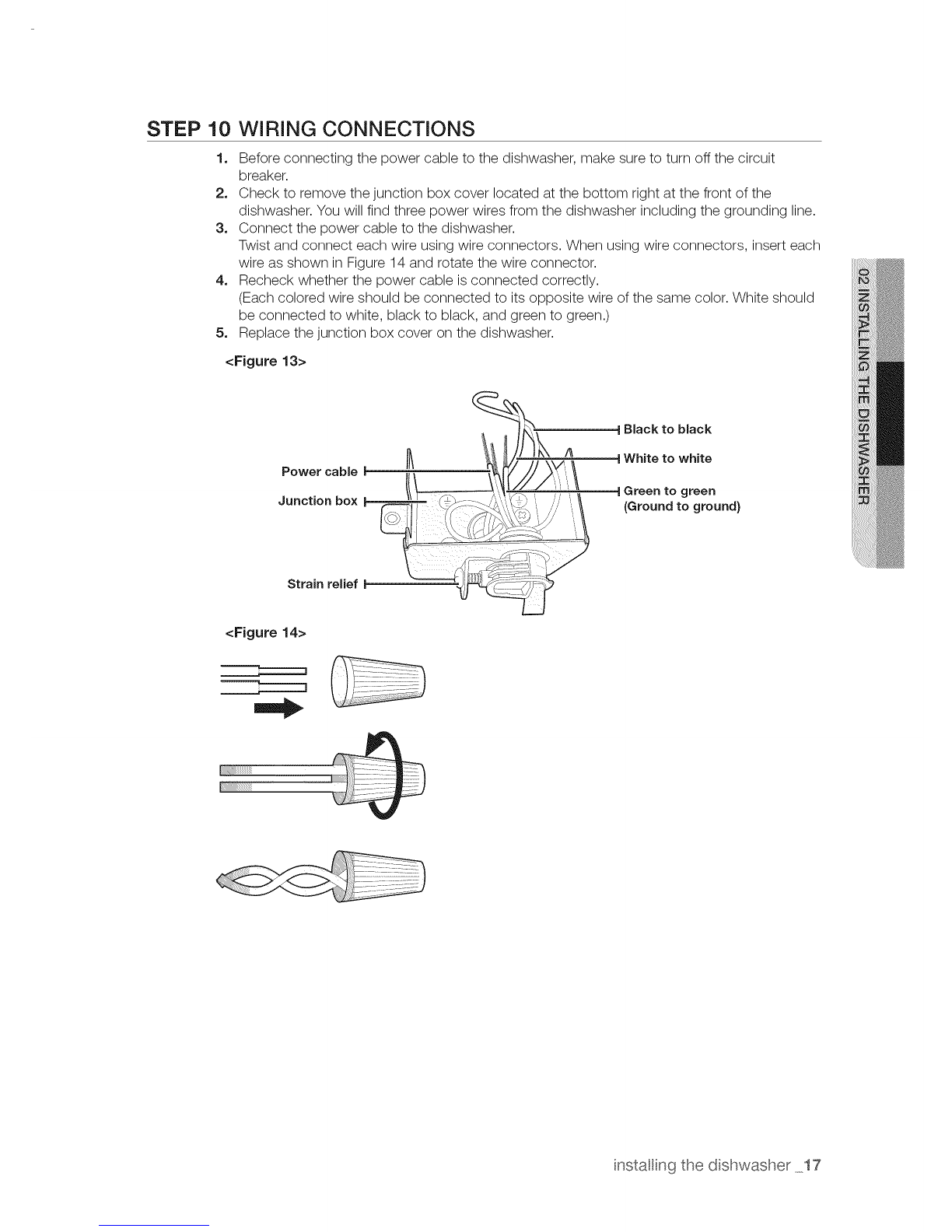

STEP 10
1.
2.
3.
4=
5=
WiRiNG CONNECTIONS
Before connecting the power cable to the dishwasher, make sure to turn off the circuit
breaker.
Check to remove the junction box cover located at the bottom right at the front of the
dishwasher. You will find three power wires from the dishwasher including the grounding line.
Connect the power cable to the dishwasher.
Twist and connect each wire using wire connectors. When using wire connectors, insert each
wire as shown in Figure 14 and rotate the wire connector.
Recheck whether the power cable is connected correctly.
(Each colored wire should be connected to its opposite wire of the same color. White should
be connected to white, black to black, and green to green.)
Replace the junction box cover on the dishwasher.
<Figure 13>
Power cable
Junction box I--
Strain relief I
<Figure 14>
installing the dishwasher 17

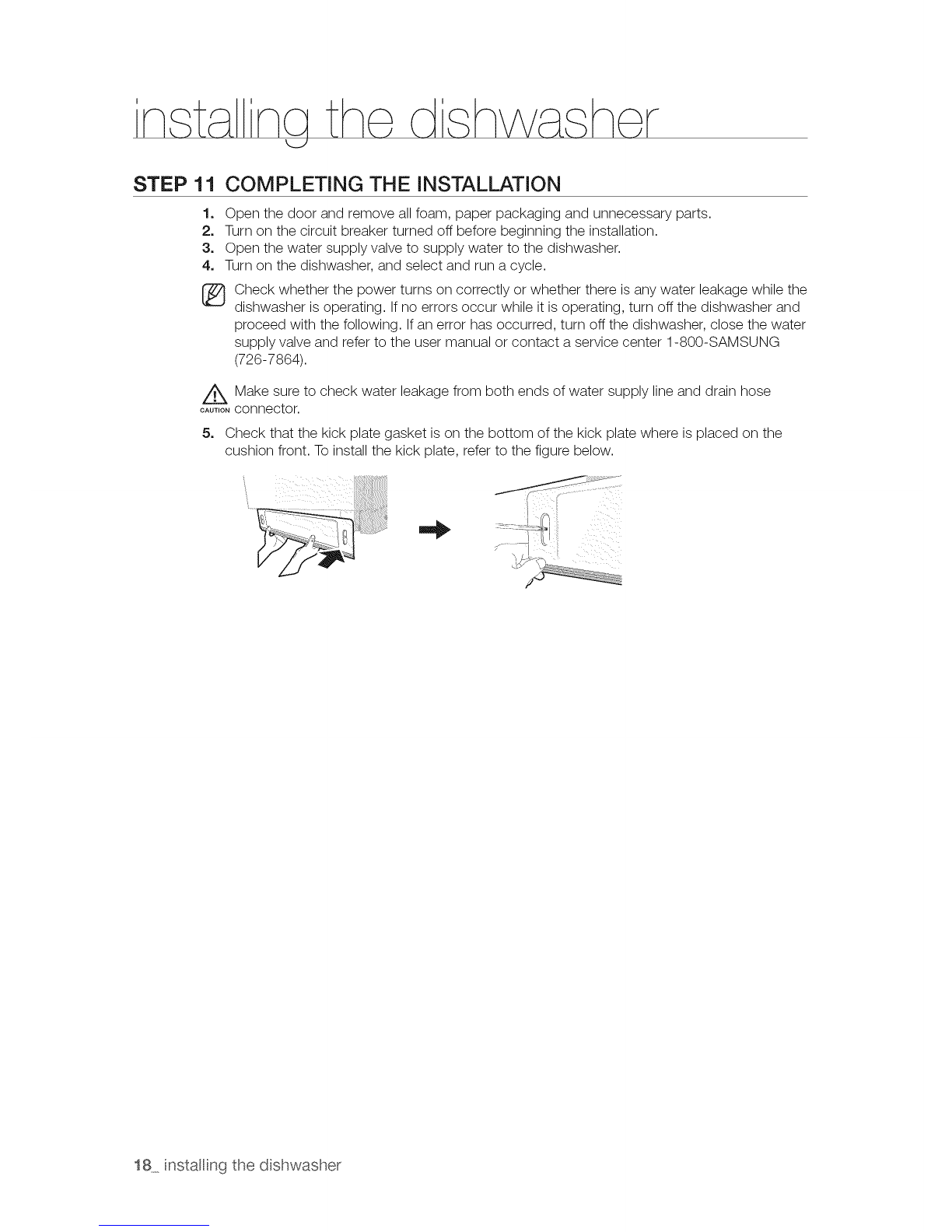

STEP 11 COMPLETING THE INSTALLATION
1. Open the door and remove all foam, paper packaging and unnecessary parts.
2. Turn on the circuit breaker turned off before beginning the installation.
3. Open the water supply valve to supply water to the dishwasher.
4. Turn on the dishwasher, and select and run a cycle.
[_ Check whether the power turns on correctly or whether there is any water leakage while the
dishwasher is operating. Ifno errors occur while it is operating, turn off the dishwasher and
proceed with the following. Ifan error has occurred, turn off the dishwasher, close the water
supply valve and refer to the user manual or contact a service center 1-800-SAMSUNG
(726-7864).
Z_ Make sure to check water leakage from both ends of water supply line and drain hose
OAUT,ONconnector.
5. Check that the kick plate gasket is on the bottom of the kick plate where is placed on the
cushion front. To install the kick plate, refer to the figure below.
18 instaling the dishwasher

Power supply 120 v, 60 Hz AC only
Water pressure 20 - 120 psi (140 - 830 kPa)
237/8x 243Ax 337/8in. (605 x 627 x 860 mm)
(WidthxDepthxHeight)
Nominal inlet water temperature 120 °F(49 °C)
Specifications are subject to change without notice for quality improvement purposes.
The actual appearance of the dishwasher may differ from the illustrations in this manual.
specfcatons 19

QUESTIONS OR COMMENTS?
USA 1-806-SAMSUNG (726-7864) www,samsung,com
CANADA 1-806-SAMSUNG (726-7864) www,samsung,com
Code No.: DD68-00046A_EN
