Samsung DW50T6060 Series User manual

Dishwasher
Installation manual
DW50T6060**
DW50T6060US_AA_DD81-03056A-00_EN.indd 1 2020-05-14 오후 6:09:03

English2
Contents
Contents
Installation 3
What’s included 3
Installation requirements 6
Power supply 6
Grounding 6
Water supply 7
To reduce a risk of leaks: 7
Flooring 7
Dimensions and specications 8
Step-by-step installation 10
STEP 1 Select a location 10
STEP 2 Connect the hot water line 11
STEP 3 Arrange the hoses 12
STEP 4 To insert the sub foot 13
STEP 5 Level the dishwasher 14
STEP 6 Secure the dishwasher 15
DW50T6060US_AA_DD81-03056A-00_EN.indd 2 2020-05-14 오후 6:09:03

English 3English
Installation
Installation
Follow these instructions carefully to ensure proper installation of the dishwasher and to
prevent accidents when washing dishes.
What’s included
Make sure all the parts are included in the product package. If you have a question about
the dishwasher or the parts, contact a local Samsung customer center or your retailer. The
actual appearance of the dishwasher may differ, depending on your model and country.
CAUTION
After unpacking the dishwasher, keep the packaging materials out of children’s reach to
ensure their safety.

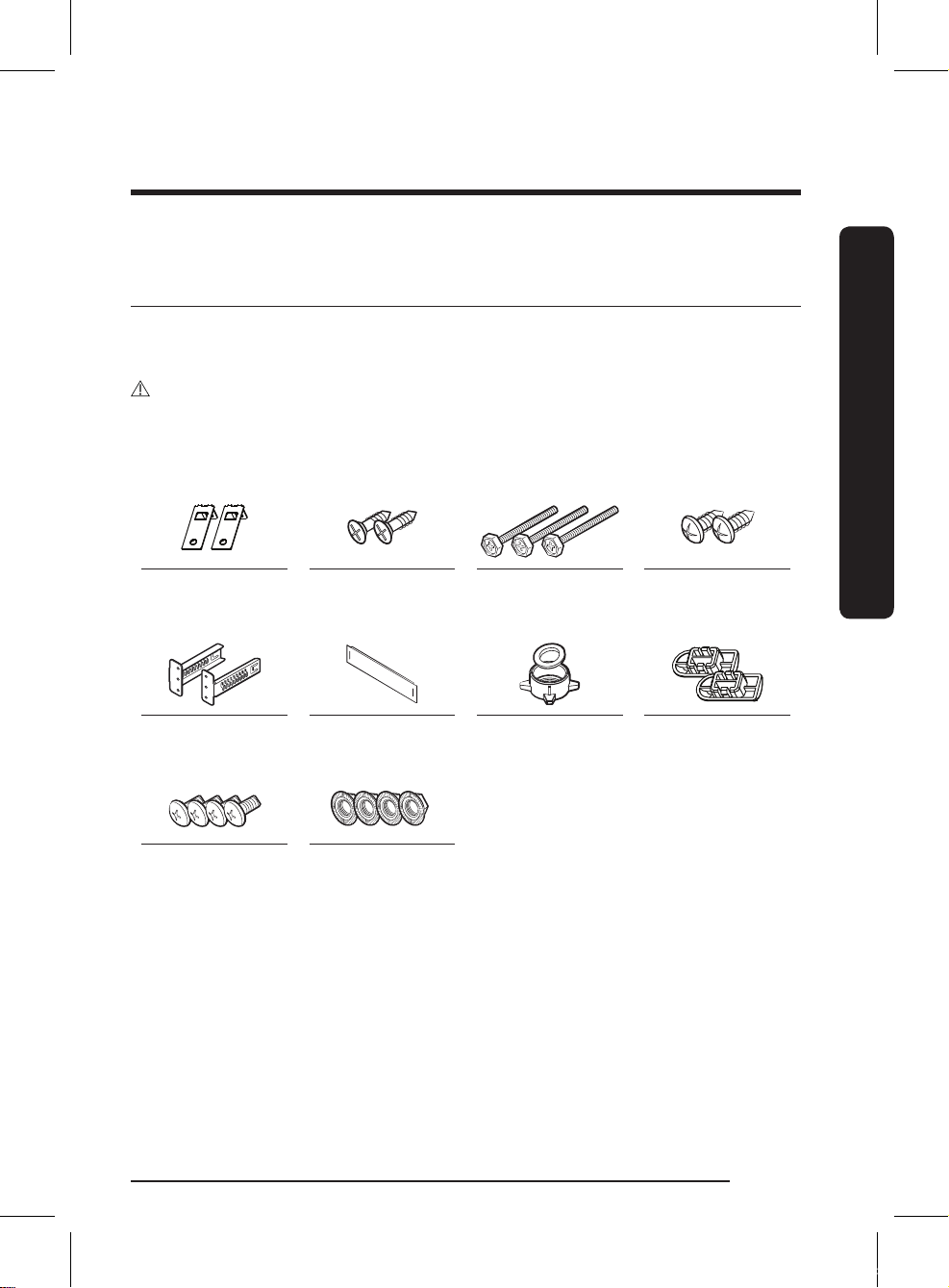

DW50T6060U*
Top brackets (2 ea) Ø4 X 14 screws
(2 ea)
Sub foot (3 ea) Ø3.5 X 16 screws
(2 ea)
Kick plate brackets
(2 ea)
Kick plate Nut connector &
seal (for 90° tting)
Plastic caps (2 ea)
Kick plate bolt
(4 ea)
Kick plate nut
(4 ea)
DW50T6060US_AA_DD81-03056A-00_EN.indd 3 2020-05-14 오후 6:09:04

English4
Installation
Installation

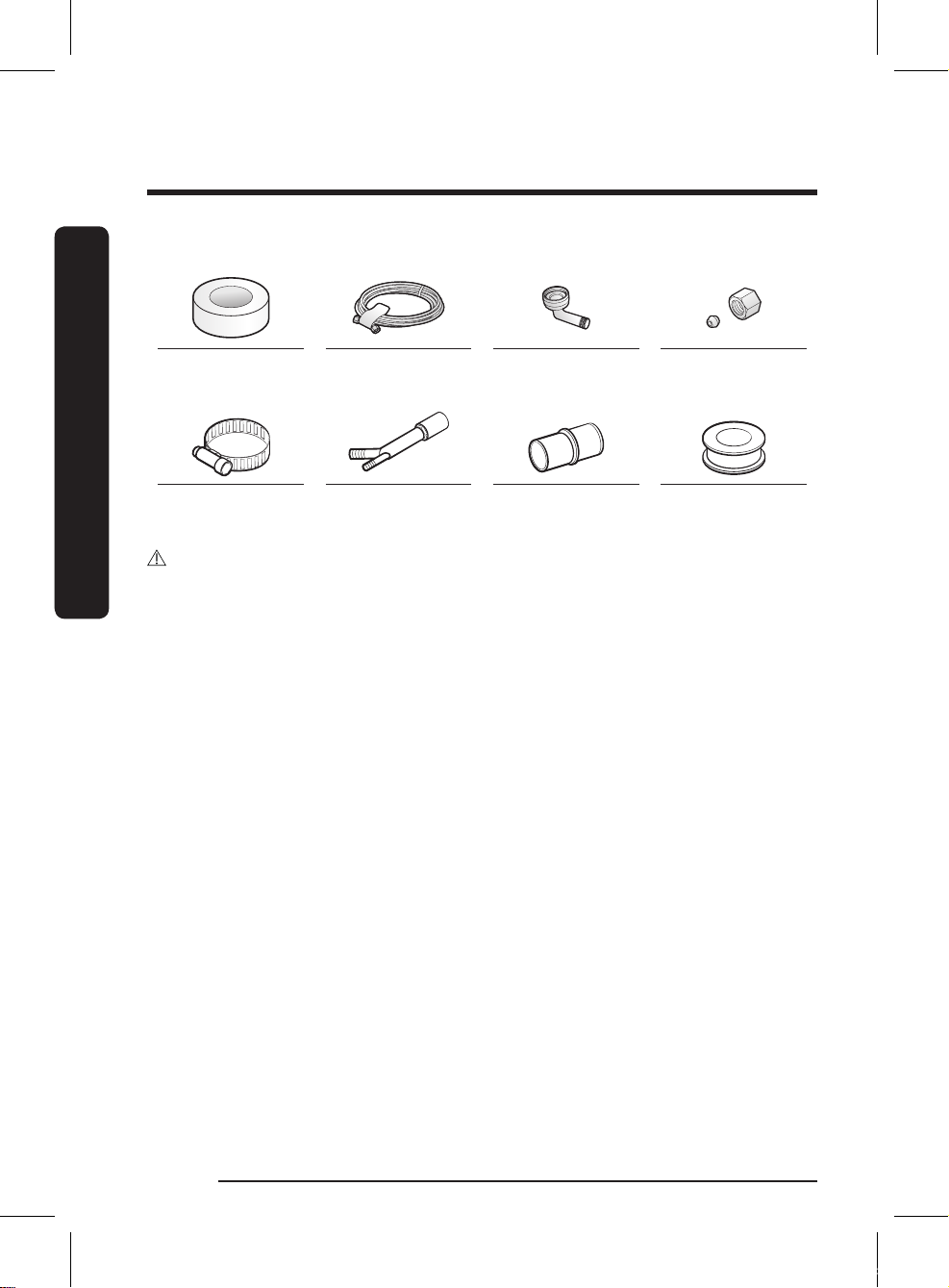

Installation kit (not provided)
Electrical tape &
Standard duct tape
Hot water line 90° Fitting (⁄") Tube ttings
Hose clamp Air gap Rubber connector Teon tape or
sealing compound
WARNING
Do not use plastic tubing. Plastic tubing can deteriorate over time and cause a leak inside
the tube tting.
DW50T6060US_AA_DD81-03056A-00_EN.indd 4 2020-05-14 오후 6:09:04

English 5English
Installation
NOTE
• For the hot water line, we strongly recommend using ⁄” minimum O.D. copper tubing
with a compression tting or a exible stainless steel braided hot water supply line.
• You also need a 90° Fitting with ⁄” N.P.T. external pipe threads on one end and a tting
sized to t your hot water line (copper tubing/compression tting or braided hose) on
the other.
• For the power cable, we recommend a jacketed grounded 12-2 cable. Note that some
local codes may require the cable to have a BX style metal jacket.

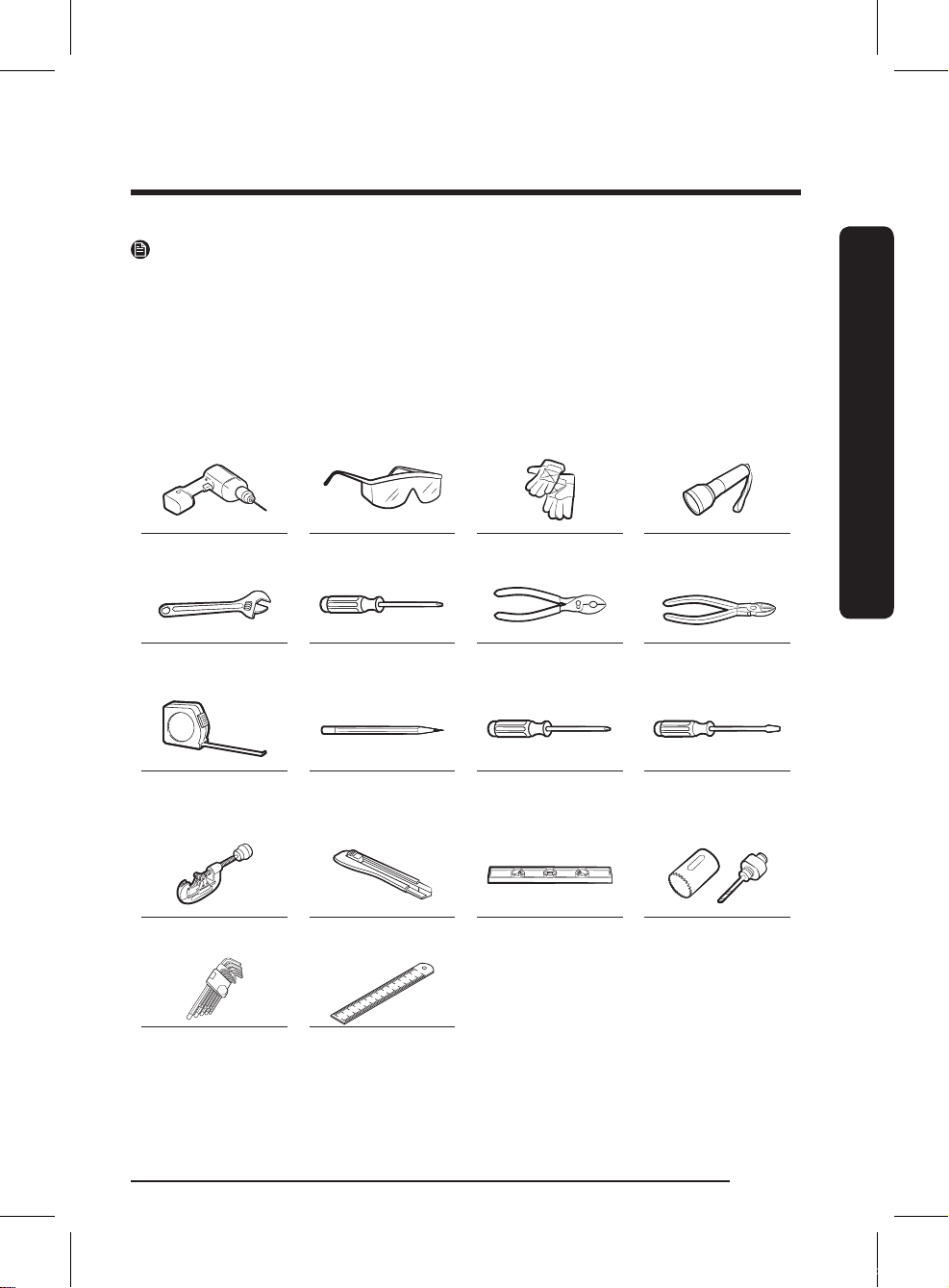

Tools required (not provided)
Electric drill Safety glasses Gloves Flashlight
Adjustable wrench Torx T15 Pliers Nipper
Tape measure Pencil Phillips screwdriver Flat head
screwdriver
Tubing cutter Cutting knife Level Hole saw
Hex L-wrench Steel ruler
DW50T6060US_AA_DD81-03056A-00_EN.indd 5 2020-05-14 오후 6:09:05

English6
Installation
Installation
Installation requirements
To prevent a risk of re, electric shock, or
personal injury, all wiring and grounding
must be done by a qualied technician.
Power supply
• To prevent the risk of re, electric
shock, or personal injury, all wiring
and grounding must be performed in
accordance with the National Electrical
Code ANSI/FNPA, No. 70 Latest Revision
and local codes and ordinances. It is the
personal responsibility of the appliance
owner to provide adequate electrical
service for this appliance.
• When preparing for installation, make
sure that your power supply provides an
individual 120 Volt, 60 Hz branch circuit
serving only your dishwasher with a 15
AMP fuse or circuit breaker.
• Your dishwasher must be grounded. If
your dishwasher malfunctions or breaks
down, grounding will reduce the risk of
electric shock by providing a path of
least resistance for the electric current.
WARNING
• Do not use an extension cord.
• Use only the power plug that comes
with the dishwasher.
Grounding
For permanent grounding, the dishwasher
must be properly grounded to a grounded
metal or permanent wiring system. The
grounding conductor must be run with
the circuit conductors and then connected
to the grounding terminal or lead on the
dishwasher.
WARNING
• Do not connect the ground wire to
plastic plumbing, gas lines, or hot water
pipes. Improperly connected grounding
conductors may cause electric shock.
• Do not modify the power plug of the
dishwasher. If the power plug does
not t the outlet, have a proper outlet
installed by a qualied electrician.
DW50T6060US_AA_DD81-03056A-00_EN.indd 6 2020-05-14 오후 6:09:05

English 7English
Installation
Water supply
• The hot water supply line must support
water pressures between 20 psi and
120 psi (140-830 kPa).
• Water temperatures must be between
120 °F (49 °C) and 149 °F (65 °C).
To reduce a risk of leaks:
• Make sure water taps are easily
accessible.
• Turn the water tap off when the
dishwasher is not in use.
• Check for any leaks at the water hose
ttings on a regular basis.
Flooring
For safety, the dishwasher must be
installed on a solidly constructed oor.
Wooden oors may need to be reinforced
to minimize vibrations. Avoid installing
on carpet or soft tile. Carpeting and soft
tile may cause vibrations and may cause
your dishwasher to move slightly while
operating.
WARNING
Do not install the dishwasher on a poorly
supported structure.
DW50T6060US_AA_DD81-03056A-00_EN.indd 7 2020-05-14 오후 6:09:05

English8
Installation
Installation

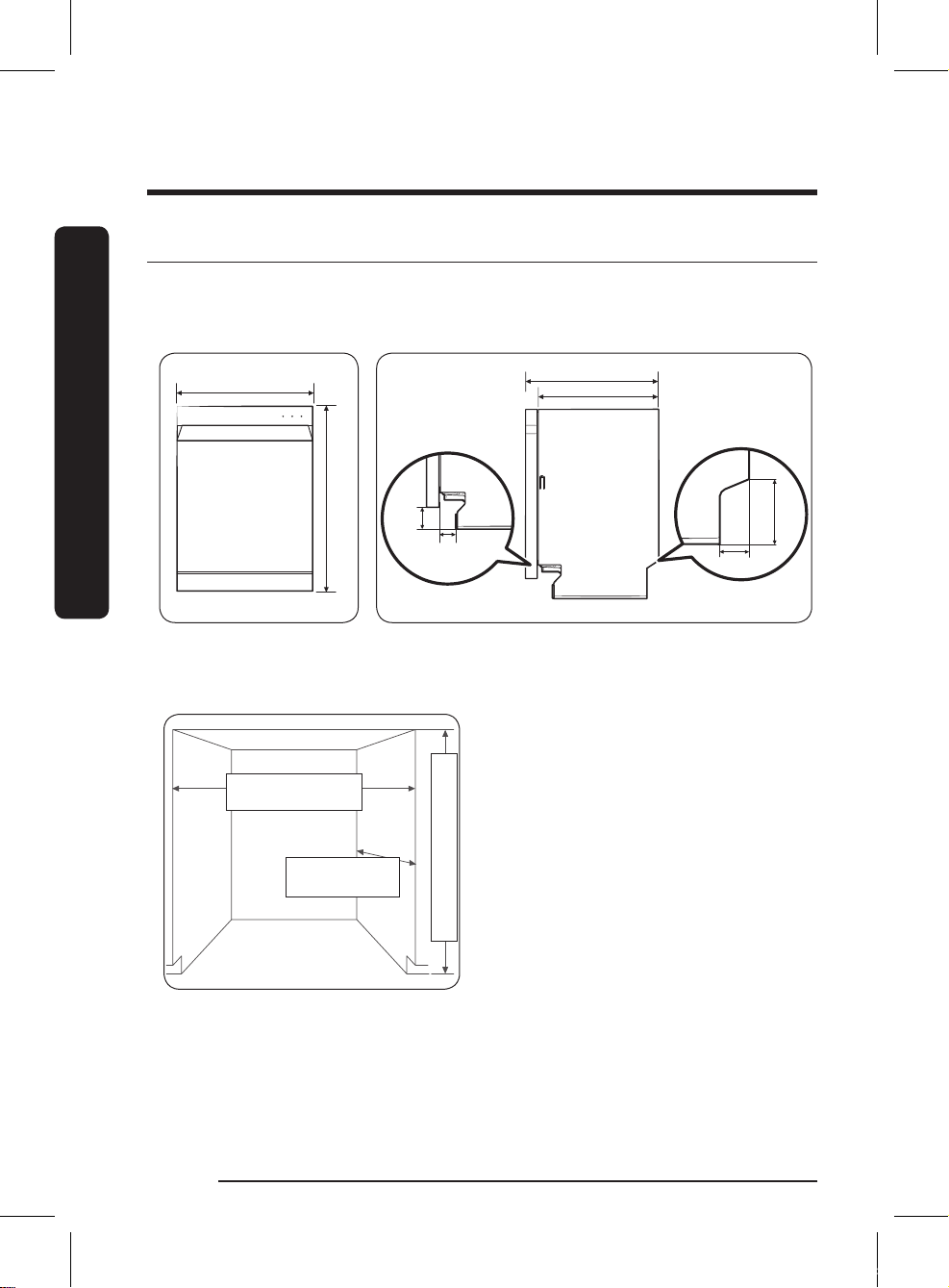

Dimensions and specications
Dishwasher
DW50T6060U* Series (Built Under model)
18" (450 mm)
32⁄"-33⁄" (815-845 mm)
4" (103 mm)
2⁄" (55 mm)
20⁄" (515 mm)
22⁄" (570 mm)
Front view Side view
Cabinet
18" (450 mm)
minimum
22⁄" (580 mm)
minimum
32⁄"-33⁄" (820-850 mm)
• This dishwasher is designed to be
enclosed on the top and on both sides
by a standard, residential kitchen
cabinet.
• The installation enclosure must be clean
and free of any obstructions.
• The enclosure must be at least 23⁄"
wide, 22⁄" deep, and 32⁄" high.
• For the front door of the dishwasher to
be ush with the leading edge of the
countertop, the countertop must be at
least 23" deep.
3⁄" (85 mm)
2" (50 mm)
DW50T6060US_AA_DD81-03056A-00_EN.indd 8 2020-05-14 오후 6:09:05

English 9English
Installation
Specications
Specications are subject to change without notice for improved quality. The actual
appearance of the dishwasher may differ from the illustrations in this manual.
Power supply 120 V, 15 A, 60 Hz AC
Water pressure 20-120 psi (140-830 kPa)
Dimensions
(Width x Depth x
Height)
DW50T6060U* : 18 x 22⁄ x 32⁄ in. (450 x 570 x 815 mm)
Minimum inlet water
temperature 120 °F (49 °C)
DW50T6060US_AA_DD81-03056A-00_EN.indd 9 2020-05-14 오후 6:09:05

English10
Installation
Installation
Step-by-step installation
The installation procedure may differ depending on the model.
STEP 1 Select a location
Select a location that meets the following conditions.
• The location must have a solid oor that can support the weight of the dishwasher.
• The location must be near a sink (9.8 ft/3 m) with easy access to the water supply, drain
system, and electrical outlet.
• The location must let you load dishes into the dishwasher easily.
• The location must have sufcient space for the dishwasher door to open easily
and provide enough space between the dishwasher and the cabinet sides (at least
0.1 inch/2 mm).
• The rear wall must be free of obstructions.
Installation in a new location
A
B

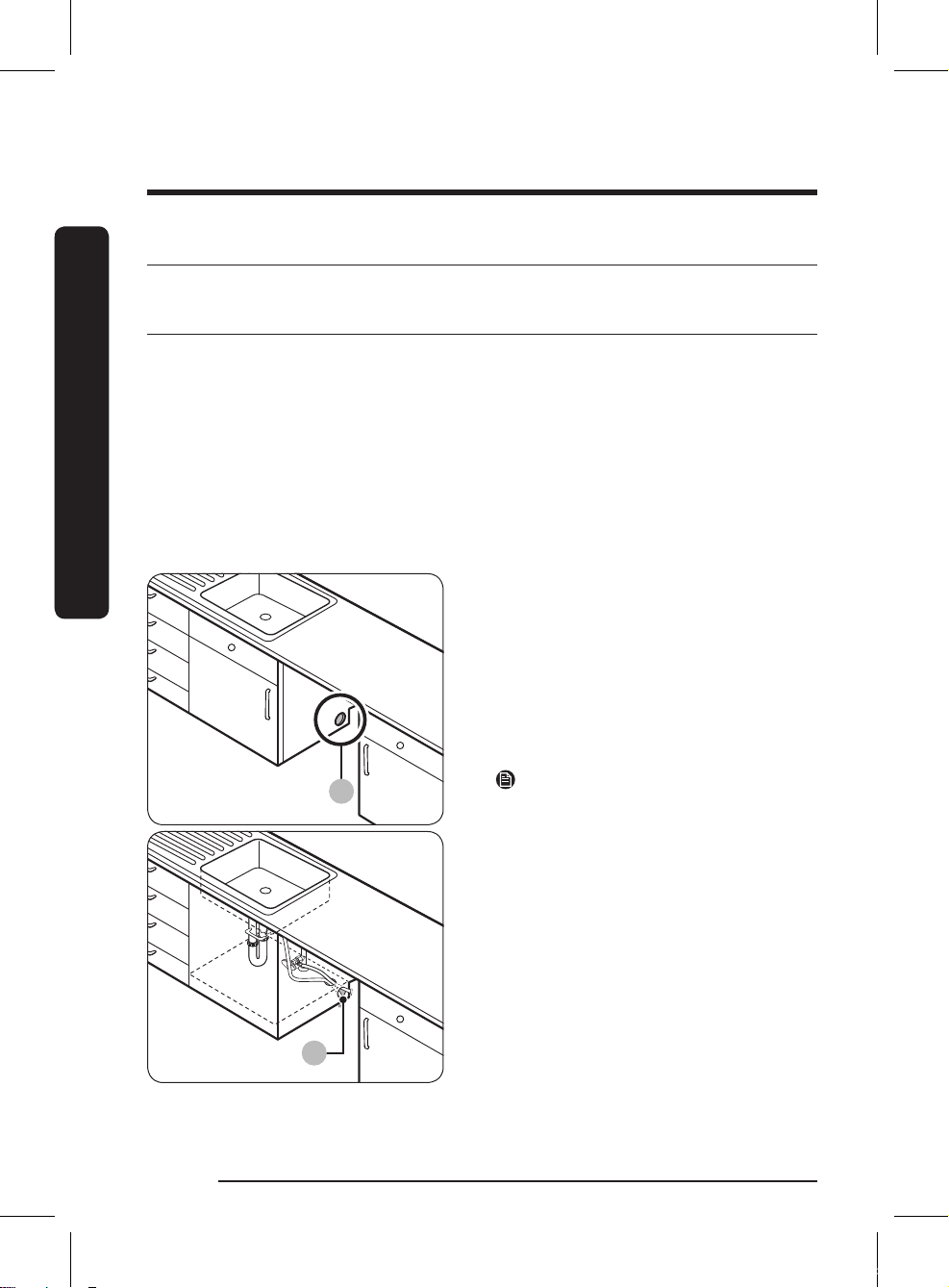

If you install the dishwasher in a new
location, follow these instructions before
installing the dishwasher.
1. Using a hole saw, cut a hole into the side
of the cabinet that holds the sink (A).
2. If the base inside the sink cabinet is raised
above the kitchen oor and is higher than
the connections on the dishwasher, make a
hole in the base inside the cabinet and in
the cabinet side (B).
NOTE
• If you are replacing an old dishwasher,
check the existing connections for
compatibility with the new dishwasher
and replace the connections as needed.
• You may need to cut a hole in the opposite
side of the cabinet according to the
location of the electrical outlet.
DW50T6060US_AA_DD81-03056A-00_EN.indd 10 2020-05-14 오후 6:09:06

English 11English
Installation

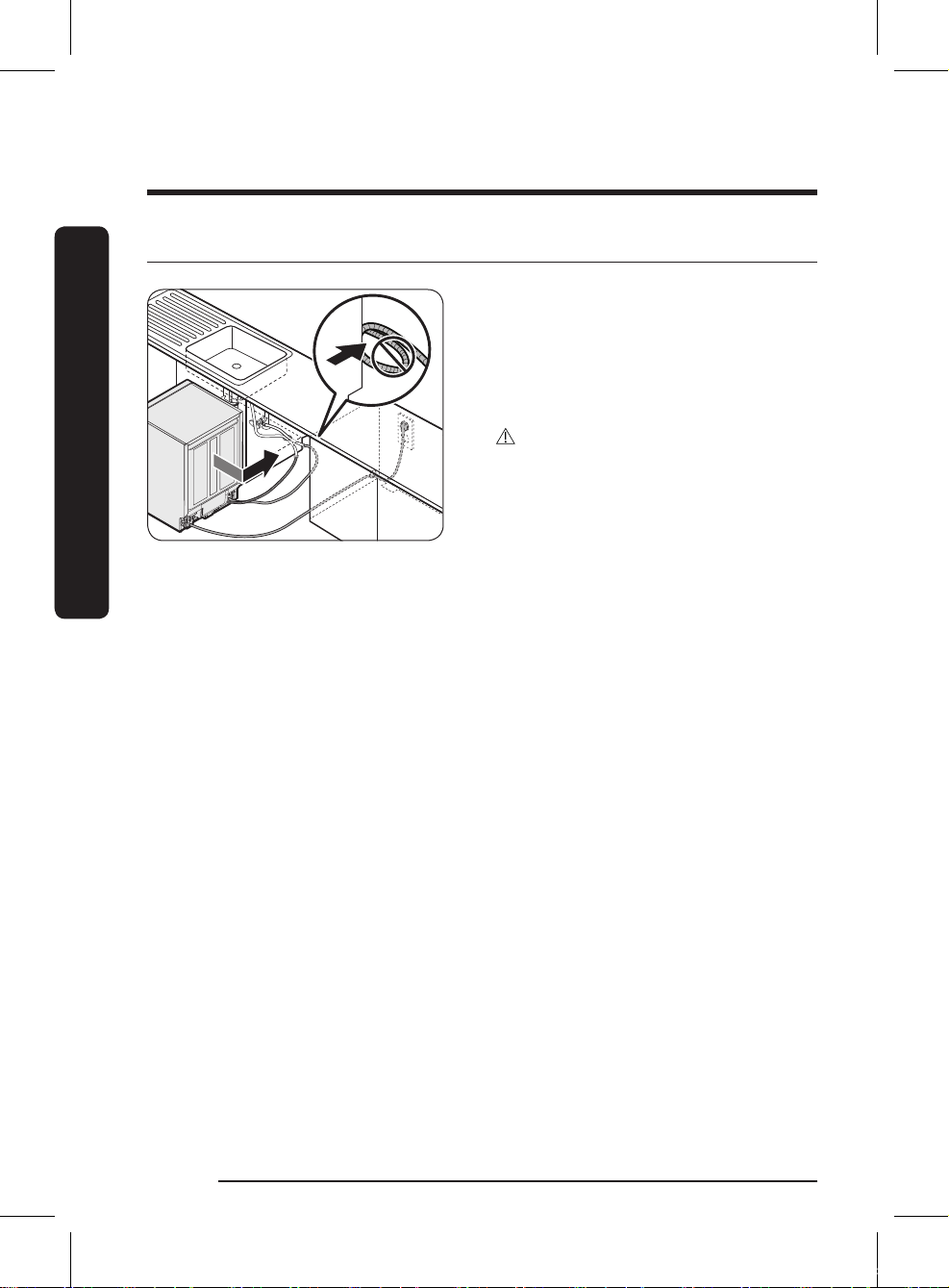

STEP 2 Connect the hot water line
• The water line pressure must be between 20 psi and 120 psi (140–830 kPa).
• Make sure that the water temperature is delivered between 120 °F and 149 °F (49-
60 °C). Exceeding this limit may cause the dishwasher to malfunction.
• Make sure that the circuit breaker and water valve is turned off before connecting the
water supply line to the dishwasher.
• Make sure the water line is properly connected. Wrap Teon tape around every metal
connection and joint to prevent water leaks.
a
c
b
A
D
F
C
E
B

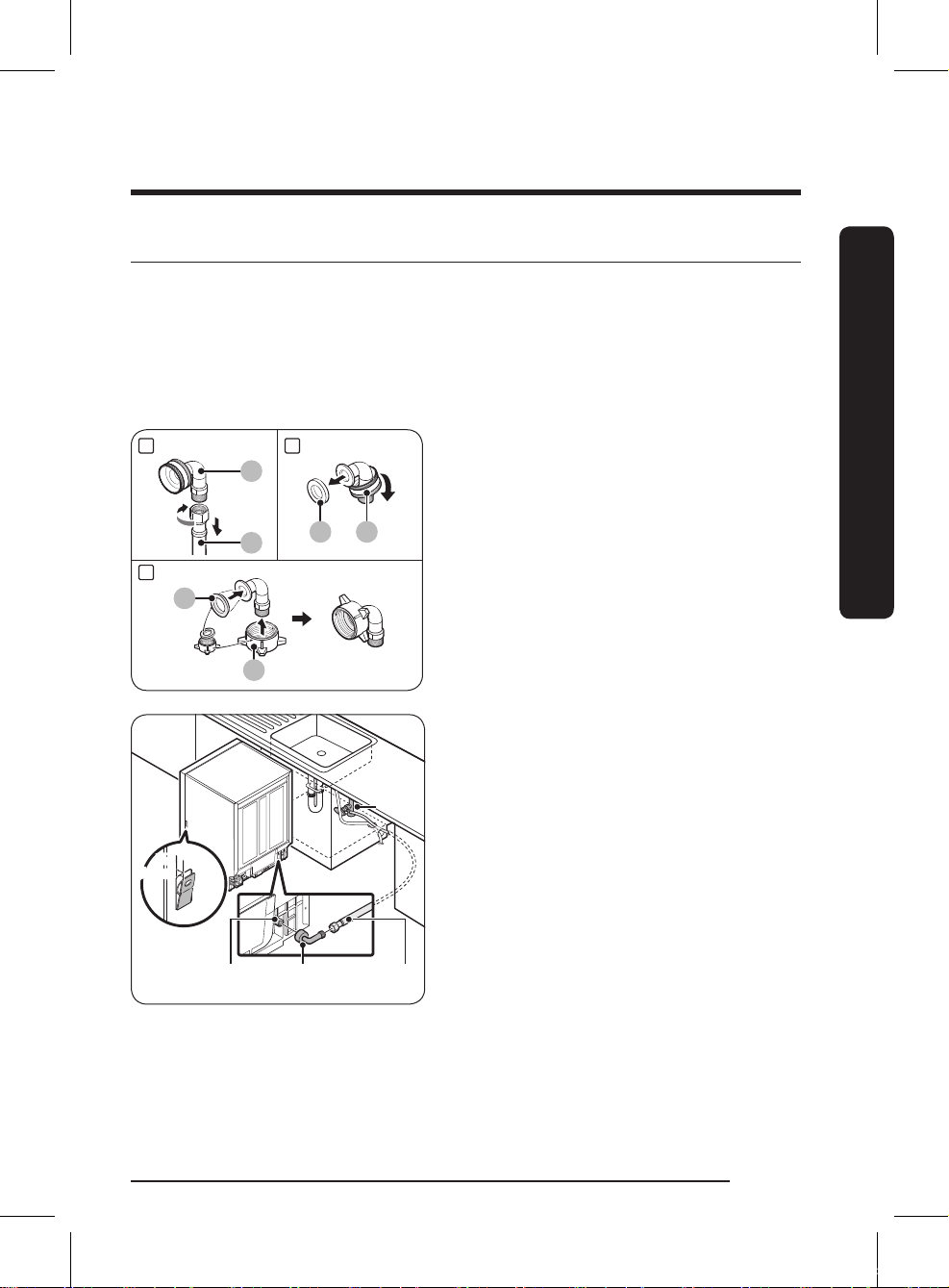

1. Use the provided nut connector
to connect the water hose to the
dishwasher.
Follow these steps:
a. Disconnect the 90° tting (A) from
the hose (B).
b. Remove the rubber washer (C) and
the brass nut (D) from the 90° tting.
c. From the provided nut connector,
separate the seal (E) and the nylon
(F), and then assemble them to the
90° tting as shown in the gure.
You must insert the smaller side of
the seal.
Inlet valve 90° elbow
tting
Hot water
line
⁄"
(5 mm)
Water
valve
2. Insert the ⁄" 90-degree tting into the
inlet valve. Tighten the tting until it
points towards the water-hose channel
in the base of the dishwasher. Do not
overtighten.
3. Connect the hot water line to the tting.

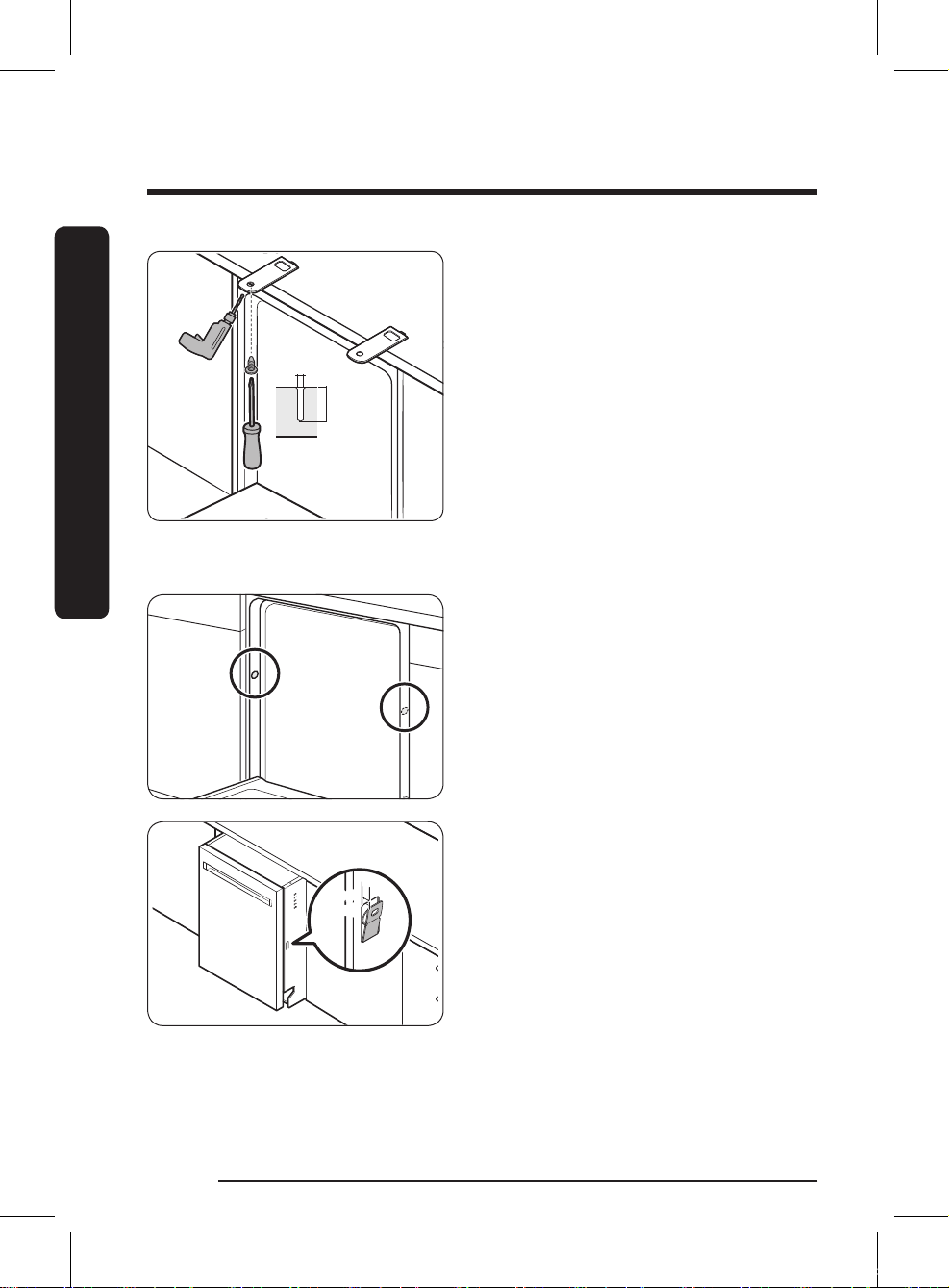

4. If you want to secure the dishwasher to
the side wall for extra stability, bend the
brackets of the left and right housings
by referring to the gure.
DW50T6060US_AA_DD81-03056A-00_EN.indd 11 2020-05-14 오후 6:09:06

English12
Installation
Installation

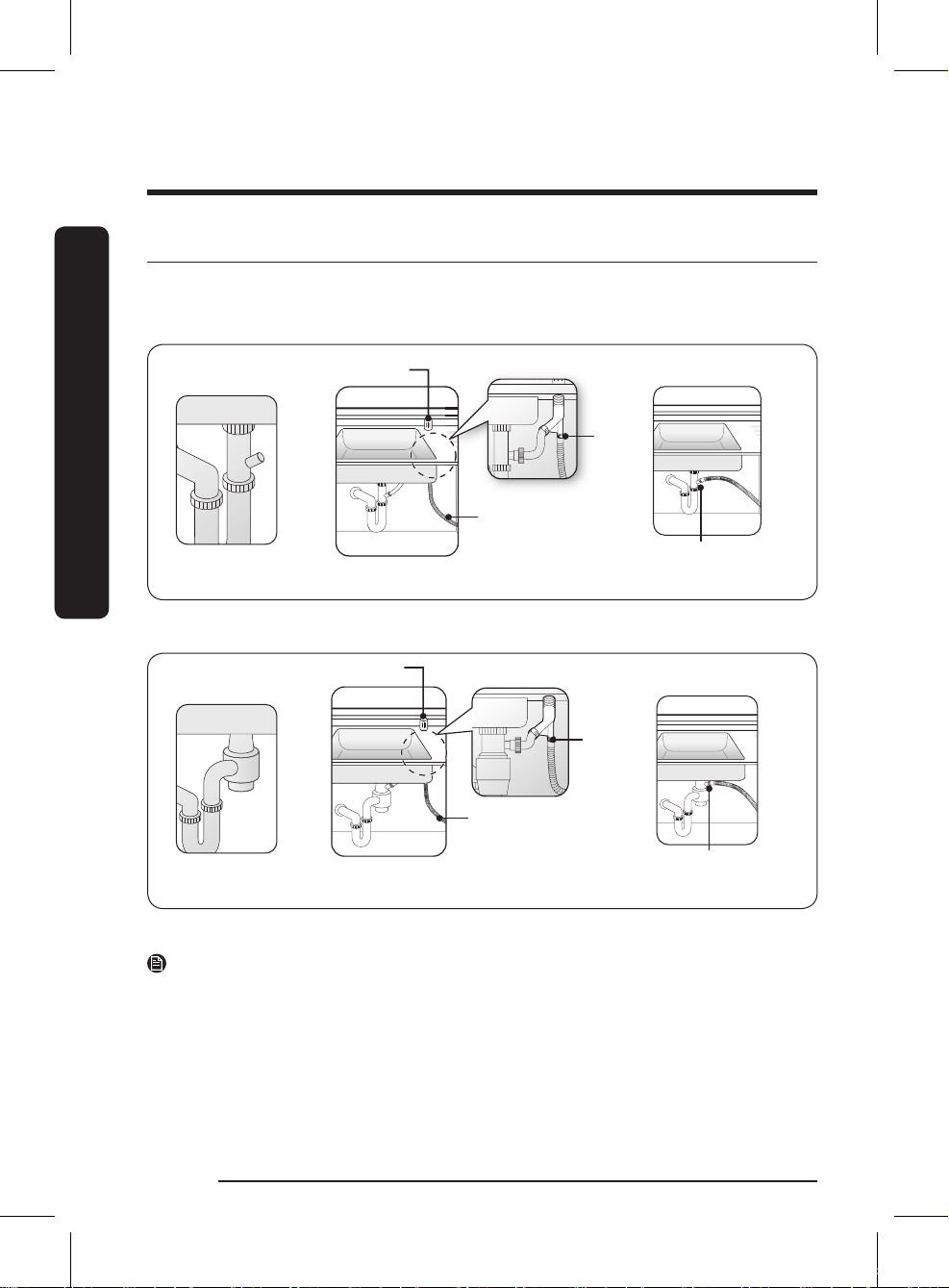

STEP 3 Arrange the hoses
1. Arrange the power cable and the drain
hose so that they move together.
2. Gently move the dishwasher to the
installation space under the sink. While
moving the dishwasher, pull any excess
portions of the water line, drain hose,
and power cable into the space.
CAUTION
• Use caution not to kink or step on the
power plug or the hoses.
• Location of the outlet can not be placed
behind the dishwasher.
DW50T6060US_AA_DD81-03056A-00_EN.indd 12 2020-05-14 오후 6:09:06

English 13English
Installation
STEP 4 To insert the sub foot
If the distance between the oor and the bottom of the worktop is more than 850 mm,
insert the sub foot into the hole on the bottom of the dishwasher before you start the
installation.
850 ~
1. Lay the dishwasher on its back.
CAUTION
Do not lay down the dishwasher on its side.
Water may leak.
2. Find the sub foot in the installation kit,
and then insert the sub foot into the
hole on the bottom of the dishwasher as
shown in the gure.
DW50T6060US_AA_DD81-03056A-00_EN.indd 13 2020-05-14 오후 6:09:07

English14
Installation
Installation

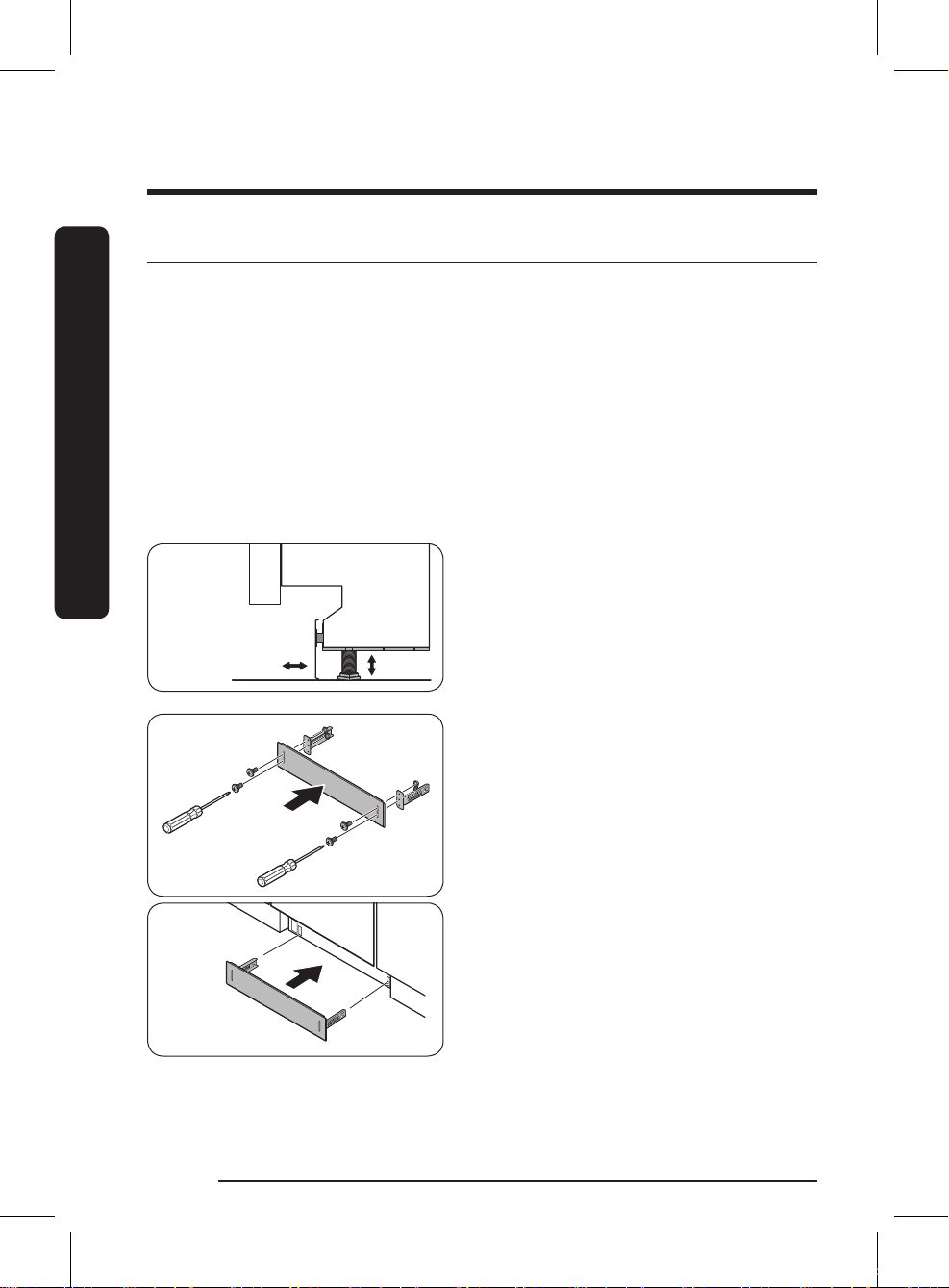

STEP 5 Level the dishwasher
Normal Tall-kitchen
(Insert the sub foot)
0-1⁄" (0-30 mm)
⁄"-2⁄" (20-60 mm)

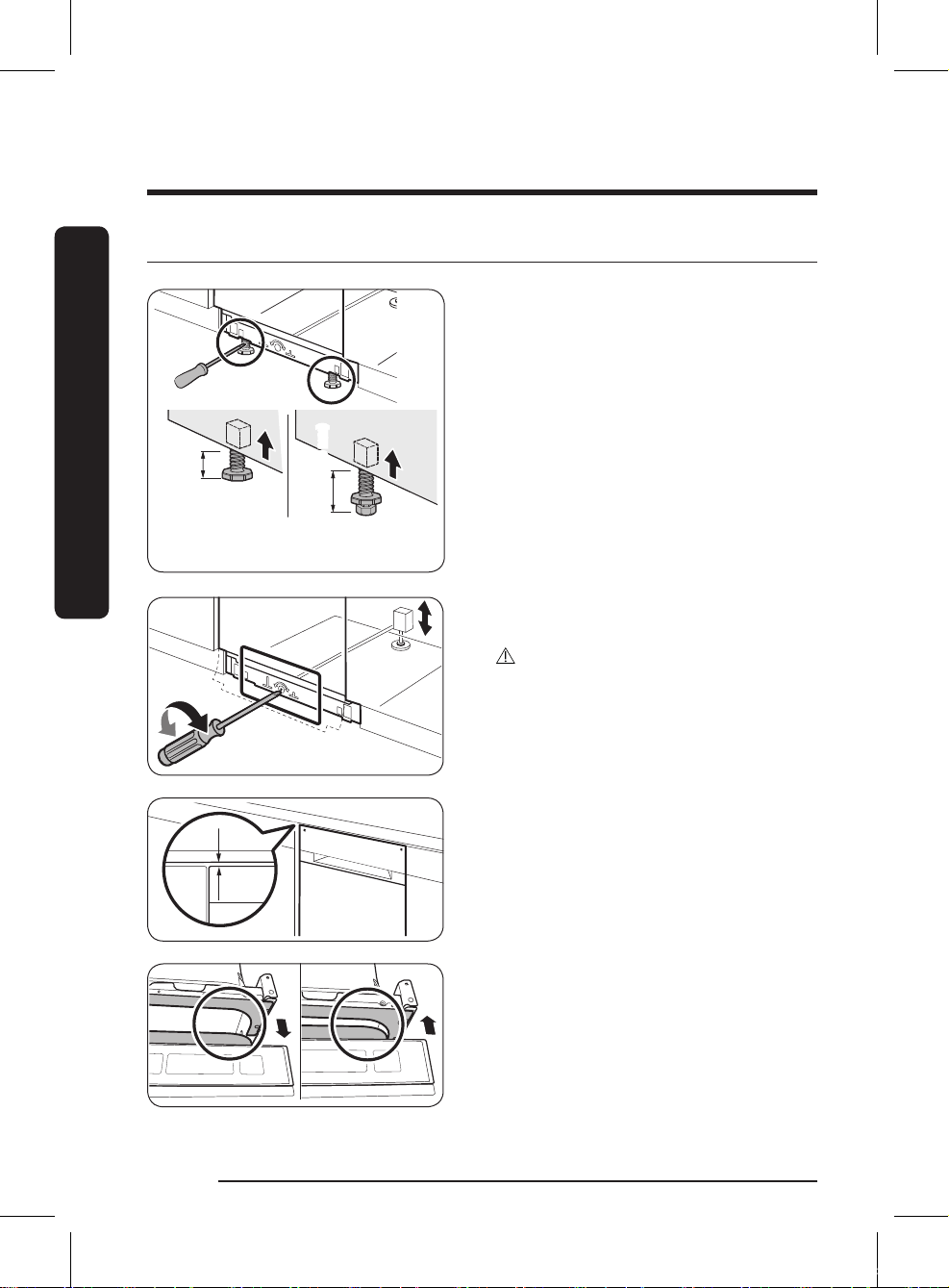

You can adjust the height of the dishwasher
to level it. Note that in these steps, the
dishwasher is currently inserted halfway.
1. Use the level to check if the dishwasher
is level.
2. When adjusting the front height, use the
regular foot for heights lower than 1⁄".
• To lower the height, turn the foot
clockwise.
• To raise the height, turn the foot counter
clockwise.
3. To adjust the rear height, insert the
screwdriver in the bottom center of the
dishwasher.
• To lower the height, turn the
screwdriver clockwise.
• To raise the height, turn the screwdriver
counter clockwise.
CAUTION
Do not use a hammer drill to adjust the
rear leg.
Min. ⁄"
(5 mm)
4. Leave at least a ⁄" (5 mm) space
between the top of the dishwasher and
the bottom of the countertop.
5. When levelling is complete, check that
the door opens and closes properly.
DW50T6060US_AA_DD81-03056A-00_EN.indd 14 2020-05-14 오후 6:09:07

English 15English
Installation
STEP 6 Secure the dishwasher
Correct positioning

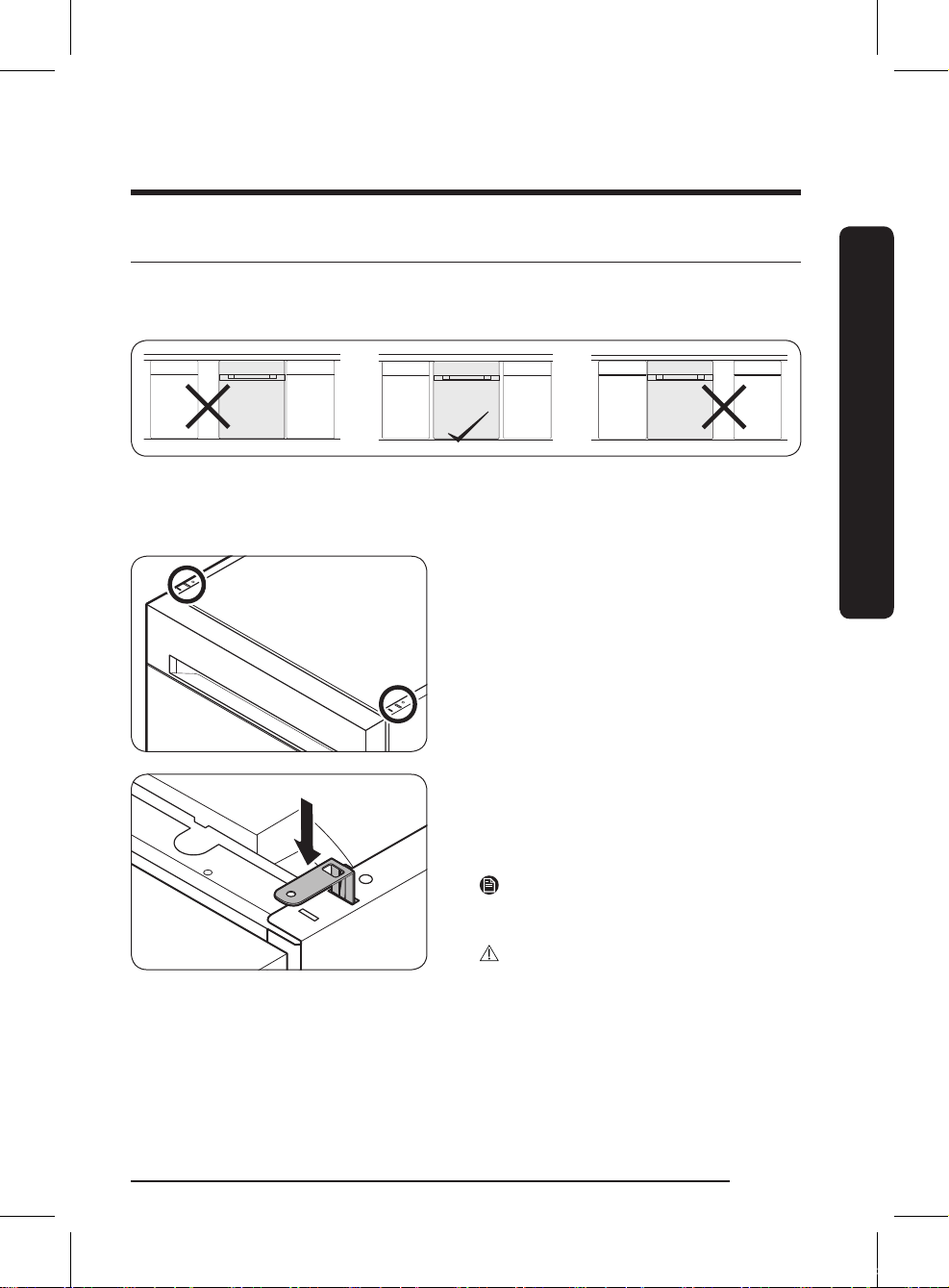

Before securing the dishwasher, center it in the opening.
Securing to the countertop
You can use the brackets to secure the dishwasher to the countertop. Alternatively, you
can drill the side holes to secure the dishwasher to the cabinet sides.
1. Put a large towel on the bottom of
the dishwasher (covering the sump) to
prevent wood shavings or screws from
falling into the dishwasher sump.
2. Insert the provided brackets into the top
front holes of the dishwasher as shown.
3. Insert the dishwasher fully into place
under the countertop.
4. Carefully drill 2 screw holes into the
bottom of the countertop from beneath,
one for each countertop bracket.
• Make sure the hole you drill is smaller
than the diameter of the screw.
NOTE
Use a magnetic screwdriver to help prevent
screws from falling into the dishwasher.
WARNING
Not to attempt screwing into a stone
countertop.
DW50T6060US_AA_DD81-03056A-00_EN.indd 15 2020-05-14 오후 6:09:07

English16
Installation
Installation
Ø2
~8
5. Insert the provided screws into the
brackets, and then tighten to secure the
dishwasher to the countertop.
Securing to the side walls
1. Put a large towel on the bottom of
the dishwasher (covering the sump) to
prevent wood shavings or screws from
falling into the dishwasher sump.
⁄"
(5 mm)
2. To prevent damage to the drain hose
through the water supply line, slightly
pull out the dishwasher and bend the
built-in ear brackets of the left and right
housings by ⁄" (5 mm). When done,
reinsert the dishwasher with its center
aligned.
DW50T6060US_AA_DD81-03056A-00_EN.indd 16 2020-05-14 오후 6:09:08

English 17English
Installation
3. Drill one hole into both sides of the
kitchen cabinet, totaling 4 screw holes.
• Make sure the hole you drill is smaller
than the diameter of the screw.
• Make sure the drill bit does not strike
the sides of the spacer cap holes.
4. Tighten the provided screws into the
holes to secure the dishwasher to the
cabinet.

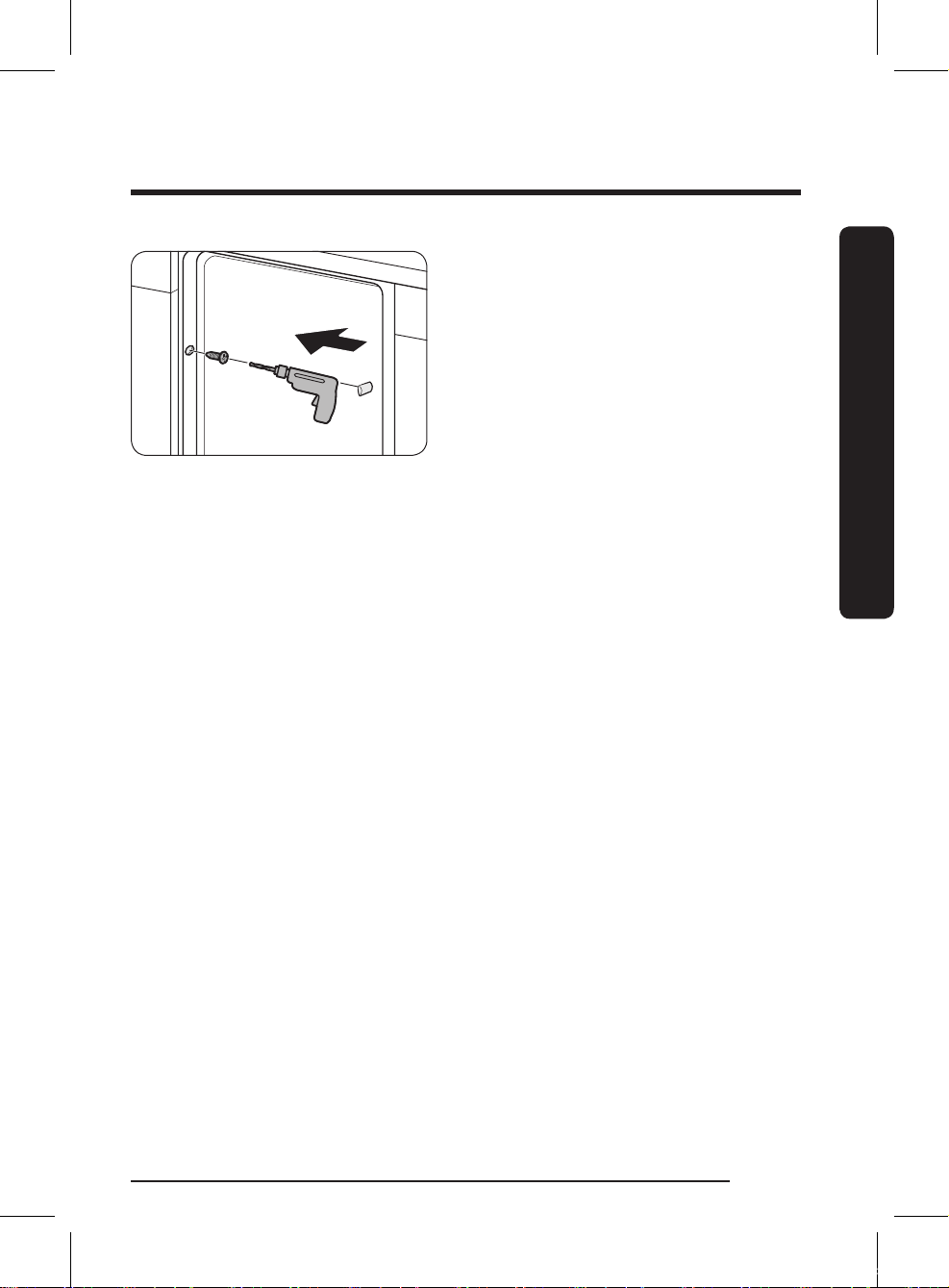

5. Insert the provided plastic caps to the
4 places where screws are fastened.
DW50T6060US_AA_DD81-03056A-00_EN.indd 17 2020-05-14 오후 6:09:08

English18
Installation
Installation
STEP 7 Connect the drain hose
There are several ways to insert the drain hose into the drain hose connector of the sink.
You must connect the drain hose in accordance with the water pipe installation regulations
in your region.
Air gap
Drain hose
Hose
clamp
Hose clamp
Without disposal With an air gap/without disposal Without an air gap
Drain system with no waste-disposal
Air gap
Drain hose
Hose
clamp
Hose clamp
With disposal With an air gap/with disposal Without an air gap
Drain system with a waste-disposal
NOTE
When a disposal is rst connected to a Dishwasher, the plug inside the disposal connector
must be removed.
DW50T6060US_AA_DD81-03056A-00_EN.indd 18 2020-05-14 오후 6:09:08

English 19English
Installation
1 in.
(24 mm) ⁄ in.
(15 mm)
⁄ in.
(18 mm)

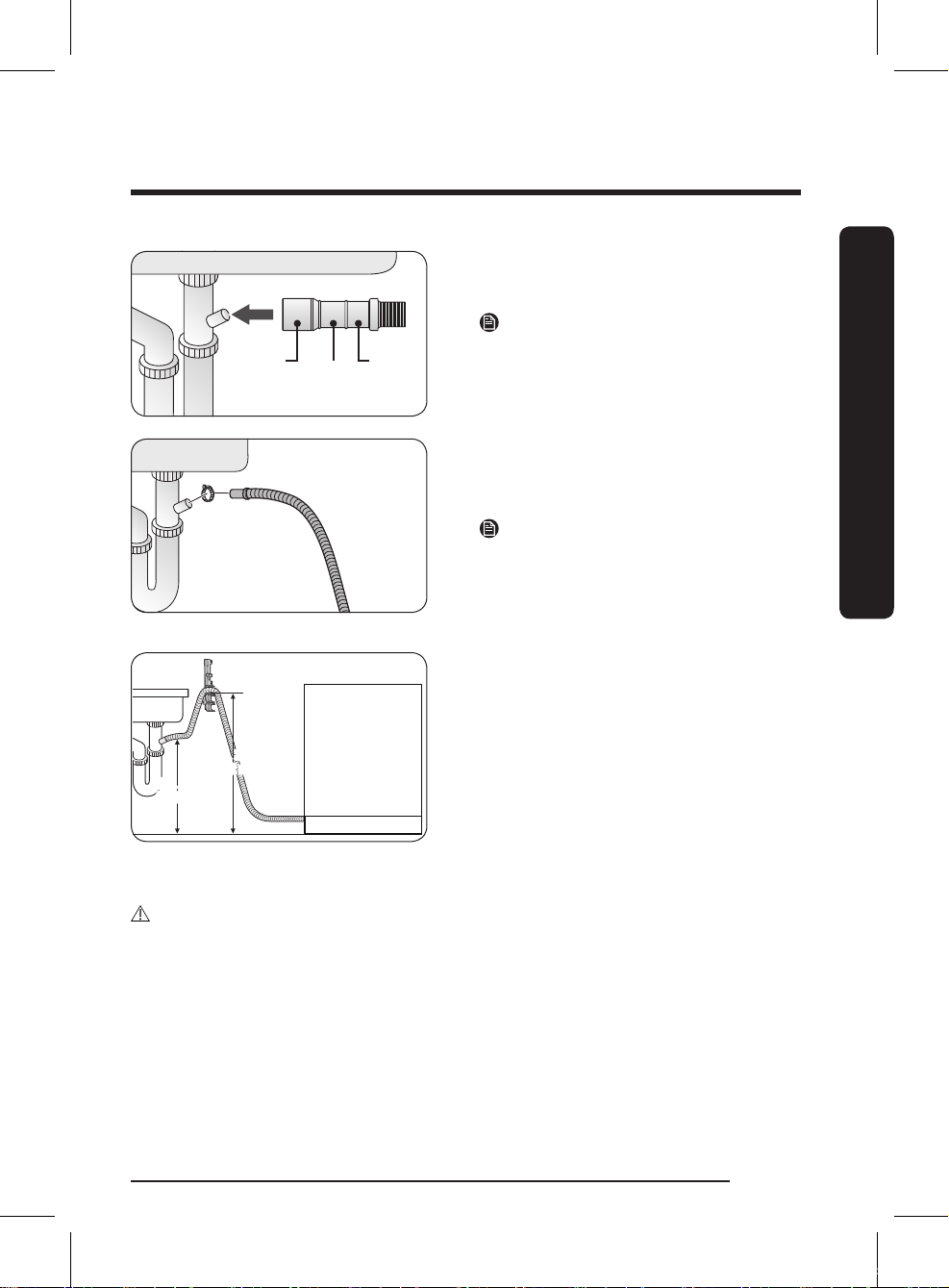

1. Check the size of the sink’s drain hose
connector. If needed, cut the drain hose
so its end ts into the sink connector.
NOTE
If the drain hose does not t into the sink
connector, you can purchase an adaptor at
a plumbing/hardware store.
2. Slide the hose clamp to the end of the
hose, insert the drain hose into the sink
connector, and then tighten the hose
clamp.
NOTE
Drain Hose requires a high loop if there is
no air gap, make sure to hang the middle of
the drain hose well above the sink cabinet
base to prevent back-ow (See the image
on the left side).
Sink Dishwasher
Drain
hose
Min. 20 in.
(508 mm)
Min. 30 in.
(762 mm)
3. When drilling a hole for the drain hose
on the cabinet wall, use caution not to
damage the drain hose on the sharp
edges of the hole.
- On wooden walls, use sand paper to
soften the edges.
- On metal walls, use insulation tape or
duct tape to cover the sharp edges
around the hole.
4. Secure the drain hose to the sink wall
using cable ties or other fastening
materials.
CAUTION
• Use caution not to damage the drain hose when installing the dishwasher.
• Install the drain system properly so that the drain hose does not disconnect from the
drain outlet in the draining process.
• Make sure that the drain hose, supply hose, or power cord is not kinked or folded.
DW50T6060US_AA_DD81-03056A-00_EN.indd 19 2020-05-14 오후 6:09:09

English20
Installation
Installation
STEP 8 Final check
1. Remove all foam, paper packaging, and unnecessary parts from inside the dishwasher.
2. Turn the circuit breaker on.
3. Open the water valve to supply water to the dishwasher.
4. Plug in the dishwasher.
5. Turn the dishwasher on, and then select and run a cycle.
6. Check if the dishwasher turns on normally and if there are any water leaks while the
dishwasher is operating. Make sure to check for water leaks on both ends of the water
line and the drain hose connector.
7. Check if the kick plate gasket is attached to the bottom of the kick plate. To install the
kick plate, see the Kick plate section below.
Kick plate

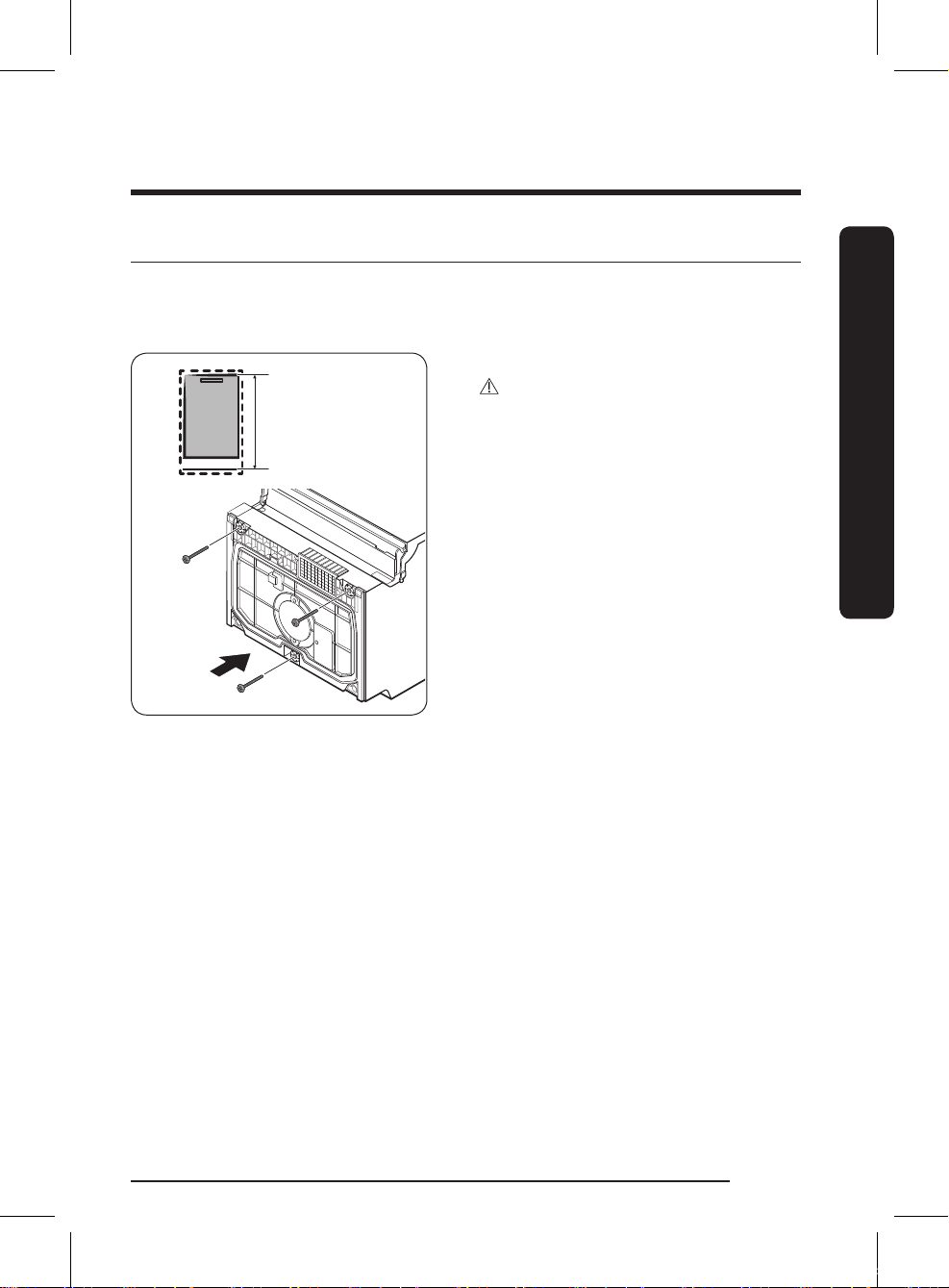

If you want to install the kickplate, follow these instructions.
1. Adjusting the front legs will un-level the
unit, and cause interference with the
counter.
2. Attach the kickplate to the dishwasher
using the kickplate brackets. Make sure
the kickplate brackets are in the correct
direction. See the gure for details.
DW50T6060US_AA_DD81-03056A-00_EN.indd 20 2020-05-14 오후 6:09:09
