Samsung DW60R7070 Series Assembly instructions

DISHWASHER
REPAIR Guide
DISHWASHER
Basic Model : DW60R7070 Series
DW60R7050 Series
DW60R7040 Series
Model Name : DW60A8070 Series
DW60A8060 Series
DW60A8050 Series
DW60A8040 Series
Model Code : DW60A8070BB, DW60A8070US,
DW60A8060BB, DW60A8060IB,
DW60A8060FS, DW60A8060FW,
DW60A8050BB, DW60A8050US,
DW60A8050FS, DW60A8040BB
DW60A8040IB
* For End User.

IMPORTANT SAFETY NOTICE
Following the repair by a non-authorized service provider self-repair or
non-professional repair of the product Samsung is not liable for any
damage to the product any injury or any other product safety issue caused
by any attempt to repair the product which does not carefully follow these
repair and maintenance instructions. Any damage to the product caused by
an attempt to repair the product by any person other than a Samsung
certified service provider will not be covered by the warranty.
All rights reserved.
This service guide may not be reproduced in whole or
as a part in any form whatsoever without the written permission of
the SAMSUNG ELECTRONICS Company.
WARNING
Note
1. You can check where to buy replacement parts at http://samsung.com
2. Visit the part purchase site and enter the model code of your product to check the parts available
for purchase. The model code is labelled on the edge of the tub. When you open the dishwasher’s
door, you can check the model code and version on the barcode label at the left side of the tub.
3. For replacement parts make sure the part name matches that of the illustration in this manual.
- User-serviceable parts are limited to door hinge and seals other seals spray arms drain lters
interior racks and plastic peripherals such as baskets and lids.
Caution
1. The part name listed on the site may differ from that in this manual. Please make sure you choose
the right part name.
2. Be sure to wear safety gloves while making repairs.
3. Must working more than 2 people to handling heavy weight.

Disassembly and Reassembly _ 3

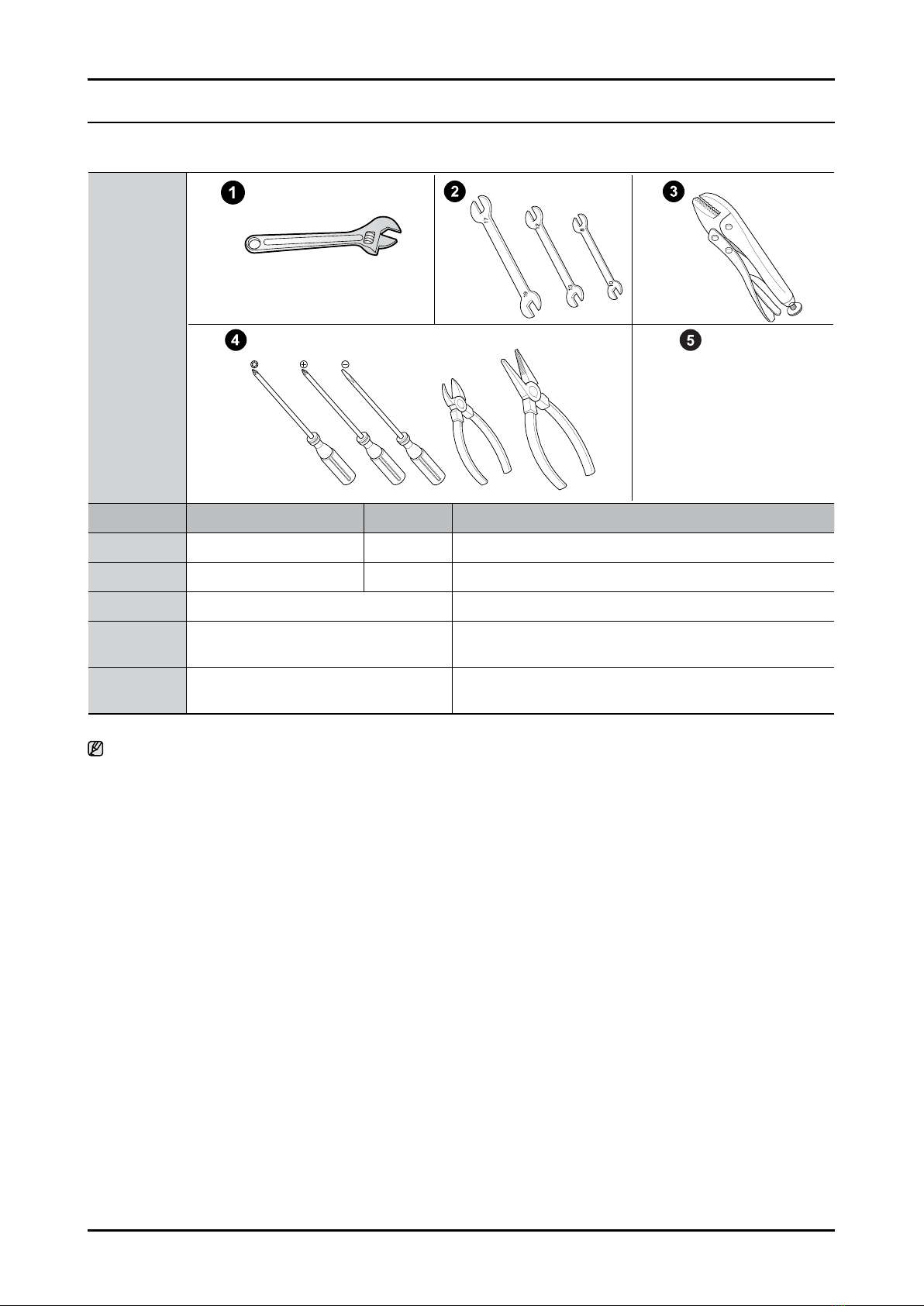

1. TOOLS FOR REMOVAL AND REASSEMBLY
Tool image
No. Tool Type Remarks
①Adjustable Wrench
②Open-end Wrench 1-7/16”
③Vice Pliers
④Others
(screwdriver, nipper, long nose pliers)
Common tools for servicing
Screwdriver – Phillip, Flat, Torx T15
⑤Ear clamping tool In reassembling of the clamp-bend(ear clamp) using our
SVC part, this tool is needed.
NOTE :
Preparation for parts replacement
1. Remove the residual water inside the product. (Drain the water by operating the drain pump)
2. Close the water supply valve.
3. Turn off the power & disconnect the power cable.
You must turn off the circuit breaker connected to the product.
4. Pull out the unit from the sink and lay it on the oor.
Be careful of the drain hose when pulling out the unit.

4 _ Disassembly and Reassembly
2. STANDARD DISASSEMBLY DRAWINGS
2-1. PRECAUTION
Caution
Before servicing,
- Make sure to remove all items include baskets inside dishwasher.
- Drain the water in the dishwasher and disconnect the power supply.
- Lock the water faucet that is connected with inlet hose.
- Uninstall the dishwasher from the furniture cabinet except simple work.
- Disconnect the Inlet & Drain hoses from the duct, if the hoses are too short to pull the dishwasher out of the furniture
cabinet enough.
- Make sure to remove any remaining water in the Sump and hoses by rag or vacuum.
→ There is a risk of water spill on the oor.

Disassembly and Reassembly _ 5
2-2. FRESH TANK / CAP CASE BRAKE / GASKET BRAKE (DW60A8070*/
DW60A8060* MODELS)
- FRESH TANK : DD82-01910A / SVC ASSY-FRESH TANK
- CAP CASE BRAKE : DD81-02725A / SVC CAP CASE BRAKE
- GASKET BRAKE : DD81-02726A / SVC GASKET BRAKE
Part Figure Description
CAP CASE
BRAKE/
GASKET
BRAKE/
(DW60A8070*/
DW60A8060*
models)
A
B
[DISASSEMBLY]
1. Remove 3 screws that connect left SIDE PANEL to
front side of dishwasher.
- Type A: DD81-02693A / 2 pcs
- Type B: DD81-02694A / 1 pc
- HOUSING-LEFT : DD81-02928B/DD81-02880A/
DD81-02880C
FRESH TANK replacement: Empty the FRESH TANK
before repair. (Refer to ~page for how to empty)
WARNING
Be sure to remove the power plug before
servicing.
CAUTION
Empty the water container before lay down set.
(Refer to ~page for how to empty)
In case of Free Standing models, there’re no
screws of type B.
C
B
2
1
2. Remove 3 screws at the back side of dishwasher.
- Type C: DD81-02692A / 1 pc
- Type B: DD81-02694A / 2 pcs
In case of Free Standing models, take off the
COVER TOP by removing 2 screws of type A.
After removing screws, pull the COVER TOP
backward rst, and take it off upward.
-TOP COVER : DD81-02552C/DD81-02552D
Guide Tub Top
3. Remove 1 screw at the left side of GUIDE TUB TOP.
- Screw: DD81-02694A / 1 pc
- GUIDE TUB TOP : DD81-02733A

6 _ Disassembly and Reassembly
Part Figure Description
CAP CASE
BRAKE/
GASKET
BRAKE/
(DW60A8070*/
DW60A8060*
models)
4. Take off the left SIDE PANEL.
WARNING
Do not this work without safety gloves.
It may cause injury from sharp edges.
5. Take off the CAP CASE BRAKE by rotating in a
counter-clockwise direction with long-nose pliers.
- CAP CASE BRAKE : DD81-02725A
CAUTION
It can be brake easily when you use the iron part
of the pliers. Take off the cap using the handle part
of the pliersto prevent damage.
Fresh Tank
6. Remove 1 screw from the FRESH TANK assembly.
- Screw : DD81-02694A / 1pc
Gasket brake
7. Remove the GASKET BRAKE from the FRESH
TANK assembly.
- GASKET-BRAKE : DD81-02726A
Cap Case brake Gasket brake

Disassembly and Reassembly _ 7
Part Figure Description
CAP CASE
BRAKE/
GASKET
BRAKE/
(DW60A8070*/
DW60A8060*
models)
[ASSEMBLY]
1. Fit the GASKET BRAKE on the FRESH TANK, and
attach the FRESH TANK with screws.
- Screw : DD81-02694A / 1pc
CAUTION
Pay attention to assemble the seal correctly.
It can cause the water leakage when it’s
assembled wrong.
2. fasten the CAP CASE BRAKE by rotating in a
clockwise direction with long-nose pliers.
CAUTION
It can be break easily when you the use iron part
of the pliers. Take off the cap using the handle part
of the pliers to prevent damage.
3. Assemble the left SIDE PANEL with the screws.
CAUTION
Fasten the screws that was assembled to origin
location.
Don’t assemble to other locations.
WARNING
Do not this work without safety gloves.
It can cause injury from sharp edge.

8 _ Disassembly and Reassembly
2-3. RECYCLE TANK / DUCT DRY NUT / GASKET BRAKE (DW60A8070*/
DW60A8060* MODELS)
- RECYCLE TANK : DD82-01909A / SVC ASSY-RECYCLE TANK
- DUCT DRY NUT : DD81-02705A / SVC-DUCT DRY NUT
Part Figure Description
RECYCLE
TANK/
DUCT DRY NUT/
GASKET
BRAKE
(DW60A8070*/
DW60A8060*
models)
A
B
[DISASSEMBLY]
1. Remove 3 screws that connect right SIDE PANEL
to front side of dishwasher.
- Type A: DD81-02693A / 2 pcs
- Type B: DD81-02694A / 1 pc
- HOUSING_RIGHT : DD81-02929B/DD81-
02881A/DD81-02881C
WARNING
Be sure to remove the power plug before
servicing.
In case of Free Standing models, there’re no
screws of type B.
CAUTION
RECYCLE TANK replacement: Empty the
RECYCLE TANK before repair. (Refer to ~page
for how to empty)
C
B
2
1
2. Remove 3 screws at the back side of dishwasher.
- Type C: DD81-02692A / 1 pc
- Type B: DD81-02694A / 2 pcs
In case of Free Standing models, take off the
COVER TOP by removing 2 screws of type A.
After removing screws, pull the COVER TOP
backward rst, and take it off upward.
- TOP COVER : DD81-02552C/DD81-02552D
Guide Tub Top
3. Remove 1 screw at the left side of GUIDE TUB TOP.
- Screw: DD81-02694A / 1 pc
- GUIDE TUB TOP : DD81-02733A

Disassembly and Reassembly _ 9
Part Figure Description
RECYCLE
TANK/
DUCT DRY NUT/
GASKET
BRAKE
(DW60A8070*/
DW60A8060*
models)
4. Remove the right SIDE PANEL.
WARNING
Do not this work without safety gloves. It can
cause injury from sharp edge.
5. Remove the DUCT DRY NUT by rotating in a
counter-clockwise direction with long-nose pliers.
- DUCT DRY NUT : DD81-02705A
CAUTION
It can be brake easily when you use the iron part
of the pliers. Take off the cap using the handle part
of the pliers to prevent damage.
Recycle Tank
6. Remove 1 screw from the RECYCLE TANK
assembly.
- Screw : DD81-02694A / 1pc
Gasket brake
7. Remove the GASKET BRAKE from the RECYCLE
TANK assembly.
- GASKET-BRAKE : DD81-02726A
Duct Dry Nut Gasket brake

10 _ Disassembly and Reassembly
Part Figure Description
RECYCLE
TANK/
DUCT DRY NUT/
GASKET
BRAKE
(DW60A8070*/
DW60A8060*
models)
Gasket brake
[ASSEMBLY]
1. Fit the GASKET BRAKE on the RECYCLE TANK,
and attach the FRESH TANK with screws.
- Screw : DD81-02694A / 1pc
CAUTION
Pay attention to assemble the seal correctly. It
can cause the water leakage when it’s assembled
wrong.
2. fasten the DUCT DRY NUT by rotating in a
clockwise direction
CAUTION
Wear gloves with friction and tighten rmly.
Otherwise, there is a risk of leakage.
3. Assemble the right SIDE PANEL with the screws.
CAUTION
Fasten the screws that was assembled to origin
location.
Don’t assemble to other locations.
WARNING
Do not this work without safety gloves. It can
cause injury from sharp edge.

Disassembly and Reassembly _ 11
2-4. CASE BRAKE / CAP CASE BRAKE / GASKET BRAKE (DW60A8050*/
DW60A8040* MODELS)
- CASE BRAKE : DD82-01446A / SVC ASSY-CASE BRAKE
- CAP CASE BRAKE : DD81-02725A / SVC CAP CASE BRAKE
- GASKET BRAKE : DD81-02726A / SVC GASKET BRAKE
Part Figure Description
CASE BRAKE/
CAP CASE
BRAKE/
GASKET
BRAKE
(DW60A8050*/
DW60A8040*
models)
A
B
[DISASSEMBLY]
1. Remove 3 screws that connect left SIDE PANEL to
front side of dishwasher.
- Type A: DD81-02693A / 2 pcs
- Type B: DD81-02694A / 1 pc
- HOUSING-LEFT : DD81-02928B/DD81-02880A/
DD81-02880C
WARNING
Be sure to remove the power plug before
servicing.
In case of Free Standing models, there’re no
screws of type B.
C
B
2
1
2. Remove 3 screws at the back side of dishwasher.
- Type C: DD81-02692A / 1 pc
- Type B: DD81-02694A / 2 pcs
In case of Free Standing models, take off the
COVER TOP by removing 2 screws of type A.
After removing screws, pull the COVER TOP
backward rst, and take it off upward.
- TOP COVER : DD81-02552C/DD81-02552D
Guide Tub Top
3. Remove 1 screw at the left side of GUIDE TUB TOP.
- Screw: DD81-02694A / 1 pc
- GUIDE TUB TOP : DD81-02733A

12 _ Disassembly and Reassembly
Part Figure Description
CASE BRAKE/
CAP CASE
BRAKE/
GASKET
BRAKE
(DW60A8050*/
DW60A8040*
models)
4. Take off the left SIDE PANEL.
WARNING
Do not this work without safety gloves. It can
cause injury from sharp edge.
5. Take off the CAP CASE BRAKE by rotating to
counter-clockwise direction with long-nose pliers.
- CAP CASE BRAKE : DD81-02725A
CAUTION
It can be broken easily when you use the iron part
of the pliers. Take off the cap using the handle part
of the pliers to prevent damage.
Gasket brake
Cap Case brake Gasket brake
6. Remove the GASKET BRAKE from the CASE
BRAKE assembly.
- GASKET-BRAKE : DD81-02726A
[ASSEMBLY]
1. Fit the GASKET BRAKE on the CASE BRAKE,
and fasten the CAP CASE BRAKE by rotating in a
clockwise direction with long-nose pliers.
CAUTION
It can be break easily when you use the iron part
of the pliers. Take off the cap using the handle part
of the pliers to prevent damage.
CAUTION
Pay attention to assemble the seal correctly.
It can cause the water leakage when it’s
assembled wrong.
2. Assemble the left SIDE PANEL with the screws.
CAUTION
Fasten the screws that was assembled to origin
location. Don’t assemble to other locations.
WARNING
Do not this work without safety gloves. It can
cause injury from sharp edge.

Disassembly and Reassembly _ 13
2-5. CONTROL PANEL
- CONTROL PANEL : DD82-01903B, DD82-01903D / SVC ASSY-CONTROL PANEL
Part Figure Description
CONTROL
PANEL
(DW60A80**U*/
DW60A80**F*)
[DISASSEMBLY]
1. Open the dishwasher’s DOOR.
WARNING
Be sure to remove the power plug before
servicing.
CAUTION
Make sure to Remove the power plug before
servicing.
B
A
BA
2. Remove 10 screws that connect the ASSY
CONTROL PANEL to the dishwasher’s DOOR with
Torx® T15 screwdriver.
- Type A: DD81-03011A / 6 pcs
- Type B: DD81-02758A / 4 pcs
SUB TOUCH PBA
DW60A8070*/ DW60A8060*/
DW60A8050* models
DW60A8040* models
LAN PBA (WIFI)
3. Remove the wire harness that connect MAIN PBA
to SUB TOUCH PBA.
4. In the case of DW60A8070*/DW60A8060*/
DW60A8050* models, also remove the LAN PBA
(Wi-Fi) connector.
- ASSY-CONTROL PANEL : DD82-01903B/DD82-
01903D

14 _ Disassembly and Reassembly
Part Figure Description
CONTROL
PANEL
(DW60A80**U*/
DW60A80**F*)
SUB TOUCH PBA
DW60A8070*/ DW60A8060*/
DW60A8050* models
DW60A8040* models
LAN PBA (WIFI)
[ASSEMBLY]
1. Connect wire terminal to connect MAIN PBA to
SUB TOUCH PBA.
2. In the case of DW60A8070*/DW60A8060*/
DW60A8050* models, connect the LAN PBA (Wi-Fi)
connector as well.
CAUTION
Make sure the Wire harness are not getting stuck
in other parts.
B
A
3. Fix 10 screws to connect the ASSY CONTROL
PANEL to the dishwasher’s DOOR with Torx® T15
screwdriver.
- Type A: DD81-03011A / 6 pcs
- Type B: DD81-02758A / 4 pcs

Disassembly and Reassembly _ 15
- CONTROL PANEL : DD82-01903A, DD82-01903C, DD82-01903E, DD82-01903F / SVC ASSY-CONTROL PANEL
Part Figure Description
CONTROL
PANEL/
(DW60A80*0BB/
DW60A80*0IB)
[DISASSEMBLY]
1. Open the dishwasher’s DOOR.
It doesn’t need to uninstall the dishwasher from the
furniture cabinet.
WARNING
Be sure to remove the power plug before
servicing.
BA
B
A
2. Remove 8 screws that connect the ASSY
CONTROL PANEL to the dishwasher’s DOOR with
Torx® T15 screwdriver.
- Type A: DD81-03011A / 6 pcs
- Type B: DD81-02758A / 2 pcs
SUB PBA
DW60A8070*/ DW60A8060*/
DW60A8050* models
DW60A8040* models
LAN PBA (WIFI)
3. Remove wire connector that connect MAIN PBA to
SUB PBA.
4. In the case of DW60A8070*B/DW60A8060*B/
DW60A8050*B models, also remove the LAN PBA
(Wi-Fi) connector.
- ASSY-CONTROL PANEL : DD82-01903A/DD82-
01903C/DD82-01903E

16 _ Disassembly and Reassembly
Part Figure Description
CONTROL
PANEL/
(DW60A80*0BB/
DW60A80*0IB)
SUB PBA
DW60A8070*/ DW60A8060*/
DW60A8050* models
DW60A8040* models
LAN PBA (WIFI)
[ASSEMBLY]
1. Connect the Wire harness that connect MAIN PBA
to SUB PBA.
In case of DW60A8070*B/DW60A8060*B/
DW60A8050*B models, connect the wire
connector of LAN PBA (WIFI) as well.
CAUTION
Make sure the Wire harness are not getting stuck
in other parts.
BA
2. Fix 8 screws to connect the ASSY CONTROL
PANEL to the dishwasher’s DOOR with Torx® T15
screwdriver.
- Type A: DD81-02756A / 2 pcs
- Type B: DD81-02758A / 6 pcs

Disassembly and Reassembly _ 17

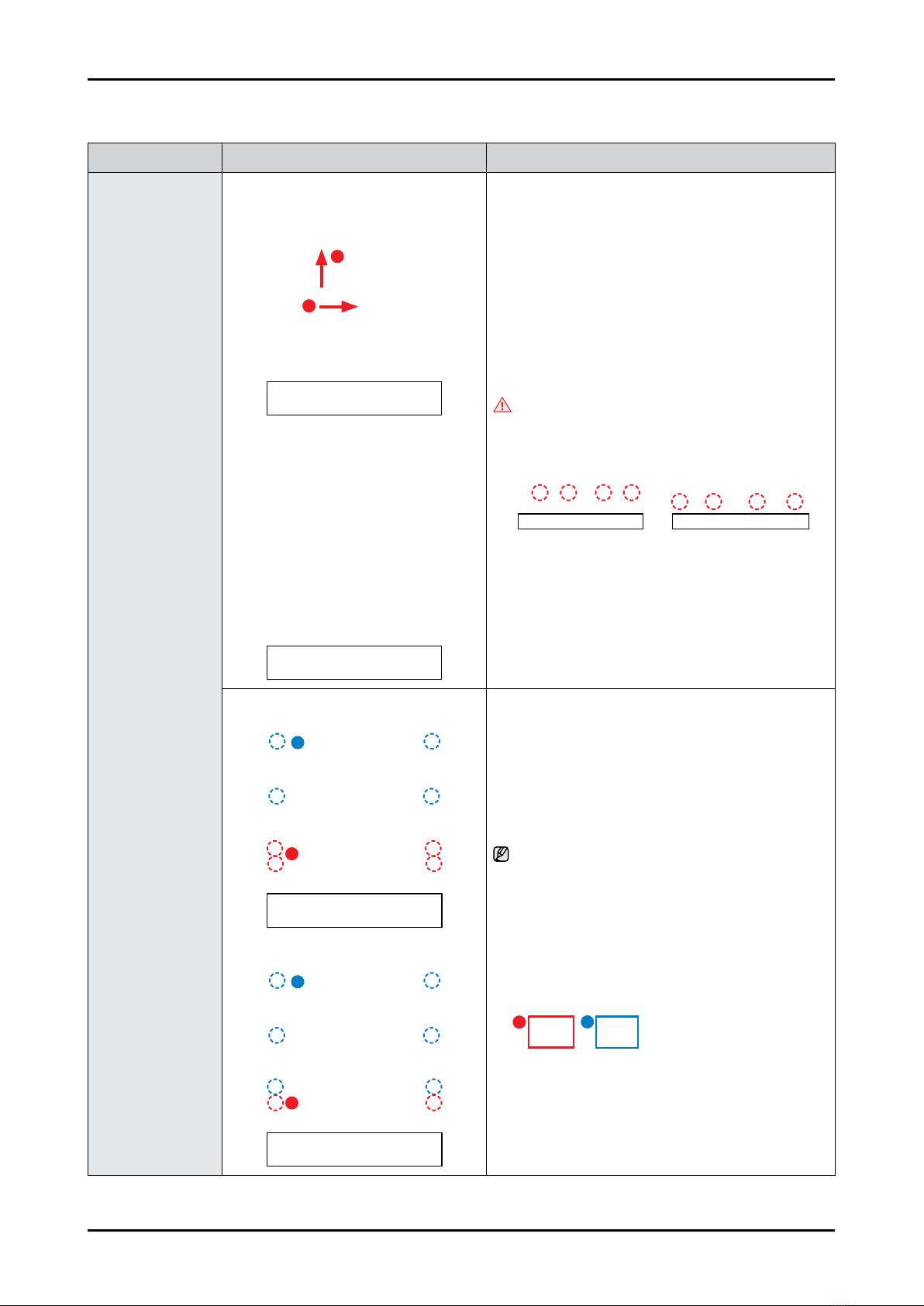

2-6. DOOR OUTER
- DOOR OUTER : DD81-02455B (*BB models), DD81-02455D (*IB models), DD81-02521A (*FS models),
DD81-02521B (*FW models) / SVC DOOR OUTER
Part Figure Description
DOOR OUTER
A
B
DW60A80**F*/
DW60A80**U* models
A
B
DW60A80**BB/
DW60A80**IB models
[DISASSEMBLY]
1. Open the dishwasher’s DOOR, and remove 8
screws to take off DOOR OUTER.
Screws on DOOR are Torx® T15 type. Use the
Torx® T15 screw driver when release the screws.
•DW60A80**F*/DW60A80**U* models
- Type A: DD81-02758A / 4 pcs
- Type B: DD81-02757A / 4 pcs
•DW60A80**BB/DW60A80**IB models
- Type A: DD81-02758A / 2 pcs
- Type B: DD81-02757A / 6 pcs
AB
WARNING
Be sure to remove the power plug before
servicing.
CAUTION
Be careful to avoid injury when the DOOR is
closed after removing DOOR OUTER.
CAUTION
The screws can fall into the SUMP after disassembly.
Keep the screws in a safe place to reassemble the
DOOR.
1
2
DW60A80**F*/
DW60A80**U* models
DW60A80**BB/
DW60A80**IB models
2. Remove the DOOR OUTER.
WARNING
Do not this work without safety gloves.
It can cause injury from sharp edge.
- DOOR OUTER : DD81-02521A/DD81-02521B/
DD81-02455B

18 _ Disassembly and Reassembly
Part Figure Description
DOOR OUTER
1
2
DW60A80**F*/
DW60A80**U* models
DW60A80**BB/
DW60A80**IB models

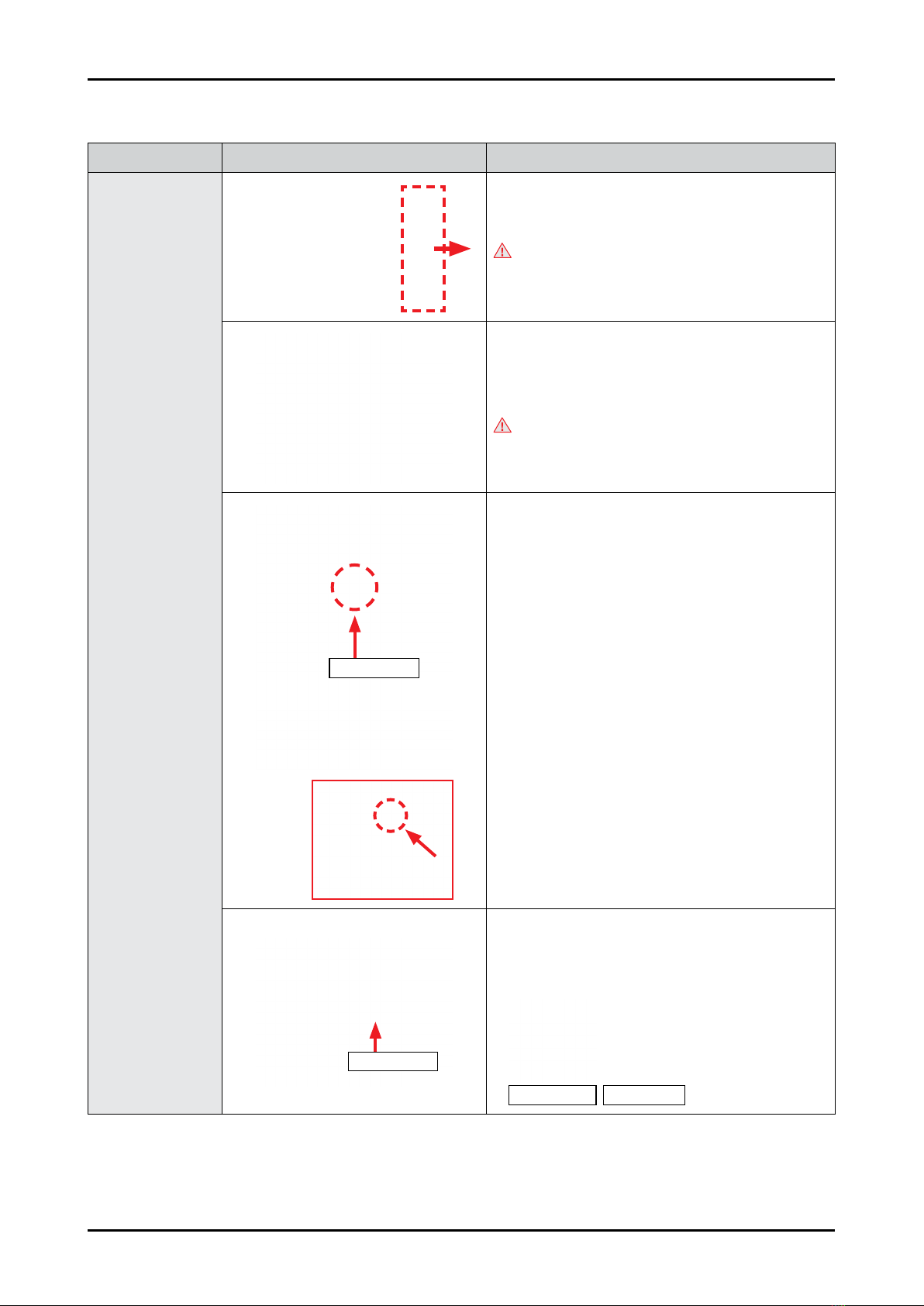

[ASSEMBLY]
1. Assemble the holes of DOOR OUTER to hooks of
CONTROL PANEL
WARNING
Do not this work without safety gloves. It can
cause injury from sharp edge.
Holes of DOOR OUTER Hooks of CONTROL PANEL
A
B
DW60A80**F*/
DW60A80**U* models
A
B
DW60A80**BB/
DW60A80**IB models
2. Fasten 8 screws to x the DOOR OUTER.
Screws on DOOR are Torx® T15 type. Use the
Torx® T15 screw driver when release the screws.
•DW60A80**F*/DW60A80**U* models
- Type A: DD81-02758A / 4 pcs
- Type B: DD81-02757A / 4 pcs
•DW60A80**BB/DW60A80**IB models
- Type A: DD81-02758A / 2 pcs
- Type B: DD81-02757A / 6 pcs
AB

Disassembly and Reassembly _ 19
2-7. HOLDER HINGE
- HOLDER HINGE : DD81-02763A / SVC HOLDER HINGE
Part Figure Description
HOLDER HINGE
(DW60A80**BB/
DW60A80**F*/
DW60A80**U*
models)
[DISASSEMBLY]
* PREPARATION: Disassemble SIDE PANEL left & right.
1. Remove HOLDER ROPE DOOR from the DOOR
HINGE left & right with the DOOR closed.
WARNING
Be sure to remove the power plug before
servicing.
CAUTION
Pay attention to DOOR drop after remove the
rope.
It can cause injury.
- ASSY-HINGE-RIGHT : DD82-01675A
- ASSY-HINGE-LEFT : DD82-01676A
2. Remove HOLDER HINGE from the DOOR HINGE.
CAUTION
Be careful to avoid injury from the DOOR drop
without HOLDER ROPE DOOR.
Rotate the HOLDER HINGE to release from hook.
-HOLDER HINGE : DD81-02763A
[ASSEMBLY]
* Reassembly is the reverse order of disassembly.

20 _ Disassembly and Reassembly
2-8. DOOR HINGE / GUIDE HINGE
- DOOR HINGE LEFT : DD82-01676A / SVC ASSY-HINGE LEFT
- DOOR HINGE RIGHT : DD82-01675A / SVC ASSY-HINGE RIGHT
Part Figure Description
DOOR HINGE/
GUIDE HINGE
(DW60A80**BB/
DW60A80**F*/
DW60A80**U*
models)
Hook Hook
[DISASSEMBLY]
* PREPARATION: Disassemble DOOR OUTER,
CONTROL PANEL and SIDE PANEL left & right.
1. Remove 2 terminals that connected to
DETERGENT DISPENSER, and 1 ground wire that
connected to BRACKET DOOR FRAME.
WARNING
Be sure to remove the power plug before
servicing.
CAUTION
Pay attention to hook of terminals.
2. Remove HOLDER ROPE DOOR from the DOOR
HINGE left & right with the DOOR closed.
CAUTION
Pay attention to DOOR drop after remove the
rope. It can cause injury.
GUIDE HINGE
3. Push both ribs of GUIDE HINGE to pull out the DOOR.
WARNING
Do not this work without safety gloves. It can
cause injury from sharp edge of broken parts.
