Samsung DW80R7060US User manual

Dishwasher
User manual
DW80R706* Series
DW8000R_DD68-00211A-00_EN.indd 1 2019-04-24  5:59:10

English2
Contents
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
Before using your dishwasher 7
Before you start 8
Unpacking your dishwasher 8
Checking parts 9
Unsuitable items for the dishwasher 11
Using your dishwasher 12
Basic use of racks 12
Detergent guidelines 23
Touchpad responsiveness 26
Operations 27
Control panel 27
Cycle overview 30
Simple steps to start your dishwasher 31
Settings 32
Special features 34
Maintenance 35
Cleaning 35
Long-term care 39
Cleaning the drain pump 40
Storing your dishwasher 40
Troubleshooting 41
Check these solutions if your dishwasher… 41
Information codes 47
DW8000R_DD68-00211A-00_EN.indd 2 2019-04-24  5:59:10

English 3
Contents
Cycle chart 48
Appendix 50
Helping the environment 50
Specications 50
Warranty (U.S.A) 51
DW8000R_DD68-00211A-00_EN.indd 3 2019-04-24  5:59:10

English4
SAVE THESE INSTRUCTIONS
Safety information
Safety information
Congratulations on your new Samsung dishwasher. This manual contains important
information on the installation, use, and care of your appliance. Please take time to read
this manual to take full advantage of your dishwasher’s many benets and features.
What you need to know about the safety instructions
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution, and care when installing, maintaining, and operating your dishwasher.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
To reduce the risk of re, explosion, electric shock, or personal injury when using your
dishwasher, follow these basic safety precautions:
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property damage.
NOTE
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
DW8000R_DD68-00211A-00_EN.indd 4 2019-04-24  5:59:10

English 5
SAVE THESE INSTRUCTIONS
Safety information
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
WARNING
When using your dishwasher, follow basic precautions, including the following:
1. Read all instructions before using the dishwasher.
2. Use the dishwasher only for its intended function.
3. Use only detergents or wetting agents recommended for use in a dishwasher and keep
them out of the reach of children.
4. When loading items to be washed:
- locate sharp items so that they are not likely to damage the door seal, and
- load sharp knives with the handles up to reduce the risk of cut-type injuries.
5. Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent.
For plastic items not so marked, check the manufacturer’s recommendations.
6. Do not touch the HEATING ELEMENT during or immediately after use.
7. Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.
8. Do not tamper with the controls.
9. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
10. To reduce the risk of injury, do not allow children to play in or on the dishwasher.
11. Under certain conditions, hydrogen gas may be produced in a hot-water system that
has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-
water system has not been used for such a period, before using the dishwasher turn
on all hot-water faucets and let the water ow from each for several minutes. This will
release any accumulated hydrogen gas. As the gas is ammable, do not smoke or use
an open ame during this time.
12. Remove the door to the washing compartment when removing an old dishwasher from
service or discarding it.
DW8000R_DD68-00211A-00_EN.indd 5 2019-04-24  5:59:10

English6
SAVE THESE INSTRUCTIONS
Safety information
Safety information
CAUTION
• After unpacking the dishwasher, keep the packaging out of the reach of children.
• The dishwasher is extremely heavy. Do not attempt to move or carry the dishwasher
by yourself. Two or more people are needed to move a dishwasher and avoid potential
injuries.
• As with any equipment using electricity, water, and moving parts, potential hazards
exist.
• Do not install the dishwasher near electrical components. Keep the dishwasher away
from open ames.
• Install and level your dishwasher on an uncarpeted oor that can support its weight.
• Your dishwasher must be properly grounded. Never connect it to an ungrounded outlet.
See page 7for more information on grounding your dishwasher.
• Connect the ground wire to the green ground connector in the terminal box.
• After the dishwasher is installed, check that the drain hose is properly connected and
that there is no leakage from the hose connectors. If the drain hose is loose, it may
cause property damage.
• The water supply line is susceptible to breakage. As time goes by, it becomes less
exible. Check the line periodically. If it is swollen, torn, cut, or there is a water leak,
replace it immediately.
• To safely operate this appliance, familiarize yourself with its operations and exercise
care when using it.
• Do not put gasoline, solvents, or other flammable materials inside the dishwasher. Do
not wash dishes exposed to these materials.
• Keep your dishwasher detergent out of the reach of children. Detergent has an adverse
effect on human organs. It contains elements for polishing and is corrosive. Avoid
letting the detergent come into contact with your skin and eyes.
• Do not push or place pressure on the door when it is open, as this may damage the
dishwasher or cause harm.
• Do not allow children to play in or on the dishwasher. They may harm themselves or
damage the dishwasher.
• Disconnect the power cable (or set the circuit breaker to off) before servicing your
dishwasher.
• Do not repair, replace, or service any part of your dishwasher yourself. Disassembly,
repairs, and modications are permitted by authorized service technicians only. Work
done by an unauthorized person may void your warranty.
DW8000R_DD68-00211A-00_EN.indd 6 2019-04-24  5:59:10

English 7
SAVE THESE INSTRUCTIONS
Safety information
• Before disposing of your dishwasher, remove the door of the washing compartment or
the door latch so that children or small animals cannot get trapped inside.
• If the dishwasher is left unused for an extended period of time, turn off the water
supply.
• This dishwasher is intended for residential use only.
Before using your dishwasher
WARNING
Tip-Over Hazard
• Do not use the dishwasher until it is correctly installed.
• Do not push down on the dishwasher door when it is open.
• Do not place excessive weight on the dishwasher door when it is
open.
Electric Shock Hazard
Failure to follow these instructions can result in death, re, or electric
shock:
• Electrically ground the dishwasher
• Connect the ground wire to the green ground connector in the
junction box.
• Do not use an extension cord.
DW8000R_DD68-00211A-00_EN.indd 7 2019-04-24  5:59:11

English8
Before you start
Before you start
Be sure to have your installer follow these instructions closely so that your new
dishwasher works properly and that you’re not at risk of injury when washing dishes.
Unpacking your dishwasher
• Once your new dishwasher has been delivered to you, carefully unpack it and check for
any damage.
If the dishwasher has been damaged, make note of it on the waybill and keep a copy.
Do not install the dishwasher, and contact Samsung Customer Service at the number
listed on the next page.
• If there is no damage to the product, you can proceed with the installation. If you are
going to install it yourself, make sure to read through the installation guide and follow
the directions inside.
• After unpacking your dishwasher, keep the packaging out of the reach of children to
ensure their safety.
DW8000R_DD68-00211A-00_EN.indd 8 2019-04-24  5:59:11

English 9
Before you start

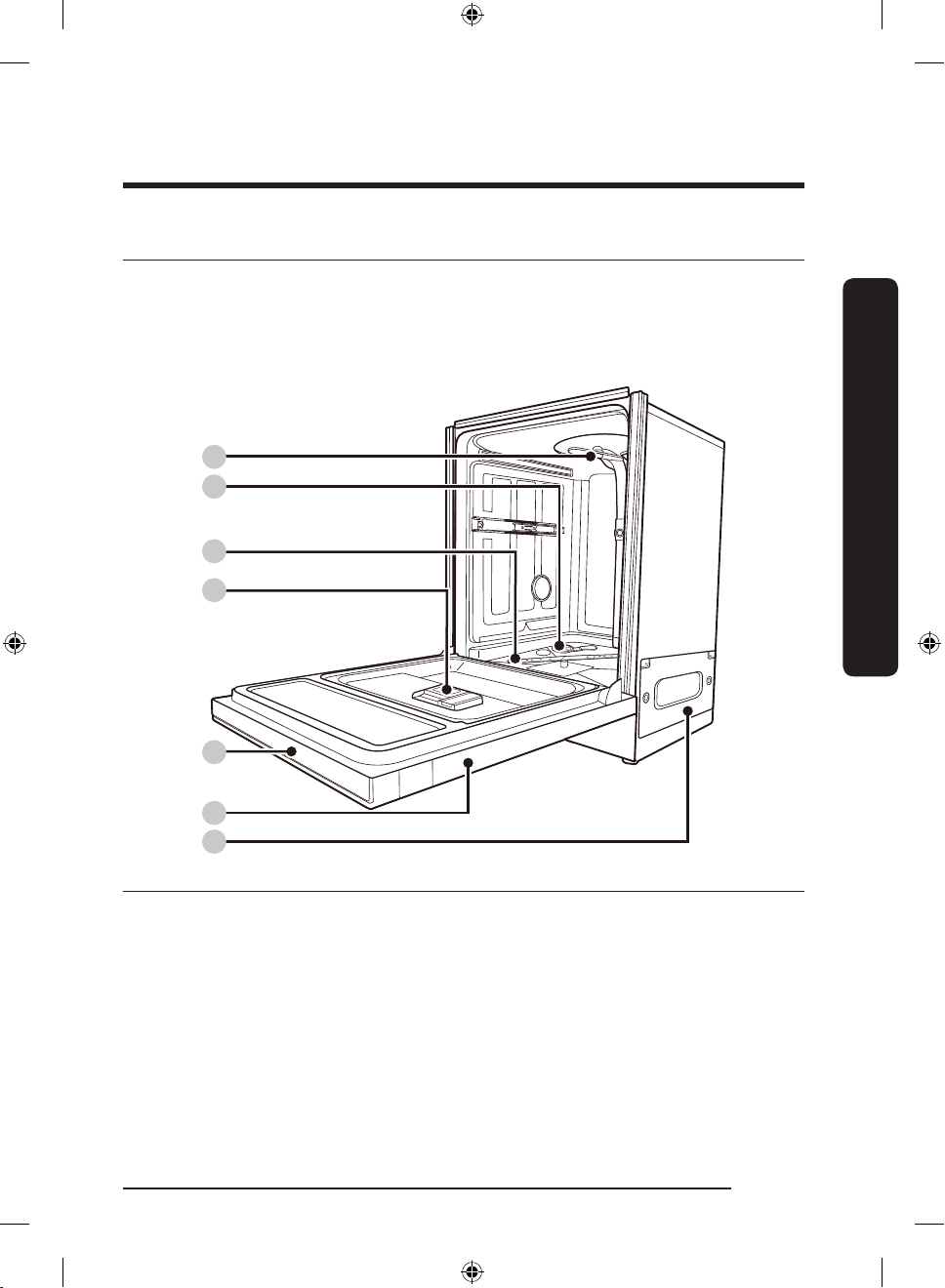

Checking parts
When your dishwasher has been unpacked, make sure you’ve received all the parts shown
below.
If your dishwasher was damaged during shipping, or if you do not have all the parts,
contact Samsung Customer Service at 1-800-SAMSUNG (726-7864).
04
01
02
03
05
07
06
01 Top nozzle 02 Storm Wash 03 Lower nozzle
04 Dispenser 05 Control panel 06 Door
07 Base
DW8000R_DD68-00211A-00_EN.indd 9 2019-04-24  5:59:11

English10
Before you start
Before you start
Accessories
Upper rack Lower rack
Cutlery rack 3rd rack
NOTE
Accessory parts - User/Installation manual, Installation Kit, Kick Plate.
CAUTION
• Do not wash items that are covered with ash, sand, wax, lubricating grease, or paint.
These materials will damage the dishwasher. Ash does not dissolve and will spread
inside the dishwasher.
• Remove food remains such as bones, fruit seeds, etc. and waste such as toothpicks,
paper napkins, etc. from your dishes. Food remains and waste can make noise, cause the
dishwasher to malfunction, and damage your dishes and dishwasher.
DW8000R_DD68-00211A-00_EN.indd 10 2019-04-24  5:59:12

English 11
Before you start
Unsuitable items for the dishwasher
WARNING
Wash only items such as glass, porcelain, and cutlery which the manufacturer states is
dishwasher safe. Do not wash aluminium (e.g. grease lters). The dishwasher may damage
aluminium, or in extreme cases, cause a severe chemical reaction.
Do not wash the following items in the dishwasher.
• Copper, brass, tin, ivory, and aluminium items or items with adhesive
• Non-heat resistant plastics
• Craft items, antiques, valuable vases, and decorative glassware
• Pottery or glazed-ceramic items
• Wooden cutlery and crockery or items with wooden parts
• Delicate glassware or glassware containing lead crystal. Clouding may occur on the
glassware after frequent washing.
NOTE
Silverware that has contacted food containing sulphur may become discoloured. Food with
sulphuric content include egg yolks, onions, mayonnaise, mustard, sh, sh brine, and
marinades.
DW8000R_DD68-00211A-00_EN.indd 11 2019-04-24  5:59:12

English12
Using your dishwasher
Using your dishwasher
Basic use of racks
Angle of the plate supports

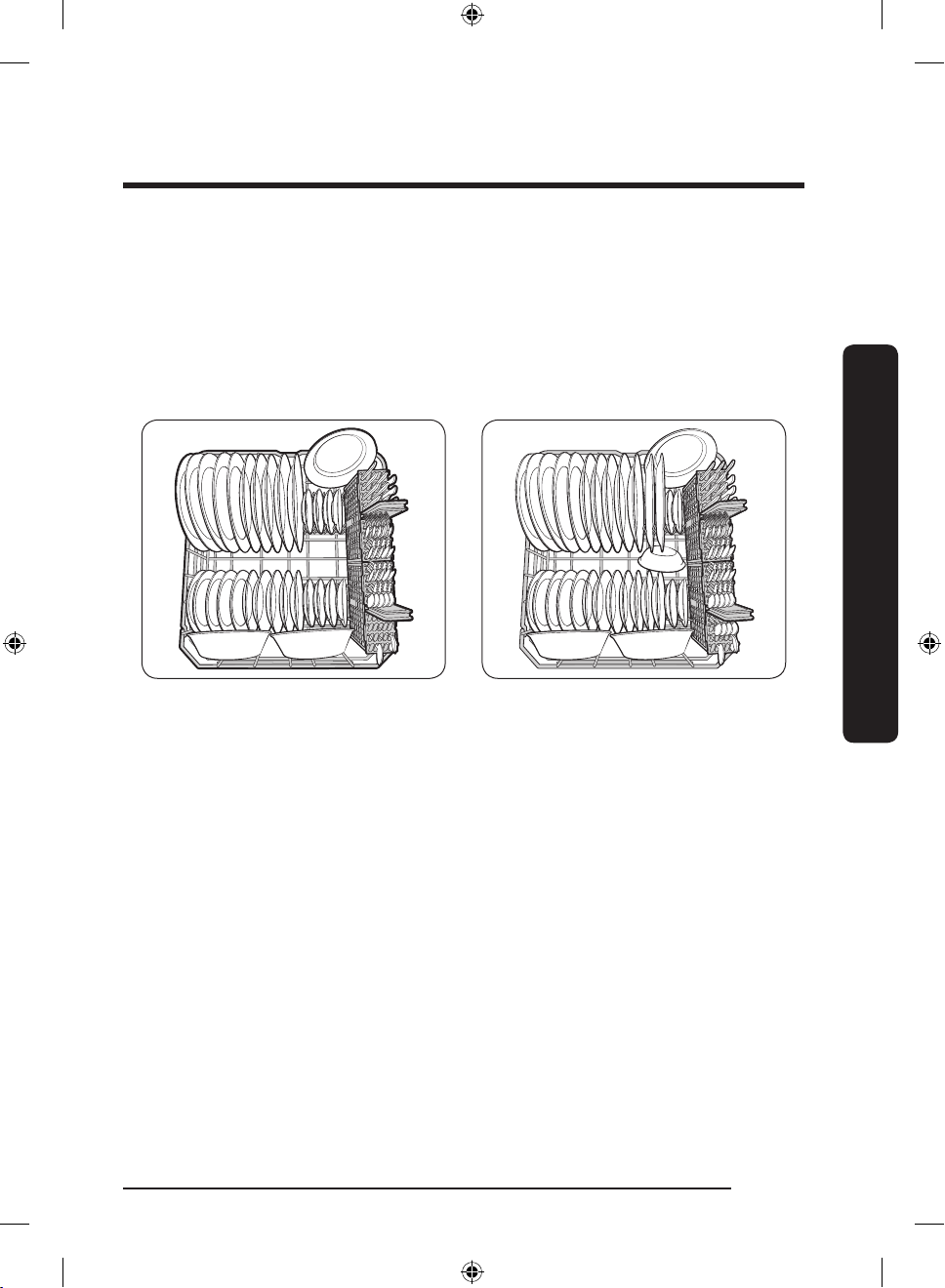

In the Lower rack, you can easily fold down the fold-down tines to make room for
large items such as pots and pans in the Zone Booster area. Remove the rack from the
dishwasher, and then fold down the tines one at a time. See the illustration below.
Lower rack
In the Upper rack, you can adjust the angle of the tines to three different positions to
match the size and shape of your dishes. To adjust the tines, grasp the handle at the front
of the rack, and then push it left or right. See the illustration below.
Upper rack
DW8000R_DD68-00211A-00_EN.indd 12 2019-04-24  5:59:13

English 13
Using your dishwasher
Height adjustment
You can adjust the height of the upper rack in your Samsung dishwasher so that the lower
rack can accommodate larger sized dishes. Depending on where you set the upper rack
height, the lower rack can accommodate plates up to 12 in. (30 cm) in diameter and the
upper rack can accommodated plates up to 8 in. (20 cm) in diameter.
To raise the upper rack
Pull the upper rack upwards. The adjustable
handle will latch, and the upper rack will
rise.
To lower the upper rack
Hold both the adjustable handles located at
the left and right sides of the upper rack,
and then evenly press down.
CAUTION
• Adjust the height of the upper rack
before loading dishes into the rack.
Adjusting the rack after loading the
dishes may damage the dishes.
• Make sure to hold both handles when
adjusting, or the dishwasher door may
not close properly.
DW8000R_DD68-00211A-00_EN.indd 13 2019-04-24  5:59:13

English14
Using your dishwasher
Using your dishwasher

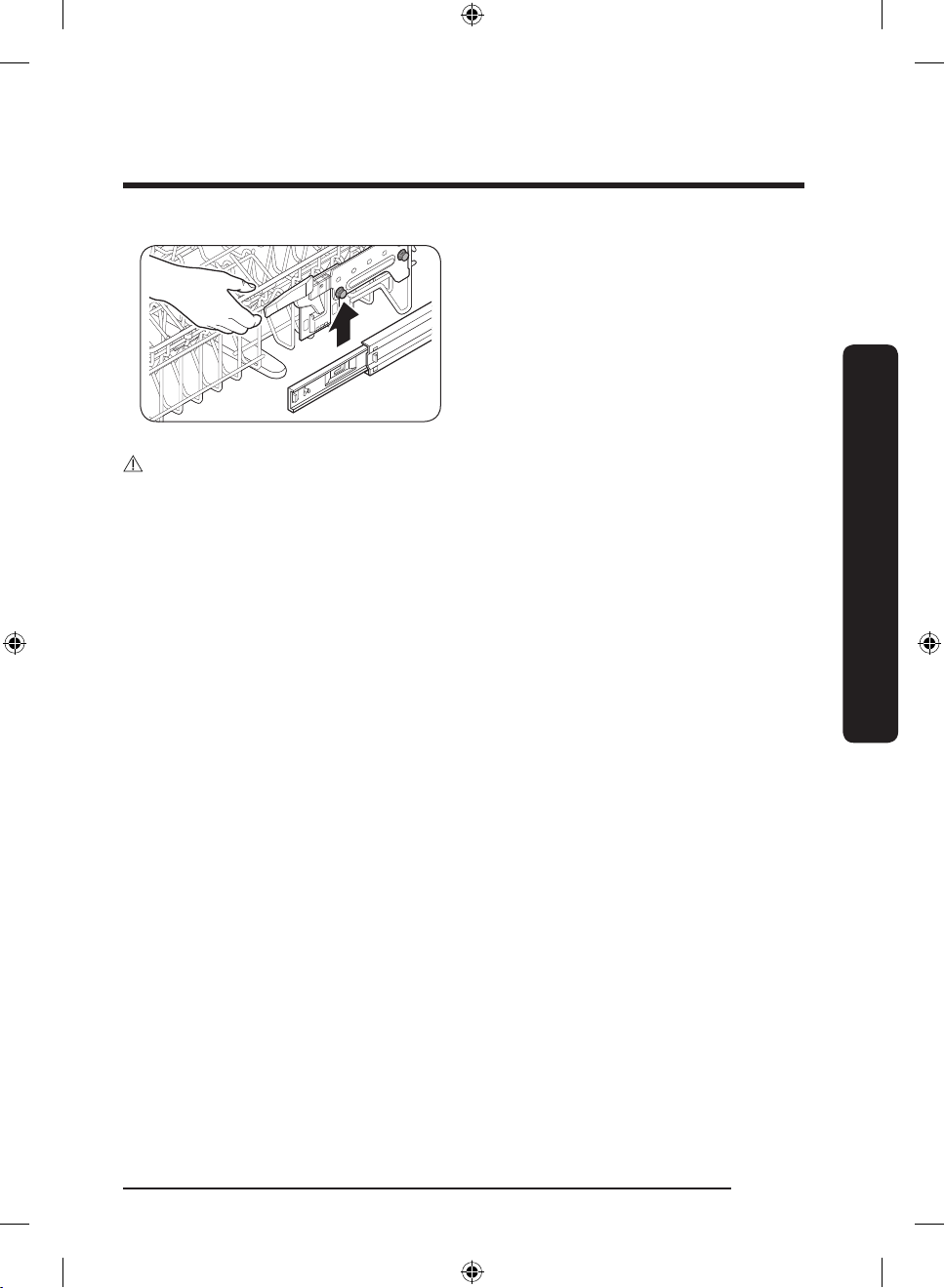

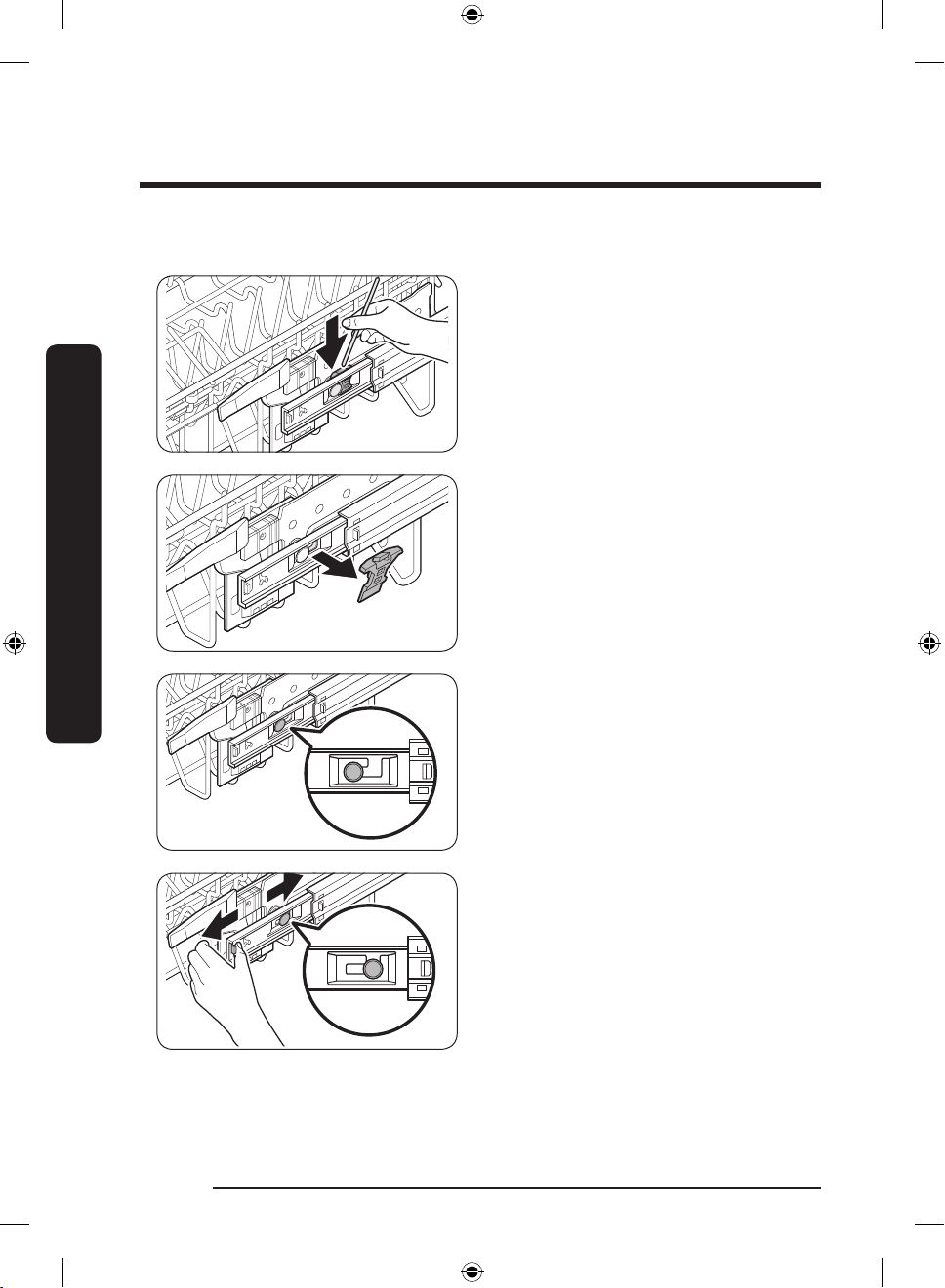

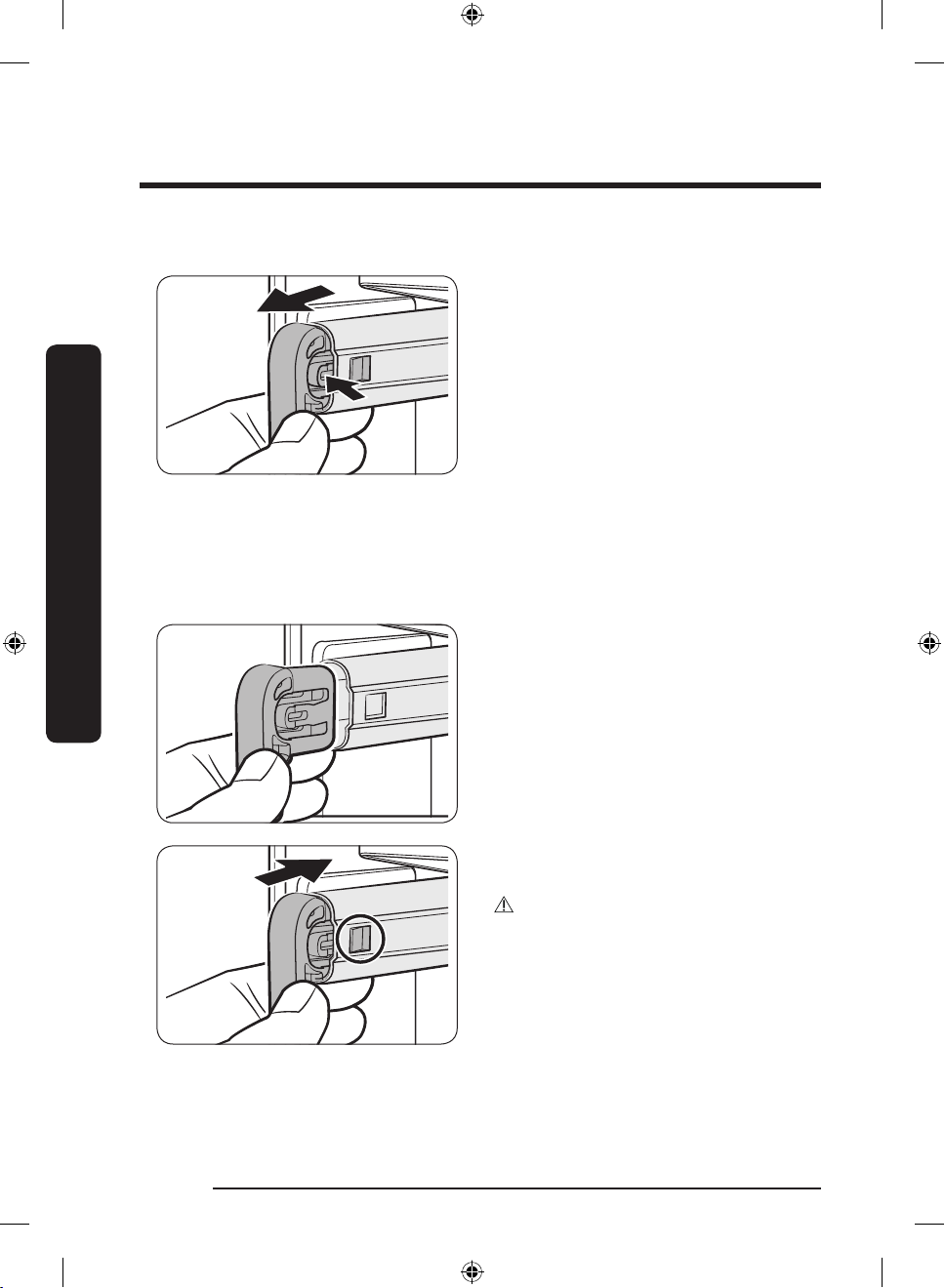

To remove the upper rack
1. Push the hook on the left rail holder
and then the right rail holder.
2. Remove the rail holders from the left
and right rails.
3. Check the position of the shaft (dark
grey in the illustration) on the rail
bracket.
4. Slide the upper rack so that the shaft is
positioned at end of the rail bracket.
DW8000R_DD68-00211A-00_EN.indd 14 2019-04-24  5:59:14

English 15
Using your dishwasher
5. Lift the upper rack to remove.
6. Reverse the order of removal to re-
insert the upper rack.
CAUTION
• Do not operate the dishwasher without the upper rack. Otherwise, noises occur and the
dishwasher does not operate properly.
• Because the upper rack is removable, insert the upper rack properly to ensure the
dishwasher operates normally.
• Take care that you do not lose the holder rails during this process.
DW8000R_DD68-00211A-00_EN.indd 15 2019-04-24  5:59:14

English16
Using your dishwasher
Using your dishwasher
To remove the 3rd Rack
1. Stand facing the dishwasher, and then
pull the 3rd rack out so that the handles
at the ends of the rack supports (dark
grey in the illustration) are even with
the end of the rack.
2. With your right thumb, nd the small
indentation on the inside of the left
rack support that houses the tab for the
handle lock.
3. Push the handle lock tab in (i.e. to your
left) with the tip of your thumb, and
then pull the handle towards you until
it disengages from the support.
4. Repeat this process with the right
handle using your left thumb.
5. When the handles are removed, remove
the 3rd rack from the dishwasher.
6. Reverse the order of removal to
re-insert the 3rd rack.
CAUTION
Make sure the hook-shaped part of the
handle faces downward and the handle
lock (circled) re-engages when reinserting
the handle into the rail.
DW8000R_DD68-00211A-00_EN.indd 16 2019-04-24  5:59:14

English 17
Using your dishwasher
Loading dishes
Loading the lower rack
The lower rack has been especially designed for dinner dishes, soup bowls, plates, pots,
lids, casserole dishes, and plates.
Load large items such as pans and pots into the dishwasher so their open sides face
downwards. We recommend loading cups, stemware, and small plates into the upper rack.
See the recommended loading patterns below.
10 place setting 12 place setting
DW8000R_DD68-00211A-00_EN.indd 17 2019-04-24  5:59:14

English18
Using your dishwasher
Using your dishwasher
Loading the Storm Wash Area
For more effective cleaning, load large
items into the Storm Wash area on the left
side of the lower rack (Red zone).
When you select Storm Wash, the
dishwasher supplies additional power to
reinforce the water jet in the Storm Wash
area.
Make sure pot handles and other items
do not interfere with the rotation of the
nozzles.
DW8000R_DD68-00211A-00_EN.indd 18 2019-04-24  5:59:15

English 19
Using your dishwasher
Loading the upper rack
The upper rack has been designed for small plates, mugs, glasses, and plastic items marked
“dishwasher safe”. Load your plates into the dishwasher in two half rows, so that the front
of each plate faces the back of the plate in front of it, and the open sides of the plates at
the center of the dishwasher face each other. See the illustrations below.
Make sure the loaded dishes do not interfere with the rotation of the nozzle which is
located at the bottom of the upper rack. (Check this by rotating the nozzle by hand.)
When loading dishes, pull the upper rack out sufciently so you can load it without striking
the counter above.
10 place setting 12 place setting
Using the glass support
The glass support is especially suited for
wine glasses. Hang wine glasses onto the
pegs of the glass support. Fold the glass
support back when it is not being used.
CAUTION
Do not adjust the level of the upper rack
with the glass support propped up. This will
make it impossible to adjust the upper rack.
DW8000R_DD68-00211A-00_EN.indd 19 2019-04-24  5:59:15

English20
Using your dishwasher
Using your dishwasher
Loading the 3rd RackTM
The cutlery rack is best suited for atware and cooking or serving utensils. You can place
cutlery and utensils randomly or regularly on the cutlery rack.
Removing the Cutlery Rack
The entire cutlery rack can be removed if more space is needed on the upper rack for
larger items. (See the “To remove the 3rd Rack” section on page 16.)
DW8000R_DD68-00211A-00_EN.indd 20 2019-04-24  5:59:15
