Samsung DW7933LRASR/AA User manual

Dishwasher
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
DW7933 Series
DW7933LRASR-00141A-01_EN_20120514.indd 1DW7933LRASR-00141A-01_EN_20120514.indd 1 2012-05-14  4:46:152012-05-14  4:46:15

2_ Features of your new samsung dishwasher
Features of your new
samsung dishwasher
Your new Samsung Dishwasher will change the way you feel about doing
dishes. From its extra large capacity to its energy eciency, your new Samsung
dishwasher has all the features to make your chores much less mundane.
1. Extra large capacity
The upper rack is slanted for larger dishes. The space has been maximized to accommodate
a variety of dish sizes.
2. Increased convenience
The smart auto cycle determines the level of soil on the dishes and initiates the optimal cycle
for cleaning. Use this feature to save water, energy, and time.
3. Extremely quiet operation
Ecient noise control technology gives you the quietest possible operation. Your new
Samsung dishwasher is quieter than ever.
4. Self-cleaning filter
This product keeps food waste internally while operating, then drains it automatically with the
water.
5. Smart digital leakage sensor
Samsung dishwasher is equipped with a unique digital leakage sensor designed to detect
even the smallest traces of water. Located below the dishwasher, the sensor immediately
shuts o the electrical connection after detecting a leak saving you from the expensive
aftermath of a water-related emergency.
This manual contains important information regarding the use and care of your new Samsung
dishwasher. Refer to it for descriptions of the control panel, instructions on how to use the
dishwasher, and tips for making the most of its state-of-the-art features and technologies. The
“Cycle chart” on page 22 oers an overview of the dierent cycles and the “Troubleshooting”
section on page 23 tells you what to do if something goes wrong.
DW7933LRASR-00141A-01_EN_20120514.indd Sec9:2DW7933LRASR-00141A-01_EN_20120514.indd Sec9:2 2012-05-14  4:46:462012-05-14  4:46:46

Safety information _3
Safety information
Throughout this manual, you’ll see Warning and Caution notes. These
important safety instructions do not cover all possible situations that might
occur.
It is your responsibility to use caution when installing, maintaining, and operating
your dishwasher. Samsung will not be liable for damages resulting from improper
use.
IMPORTANT SAFETY INSTRUCTIONS
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury or
death.
CAUTION
Hazards or unsafe practices that may result in personal injury or property
damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when
using your dishwasher, follow these basic safety precautions:
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
WARNING - When using the dishwasher, follow basic precautions, including the
following:
Read all instructions before using the dishwasher.
As with any equipment using electricity, water, and moving parts, potential hazards exist.
Use the dishwasher only for its intended function.
Use only detergents or wetting agents recommended for use in a dishwasher, and keep
them out of the reach of children.
When loading items to be washed:
- Locate sharp items so that they are not likely to damage the door seal, and
- Load sharp knives with the handles up to reduce the risk of cut-type injuries.
Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent.
For plastic items not so marked, check the manufacturer’s recommendations.
Do not touch the HEATING ELEMENT during or immediately after use.
SAVE THESE INSTRUCTIONS
DW7933LRASR-00141A-01_EN_20120514.indd Sec1:3DW7933LRASR-00141A-01_EN_20120514.indd Sec1:3 2012-05-14  4:46:462012-05-14  4:46:46

4_ Safety information
Do not operate the dishwasher unless all ENCLOSURE panels are properly in place.
Do not tamper with the controls.
Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher.
To reduce the risk of injury, do not allow children to play in or on the dishwasher.
To reduce the risk of fire or explosion:
- Under certain conditions, hydrogen gas may be produced in a hot water system that
has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot
water system has not been used for such a period, before using the dishwasher turn
on all hot water faucets and let the water flow from each for several minutes. This will
release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use
an open flame during this time.
Remove the door to the washing compartment when removing an old dishwasher from
service or discarding it.
After unpacking the dishwasher, keep the packaging out of the reach of children.
The dishwasher is extremely heavy. Do not attempt to move or carry the dishwasher by
yourself. Two or more people are needed to move a dishwasher and avoid potential injuries.
Do not install the dishwasher near electrical components. Keep the dishwasher away from
open flames.
Install and level your dishwasher on an uncarpeted floor that can support its weight.
Your dishwasher must be properly grounded. Never connect it to an ungrounded outlet.
See page 8 for more information on grounding your dishwasher.
Connect the ground wire to the green ground connector in the terminal box.
After the dishwasher is installed, check that the drain hose is properly connected and
that there is no leakage from the hose connectors. If the drain hose is loose, it may cause
property damage.
The water supply line is susceptible to breakage. As time goes by, it becomes less flexible.
Check the line periodically. If it is swollen, torn, cut or there is a water leak, replace it
immediately.
To safely operate this appliance, familiarize yourself with its operations and exercise care
when using it.
Do not put gasoline, solvents, or other flammable materials inside the dishwasher. Do not
wash dishes exposed to these materials.
Keep your dishwasher detergent out of the reach of children. Detergent has an adverse
eect on human organs. It contains elements for polishing and is corrosive. Avoid letting the
detergent come into contact with your skin and eyes.
Do not push or place pressure on the door when it is open, as this may damage the
dishwasher or cause harm.
Safety information
SAVE THESE INSTRUCTIONS
DW7933LRASR-00141A-01_EN_20120514.indd Sec1:4DW7933LRASR-00141A-01_EN_20120514.indd Sec1:4 2012-05-14  4:46:462012-05-14  4:46:46

Safety information _5
Do not allow children to play in or on the dishwasher. They may harm themselves or
damage the dishwasher.
Disconnect the power cable (or disconnect the circuit breaker) before servicing your
dishwasher.
Do not repair, replace, or service any part of your dishwasher yourself. Disassembly, repairs
and modifications are permitted by authorized service technicians only. Work done by an
unauthorized person may void your warranty.
Before disposing of your dishwasher, remove the door of the washing compartment or the
door latch so that children or small animals do not get trapped inside.
If the dishwasher is left unused for an extended period of time, turn o the water supply.
This dishwasher is intended for residential use only.
BEFORE USING YOUR DISHWASHER
WARNING
Tip-Over Hazard
- Do not use the dishwasher until it is correctly installed.
- Do not push down on an open door.
- Do not place excessive weight on the open door.
Electric Shock Hazard
Failure to follow these instructions can result in death, fire, or electric shock:
- Electrically ground the dishwasher
- Connect the ground wire to the green ground connector in the junction box.
- Do not use an extension cord.
State of California Proposition 65 Warnings:
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of
California to publish a list of substances known to the State of California to cause cancer,
birth defects, or other reproductive harm, and requires businesses to warn of potential
exposure to such substances.
This product contains a chemical known to the State of California to cause cancer, birth
defects, or other reproductive harm. This appliance can cause low-level exposure to some
of the substances listed, including benzene, formaldehyde, and carbon monoxide.
WARNING
WARNING
SAVE THESE INSTRUCTIONS
DW7933LRASR-00141A-01_EN_20120514.indd Sec1:5DW7933LRASR-00141A-01_EN_20120514.indd Sec1:5 2012-05-14  4:46:472012-05-14  4:46:47

6_ Contents
Contents
SETTING UP YOUR DISHWASHER
7
7Unpacking your dishwasher
7Checking parts
8Meeting installation requirements
USING YOUR DISHWASHER
9
9Control panel
11 Progress lights
11 Display
11 Cycle selector
12 Basic guidelines
14 Removing the plate support
14 Adjusting the angle of the plate supports
15 Adjusting the height of the upper rack
15 Removing the upper rack
16 Loading the lower rack
16 Loading the upper rack
17 Using the cutlery basket
18 Using the dispenser
CLEANING AND MAINTAINING YOUR
DISHWASHER
20
20 Cleaning the exterior
20 Cleaning the interior
20 Cleaning the nozzles
21 Storing your dishwasher
CYCLES
22
22 Cycle chart
TROUBLESHOOTING
23
23 Check these points if your dishwasher…
26 Information codes
APPENDIX
27
27 Helping the environment
27 Specifications
DW7933LRASR-00141A-01_EN_20120514.indd Sec2:6DW7933LRASR-00141A-01_EN_20120514.indd Sec2:6 2012-05-14  4:46:472012-05-14  4:46:47

Setting up your dishwasher _7
Setting up your dishwasher
Be sure to have your installer follow these instructions closely so that your new
dishwasher works properly and that you’re not at risk of injury when washing
dishes.
UNPACKING YOUR DISHWASHER
• Once your new dishwasher has been delivered to you, carefully unpack it and check for any damage.
If the dishwasher has been damaged, make note of it on the waybill and keep a copy. Do not install the
dishwasher, and contact Samsung Customer Service at the number listed below.
• If there is no damage to the product, you can proceed with the installation. If you are going to install it
yourself, make sure to read through the installation guide and follow the directions inside.
• After unpacking your dishwasher, keep the packaging out of the reach of children to ensure their safety.
CHECKING PARTS
When your dishwasher has been unpacked, make sure you’ve received all the parts shown below.
If your dishwasher was damaged during shipping, or if you do not have all the parts, contact Samsung
Customer Service at 1-800-SAMSUNG (726-7864)
Accessory parts - User/Installation manual, Installation Kit.

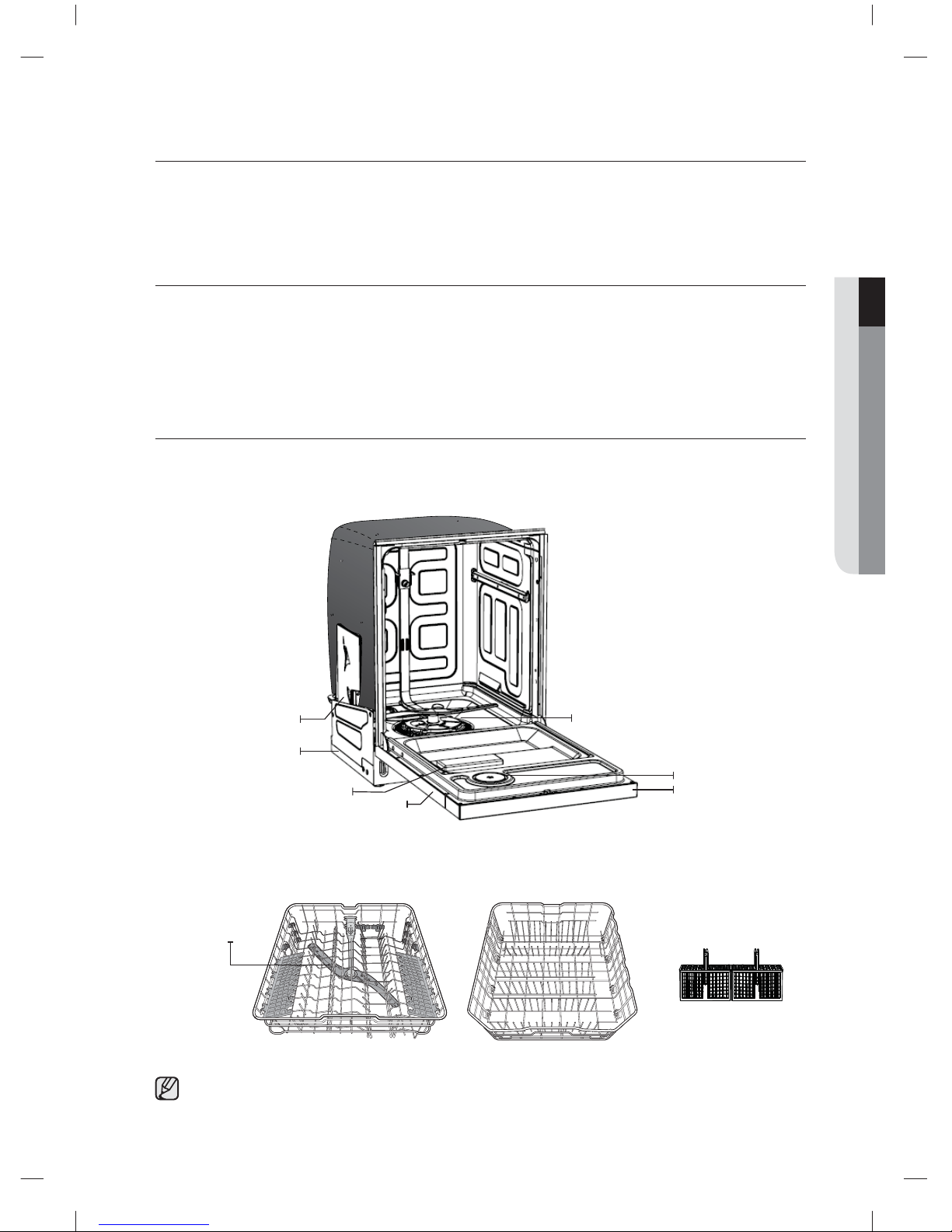

01 Setting up your dishwasher
Upper rack
Middle nozzle
Lower rack Cutlery basket
Air brake
Base
Dispenser Door
Lower nozzle
Vapor vent cover
Control panel
DW7933LRASR-00141A-01_EN_20120514.indd Sec3:7DW7933LRASR-00141A-01_EN_20120514.indd Sec3:7 2012-05-14  4:46:472012-05-14  4:46:47

8_ Setting up your dishwasher
MEETING INSTALLATION REQUIREMENTS
Electrical supply and grounding
To prevent unnecessary risk of fire, electric shock, or personal injury, all wiring and
grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No.
70 Latest Revision and local codes and ordinances. It is the personal responsibility of the
appliance owner to provide adequate electrical service for this appliance.
Never use an extension cord.
When preparing for installation, ensure that your power supply oers:
• A 120 Volt 60 Hz 15 AMP fuse or circuit breaker
• An individual branch circuit serving only your dishwasher
Your dishwasher must be grounded. If your dishwasher malfunctions or breaks down,
grounding will reduce the risk of electric shock by providing a path of least resistance for
the electric current.
Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
Grounding instructions
For a permanently connected appliance:
This appliance must be connected to a grounded metal, permanent wiring system, or an
equipment-grounding conductor must be run with the circuit conductors and then connected to
the equipment-grounding terminal or lead on the appliance.
Water supply
The hot water supply line pressure must be between 20~120 psi (140~830 kPa).
Adjust the water heater to deliver water between 120°F (49°C) ~ 149 ˚F (65 ˚C).
Most plumbing supply stores sell water supply lines of various lengths up to 10 feet (305
cm) long.
You can reduce the risk of leaks and water damage by:
• Making water faucets easily accessible.
• Turning o faucets when the dishwasher is not in use.
• Periodically checking for leaks at water supply line fittings.
Before using your dishwasher for the first time, check all connections at the water supply
valve and faucets for leaks.
Flooring
For safety, your dishwasher must be installed on a solidly constructed floor.
Never install your dishwasher on a platform or poorly supported structure.
Your dishwasher must be properly installed in accordance with the Installation Guide before you use it. If
you did not receive an Installation Guide with your dishwasher, you can obtain one by visiting our website at
www.samsung.com.
CAUTION
WARNING
WARNING
Setting up your dishwasher
DW7933LRASR-00141A-01_EN_20120514.indd Sec3:8DW7933LRASR-00141A-01_EN_20120514.indd Sec3:8 2012-05-14  4:46:482012-05-14  4:46:48

Using your dishwasher _9
CONTROL PANEL
DW7933 Series
1PROGRESS
LIGHT
Progress information (Wash, Dry, Clean)
Each progress light corresponding to the current operation turns on to show
the progress of the cycle.
2DISPLAY
Displays information (Low Rinse, Child Lock).
The “Low Rinse” light turns on when you need to refill the rinse aid agent and
the “Child Lock” light turns on/o when you activate the Child Lock/Unlock.
3CYCLE
SELECTOR
Select the appropriate wash cycle depending on the soil level of your dishes.
After you select a cycle, the Cycle On light for that cycle lights up. If you want
to cancel the selected cycle, press the selected cycle button again. If an error
occurs during an operation, an error message is illuminated with a warning
sound. Refer to the “Information codes” on page 26.
4CANCEL &
DRAIN
To cancel a cycle currently running and drain the dishwasher, hold down both
the Heavy and Quick + buttons for three (3) seconds.
5SANITIZE
When you use the Sanitize option, the temperature rises to 162 ˚F (72 ˚C) in the
final rinse cycle for high temperature sanitization.
If you select the Sanitize option, the “Sanitize” lamp blinks when the water
temperature reaches the sanitary temperature (over 155 ˚F (68 ˚C)), and then
remains illuminated until the Sanitize option ends. When you open the door or
press the Power button, the “Sanitize” lamp turns o.
The Sanitize feature is in accordance with NSF/ANSI Standard 184
for Residential Dishwashers. Certified residential dishwashers are not
intended for licensed food establishments. Your dishwasher is NSF
Certified.
The cycle that is NSF certified is the Heavy Cycle with the sanitize option
selected.
6CHILD LOCK/
UNLOCK
This option allows you to lock the buttons on the control panel so children
cannot accidently start the dishwasher by pressing the buttons on the panel.
To lock and unlock the buttons on the control panel, hold the Sanitize button
down for three (3) seconds.
- When Power is On : Hold down the Sanitize button for three (3) seconds.
- When Power is O : Push the Power button first, and then hold down the
Sanitize button for three (3) seconds.
Using your dishwasher
02 Using your dishwasher
1 4 6 7 83 25
DW7933LRASR-00141A-01_EN_20120514.indd 9DW7933LRASR-00141A-01_EN_20120514.indd 9 2012-05-14  4:46:482012-05-14  4:46:48

10_ Using your dishwasher
Using your dishwasher
7START/PAUSE
Close the dishwasher door, press the Power button, select the cycle and
options you want, and then press the Start/Pause button to begin the cycle.
When you want to pause the dishwasher while it is running, press the Start/
Pause button and make sure to open the door slowly and carefully.
8POWER
When you press the Power button, the entire display turns on and o, and
then the light of the most recently finished cycle lights up.
When the cycle you selected has finished, all other indicator lights are turned
o and the “Clean” light is illuminated for 10 minutes.
Then, the Power turns o automatically.
You can select the Sanitize option before starting a cycle. If you change the cycle after selecting an
option, the original cycle is reset.
DW7933LRASR-00141A-01_EN_20120514.indd 10DW7933LRASR-00141A-01_EN_20120514.indd 10 2012-05-14  4:46:492012-05-14  4:46:49

Using your dishwasher _11
PROGRESS LIGHTS
DW7933 Series
1WASH When the dishwasher is in a wash or rinse portion of a cycle, the “Wash” light
is illuminated.
2DRY When the dishwasher is in a drying portion of a cycle, the “Dry” light is
illuminated.
3CLEAN
After the dishwasher has completed all portions of a cycle, all other indicator
lights are turned o and the “Clean” light is illuminated for 10 minutes.
If you open the door when the “Clean” light is illuminated, it turns o
immediately.
When the dishwasher starts a cycle, the light corresponding to the current operation turns on to show
the progress of the cycle. When that portion of the cycle is complete, the illuminating light turns o.
DISPLAY
DW7933 Series
1LOW RINSE When “Low Rinse” remains illuminated, the rinse aid dispenser is empty or
nearly empty. Refill the rinse aid agent dispenser.
2CHILD LOCK When you select Child lock, the “Child Lock” indicator light is illuminated.
CYCLE SELECTOR
DW7933 Series
1NORMAL Use this cycle for regular dinner dishes.
2HEAVY Use this cycle for heavily soiled dishes and dishes with heavy oil.
3QUICK + Use this cycle for lightly soiled dishes.
4SMART AUTO This cycle detects the level of soil and automatically initiates the optimal cycle
after a few minutes of operation.
02 Using your dishwasher
1 2
1 2 3 4
1 2 3
DW7933LRASR-00141A-01_EN_20120514.indd 11DW7933LRASR-00141A-01_EN_20120514.indd 11 2012-05-14  4:46:492012-05-14  4:46:49

12_ Using your dishwasher
Using your dishwasher
BASIC GUIDELINES
1. Open the door and load your dishes (see page 16).
- Place dishes into the upper and lower racks.
- Remove any food remains from the dishes before placing them in the rack(s).
- After placing the dishes into the racks, rotate the nozzles by hand to check whether any of the
dishes will interfere with them.
- Push the racks back so that they are in place.
- Make sure the dishes do not to block the detergent dispenser opening.
2. Add detergent to the dispenser (see page 18).
- Make sure to use only automatic dishwasher detergent.
- Refer to “Using the dispenser” on page 18.
3. Close the door and Press the Power button.
- When you press the Power button, the entire display turns on and o, and then the cycle light of the
most recently finished cycle lights up.
- If “Low Rinse” is illuminated, you should refill the rinse aid dispenser to improve washing and
drying performance.
4. Select an appropriate cleaning cycle depending on the soil level of the dishes. (see page 11 and 22).
- Press the appropriate cycle button.
- When you press a cycle button, the cycle indicator light is illuminated. If you press the cycle button
again, the light turns o and the cycle is canceled.
- For information about selecting a cycle according to the soil level of the dishes, see “Cycle
selector”.
5. Press the Start/Pause button.
- After you close the door and press the Start/Pause button, the dishwasher starts the selected cycle
after a few seconds.
- The door must be firmly closed. If the door is slightly ajar, the selected cycle will not start
automatically.
6. When the wash cycle is completed.
- The “Clean” light illuminates and the dishwasher sounds a chime.
- The power is automatically turned o after 10 minutes.
DW7933LRASR-00141A-01_EN_20120514.indd 12DW7933LRASR-00141A-01_EN_20120514.indd 12 2012-05-14  4:46:502012-05-14  4:46:50

Using your dishwasher _13
When you want to load more dishes or pause the dishwasher while it is already running, press the
Start/Pause button and make sure to open the door slowly and carefully as there is a possibility of
injury from the hot steam inside the dishwasher.
(If the door is opened while the dishwasher is running, a safety mechanism is activated and stops the
cycle.)
You should use rinse aids for better drying performance. You can further improve drying performance
by also selecting the Sanitize option.
If the “Low Rinse” lamp lights during a cycle, the dishwasher adds 30 more minutes to the Drying cycle
automatically after the Clean light illuminates.
When the water temperature of the last rinse of the sanitize option reaches the sanitary temperature
(over 155 ˚F (68 ˚C)), the “Sanitize” lamp blinks, and then remains illuminated until the Sanitize option
ends. When you open the door or press the Power button, the “Sanitize” lamp turns o.
Do not wash the following items
• Acrylic, Aluminum: Dishes with printed gold rim decoration may become discolored.
• Dishes treated with adhesive: Treated plastics, wood, ivory, copper and tin may come loose.
• Plastics with a temperature tolerance less than 194 ˚F (90 ˚C): Thin plastics wash and dry
poorly, and may be damaged due to elevated wash temperatures.
• Tin: Tin should be washed by hand and dried immediately as it may rust.
• Wooden utensils: Wooden items may crack.
When using the dishwasher, try to arrange the dishes properly as described on page 16.
• You should remove food remains such as bones, fruit seeds, etc. and any other waste such as
toothpicks, paper, etc. from the dishes as these may cause damage to the dishes, create noise,
or cause the dishwasher to malfunction.
• Select the appropriate cycle depending on the level of soil and the type of dishes.
• Use only the proper amount of detergent and rinsing agent.
CAUTION
WARNING
WARNING
02 Using your dishwasher
DW7933LRASR-00141A-01_EN_20120514.indd 13DW7933LRASR-00141A-01_EN_20120514.indd 13 2012-05-14  4:46:502012-05-14  4:46:50

14_ Using your dishwasher

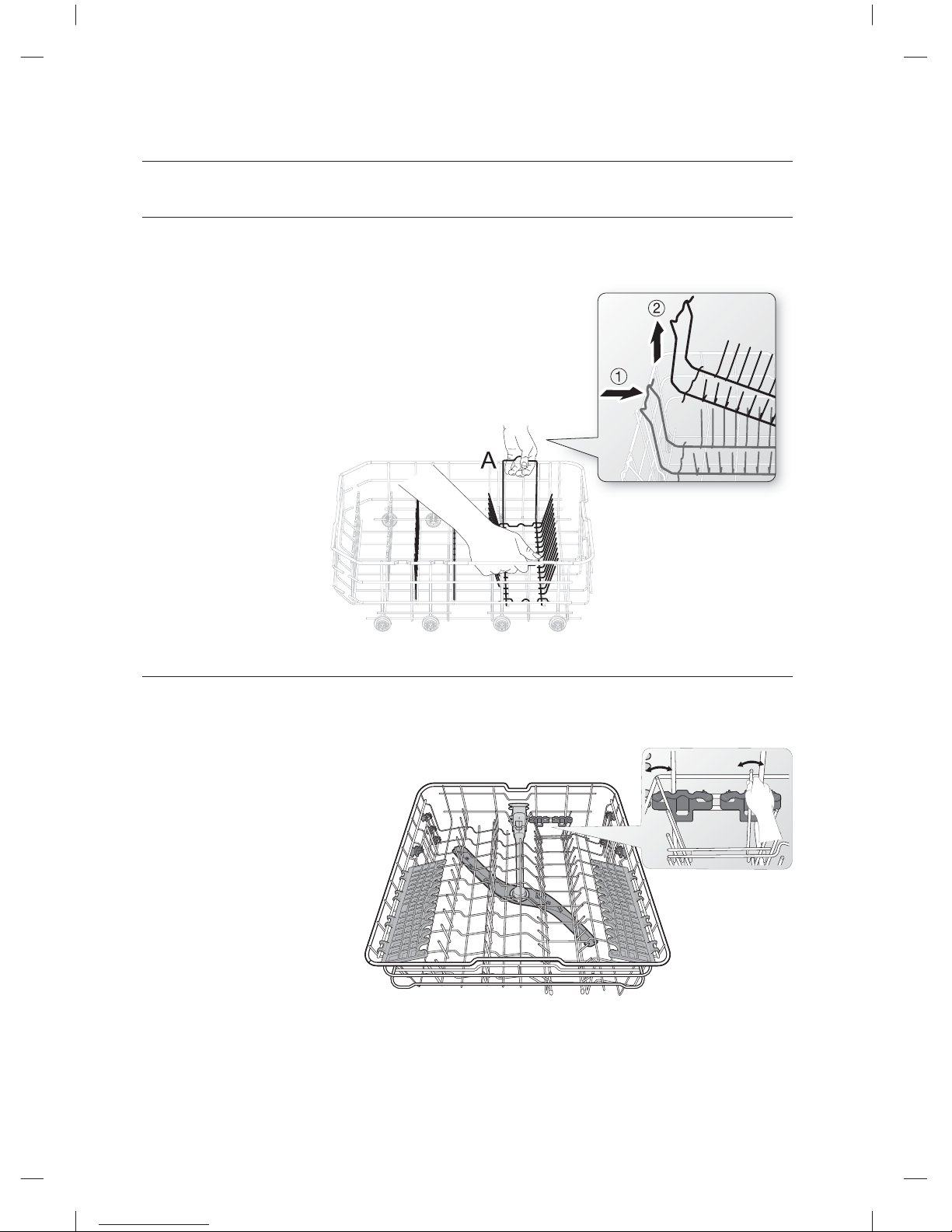

REMOVING THE PLATE SUPPORT
In the lower rack, you can easily remove the plate support to make room for large items such as pots and
pans. To remove the plate support, lift up the handles (A). To refit the plate support, align it so it is in place,
and then push down on the handles (A).
ADJUSTING THE ANGLE OF THE PLATE SUPPORTS
You can adjust the angle of the tines in the upper rack to three dierent positions to match the size and
shape of your dishes. To adjust the tines, grasp the handle at the back of the rack and push it left or right.
See the illustration below.
Using your dishwasher
DW7933LRASR-00141A-01_EN_20120514.indd 14DW7933LRASR-00141A-01_EN_20120514.indd 14 2012-05-14  4:46:502012-05-14  4:46:50

Using your dishwasher _15

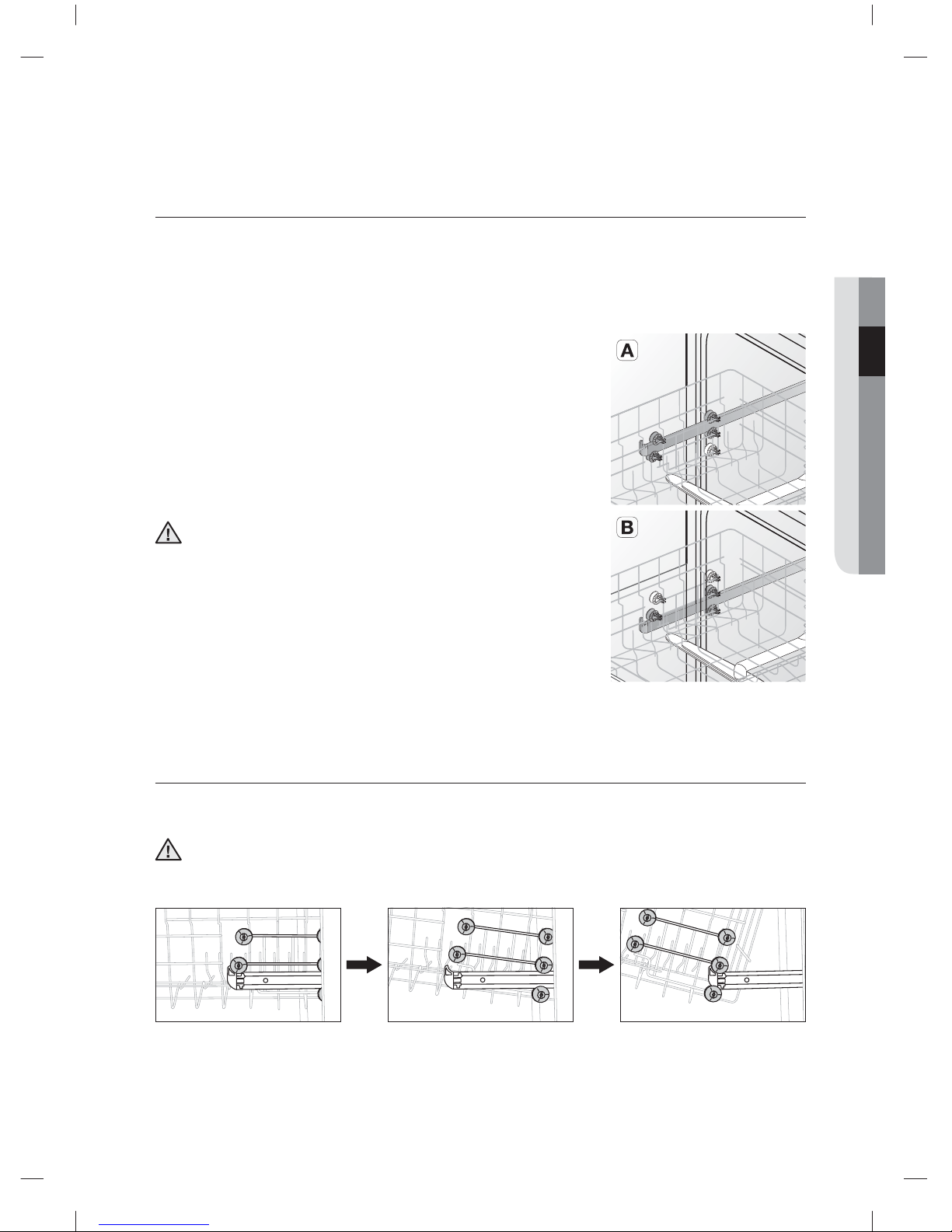

ADJUSTING THE HEIGHT OF THE UPPER RACK
You can adjust the height of the upper rack in your Samsung dishwasher so that the lower rack can
accommodate larger sized dishes. Depending on where you set the upper rack height, the lower rack can
accommodate plates up to 14 in. (36cm) in diameter and the upper rack can accommodated plates up to
12 in. (30cm) in diameter.
DW7933 Series
The upper rack has two sets of rollers on each side, one above the other.
To adjust the height of the upper rack, follow these steps:
1. Remove the upper rack following the directions in Removing the
Upper Rack below.
2. To lower the upper rack (if you have raised it), you remove it, and then
re-install it with the upper set of rollers resting on the rack supports as
shown in Figure A to the right.
3. To raise the upper rack, you remove it and then re-install it with the
lower set of rollers resting on the rack supports as shown in Figure B
to the right.
We recommend adjusting the height of the upper rack before loading
dishes into the rack. If you adjust the the rack after loading the
dishes, you may damage the dishes.
REMOVING THE UPPER RACK
Pull the upper rack towards the front and then remove it by lifting it up slightly and pulling it towards the
front. See the illustrations below.
While the upper rack is removable, it must be installed for the dishwasher to operate properly.
If you attempt to operate the dishwasher without the rack, noise will occur and the dishwasher will
perform poorly.
Step 1. Step 2. Step 3.
CAUTION
CAUTION
02 Using your dishwasher
DW7933LRASR-00141A-01_EN_20120514.indd 15DW7933LRASR-00141A-01_EN_20120514.indd 15 2012-05-14  4:46:512012-05-14  4:46:51

16_ Using your dishwasher

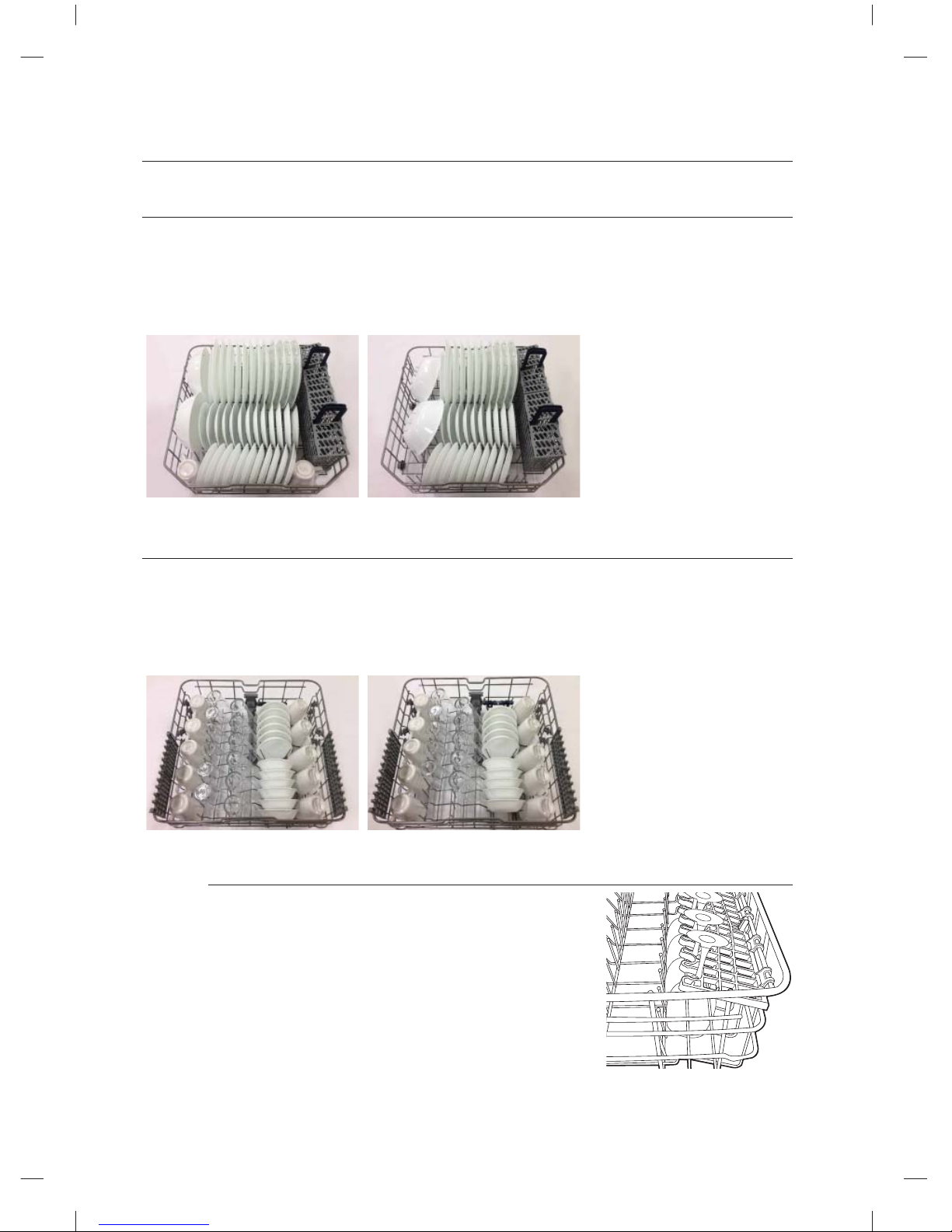

LOADING THE LOWER RACK
Load cookware (pots, pans, etc.), up to 14 in. (36 cm) in diameter into the lower rack. The lower rack has
been especially designed for dinner dishes, soup bowls, plates, pots, lids, casserole dishes, and plates.
Load your plates into the center column of the rack so their open sides face towards the right. Load large
items such as pans and pots into the dishwasher so their open sides face downwards. We recommend
loading cups, stemware and small plates into the upper rack.
See the recommended loading patterns below.
12 place setting 10 place setting
LOADING THE UPPER RACK
The upper rack has been designed for small plates, mugs, glasses, and plastic items marked “dishwasher
safe”. Load your plates into the dishwasher so their open sides face towards the right.
Make sure the loaded dishes do not interfere with the rotation of the nozzle which is located at the bottom
of the upper rack. (Check this by rotating the nozzle by hand.)
When loading dishes, pull the upper rack out suciently so you can load it without striking the counter
above.
12 place setting 10 place setting
Using the glass support
You can load cups or glasses onto the glass support. This is
also very convenient for washing wine glasses. Hang your wine
glasses onto the pegs of the glass support.
You can fold the glass support back when it is not being used.
Using your dishwasher
DW7933LRASR-00141A-01_EN_20120514.indd 16DW7933LRASR-00141A-01_EN_20120514.indd 16 2012-05-14  4:46:512012-05-14  4:46:51

Using your dishwasher _17
Loading the large items
You can load large items such as pans and pots into the lower
rack.
Make sure pot handles and other items do not interfere with
rotation of the nozzles.

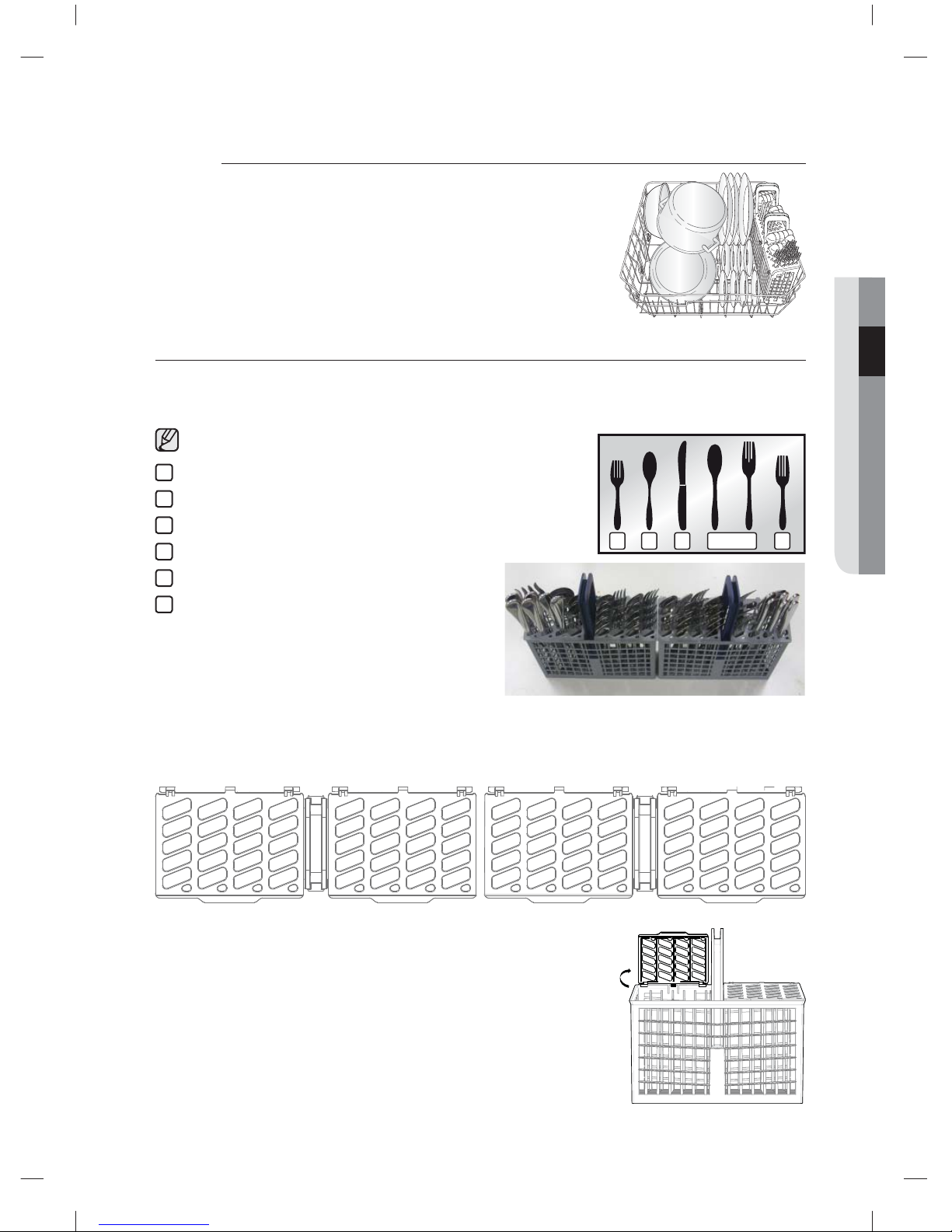

USING THE CUTLERY BASKET
The cutlery basket consists of two compartments.
You can place each knife, spoon, or fork separately into the spoon stands in the basket’s covers to prevent
chipping and discoloration.
DO NOT let any item extend through the bottom.
1Small forks
2Spoons
3Knives
4Large spoons and forks
5Medium-sized forks
6Remaining items
The spoon stands as seen from above with the suggested placement of cutlery items. Match the numbers
in the diagram to the numbers in the list of cutlery items above.
You can use the cutlery basket with the cover open. Refer to the illustration
to the right.
02 Using your dishwasher
4
4
6
3
3
4
4
6
3
3
4
6
6
3
3
2
2
6
5
5
2
2
2
2
2
5
5
5
5
5
2
2
2
2
2
5
5
5
5
5
2
2
6
1
1
2
2
2
2
2
1
1
1
1
1
2
2
2
2
2
1
1
1
1
1
4
6
6
3
3
4
4
6
3
3
4
4
6
3
3
1 532 4
Suggested arrangement for a 12 place setting
DW7933LRASR-00141A-01_EN_20120514.indd 17DW7933LRASR-00141A-01_EN_20120514.indd 17 2012-05-14  4:46:532012-05-14  4:46:53

18_ Using your dishwasher
USING THE DISPENSER

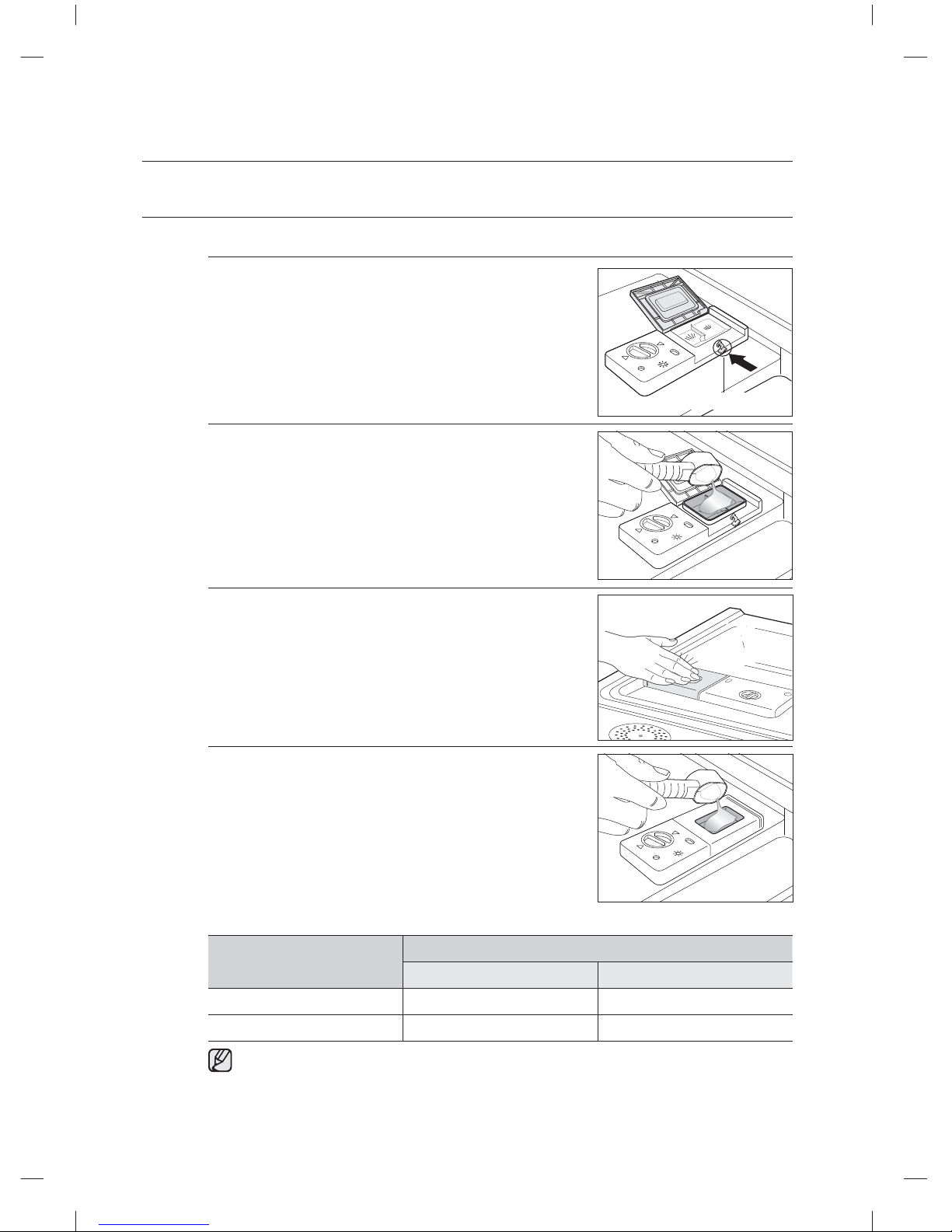

Filling the detergent dispenser
1. Open the cover by pushing the cover latch downwards.
2. Add the recommended amount of detergent to the main
wash dispenser using the table below.
3. Close the dispenser cover. You will hear a ‘click’ when it is
closed correctly.
4. When you select the Heavy cycle, add the recommended
amount of detergent to the pre-wash dispenser using the
table below.
The cover opens automatically to dispense the detergent during the wash.
CYCLE AMOUNT OF DETERGENT
Main wash dispenser Pre-wash dispenser
Normal, Quick+, Smart Auto 0.5 oz (15 g) No detergent
Heavy 0.7 oz (20 g) 0.2 oz (5 g)
The numbers inside the dispenser refer to grams.
Using your dishwasher
‘Click’
Cover latch
DW7933LRASR-00141A-01_EN_20120514.indd 18DW7933LRASR-00141A-01_EN_20120514.indd 18 2012-05-14  4:46:542012-05-14  4:46:54

Using your dishwasher _19

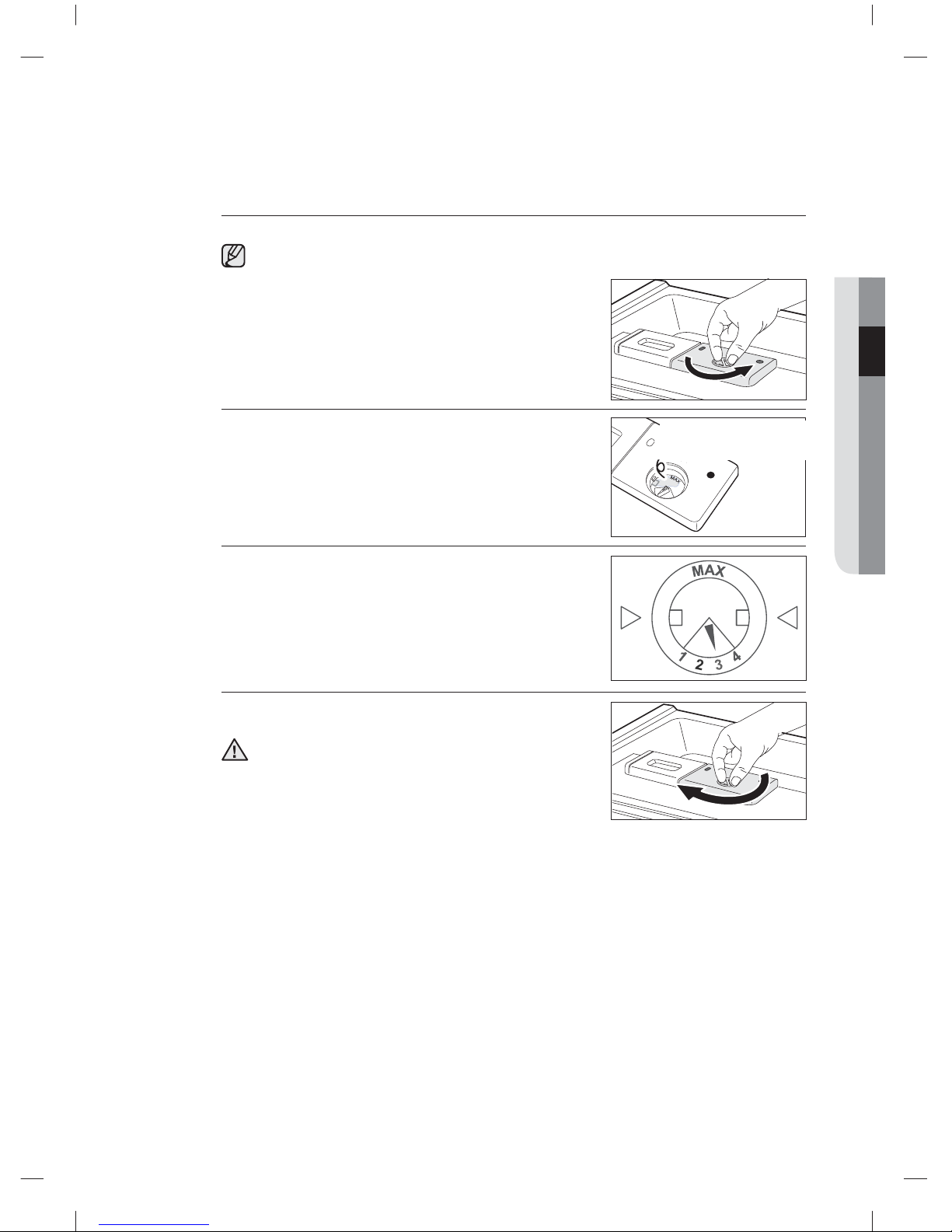

Filling the rinse aid dispenser
Your dishwasher has been designed to use liquid rinse aid.
Using a rinse aid greatly improves the drying performance after the final rinse.
1. Turn the dispenser knob counterclockwise to open the
cover.
2. Pour rinse aid into the opening until the indicator points to
“MAX.” Avoid overfilling the dispenser.
3. Adjust the amount of rinse aid released during the rinse
operation.
You can choose one of four levels (1~4). The higher the
number, the larger the amount of rinse aid released. The
factory default is 3.
When the rinse dispenser is filled up, it is good for about 40
washes.
4. Close the cover.
Turn the dispenser knob clockwise.
We strongly recommended using only liquid rinse aid.
CAUTION
02 Using your dishwasher
Avoid overfilling the
dispenser
DW7933LRASR-00141A-01_EN_20120514.indd 19DW7933LRASR-00141A-01_EN_20120514.indd 19 2012-05-14  4:46:552012-05-14  4:46:55

20_ Cleaning and maintaining your dishwasher
Cleaning and maintaining your
dishwasher
Keeping your dishwasher clean improves its performance, reduces unnecessary
repairs, and lengthens its life.
CLEANING THE EXTERIOR
It’s best to clean spills on the outside of your dishwasher as they occur. Use a soft, damp cloth on the
control panel to gently wipe away spills and dust. Do not use benzene, wax, thinner, chlorine bleach, or
alcohol. These materials may discolor the inner walls and cause stains. Do not clean the dishwasher by
sprinkling water over it and avoid letting water come into contact with any of the electrical parts.
If your dishwasher has a stainless steel door panel, you can clean it with a stainless steel cleaner for
Home Appliances or similar product using a clean, soft cloth.
CLEANING THE INTERIOR
Clean the interior of your dishwasher periodically to remove any dirt or food particles. Wipe the inside of
the dishwasher and the inner part of the door with a wet dishcloth. We recommend filling the detergent
dispenser with dish detergent, and then running the dishwasher empty periodically using either the Normal
or Quick cycle with the sanitize option. This will keep your dishwasher clean.
If white spots and odor are still present in your dishwasher, run the Normal cycle with the dishwasher empty
and without detergent until it flushes. Then, interrupt the cycle and put an 8 ounce cup of white vinegar into
the lower basket. Close the dishwasher and let the cycle finish.
Do not remove the Seal tub front (the long rubber seal enclosing the opening of the dishwasher).
CLEANING THE NOZZLES
If your dishwasher does not seem to be cleaning adequately or the nozzles seem clogged, you can clean
each of the nozzles. When removing the nozzles, take care as they may break.
Lower nozzle
1. Check whether the nozzle holes are
clogged by food particles.
2. If cleaning is needed, remove the nozzle by
pulling it upwards.
3. Clean the nozzle, and then push it back
into place.
4. Check whether the nozzle is engaged
correctly by rotating it by hand.
CAUTION
DW7933LRASR-00141A-01_EN_20120514.indd Sec5:20DW7933LRASR-00141A-01_EN_20120514.indd Sec5:20 2012-05-14  4:46:552012-05-14  4:46:55
