Samsung DMR57 Series Installation guide

1
2008 Dishwashe
r
Training Manual
DMR57 DMR77
This training is composed of 5 modules covering the 2008 Samsung Dishwasher
models DMR57 and DMR77.
You may exit and re-enter the training as needed in between modules. When you
re-enter the training, you will return where you stopped. You MAY NOT however
exit the training in the middle of a module. You will be re-started at the beginning of
the last saved module. The “SAVE” button at the bottom of the screen records your
progress. If you want certification, you must successfully complete the 2008
Dishwasher Certification exam. To access the 2008 Dishwasher Certification exam,
return to your list of assessments and choose that exam.

2
Total Kitchen Design

3

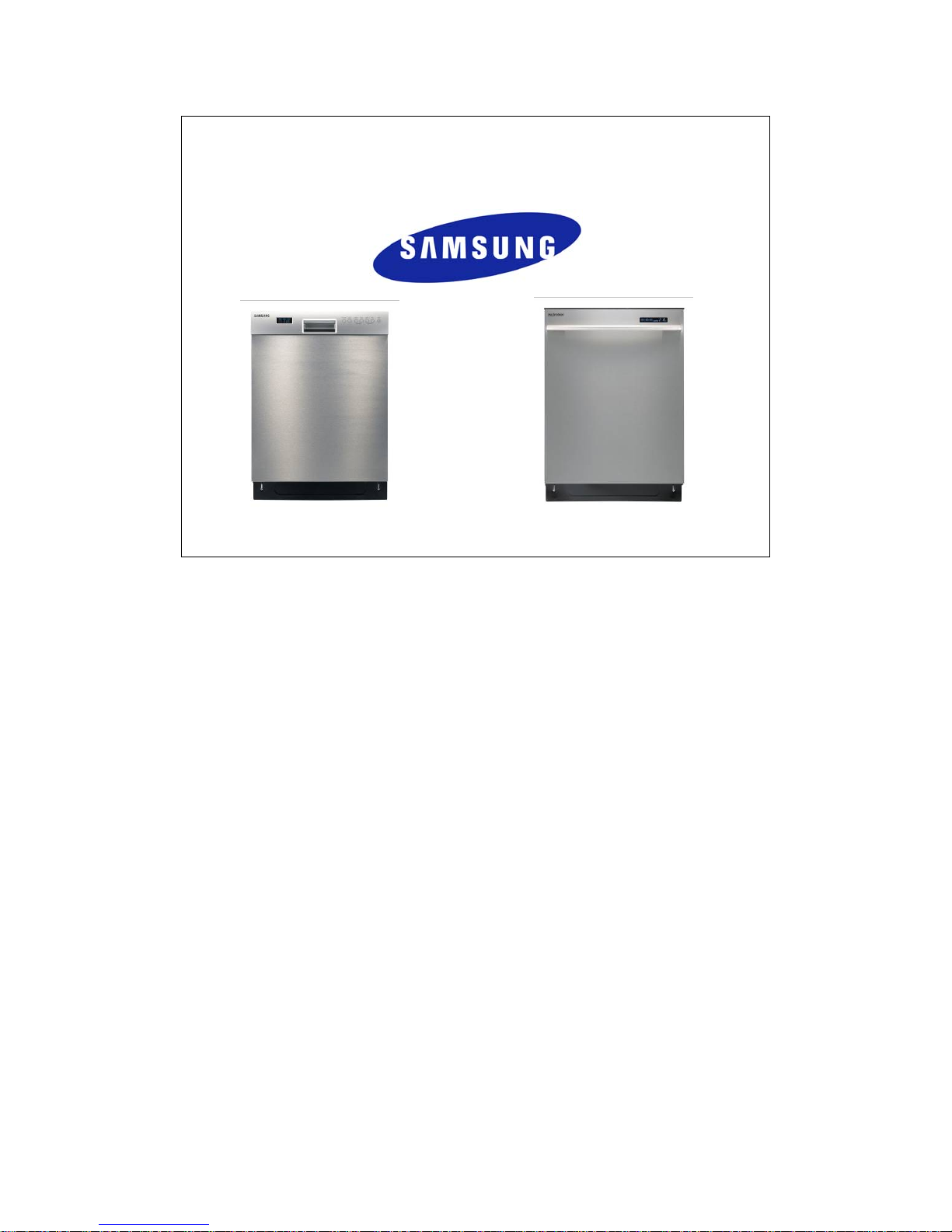

Model Number Nomenclature
Buyer Code
For 2008 there are two styles of dishwasher, a sleek front or traditional front design.
The units are offered in three different color choices

4
Quietness
Problem - Washing dishes can be noisy,
especially in the evening and when
watching TV. Most of the noise is from
the motor on the bottom and the water
spraying system. Samsung has two
technologies for the insulation of those
areas.
Solution - Provides one of the lowest
noise levels in it's class at 51dBA.
How it Works - Through tight isolation of
the pump and a 6-layer Door insulation
system
The front door panel has a unique 6-layer
insulation system which dampens the
noise from water spray. (Stainless Steel
inner door-Asphalt-Felt-Air-Felt-Outer
Door)
Washing dishes can be noisy, especially in the evening or when watching TV. Most
of the noise is from the motor on the bottom and the water spraying system.
Samsung employs two technologies to reduce the sound. The water pump is tightly
isolated and the door uses a 6 layer insulation system.

5
Hidden Dryer Element
Problem - Exposed heating elements at
the bottom of the tub can directly contact
plastics, melting them. Also, potential
burn hazard picking up small items right
after the cycle is finished.
Solution - The heating element is hidden
below the all-stainless tub. This
eliminates the possibility of accidentally
touching the element when hot. Also,
this structure provides a better
appearance for the dishwasher.
Exposed heating elements at the bottom of the tub can directly contact plastics,
melting them. To reduce this problem the heating element is hidden below the all-
stainless tub. This also eliminates the possibility of accidentally touching the
element when hot.

6

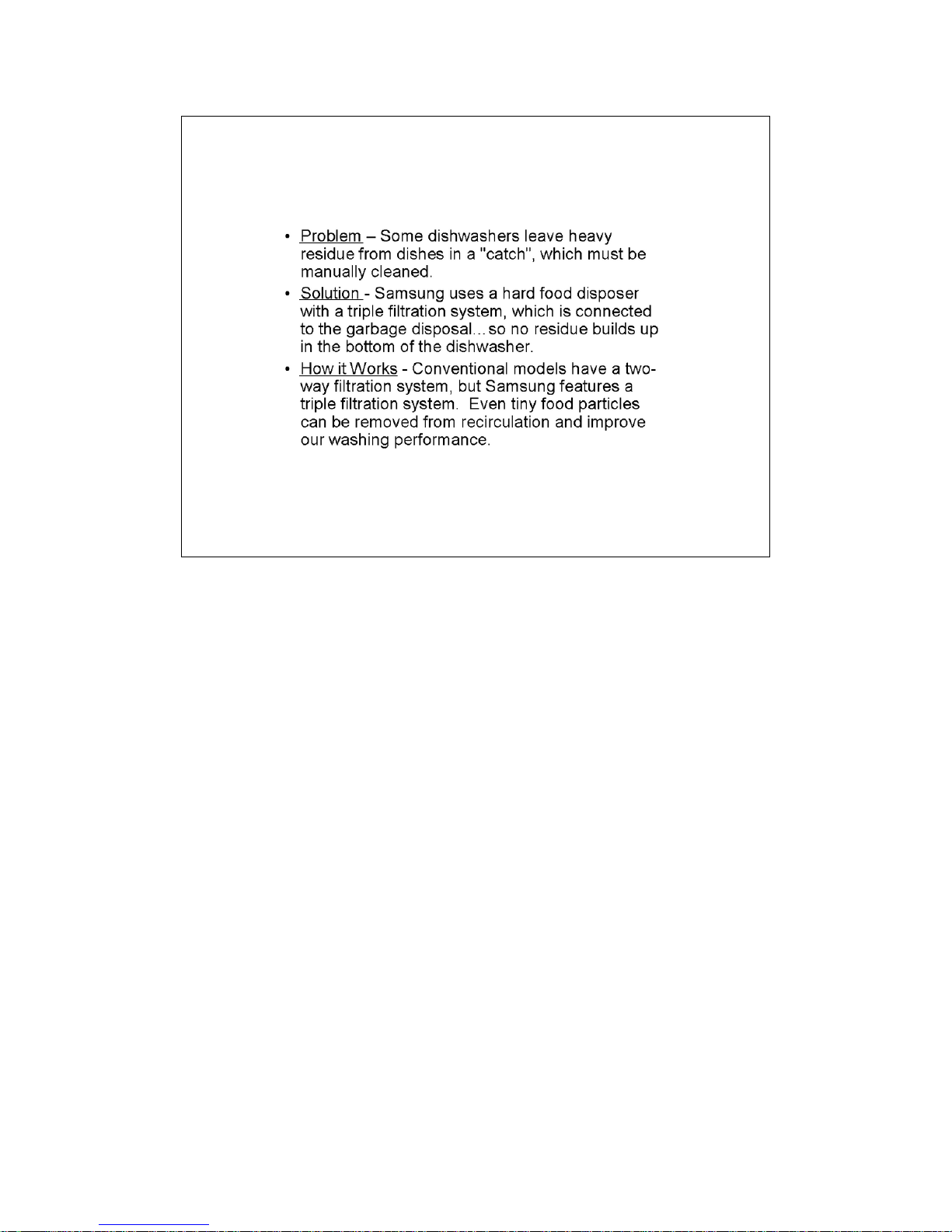

Food Residue
Some dishwashers leave heavy residue from dishes in a "catch", which must be
manually cleaned. Samsung uses a hard food disposer with a triple filtration system.
This is connected to a built in garbage disposal. This reduces the residue that
builds up in the bottom of the dishwasher.

7

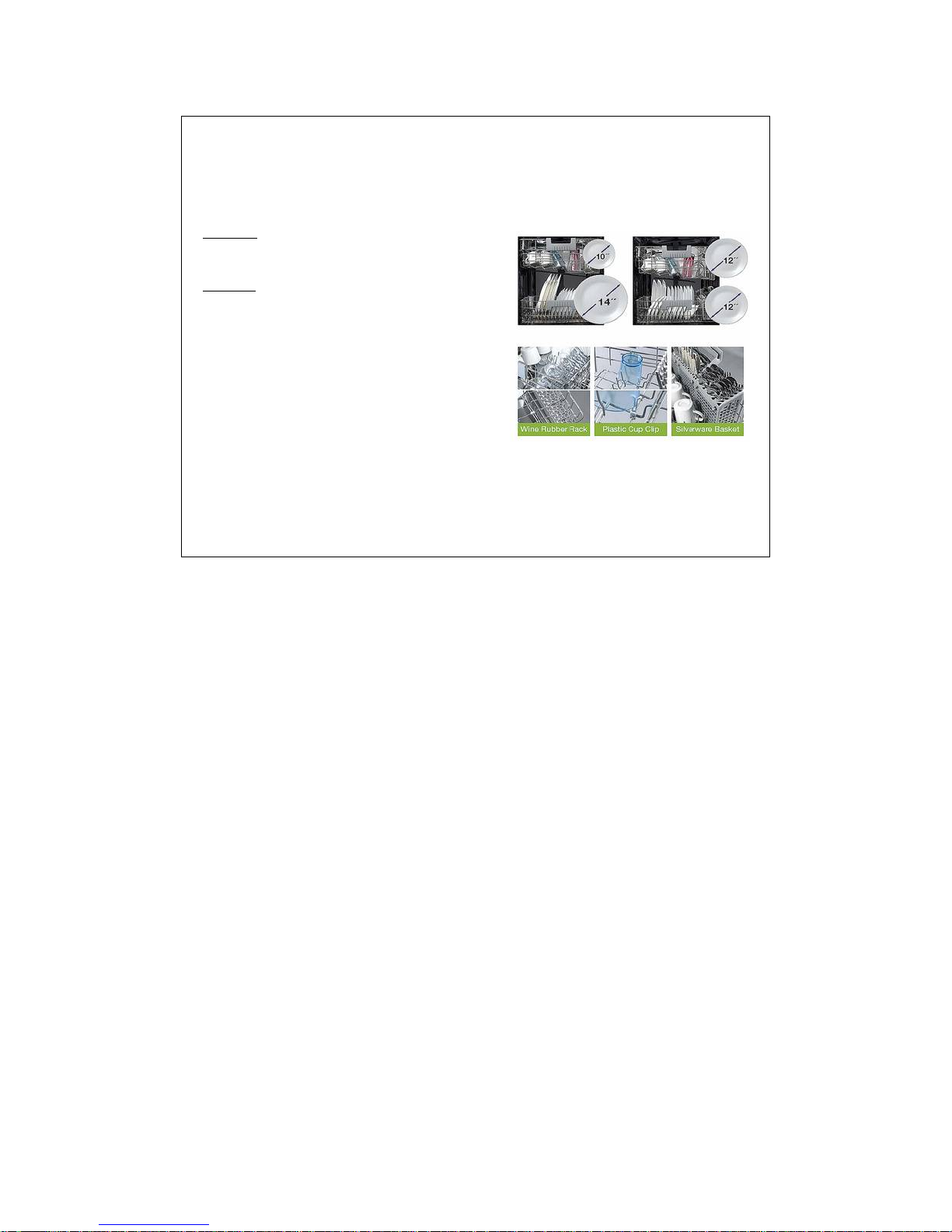

Loading Flexibility
Problem - Afraid to wash delicate items like
wine glasses? Can't fit those new larger 14"
plates under the top rack?
Solution - Tilted Rack
With tilted rack system, more space is
provided to give you infinite freedom to load
extra, even odd-sized items. It even easily
accommodates large 14´´ plates with just a
simple height adjustment. More importantly,
the drying performance is enhanced because
the water is able to drain off the washed
items more easily, resulting in a reduction of
water residue.
Afraid to wash delicate items like wine glasses? Can't fit those new larger 14"
plates under the top rack? These units incorporate an adjustable tilted rack system
which permits loading of small or large size items.

8
Leakage Detector
A slow leak around your dishwasher can damage your floor or cabinets well before
it is noticed. Samsung has includes a leakage detector under the water reservoir
that shuts off the water supply when a leak is detected.

9
3 Wash Arms
Problem - Not getting good washing
performance in all rack positions?
Solution - Samsung uses 3 wash arms, top
(1), middle (2), and bottom (3).
How it Works - Tilted Nozzle System Our
main water spraying arm in the middle is
tilted. Its tilted shape sprays the water
effectively in all parts of the machine.
This is important for washing 14” Plates
Conventional washers use a spray wash pattern that sometimes may not reach all
of the dish racks equally. The unique spray arm style distributes water to the entire
drum promoting even cleaning.

10
Condensed Drying
The fan driven condensation system captures the latent heat of the wash heater to
promote faster drying. Another benefit of this system is the removal of steam vents
which might burn small children.

11
Convenient Auto Drying

12
5.2 Gallons ±15% or belowWater consumption
Circulation Motor: 170W ±15% or below
Heater: 1100W±10% or below
Drain Pump: 45W ±15% or below
Fan Motor: 5.5W ±15% or below
Power
Standard cycle: 1.03 KWh ±10%
Power consumption Fan driven condensing system
Drying method Rotating nozzle spray type
Wash spray method 20 ~ 120 PSI
Water Pressure Single phase AC 110V / 60Hz
Power Supply
DMR 77LFS
DMR 57LFS
Model name
Product Specifications
Capacity: 14 place settings
Control panel design
- Touch Sensor panel & LED Display
- DMR77 : Hidden type
- DMR57 : Front type
Dimension (W x D x H) : 23.8 x 24.7 x 33.9 inch
Main
Features
Both models use a unique tub design that uses less water than some other models
saving energy and providing the same level of clean.

13
23.8×24.7×33.9 inch (W×H×D)23.8×24.7×33.9 inch (W×H×D)SIZE
1~24hr1~ 24hrDelay Start
Child Lock ButtonChild Lock ButtonProgram Lock
Fan driven condensing systemFan driven condensing systemDryer Type
Internal Type (1100W)Internal Type (1100W)Heater
3-stage (Disposer Type)3-stage (Disposer Type)Filter
NoYes (Upper)Half Load capable
YesYes
Rinse Supplement
Direction
Inlet/Temp/Water Level/Rinse/LeakageInlet/Temp/Water Level/Rinse/LeakageSensor
Stair Style BasketStair Style BasketBasket
Gray Color (Nylon Coating)Gray Color (Nylon Coating)Basket Color
Hot Water OnlyHot water onlyWater Supply
Delay Start, SanitizeDelay Start, Sanitize, Half Load
Normal, Heavy,
Delicate, Rinse
Normal, Heavy, Delicate, Rinse,
Quick, Smart Auto
Washing Program
-PC 3.5tFront Display
5.1 Inches5.1 inchesControl height
Touch SensorTouch SensorControl Type
Graphic LEDGraphic LEDDisplay
14 place settings14 place settingsCapacity
DMR57LFSDMR77LHS
Product Comparison Specification
The top of the line DMR77 offers extra features such a auto wash, and quick wash.
It also offers a half load cycle which can be used for smaller loads to save energy.

14

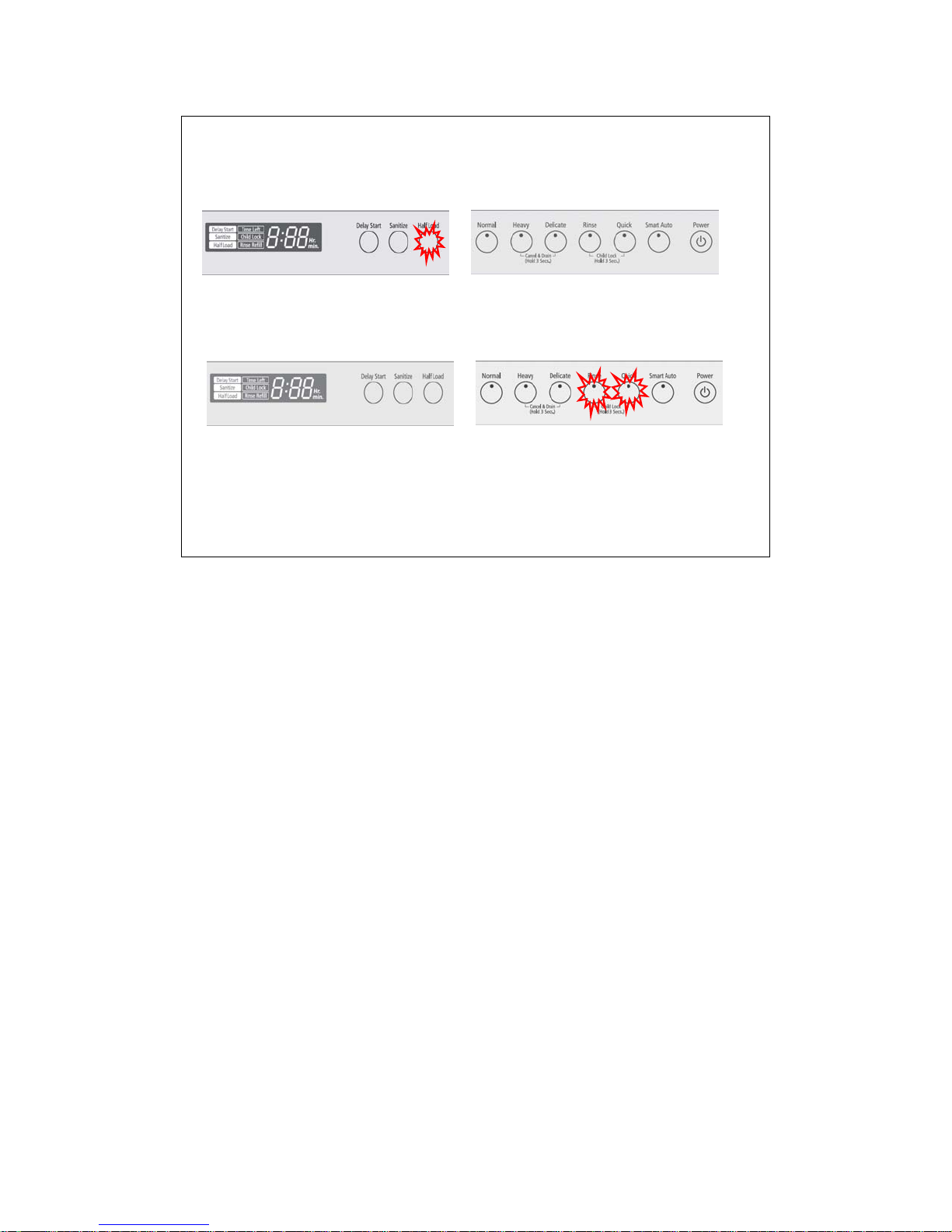

●Maximum Delay Time 24 Hours
●Each button press postpones the start by 1 hour
●Press Power to cancel
Delay Start / Sanitize Operation
●Enables High temperature cycle
●At 3th Rinse step, the water temperature is increased to a maximum temperature of 162℉.
When [Sanitize] is not selected, the maximum temperature reaches 140 ℉
●When [Rinse] Cycle is selected, you cannot select the [Sanitize] button.
●When the [Sanitize] button is selected, the Cycle time can be extended.

15
●Selecting this option runs the upper spray arm only, Select this option to
wash a small load of dishes.
Unique Functions
●[Child Lock] is selected by pressing the [Rinse] Button and
[Quick] Button simultaneously for 3 seconds. You must press
for 3 seconds again to cancel the selection.
Child Lock
Half Load
Delay start allows you to load the dishwasher and automatically start the wash
operation up to 24 hours later. Each button press postpones start for 1 hour. This
feature lets you wash dishes when it best fits your schedule, allowing you to take
advantage of reduced electrical rates or avoid busy water usage times
The normal water wash temperature is 142 degrees, activating the sanitize feature
increases the third rinse water temperature to 162 degrees. This feature can be
used to prevent germs on baby bottles or similar dishes.
The Half Load option runs the upper spray arm only. Use this feature to wash small
dish loads.
You can lock out the panel buttons by pressing the Rinse and Quick buttons
simultaneously for 3 seconds. Use this feature to prevent accidental wash
operation.

16

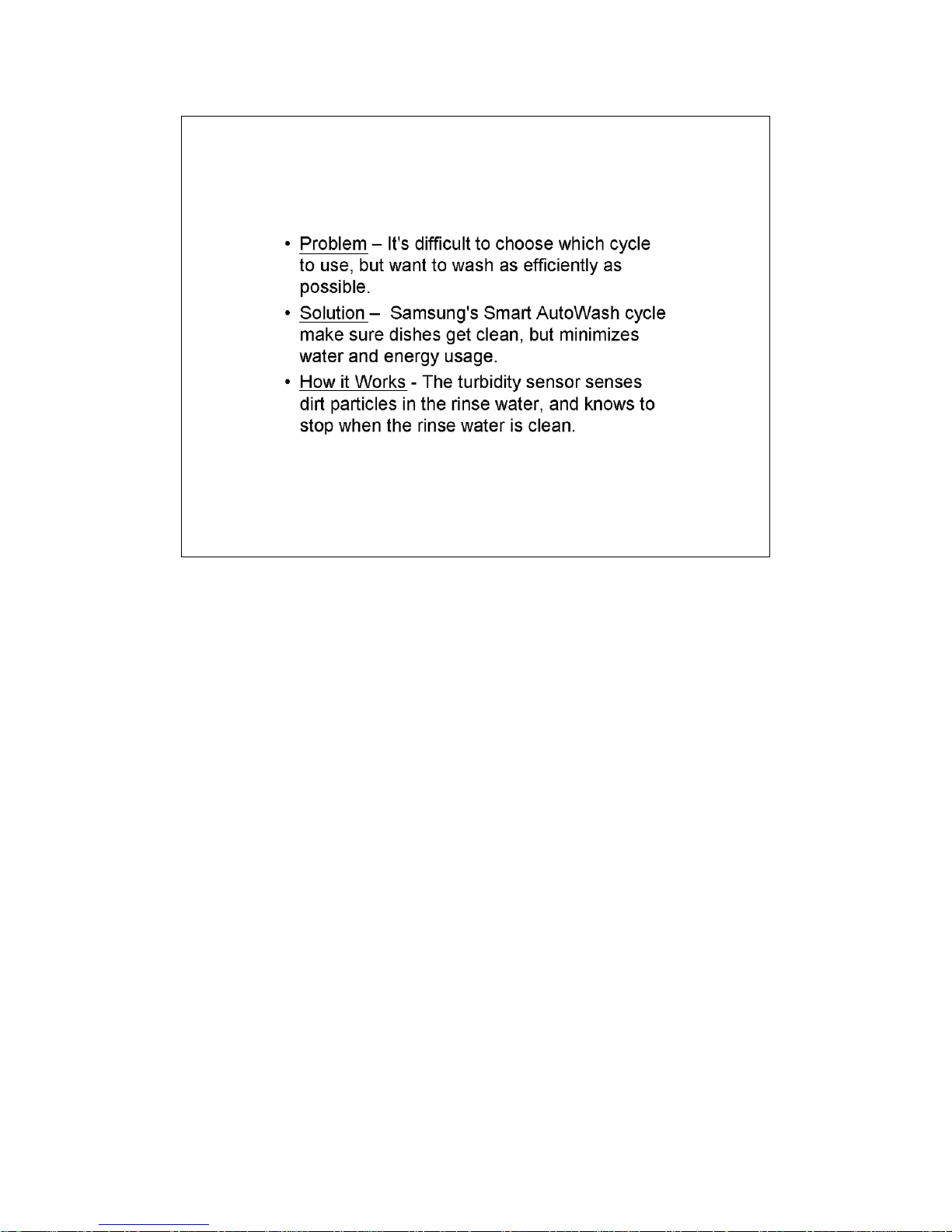

This cycle detects the level of soil and automatically initiates the optimal cycle
after a few minutes of operation.
Smart Auto
(only DMR77)
6
6
Use this cycle for lightly soiled dishes. Detergent is dispensed but no dry cycle is
initiated.
Quick
(only DMR77)
5
5
Use this cycle for pre-cleaned dishes or glasses. No detergent is dispensed
and no dry cycle is initiated.
Rinse
4
4
Use this cycle for normally soiled dishes or fragile items such as glasses.
Delicate
3
3
Use this cycle for hard-to-clean, heavily soiled dishes, pots, pans, and dishes with
heavy oil.
Heavy
2
2
Use this cycle for regular dinner dishes.
Normal
1
1
Cycle Explanation
These models offer 6 different wash cycles to handle a wide variety of cleaning
needs. The delicate cycle reduces the wash time to prevent damage. The DMR77
offers an automatic wash feature designed to save energy by running the wash
system only as long as the dishes are dirty and shutting down once clean water is
detected.

17
•The wash time may vary depending on the water pressure, drain conditions, and temperature of
the supplied water
58~1812012:30
~46:30
(7:30)7:3011:30
~46:30
(17:30)(17:30)5:30
~17:30
0:45
Smart Auto
38-12:30-7:3011:30--5:300:45
Quick
11---9:30----0:45
Rinse
1152032:30-7:3037:30--16:300:45
Delicate
1812046:307:307:3046:3017:3017:3017:300:45
Heavy
110~1342032:30(7:30)7:3032:30-(16:30)16:300:45
Normal
Total
Time
Dry
Last
Rinse
Rinse 2Rinse 1
Main
wash
Pre-
wash 3
Pre-
wash 2
Pre-
wash 1
Drain
Program
SanitizeNo Sanitize
162˚F140~158˚F-113~149˚F-
Smart Auto
162˚F140˚F-113 ˚F-
Quick
-----
Rinse
162˚F140˚F-113˚F-
Delicate
162˚F158˚F-149˚F-
Heavy
162˚F140˚F-120˚F-
Normal
Rinse 3
Rinse 1,2Main washPre-wash 1,2,3
Program
Cycle Selection Time Chart
All wash cycles are timed except the auto wash cycle. The auto wash cycle uses a
sensor to monitor water cleanliness. Once the water is clear the unit is advanced to
the final rinse and dry cycles.

18
MICOM cycle
Program chart [ time (min), temperature ]
58~1812012:30
~46:30
(7:30)7:3011:30
~46:30
(17:30)(17:30)5:30
~17:30
0:45
Smart Auto
38-12:30-7:3011:30--5:300:45
Quick
11---9:30----0:45
Rinse
1152032:30-7:3037:30--16:300:45
Delicate
1812046:307:307:3046:3017:3017:3017:300:45
Heavy
110~1342032:30(7:30)7:3032:30-(16:30)16:300:45
Normal
Total
Time
DryRinse 3Rinse 2Rinse 1
Main
wash
Pre-
wash 3
Pre-
wash 2
Pre-
wash 1
Drain
Program
SanitizeNo Sanitize
162˚F (72˚C)140~158˚F
(60~70˚C)
-113~149˚F
(45~65˚C)
-
Smart Auto
162˚F (72˚C)140˚F (60˚C)-113 ˚F (45˚C)-
Quick
-----
Rinse
162˚F (72˚C)140˚F (60˚C)-113˚F (45˚C)-
Delicate
162˚F (72˚C)158˚F (70˚C)-149˚F (65˚C)-
Heavy
162˚F (72˚C)140˚F (60˚C)-120˚F (49˚C)-
Normal
Rinse 3
Rinse 1,2Main wash
Pre-wash
1,2,3
Program
Cycle Time Chart

19
Cycle Operation Description
Dry cycle is included for all cycles
except the [Rinse] & [Quick] cycle.
20 Minutes – the fan operates for the last two minutes onlyDry
▶The amount of Rinse Agent added
can be set by the user. (4 levels)
For the [Normal], [Heavy], [Delicate],
[Quick] and [Smart Auto] cycles, the
last Rinse cycle is a heated rinse.
(140℉for Normal, 158℉for Heavy
and 162℉for sanitize)
The number of Rinse Cycles (1-3) is determined by cycle
selection.
Rinse
Circulation Motor Runs Only -Main wash
3 minutes after the fill operation is complete, the detergent
dispenser opens
Detergent
Dispensing
After the water supply is completed, the heater may turn on
to heat the water depending on the selected cycle.
Water Heating
Tub Fills with waterPre- wash
CommentsExplanationCycle name
Rinse Cycle Time
12:30~46:3012:30-32:3046:3032:30Rinse3
(7:30)---7:30(7:30)Rinse2
7:307:309:307:307:307:30Rinse1
Smart AutoQuickRinseDelicateHeavyNormal

20
Water supply cycle
A. Water supply function in the cycle starts 3 seconds after the drain function is completed.
B. When the there is no pulse input from the water supply valve after the water supply starts,
the ERROR ("4E") will be displayed.
C. The amount of water supplied is about 1.1 ~ 1.8 gallons. The amount of water supplied
depends on the variances of flow meter, water pressure and inlet valve etc.
D. When Over-flow level is detected, the ERROR ("oE”) is displayed.
E. When the water supply is not completed within 5 minutes, the ERROR ("4E") is displayed.
Water Supply Operation
