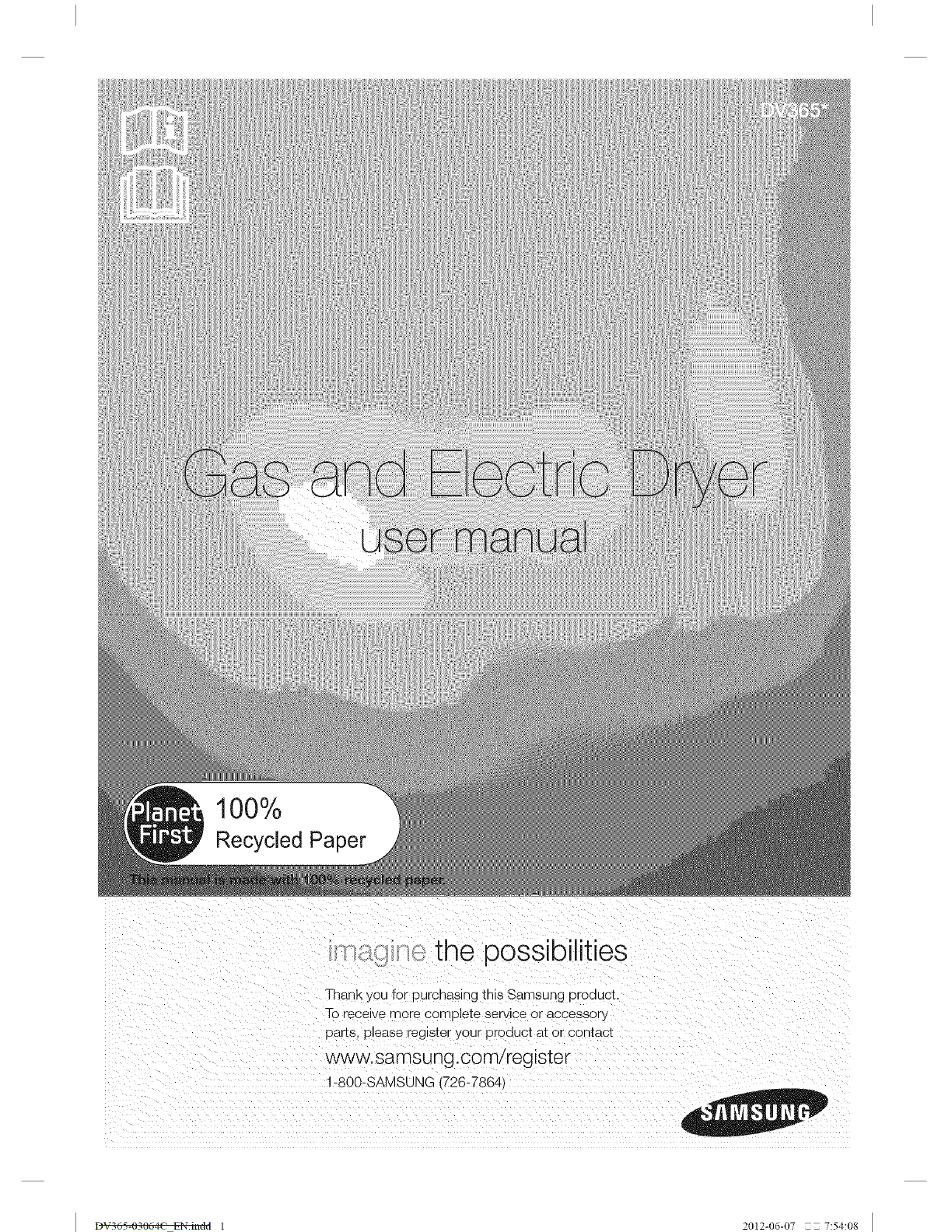

Samsung DV365ETBGWR/A3-0001 User manual

100%
Recycled Paper
the possibilities
Thank you i_orpurchasing this Samsung product.
To receive more complete service or acceeeorj
pans, please register your product at or contact
www.samsung.com/register
1-B00-SAMSUNG (726-7864
DV365-03064C EN.indd 1 2012-06-07 Z-7:54:08 I

1. Extra Large Capacity
Ultra drying capabilities are at your fingertips! Now you can dry extra-large loads. Our ultra
large 7.3 cu.ft, capacity dryer circulates more air through your clothes, drying them faster for
a wrinkle-free result.
2. Various Drying Cycles & Fuzzy Logic Algorithm
Simply turn the Jog Dial to select one of the 9 automatic drying cycles, including normal
and heavy duty, or let the Fuzzy Logic Control measure the degree of dampness and
automatically set the drying time. Precision drying has never been easier than with Samsung.
3. Time Saving
Our cycles are designed with you in mind. All our dryers are designed to dry your clothes in
less time.., just 42 minutes! Giving you time for more important things in life.
4. Energy Saving
Samsung dryers are super energy efficient. You can dry up to 3.01 pounds of laundry with
1kWh. Also, both the large capacity and Fuzzy Logic Control save energy by automatically
drying your clothes the most efficient way.
5. Easy Reversible Door
Our dryers will fit just about anywhere. The direction of our reversible door can be changed
easily.
6. Pedestal with Storage Drawers
An optional 15" pedestal is available to raise the dryer for easier loading and unloading.
It also offers a built-in storage drawer that can hold a 100 oz. bottle of detergent
7. Stacking (MODEL NO: SK-3A1, SK-4A, SK-5A)
Samsung's Washers and Dryers can be stacked to maximize usable space.
The Dryer legs need to be removed to stack the Washer and Dryer. An optional stacking kit
is available for purchase from your Samsung retailer.
.Sanitize course
This course allows you to sanitize garments by permeating high temperature heat deep into
the fabric during the drying cycle. Use this course to keep your bedding and curtains clean.
When selecting this cycle, 99.9% of all bacteria is eliminated through high temperature heat.
Use this cycle for clothing, bedding, towels, or other items needing sanitization.
This certification is conducted by NSF International, an independent third-party testing and
certification organization.
_S_ [ NSF Protocol P154
Sanitization Performance of
Residential Clothes Dryers
9. 4-way Vent (electric model only : DV365")
You can install the exhaust vent in the following four (4) positions: back, either side, bottom.
2 feat ur'es
DV365-03064C EN.indd Sec9:2 2012-06-07 _-7:54:46 I

safe nstrLActons
J
Congratulations on your new Samsung Dryer. This manual contains valuable
information on the installation, use, and care of your appliance. Please take the
time to read this manual to take full advantage of your dryer's many benefits and
features.
WARNING - Risk of Fire
• Clothes dryer installation must be performed by a qualified installer.
• Install the clothes dryer according to the manufacturer's instructions and local codes.
• Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type)
duct is installed, it must be of a specific type identified by the appliance manufacturer as
suitable for use with clothes dryers. Flexible venting materials are known to collapse, be
easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase
the risk of fire.
• To reduce the risk of severe injury or death, follow all installation instructions.
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when installing,
maintaining, or operating your dryer.
Always contact your manufacturer about problems or conditions you do not understand.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
WARNING
CAUTION
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
(_ Follow directions explicity.
Unplug the power plug from the wall socket.
[_ Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
Hazards or unsafe practices that may result in severe personal injury or
death.
Follow the information in this manual to minimize the risk of fire or explosion or
to prevent property damage, personal injury, or death.
Do not store or use gasoline or other flammable vapors and liquids near this or
any other appliance.
Hazards or unsafe practices that may result in minor personal injury or
property damage.
SAVE THESE INSTRUCTIONS
safety instructions 3
DV365-03064C EN.indd Secl:3 2012-06-07 C-7:54:46 I

n trLA tion
J
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your
....... appliance, follow basic precautions, including the following:
1. Read all instructions before using this appliance.
2. Do not dry articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive
substances, as they give off vapors that could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the door to the
drying compartment.
5. Do not reach into the appliance ifthe drum is moving.
6. Do not install or store this appliance where it will be exposed to the weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or attempt any servicing unless
specifically recommended in the user-maintenance instructions or in published user-
repair instructions that you understand and have the skills to carry out.
9. Do not use fabric softeners or products to eliminate static unless recommended by the
manufacturer of the fabric softener or product.
10. Clean lint screen before or after each load.
11. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like
materials.
12. Keep area around the exhaust opening and adjacent surrounding areas free from the
accumulation of lint, dust, and dirt.
13. The interior of the appliance and exhaust duct should be cleaned periodically by
qualified service personnel.
14. Do not place items exposed to cooking oils in your dryer. Items contaminated with
cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
AState of California Proposition 65 Warnings:
WARNING
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of
California to publish a list of substances known to the State of California to cause cancer,
birth defects, or other reproductive harm, and requires businesses to warn of potential
exposure to such substances.
This product contains a chemical known to the State of California to cause cancer, birth
defects, or other reproductive harm. This appliance can cause low-level exposure to some
of the substances listed, including benzene, formaldehyde, and carbon monoxide.
Gas appliances may cause low-level exposure to some of the substances listed including
benzene, formaldehyde, carbon monoxide, and soot; as a result of possible incomplete
combustion of natural gas or LP fuels. Exposure to these substances can be minimized
further by properly venting the dryer to the outdoors.
SAVE THESE INSTRUCTIONS
4 safety instructions
DV365-03064C EN.indd Secl:4 2012-06-07 Z-7:54:46 I

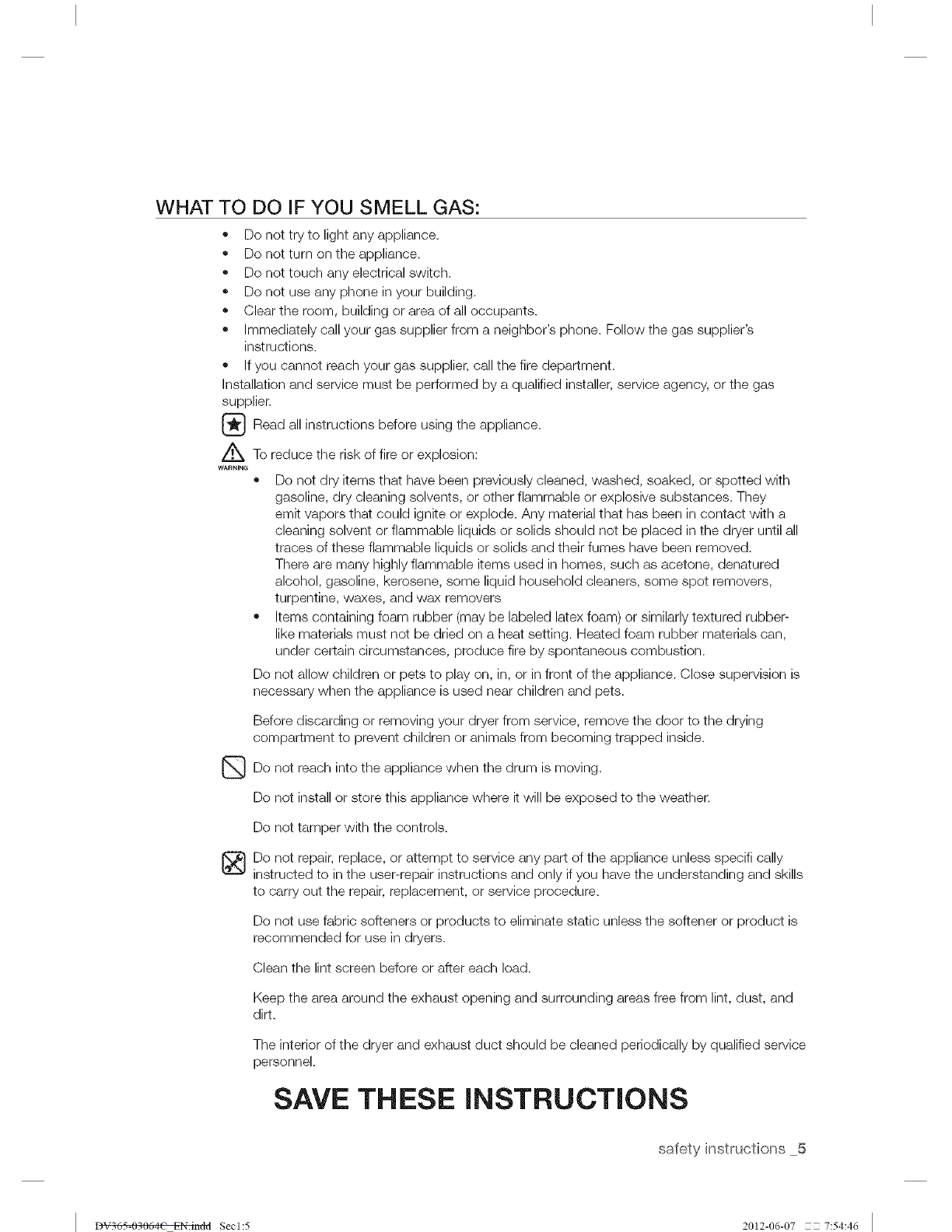

WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not turn on the appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency, or the gas
supplier.
(_ Read all instructions before theusing appliance.
Z_ To reduce the risk of fire or explosion:
WARNINe• Do not dw items that have been previously cleaned, washed, soaked, or spotted with
gasoline, dry cleaning solvents, or other flammable or explosive substances. They
emit vapors that could ignite or explode. Any material that has been in contact with a
cleaning solvent or flammable liquids or solids should not be placed in the dryer until all
traces of these flammable liquids or solids and their fumes have been removed.
There are many highly flammable items used in homes, such as acetone, denatured
alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,
turpentine, waxes, and wax removers
• Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-
like materials must not be dried on a heat setting. Heated foam rubber materials can,
under certain circumstances, produce fire by spontaneous combustion.
Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is
necessary when the appliance is used near children and pets.
Q
Before discarding or removing your dryer from service, remove the door to the drying
compartment to prevent children or animals from becoming trapped inside.
Do not reach into the appliance when the drum is moving.
Do not install or store this appliance where it will be exposed to the weather.
Do not tamper with the controls.
Do not repair, replace, or attempt to service any part of the appliance unless specifically
instructed to in the user-repair instructions and only if you have the understanding and skills
to carry out the repair, replacement, or service procedure.
Do not use fabric softeners or products to eliminate static unless the softener or product is
recommended for use in dryers.
Clean the lint screen before or after each load.
Keep the area around the exhaust opening and surrounding areas free from lint, dust, and
dirt.
The interior of the dryer and exhaust duct should be cleaned periodically by qualified service
personnel.
SAVE THESE INSTRUCTIONS
safety instructions 5
DV365-03064C EN.indd Secl:5 2012-06-07 C-7:54:46 I

n tnA tion
J
This appliance must be properly grounded. Never plug the power cord into a receptacle
that is not grounded adequately and in accordance with local and national codes. See the
installation instructions for information about grounding this appliance.
Do not sit on top of the dryer.
Because of continuing product improvements, Samsung reserves the right to change
specifications without notice. For complete details, see the Installation Instructions
packed with your product before selecting cabinetry, making cutouts, or beginning
installation.
//_ Ensure pockets are free from small, irregularly shaped, hard objects, foreign material, etc.
....... le. coins, knives, pins, etc. These objects could damage your dryer.
Do not wash clothing with large buckles, buttons, or other heavy metal or solid objects.
/_ Gas leaks may occur in your system, resulting in a dangerous situation.
WARNIN_
Gas leaks may not be detected by smell alone.
Gas suppliers recommend you purchase and install a UL-approved gas detector.
Install and use in accordance with the manufacturer's instructions.
Do not place items in your dryer that have been spotted or soaked with vegetable oil or
cooking oil. Even after being washed, these items may contain significant amounts of these
oils.
Residual oil on clothing can ignite spontaneously. The potential for spontaneous
combustion increases when items containing vegetable oil or cooking oil are exposed to
heat. Heat sources such as your dryer can warm these items, allowing an oxidation reaction
in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items can become
hot enough to catch fire. Piling, stacking, or storing these kinds of items may prevent heat
from escaping and can create a fire hazard.
All washed and unwashed fabrics that contain vegetable oil or cooking oil can be
dangerous. Washing these items in hot water with extra detergent will reduce, but not
eliminate, the hazard. Always use the Cool Down cycle for these items to reduce their
temperature. Never remove these items from the dryer hot or interrupt the drying cycle until
the items have run through the Cool Down cycle. Never pile or stack these items when they
are hot.
SAVE THESE INSTRUCTIONS
safety instructions
DV365-03064C EN.indd Secl:6 2012-06-07 _-7:54:46 I

content,
iNSTALLiNG YOUR DRYER
OPERATING iNSTRUCTiONS, TIPS
CARE AND CLEANING
SPECIAL LAUNDRY TIPS
TROUBLESHOOTING
8 Unpacking your dryer
8 The Dryer's Exterior
8 Key installation requirements

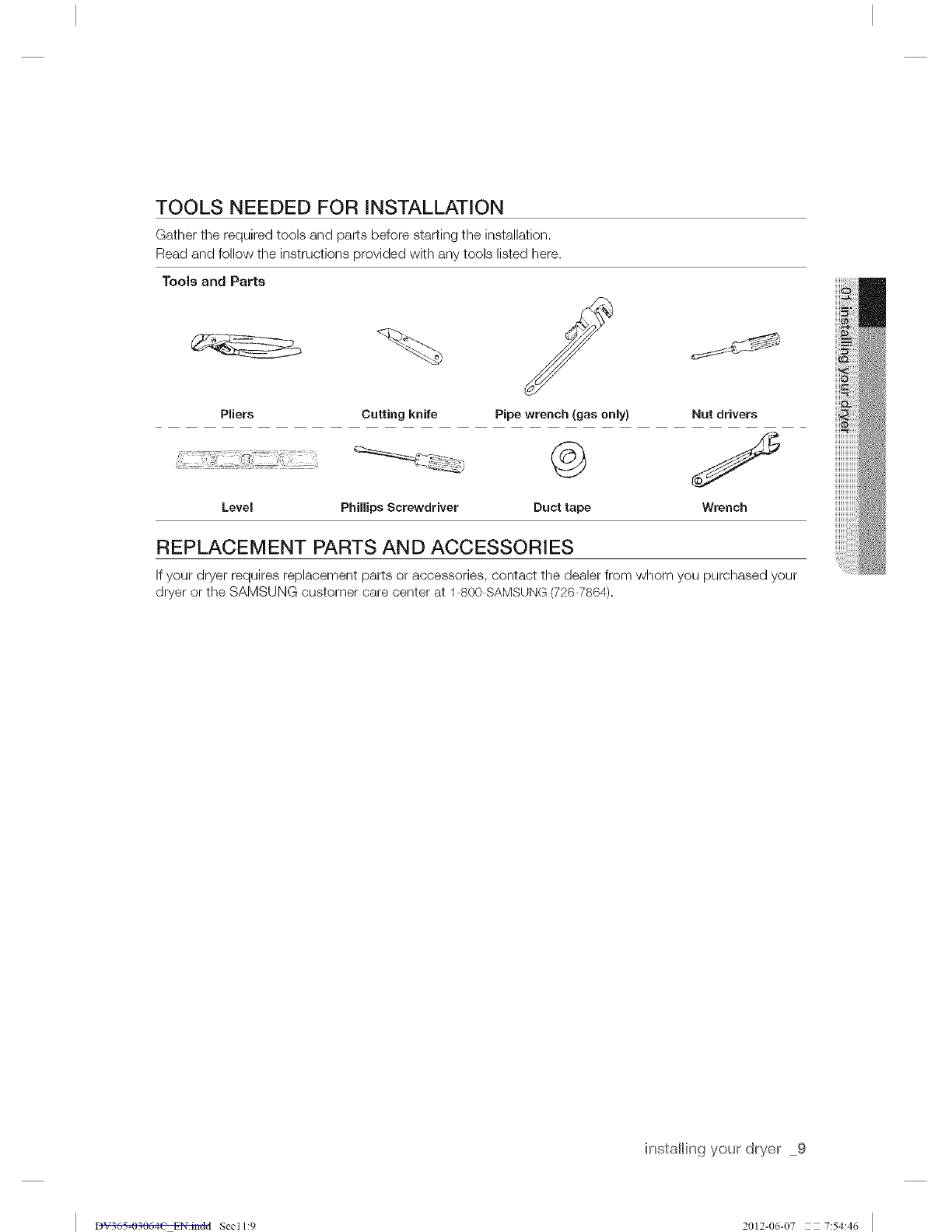

9 Tools needed for installation
9 Replacement parts and accessories
10 Ducting requirements
12 Important to installer
12 Location considerations
12 Alcove or closet installation
13 Mobile home installation
13 Exhausting
14 Gas requirements
15 Electrical requirements
15 Grounding
16 Electrical connections
17 Installation - General procedure
19 Final installation checklist
20 Dryer Exhaust Tips
21 Door Reversal
22 Overview of the control panel
24 Child lock
24 Sound Off
25 Drying Rack (Optional Part)
26 Clean the lint filter
26 Load the dryer properly
26 Getting started
27 Control Panel
27 Tumbler
27 Powder coated tumbler
27 Dryer Exterior
27 Dryer Exhaust System
28 Special laundry tips
29 Check these pointers if your dryer...
30 Information codes
APPENDIX
i
J
31 Fabric care chart
32 Protecting the environment
32 Declaration of conformity
32 Specifications
33 Cycle chart
contents 7
DV365-03064C EN.indd Sec3:7 2012-06-07 -- 7:54:46 I

UNPACKING YOUR DRYER
Unpack your Dryer and inspect it for shipping damage. If your Dryer was damaged during shipping,
contact 1-800-SAMSUNG (726-7864).To prevent personal injury or strain, wear protective gloves whenever
lifting or carrying the dryer.
Packing materials can be dangerous to children. Keep all packing material (plastic bags, polystyrene,
....... etc.) well out of children's reach.
THE DRYER'S EXTERIOR
Control panel
Door
Adjustable legs I
A Drying Rack is not supplied with this model. The Drying Rack is optional. You can purchase it
through a service center.
KEY iNSTALLATiON REQUIREMENTS
Hire a professional to install this dryer properly. If a service call has to be made as a result of poor setup,
adjustment, or connection, it is considered the responsibility of the installer. If you install the dryer, you are
responsible.
Make sure you have everything necessary for proper installation:
A GROUNDED ELECTRICAL OUTLET. See Electrical Requirements. See page 15
A POWER CORD for electric dryers (except Canada). See page 16.
GAS LINES (if you are installing a gas dryer) must meet national and local codes.
EXHAUST SYSTEM - must be rigid metal or flexible stiff-walled metal exhaust ducting. See the ducting
and exhaust requirements on pages 10 - 11 and 13 and the dryer exhaust tips on page 20..
8 installing your dryer
DV365-03064C EN.indd Secll:8 2012-06-07 Z-7:54:46 I

TOOLS NEEDED FOR INSTALLATION
Gather the required tools and parts before starting the installation.
Read and follow the instructions provided with any tools listed here.
Tools and Parts /
Pliers Cutting knife Pipe wrench (gas only} Nut drivers
Level Phillips Screwdriver Duct tape Wrench
REPLACEMENT PARTS AND ACCESSORIES
If your dryer requires replacement parts or accessories, contact the dealer from whom you purchased your
dryer or the SAMSUNG customer care center at 1 800 SAMSUNG (726 7864).
DV365-03064C EN.indd Secll:9
installing your dryer 9
2012-06-07 z-7:54:46 I

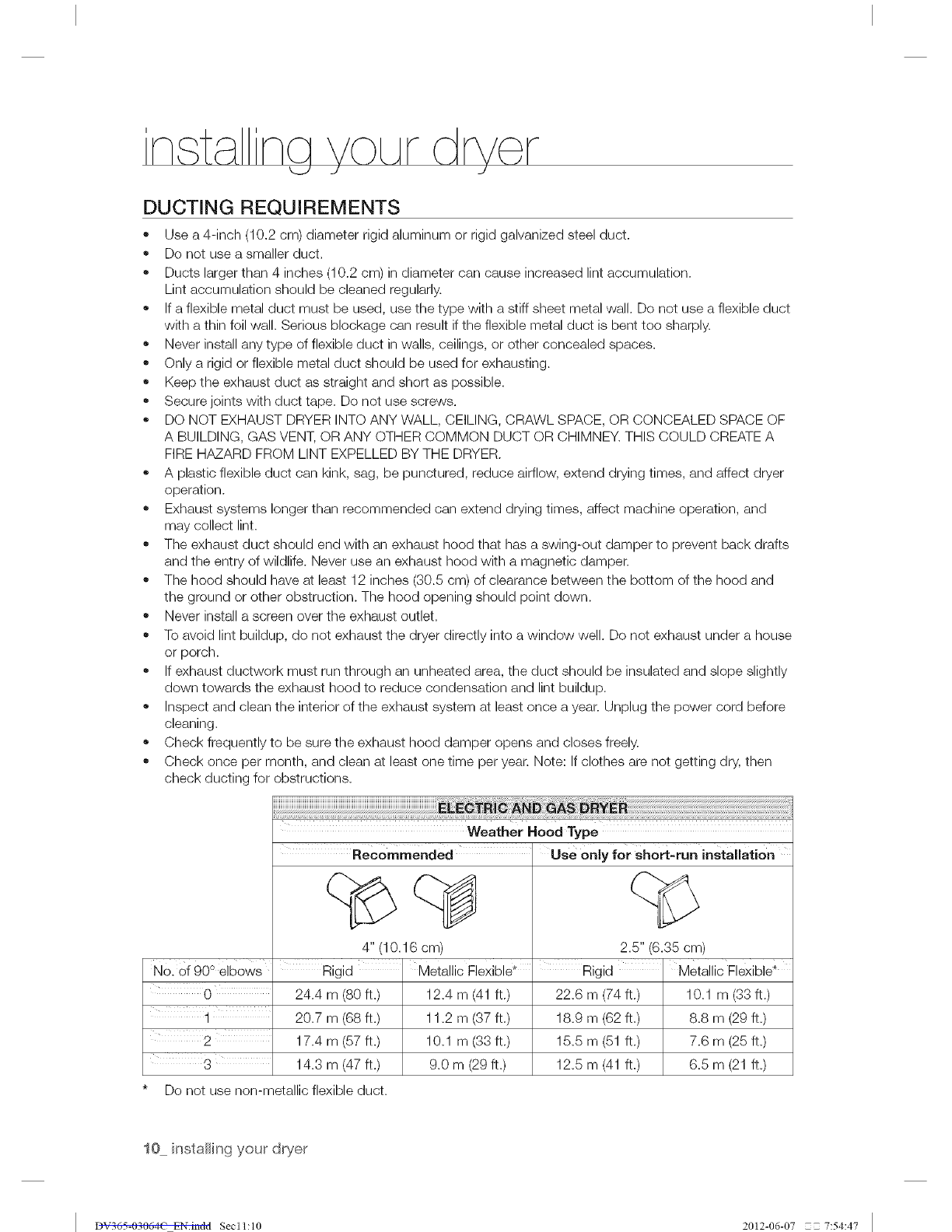

DUCTING REQUIREMENTS
Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.
Do not use a smaller duct.
Ducts larger than 4 inches (10.2 cm) in diameter can cause increased lint accumulation.
Lint accumulation should be cleaned regularly.
If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible duct
with a thin foil wall. Serious blockage can result if the flexible metal duct is bent too sharply.
Never install any type of flexible duct in walls, ceilings, or other concealed spaces.
Only a rigid or flexible metal duct should be used for exhausting.
Keep the exhaust duct as straight and short as possible.
Secure joints with duct tape. Do not use screws.
DO NOT EXHAUST DRYER INTO ANY WALL, CEILING, CRAWL SPACE, OR CONCEALED SPACE OF
A BUILDING, GAS VENT, OR ANY OTHER COMMON DUCT OR CHIMNEY. THIS COULD CREATE A
FIRE HAZARD FROM LINT EXPELLED BY THE DRYER.
A plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and affect dryer
operation.
Exhaust systems longer than recommended can extend drying times, affect machine operation, and
may collect lint.
The exhaust duct should end with an exhaust hood that has a swing-out damper to prevent back drafts
and the entry of wildlife. Never use an exhaust hood with a magnetic damper.
The hood should have at least 12 inches (30.5 cm) of clearance between the bottom of the hood and
the ground or other obstruction. The hood opening should point down.
Never install a screen over the exhaust outlet.
To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house
or porch.
If exhaust ductwork must run through an unheated area, the duct should be insulated and slope slightly
down towards the exhaust hood to reduce condensation and lint buildup.
Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before
cleaning.
Check frequently to be sure the exhaust hood damper opens and closes freely.
Check once per month, and clean at least one time per year. Note: If clothes are not getting dry, then
check ducting for obstructions.
Weather Hood Type
.... Recommended' Use only for Short-run installation
4" (10.16 cm)
No. of 90 ° elbows ' Rigid Metallic Flexible"
0 24.4 m (80 ft.) 12.4 m (41 ft,)
1 20.7 m (68 ft.) 11.2 m (37 ft,)
2 17.4 m (57 ft.) 10.1 m (33 ft,)
3 14.3 m (47 ft.) 9.0 m (29 ft.)
* Do not use non-metallic flexible duct.
2.5" (6.35 cm)
Rigid ' Metallic FleXible*
22.6 m (74 ft,) 10.1 m (33 ft.)
18.9 m (62 ft,) 8.8 m (29 ft.)
15.5 m (51 ft,) 7.6 m (25 ft.)
12.5 m (41 ft,) 6.5 m (21 ft.)
10 installing your dryer
DV365-03064C EN.indd Secll:10 2012-06-07 c-7:54:47 I

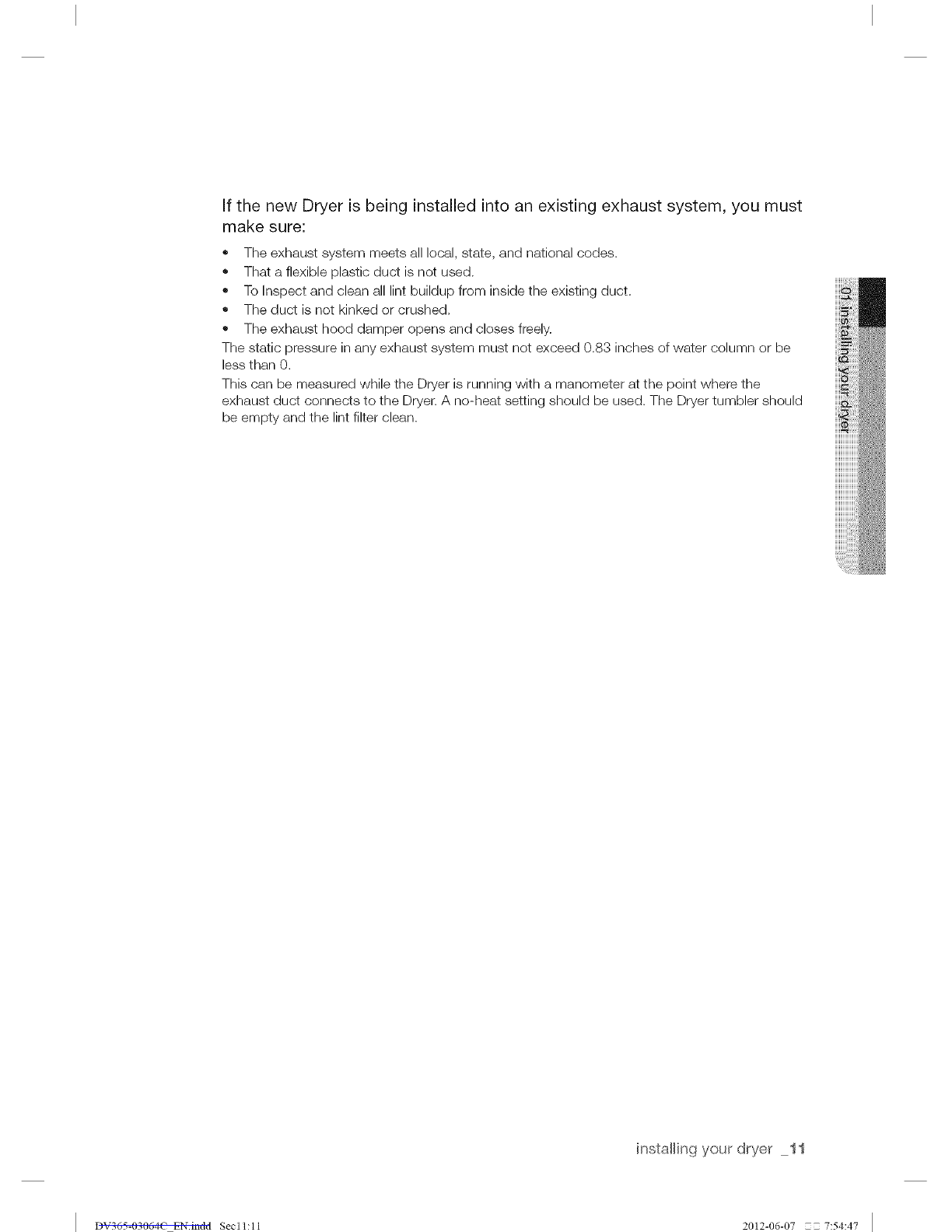

If the new Dryer is being installed into an existing exhaust system, you must
make sure:
The exhaust system meets all local, state, and national codes.
That a flexible plastic duct is not used.
To Inspect and clean all lint buildup from inside the existing duct.
The duct is not kinked or crushed.
The exhaust hood damper opens and closes freely.
The static pressure in any exhaust system must not exceed 0.83 inches of water column or be
less than 0.
This can be measured while the Dryer is running with a manometer at the point where the
exhaust duct connects to the Dryer. A no-heat setting should be used. The Dryer tumbler should
be empty and the lint filter clean.
DV365-03064C EN.indd Secll:ll
installing your dryer 11
2012-06-07 z-7:54:47 I

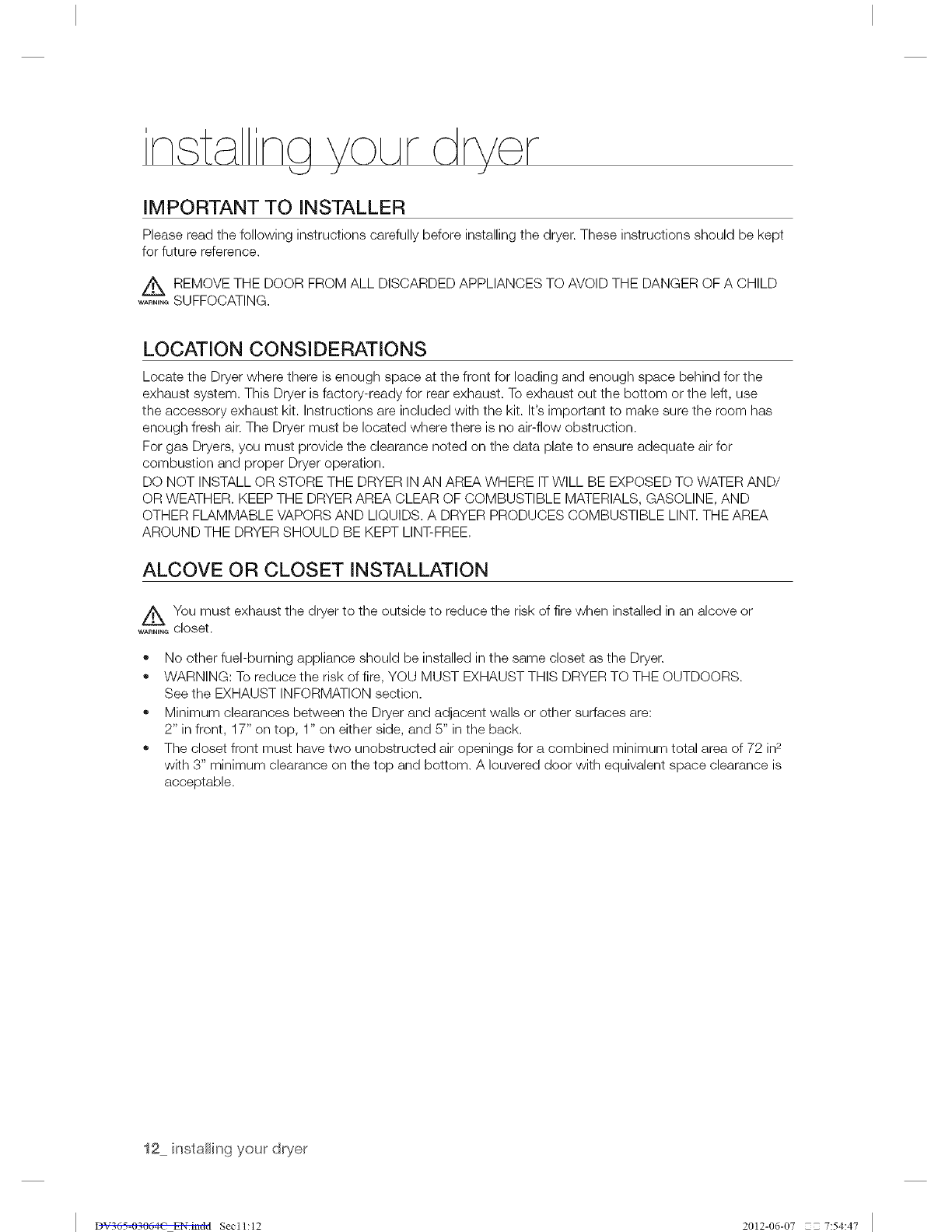

IMPORTANT TO INSTALLER
Please read the following instructions carefully before installing the dryer. These instructions should be kept
for future reference.
/_ REMOVE THE DOOR FROM ALL DISCARDED APPLIANCES TO AVOID THE DANGER OF A CHILD
....... SUFFOCATING.
LOCATION CONSI DERATIONS
Locate the Dryer where there is enough space at the front for loading and enough space behind for the
exhaust system. This Dryer is factory-ready for rear exhaust. To exhaust out the bottom or the left, use
the accessory exhaust kit. Instructions are included with the kit. It's important to make sure the room has
enough fresh air. The Dryer must be located where there is no air-flow obstruction.
For gas Dryers, you must provide the clearance noted on the data plate to ensure adequate air for
combustion and proper Dryer operation.
DO NOT INSTALL OR STORE THE DRYER IN AN AREA WHERE IT WILL BE EXPOSED TO WATER AND/
OR WEATHER. KEEP THE DRYER AREA CLEAR OF COMBUSTIBLE MATERIALS, GASOLINE, AND
OTHER FLAMMABLE VAPORS AND LIQUIDS. A DRYER PRODUCES COMBUSTIBLE LINT. THE AREA
AROUND THE DRYER SHOULD BE KEPT LINT-FREE.
ALCOVE OR CLOSET INSTALLATION
You must exhaust the dryer to the outside to reduce the risk of fire when installed in an alcove or
w,_.,._ closet.
• No other fuel-burning appliance should be installed in the same closet as the Dryer.
• WARNING: To reduce the risk of fire, YOU MUST EXHAUST THIS DRYER TO THE OUTDOORS.
See the EXHAUST INFORMATION section.
• Minimum clearances between the Dryer and adjacent walls or other surfaces are:
2" in front, 17" on top, 1" on either side, and 5" in the back.
• The closet front must have two unobstructed air openings for a combined minimum total area of 72 in2
with 3" minimum clearance on the top and bottom. A Iouvered door with equivalent space clearance is
acceptable.
12 installing your _dryer
DV365-03064C EN.indd Secll:12 2012-06-07 _-7:54:47 I

MOBILE HOME INSTALLATION
The installation of the Dryer in mobile homes must conform to the Manufactured Home Construction and
Safety Standard Title 24 CFR, Part 32-80 {formerly the Federal Standard for Mobile Home Construction and
Safety, Title 24, HUD (Part 280), 1975} for the United States) or CSA Standards Z240 (for Canada).
When installing a Dryer in a mobile home, you must make provisions for anchoring the dryer to the floor.
Locate the dryer in an area that has adequate fresh air.
A minimum of 72 in2 (465 cm2) of unobstructed space is required.
Call 1-800-SAMSUNG (726-7864) for information about purchasing the Floor Anchoring Kit as an accessory.
All mobile home installations must be exhausted to the outside with the exhaust duct termination securely
fastened to the mobile home structure, using materials that will not support combustion.
The exhaust duct may not terminate underneath the mobile home.
See Exhausting section for more information.
EXHAUSTING
Exhausting the Dryer to the outside will prevent large amounts of lint and moisture from being blown into the
room.
In
®
®
®
the United States:
All dryers must be exhausted to the outside.
The required exhaust duct is 4 inches (102 mm) in diameter.
Use only those foil-type flexible ducts, if any, specifically identified for use with the appliance
by the manufacturer and that comply with the Outline for Clothes Dryer Transition Duct,
Subject 2158A.
Do not assemble the duct with screws or other fasteners that extend into the duct and can
catch lint.
In Canada:
Use only those foil-type flexible ducts, if any, specifically identified for use with the appliance
by the manufacturer.
All dryers must be exhausted to the outside.
The exhaust duct should be 4 inches (102 mm) in diameter.
Outside the U.S. and Canada:
Refer to the local codes.
i_k You must exhaust the dryer to the outside to reduce the risk of fi re when you install the
......._ dryer in an alcove or closet.
NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT.
If your existing ductwork is plastic, non-metal, or combustible, replace it with metal.
Use only a metal exhaust duct that is non-flammable to ensure containment of exhaust air,
heat, and lint.
DV365-03064C EN.indd Secll:13
installing your dryer 13
2012-06-07 C-7:54:47 I

GAS REQUIREMENTS
Use only natural or LP (liquid propane) gases.
THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL
CODES, WITH THE NATIONAL FUEL GAS CODE ANSI/Z223.1, LATEST REVISION (FOR THE UNITED
STATES), OR WITH THE CAN/CGA-B149 INSTALLATION CODES (FOR CANADA).
Gas dryers are equipped with a burner vent for use with natural gas. If you plan to use your dryer with LP
(liquid propane) gas, it must be converted for safe and proper performance by a qualified service technician.
A 1/2" (1.27 cm) gas supply line is recommended and must be reduced to connect to the 3/8" (1 cm) gas
line on your dryer. The National Fuel Gas Code requires that an accessible, approved manual gas shut-off
valve be installed within G' of your dryer.
Gas dryers installed in residential garages must be raised 18 inches (46 cm) above the floor.
Additionally, a 1/8" (0.3 cm) N.RT. (National Pipe Thread) plugged tapping, accessible for test gauge
connection, must be installed immediately upstream of your dryer's gas supply connection.
Your Dryer must be disconnected from the gas supply pipe system during any pressure testing of the
system.
DO NOT reuse old flexible metal gas lines. Flexible gas lines must be design certified by the American Gas
Association (CGA in Canada).
, ny pipe joint compound used must be resistant to the action of any liquefied petroleum gas.
As a courtesy, most local gas utilities will inspect a gas appliance installation.
GAS IGNITION - Your Dryer uses an automatic ignition system to ignite the burner.
There is no constant burning pilot.
Commonwealth of Massachusetts installation instructions
Your Dryer must be installed by a licensed plumber or gas fitter. A "T" handle manual gas valve
must be installed in the gas supply line to your dryer. If a flexible gas connector is used to install
your Dryer, the connector can be no longer than 3' (36").
- Gas leaks may occur in your system, creating a dangerous situation.
........ Gas leaks may not be detected by smell alone.
Gas suppliers recommend you purchase and install a UL-approved gas detector.
Install and use in accordance with manufacturer's instructions.
14 installing your dryer
DV365-03064C EN.indd Secll:14 2012-06-07 _-7:54:47 I

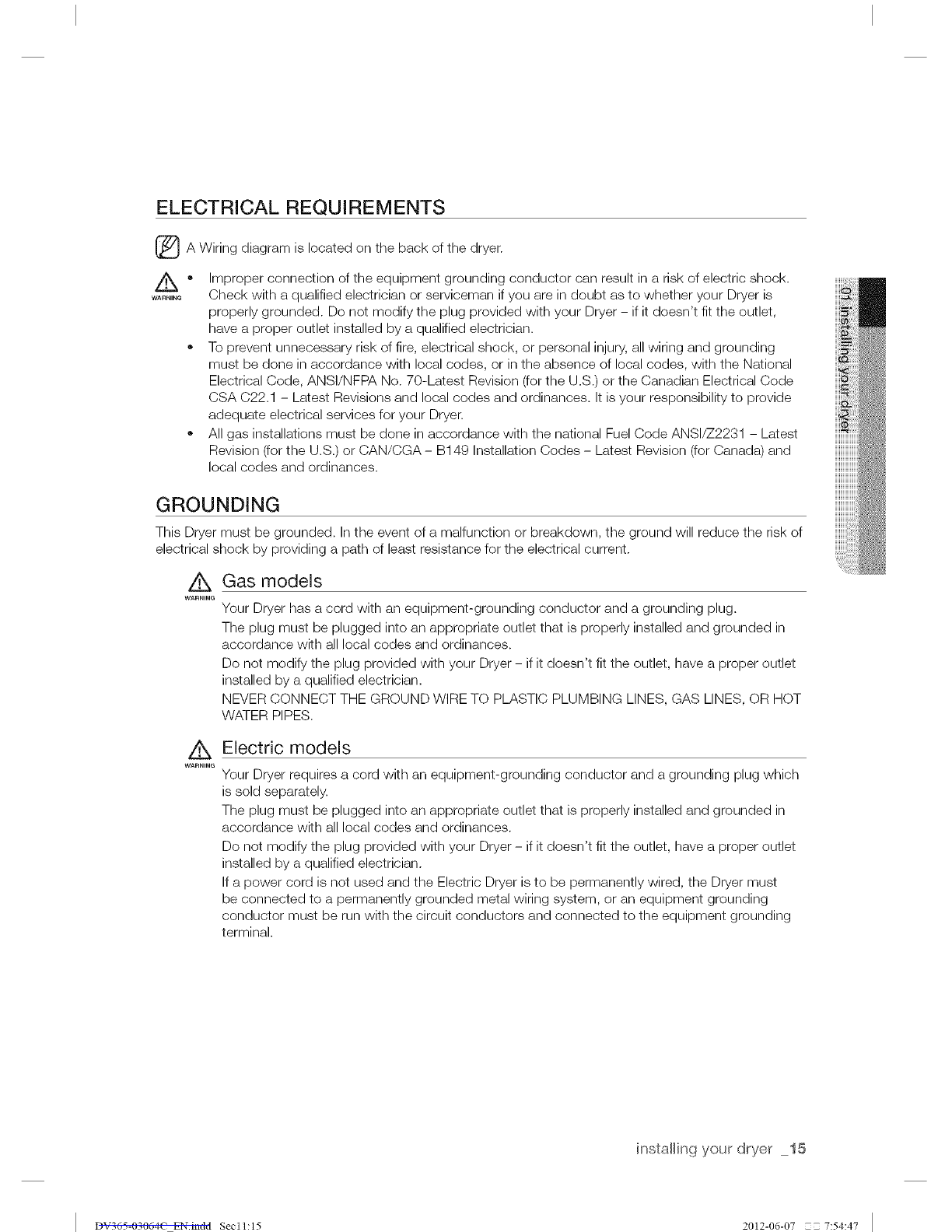

ELECTRICAL REQUIREMENTS
A Wiring diagram is located on the back of the dryer.
Z_* Improper connection of the equipment grounding conductor can result in a risk of electric shock.
....... Check with a qualified electrician or serviceman if you are in doubt as to whether your Dryer is
properly grounded. Do not modify the plug provided with your Dryer - if it doesn't fit the outlet,
have a proper outlet installed by a qualified electrician.
*To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding
must be done in accordance with local codes, or in the absence of local codes, with the National
Electrical Code, ANSI/NFPA No. 70-Latest Revision (for the U.S.) or the Canadian Electrical Code
CSA C22.1 - Latest Revisions and local codes and ordinances. It is your responsibility to provide
adequate electrical services for your Dryer.
*All gas installations must be done in accordance with the national Fuel Code ANSI/Z2231 - Latest
Revision (for the U.S.) or CAN/CGA - B149 Installation Codes - Latest Revision (for Canada) and
local codes and ordinances.
GROUNDING
This Dryer must be grounded. In the event of a malfunction or breakdown, the ground will reduce the risk of
electrical shock by providing a path of least resistance for the electrical current.
Z_ Gas models
WARNINGYour Dryer has a cord with an equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Do not modify the plug provided with your Dryer - if it doesn't fit the outlet, have a proper outlet
installed by a qualified electrician.
NEVER CONNECT THE GROUND WIRE TO PLASTIC PLUMBING LINES, GAS LINES, OR HOT
WATER PIPES.
WARNING Electric models
Your Dryer requires a cord with an equipment-grounding conductor and a grounding plug which
is sold separately.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Do not modify the plug provided with your Dryer - if it doesn't fit the outlet, have a proper outlet
installed by a qualified electrician.
If a power cord is not used and the Electric Dryer is to be permanently wired, the Dryer must
be connected to a permanently grounded metal wiring system, or an equipment grounding
conductor must be run with the circuit conductors and connected to the equipment grounding
terminal.
DV365-03064C EN.indd Secll:15
installing your dryer 15
2012-06-07 C-7:54:47 I

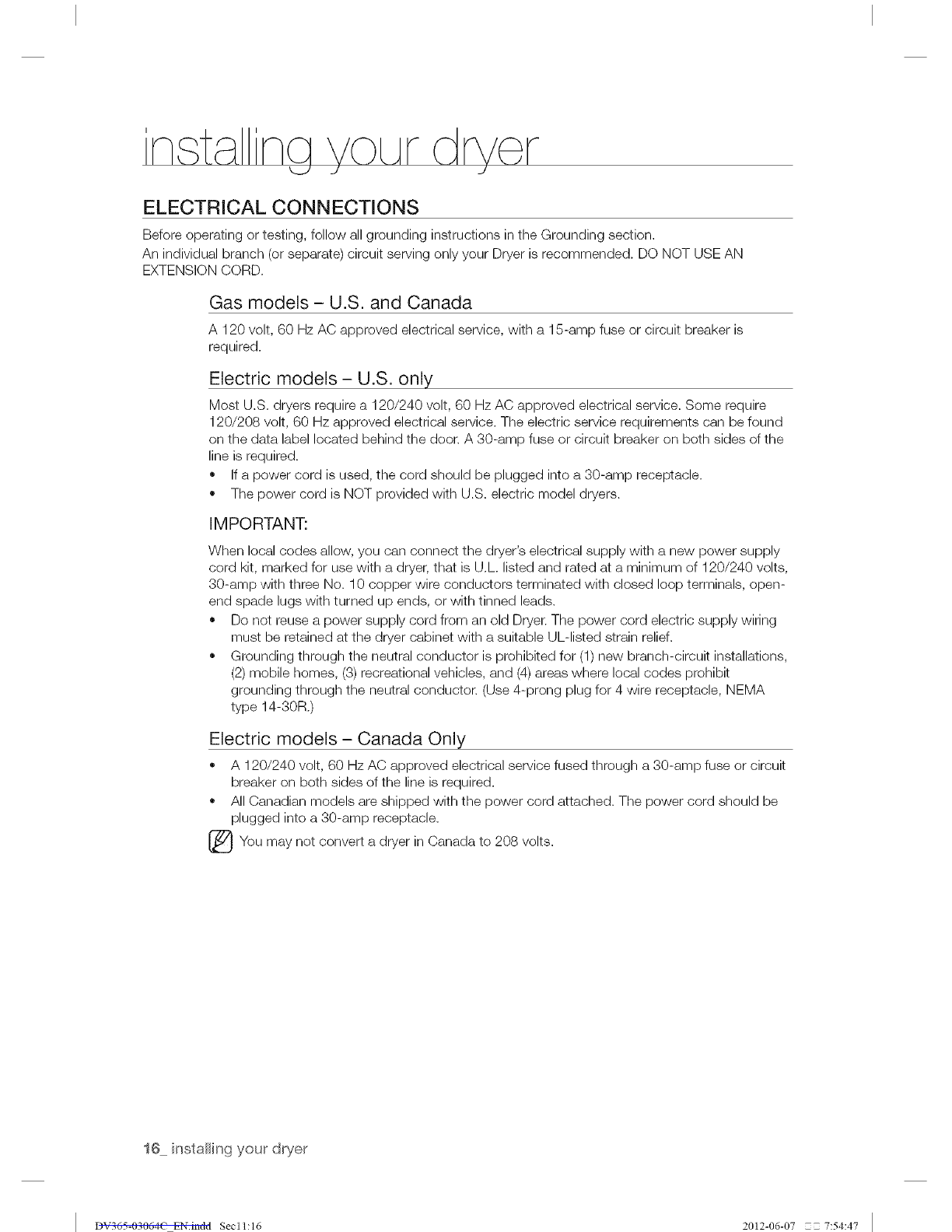

ELECTRICAL CONNECTIONS
Before operating or testing, follow all grounding instructions in the Grounding section.
An individual branch (or separate) circuit serving only your Dryer is recommended. DO NOT USE AN
EXTENSION CORD.
Gas models- U.S. and Canada
A 120 volt, 60 Hz AC approved electrical service, with a 15-amp fuse or circuit breaker is
required.
Electric models- U.S. only
Most U.S. dryers require a 120/240 volt, 60 Hz AC approved electrical service. Some require
120/208 volt, 60 Hz approved electrical service. The electric service requirements can be found
on the data label located behind the door. A 30-amp fuse or circuit breaker on both sides of the
line is required.
• If a power cord is used, the cord should be plugged into a 30-amp receptacle.
• The power cord is NOT provided with U.S. electric model dryers.
IMPORTANT:
When local codes allow, you can connect the dryer's electrical supply with a new power supply
cord kit, marked for use with a dryer, that is U.L. listed and rated at a minimum of 120/240 volts,
30-amp with three No. 10 copper wire conductors terminated with closed loop terminals, open-
end spade lugs with turned up ends, or with tinned leads.
• Do not reuse a power supply cord from an old Dryer. The power cord electric supply wiring
must be retained at the dryer cabinet with a suitable UL-listed strain relief.
• Grounding through the neutral conductor is prohibited for (1) new branch-circuit installations,
(2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit
grounding through the neutral conductor. (Use 4-prong plug for 4 wire receptacle, NEMA
type 14-30R.)
Electric models - Canada Only
• A 120/240 volt, 60 Hz AC approved electrical service fused through a 30-amp fuse or circuit
breaker on both sides of the line is required.
• All Canadian models are shipped with the power cord attached. The power cord should be
plugged into a 30-amp receptacle.
[_) You not convert in Canada to 208 volts.
may adryer
16 installing your ' dryer
DV365-03064C EN.indd Secll:16 2012-06-07 Z-7:54:47 I

InstNlation - GenerN procedure
For proper installation, we recommend that you hire a qualified installer.
Read these instructions completely before you begin the installation.
To install the dryer, follow these steps:
1. Move your dryer to an appropriate location for installation. Consider installing the dryer and washer side-
by-side so you have easy access to both appliances.
To move the dryer easily, lay two of the carton cushion-tops on the floor. Tip your dryer on its side so it
lies across both cushion-tops. Push the dryer so that it is near its final location. Set your dryer upright.
Leave enough room around the dryer so you can attach the duct work, power cord, etc.
2. If you need to change the direction of the door, go to Door Reversal on page. When done, return to
Step 3 below.
3. Review the Exhausting section before installing the exhaust system. Install the duct work from your
dryer to the exhaust hood. The crimped end of the duct sections must point away from your dryer. DO
NOT use sheet metal screws when assembling ducting. These joints should be taped. Never use plastic
flexible exhaust material.
A tip for tight installations: Attach a section of the exhaust system to your dryer before putting it in
place. Use duct tape to secure this section to your dryer, but do not cover the ventilation slots at the
back of the dryer cabinet.
4. If you have an electric model, skip to Step 6. If you have a gas model, go to the next step.
5. Review the Gas Requirements section, then follow the lettered steps below.
a. Remove the pipe thread protective cap.
b. Apply pipe joint compound or about 1 1/2 wraps of Teflon tape over all threaded connections.
[_ The pipe joint compound must be resistant to the action of any liquefied petroleum gas.
c. Connect the gas supply to your dryer. An additional fitting is required to connect the 3/4" (1.9 cm)
female thread end of a flexible connector to the 3/8" (1 cm) male threaded end on the dryer.
d. Securely tighten the gas line fitting over the threads.
e. Turn on the gas supply. Check all gas connections for leaks using a soap solution. If bubbles
appear, tighten the connections and recheck. DO NOT use an open flame to check for gas leaks.
f. Go to Step 6 on the next page
DV365-03064C EN.indd Secll:17
installing your dryer 17
2012-06-07 C-7:54:47 I

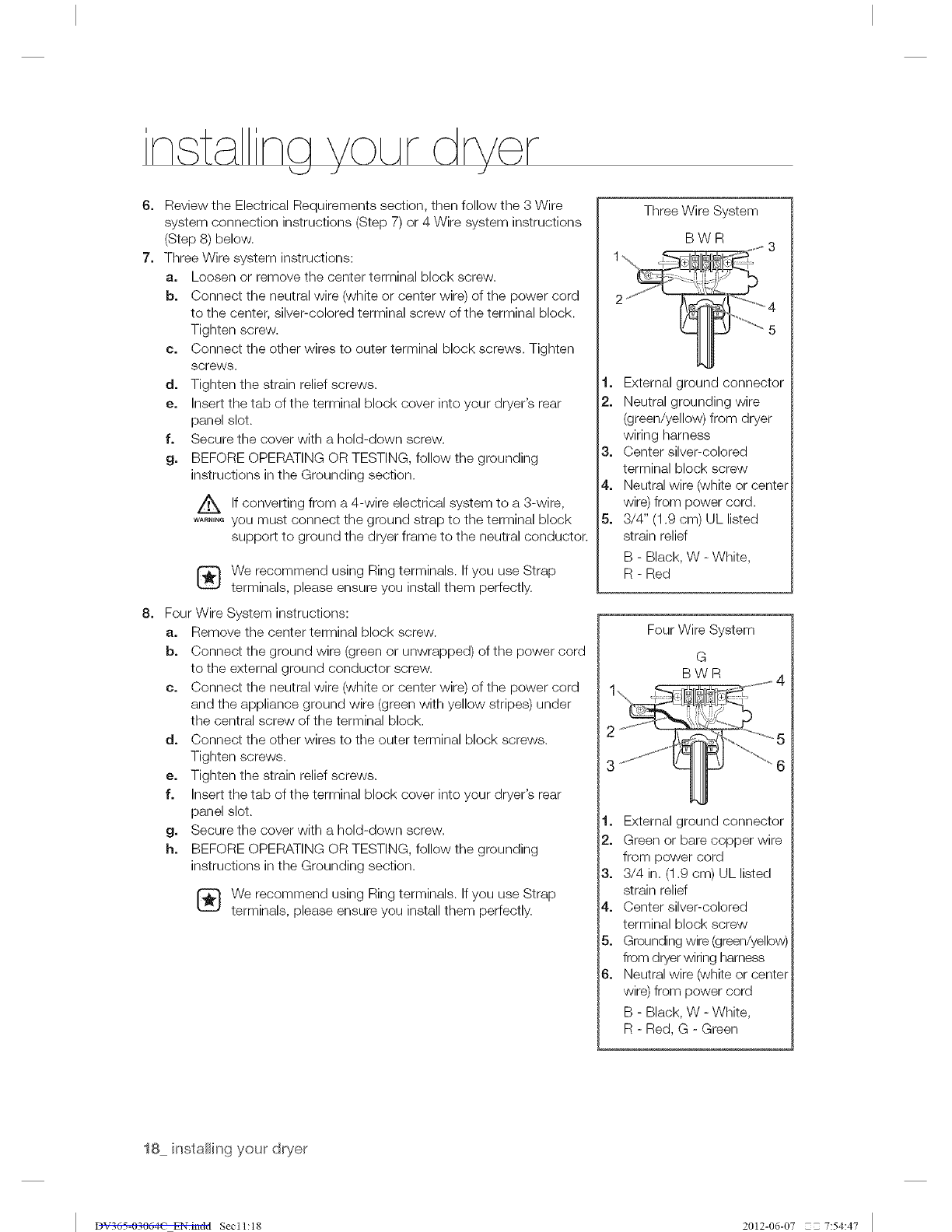

6. Review the Electrical Requirements section, then follow the 3 Wire
system connection instructions (Step 7) or 4 Wire system instructions
(Step 8) below.
7. Three Wire system instructions:
a. Loosen or remove the center terminal block screw.
b. Connect the neutral wire (white or center wire) of the power cord
to the center, silver-colored terminal screw of the terminal block.
Tighten screw.
e. Connect the other wires to outer terminal block screws. Tighten
screws.
d. Tighten the strain relief screws.
e. Insert the tab of the terminal block cover into your dryer's rear
panel slot.
f. Secure the cover with a hold-down screw.
g. BEFORE OPERATING OR TESTING, follow the grounding
instructions in the Grounding section.
If converting from a 4-wire electrical system to a 3-wire,
_A,.,N_yOU must connect the ground strap to the terminal block
support to ground the dryer frame to the neutral conductor.
8°
We recommend using Ring terminals. If you use Strap
terminals, please ensure you install them perfectly.
Four Wire System instructions:
a. Remove the center terminal block screw.
b. Connect the ground wire (green or unwrapped) of the power cord
to the external ground conductor screw.
e. Connect the neutral wire (white or center wire) of the power cord
and the appliance ground wire (green with yellow stripes) under
the central screw of the terminal block.
d. Connect the other wires to the outer terminal block screws.
Tighten screws.
e. Tighten the strain relief screws.
f. Insert the tab of the terminal block cover into your dryer's rear
panel slot.
g. Secure the cover with a hold-down screw.
h. BEFORE OPERATING OR TESTING, follow the grounding
instructions in the Grounding section.
We recommend using Ring terminals. If you use Strap
terminals, please ensure you install them perfectly.
Three Wire System
BWR
1. External ground connector
2. Neutral grounding wire
(green/yellow) from dryer
wiring harness
3. Center silver-colored
terminal block screw
4. Neutral wire (white or center
wire) from power cord.
5. 3/4" (1.9 cm) UL listed
strain relief
B - Black, W - White,
R - Red
Four Wire System
G
BWR
t. External ground connector
2. Green or bare copper wire
from power cord
3. 3/4 in. (1.9 cm) UL listed
strain relief
4. Center silver-colored
terminal block screw
5. Grounding wire (green/yellow)
from dryer wiring harness
6. Neutral wire (white or center
wire) from power cord
B - Black, W - White,
R - Red, G - Green
18 installing your _dryer
DV365-03064C EN.indd Secll:18 2012-06-07 _ _ 7:54:47 I

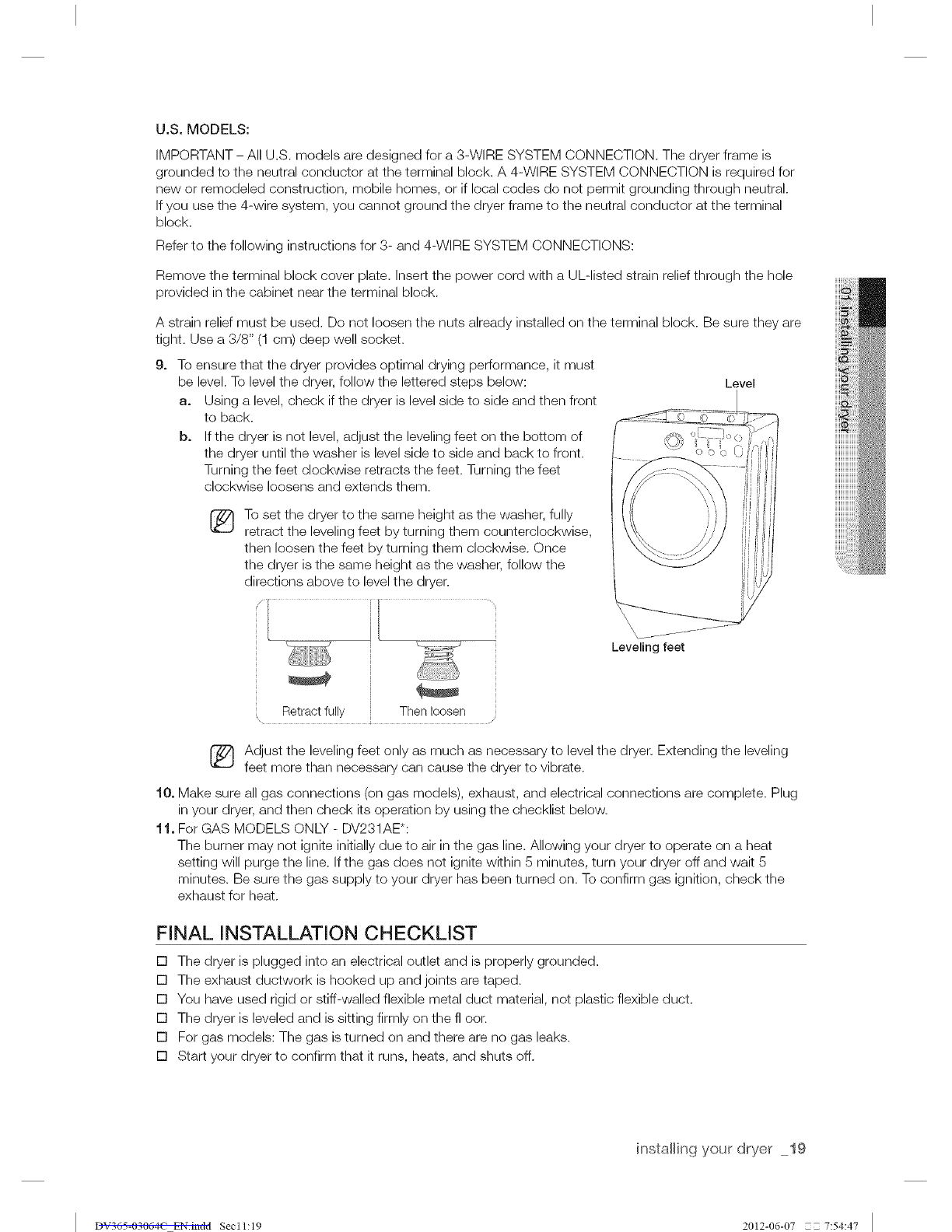

U.S. MODELS:
IMPORTANT - All U.S. models are designed for a 3-WIRE SYSTEM CONNECTION. The dryer frame is
grounded to the neutral conductor at the terminal block. A 4-WIRE SYSTEM CONNECTION is required for
new or remodeled construction, mobile homes, or if local codes do not permit grounding through neutral.
If you use the 4-wire system, you cannot ground the dryer frame to the neutral conductor at the terminal
block.
Refer to the following instructions for 3- and 4-WIRE SYSTEM CONNECTIONS:
Remove the terminal block cover plate. Insert the power cord with a UL-listed strain relief through the hole
provided in the cabinet near the terminal block.
A strain relief must be used. Do not loosen the nuts already installed on the terminal block. Be sure they are
tight. Use a 3/8" (1 cm) deep well socket.
9. To ensure that the dryer provides optimal drying performance, it must
be level. To level the dryer, follow the lettered steps below: Level
ao Using a level, check if the dryer is level side to side and then front
to back.
bo If the dryer is not level, adjust the leveling feet on the bottom of
the dryer until the washer is level side to side and back to front.
Turning the feet clockwise retracts the feet. Turning the feet
clockwise loosens and extends them.
To set the dryer to the same height as the washer, fully
retract the leveling feet by turning them counterclockwise,
then loosen the feet by turning them clockwise. Once
the dryer is the same height as the washer, follow the
directions above to level the dryer.
Leveling feet
Retract fully Then loosen
[_ djust the leveling feet only as much as necessary to level the dryer. Extending the leveling
feet more than necessary can cause the dryer to vibrate.
10. Make sure all gas connections (on gas models), exhaust, and electrical connections are complete. Plug
in your dryer, and then check its operation by using the checklist below.
1t. For GAS MODELS ONLY - DV231AE*:
The burner may not ignite initially due to air in the gas line. Allowing your dryer to operate on a heat
setting will purge the line. If the gas does not ignite within 5 minutes, turn your dryer off and wait 5
minutes. Be sure the gas supply to your dryer has been turned on. To confirm gas ignition, check the
exhaust for heat.
FINAL INSTALLATION CHECKLIST
[] The dryer is plugged into an electrical outlet and is properly grounded.
[] The exhaust ductwork is hooked up and joints are taped.
[] You have used rigid or stiff-walled flexible metal duct material, not plastic flexible duct.
[] The dryer is leveled and is sitting firmly on the floor.
[] For gas models: The gas is turned on and there are no gas leaks.
[] Start your dryer to confirm that it runs, heats, and shuts off.
DV365-03064C EN.indd Secll:19
installing your dryer 19
2012-06-07 z-7:54:47 I

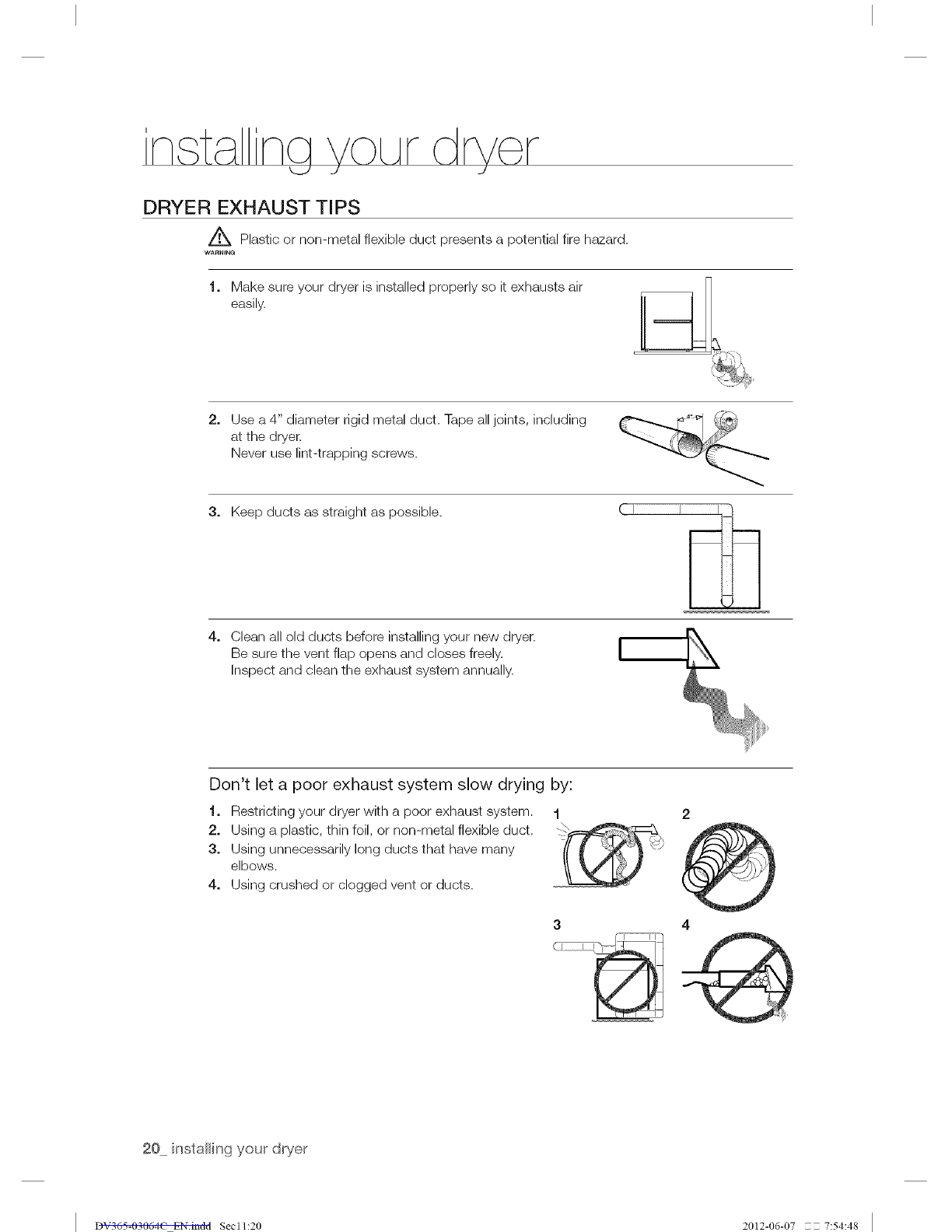

DRYER EXHAUST TiPS
Z_ Plastic or non-metal flexible duct presents a potential fire hazard.
WARNING
t. Make sure your dryer is installed properly so it exhausts air
easily.
2. Use a 4" diameter rigid metal duct. Tape all joints, including
at the dryer.
Never use lint-trapping screws.
3. Keep ducts as straight as possible.
Clean all old ducts before installing your new dryer.
Be sure the vent flap opens and closes freely,
Inspect and clean the exhaust system annually.
Don't let a poor exhaust system slow drying by:
t. Restricting your dryer with a poor exhaust system. 1 2
2. Using a plastic, thin foil, or non-metal flexible duct.
3. Using unnecessarily long ducts that have many
elbows.
4. Using crushed or clogged vent or ducts.
3 4
20 installing your dryer
DV365-03064C EN.indd Secll:20 2012-06-07 c-7:54:48 I
