Samsung DV431AEP/XAA Manual

1
CLOTHES DRYER
Technical Information
CAUTION
All safety information must be followed as provided in Service Manual of DV431, DV231.
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer
before servicing, unless testing requires power.
Code No. : DC68-02365D-02
IMPORTANT SAFETY NOTICE – “For Technicians only” This service data sheet is intended for
use by persons having electrical, electronic, and mechanical experience and knowledge at a level
generally considered acceptable in the appliance repair trade. Any attempt to repair a major
appliance may result in personal injury and property damage. The manufacturer or seller cannot
be responsible, nor assume any liability for injury or damage of any kind arising from the use of
this data sheet.
• Duetopossibilityofpersonalinjuryorpropertydamage,alwayscontactanauthorized
technician for servicing or repair of this unit.
• RefertoServiceManual(DV431, DV231) for detailed installation, operating, testing,
troubleshooting, and disassembly instructions.
(Technical)DV431AEP-02365D-02.indd 1 2011-07-08 �� 5:35:57

2
ERROR ITEMS AND DIAGNOSTIC CODES
An occurrence of an Error will make a sound of error melody for 5sec and continuously show one
of the Error Displays from the following errors.
Error Display Trigger Action Taken
tE The Termistor resistance is
very low or high.
Check for:
- Clogged lint screen.
-Restrictedventsystem.
- Check Thermistor resistance.
HE Invalid heating Temp in
running the dryer
Check for:
-Restrictedventsystem.
- Check Thermistor resistance.
dE Runningthedryerwithdoor
open
Check for:
- Close the door, and run the dryer.
- Loose or open wire terminals in
Door Sense circuit.
dF Invalid door state for more
than 256 milliseconds
Check for:
- Loose or open wire terminals in
Door Sense circuit.
bE2 Invalid state of key circuit
short for 30 secs
Check for:
- Display PCB key circuit short or
not.
FE Invalid power source
Frequency
Check for:
- Not using regular power source
frequency
- Invalid power frequency sense
circuit
2E Electronic Control Problem
(OverVoltageError)
Check for:
- Check PCB and Wire harness.
- Check Power supply.
AE Electronic Control Problem
(CommunicationError)
Check for:
- Check PCB and Wire harness.
-ReplacePCB.
Et Invalid state of Eeprom
communication
Check for :
- PCB with Eeprom circuit.
ALIGNMENT AND ADJUSTMENTS
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
(Technical)DV431AEP-02365D-02.indd 2 2011-07-08 �� 5:35:57

3
TEST MODE
Service Mode (DV431 only)
How to enter:
- To enter Service Mode , press Mixed Load Bell + Temp. Keys 3 seconds in normal mode until it
sends out a beeping sound.
- If pressing Mixed Load Bell + Temp. Keys in Service mode , it will return Normal mode.
- Even though entering Service mode, the operating cycle will not be inuenced.
DR Ready Modem Wire Test(DV431AS* only)
How to enter:
-After entering Service Mode, press the Wrinkle Prevent button to start the Wire Test.
- During the test, “----” is displayed.
- If the test result is normal after the test, “SG” is displayed.
- If a problem occurs, the “AE3” error code is displayed.
Touch Sensor Data Display Mode
Denition of Sensor Bar Touch Data Mode:
- This mode is default mode of entering service mode.
How to enter:
- WithPowerOnpressingMixedLoadBell+Temp(DV431)orWrinklePrevent+Temp(DV231)
for 3 seconds.
- This action will put the dryer into sensor bar touch data mode
- Dryer will display Sensor Bar data.
Cycle Count Mode
Denition of Sensor Bar Touch Data Mode:
- This mode is to bring up the total number of cycles that User have carried out.
How to enter:
- PresstheMixedLoadBell(DV431)orTime(DV231)keyinServiceMode.
Software Revision Mode
Denition of Software Version Mode:
- It is to retrieve its software version
How to enter:
At Service Mode, press Temp until it sends out a beeping sound
ex) In case of “U1 05”, U1 means major version “U1”, 05 means minor version “05”.
- If press Temp key In Software Version Mode, it will return Service Mode.
ALIGNMENT AND ADJUSTMENTS
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
(Technical)DV431AEP-02365D-02.indd 3 2011-07-08 �� 5:35:57

4
Continuous Run Mode
How to enter:
- PressMixedLoadBell+DryLevel(DV431)orWrinklePrevent+Time(DV231)for7secduring
PowerOnState(normalusermode).
- Once in Continuous Run Mode, display “CC” for 1 sec and the remaining time for 2 sec in
turns.
- ThepreviouscyclewillrestartduringContinuousRunModeuntilthemodeisdeactivated.
- DuringContinuousRunMode,pressMixedLoadBell+DryLevel(DV431)orWrinklePrevent+
Time(DV231)for7secondstogobacktonormalusermode.
Data Display Mode (DV431 only)
How to Enter:
- WithPowerOn,pressAdjustUpKey+AdjsutDownKeyfor7secondsuntilitsendsouta
beeping sound .
- If not pressed any keys for 5 minutes, it will be set back from Data Display Mode
- If pressing AdjustUp Key in this mode ,Display Mode ID will be incresed.
- If pressing AdjustDown Key in this mode ,Display Mode ID will be decresed.
Denition of Software Version Mode:
- Display Mode 0 : Temperature data
- Display Mode 1 : Average Touch Sensor data for 1 minute
- Display Mode 2 : Average Temperature data for 1 minute
ALIGNMENT AND ADJUSTMENTS
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
Power On state
(Normal user mode)
Mixed Load Bell +Dry Level(DV431) or
Wrinkle Prevent + Time(DV231) 7 SEC
Continuous Run Mode
(Technical)DV431AEP-02365D-02.indd 4 2011-07-08 �� 5:35:57

5
TROUBLE DIAGNOSIS
- As the micom dry machine is congured of the complicate structure, there might be the
service call.
Below information is prepared for exact trouble diagnosis and suitable repair guide.
Caution for the Repair and Replacement
1) As some electronic components are damaged by the charged static electricity from the resin
part of dryer or the human body, prepare the human body earth or remove the potential
dier ence of the human body and dryer by contacting the power supply plug when the work
contacting to PCB is executed.
2) As the P.C.B assembly is designed for no trouble, do not replace the P.C.B assembly by the
wrong diagnosis and follow the procedure of the trouble diagnosis when the micom is not
operated normally.
ALIGNMENT AND ADJUSTMENTS
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
Please follow below instruction for the trouble diagnosis and parts replacement.
(Technical)DV431AEP-02365D-02.indd 5 2011-07-08 �� 5:35:57

6
No Problem What To Do
1Will Not Start or Run
•All wires are hooked up to their corresponding terminals.
•Dryer is plugged in.
•Blown fuse or circuit breaker.
•Doorswitchfunctional...doorclosed.Checkforerrorcode3(See
Table for codedenition).
• Start/Pause rotary selector dial functional.
• Control Board operational.
• Belt o or broken and Belt Cut-o Switch operates.
• Drive motor functional.
• Check motor winding resistance: 2.88ohms between pin #3 and
4, 3.5ohms between pin #4 and 5.
2Motor runs/ tumbler
will not turn
• Belt o or broken/damaged.
• Idler tension spring too weak or stretched.
• Idler pulley jammed or stuck.
3Runs a few minutes
and then stops
• Lint buildup around drive motor.
• Low voltage present.
• Blower impeller blocked in blower housing.
• Drive motor - start switch contacts stuck closed.
4Blows fuses or trips
circuit breaker
- Is the belt connected well?
- Is the winding of the motor continuous?
(Rotorwinding,statorwinding,generator)
- Is the motor protector normal?
•If above points are not found, the PCB assembly is out of order.
Replaceit.
5
Blows fuses or trips
circuit breaker (Gas
Model)
•DuringignitionthedryerwilldrawXamps.WiththeburnerON,
the dryer will draw X amps. If the dryer is drawing amperages
above this, then the house wiring, fuse box or circuit breaker is
suspected to be at fault.
•Igniter harness loose and shorted to base.
•Incorrect wiring or wire shorted to ground.
•Drive motor winding shorting to ground.
6Will not heat (motor
runs)
Openheatingelement.
•Hi-Limit trips easily or is open.
•Regulatingthermostattripseasilyorisopen.
•Membrane switch open.
•Check Thermistor.
7
Will Not Dry Gas
Model Poor Gas
Ignition
When the dryer is operated on a heat setting, the igniter should be
energizedandburnershallrewithin45secondsat120VAC.The
failure of a component in this system will usually be indicated by one
of three symptoms:
TROUBLE SHOOTING
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
(Technical)DV431AEP-02365D-02.indd 6 2011-07-08 �� 5:35:57

7
No Problem What To Do
8The igniter does not
glow
If the igniter does not heat up, remove power and using an
ohmmeter, check the following:
•Openamesensor
•Openigniter
•Shorted booster coil
•Openwiring
•Badmotorswitch(Neutralsupply)
•Nopowerfromcontrol(L1supply)
9Igniter glows - No gas
ignition
If the igniter heats up but the main burner ame is not ignited,
remove power and using an ohmmeter, check the following:
•Opensecondarycoil
•Openholdingcoil
•Openwireharness
•Stuckamesensor(Stuckclosed)
10 The gas is ignited but
the ame goes out
If a normal ignition takes place and after a short while the ame goes
out, check for the following:
•Radiantsensorcontactsopeningprematurely.
•Weak gas valve coil may open when stressed by higher Temps.
•Weak Hi-Limit
•Poor venting
•Bad drum seals
11
Improper drying
clothes wrinkled
Rough texture long
dry time
•Lint lter is not clean.
•Restrictioninexhaust.
•Outsideexhausthooddamperdoorstuckclosed.
•Exhaust too long, too many elbows, ex ductwork installed.
•Poor intake air available for the dryer.
•Incorrect tumbler speed. Tumbler belt slipping.
• Blower impeller bound; check for foreign material in blower area.
•Customer overloading dryer.
•Check clothing labels for fabric content and cycle selected.
•Clothes too wet due to insucient spin out by washer.
12 Noisy and/Or
Vibration
•ThumpingCheckforloosetumblerbae,reartumblerroller(s)
worn or misaligned, out-of-round tumbler or high weld seam on
tumbler.
•Ticking Check for loose wire harness or object caught in blower
wheel area.
•Scraping Check for front or rear bulkhead felt seal out of
position or worn tumbler front bearings.
•RoaringCheckforblowerwheelrubbingonblowerhousingor
bad motor bearings.
•Popping or squealing sound. Check for a sticky or frayed belt.
TROUBLE SHOOTING
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
(Technical)DV431AEP-02365D-02.indd 7 2011-07-08 �� 5:35:57

8
TROUBLE SHOOTING
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
COMPONENT TESTING PROCEDURES
Component Electrical Testing (with ohmmeter)
Thermistorresistance10KΩ@25°C77°F
Thermostat 1 resistance < 1Ω

Thermostat 3 resistance < 1 Ω
- If resistance is innity, replace thermostat 3.

Thermostat 2 resistance < 1 Ω
- If resistance is innity, replace thermostat 2.
Heater resistance 10 Ω
- If resistance is innity, replace Heater.

Measure resistance of the following terminal
1) Door switch : open
Terminal : “COM” - “NC” (1-3) < 1Ω
Terminal : “COM” - “NO” (1-2) : ∞ Ω
2) Doorswitchpush:On
Terminal : “COM” - “NC” (1-3) : ∞ Ω
Terminal : “COM” - “NO” (1-2) < 1Ω

Belt Cut-o S/W
-Leveropen:Resistancevalue<1 Ω
-Leverpush:Resistancevalue:∞Ω
Lampresistance80~100Ω(Violet&gray)
Motor(Electronic&GAS)
Contacts
= Contact closed
Centrifugal Switch (Motor)
2.88Ω between
Pin# 3 and 4
3.5Ω between
Pin# 4 and 5
Function 1M 2M 3M 5M 6M
Start
Run
Thermostat 3
160 °C, 25A
thermal cut-off
Thermostat 2 Heater
127/99 °C, 25A
Hi-limit 240V/5300W
(Technical)DV431AEP-02365D-02.indd 8 2011-07-08 �� 5:36:01

9
GAS MODEL
TROUBLE SHOOTING
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
Radiant Sensor(10RS)
Resistancevalue<1Ω
Ifresistanceisinnite,replaceRadiantsensor
Igniter(101D)
Resistancevalue40~400Ω
If resistance is innite, replace Igniter
Gas Valve(25M01A)
Valve1-2:Resistancevalue1.2KΩ
Valve1-3:Resistancevalue0.5KΩ
Valve4-5:Resistancevalue1.2KΩ
If resistance is innity, replace Valve
Thermostat (60T21 Hi-Limit)230F-50F
Resistancevalue<1Ω
If resistance is innity, replace Thermostat
(Technical)DV431AEP-02365D-02.indd 9 2011-07-08 �� 5:36:02

10
TROUBLE SHOOTING
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
Sensor Bars & temperature sensor check
Sensor Bars - Disconnect harness and test Pink
wirePin4toOrangewirePin5.
Approx∞Ωwithoutlaundry
Approx190Ω±10%withwetclothes
Cycling Thermistor - Disconnect harness and test
BluewirePin2toRedwirePin6.
Approx10KΩat25°C/77°F
RY7
(Technical)DV431AEP-02365D-02.indd 10 2011-07-08 �� 5:36:08

11
3-WIRE system connections
A. External ground connector
B. Neutral grounding wire (green/yellow)
C. Center silver-colored terminal block screw
D. Neutral wire (white or center wire)
E. ¾” (1.9 cm) UL-listed strain relief
1. Loosen or remove the center terminal block screw.
2. Connect the neutral wire (white or center wire) of the power
cord to the center, silver-colored terminal screw of the terminal
block. Tighten screw.
3. Connect the other wires to outer terminal block screws. Tighten screws.
4. Tighten the strain relief screws.
5. Insert the tab of the terminal block cover into your Dryer’s rear panel slot.
Secure the cover with a hold-down screw.
If converting from a 4-wire electrical system to a 3-wire, the ground strap must be
reconnected to the terminal block support to ground the Dryer frame to the neutral
conductor.
4-WIRE system connections
A. External ground connector
B. Green or bare copper wire of power cord
C. ¾” (1.9 cm) UL-listed strain relief
D. Center silver-colored terminal block screw
E. Neutral Grounding wire (green/yellow)
F. Neutral wire (white or center wire)
1. Remove the External ground connector screw.
2. Connect the ground wire (green or unwrapped) of the power cord to the external
ground connector screw. If you want to connect B(Green or bare copper wire of power
cord) to the Neutral Post without assembling with A(cabinet ground), call the service
technician.
3. Loosen or remove the center terminal block screw.
4. Connect the neutral wire (white or center wire) of the power cord and the appliance
ground wire (green with yellow stripes) under the central screw of the terminal block.
5. Connect the other wires to the outer terminal block screws. Tighten screws.
6. Tighten the strain relief screws.
7. Insert the tab of the terminal block cover into your Dryer’s rear panel slot.
Secure the cover with a hold-down screw.
TROUBLE SHOOTING
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
(Technical)DV431AEP-02365D-02.indd 11 2011-07-08 �� 5:36:08

12

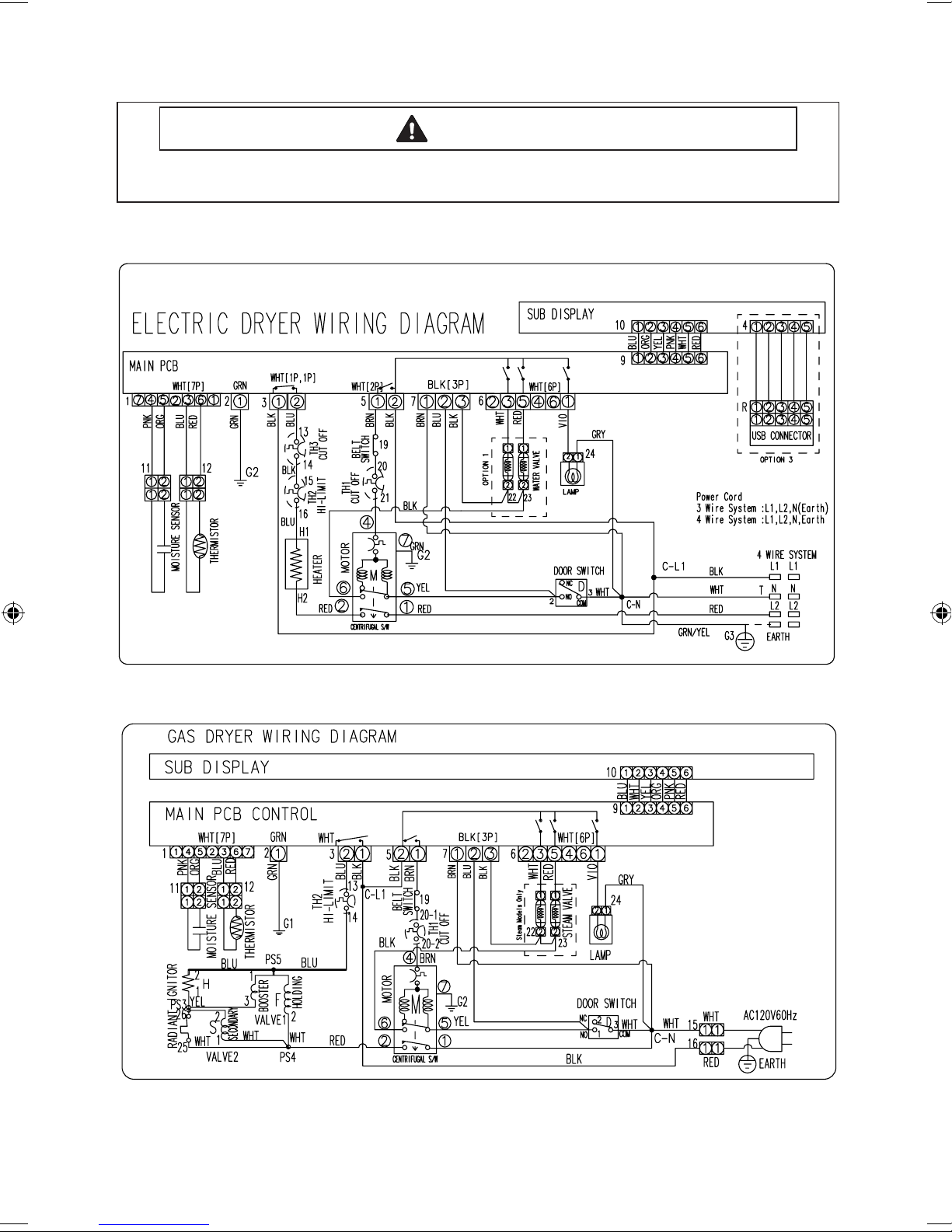

WIRING DIAGRAM
WIRING DIAGRAM
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
OPTION 1 : Steam Models Only, OPTION 3 : DR READY Models Only
(Technical)DV431AEP-02365D-02.indd 12 2011-07-08 �� 5:36:09
