Samsung SDC16809 User manual

Condensing Dryer
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
SDC16809
SDC16709
SDC14709
SDC16809-02885A_EN.indd 1 2010-07-09 ¿ÀÈÄ 2:20:15

2_ features
features
1. Super capacity
Ultra drying capabilities are at your fingertips! Now you can dry extra-large loads. Our large
8kg capacity dryer circulates more air through your clothes, drying them faster, for a wrinkle-
free result.
2. Visible water tank indicator
For the first time in the industry, users can see the water level of the water tank through the
transparent scale panel, without having to open the water tank.
3. Sensor drying (fully automatic drying)
By adopting humidity and temperature sensors, the operating time and energy usage is
controlled using digital technology.
4. Reversible door for easier door opening at any location
Our dryers will fit just about anywhere and without a door conflict. The direction of our easy
reversible door can be changed with simple handy work.
5. Diamond drum for fabric care
Samsung electronics’ proprietary diamond-shaped drum offers excellent protection to your
laundry.
6. High energy efficiency
Energy efficiency has been optimised to minimize unnecessary power consumption.
SDC16809-02885A_EN.indd 2 2010-07-09 ¿ÀÈÄ 2:20:15

safety information _3
safety information
Congratulations on your new Samsung Dryer. This manual contains important
information on the installation, use, and care of your appliance. Please take the
time to read this manual to take full advantage of your dryer’s many benefits and
features.
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when installing,
maintaining, or operating your dryer.
Always contact your manufacturer about problems or conditions you do not understand.

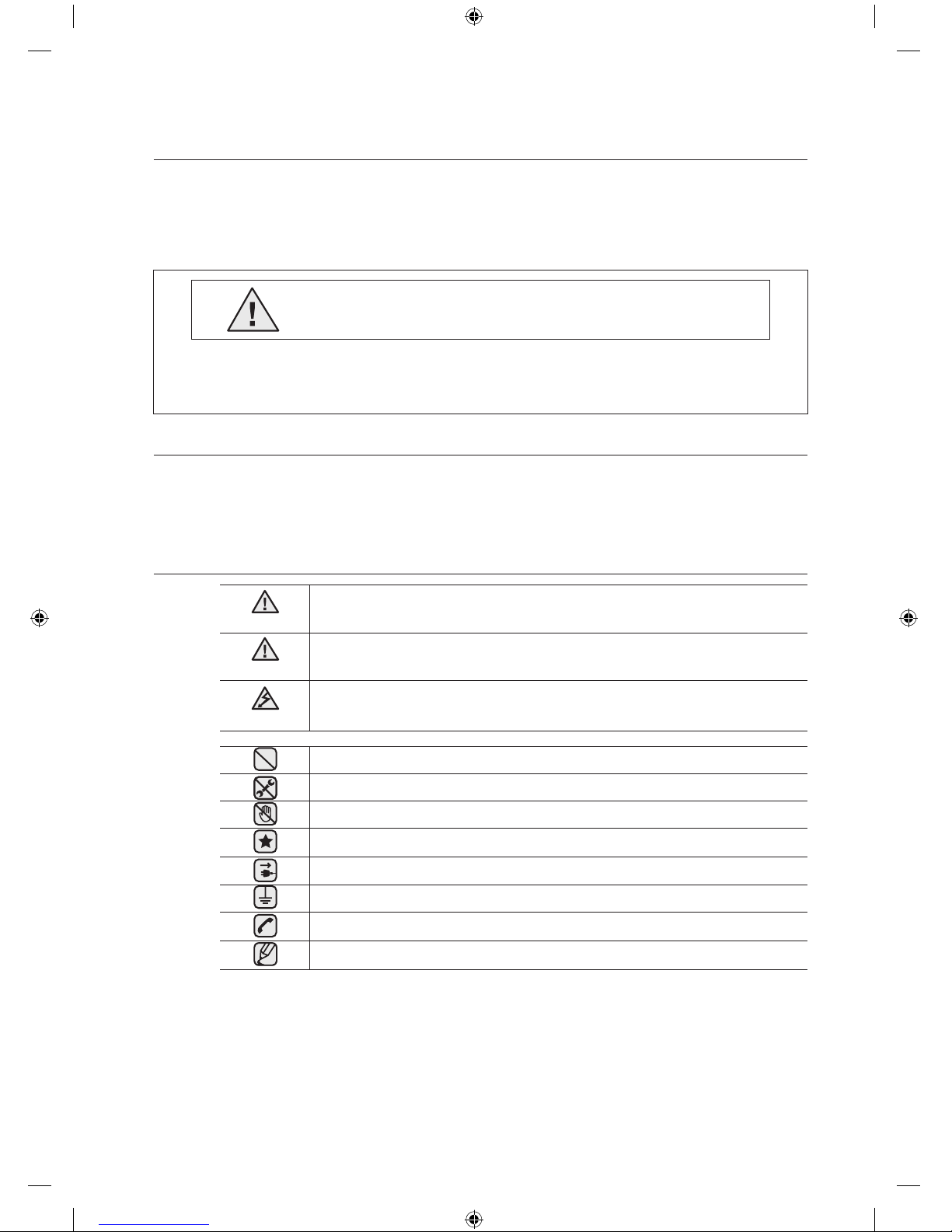

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
WARNING
Hazards or unsafe practices that may result in severe personal injury or
death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or
property damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when
using your washer, follow these basic safety precautions:
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicity.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
Note
• Clothes dryer installation must be performed by a qualified technician.
• Install the clothes dryer according to the manufacturer’s instructions and local codes.
• To reduce the risk of severe injury or death, follow all installation instructions.
WARNING - Risk of Fire
SDC16809-02885A_EN.indd 3 2010-07-09 ¿ÀÈÄ 2:20:15

4_ safety information
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
INSTRUCTION ABOUT THE WEEE MARK
Correct Disposal of This Product (Waste Electrical & Electronic
Equipment)
(Applicable in the European Union and other European countries with separate
collection systems)
This marking on the product, accessories or literature indicates that the product and its
electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other
household waste at the end of their working life. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please separate these items from other types of
waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take these items for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should not be mixed with other
commercial wastes for disposal.
safety information
SDC16809-02885A_EN.indd 4 2010-07-09 ¿ÀÈÄ 2:20:15

safety information _5
SEVERE WARNING SIGNS FOR INSTALLATION
The installation of this appliance must be performed by a qualified technician or service
company.
- Failure to do so may result in electric shock, fire, an explosion, problems with the
product, or injury.
Plug the power cord into an AC 220~240V/50Hz/15A wall socket or higher and use the
socket for this appliance only. In addition, do not use an extension cord.
- Sharing a wall socket with other appliances using a power strip or extending the power
cord may result in electric shock or fire.
- Ensure that the power voltage, frequency and current are the same as those of the
product specifications. Failure to do so may result in electric shock or fire. Failure Plug
the power plug into the wall socket firmly.
Remove all foreign substances such as dust or water from the power plug terminals and
contact points using a dry cloth on a regular basis.
- Unplug the power plug and clean it with a dry cloth.
- Failure to do so may result in electric shock or fire.
Keep all packaging materials well out of the reach of children, as packaging materials can
be dangerous to children.
- If a child places a bag over its head, it may result in suffocation.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
- This may result in electric shock, fire, an explosion, or problems with the product
- Never plug the power cord into a socket that is not grounded correctly and make sure
that it is in accordance with local and national codes.
Do not install or keep the product exposed to the outdoor elements.
Do not use a damaged power plug, damaged power cord or loose wall socket.
- This may result in electric shock or fire.
If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its
service agent or a similar qualified technician in order to avoid a hazard.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord,
insert the power cord between objects, or push the power cord into the space behind the
appliance.
- This may result in electric shock or fire.
Do not pull the power cord, when unplugging the power plug.
- Unplug the power plug by holding the plug.
- Failure to do so may result in electric shock or fire.
This appliance must be properly grounded. Never plug the power cord into a receptacle
that is not grounded adequately and in accordance with local and national codes. See
installation instructions for grounding this appliance.
WARNING
SDC16809-02885A_EN.indd 5 2010-07-09 ¿ÀÈÄ 2:20:15

6_ safety information
SEVERE WARNING SIGNS FOR USING
Do not let children or pets on or into the product. In addition, when disposing of this
product, disassemble the door lock (lever).
- This may result in children falling and injuring themselves.
- If children become locked in the product, there is a danger of suffocation.
Do not try to access the inside of the product when the drum is rotating.
Do not sit on the product or lean against the door.
- This may result in the product turning over and resulting in injury.
Dry the laundry only after it was spun by an appropriate washing machine.
Do not dry unwashed items in the tumble dryer.
Do not drink the condensed water.
Never stop a tumble dryer before the end of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
Do not dry laundry contaminated by inflammable materials such as gasoline, kerosene,
benzene, thinner, alcohol, etc.
- This may result in electric shock, fire or explosion.
Do not let pets chew or play with the dryer.
- This may result in electric shock or injury.
When disposing of the product, separate the door and the power cord before disposing of
the product.
- Failing to do so may result in damage to the power code or an injury.
Do not touch the power plug with wet hands.
- This may result in electric shock.
Do not repair, replace, or attempt to service any part of the appliance unless specifically
recommended in the user-repair instructions. You must also have the skills necessary to
service this appliance.
Do not attempt to repair, disassemble, or modify the appliance yourself.
- Do not use any fuse(such as cooper, steel wire, etc.) other than the standard fuse.
- When repairing or reinstalling the appliance is required, contact your nearest service
center.
- Failure to do so may result in electric shock, fire, problems with the product, or injury.
safety information
CAUTION
SDC16809-02885A_EN.indd 6 2010-07-09 ¿ÀÈÄ 2:20:15

safety information _7
CAUTION SIGNS FOR USING
Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
- This may result in electric shock, fire, problems with the product, or injury.
Do not touch the glass door and inside of the drum during or just after drying as it is hot.
- This may result in burns.
Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.
- This may result in electric shock or injury.
Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry
contaminated by dry cleaning detergent.
- This may result in spontaneous combustion or ignition due to the heat of the oxidation of
the oil.
Do not dry laundry containing forming rubber (latex) or similar rubber textures.
- If forming rubber is heated, it may start a fire.
Do not dry laundry contaminated by vegetable oil or cooking oil as a large amount of the oil
will not be removed when washing the laundry. In addition, use the Cool Down cycle so that
the laundry is not heated.
- The oxidization heat of the oil may start a fire.
Make sure that the pockets of all clothing to be washed are empty.
- Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause
extensive damage to the appliance.
Do not wash clothing with large buckles, buttons, or other heavy metal.
Do not use softener or a static electricity remover unless recommended by the
manufacturer.
- This may result in damage to the laundry.
Do not use the dryer near dangerous powders such as coal dust, wheat flour, etc.
- This may result in electric shock, fire or an explosion.
Do not place inflammable materials near the product.
- This may result in toxic gases from the product, damage to parts, electric shock, fire or
an explosion.
- The appliance should not be placed behind lockable doors etc.
SEVERE WARNING SIGNS FOR CLEANING
Do not clean the appliance by spraying water directly onto it.
Do not use benzene, thinner or alcohol to clean the appliance.
- This may result in discolouration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
- Failure to do so may result in electric shock or fire.
Clean the filter case before and after using the dryer.
Clean the inside of the product on a regular basis by asking an authorized service engineer.
Clean the condenser with water once a month.
The interior of the dryer should be cleaned periodically by qualified service personnel.
CAUTION
SDC16809-02885A_EN.indd 7 2010-07-09 ¿ÀÈÄ 2:20:15

8_ contents
contents
INSTALLING YOUR DRYER
9
9 Tools needed for installation
9 See Dryer Exterior
10 Check before installing
10 Before using the product
10 Important to installer
10 Location considerations
10 Alcove or closet installation
11 Electrical requirements
11 Grounding
12 Installation side by side
12 Final installation checklist
13 Draining water without using the water tank
13 Connecting the drain hose
15 Installation stacking

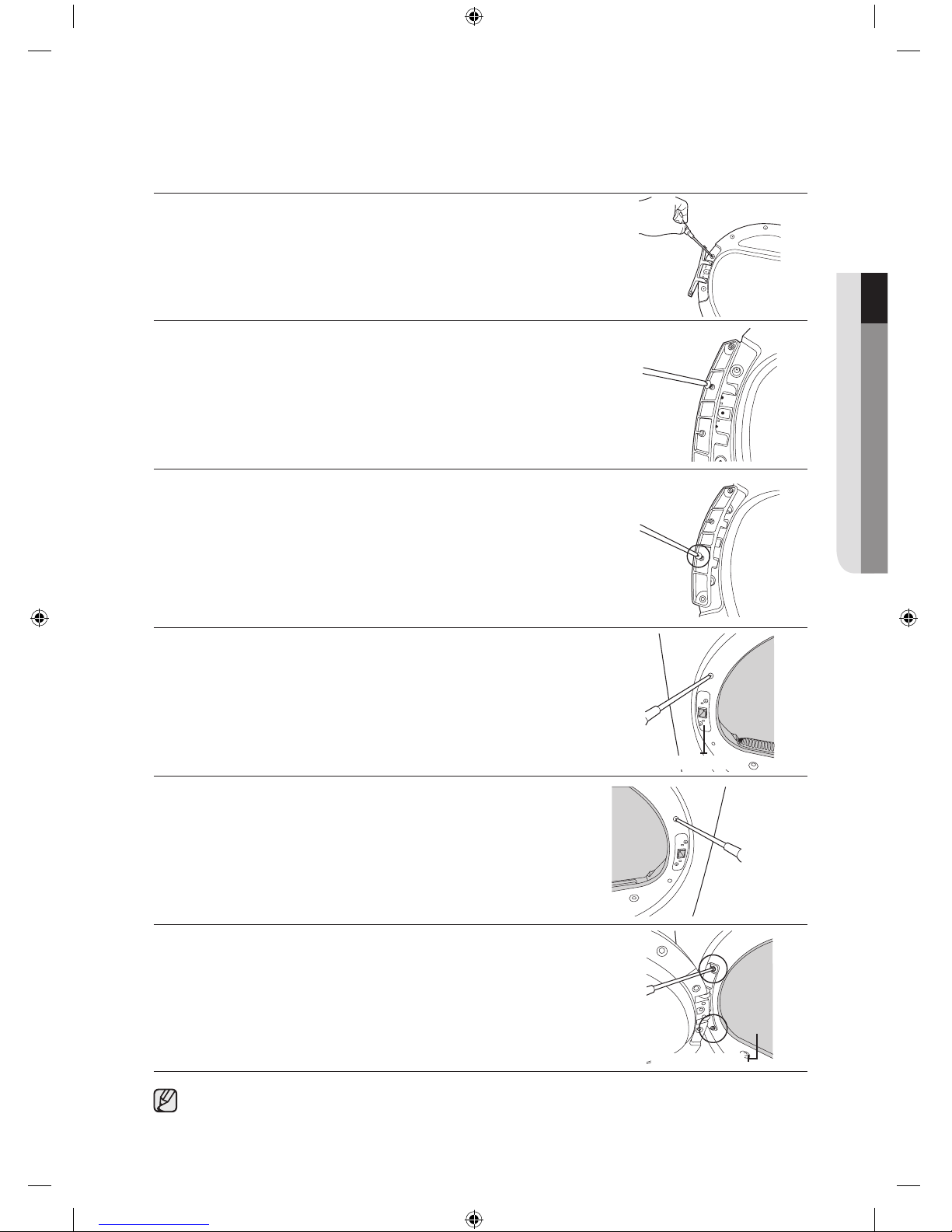

16 Door Reversal(SDC16809,SDC16709 Only)
OPERATING INSTRUCTIONS, TIPS
18
18 Overview of the control panel
20 Child lock
20 Sound off
21 My cycle
21 Delay End
22 Load the dryer properly
22 Getting started
CARE AND CLEANING
23
23 Clean the filter case
23 Clean the condenser
23 Control Panel
23 Tumbler
23 Stainless Steel Tumbler
23 Dryer Exterior
24 Dumping condensed water( )
24 Cleaning the filter case( )
25 Cleaning the condenser assembly
SPECIAL LAUNDRY TIPS
26
26 Special laundry tips
TROUBLESHOOTING
27
27 Check these points if your dryer…
29 Information codes
APPENDIX
30
30 Fabric care chart
31 Protecting the environment
31 Declaration of conformity
31 Specifications
32 Cycle chart
33 Consumption data
SDC16809-02885A_EN.indd 8 2010-07-09 ¿ÀÈÄ 2:20:16

installing your dryer _9
installing your dryer
TOOLS NEEDED FOR INSTALLATION
Hire a professional to install this dryer properly. If there is a service call performed as a result of poor setup,
adjustment, and connection, it is considered the responsibility of the installer. If you install the dryer you are
responsible.
Make sure you have everything necessary for proper installation (AC 220~240V/50Hz/15A).
1. A GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements (See page 11).
2. CONDENSING SYSTEM - Condenses, processes and circulates hot and humid air internally using an
internal heat condenser.
SEE DRYER EXTERIOR
Parts
Hose guide Cable tie Hose connector Long drain hose(2m) Manual book
01 INSTALLING YOUR DRYER
Water tank
Control panel
Door
Leveling feet
Work top
Plug
Filter case
Condenser
SDC16809-02885A_EN.indd 9 2010-07-09 ¿ÀÈÄ 2:20:17

10_ installing your dryer
CHECK BEFORE INSTALLING
• Do not plug the power cord into the wall outlet before completing the dryer installation.
• Check the appearance of the product for any damaged parts before starting the product installation.
• If there are any parts that appear to be damaged, please contact your nearest Samsung Customer
Service Center.
• When moving the product, do not move the product by yourself.
• Take care of the edges of the dryer as they can be sharp.
• Do not install the dryer in a location exposed to frost. Cold water may damage the product.
• Use the product indoors only.
• Do not place the dryer on one side when lifting it, and do not move the dryer in such a way that the
internal parts shake. This may result in damage to the internal parts of the product.
BEFORE USING THE PRODUCT
• Check if there are any accessories remaining inside the drum.
• Plug in the power cord just before operating the product.
• Do not block the air inlet hole of the cooling grill at the front of the dryer.
• Do not place inflammable objects near the dryer and keep the surroundings clean.
• Keep the dryer level with the ground.
• Do not remove the adjustable leveling feet of the dryer. They are necessary to keep the product level
with the ground.
IMPORTANT TO INSTALLER
Please read the following instructions carefully before installing the dryer. These instructions should be kept
for future reference.
REMOVE THE DOOR FROM ALL DISCARDED APPLIANCES TO AVOID THE DANGER OF A CHILD
SUFFOCATING.
LOCATION CONSIDERATIONS
Because a condensing type has been adopted, which condenses and processes air inside the dryer,
external ventilation is not required.
Therefore, The dryer can be installed and used in any location where the temperature is between 5
and 35 degrees centigrade, unlike a conventional dryer that requires an external exhaust system.
ALCOVE OR CLOSET INSTALLATION
To operate safely and properly, your new Dryer requires minimum clearances of:
Sides – 25 mm Rear – 51 mm
Top – 25 mm Front – 465 mm
If both the dryer and a dryer are installed together, the front of the alcove or closet must have at least 465
mm unobstructed air opening.
installing your dryer
WARNING
SDC16809-02885A_EN.indd 10 2010-07-09 ¿ÀÈÄ 2:20:17

installing your dryer _11
ELECTRICAL REQUIREMENTS
Electrical Requirements is AC 220~240V/50Hz/15A.
• Improper connection of the equipment grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether your dryer is
properly grounded. Do not modify the plug provided with your dryer – if it doesn’t fit the outlet,
have a proper outlet installed by a qualified electrician.
• To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding
must be done in accordance with local codes, or in the absence of local codes, It is your
responsibility to provide adequate electrical services for your dryer.
GROUNDING
Your dryer must be grounded. If your dryer malfunctions or breaks down, grounding will reduce the risk of
electric shock by providing a path of least resistance for the electric current.
Your dryer comes with a power cord having a three-prong grounding plug for use in a properly installed and
grounded outlet.
Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
Improperly connecting the equipment-grounding conductor can result electrical shock.
Check with a qualified electrician or serviceman if you are unsure if the dryer is properly grounded. Do
not modify the plug provided with the dryer. If it does not fit the outlet, have a proper outlet installed by a
qualified electrician.
If the product is not grounded, there is a danger of fire or electric shock.
01 INSTALLING YOUR DRYER
WARNING
WARNING
SDC16809-02885A_EN.indd 11 2010-07-09 ¿ÀÈÄ 2:20:17

12_ installing your dryer
installing your dryer
INSTALLATION SIDE BY SIDE
For proper installation, we recommend that you hire a professional. To install:
1. Move your dryer to an appropriate location for installation. Consider
installing the dryer and washer side-by-side. Lay two of the carton
cushion-tops on the floor. Tip your dryer on its side so it will lay across
both cushion-tops.
2. Set your dryer back in an upright position.

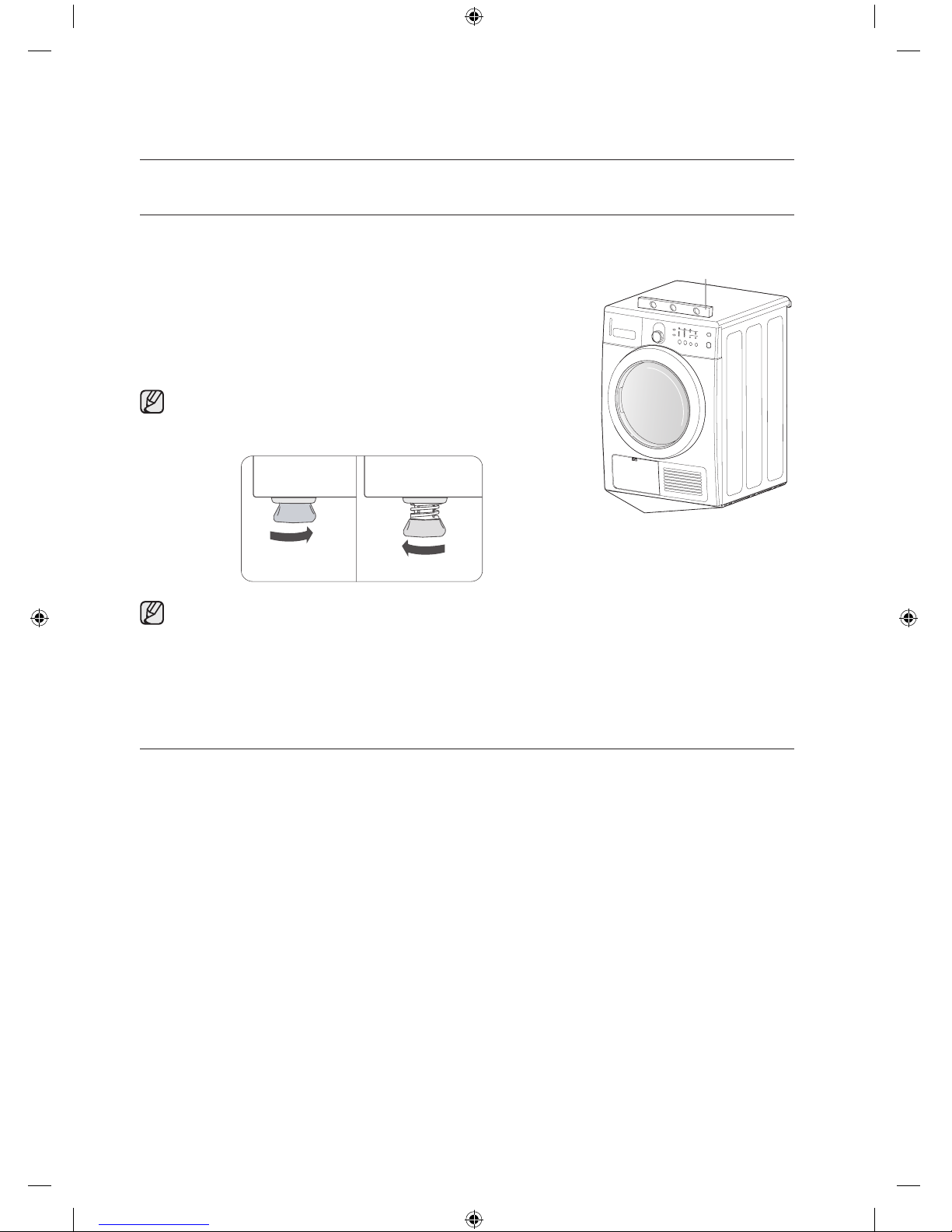

3. To ensure that the dryer provides optimal drying performance, it must
be level. To minimize vibration, noise, and unwanted movement,the
floor must be a perfectly level, solid surface.
To set the dryer to the same height as the washer, fully retract the
leveling feet by turning them counterclockwise, then loosen the legs
by turning them clockwise
Adjust the leveling feet only as much as necessary to level the dryer.Extending the leveling feet more
than necessary can cause the dryer to vibrate.
4. Review Electrical Requirements section (See page 11).
BEFORE OPERATING OR TESTING.
5. With a level, check your dryer and make necessary adjustments to the leveling legs.
6. Plug in your dryer, and check operation by using the checklist below.
FINAL INSTALLATION CHECKLIST
 Dryer is plugged into electrical outlet and is properly grounded.
 Dryer is leveled and is sitting firmly on the floor.
 Start your dryer to confirm that it runs, heats, and shuts off.
Level
Leveling feet
Retract fully Then loosen
SDC16809-02885A_EN.indd 12 2010-07-09 ¿ÀÈÄ 2:20:18

installing your dryer _13
DRAINING WATER WITHOUT USING THE WATER TANK
You can use the dryer without using the water tank by following the procedures below.
CONNECTING THE DRAIN HOSE
The Dryer can pump the condensed water outside of the DRYER directly
with dain hose provide.
The procedures to connect the drain hose are as follows.
1. Disconnect the drain hose A.
2. Connect the drain hose A to the other hole.
3. Connect accessory hose(long drain hose) B to the hole
next to the hole that is connected to drain hose A.
• When connecting hose B, take care that the height of
the hose does not exceed 90cm.
• After connecting the drain hose, you can directly drain
the condensed water via the drain-outlet through the
connected drain hose or through the washstand or the
drain-outlet of the washstand.
01 INSTALLING YOUR DRYER
A
A
B
CAUTION
SDC16809-02885A_EN.indd 13 2010-07-09 ¿ÀÈÄ 2:20:19

14_ installing your dryer
installing your dryer
Connecting the drain hose
The end of the drain hose can be positioned in three ways:
1. Over the edge of a wash basin: The drain hose must be placed lower than 90cm. If the end
of the drain hose needs to be placed above the ground, we recommend a height of 60cm ~
90cm. To keep the drain hose spout bent, use the supplied plastic hose guide. Secure the
guide to the wall with a hook or to the tap with a piece of string to prevent the drain hose
from moving.
2. Assemble the drain hose and the hose guide and fix them with the cable-tie.
3. You can drain the condensed water by connecting the accessory hose (long drain hose) to
the drain-outlet directly.
Connecting the direct-hose
You can immediately drain the condensed water that comes out while drying, by connecting the
drain hose to the tap.
1. Assemble the hose connector and the hose.
Since there is a danger of water leaking from the hose
connecter and accessory hose, make sure that they are
connected firmly.
2. Connect the end of the hose to the tap.
Hose Connecter
Drain hose
Hose guide
90 cm
Cable Tie
CAUTION
SDC16809-02885A_EN.indd 14 2010-07-09 ¿ÀÈÄ 2:20:20

installing your dryer _15
INSTALLATION STACKING
1. Carefully lay the dryer on its side. Use the packing material
so you don’t scratch the finish on the dryer.
2. Install rubber pads to dryer base.
• Locate the 4 rubber pads in the parts package. Insert
the rubber pads into the holes at the bottom of the
leveling legs.
• Purchase the stacking-kit package additionally.
3. Set the dryer upright.
The stacking kit can only be installed for Samsung family products.
4. Install bracket to dryer.
• Remove washer top cap screw from the rearleft.
Align left bracket holes with top cap screw hole on
rear left of the unit and replace screw.
Leave screw loose so dryer hole alignment will be easier.
• Repeat the above step with the right side.
5. Install dryer and bracket on washer
• Lift the dryer on top of the washer. Protect the washer control panel with cardboard or
other protection. Be sure to lift the dryer high enough to
clear the washer control panel.
Personal Injury. More than two people are
recommended to lift the dryer into position because of
its weight and size. Failure to do so could result in injury.
• Align the holes in the bracket with the holes in the back
of the dryer.Using a Phillips screwdriver, attach the
M4x12 tapping screws.
• Tighten the washer bracket screws ; then tighten all
stacking kit screws.
6. Finalise the installation
• Refer to the washer Installation Instructions to
complete the washer installation.
• Refer to the dryer Installation Instructions to complete
the dryer installation.
• Carefully slide or walk the stacked washer and dryer
into place. Use felt pads or other sliding device to
assist moving and to protect flooring.
Do not push on the dryer once installed to top of the
washer. Pushing on the dryer may result in pinched
fingers.
01 INSTALLING YOUR DRYER
Bracket-Stacking
WARNING
Screw
CAUTION
Dryer
Washer
WARNING
SDC16809-02885A_EN.indd 15 2010-07-09 ¿ÀÈÄ 2:20:21

16_ installing your dryer
DOOR REVERSAL(SDC16809,SDC16709 ONLY)
Depending on your requirements (installation location, space constraints), you can change the direction the
door opens.
This is done according to the customer’s needs. The qualified technician or customer can do this
themselves directly.
1. Unplug the power cord.
2. Remove the two screws from the door-hinge.
3. Lift the door to separate it.
4. Remove the 16 screws.
5. After removing the screw, rotate the holder-glass, the door-glass, and the
cover-door (I) by 180˚ as shown in the figure.
• Since the holder-glass, the door-glass, and the cover-door (I) are not
completely fixed, rotate them holding the lower part so that they are
not separated.
• Work carefully so that the door-seal is not removed.
6. After rotating them by 180˚, hold them in the position as shown by
the figure.
7. Assemble the glass-holder in the correct direction. (After the
disassembly, assemble it by rotating it by 180˚.)
installing your dryer
CAUTION
WARNING
Frame-Front
Assy-Door
Hinge-Door
Door-Glass
Cover-Door(I)
Seal-Door
Holder-Glass
SDC16809-02885A_EN.indd 16 2010-07-09 ¿ÀÈÄ 2:20:23

installing your dryer _17
8. Fasten the 16 screws in the correct positions.
9. Note that two of the screws have a different length from the others.
(Use the longer screws for the door-lever.)
10. Move the position of the screw at the back of the door-hinge.
11. Fasten the screw in the bottom hole.
12. Remove the two screws holding the front-frame at the left.
13. Remove the two screws holding the holder-lever at the left.
14. Now, move to the right side of the product and fasten the two screws
holding the front-frame and the two screws holding the lever-holder.
15. Align the door with the fixing holes.
16. Fasten the two screws holding the door-hinge.
You can restore the direction the door opens by following the procedures above, if necessary.
01 INSTALLING YOUR DRYER
Holer-Lever
Inside the drum
SDC16809-02885A_EN.indd 17 2010-07-09 ¿ÀÈÄ 2:20:24

18_ operating Instructions, tips
operating Instructions, tips
OVERVIEW OF THE CONTROL PANEL
Digital Graphic
Display
Displays the remaining drying cycle time, all cycle information, and error
messages.
Cycle Selector
To select a cycle, rotate the Cycle Selector dial to the desired cycle.
[Cottons] Cupboard Dry  ExtraDry  [Synthetics] ExtraDry  Cupboard Dry
 Iron Dry  [Manual] Quick Dry  Time Dry  Cool Air  [Special] Sports
Wear  Freshen Up  Ultra Delicate  [Cotton] Iron Dry  Cupboard Dry
Cotton - For averagely or lightly soiled cottons, bed linen, table linen,
underwear, towels, shirts, etc.
• Extra Dry - Use for heavy-duty fabrics or items that should be very dry,
such as jeans and towels.
• Cupboard Dry - Use this cycle to dry loads such as cotton, underwear,
and linen (NOT appropriate for jeans).
• Iron Dry - Finishes the dry cycle in a moist state appropriate for
Ironing.
Synthetics - For averagely or lightly soiled blouses, shirts, etc., made of
polyester (diolen, trevira), polyamide (perlon, nylon) or other similar blends.
• Extra Dry - Use for heavy-duty fabrics or items that should be very dry,
such as jeans and towels.
• Cupboard Dry - Use this cycle to dry loads such as shirts, blouses,
bed linen and table linen. (NOT appropriate for jeans).
• Iron Dry - Finishes the dry cycle in a moist state appropriate for Ironing.
Manual - For the individually different desire of drying type and times.
• Quick Dry - Provides a 29 minutes drying time and high temperature
level is automatically selected.
• Time Dry - Time Dry allows you to select the desired cycle time and
simultaneously it is possible to select the temperature level.
Turn the cycle selector dial to Time Dry, then press Time Button to set the
drying time. Press the Time button repeatedly to scroll through the time
settings.The drying time increase in every 10 minutes up to 60 minutes.
• Cool Air - For all fabrics to need freshing tumbles without heating.
5
4
368
7910
12
1
2
SDC16809-02885A_EN.indd 18 2010-07-09 ¿ÀÈÄ 2:20:25

operating Instructions, tips _19
Special - Course for your sensible Clothes.
• Ultra Delicate - The Delicates cycle is designed For lingeries at a low
drying temperature.
• Freshen Up - With this cycle the odors can be removed and especially
this cycle freshens garments.
• Sports Wear - Use for water-proofed or proofed garments to keep
their good looks and fresh feel (except Gore-Tax).
For better drying results, turn the laundry inside out before drying it.
Overloading the dryer may not yield the same results. For the Max Load
of each drying course, refer to the Cycle Chart in the appendix.
My Cycle
Selection Button
Choose your favorite cycle including cycle, temp, Drying level option, etc. (See
page 21 for detail.)
Delay End
Selection Button
Press this button repeatedly to cycle through the available Delay End options
(from 4 hours to 19 hours in one hour increments).
The hour displayed indicates the time when the dry cycle will be finished.
Temp Selection
Button
Press this button repeatedly to cycle through the available temperature level
for the drying. (three temperature levels are available : high, medium, low)
Time Selection
Button
When using Manual Dry cycles, time can be adjusted by pressing the Time
Selection button.
20min30min40min50min60min
During the Sensory Dry cycle, the time indicator of manual is off because
exact drying times are determined by fluctuating humidity levels.
Sound off button
When the cycle is complete, a chime will sound.
When the Wrinkle Prevent option is selected, the chime will sound intermittently.
Adjust the volume of the chime or turn it off by pressing the Signal button.
Press the button repeatedly to scroll through the choices.
Wrinkle Prevent
Selection Button
Wrinkle Prevent provides approximately 60 minutes of intermittent tumbling
in unheated air at the end of the cycle to reduce wrinkling. Press the Wrinkle
Prevent button to activate this feature.
The indicator light above the pad will illuminate when Wrinkle Prevent is
selected. Dried laundry is prevented from becoming wrinkled by periodic
drum rotations after the completion of the drying course. (Even after “End” is
displayed, the drum rotates intermittently.)
Start/Pause
selection button
Press to start a dry cycle. If the dryer is running, press it once and it will pause
the dryer. Press it again to restart the dry cycle.
Power button
Press once to turn your dryer on, press again to turn it off. If your dryer is left
on for more than 10 minutes without any buttons being touched, the power
automatically turns off.
02 OPERATING INSTRUCTIONS, TIPS
3
4
5
6
7
8
9
10
SDC16809-02885A_EN.indd 19 2010-07-09 ¿ÀÈÄ 2:20:25

20_ operating Instructions, tips
CHILD LOCK
A function to prevent children from playing with your dryer.
Activating/Deactivatin
If you want to activating/deactivatin the Child Lock, press both the Temp. and Time buttons
simultaneously for 3 seconds.
The “Child Lock ” will be lit when this feature is activated.
• When the power is turned on, the Child Lock function is
available.
• Once you set the Child Lock function, no button,
except for the Power button, will respond until you
release the Child Lock function.
• If the dryer is powered on again, the Child Lock
function stays on.
• When other buttons, except for the Power button, do
not respond, check the Child Lock indicator to see if
the function is on.
SOUND OFF
The Sound off function can be selected during all courses. When this function is selected, sound is
turned off for all courses. Even if the power is turned on and off repeatedly, the setting is retained.
Activating/Deactivatin
If you want to activate or deactivate the Sound Off function, press the Sound Off button. The
“Sound Off ” and the lamp on the Sound Off button will be lit when this feature is activated.
operating Instructions, tips
3 SEC.
SDC16809-02885A_EN.indd 20 2010-07-09 ¿ÀÈÄ 2:20:26
