Samsung DVD-V5600 User manual

DVD-VCR COMBINATION
Chassis : Midas Asia
DVD-V5600 / XSA, XFA
DVD-V6600 / XSH, TAW, UMG, XSG, SAM,
XFA, AND, AFR
SERVICE
Œ82mm Slim, Design
´MP3, VCD Playback
ˇDivx Playack Support
¨Progressive Video out
ˆ6Head Hi-Fi VCR
ØWHA Playback Support
Manual
DVD-VCR COMBINATION Merit & Character regarding Product
SERVICE MANUAL DVD-V5600/ V6600
DVD-V5600
DVD-V6600
ELECTRONICS
© Samsung Electronics Co., Ltd. MAR. 2006
Printed in Korea
AK82-01016A
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
international and/or domestic law.

CONTENTS
1. Precautions 1-1 ~ 1-6
1-1 Safety Precaution (1-1)
1-2 Servicing Precautions (1-3)
1-3 ESD Precautions (1-4)
1-4 Handling the optical pick-up (1-5)
1-5 Pick-up disassembly and reassembly (1-6)
2. Product Specification 2-1 ~ 2-4
2-1 Product Specification (2-1)
2-2 Chassis Product Specification (2-2)
2-3 Option Product Specification (2-3)
3. Alignment and Adjustments 3-1 ~ 3-16
3-1 VCR Adjustment (3-1)
3-2 DVD Adjustment (3-5)
3-3 VCR Mechanical Adjustment (3-8)
4. Disassembly and Reassembly 4-1 ~ 4-26
4-1 Cabinet and PCB (4-1)
4-2 Circuit Board Locations (4-3)
4-3 VCR Deck Parts Locations (4-4)
4-4 VCR Deck (4-7)
4-5 The table of cleaning, Lubrication and replacement time about
principal parts (4-21)
4-6 DVD Deck (4-22)
5. Trouble Shooting 5-1 ~ 5-30
6. Exploded View and Parts List 6-1 ~ 6-12
6-1 Cabinet Assembly (DVD-V5600) (6-2)
6-2 Cabinet Assembly (DVD-V6600) (6-4)
6-3 VCR Mechanical Parts (Top Side) (6-6)
6-4 VCR Mechanical Parts (Bottom Side) (6-8)
6-5 DVD Mechanical Parts (6-10)

7. Electrical Parts List 7-1 ~ 7-24
8. Block Diagram 8-1 ~ 8-6
8-1 All Block Diagram (Models which do not have SCART Terminal) (8-2)
8-2 All Block Diagram (Models which have SCART Terminal) (8-3)
8-3 DIC1(ES8380 DVD Processor) Internal Block Diagram (8-4)
8-4 AIC4(PCM1753) Audio DAC Block Diagram (8-5)
8-5 Entire DVD-Video output Block Diagram (8-6)
9. Wiring Diagram 9-1 ~ 9-2
10. PCB Diagrams 10-1 ~ 10-8
10-1 VCR Main PCB (10-2)
10-2 DVD Main PCB (10-5)
10-3 Function PCB (10-7)
11. Schematic Diagrams 11-1 ~ 11-18
11-1 S.M.P.S (VCR Main PCB) (11-3)
11-2 Power Block (VCR Main PCB) (11-4)
11-3 SYSCON/SERVO/OSD (VCR Main PCB) (11-5)
11-4 A/V Block (VCR Main PCB) (11-6)
11-5 F-Timer Block (VCR Main PCB) (11-7)
11-6 Hi-Fi Block (VCR Main PCB) (11-8)
11-7 TM Block (VCR Main PCB) (11-9)
11-8 I/O (VCR Main PCB) (11-10)
11-9 SECAM Block (VCR Main PCB) (11-11)
11-10 A2 / NICAM Block (VCR Main PCB) (11-12)
11-11 BB Connector and Power (DVD Main PCB) (11-13)
11-12 Servo and Motor Driver (DVD Main PCB) (11-14)
11-13 Main Codec and Memory Interface (DVD Main PCB) (11-15)
11-14 Video Out (DVD Main PCB) (11-16)
11-15 Audio Output (DVD Main PCB) (11-17)
CONTENTS

12. Operating Instructions and Installation 12-1 ~ 12-10
13. Circuit Operating Descriptions 13-1 ~ 13-52
13-1 Power Supply (Free Voltage) (13-1)
13-2 System Control (13-6)
13-3 Servo (13-16)
13-4 VCR Video (13-21)
13-5 Hi-Fi Audio (13-28)
13-6 Linear Audio (13-31)
13-7 TM (13-33)
13-8 MTS (13-39)
13-9 SECAM (13-40)
13-10 Input-Output (13-41)
13-11 DVD System Control (13-43)
13-12 DVD RF (13-44)
13-13 DVD Servo (13-45)
13-13 DVD Data Processor (13-48)
13-14 DVD Video (13-49)
13-15 DVD Audio (13-51)
14. Reference Information 14-1 ~ 14-34
14-1 VCR Deck Operating Description (14-1)
14-2 Basic Configuration of Mechanism (14-1)
14-3 Main Mechanism and Functions (14-2)
14-4 Basis of the Mechanism (14-4)
14-5 System Control (14-9)
14-6 System Control and Mechanical Operations (14-10)
14-7 Introduction to DVD (14-26)
14-8 DVD-Video Fromat (14-28)
CONTENTS

Samsung Electronics 1-1
1. Precautions
1-1 Safety Precautions
1) Before returning an instrument to the customer,
always make a safety check of the entire instrument,
including, but not limited to, the following items:
(1) Be sure that no built-in protective devices are
defective or have been defeated during servicing.
(1)Protective shields are provided to protect both
the technician and the customer. Correctly replace
all missing protective shields, including any
removed for servicing convenience.
(2)When reinstalling the chassis and/or other as-
sembly in the cabinet, be sure to put back in place
all protective devices, including, but not limited to,
nonmetallic control knobs, insulating fish papers,
adjustment and compartment covers/shields, and
isolation resistor/capacitor networks. Do not oper-
ate this instrument or permit it to be operated with-
out all protective devices correctly installed and
functioning.
(2) Be sure that there are no cabinet openings through
which adults or children might be able to insert
their fingers and contact a hazardous voltage. Such
openings include, but are not limited to, excessive-
ly wide cabinet ventilation slots, and an improper-
ly fitted and/or incorrectly secured cabinet back
cover.
(3) Leakage Current Hot Check-With the instrument
completely reassembled, plug the AC line cord
directly into a 120V AC outlet. (Do not use an iso-
lation transformer during this test.) Use a leakage
current tester or a metering system that complies
with American National Standards institute (ANSI)
C101.1 Leakage Current for Appliances and
Underwriters Laboratories (UL) 1270 (40.7). With
the instrument’s AC switch first in the ON position
and then in the OFF position, measure from a
known earth ground (metal water pipe, conduit,
etc.) to all exposed metal parts of the instrument
(antennas, handle brackets, metal cabinets, screw-
heads, metallic overlays, control shafts, etc.), espe-
cially any exposed metal parts that offer an electri-
cal return path to the chassis.
Any current measured must not exceed 0.5mA.
Reverse the instrument power cord plug in the out-
let and repeat the test. See Fig. 1-1.
Any measurements not within the limits specified
herein indicate a potential shock hazard that must
be eliminated before returning the instrument to
the customer.
Fig. 1-1 AC Leakage Test
(4) Insulation Resistance Test Cold Check-(1) Unplug
the power supply cord and connect a jumper wire
between the two prongs of the plug. (2) Turn on the
power switch of the instrument. (3) Measure the
resistance with an ohmmeter between the
jumpered AC plug and all exposed metallic cabinet
parts on the instrument, such as screwheads,
antenna, control shafts, handle brackets, etc. When
an exposed metallic part has a return path to the
chassis, the reading should be between 1 and 5.2
megohm. When there is no return path to the chas-
sis, the reading must be infinite. If the reading is
not within the limits specified, there is the possibil-
ity of a shock hazard, and the instrument must be
repaired and rechecked before it is returned to the
customer. See Fig. 1-2.
Fig. 1-2 Insulation Resistance Test
DEVICE
UNDER
TEST
(READING SHOULD
NOT BE ABOVE
0.5mA)
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
TEST ALL
EXPOSED METER
SURFACES
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
2-WIRE CORD
Antenna
Terminal
Exposed
Metal Part
ohm ohmmeter

Precautions
1-2 Samsung Electronics
2) Read and comply with all caution and safety re-
lated notes on or inside the cabinet, or on the chas-
sis.
3) Design Alteration Warning-Do not alter or add to
the mechanical or electrical design of this instru-
ment. Design alterations and additions, including
but not limited to, circuit modifications and the
addition of items such as auxiliary audio output
connections, might alter the safety characteristics of
this instrument and create a hazard to the user. Any
design alterations or additions will make you, the
servicer, responsible for personal injury or property
damage resulting therefrom.
4) Observe original lead dress. Take extra care to
assure correct lead dress in the following areas:
(1) near sharp edges, (2) near thermally hot parts (be
sure that leads and components do not touch ther-
mally hot parts), (3) the AC supply, (4) high voltage,
and (5) antenna wiring. Always inspect in all areas
for pinched, out-of-place, or frayed wiring, Do not
change spacing between a component and the
printed-circuit board. Check the AC power cord for
damage.
5) Components, parts, and/or wiring that appear to
have overheated or that are otherwise damaged
should be replaced with components, parts and/ or
wiring that meet original specifications.
Additionally, determine the cause of overheating
and/or damage and, if necessary, take corrective
action to remove any potential safety hazard.
6) Product Safety Notice-Some electrical and mechani-
cal parts have special safety-related characteristics
which are often not evident from visual inspection,
nor can the protection they give necessarily be
obtained by replacing them with components rated
for higher voltage, wattage, etc. Parts that have spe-
cial safety characteristics are identified by shading,
an ( )or a ( )on schematics and parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire and/or
other hazards. Product safety is under review con-
tinuously and new instructions are issued whenev-
er appropriate.

Precautions
Samsung Electronics 1-3
1-2 Servicing Precautions
CAUTION : Before servicing units covered by this
service manual and its supplements, read and follow
the Safety Precautions section of this manual.
Note : If unforseen circumstances create conflict
between the following servicing precautions and any
of the safety precautions, always follow the safety pre-
cautions. Remember: Safety First.
1-2-1 General Servicing Precautions
(1) a. Always unplug the instrument’s AC power cord
from the AC power source before (1) re-moving
or reinstalling any component, circuit board,
module or any other instrument assembly, (2)
disconnecting any instrument electrical plug or
other electrical connection, (3) connecting a test
substitute in parallel with an electrolytic capaci-
tor in the instrument.
b. Do not defeat any plug/socket B+ voltage inter-
locks with which instruments covered by this
service manual might be equipped.
c. Do not apply AC power to this instrument and
/or any of its electrical assemblies unless all
solid-state device heat sinks are correctly in-
stalled.
d. Always connect a test instrument’s ground lead
to the instrument chassis ground before connect-
ing the test instrument positive lead. Always
remove the test instrument ground lead last.
Note : Refer to the Safety Precautions section ground
lead last.
(2) The service precautions are indicated or printed on
the cabinet, chassis or components. When servic-
ing, follow the printed or indicated service precau-
tions and service materials.
(3) The components used in the unit have a specified
flame resistance and dielectric strength.
When replacing components, use components
which have the same ratings. Components identi-
fied by shading, by( ) or by ( ) in the circuit dia-
gram are important for safety or for the characteris-
tics of the unit. Always replace them with the exact
replacement components.
(4) An insulation tube or tape is sometimes used and
some components are raised above the printed
wiring board for safety. The internal wiring is
sometimes clamped to prevent contact with heat-
ing components. Install such elements as they
were.
(5) After servicing, always check that the removed
screws, components, and wiring have been in-
stalled correctly and that the portion around the
serviced part has not been damaged and so on.
Further, check the insulation between the blades of
the attachment plug and accessible conductive
parts.
1-2-2 Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet
and turn the power ON. Connect the insulation resi-
stance meter (500V) to the blades of the attachment
plug. The insulation resistance between each blade of
the attachment plug and accessible conductive
parts(see note) should be more than 1 Megohm.
Note : Accessible conductive parts include metal pan-
els, input terminals, earphone jacks, etc.

Precautions
1-4 Samsung Electronics
1-3 ESD Precautions
Electrostatically Sensitive Devices (ESD)
Some semiconductor (solid state) devices can be dam-
aged easily by static electricity.
Such components commonly are called Electrostati-
cally Sensitive Devices(ESD). Examples of typical ESD
devices are integrated circuits and some field-effect
transistors and semiconductor chip components. The
following techniques should be used to help reduce
the incidence of component damage caused by static
electricity.
(1) Immediately before handling any semiconductor
component or semiconductor-equipped assembly,
drain off any electrostatic charge on your body by
touching a known earth ground. Alternatively,
obtain and wear a commercially available dis-
charging wrist strap device, which should be
removed for potential shock reasons prior to apply-
ing power to the unit under test.
(2) After removing an electrical assembly equipped
with ESD devices, place the assembly on a conduc-
tive surface such as aluminum foil, to prevent elec-
trostatic charge buildup or exposure of the assem-
bly.
(3) Use only a grounded-tip soldering iron to solder or
unsolder ESD devices.
(4) Use only an anti-static solder removal devices.
Some solder removal devices not classified as
“anti-static” can generate electrical charges suffi-
cient to damage ESD devices.
(5) Do not use freon-propelled chemicals. These can
generate electrical charges sufficient to damage
ESD devices.
(6) Do not remove a replacement ESD device from its
protective package until immediately before your
are ready to install it.(Most replacement ESD
devices are packaged with leads electrically short-
ed together by conductive foam, aluminum foil or
comparable conductive materials).
(7) Immediately before removing the protective ma-
terials from the leads of a replacement ESD device,
touch the protective material to the chassis or cir-
cuit assembly into which the device will be
installed.
CAUTION : Be sure no power is applied to the ch-
assis or circuit, and observe all other safety precau-
tions.
(8) Minimize bodily motions when handling unpack-
aged replacement ESD devices. (Otherwise harm-
less motion such as the brushing together of your
clothes fabric or the lifting of your foot from a car-
peted floor can generate static electricity sufficient
to damage an ESD device).

Precautions
Samsung Electronics 1-5
1-4 Handling the optical pick-up
The laser diode in the optical pick up may suffer elec-
trostatic breakdown because of potential static elec-
tricity from clothing and your body.
The following method is recommended.
(1) Place a conductive sheet on the work bench (The
black sheet used for wrapping repair parts.)
(2) Place the set on the conductive sheet so that the
chassis is grounded to the sheet.
(3) Place your hands on the conductive sheet(This
gives them the same ground as the sheet.)
(4) Remove the optical pick up block
(5) Perform work on top of the conductive sheet. Be
careful not to let your clothes or any other static
sources to touch the unit.
◆Be sure to put on a wrist strap grounded to the
sheet.
◆Be sure to lay a conductive sheet made of copper
etc. Which is grounded to the table.
Fig.1-3
(6) Short the short terminal on the PCB, which is in-
side the Pick-Up ASS’Y, before replacing the Pick-
Up. (The short terminal is shorted when the Pick-
Up Ass’y is being lifted or moved.)
(7) After replacing the Pick-up, open the short termi-
nal on the PCB.
THE UNIT
WRIST-STRAP
FOR GROUNDING
1M
1M CONDUCTIVE SHEET

Precautions
1-6 Samsung Electronics
1-5 Pick-up disassembly and reassembly
1-5-1 Disassembly
1) Remove the power cord.
2) Disassemble the Deck-Assy.
3) Make solder land 2 points short on Pick-up.
(See Fig. 1-4)
4) Disassemble the Pick-up.
1-5-2 Assembly
1) Replace the Pick-up.
2) Remove the soldering 2 points on Pick-up.
3) Reassemble the Deck-Assy.
PICK-UP ASS'Y
SOLDER LAND 2 POINTS SHORT
Note : If the assembly and disassembly are not done in correct sequence, the Pick-up may be damaged.
Fig. 1-4

Samsung Electronics 2-1
Rated Voltage AC 220 - 240V, 50Hz
Power Consumption 19 Watts
Weight 3.9Kg
Size 430mm x 282mm x 82mm
Operating ambient Temperature +5°C ~ +35°C
Installation Conditions Operation position : Horizontal, Relative humidity : Below 75%
Video Input (Rear) RCA Jack : 1.0Vp-p (unbalanced) 75ohm
Audio Input (Rear) RCA Jack : -8dBm, 47Kohm unbalnced
Video Input (Front) RCA Jack
Audio Input (Front) RCA Jack
RF out UHF 21-69(Initial CH60)
Audio (DVD, VCR) RCA jack, Euro Scart Socket
Audio (DVD only) COAXIAL, RCA jack
Video (DVD, VCR) RCA jack, Euro Scart Socket
Video (DVD only) S-Video out, RGB out: Euro Scart Socket
Tape format VHS type video tape, S-VHS type Video tape
Color system PAL, NTSC4.43, NTSC playback on PAL TV
Tuning system B/G, D/K
Video S/N Above 43dB (standard recording)
Resolution Above 240 lines (standard recording)
Audio S/N Above 68dB (Hi-Fi), 39dB (Mono)
Audio frequency characteristics 20Hz - 20KHz (Hi-Fi)
Disc DVD, CD (12cm, 8cm), DVD-RW, -R, DVD+RW, +R
Audio S/N 100dB
General
Input
Ouput
VCR
DVD
2. Product Specification
2-1 Product Specification

Product Specification
2-2 Samsung Electronics
2-2 Chassis Product Specification
Features 2006 product (ASIA) 2005 product (EURO)
DVD-V5600/XSA DVD-V6600/AFR DVD-V5500 DVD-V6500
Pront Pannel Design 06C1 06B1 05A 05A
Front Pannel Color Silver Silver Silver Silver
POWER 220-240V 110-240V 110-240V 110-240V
DVD Region Code 2 2 2 2
VCD Playback Yes Yes Yes Yes
Divx Playback No(only for XSA) Yes(All Asia Model) No Yes
MDI Karakoe NO NO NO NO
VCR HEAD 6HD 6HD 6HD 6HD
S-VHS Quasi Playback Yes Yes - -
VCR Hi-Fi Yes Yes Yes Yes
Timer Recording 6E/1M 6E/1M 6E/1M 6E/1M
Copy No No No No
RF Tuner Yes Yes Yes Yes
SCART JACK (RGB) No Yes 2 out (Rear) 2 out (Rear)
Component Video out 1 out 1 out 1 out 1 out
Progressiv Scan out Yes Yes Yes Yes
S-Video 1 out 1 out 1 out 1 out
Optical Digital Audio 1 out 1 out - -
Coaxial Digital Audio 1 out 1 out 1 out 1 out
Remocon Type 6th 44Key-Single 6th 44Key-Single 6th 44Key-Single 6th 44Key-Single
Design
Power
Disc Support
VCR
TV
AV Terminal
Remocon
Differnce between Existing '05 yeare product
SAMSUNG '06 year MIDAS PAL Combo ( DVD-V5600/V6600) Have same features in product operation. But Use Different outlook. both
DVD-V5XXX model and DVD-V6XXX Model use ES8380(Phoenix) DVD Processor of ESS technology which support MPEG4(DivX) file
Playback.
1. Generally, All the features in User Operating is same with '05 product.
2. But in view of Circuitry Architecture, RF-IC for DVD Deck Servo operation is built-in ES8380 DVD Processor.
This is the only difference between DVD Block of '06 product and '05 product.
In ZEUS PAL Combo(SAMSUNG '05 year product), DVD-V5XXX Model using ES6629(Vibratto2) DVD Processor without MPEG4(DivX)
Support, DVD-V6XXX Model using ES6698(Vibratto2) DVD Processor with MPEG4(DivX) Support.
But, the outlook (Color) is same with eadh other.
3. In view of bundle Accessory, MIDAS PAL Combo gives Newly designd Remocon Assembly.
The design of Remocon is SAMSUNG '06 Style - Black Colored.
4. And there are one change of A/V terminal location.
AUX Input terminal (Composite Video, RCA Audio) in Front Pannel Assembly is moved form Right-side to Left Side in Front View. This is
the difference in VCR Board Assembly.
5. DivX Playback is supported by All the 06 MIDAS EURO/ASIA Models only execpt for DVD-V5600/XSA.

Product Specification
2-3
Samsung Electronics

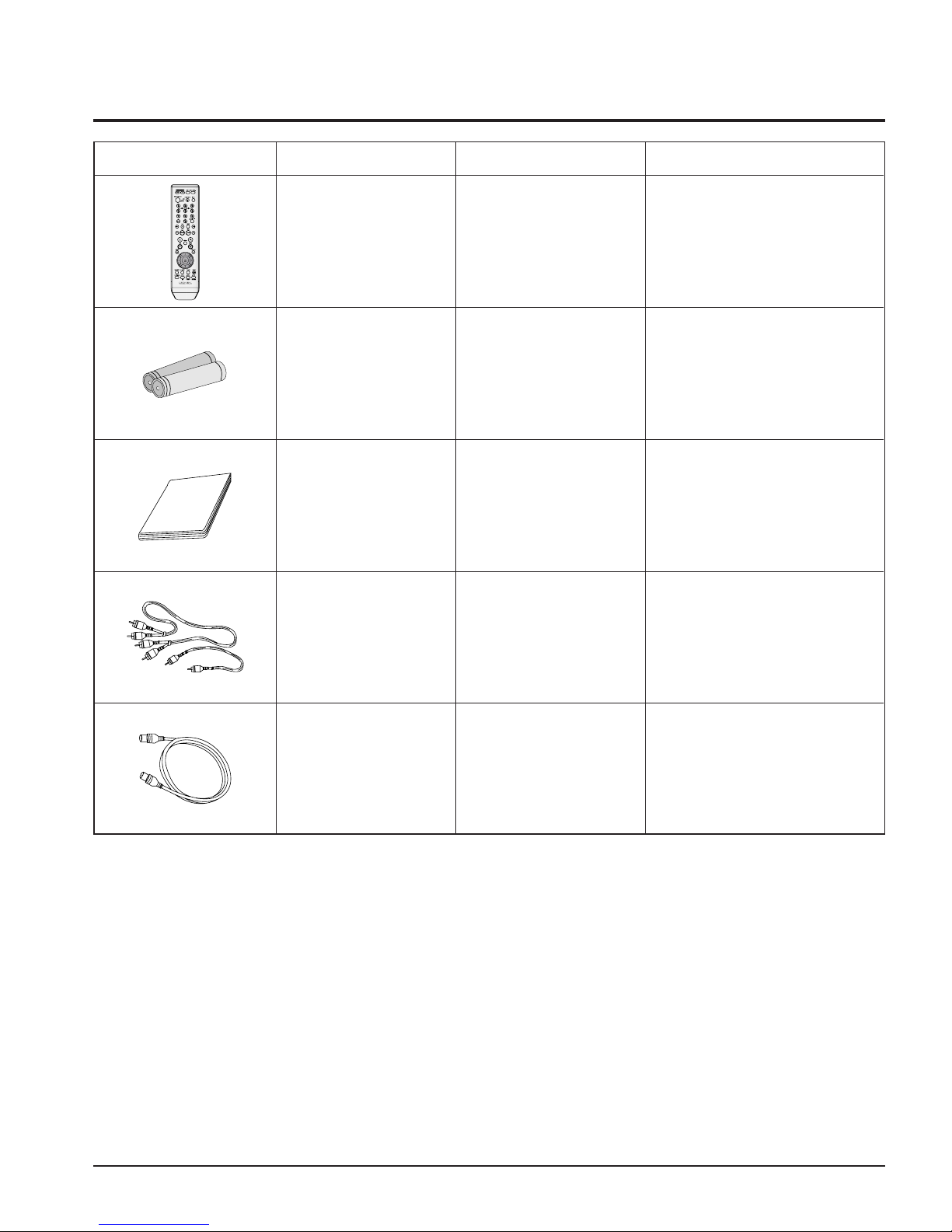

2-3 Option Product Specification
Description Fig Description Parts No Remark
Remote
Control
Batteries for
Remote Control
(AK59-00052A)
(AC43-12002H)
Model Standard of
DVD-V5600/XSA
Model Standard of
DVD-V5600/XSA
S.N.A
Model Standard of
DVD-V5600/XSA
Model Standard of
DVD-V5600/XSA
Model Standard of
DVD-V5600/XSA
(AK68-00961A)
(AC39-22071Z)
(AC39-42001U)
(AC39-00017A)
Owners Instructions
Video/Audio
Cable
RF Cable

Product Specification
2-4 Samsung Electronics
MEMO

Samsung Electronics 3-1
3. Alignment and Adjustments
3-1 VCR Adjustment
1) X-Point (Tracking center) adjustment, “Head switching adjustment” and “NVRAM option setting” can be adjusted with remote control.
2) When replacing the VCR Main PCB Micom (IC601) and NVRAM (IC603 ; EEPROM) be sure to adjust the “Head switching adjustment”
and “NVRAM option setting”.
3) When replacing the cylinder ass’y, be sure to adjust the “X-Point” and “Head switching adjustment”.
4) How to adjust.
- Intermittently short-circuit the Test Point on VCR Main PCB with pincers to the adjustment mode.
- If the corresponding adjustment button is pressed, the adjustment is performed automatically.
- When the adjustment is completed, be sure to turn the power off.
3-1-1(a) Location of adjustment button of remote control
Fig. 3-1
X-Point (Tracking Center) Adjustment ;
Head Switching Adjustment ;
NVRAM Option Setting ;
3-1-1 Reference

3-2
Alignment and Adjustments
Samsung Electronics
3-1-1(b) TEST location for adjustment mode setting
Fig. 3-2 VCR Main PCB (Top View)
Short-Circuit for few seconds and release.
(Just one time)

Alignment and Adjustments
3-3
Samsung Electronics
3-1-2 Head Switching Point Adjustment
1) Playback the alignment tape.
2) Intermittently short-circuit the two Test Points on VCR Main PCB while setting the adjustment mode. (See Fig.
3-2)
3) Press the “1, 0” buttons; remote control adjustment operates automatically. (See Fig. 3-1)
3-1-3 NVRAM Option Setting
1) Intermittently short-circuit the two Test Points on VCR Main PCB. (See Fig. 3-2)
2)
Press the “1, 4” button on the remote control. The option setting appears. (See Fig. 3-3)
3) Select the option number (See table 3-1) of corresponding model with “ , , , ” buttons on the
remote control.
4) After selecting the option number is completed, press the “ ” button of remote control.
(If “ ” button is pressed, the selected number is changescolor. ; See Fig. 3-4)
5) Press the “ENTER” button of remote control again to store the option number.
6) Turn the Power off.
1) NVRAM Option is adjusted in the factory.
2) In case VCR Main PCB Micom (IC601) and NVRAM (IC603 ; EEPROM) are replaced, be sure to set the corresponding option number of
the required model. (If the option is not set, the unit will not operate.)
MOVE : SAVE : ENTER
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
Fig.3-3
MOVE : COMPLETE
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
Fig.3-4

3-4
Alignment and Adjustments
Samsung Electronics
<Table 3-1 NVRAM Option Table>
MODEL OPTION NUMBERS
DVD-V5600/XSA 6, 7, 9, 10, 15, 17, 18, 20, 28, 30, 33, 34, 42, 44, 47, 48, 49, 50, 51, 57, 58,
61, 63, 65
DVD-V6600/XSH 6, 7, 8, 9, 10, 15, 17, 18, 20, 22, 25, 27, 30,35, 37, 38, 41, 42, 44, 47, 48, 49,
50, 51, 52, 57, 58, 61, 63, 65, 66
DVD-V6600/
TAW, UMG
6, 7, 8, 9, 10, 15, 17, 18, 20, 22, 30, 34, 36, 38, 42, 44, 47, 48, 49, 50, 51,
52, 55, 57, 58, 61, 63, 65, 66
DVD-V6600/XSG 6, 7, 8, 9, 10, 15, 17, 18, 20, 22, 30, 34, 36, 38, 42, 44, 47, 48, 49, 50, 51,
52, 55, 57, 58, 61, 63, 65, 66
DVD-V6600/
SAM
6, 7, 8, 9, 10, 15, 17, 18, 20, 22, 30, 34, 36, 38, 42, 44, 47, 48, 49, 50, 51,
52, 57, 58, 61, 63, 65, 66
DVD-V5600
V6600/XFA
6, 7, 8, 9, 10, 15, 17, 18, 20, 25, 27, 30, 35, 38, 41, 42, 44, 47, 48, 49, 50,
51, 52, 57, 58, 61, 63, 65, 66
DVD-
V6600/AND
6, 7, 8, 9, 10, 11, 13, 15, 16, 17, 18, 20, 30, 34, 36, 38, 42, 44, 47, 48, 49,
50, 51, 58, 61, 63, 65, 69
DVD-V6600/AFR 6, 7, 8, 9, 10, 11, 13, 15, 16, 17, 18, 20, 21, 30, 33, 34, 36, 38, 42, 44, 47,
48, 49, 50, 51, 58, 61, 63, 65, 69

Alignment and Adjustments
3-5
Samsung Electronics
3-2 DVD Adjustment
3-2-1 Location of Test Point
Pin 142
AIC2
AIC1
VIC1
PIC2
DIC3
AIC4
DIC1
MDIC1
DIC2
DIC6
DIC7
Fig. 3-5 Location of test Point (DVD Main PCB - Top Side)

3-6
Alignment and Adjustments
Samsung Electronics
3-2-2(a) Adjustment Spec. and Test Point
3-2-2 Skew Adjustment
Test Disc Adjustment Spec. Test Point Adjustment Location
TDV-533 “Pin 142” Ass’y Deck - Top Side
Chapter 14 Flat Waveform (DVD Main PCB - Top Side) (See Fig. 3-6)
(See Fig. 3-5)
Fig.3-6 Ass’y Deck (Top Side)
◆ Test Disc ; Service not Available
<Table 3-2>
