Samsung AM CNB C AA Series Instruction manual

Model : AM***CNB*C*/AA
VRF
Technical
Data Book
Hydro Unit for America

History
Ver. 1.0 Release the VRF Hydro Unit for America 23.06.14 -
Version Modification Date Remark
Ver. 1.1 Updated some data 23.08.01 -
Ver. 1.2 Updated some data 23.09.22 -

Installation
(1) Classification
(2) Capacity
X 1/10 kW (3 digits)
(3) Version
(4) Product Type
(5) Product Notation
(6) Feature
(7) Rating Voltage
C208~230V, 60Hz, 1Ф
(8) Mode
HHeat Pump(R410A)
Model Name
AM
(1)
036
(2)
C
(3)
N
(4)
B
(5)
D
(6)
C
(7)
H
(8)
AA
Buyer
AM DVM
XOutdoor Unit
NIndoor Unit
BHydro Unit
FCASCADE
Nomenclature
Indoor Units
C2023
DSTANDRAD
BHeat Pump(R134a)

Contents
1. Line up 5
2. Specification 6
3. Summary Table 9
4. Capacity Table 10
5. Capacity correction 15
6. Dimensional Drawing 22
8.Electrical Wiring Diagram 26
30
31
33
35
9.Sound Data
10.Operation range
11.Piping Diagram
12.Hydraulic Performance
13.Installation
28
7. Center of Gravity 24

1. Line up
Hydro Unit HE
Capacity(Heating)
Model AM096CNBDCH/AA AM144CNBDCH/AA
AM036CNBDCH/AA AM048CNBDCH/AA
108 kBtu/h 172 kBtu/h 40 kBtu/h 54.5 kBtu/h
Hydro Unit HT
Capacity(Heating)
Model AM072CNBFCB/AA
86 kBtu/h54.5 kBtu/h
AM048CNBFCB/AA

Hydro Unit HE
2..Specification
Model CODE AM036CNBDCH/AA AM048CNBDCH/AA
Power Supply Φ, #, V, Hz 1,2,208-230,60 1,2,208-230,60
Mode - HEAT PUMP HEAT PUMP
Performance Capacity
(Nominal) Heating 40,000 54,500
Power
Power Input
(Nominal) W
Heating 10 10
Current Input
(Nominal) A
Heating 0.05 0.05
Heat Exchanger
Type -PHE PHE
Quantity - 1 1
Pipe Size Φ, inch NPT 1NPT 1
Water Flow Rate LPM 36 48
GPM 9.5 12.7
Flow Switch LPM 12 20
GPM 3.2 5.3
Option Code - 01004C-105000
206464-332200
01004C-105000
208C8C-332200
Piping
Connections
Liquid Pipe Φ, inch 3/8 3/8
Gas Pipe Φ, inch 5/8 5/8
Drain Pipe 3/4 3/4
Field
Wiring
Power Source Wire AWG 10 10
Transmission Cable AWG 18 18
Refrigerant Type -R410A R410A
Control Method - EEV INCLUDED EEV INCLUDED
Sound Sound Pressure dB(A) 27 27
Dimensions
Net Weight lbs 64.4 64.4
Shipping Weight lbs 69.0 69.0
Net Dimensions (W×H×D) inch 20.4x24.7x13.0 20.4x24.7x13.0
Shipping Dimensions (W×H×D) inch 25.7x27.6x16.8 25.7x27.6x16.8
Temp
Max. Outdoor Ambient
Operating Temp. Heating ℉ 95 95
Operating Water Temp. Range ℉ 68~122 68~122
Btu/h
Heating
Φ, inch
Min.
NOTE
* Specifications may be subject to change without prior notice for product improvement.
* 1) Nominal heating capacities are based on;
Water temperature : 86°F(30°C) inlet, 95°F(35°C) outlet
Indoor temperature : 68°F(20°C) DB
Outdoor temperature :44.6°F(7°C) DB, 42.8°F(6°C) WB
* 2) Sound pressure was acquired in an anechoic room. Thus actual noise level may be different depending on the installation conditions.
* 3) The VRF system contains R410A (GWP=2,088) which is fluorinated greenhouse gas.
* Heat Exchanger type : Plate Heat Exchanger (STS)

Hydro Unit HE
2..Specification
Model CODE AM096CNBDCH/AA AM144CNBDCH/AA
Power Supply Φ, #, V, Hz 1,2,208-230,60 1,2,208-230,60
Mode - HEAT PUMP HEAT PUMP
Performance Capacity
(Nominal) Heating 108,000 172,000
Power
Power Input
(Nominal) W
Heating 10 10
Current Input
(Nominal) A
Heating 0.05 0.05
Heat Exchanger
Type -PHE PHE
Quantity - 1 1
Pipe Size Φ, inch NPT 1NPT 1-1/4
Water Flow Rate LPM 92 150
GPM 24.3 39.6
Flow Switch LPM 30 50
GPM 7.9 13.2
Option Code - 01004C-105000
231C1C-332200
01004C-105000
232D2D-332200
Piping
Connections
Liquid Pipe Φ, inch 3/8 1/2
Gas Pipe Φ, inch 7/8 1 1/8
Drain Pipe
Field
Wiring
Power Source Wire
Transmission Cable
Refrigerant Type -R410A R410A
Control Method - EEV INCLUDED EEV INCLUDED
Sound Sound Pressure dB(A) 28 31
Dimensions
Net Weight lbs 75.4 95.2
Shipping Weight lbs 80.0 99.9
Net Dimensions (W×H×D) inch 20.4x24.7x13.0 20.4x24.7x13.0
Shipping Dimensions (W×H×D) inch 25.7x27.6x16.8 25.7x27.6x16.8
Temp
Max. Outdoor Ambient
Operating Temp. Heating 95 95
Operating Water Temp. Range 68~122 68~122
℉
℉
Heating
Btu/h
3/4 3/4
AWG 10 10
AWG 18 18
Φ, inch
Min.
NOTE
* Specifications may be subject to change without prior notice for product improvement.
* 1) Nominal heating capacities are based on;
Water temperature : 86°F(30°C) inlet, 95°F(35°C) outlet
I ndoor temperature : 68°F(20°C) DB
Outdoor temperature :44.6°F(7°C) DB, 42.8°F(6°C) WB
* 2) Sound pressure was acquired in an anechoic room. Thus actual noise level may be different depending on the installation conditions.
* 3) The VRF system contains R410A (GWP=2,088) which is fluorinated greenhouse gas.
* Heat Exchanger type : Plate Heat Exchanger (STS)

Hydro Unit HT
2..Specification
Model CODE AM048CNBFCB/AA AM072CNBFCB/AA
Power Supply Φ, #, V, Hz 1,2,208-230,60 1,2,208-230,60
Mode - HEAT PUMP HEAT PUMP
Performance Capacity
(Nominal) Heating Btu/h 54,500 86,000
Power
Power Input
(Nominal) W
Heating 3100 5000
Current Input
(Nominal) A
Heating 14.3 23.1
Compressor
Type -Rotary Rotary
Output kW x n - -
Model Name - UX5T250FNBEX UX5T250FNBEX
Oil Type -POE POE
Initial Charge cc 1,700 1,700
Heat Exchanger
Type -PHE PHE
Quantity - 2 2
Pipe Size Φ, inch NPT 1 NPT 1
Water Flow Rate LPM 23 36
GPM 6.1 9.5
Flow Switch LPM 12 12
GPM 3.2 3.2
Option Code - 01104C-105000
20A0A0-332200
01104C-105000
20FAFA-332100
Piping
Connections
Liquid Pipe Φ, inch 3/8 3/8
Gas Pipe Φ, inch 5/8 5/8
Drain Pipe
Field
Wiring
Power Source Wire
Transmission Cable
Refrigerant Type -R410A / R134a R410A / R134a
Control Method - EEV INCLUDED EEV INCLUDED
Sound Sound Pressure dB(A) 42 42
Dimensions
Net Weight lbs 233.7 233.7
Shipping Weight lbs 250.2 250.2
Net Dimensions (W×H×D) inch 20.4x47.6x13.0 20.4x47.6x13.0
Shipping Dimensions (W×H×D) inch 25.7x54.1x16.8 25.7x54.1x16.8
Temp
Max. Outdoor Ambient
Operating Temp. Heating 109.4 109.4
Operating Water Temp. Range 77~176 77~176
℉
℉
Heating
3/4 3/4
AWG 6 6
AWG 18 18
Φ, inch
Min.
NOTE
* Specifications may be subject to change without prior notice for product improvement.
* 1) Nominal heating capacities are based on;
Water temperature : 131°F(55°C) inlet, 149°F(65°C) outlet
Indoor temperature : 68°F(20°C) DB
Outdoor temperature :44.6°F(7°C) DB, 42.8°F(6°C) WB
* 2) Sound pressure was acquired in an anechoic room. Thus actual noise level may be different depending on the installation conditions.
* 3) The VRF system contains R410A (GWP=2,088) which is fluorinated greenhouse gas.
* Heat Exchanger type : Plate Heat Exchanger (STS)

Electrical characteristics
3. Summary Table
Capacity
[kW] Model
Power Supply Voltage Range
[V]
Rated Current
[A]
Current
[A]
Φ # Voltage
Hz Min.
(-10%)
Max.
(+10%)
Heating MCA MOP
0.05 2.2 15.0
AM036CNBDCH/AA
AM096CNBDCH/AA
AM144CNBDCH/AA
1 2 60 208-230
31.5
50.4
11.7
Hydro Unit HE
NOTE
•FLA : Full Load Ampere
•MCA : Minimum Circuit Ampere (A)
•MOP : Maximum Overcurrent Protective Device (A)
AM048CNBDCH/AA
16.0 187 253
Hydro Unit HT
Capacity
[kW] Model
Power Supply Voltage Range
[V]
Rated Current
[A]
Current
[A]
Φ # Hz Voltage Min.
(-10%)
Max.
(+10%) Heating MCA MOP
14.3 18.0 25.0
AM048CNBFCB/AA 1 2 60 208-230
16.0
23.1 30.0 40.0
AM072CNBFCB/AA
25.0 187 253

Hydro Unit HE
4. Capacity Table
Model Outdoor Temp.(℉) Water Inlet Temp.(℉)
DB WB 68 86 104 113
AM036CNBDCH***
-4 -4.36 31,014 29,263 18,008 11,755
0.5 -0.04 32,264 30,263 20,259 14,506
54.46 33,515 31,264 22,260 17,007
9.5 8.6 34,765 32,264 24,511 19,258
14 13.1 35,766 33,265 26,512 21,509
18.5 17.42 37,016 34,265 28,763 22,760
23 21.92 38,267 35,265 30,764 24,011
2 7. 5 26.06 39,517 36,266 31,514 24,011
32 30.74 40,768 37,266 32,014 24,011
36.5 35.06 42,018 38,267 32,014 24,011
41 39.38 43,019 39,267 32,014 24,011
44.6 42.8 44,019 40,018 32,014 24,011
50 48.02 44,019 40,018 32,014 24,011
54.5 52.34 44,019 40,018 32,014 24,011
59 56.66 44,019 40,018 32,014 24,011
68 59 44,019 40,018 32,014 24,011
77 64.94 44,019 40,018 32,014 24,011
86 70.34 44,019 40,018 32,014 24,011
95 75.2 44,019 40,018 32,014 24,011
AM048CNBDCH***
-4 -4.36 42,311 39,922 24,567 16,037
0.5 -0.04 44,017 41,287 27,638 19,790
54.46 45,723 42,652 30,368 23,203
9.5 8.6 47,429 44,017 33,439 26,273
14 13.1 48,794 45,381 36,169 29,344
18.5 17.42 50,500 46,746 39,240 31,050
23 21.92 52,206 48,111 41,969 32,757
2 7. 5 26.06 53,912 49,476 42,993 32,757
32 30.74 55,618 50,841 43,675 32,757
36.5 35.06 5 7, 324 52,206 43,675 32,757
41 39.38 58,689 53,571 43,675 32,757
44.6 42.8 60,054 54,594 43,675 32,757
50 48.02 60,054 54,594 43,675 32,757
54.5 52.34 60,054 54,594 43,675 32,757
59 56.66 60,054 54,594 43,675 32,757
68 59 60,054 54,594 43,675 32,757
77 64.94 60,054 54,594 43,675 32,757
86 70.34 60,054 54,594 43,675 32,757
95 75.2 60,054 54,594 43,675 32,757
1) Heating

Hydro Unit HE
4. Capacity Table
Model Outdoor Temp.(℉) Water Inlet Temp.(℉)
DB WB 68 86 104 113
AM096CNBDCH***
-4 -4.36 83,256 78,820 48,452 26,956
0.5 -0.04 88,716 83,597 55,618 34,121
54.46 93,834 88,033 62,783 40,946
9.5 8.6 98,952 92,810 70,290 48,111
14 13.1 104,070 97,587 77,456 55,277
18.5 17.42 109,530 102,364 84,962 60,054
23 21.92 114,648 107,141 92,128 64,489
2 7. 5 26.06 114,989 107,482 94,516 64,489
32 30.74 115,330 107,482 96,905 64,489
36.5 35.06 115,672 107,482 96,905 64,489
41 39.38 115,672 107,482 96,905 64,489
44.6 42.8 116,354 107,482 96,905 64,489
50 48.02 116,354 107,482 96,905 64,489
54.5 52.34 116,354 107,482 96,905 64,489
59 56.66 116,354 107,482 96,905 64,489
68 59 116,354 107,482 96,905 64,489
77 64.94 116,354 107,482 96,905 64,489
86 70.34 116,354 107,482 96,905 64,489
95 75.2 116,354 107,482 96,905 64,489
AM144CNBDCH***
-4 -4.36 133,415 125,908 77,456 51,865
0.5 -0.04 138,533 130,344 86,668 62,442
54.46 143,651 134,438 95,881 72,679
9.5 8.6 149,111 138,874 104,753 82,915
14 13.1 154,229 143,310 113,624 92,810
18.5 17.42 159,347 147,746 122,837 97,9 28
23 21.92 164,465 151,840 131,709 103,047
2 7. 5 26.06 169,583 156,276 134,780 103,047
32 30.74 174,702 160,712 137,509 103,047
36.5 35.06 179,820 165,148 137,509 103,047
41 39.38 184,938 169,242 137,509 103,047
44.6 42.8 189,033 171,972 137,509 103,047
50 48.02 189,033 171,972 137,509 103,047
54.5 52.34 189,033 171,972 137,509 103,047
59 56.66 189,033 171,972 137,509 103,047
68 59 189,033 171,972 137,509 103,047
77 64.94 189,033 171,972 137,509 103,047
86 70.34 189,033 171,972 137,509 103,047
95 75.2 189,033 171,972 137,509 103,047
1) Heating

Hydro Unit HT
4. Capacity Table
Model Ta LW[℉] LW[℉] LW[℉] LW[℉]
113 131 149 167
[℉ DB] HC PI HC PI HC PI HC PI
AM048CNBFCB***
-4 51,182 2,062 51,182 2,017 51,182 2,523 47,770 3,193
1 51,182 2,083 51,182 1,952 51,182 2,357 49,476 3,063
5 52,888 2,313 52,888 2,007 52,888 2,435 51,182 2,895
19 52,888 2,305 54,594 2,185 54,594 2,598 52,888 2,956
27 54,594 2,352 54,594 2,380 54,594 2,560 54,594 3,087
34 54,594 2,146 54,594 2,363 54,594 2,501 54,594 3,052
37 54,594 2,041 54,594 2,314 54,594 2,453 54,594 2,963
45 54,594 1,868 54,594 2,281 54,594 2,419 54,594 2,828
52 54,594 1,850 54,594 2,279 54,594 2,428 54,594 2,763
59 54,594 1,806 54,594 2,259 54,594 2,474 54,594 2,734
68 54,594 1,784 54,594 2,232 54,594 2,444 54,594 2,701
77 54,594 1,763 54,594 2,205 54,594 2,415 54,594 2,668
86 54,594 1,741 54,594 2,178 54,594 2,385 54,594 2,636
95 54,594 1,719 54,594 2,151 54,594 2,355 54,594 2,603
AM072CNBFCB***
-4 78,479 4,460 78,479 4,734 75,067 5,017 73,361 5,424
1 80,185 4,333 80,185 4,563 80,185 4,802 76,773 5,159
5 81,891 4,287 83,597 4,456 83,597 4,670 80,185 4,996
19 83,597 3,878 85,304 4,084 85,304 4,235 81,891 4,442
27 85,304 3,736 85,304 3,933 85,304 4,073 83,597 4,226
34 85,304 3,616 85,304 3,803 85,304 3,948 85,304 4,051
37 85,304 3,565 85,304 3,747 85,304 3,900 85,304 3,979
45 85,304 3,443 85,304 3,652 85,304 3,831 85,304 3,865
52 85,304 3,417 85,304 3,580 85,304 3,799 85,304 3,791
59 85,304 3,400 85,304 3,530 85,304 3,798 85,304 3,758
68 85,304 3,359 85,304 3,488 85,304 3,752 85,304 3,713
77 85,304 3,318 85,304 3,445 85,304 3,707 85,304 3,668
86 85,304 3,278 85,304 3,403 85,304 3,661 85,304 3,623
95 85,304 3,237 85,304 3,360 85,304 3,616 85,304 3,578
1) Heating Ta : Ambient temperature, HC : Heating Capacity(Btu/h), PI : Power Input(W)
LW : Leaving Water temperature, EW : Entering Water temperature
Conditions
EW = 104℉ EW = 113℉ EW = 131℉ EW = 149℉
△ T=9℉ △ T=18℉ △ T=18℉ △ T=18℉
EW : Entering Water
temperature
Leaving Water temperature -
Entering Water temperature
- T = Leaving Water temperature - Entering Water temperature
-No pump power input is included.
- Equivalent piping length = 7.5m
- Ta < 32℉ : RH=75%, Ta > 32℉ : RH=85%

Hydro Unit HT
4. Capacity Table
2) Capacity calculation method
How to calculate heating capacity power input : Combination of outdoor unit and hydro unit HT
- Heating capacity and power input of hydro unit HT : refer to the indoor unit capacity table.
- Power input of outdoor unit : refer to the Outdoor unit capacity table (indoor 68℉ DB).
Example
- Standard condition : Outdoor 44.6℉ DB/42.8℉ WB, Indoor 68℉ DB
- Water condition : EW 55℉, LW 65℉
6TON DVM S TDB Heat Capacity Table
5.1
Combination,%
(Capacity index)
Outdoor Temperature(℉)
Indoor Temperature(℉,DB)
68℉
TC PI
DB WB Btu/h kW
100%
-4 -6 67,560 7. 8
1 0 71,314 7.96
5 3 75,067 8.04
10 9 78,138 7.92
14 12 81,550 7.68
19 18 83,256 7. 2 1
23 21 85,986 6.84
27 25 85,986 6.21
32 30 85,986 5.84
37 36 85,986 5.52
41 39 85,986 5.23
45 43 85,986
48 46 85,986 4.85
52 50 85,986 4.63
55 54 85,986 4.42
59 57 85,986 4.27
Combination 1 (Outdoor Unit 6TON + Indoor Unit 6TON)
PI Outdoor Unit(6TON)[kW] 5.10
PI System[kW] 8.93 =Indoor Unit PI + Outdoor Unit PI
Indoor Heat Capa.[Btu/h ]
PI Indoor Unit(6TON)[kW]
86,000
3.831
= HT Capacity Table
= HT Capacity Table (Ref. P.17) Outdoor Unit Capacity Table

Hydro Unit HT
4. Capacity Table
8TON DVM S TDB Heat Capacity Table
Combination,%
(Capacity index)
Outdoor Temperature(℉)
Indoor Temperature(℉,DB)
68℉
TC PI
DB WB Btu/h kW
100%
-4 -6 90,422 10.24
1 0 95,881 10.45
5 3 99,293 10.67
10 9 101,341 10.62
14 12 104,753 10.4
19 18 106,459 9.57
23 21 107,482 8.99
27 25 107,482 8.15
32 30 107,482 7.6 8
37 36 107,482 7. 2 5
41 39 107,482 6.88
45 43 107,482 6.7
48 46 107,482 6.38
52 50 107,482 6.08
55 54 107,482 5.81
59 57 107,482 5.61
Flowrate Information
Flowrate[gpm] **048** **072**
ΔT = 27℉ 4.1 6.4
ΔT = 18℉ 6.1 9.5
ΔT = 9℉ 12.2 19.0
Combination 1 ( Outdoor Unit 8TON + Indoor Unit 4TON x 2ea)
PI Outdoor Unit(8TON)[kW] 6.70
PI System[kW] 11.54 = Total Indoor Unit PI + Outdoor Unit PI
Outdoor Unit Capacity Table
54,500 = HT Capacity Table (Ref. P.17)
= 2 x 5HP109,000
2.419 = HT Capacity Table (Ref. P.17)
= 2 x 5HP
PI Total Indoor Unit[kW]
4.838
Indoor Heat Capa.[kW]
Indoor Heat Capa.[kW]
PI Indoor Unit(4TON)[kW]

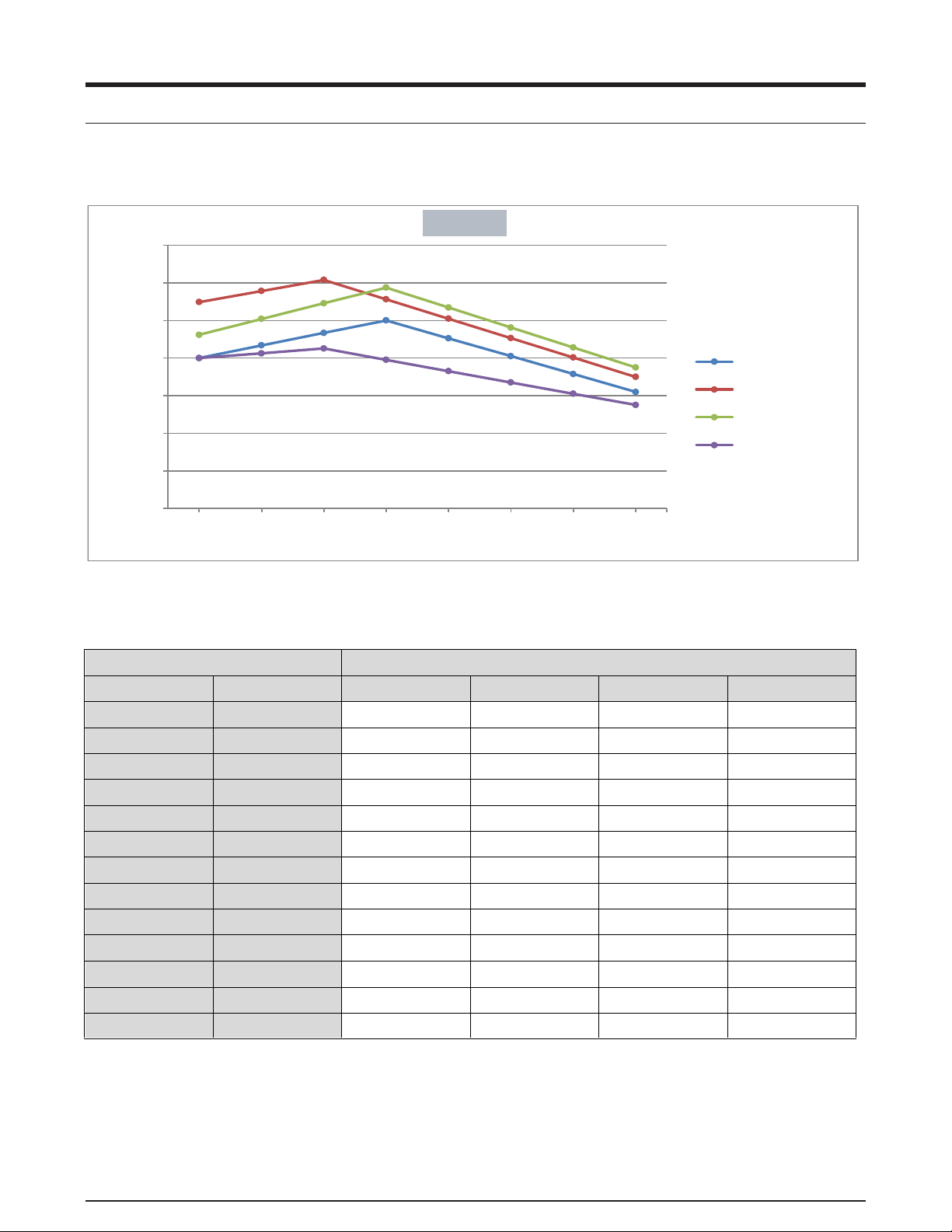

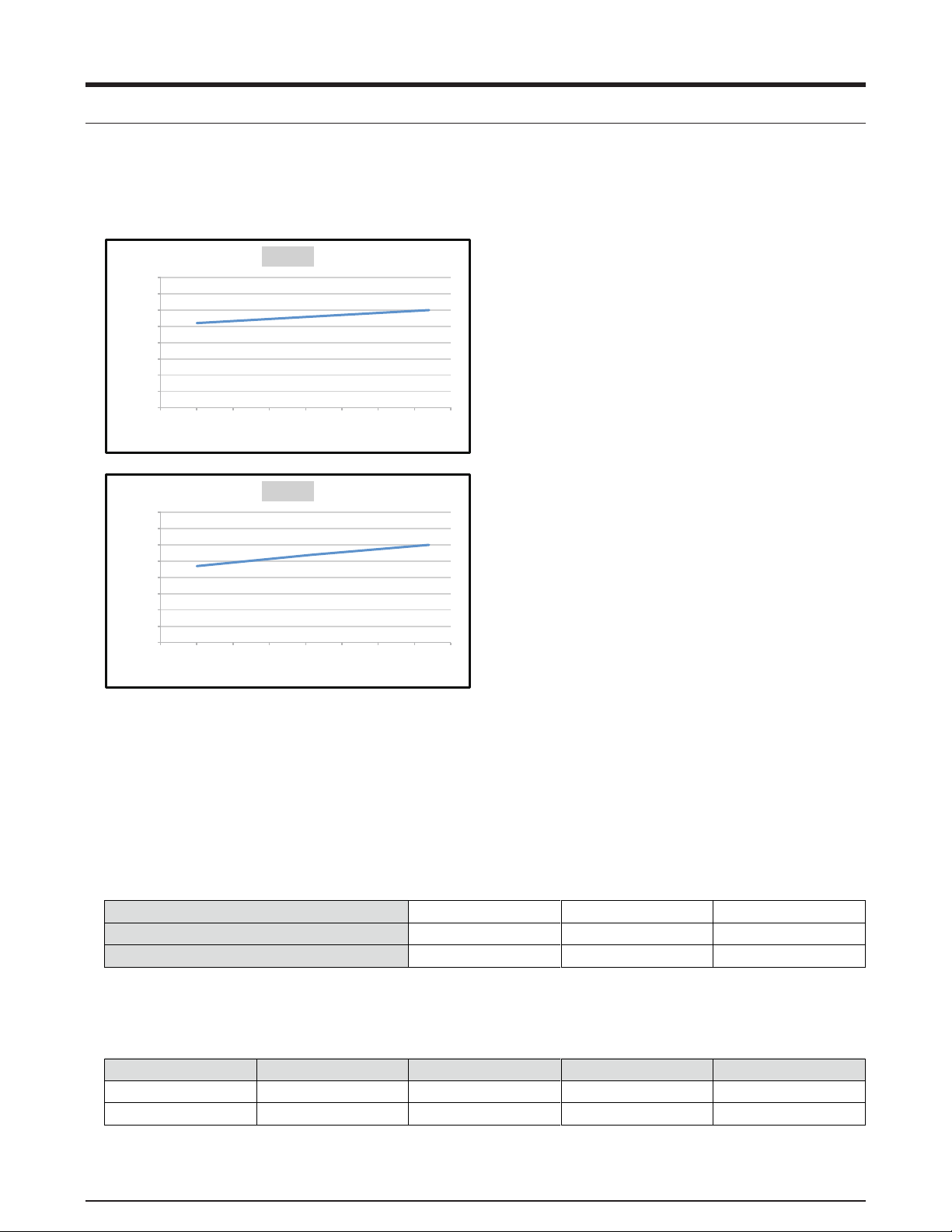

Hydro Unit HE
5. Capacity correction
1) Capacity based on flow rate
(1) AM036CNBDCH***
Flow Rate [GPM] 3TON
ΔT=18℉ 4.8
ΔT=9℉ 9.5
8TON 12TON
12.2 19.8
24.3 39.6
4TON
6.3
12.7
Water flow Rate (GPM)
Capacity Correction Factor
Power Input Correction Factor [ODU]
7.1 9.5
0.96 1.00
0.94 1.00
4.8
0.92
0.87
Heating
Flow rate by ΔT
* Minimum flow rate of the Hydro unit is 50% of rated flow rate.
0.40
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
4 5 9 10
Capacity Correc�on Factor
678
Water Flow Rate [GPM]
Hea�ng
0.40
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
4 5 9 10
Power Input Correc�on Factor [ODU]
6 7 8
Water Flow Rate [GPM]
Hea�ng

Hydro Unit HE
5. Capacity correction
1) Capacity based on flow rate
(2) AM048CNBDCH***
Flow Rate [GPM] 3TON
ΔT=18℉ 4.8
ΔT=9℉ 9.5
8TON 12TON
12.2 19.8
24.3 39.6
4TON
6.3
12.7
Water flow Rate (GPM)
Capacity Correction Factor
Power Input Correction Factor [ODU]
9.5 12.7
0.96 1.00
0.94 1.00
6.3
0.92
0.87
Heating
Flow rate by ΔT
* Minimum flow rate of the Hydro unit is 50% of rated flow rate.
0.40
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
5.3 6.3 7.3 11.3 12.3 13.3
Capacity Correc�on Factor
8.3 9.3 10.3
Water Flow Rate [GPM]
Hea�ng
0.40
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
5.3 6.3 7.3 11.3 12.3 13.3
Power Input Correc�on Factor [ODU]
8.3 9.3 10.3
Water Flow Rate [GPM]
Hea�ng

Hydro Unit HE
5. Capacity correction
1) Capacity based on flow rate
(3) AM096CNBDCH***
Flow Rate [GPM] 3TON
ΔT=18℉ 4.8
ΔT=9℉ 9.5
8TON 12TON
12.2 19.8
24.3 39.6
4TON
6.3
12.7
Water flow Rate (GPM)
Capacity Correction Factor
Power Input Correction Factor [ODU]
18.2 24.3
0.96 1.00
0.94 1.00
12.2
0.92
0.87
Heating
Flow rate by ΔT
* Minimum flow rate of the Hydro unit is 50% of rated flow rate.
0.40
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
8 10 12 14 16 18 20 22 24 26
Capacity Correc�on Factor
Water Flow Rate [GPM]
Hea�ng
0.40
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
8 10 12 14 16 18 20 22 24 26
Power Input Correc�on Factor [ODU]
Water Flow Rate [GPM]
Hea�ng

Hydro Unit HE
5. Capacity correction
1) Capacity based on flow rate
(4) AM144CNBDCH***
Flow Rate [GPM] 3TON
ΔT=18℉ 4.8
ΔT=9℉ 9.5
8TON 12TON
12.2 19.8
24.3 39.6
4TON
6.3
12.7
Water flow Rate (GPM)
Capacity Correction Factor
Power Input Correction Factor [ODU]
29.7 39.6
0.96 1.00
0.94 1.00
19.8
0.92
0.87
Heating
Flow rate by ΔT
* Minimum flow rate of the Hydro unit is 50% of rated flow rate.
0.40
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
16 21 36 41
Capacity Correc�on Factor
26 31
Water Flow Rate [GPM]
Hea�ng
0.40
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
16 21 36 41
Power Input Correc�on Factor [ODU]
26 31
Water Flow Rate [GPM]
Hea�ng

Hydro Unit HE
5. Capacity correction
2) Capacity based on outdoor temperature
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
-4 5 14 41 50 59
Power input correction factor[Outdoor Unit]
Outdoor air temp. [℉ DB]
Water Inlet 68℉
Water Inlet 86℉
Water Inlet 104℉
Water Inlet 113℉
Heating
DB WB 68 86 104 113
-4 -4.4 1.00 1.30 1.12 1.00
5-4.5 1.07 1.36 1.21 1.03
14 13.1 1.13 1.42 1.29 1.05
23 21.9 1.20 1.31 1.37 0.99
32 30.7 1.11 1.21 1.27 0.93
41 24.6 1.01 1.11 1.16 0.87
45 42.8 0.97 1.06 1.14 0.85
50 48.0 0.92 1.00 1.11 0.81
59 56.7 0.82 0.90 0.95 0.75
Outdoor air temp. (℉)Water inlet temp. (℉)
68 59.0 0.81 0.89 0.94 0.75
77 64.9
86 70.3
95 75.2
0.81 0.89 0.94 0.74
0.81 0.88 0.93 0.74
0.80 0.88 0.93 0.73
Power input correction factor (Heating)
23 32

Hydro Unit HT
5. Capacity correction
oGGGGGGGGaGpG
XUG kGGGOvGP
G ˍvGGSGGGGGGGGGGGUGOmGGG
GlGGGGUP
G G {GGGGGGGGSGGGGGGU
G G kGGSGGGGGGU
G G {GGGGGGGGGU
Outdoor temperature
(℉, DB)
Capacity coefficient 0.98 0.97 0.95 0.93 0.88 0.85 0.86 0.91 1
1.05
1.00
0.95
0.90
0.85
0.80
0.75
14 18 21 25 28 32
0.98 0.97 0.95 0.93
0.88
0.85 0.86
0.91
1.00
Outdoor temperature(˚F)
Capacity coefficient
Capacity coefficient of outdoor unit on defrost operation
Corrected Heating Capacity = heating capacity x Capacity coefficient
2. Power input of hydro unit HT during defrost operation
Power Input (W)
HT 4TON 1050
HT 6TON 1500
3. Capacity correction factor of hydro unit HT during defrost operation
HT Capacity Correction Factor
HT 4TON 0.3
HT 6TON
※In case of the defrosting interval, it discharges the heat as much as (rated capacity x correction factor). [Water temp. Drop]
ex) HT 4TON HT 4TON defrosting capacity = -54,500Btu/h * 0.3 = -16,350Btu/h
14 18 21 25 28 32 37 41 45
37 41 45
