Samsung NZ64R3525CK Guide

Ceramic Glass Hob
User & installation manual
NZ64R3525CK/EG
All manuals and user guides at all-guides.com

2 English

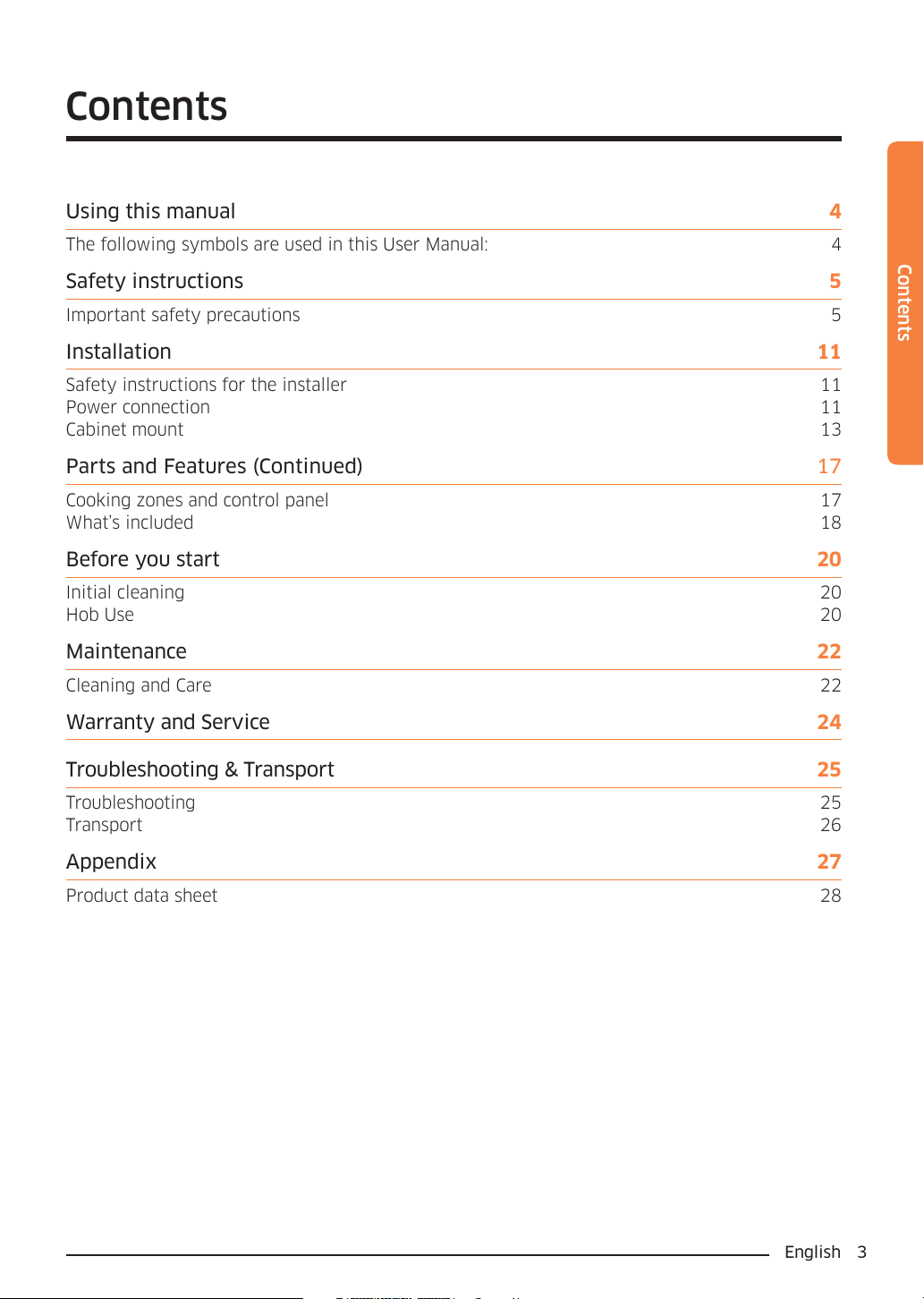

Contents
All manuals and user guides at all-guides.com

English 3
Contents
Contents
Using this manual 4
The following symbols are used in this User Manual: 4
Safety instructions 5
Important safety precautions 5
Installation 11
Safety instructions for the installer 11
Power connection 11
Cabinet mount 13
Parts and Features (Continued) 17
Cooking zones and control panel 17
What’s included 18
Before you start 20
Initial cleaning 20
Hob Use 20
Maintenance 22
Cleaning and Care 22
Warranty and Service 24
Troubleshooting & Transport 25
Troubleshooting 25
Transport 26
Appendix 27
Product data sheet 28
All manuals and user guides at all-guides.com

4 English
Using this manual
Using this manual
Thank you for choosing SAMSUNG Built-In Cooktop.
This User Manual contains important information on safety and instructions intended to assist
you in the operation and maintenance of your appliance.
Please take the time to read this User Manual before using your oven and keep this book for
future reference.
The following symbols are used in this User Manual:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or property
damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Useful tips, recommendations, or information that helps users manipulate the product.
All manuals and user guides at all-guides.com

English 5

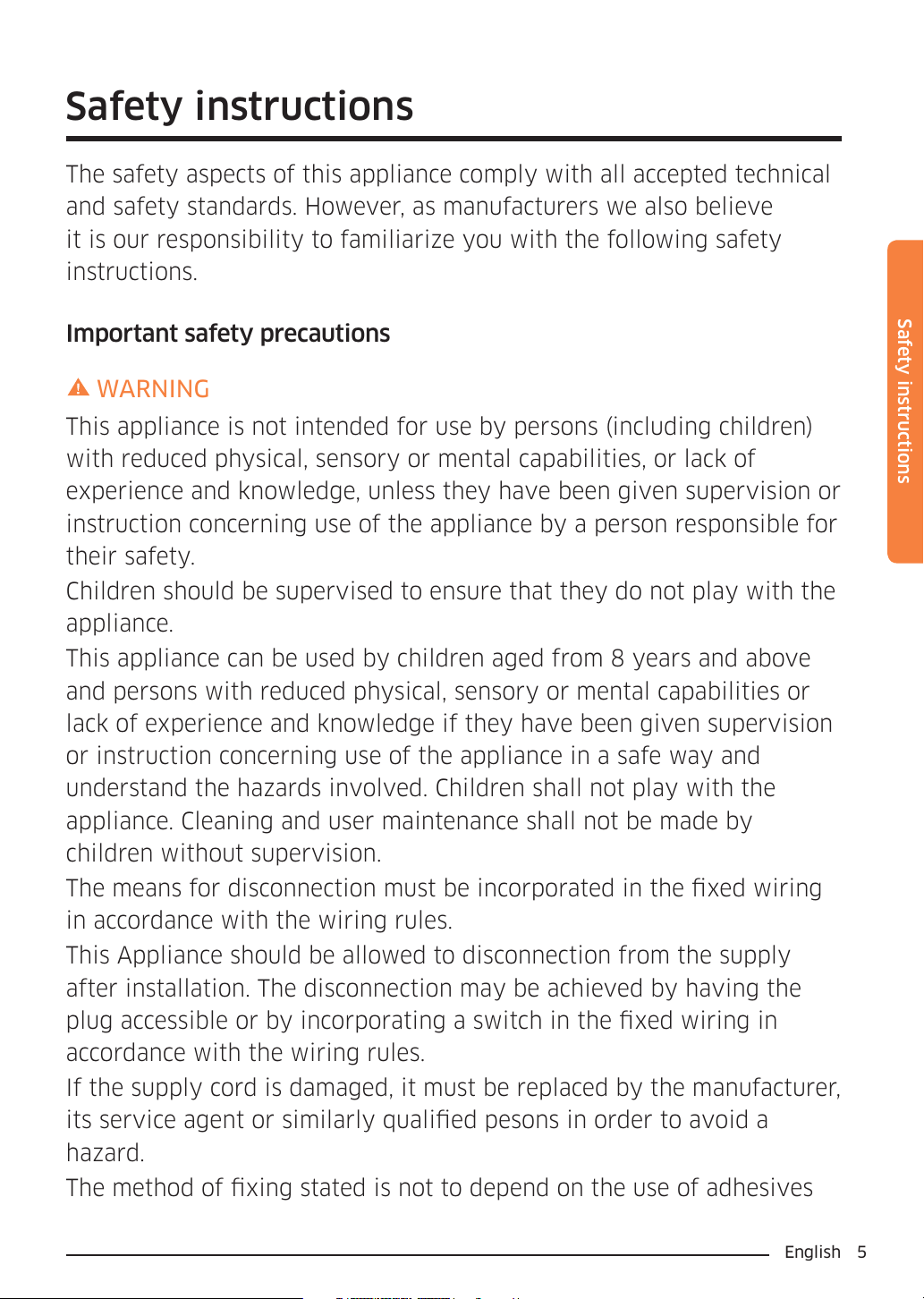

Safety instructions
Safety instructions
The safety aspects of this appliance comply with all accepted technical
and safety standards. However, as manufacturers we also believe
it is our responsibility to familiarize you with the following safety
instructions.
Important safety precautions
WARNING
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the
appliance.
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
The means for disconnection must be incorporated in the xed wiring
in accordance with the wiring rules.
This Appliance should be allowed to disconnection from the supply
after installation. The disconnection may be achieved by having the
plug accessible or by incorporating a switch in the xed wiring in
accordance with the wiring rules.
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied pesons in order to avoid a
hazard.
The method of xing stated is not to depend on the use of adhesives
All manuals and user guides at all-guides.com

6 English
Safety instructions
Safety instructions
since they are not considered to be a reliable xing means.

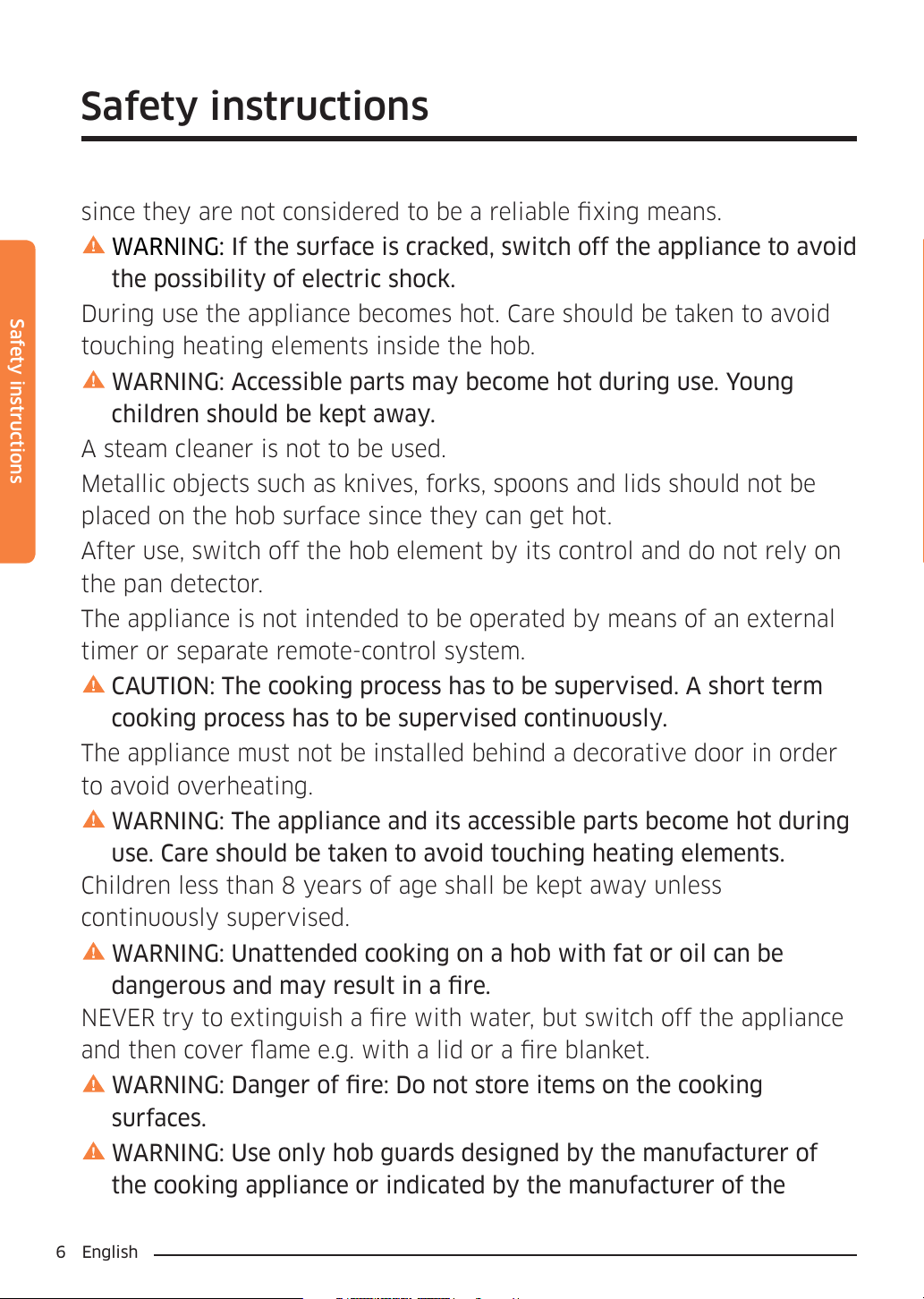

WARNING: If the surface is cracked, switch off the appliance to avoid
the possibility of electric shock.
During use the appliance becomes hot. Care should be taken to avoid
touching heating elements inside the hob.
WARNING: Accessible parts may become hot during use. Young
children should be kept away.
A steam cleaner is not to be used.
Metallic objects such as knives, forks, spoons and lids should not be
placed on the hob surface since they can get hot.
After use, switch off the hob element by its control and do not rely on
the pan detector.
The appliance is not intended to be operated by means of an external
timer or separate remote-control system.
CAUTION: The cooking process has to be supervised. A short term
cooking process has to be supervised continuously.
The appliance must not be installed behind a decorative door in order
to avoid overheating.
WARNING: The appliance and its accessible parts become hot during
use. Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless
continuously supervised.
WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in a re.
NEVER try to extinguish a re with water, but switch off the appliance
and then cover ame e.g. with a lid or a re blanket.
WARNING: Danger of re: Do not store items on the cooking
surfaces.
WARNING: Use only hob guards designed by the manufacturer of
the cooking appliance or indicated by the manufacturer of the
All manuals and user guides at all-guides.com

English 7
Safety instructions
appliance in the instructions for use as suitable or hob guards
incorporated in the appliance. The use of inappropriate guards can
cause accidents.
The surfaces are liable to get hot during use.
Cleaning and user maintenance shall not be made by children unless
they are older than 8 and supervised.
Keep the appliance and its cord out of reach of children less than 8
years.
CAUTION: Be sure the appliance is properly installed and grounded
by a qualied technician.
The appliance should be serviced only by qualied service personnel.
Repairs carried out by unqualied individuals may cause injury or
serious malfunction. If your appliance is in need of repair, contact your
local service centre. Failure to follow these instructions may result in
damage and void the warranty.
Flush - mounted appliances may be operated only after they have
been installed in cabinets and workplaces that conform to the relevant
standards. This ensures sufcient protection against contact for
electrical units as required by the essential safety standards.
If your appliance malfunctions or if fractures, cracks or splits appear:
• switchoffallcookingzones;
• disconnectthehobfromthemainssupply;and
• contactyourlocalservicecentre.
If the hob cracks, turn the appliance off to avoid the possibility of
electric shock. Do not use your hob until the glass surface has been
replaced.
Do not use the hob to heat aluminium foil, products wrapped in
aluminium foil or frozen foods packaged in aluminium cookware.
Liquid between the bottom of the pan and the hob can produce steam
pressure which may cause the pan to jump.
All manuals and user guides at all-guides.com

8 English
Safety instructions
Safety instructions
Always ensure that the hotplate and the base of the pan are kept dry.
The cooking zones will become hot when you cook.
Always keep small children away from the appliance.
Keep all packaging materials well out of the reach of children, as
packaging materials can be dangerous to children.
This appliance is to be used only for normal cooking and frying in the
home. It is not designed for commercial or industrial use.
Never use the hob for heating the room.
Take care when plugging electrical appliances into mains sockets near
the hob. Mains leads must not come into contact with the hob.
Overheated fat and oil can catch re quickly. Never leave surface units
unattended when preparing foods in fat or oil, for example, when
cooking chips.
Turn the cooking zones off after use.
Always keep the control panels clean and dry.
Never place combustible items on the hob, it may cause re.
There is the risk of burns from the appliance if used carelessly.
Cables from electrical appliances must not touch the hot surface of the
hob or hot cookware.
Do not use the hob to dry clothes.
Users with Pacemakers and Active Heart Implants must keep their
upper body at a minimum distance of 30cm from induction cooking
zones when turned on. If in doubt, you should consult the manufacturer
of your device or your doctor. (Induction hob model only)
Do not attempt to repair, disassemble, or modify the appliance
yourself.
Always turn the appliance off before cleaning.
Clean the hob in accordance with the cleaning and care instructions
contained in this manual.
All manuals and user guides at all-guides.com

English 9
Safety instructions
Keep pets away from the appliance because pets may step on the
controls of the appliance, causing an malfunction.
DISPOSING OF THE PACKAGING MATERIAL
WARNING
All materials used to package the appliance are fully recyclable.
Sheet and hard foam parts are appropriately marked. Please dispose of
packaging materials and old appliances with due regard to safety and the
environment.
PROPER DISPOSAL OF YOUR OLD APPLIANCE
WARNING
Before disposing of your old appliance, make it inoperable so that
it cannot be a source of danger. To do this, have a qualied technician
disconnect the appliance from the mains supply and remove the mains
lead.
The appliance may not be disposed of in the household rubbish.
Information about collection dates and public refuse disposal sites is
available from your local refuse department or council.
All manuals and user guides at all-guides.com

10 English
Safety instructions
Installation
Safety instructions
CE Declaration of conformity
We declare that our products meet the applicable European Directives,
Decisions and Regulations and the requirements listed in the standards
referenced.
This appliance has been designed to be used only for home cooking. Any other
use (such as heating a room) is improper and dangerous.
The operating instructions apply to several models. You may notice differences between
these instructions and your model.
Disposal of your old machine
This symbol on the product or on its packaging indicates that this product should
not be treated as household waste. Instead it should be handed over to the
applicable collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local city ofce, your
household waste disposal service or the retailer who you purchased this product from.
All manuals and user guides at all-guides.com

English 11
Safety instructions
Installation
Installation

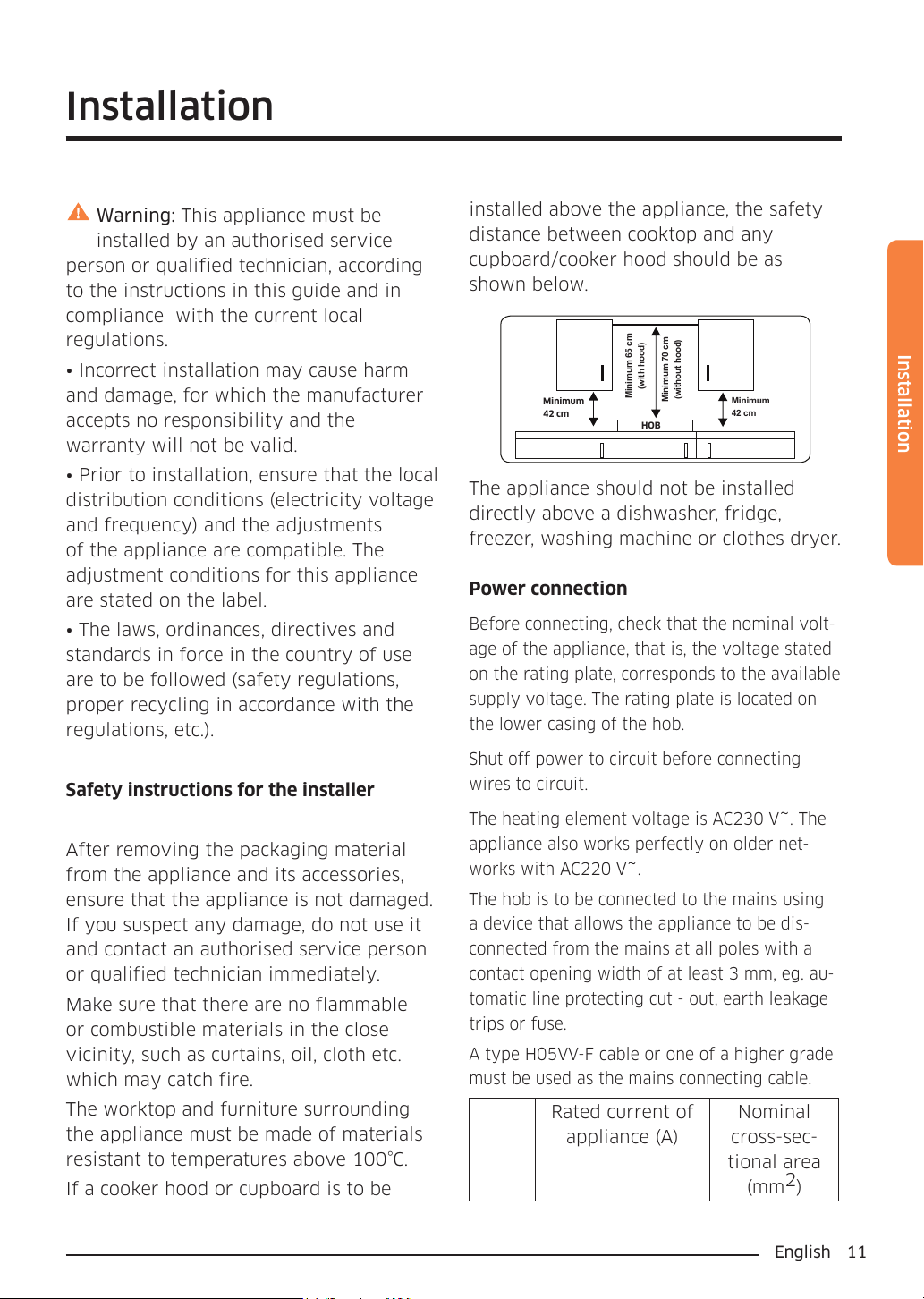

Warning: This appliance must be
installed by an authorised service
person or qualified technician, according
to the instructions in this guide and in
compliance with the current local
regulations.
•Incorrectinstallationmaycauseharm
and damage, for which the manufacturer
accepts no responsibility and the
warranty will not be valid.
•Priortoinstallation,ensurethatthelocal
distribution conditions (electricity voltage
and frequency) and the adjustments
of the appliance are compatible. The
adjustment conditions for this appliance
are stated on the label.
•Thelaws,ordinances,directivesand
standards in force in the country of use
are to be followed (safety regulations,
proper recycling in accordance with the
regulations, etc.).
Safety instructions for the installer
After removing the packaging material
from the appliance and its accessories,
ensure that the appliance is not damaged.
If you suspect any damage, do not use it
and contact an authorised service person
or qualified technician immediately.
Make sure that there are no flammable
or combustible materials in the close
vicinity, such as curtains, oil, cloth etc.
which may catch fire.
The worktop and furniture surrounding
the appliance must be made of materials
resistant to temperatures above 100°C.
If a cooker hood or cupboard is to be
installed above the appliance, the safety
distance between cooktop and any
cupboard/cooker hood should be as
shown below.
HOB
Mnmum
42 cm
Minimum
42 cm
Minimum 65 cm
(with hood)
Minimum 70 cm
(without hood)
The appliance should not be installed
directly above a dishwasher, fridge,
freezer, washing machine or clothes dryer.
Power connection
Before connecting, check that the nominal volt-
age of the appliance, that is, the voltage stated
on the rating plate, corresponds to the available
supply voltage. The rating plate is located on
the lower casing of the hob.
Shut off power to circuit before connecting
wires to circuit.
The heating element voltage is AC230 V~. The
appliance also works perfectly on older net-
works with AC220 V~.
The hob is to be connected to the mains using
a device that allows the appliance to be dis-
connected from the mains at all poles with a
contact opening width of at least 3 mm, eg. au-
tomatic line protecting cut - out, earth leakage
trips or fuse.
A type H05VV-F cable or one of a higher grade
must be used as the mains connecting cable.
Rated current of
appliance (A)
Nominal
cross-sec-
tional area
(mm2)
All manuals and user guides at all-guides.com

12 English
Safety instructionsInstallation
Installation

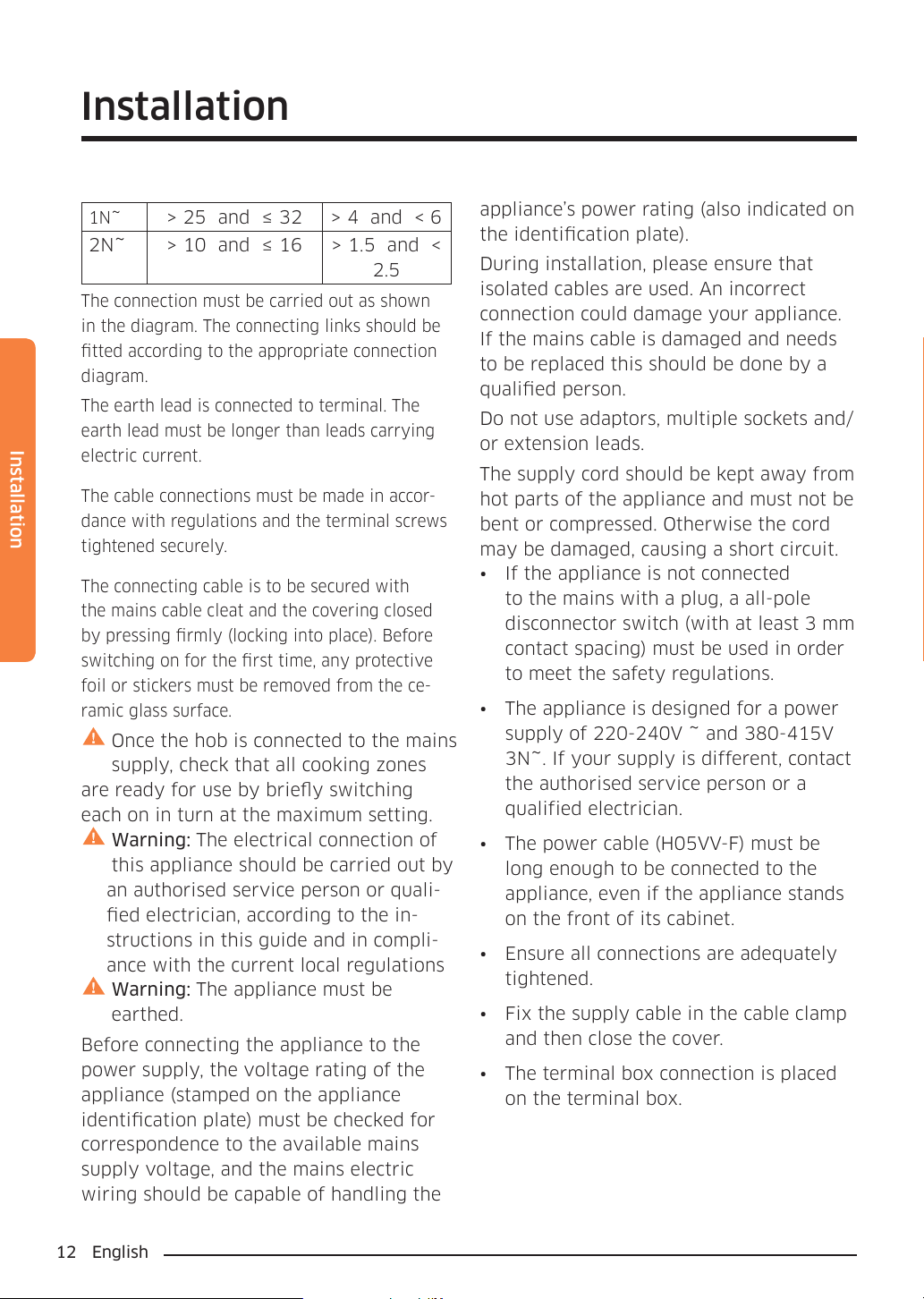

1N~ > 25 and ≤ 32 > 4 and < 6
2N~ > 10 and ≤ 16 > 1.5 and <
2.5
The connection must be carried out as shown
in the diagram. The connecting links should be
tted according to the appropriate connection
diagram.
The earth lead is connected to terminal. The
earth lead must be longer than leads carrying
electric current.
The cable connections must be made in accor-
dance with regulations and the terminal screws
tightened securely.
The connecting cable is to be secured with
the mains cable cleat and the covering closed
by pressing rmly (locking into place). Before
switching on for the rst time, any protective
foil or stickers must be removed from the ce-
ramic glass surface.
Once the hob is connected to the mains
supply, check that all cooking zones
are ready for use by briey switching
each on in turn at the maximum setting.
Warning: The electrical connection of
this appliance should be carried out by
an authorised service person or quali-
ed electrician, according to the in-
structions in this guide and in compli-
ance with the current local regulations
Warning: The appliance must be
earthed.
Before connecting the appliance to the
power supply, the voltage rating of the
appliance (stamped on the appliance
identication plate) must be checked for
correspondence to the available mains
supply voltage, and the mains electric
wiring should be capable of handling the
appliance’s power rating (also indicated on
the identication plate).
During installation, please ensure that
isolated cables are used. An incorrect
connection could damage your appliance.
If the mains cable is damaged and needs
to be replaced this should be done by a
qualied person.
Do not use adaptors, multiple sockets and/
or extension leads.
The supply cord should be kept away from
hot parts of the appliance and must not be
bent or compressed. Otherwise the cord
may be damaged, causing a short circuit.
• If the appliance is not connected
to the mains with a plug, a all-pole
disconnector switch (with at least 3 mm
contact spacing) must be used in order
to meet the safety regulations.
• The appliance is designed for a power
supply of 220-240V ~ and 380-415V
3N~. If your supply is different, contact
the authorised service person or a
qualified electrician.
• The power cable (H05VV-F) must be
long enough to be connected to the
appliance, even if the appliance stands
on the front of its cabinet.
• Ensure all connections are adequately
tightened.
• Fix the supply cable in the cable clamp
and then close the cover.
• The terminal box connection is placed
on the terminal box.
All manuals and user guides at all-guides.com

English 13
Safety instructions
Installation
44
NNPE
PE
L2
L3 L1 L
5 5
33
22 11

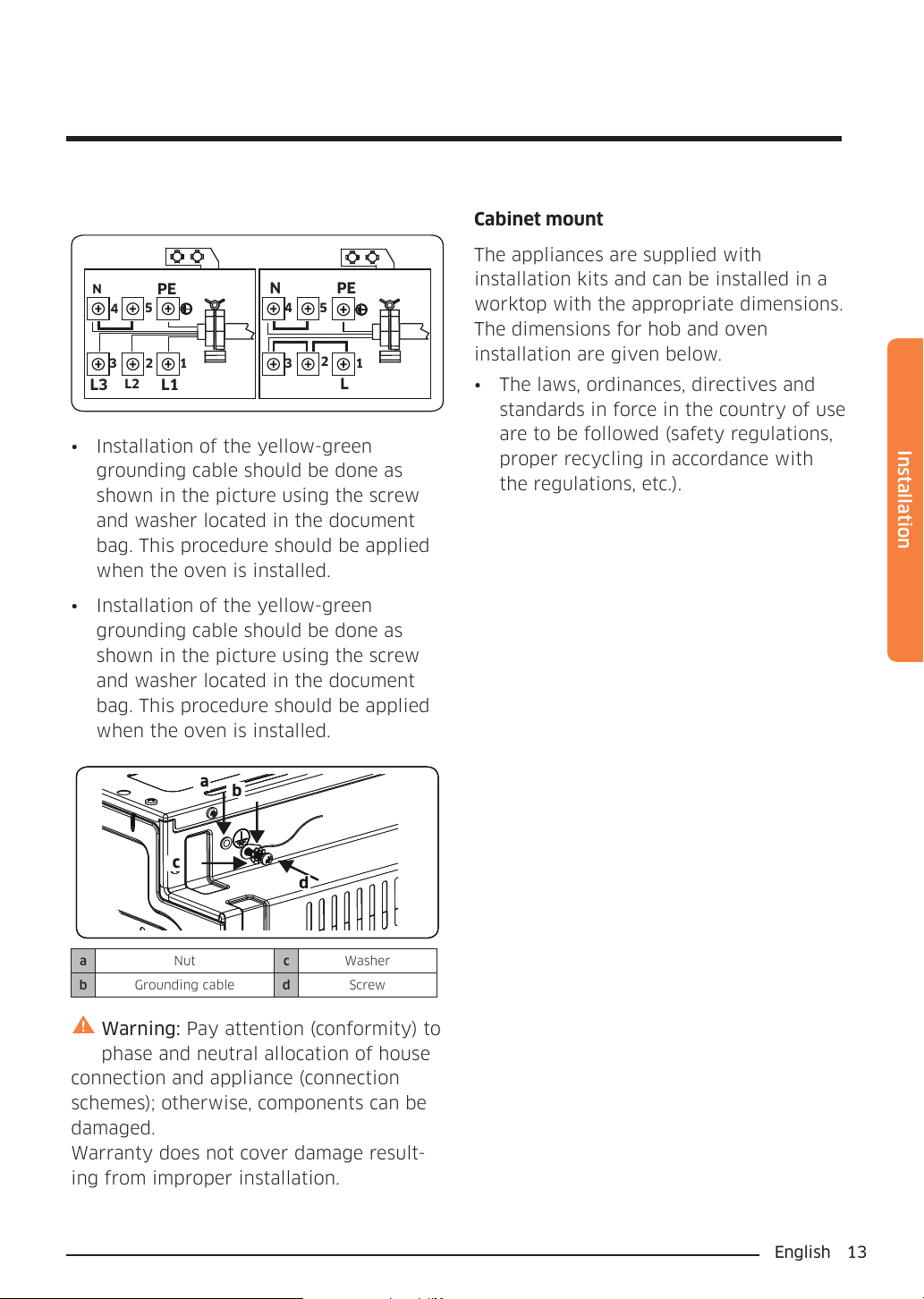

• Installation of the yellow-green
grounding cable should be done as
shown in the picture using the screw
and washer located in the document
bag. This procedure should be applied
when the oven is installed.
• Installation of the yellow-green
grounding cable should be done as
shown in the picture using the screw
and washer located in the document
bag. This procedure should be applied
when the oven is installed.
aNut cWasher
bGrounding cable dScrew
Warning: Pay attention (conformity) to
phase and neutral allocation of house
connection and appliance (connection
schemes);otherwise,componentscanbe
damaged.
Warranty does not cover damage result-
ing from improper installation.
Cabinet mount
The appliances are supplied with
installation kits and can be installed in a
worktop with the appropriate dimensions.
The dimensions for hob and oven
installation are given below.
• The laws, ordinances, directives and
standards in force in the country of use
are to be followed (safety regulations,
proper recycling in accordance with
the regulations, etc.).
All manuals and user guides at all-guides.com

14 English
Safety instructions
Installation
Installation
B1
C1
I2
H2
G2
F2
D1
G1
E1
A2
F1
B2
C2
C2
D2
E2
J2
A1

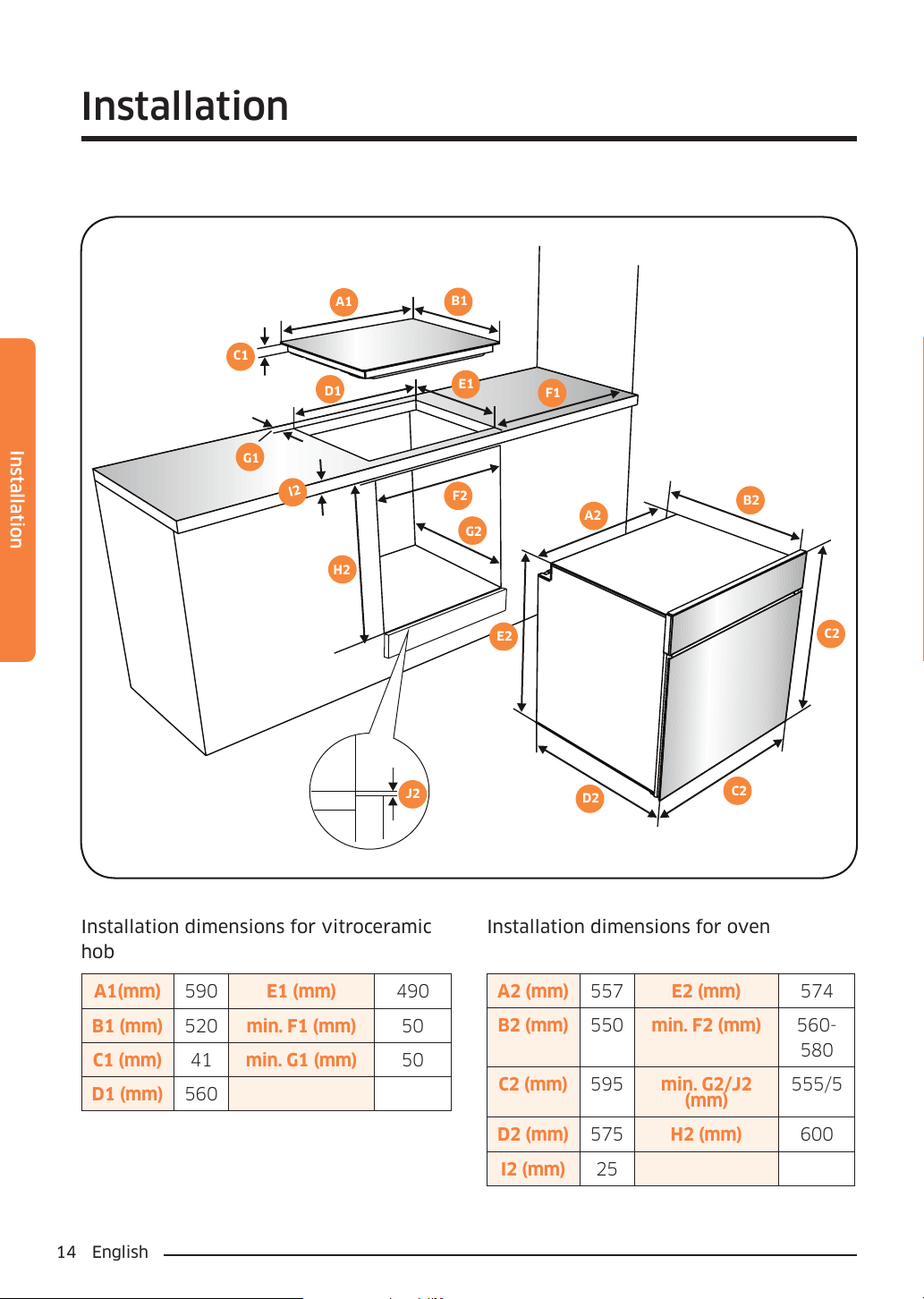

Installation dimensions for vitroceramic
hob
A1(mm) 590 E1 (mm) 490
B1 (mm) 520 min. F1 (mm) 50
C1 (mm) 41 min. G1 (mm) 50
D1 (mm) 560
A2 (mm) 557 E2 (mm) 574
B2 (mm) 550 min. F2 (mm) 560-
580
C2 (mm) 595 min. G2/J2
(mm) 555/5
D2 (mm) 575 H2 (mm) 600
I2 (mm) 25
Installation dimensions for oven
All manuals and user guides at all-guides.com

English 15
Safety instructions
Installation
The thickness of the worktop, the
distances between the hob and the
oven must be as shown in the gures
for air circulation.
min. K (mm) 25 min. M (mm) 49
min. L (mm) 5
• First, Screw the 8 worktop mounting brackets on to the
side walls of the appliance.
Warning:
Please hold the bracket while fastening the screws.
Before the Installation of the appliance;
All manuals and user guides at all-guides.com

16 English
Safety instructions
Installation
Installation
Installation
• Apply the supplied one-sided self-adhesive sealing
tape all the way around the lower edge of the cooktop.
Do not stretch it.
Be careful not to overlap the mounting bracket over the
sealing tape.
Warning
All manuals and user guides at all-guides.com

English 17
Safety instructionsParts and Features

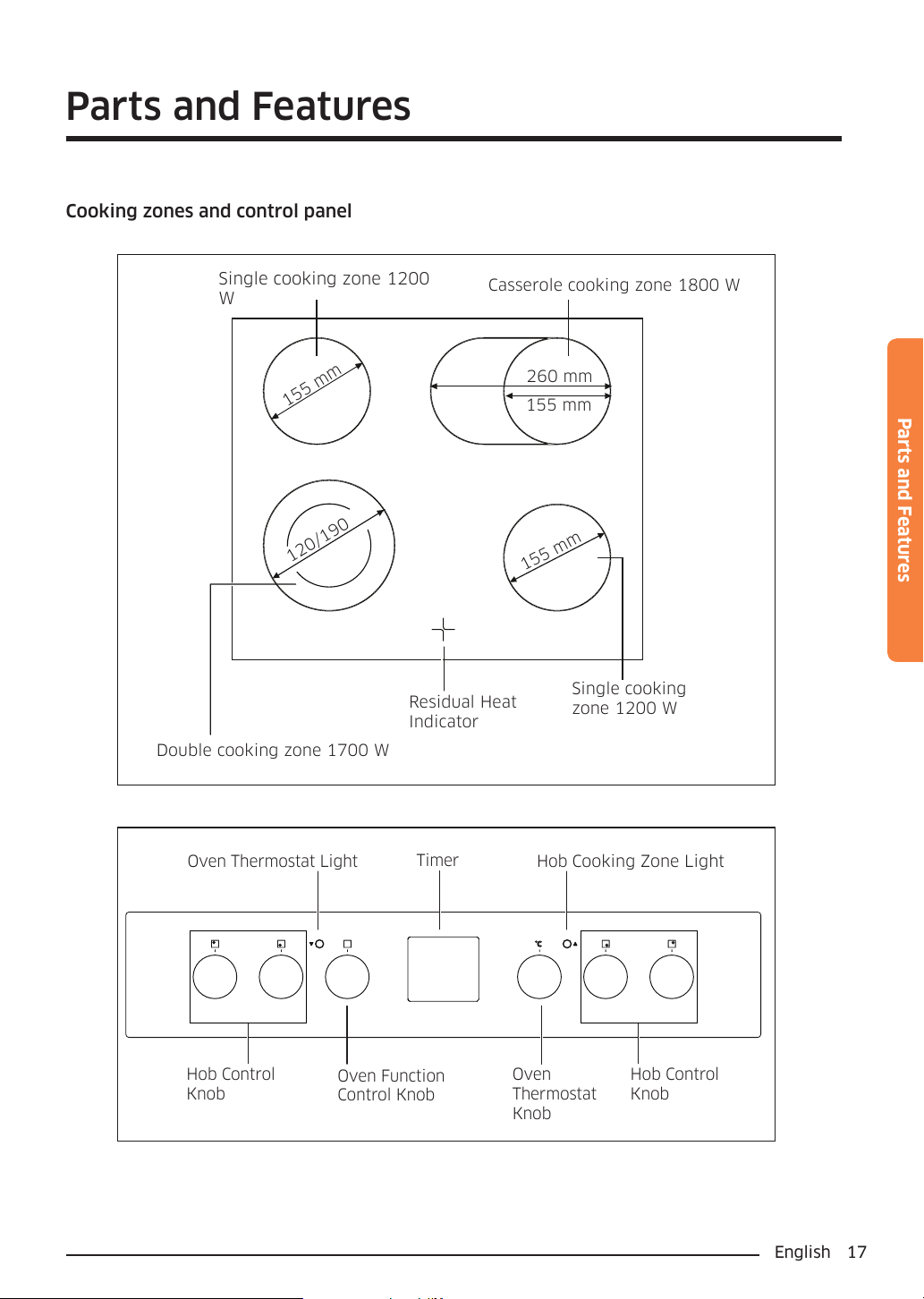

Cooking zones and control panel
Hob Control
Knob
Hob Control
Knob
Hob
Cooking Zone Light
Timer
Oven
Thermostat
Knob
Oven Thermostat Light
Oven Function
Control Knob
Single cooking zone 1200
W
155 mm
155 mm
Casserole cooking zone 1800 W
260 mm
155 mm
Single cooking
zone 1200 W
Residual Heat
Indicator
Double cooking zone 1700 W
120/190
Parts and Features
All manuals and user guides at all-guides.com

18 English
Safety instructions
Parts and Features
What’s included
Ceramic Glass Hob Self-adhesive
sealing tape
Mounting Bracket (4+4 )
ST3,5 x L9,5
Mounting Bracket
Screw (8)
User and Installation
Manual
The key features of your appliance
•Ceramicglasscookingsurface:Theappliancehasaceramicglasscookingsurfaceand
four rapid - response cooking zones. The hob’s powerful radiant heater elements sig-
nicantly shorten the amount of time required for the zones to heat up.
•Easycleaning:Theadvantageoftheceramicglasscookingsurfaceandthecontrol
sensors is their accessibility for cleaning. The smooth, at surface is easy to clean.
•Residualheatindicator:Aniconforresidualheatappearsinthedisplayifthecooking
zone is so hot that there is a risk of burning.
•Doublecookingzone:Thecookingsurfacefeaturesadoublecookingzone.Thispro-
vides the appliance with a cooking zone of variable size, for instance, for when cook-
ing with smaller cookware. This allows savings in energy.
•Multipurposecookingzone:Thehobisequippedwithamultipurpose/casserolecook-
ing zone. Depending on the setting, it can be used as a round or oval cooking zone, for
example, for when cooking with oval casseroles or for keeping dishes or food warm.
IMPORTANT: Your appliance is operated using the knobs located on the control panel
of the built in oven.
Parts and Features (Continued)
All manuals and user guides at all-guides.com

English 19
Safety instructions
Parts and Features

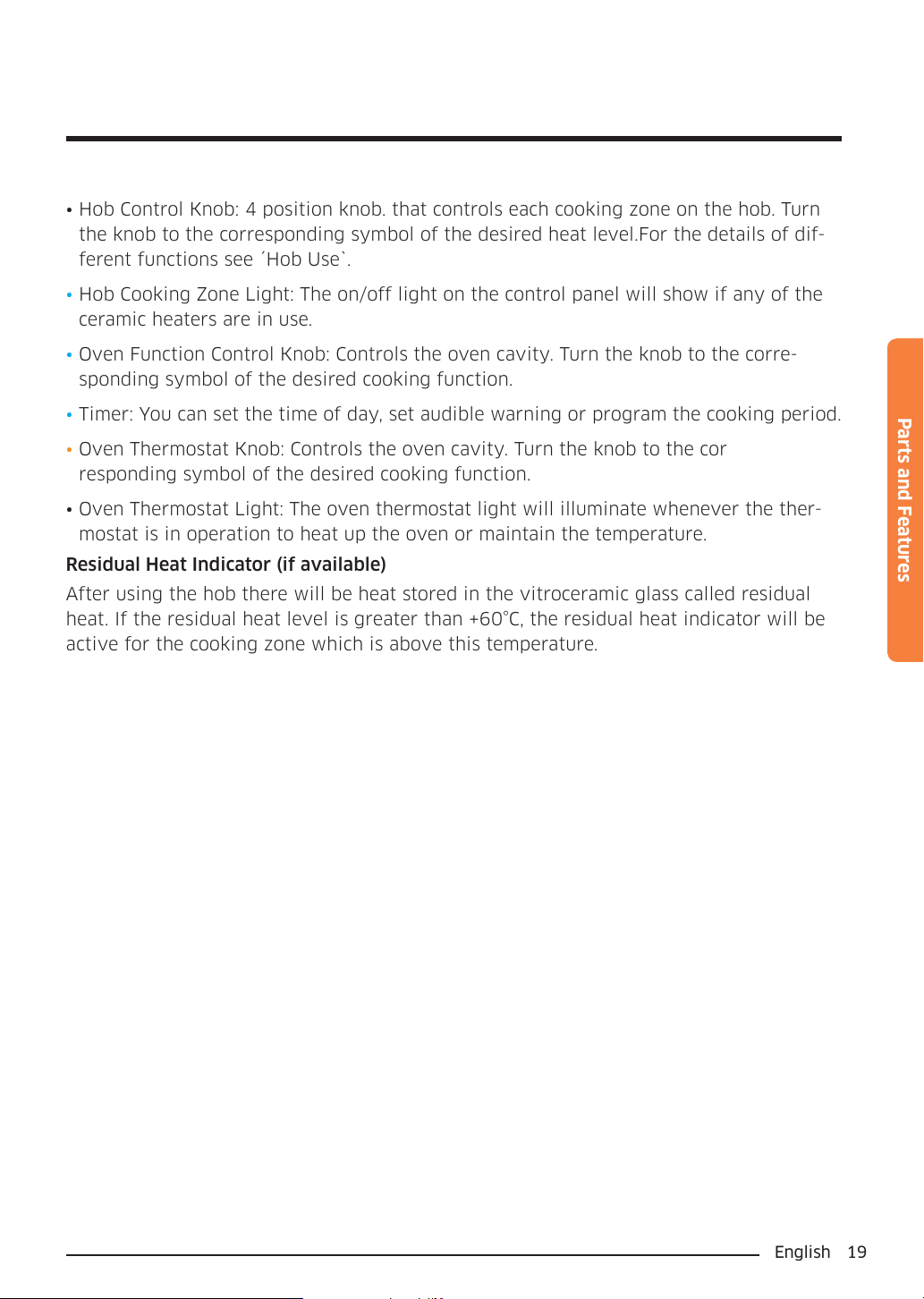

•HobControlKnob:4positionknob.thatcontrolseachcookingzoneonthehob.Turn
the knob to the corresponding symbol of the desired heat level.For the details of dif-
ferent functions see ´Hob Use`.
•Hob Cooking Zone Light: The on/off light on the control panel will show if any of the
ceramic heaters are in use.
•Oven Function Control Knob: Controls the oven cavity. Turn the knob to the corre-
sponding symbol of the desired cooking function.
•Timer: You can set the time of day, set audible warning or program the cooking period.
•Oven Thermostat Knob: Controls the oven cavity. Turn the knob to the cor
responding symbol of the desired cooking function.
•OvenThermostatLight:Theoventhermostatlightwillilluminatewheneverthether-
mostat is in operation to heat up the oven or maintain the temperature.
Residual Heat Indicator (if available)
After using the hob there will be heat stored in the vitroceramic glass called residual
heat. If the residual heat level is greater than +60°C, the residual heat indicator will be
active for the cooking zone which is above this temperature.
All manuals and user guides at all-guides.com

20 English
Before you start
Before you start
Initial cleaning
Wipe the ceramic glass surface with a damp cloth and ceramic cooktop glass cleaner.
Important: Do not use caustic or abrasive cleaners. The surface could be damaged.
Hob Use
Using suitable cookware
Better pans produce better results.
•Youcanrecognisegoodpansbytheirbases.Thebaseshouldbeasthickandatas
possible.
•Whenbuyingnewpans,payparticularattentiontothediameterofthebase.Manufac-
turers often give only the diameter of the upper rim.
•Potswithaluminiumorcopperbasescancausemetallicdiscolourationontheceramic
glass surface. The discolouration is very difcult or impossible to remove.
•Donotusepansmadeofcastironorwhichhavedamagedbaseswithroughedgesor
burrs. Permanent scratching can occur if these pan are slid across the surface.
•Whencold,panbasesarenormallybowedslightlyinwards(concave).Theyshould
never be bowed outwards (convex).
•Ifyouwishtouseaspecialtypeofpan,forexample,apressurecooker,asimmering
pan, or a wok, please observe the manufacturer’s instructions.
Energy saving tips
You can save valuable energy by observing the following points.
Right!
Wrong!
All manuals and user guides at all-guides.com
