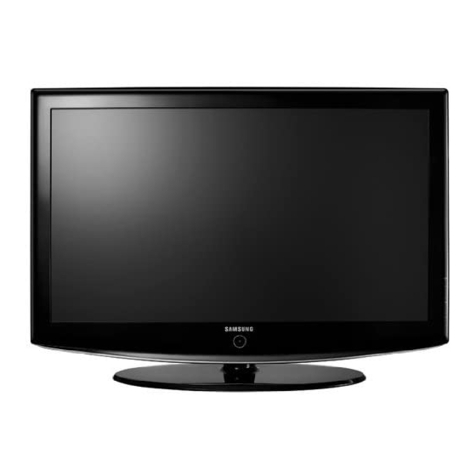

Samsung 3 SERIES User manual

imagine the possibilities
Thank you for purchasing aSamsung product.
To receive amore complete service, please
register your product at
www.samsung.com/global/register
Model Serial No. _

[--Important
Warranty I'nformation Regarding Television Format Viewing I
'---- -------------~
Wide screen format LCD Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide screen format
full-motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen
if your model offers this feature and the images are constantly moving. Displaying stationary graphics and images on screen, such as
the dark side-bars on nonexpanded standard format television video and programming, should be limited to no more than 5% of the total
television viewing per week
Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or
computer graphics and pallerns, should be limited as described above for all televisions. Displaying stationary images that exceed the
above guidelines can cause uneven aging of LCD Displays that leave subtle, but permanent burned-in ghost images in the LCD picture. To
avoid this, vary the programming and images, and primarily display full screen moving images, not stationary pallerns or dark bars.
On LCD models that offer picture sizing features, use these controls to view different formats as a full screen picture.
Be careful in the selection and duration of television formats used for viewing, Uneven LCD aging as a result of format selection and use,
as well as burned-in images, are not covered by your Samsung limited warranty.
U.S.A Only
The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. In particular,
this product is licensed under the following US patents 5,991,715, 5,740,317, 4,972,484, 5,214,678, 5,323,396, 5,539,829, 5,606,618,
5,530,655 5,777,992,6,289,308,5,610,985,5,481,643, 5,544,247, 5,960,037, 6,023,490, 5,878,080, and under US Published Patent
Application No. 2001-44713-A1
ThiS license is limited to private non-commercial use by end-user consumers for licensed contents No rights are granted for commercial
use, The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product
unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only
covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/lEG 13818-3 No rights
are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3,
Other countries
r The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties This license is
limited to private non-commercial use by end-user consumers for licensed contents, No rights are granted for commercial use, The license
does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process
conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of
this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3 No rights are granted under
this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3,
I
SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT
Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung Electronics
(SAMSUNG) products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide
Warranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased
in the United States, for the warranty period originally specified, and to the Original Purchaser only.
The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original
Limited Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and from
the Service Center is the responsibility of the purchaser,
Conditions covered are limited only to manufacturing defects in material or workmanship, and only those encountered in normal use of the
product.
Excluded, but not limited to, are any originally specified provisions for, in-home or on-site services, minimum or maximum repair times,
exchanges or replacements, accessories, options, upgrades, or consumables,
For the location of a SAMSUNG Authorized Service Center, please call toll-free:
In the United States: 1-800-SAMSUNG (1-800-726-7864)
In Canada: 1-800-SAMSUNG
:-- See the warranty card for more information on warranty terms,
Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and
center of the screen caused by the difference of light emission on the screen.
Playing a DVD or a game console may cause asimilar effect to the screen,
Damages caused by the above effect are not covered by the Warranty .
• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.
To prevent this effect. reduce the 'brightness' and 'contrast' when displaying still images.
Precautions When Displaying a Still Image
A still image may cause permanent damage to the TV screen
• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also
known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still
image.
.~
© 2008 Samsung Electronics Co, Ltd. All rights reserved.

Contents
GENERAL INFORMATION
• List of Features 2
• Accessories 2
• Viewing the Control Panel 3
• Viewing the Connection Panel 4
• Remote Control 5
• Installing Batteries in the Remote Control 6
CONNECTIONS
• Connecting VHF and UHF Antennas 6
• Connecting Cable TV 7
•
Connecting a DVD Player or Cable Box/Satellite receiver
(Set-Top Box) via HDMI. : : 8
• Connecting a DVD Player or Cable Box/Satellite receiver
(Set-Top Box) via DVI 8
• Connecting a DVD Player or Cable Box/Satellite receiver
(Set-Top Box) via Component cables 9
• Connecting a Camcorder 9
• Connecting a VCR. 10
• Connecting a Digital Audio System 11
• Connecting an AmplifierlDVD Home Theater 11
• Connecting a PC 12
,OPERATION
• Turning the TV On and Off 13
• Plug & Play Feature 13
• Changing Channels 14
• Adjusting the Volume 15
• Viewing the Display 15
• Viewing the Menus 15
• Using the TOOLS Button 16
• Memorizing the Channels... 16
• To Select the Source 18
• To Edit the Input Source Name 18
PICTURE CONTROL
• Changing the Picture Standard 19
• Customizing the Picture Settings 19
• Configuring Picture Options 20
• Resetting the Picture Settings to the Factory Defaults 23
SOUND CONTROL
• Changing the Sound Standard 24
• Customizing the Sound 24
• Setting the TruSurround XL 25
• Choosing a Multi-Channel Sound (MTS) track - Digital 25
• Choosing a Multi-Channel Sound (MTS) track - Analog 26
• Automatic Volume Control. 26
• Selling the TV Speakers On/Off 27
• Connecting Headphones (Sold separately) 27
CHANNEL CONTROL
PC DISPLAY
• Using Your TV as a Computer (PC) Display 34
• Display Modes 34
• Setting up the TV with your PC 35
TIME SETTING
• Setting the Clock 37
FUNCTION DESCRIPTION
• Selecting a Menu Language 40
• Using the V-Chip 41
• Viewing Closed Captions (On-Screen Text Messages)
-Analog 48
• Viewing Closed Captions (On-Screen Text Messages)
- Digital 49
• Adjusting the TV On/Off Melody Sound 50
• Using the Energy Saving Feature 50
• Upgrading the Software 51
APPENDIX
• Troubleshooting 52
• Installing the Stand 54
• Disconnecting the Stand 54
• Wall Mount Kit Specifications (VESA) 55
• Using the Anti-Theft Kensington Lock 56
• Specifications 57
• Clearing Scrambled Channels - Digital 28
• Adding and Erasing Channels 29
• To Set-Up Your Favorite Channels 30
• Viewing the Channel ists 31
• Labeling Channels 32
• Fine Tuning Analog Channels 33
• Checking the Digital-Signal Strength 33
Symbol
-
Press Note
One-Touch
Button

General Information
'.',. • AAutom~tilc timer to turn the TV on and off.
•specla
sleep timer.
•Excellent Digital Interface &
Networking:
With abuilt-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Cable Box/Satellite receiver
(Set-Top Box) needed.
•
HDMI/DVI connection of your PC to this TV.
•Excellent Picture Quality
•
SRS TruSurround XT
- SRS TruSurround XT provides avirtual surround system.
I,
' .. Accessories
Please make sure the following items are included with your LCD TV.
If any items are missing, contact your dealer.
:;1
I I
i \
i
,--..!
I~~::j
l-:-j
Remote Control &Batteries (AAA x 2)
(BN59-00678A)
Power Cord
(3903-000144)
Cleaning Cloth
(BN63-01798A) Owner's Instructions
Stand
(BN96-04745A)
Warranty Card / Registration Card /
Safety Guide Manual
(Not available in all locations)
>- The items color and shape may vary depending on the model.
Stand Screw(M4XL 16)
(6002-001294) Cover-Bottom
(BN63-03176A)
---------

I,,
'." Viewing the Control Panel
Buttons on the Lower-Right Part of the Panel
The buttons on the lower-right panel control your TV's basic features, including the on-screen menu.
To use the more advanced features, you must use the remote control.
10
~o
~~
~
~~
U'C
UN5
.)
~
~
"":>,
0
4.~
0
>- The product color and shape may vary depending on the model.
o
@
o
oSOURCE G'
Toggles between all the available input sources
(TV, AV, S-Video, Component, PC, HOMI).
In the on-screen menu, use this button as you would
use the ENTER CBJ button on the remote control.
f) MENU
Press to see an on-screen menu of your TV's features.
0- VOL +
Press to increase or decrease the volume.
In the on-screen menu, use the - VOL +buttons.
o VCHA
Press to change channels.
In the on-screen menu, use the v CH Abuttons.
9SPEAKERS
o C> (POWER)
Press to turn the TV on and off.
POWER INDICATOR
Blinks and turns off when the power is on and
lights up in stand-by mode.
REMOTE CONTROL SENSOR
Aim the remote control towards this spot on the TV,

I
·. u~:~~~~~~~a:~::~occ~~: ~::~n.nffi 'ha' wm be connectod conti""o"'y, ,uch " DVD p'ay." ma VCR
.For more information on connecting equipment, see pages 6-12.
,--------------------------------------------------------------------------------------------------------,
.",. The product color and shape may vary depending on the model.
oAUDIO OUT
Connects to the audio input jacks on your Amplifierl
Home theater.
f) DIGITAL AUDIO OUT (OPTICAL)
Connects to aDigital Audio component.
ePC IN [PC] I[AUDIO]
Connects to the video and audio output jacks on your
PC.
eHDMI/DVI IN I DVIIN [R-AUDIO-L]
Connects
to the HDMI jack of adevice with an HOMI
output.
Use the HOMI/DVI
IN jack for OVI connection to an
external device.
Use aDVI to HOMI cable
or DVI-HOMI adapter (DVI to
HOMI) for video connection and the
OVI IN [R-AUDIO-L]
jacks for audio.
-
No sound connection is needed for an HOMI to HOMI
connection.
- When using an HOMI/OVI cable connection, you must use
the HOMIIOVI IN jack.
oSERVICE, EX-LINK
Connector for SERVICE only.
oANT IN
Connects to an antenna or cable TV system.
f) KENSINGTON LOCK
The Kensington Lock (optional) is adevice used to
physically fix the system when used
in apublic place.
If you want to use alocking device, contact the dealer
where you purchased the
TV.
.",. The location of the Kensington Lock may be different
depending on its model.
o0(HEADPHONE)
Connects aset
of external headphones for private
listening.
0AVIN
Video and audio inputs for external devices, such as a
camcorder
or VCR.
S-VIDEO
Connects an S-Video signal from acamcorder or VCR.
G) COMPONENT
IN
The COMPONENT IN jack is also used as the AV IN
jack.
6) POWER INPUT
Connects the supplied power cord.

SOURCE
TV
POWER
~ FAV.CH
Press to switch to your favorite
channels.
(D EXIT
Press to exit the menu.
~ P.SIZE
Picture size selection.
0SRS
Selects SRS TruSurround XT
mode.
CD PRE-CH
Tunes to the previous channel.
@ CH0)/CH@
Press to change channels.
~ RETURN
Returns to the previous menu.
G) SOURCE
Press to display and select the
available video sources.
o MTS
Press to choose stereo, mono
or Separate Audio Program
(SAP broadcast).
ID MENU
Displays the main on-screen
menu.
o VOL(±) / VOLe
Press to increase or decrease
the volume.
oUP,;. /DOWNT /LEFT .... /
RIGHT~ /ENTERG'
Use to select on-screen menu
items and change menu values.
oINFO
Press to display information on
the
TV screen.
0) COLOR BUTTONS
Use these buttons in the
Channel list, etc.
eTV
Selects the TV mode directly.
f) NUMERIC BUTTONS
Press to change the channel.
'9cc
Controls the caption decoder.
8e
Press to select additional
channels(digital) being broadcast
by the same station. For example,
to select channel "54-3", press
"54", then press "8" and "3".
o««MUTE)
Press to temporarily cut off the
sound.
8TOOLS
Use to quickly select frequently
used functions.
I
Remote Control
. You can use the remote control up to adistance ofabout 23 feet from the TV.
oPOWER
Turns the TV on and off.
»The performance of the remote control may be affected by bright light.

:> If the remote control doesn't work, check the following:
1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power outage or is the power cord unplugged?
5. Is there a special fluorescent light or neon sign nearby?
~
----------------------------------
, 2·.
Install two AM size batteries.
:> Make sure to match the "+" and "-" ends of the batteries with the diagram inside the compartment.
3. Replace the cover.
:> Remove the batteries and store them in a cool, dry place if you won't be using the remote control for a
long time.
The remote control can be used up to about 23 feet from the TV.
(Assuming typical TV usage, the batteries should last for about one year.)
Connections
I
Connecting VHF and UHF Antennas
',. If your antenna has a set of leads that look like the diagram to the right, see "Antennas with
300 0 Flat Twin Leads" below.
If your antenna has one lead that looks like the diagram to the right, see "Antennas with 75
o Round Leads".
If you have two antennas, see "Separate VHF and UHF Antennas".
-.. ~
o
r==='7"=i( ~
~
Antennas with 300 0Flat Twin Leads
If
you are using an off-air antenna (such as a roof antenna or "rabbit ears") that has 300 0 twin flat leads, follow the directions
below.
1. Place the wires from the twin leads under the screws on a300-75 0adapter
(not supplied).
Use ascrewdriver to tighten the screws.
2. Plug the adaptor into the ANT IN terminal on the back of the TV.
Antennas with 75 0Round Leads
1. Plug the antenna lead into the ANT IN terminal on the back of the TV.
Separate VHF and UHF Antennas
If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before
connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).
1. Connect both antenna leads to the combiner.
2. Plug the combiner into the ANT IN terminal on the bottom of the rear panel.

I
Connecting Cable TV
, To connect to a cable TV system, follow the instructions below.
Cable without a Cable Box
1. Plug the incoming cable into the ANT IN terminal on the back of the TV.
"> Because this TV is cable-ready, you do not need a cable box to view unscrambled cable channels.
Connecting to a Cable Box that Descrambles All Channels
1. Find the cable that is connected to the ANT OUT terminal on your cable box.
"> This terminal might be labeled "ANT OUT", "VHF OUT" or simply, "OUT".
2. Connect the other end of this cable to the ANT IN terminal on the back of the TV.
ANTIN
ANT OUT
Connecting to a Cable Box that Descrambles Some Channels
-----t!c!! -.{]P
cable ~
2. Connect this cable to atwo-way splitter.
If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a two-
way splitter, an RF (AlB) switch and four lengths of RF cable. (These items are available at most electronics stores.)
1. Find and disconnect the cable that is
connected to the ANT IN terminal on your
cable box.
"> This terminal might be labeled "ANT IN",
"VHF IN" or simply, "IN".
3. Connect an RF cable between the OUTPUT
terminal on the splitter and the IN terminal
on the cable box.
Incoming
cable
~
-
Cable Box
4. Connect an RF cable between the
ANT OUT terminal on the cable box and
the B-IN terminal on the RF(AlB) switch.
"'-I·n~·~·~·~ng--~IIlIJDS'-PI""'itte,}-r"-~J or~-N-CAiU--OU~] ~ ~~
Switch
Cable Box
5. Connect another cable between the other
OUT terminal on the splitter and the A-IN
terminal on the RF (AlB) switch.
Incoming
cable
---~II~! -----~Ia
S'-Pl ..... itt,£-er~~ I ~ '" UBl' au! ~ RF tAlB)
Switch
6. Connect the last RF cable between the
OUT terminal on the RF (AlB) switch and
the ANT IN terminal on the rear of the TV.
Incoming
cable
~
__ ANTIN
~
"CAe" ~ :1 -ooD! I-OID- @)
,-.;-'"'~., 0 TV Rear
Splitter RF (AlB)
Cable Box Switch
After you have made this connection, set the AlB switch to the "A" position for normal viewing. Set the AlB switch to the "B" position to
view scrambled channels. (When you set the AlB switch to "B", you will need to tune your TV to the cable box's output channel, which is
usually channel 3 or 4.)

l·'~ :.,
, -t~_·_"_·--,'
I.,,'
Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via HDMI
This connection can only be made if there is an HOMI Output connector on the external device.
1. Connect an HOMI Cable OVD
Player or Cable Box/Satellite receiver
between the HOMIIDVI IN jack (Set-Top Box) Rear Panel_. ~~ear !':~~ '
on the TV and the HOMI jack
on the OVO Player or Cable
Box/Satellite receiver (Set-Top
Box),
THOMI Cable
(Not supplied)
" f
r
>- What is HOMI?
HDMI(High-Definition Multimedia Interface), is an interface that enables the
transmission of digital audio and video signals using asingle cable.
•The difference between HDMI and DVI is that the HOMIdevice is smaller in
size and has the HDCP (High Bandwidth Digital Copy Protection) coding feature
installed.
~ Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has adifferent back
panel configuration.
Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via DVI
TV Rear Panel
ITI Audio Cable
.----. (Not supplied)
m OVI to HOMI Cable (Not supplied)
2. Connect Audio Cables
between the OVI IN
[R-AUOIO-L] jack on the TV
and the OVO Player or Cable
Box/Satellite receiver (Set-Top
Box),
This connection can only be made if there is a OVI Output connector on the external device,
1. Connect a OVI to HOMI Cable
or OVI-HOMI Adapter between
the HOMIIDVIIN jack on
the TV and the OVI jack on
the OVO Player or Cable ovo Player or Cable Boxl
Box/Satellite receiver (Set-Top Satellite receiver (Set-Top Box)
Box),
>Each OVD Player or Cable Box/Satellite receiver (Set-Top Box) has adifferent back
panel configuration.
>- When connecting aDVD Player or Cable Box/Satellite receiver (Set-Top Box), match
the color of the connection terminal to the cable.
>When using an HOMIIDVI cable connection, you must use the HDMIIDVI IN jack.

~ Audio Cable (Not supplied)
DVD Player or Cable Box /
Satellite receiver (Set-Top Box)
I
.. Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via Component cables
The rear panel jacks on your TV make it easy to connect aDVD Player or Cable Box/Satellite receiver (Set-Top Box) to your TV.
1. Connect aComponent Cable
between the COMPONENT
IN [PR, Ps, Y] jacks on the TV
and the COMPONENT
[Y, Ps,
PRJ jacks on the DVD Player
or Cable Box/Satellite receiver
(Set-Top Box).
2. Connect Audio Cables between
the COMPONENT
IN
[R-AUDIO-L] jacks on the TV
and the AUDIO OUT jacks
on the DVD Player or Cable
Box/Satellite receiver (Set-Top
Box).
II] Component Cable (Not supplied)
:> Component video separates the video into Y(Luminance (brightness)), Pb (Blue) and
Pr (Red) for enhanced video quality.
Be sure
to match the component video and audio connections.
For example, if connecting aComponent video cable to COMPONENT
IN, connect the
audio cable to COMPONENT
IN also.
:> Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has adifferent back panel
configuration.
:> When connecting aDVD Player or Cable Box/Satellite receiver (Set-Top Box), match the
color of the connection terminal
to the cable.
II] Video Cable (Not supplied)
rn Audio Cable (Not supplied)
or II] S-Video Cable (Not supplied)
Camcorder
I
',', 1C. onnecting a camco_rd_e_r --.
They allow you to view the camcorde~ tapes without using aVCR.
Connect aVideo Cable TV Rear Panel
(or S-Video Cable) between
the AV IN [VIDEO] (or
S-\IIDEO) jack on the TV
and the VIDEO OUT jack on
thE~ camcorder.
2. Connect Audio Cables
between the AV IN
[R·AUDIO-L]
jacks on the TV
and the AUDIO OUT jacks
on the camcorder.
:> Each Camcorder has adifferent back panel configuration.
:> When connecting aCamcorder, match the color of the connection terminal to the cable.

TV Rear Panel
00 Audio Cable (Not supplied)
00 RF Cable (Not supplied)
VCR Rear Panel
[!] Video Cable (Not supplied)
Follow the instructions in "Viewing a VCR or Camcorder Tape" to view your VCR tape.
:> Each VCR has adifferent back panel configuration.
:> When connecting a VCR, match the color of the connection terminal to the cable.
4. Connect a Video Cable
between the VIDEO OUT jack
on the VCR and the AV IN
[VIDEO] jack on the TV.
5. Connect Audio Cables
between the AUDIO OUT
jacks on the VCR and the
AV IN [R-AUDIO-L] jacks on
the TV
:> If you have a "mono"
(non-stereo) VCR, use a
Y-connector (not supplied)
to hook up to the right and
left audio input jacks of the
TV. If your VCRis stereo,
you must connect two
cables.
II V~:Qn :Q:~:~~~ a VCR
These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the
instructions on pages 6-7). Skip step 1 if you have not yet connected to an antenna or a cable system.
1. Unplug the cable or antenna
from the back of the TV.
2. Connect the cable or antenna to
the ANT IN terminal on the back
of the VCR.
3. Connect an RF Cable between
the ANT OUT terminal on the
VCR and the ANT IN terminal
on the TV.
5-Video Connection
Your Samsung TV can be connected to an S-Video jack on a VCR.
(This connection delivers a better picture when compared to the regular Video connection above.)
1. To begin, follow steps 1-3
in the previous section to
connect the antenna or
cable
to your VCR and your
TV
2. Connect an S-Video Cable
between the S-VIDEO OUT
jack
on the VCR and the
AV IN [S-VIDEO] jack on
the TV
3. Connect Audio Cables
between the AUDIO
OUT
jacks on the VCR and the
AV IN [R-AUDIO-L] jacks on
the TV.
TV Rear Panel
VCR Rear Panel
00 Audio Cable (Not supplied)
11] S-Video Cable (Not supplied)
m RF Cable (Not supplied)
An S-Video cable may be included with a VCR. (If not, check your local electronics store.)
:> Each VCR has adifferent back panel configuration.
:> When connecting a VCR, match the color of the connection terminal to the cable.

:> 5.1 CH audio is possible when the TV is connected to an external device supporting 5.1 CH.
:> Each Digital Audio System has adifferent back panel configuration.
:> When the receiver (home theater) is set to On, you can hear sound output from the TV's
Optical jack. When the TV is displaying a DTV(air) signal, the TV will send out 5.1 chan-
nel sound to the Home theater receiver. When the source is a digital component such as
a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the
Home Theater receiver. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO
OUT (OPTICAL) jack on the DVD player or Cable/Satellite Box directly to an Amplifier or
Home Theater, not the TV.
TV Rear Panel
Optical Cable (Not supplied)
~15~
o ',,=, 0
I
Connecting a Digital Audio System
The rear panel jacks on your TV make it easy to connect a Digital Audio System (Home theater/Receiver) to your TV.
1. Connect an Optical Cable Digital Audio System
between the "DIGITAL AUDIO
OUT (OPTICAL)" jacks on the
TV and the Digital Audio Input
jacks
on the Digital Audio
System.
When a Digital Audio System
is Gonnected to the "DIGITAL
AUDIO OUT (OPTICAL)" jack:
Decrease the volume of the
TV and adjust the volume
level with the system's volume
control.
:> Each AmplifierlDVD Home Theater has adifferent back panel configuration.
:> When connecting an Amplifier/DVD Home Theater, match the color of the connection
terminal to the cable.
Audio Cable (Not supplied)
TV Rear Panel
IIConnecting
an AmplifierlDVD Home Theater
1. Connect Audio Cables
between the AUDIO OUT Amplifier/DVD Home Theater
[R-AUDIO-L] Jacks on the TV
and AUDIO IN [R-AUDIO-L]
jacks
on the Amplifier/DVD
Home Theater.
When an audio amplifier is
connected to the "AUDIO OUT
[R·AUDIO-L]" jacks: Decrease
the volume of the TV and
adjust the volume level with
the Amplifier's volume control.

I
·,,'. Connecting a PC
Using the D-Sub Cable
1. Connect a D-Sub Cable
between PC IN [PC]
connector on the TV and the
PC output connector on your
computer.
2. Connect a PC Audio Cable
between the PC IN [AUDIO]
jack on the TV and the Audio
Out jack of the sound card on
your computer.
Using the HDMIIDVI Cable
1.
Connect a HDMIIDVI cable
between the HDMIIDVI IN
jack on the TV and the PC
output jack on your computer,
2. Connect a 3.5 mm Stereo
mini-plug/2RCA Cable
between the DVI IN
[R-AUDIO-L] jack on the TV
and the Audio Out jack of the
sound card on your computer.
TV Rear Panel
PC
II
"
rn PC Audio Cable (Not supplied)
mD-Sub Cable (Not supplied)
TV Rear Panel
PC
II
"
rn 3.5 mm Stereo mini-plug/2RCA Cable (Not supplied)
mHDMI/DVI Cable (Not supplied)
"> Each PC has adifferent back panel configuration.
"> When connecting a PC, match the color of the connection terminal to the cable.
~ When using an HDMIIDVI cable connection, you must use the HDMIIDVI IN jack.

I Operation
I
Turning the TV On and Off
Press the POWER (!) button on the remote control.
You can also use the POWER
C> button on the TV.
subsequently.
1. Press the POWERc> button on the remote control.
The message "Menu Language, Store Demo, Channels and Time will be set." is
displayed.
Press the
ENTER G' button, then "Select the language of the OSD" menu
is automatically displayed.
2. Press the. or 'f button to select language, then press the ENTER G' button.
The message "Select 'Home Use' when installing this TV
in your home." is
displayed.
3. Press the .... or ~ button to select "Store Demo" or "Home Use", then
press the
ENTER G' button.
The message "Select the antennas to memorize."
is displayed.
:> We recommend setting the TV to "Home Use" mode for the best picture in your
home environment.
:> "Store Demo" mode is only intended for use in retail environments.
:> If the unit is accidentally set to "Store Demo" mode and you want to return to
"Home Use" (Standard): Press the Volume button on the
TV. When the volume
OSD is displayed, press and hold the
MENU button on the TV for 5seconds.
4. Pwss the. or 'f button to memorize the channels of the selected connection.
Press the
ENTER G' button to select "Start".
:> Air: "Air" antenna signal.
Cable: "Cable" antenna signal.
Auto: "Air" and "Cable" antenna signals.
:> In Cable mode, you can select the correct signal source among STD, HRC, and
IRC by pressing
the., 'f, .... or ~ button, then press the ENTER G' button.
If you have Digital cable, select the cable system signal source for both Analog
and Digital. Contact your local cable company to identify the type of cable
system that exists
in your particular area.
5. The TV will begin memorizing all of the available channels.
:> To stop the search before it has finished, press the ENTER G' button with "Stop"
selected.
:> After all the available channels are stored, it starts to remove scrambled
channels (see page 28). The Auto program menu then reappears.
Press the
ENTER G' button when channel memorization is complete. The
message "Set the Clock Mode."
is displayed.
POWER \
!~I
SOURCE

6. Press the ENTER G' button.
Press the A or ~ button to select "Auto", then Press the ENTER G' button.
The message "Set to daylight saving time." is displayed.
If you select "Manual", "Enter the current date and time." is displayed.
(See page 37)
7. Press the A or ~ button to select "Off' or "On", then press the ENTER G' button.
The message "Select the time zone in which you live." is displayed.
8. Press the A or ~ button to highlight the time zone for your local area.
Press the ENTER G' button. If you have received a digital signal, the time will be
set automatically.
If not, see page 37 to set the clock.
9. The message "Enjoy your watching." is displayed.
When you have finished, press the ENTER G' button.
If you want to reset this feature ...
1. Press the MENU button to display the menu.
Press the A or ~ button to select "Setup", then press the ENTER G' button.
2. Press the ENTER G' button again to select "Plug & Play".
For further details on setting up options, refer to the pages 13-14.
>- The "Plug & Play" feature is only available in the TV mode.
I•
u:I~:t~;~~;~,hB::::15
1. Press the CH0) or CH(9 button to change channels.
>- When you press the CH0) or CH(9 button, the TV changes channels in
sequence.
You will see all the channels that the TV has memorized (The TV must have
memorized at least three channels). You will not see channels that were either
erased or not memorized. See page 16 to memorize channels.
Using the Number Buttons
1. Press the number buttons to go directly to a channel. For example, to select
channel 27, press 2, then 7.
>- For quick channel change, press the number buttons, then press the ENTER G'
button.

Using the 8 Button
The 8button is used to select stations that broadcast adigital signal.
1. For example, for Channel 7-1, press 7, then 8, then 1.
:> HD indicates the TV is receiving aDigital High Definition signal. SO indicates
Ithe TV is receiving aStandard Definition signal.
:> For quick channel change, press the number buttons, then press the ENTER G'
button.
/C)®
~ VOL
(;;\
~
CH
Using the PRE·CH Button to select the Previous Channel
1. Press the PRE·CH button.
The TV will switch to the last channel viewed.
:> To quickly switch between two channels that are far apart, tune to one
channel, then use the number button to select the second channel. Then
use the PRE·CH button to quickly alternate between them.
I
Adjusting the Volume
Using the Volume Buttons
~
CH
1. Press the VOLE) or VOL® button to increase or decrease the volume.
8'
8
JMUTE
G~1ii)
G
Using the MUTE button
t;2J'
At any time, you can cut off the sound using the MUTE button.
1. Press MUTE button and the sound cuts off.
"1'mM" is displayed on the screen.
2. To turn mute off, press the MUTE button again or simply press the
VOL8 or VOL,±) button.
I
Viewing the Display
'.' The display identifies the current channel and the status of certain audio-video settings.
1. Press the INFO button on the remote control.
ThH TV will display the channel, the type of sound,
and the status of certain picture and sound settings.
:> Press the INFO button once more or wait approximately 10 seconds and the
display disappears automatically.
I
ii Viewing the Menus
•. 1. With the power on, press the MENU button.
•. The main menu appears on the screen. The menu's left side has icons:
Picture, Sound, Channel, Setup, Input.
2. Press the Aor "button to select one of the icons.
Thl3n press the ENTER G' button to access the icon's sub-menu.
3. Press the EXIT button to exit.
»The on-screen menus disappear from the screen after about one minute.
I~ ~I
TV
CJ!.: Picture
Mode :Standard ..
Backlight
==Il:=
7
6-
Contrast
==!lJ
95
Sound
Brightness
==tl:=
45
,Sharpness ==n::::= 50
Channel
Color ==n::::= 50
f/!..
Setup
Tint G50 ==n::::= R50
4't_
.. More
Input
~ Move l3'Enter
")Ex~

I
'.'.,'. Using the TOOLS Button
You can use the Tools button to select your frequently used functions quickly and easily.
The "Tools" menu changes depending on which external input mode you are viewing.
1. Press the TOOLS button,
The "Tools" menu will appear.
2. Press the'" or • button to select a menu.
3. Press the ... 1. I .... /~ IENTER G' buttons to display, change, or use the selected
items. For a more detailed description of each function, refer to the corresponding
page.
• Picture Mode, see page 19
• Sound Mode, see page 24
• Sleep Timer, see page ,39
•Addtq Favorit~,:seep1ilge30
• Switch to Air, see page 16
• Auto Adjustment, see page 35
-
TOOLS
RETURN
~/~/\@
I
.... · .. Y~~T~C~;~~~~~et~~ s~r~:~f~h~~~ailable channels for both "off-air" (Air) and "Cable" channels. After the available
channels are memorized, use the CH0 or CH(0 button to scan through the channels. This eliminates the need to change channels
by entering the channel digits. There are three steps for memorizing channels: selecting a broadcast source, memorizing the
channels (automatic) and adding or deleting channels (Channel Lists).
Selecting the Video Signal-source
Before your television can begin memorizing the available channels, you must specify the
type of signal source that is connected to the TV (i.e. an Air or a Cable system).
1. Press the MENU button to display the menu.
Press the'" or • button to select "Channel", then press the ENTER G' button.
2. Press the ENTER G' button to select "Antenna".
Press the'" or • button to select "Air" or "Cable", then press the ENTER G' button.
Press the EXIT button to exit.
Easy Setting
1. Press the TOOLS button on the remote control.
2. Press the'" or • button to select "Switch to Air" (or "Switch to Cable"), then press
the ENTER G' button.

S1Qr.in.g Channels in Memory (Automatic Method)
1. Press the MENU button to display the menu.
Press the
.. or l' button to select "Channel", then press the ENTER G' button.
2. Press the .. or l' button to select "Auto Program", then press the ENTER G' button.
3. Press the. or l' button to select the antenna connection, then press the
ENTER G' button.
>Air: "Air" antenna signal.
Cable: "Cable" antenna signal.
flutO: "Air" and "Cable" antenna signals.
4. When selecting the Cable TV system:
Press the
ENTER G' button to start the auto program.
Press
the'" or ~ button, then press the. or l' to select the correct analog signal
cable system source among "STD", "HRC", and "IRC". Press the
ENTER G' button.
If you have Digital cable
TV, select the cable system signal source for both Analog
and Digital.
>STD, HRC and IRC identify various types of cable TV systems. Contact your
local cable company to identify the type of cable system that exists
in your
particular area. At this point the signal source has been selected.
5. The TV begins memorizing all available stations.
After all the available channels are stored, it start to remove scrambled
channels(see page 28).
>If you want to stop Auto Programming, press the ENTER G' button. The "Stop
Auto Program?" message will
be displayed. Select "Yes" by pressing the'" or ~
button, then press the ENTER G' button.
Press the
EXIT button to exit.

Satellite receivers (Set-Top Box) connected to the TV. Use to select the input source
of your choice.
1. Press the MENU button to display the menu.
Press theA or ~ button to select "Input", then press the ENTER G' button.
2. Press the ENTER G' button to select "Source List".
Press the A or ~ button to select signal source, then press the ENTER G' button.
> Available signal sources: TV, AV, S-Video, Component, PC, HDM!.
> You can choose only those external devices that are connected to the TV.
~ Press the SOURCE button on the remote control to view an external signal source.
1. Press the MENU button to display the menu.
Press theA or ~ button to select "Input", then press the ENTER G' button.
Press the A or ~ button to select "Edit Name", then press the ENTER G' button.
2. Press the A or ~ button to select "AV", "S-Video", "Component", "PC", "HDMI"
input jack, then press the ENTER G' button.
3. Press the A or ~ button to select "VCR", "DVD", "Cable STB", "Satellite STB",
"PVR STB", "AV Receiver", "Game", "Camcorder", "PC", "TV", "I PTV" , "Blu-Ray",
"HD DVD", "Digital Media Adapter" input source, then press the ENTER G' button.
Press the EXIT button to exit.
