Samsung MNA110MS1A User manual

Thank you forpurchasing this Samsung product.
To receive more complete service, please registeryour product at www.samsung.com
Model Serial No.
USER MANUAL

Before Reading This UserManual
This MICRO LED comeswith this UserManual and an embedded
e-Manual ( > Settings > e-Manual).
Warning! Important Safety
Instructions
Please read the Safety Instructions before usingyour MICRO LED.
Referto the table belowfor an explanation of symbolswhich may
be on your Samsung product.
CAUTION
RISK OF ELECTRIC SHOCK. DO NOTOPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). THERE ARE NO USER
SERVICEABLE PARTS INSIDE. REFER ALLSERVICING TO
QUALIFIED PERSONNEL.
This symbol indicates that high voltage is
present inside. It is dangerous to make any
kind of contact with any internal part of this
product.
This symbol indicates that this product has
included important literature concerning
operation and maintenance.
Class II product: This symbol indicates
that a safety connection to electrical earth
(ground) is not required. If this symbol is not
present on a product with a mains lead, the
product MUSThave a reliable connection to
protective earth (ground).
AC voltage: Rated voltage marked with this
symbol is AC voltage.
DC voltage: Rated voltage marked with this
symbol is DC voltage.
Caution. Consult instructions foruse: This
symbol instructs the userto consult the user
manual for furthersafety related information.
Power
Do not overloadwall outlets, extension cords, oradaptors
beyond theirvoltage and capacity. It may cause fire orelectric
shock.
Referto the powerspecifications section of the manual and/
orthe powersupply label on the product forvoltage and
amperage information.
Power-supplycords should be placed so that they are not
likelyto be walked on or pinched by items placed upon or
against them. Pay particularattention to cords at the plug
end, at wall outlets, and at the point where they exit from the
appliance.
Neverinsert anything metallic into the open parts of this
apparatus. This maycause electric shock.
To avoid electric shock, nevertouch the inside of this
apparatus. Only a qualified technician should open this
apparatus.
Be sure to plug in the powercord until it is firmly seated. When
unplugging the powercord from awall outlet, always pull on
the powercord's plug. Neverunplug it by pulling on the power
cord. Do not touch the powercord withwet hands.
If this apparatus does not operate normally- in particular,
if there are any unusual sounds orsmells coming from it -
unplug it immediatelyand contact an authorised dealeror
Samsung service centre.
To protect this apparatus from a lightning storm, orto leave
it unattended and unused fora long time, be sure to unplug
it from thewall outlet and disconnect the antenna or cable
system.
– Accumulated dust can cause an electric shock, an electric
leakage, ora fire bycausing the powercord to generate
sparks and heat orby causing the insulation to deteriorate.
Use onlya properly grounded plug andwall outlet.
– An improperground maycause electric shock or
equipment damage. (Class l Equipment only.)
To turn off this apparatus completely, disconnect it from the
wall outlet. To ensureyou can unplug this apparatus quicklyif
necessary, make sure that the wall outlet and powerplug are
readily accessible.
English
English - 2

Installation
Do not place this apparatus nearor overa radiatororheat
register, orwhere it is exposed to direct sunlight.
Do not placevessels (vases etc.) containingwateron this
apparatus, as this can result in a fire orelectric shock.
Do not expose this apparatus to rain ormoisture.
Be sure to contact an authorised Samsung service centre
forinformation if you intend to installyour MICRO LED in
a locationwith heavy dust, high orlow temperatures, high
humidity, chemical substances, orwhere it will operate 24
hours a day such as in an airport, a train station, etc. Failure to
do so may lead to serious damage to yourMICRO LED.
Do not expose this apparatus to dripping orsplashing.
This MICRO LED is a consumerproduct designed for
installation in a Home Environment only. Anyinstallation
otherthan a Home environment, e.g: Private Vessel (Including
Yacht) or Private Plane oroutdoors may invalidate the
warranty.
Installing as Wall Mount
Please referto the Installation Guide of the Wall Mount for
details on attaching the Wall Mount.
You can install a VESAwall mount. However, it is
recommended to use the wall mount that is provided by
default.
When installing a VESAwall mount, it is recommended to first
fasten all fourVESA screws.
Mounting the MICRO LED on a wall
If you mount this MICRO LED on a wall, follow
the instructions exactly as set out by the
manufacturer. If it is not correctlymounted, the
MICRO LED mayslide orfall and cause serious
injury to a child oradult and serious damage to
the MICRO LED.
Samsung is not responsible forany damage to the product
orinjury toyourself or others if you choose to install thewall
mount on your own.
Samsung is not liable forproduct damage orpersonal injury
when a non-VESAor non-specifiedwall mount is used or
when the consumerfails to follow the product installation
instructions.
You can install yourwall mount on a solid wall perpendicular
to the floor. Before attaching thewall mount to surfaces other
than plasterboard, contact yournearest dealerforadditional
information. Ifyou install the MICRO LED on a ceiling or
slanted wall, it mayfall and result in severe personal injury.
When installing a wall mount kit,we recommend you fasten
all fourVESA screws.
Do not install the MICRO LED setwith being tilted.
Do not install yourwall mount kit while your
MICRO LED is turned on. This mayresult in
personal injury from electric shock.
Do not use screws that are longerthan the standard
dimension ordo not complywith the VESAstandard screw
specifications. Screws that are too long maycause damage to
the inside of the MICRO LED set.
Forwall mounts that do not complywith the VESA standard
screwspecifications, the length of the screws maydiffer
depending on the wall mount specifications.
Do not fasten the screws too firmly. This may damage the
product orcause the product to fall, leading to personal injury.
Samsung is not liable forthese kinds of accidents.
Always have four people mount the MICRO LED onto a wall.

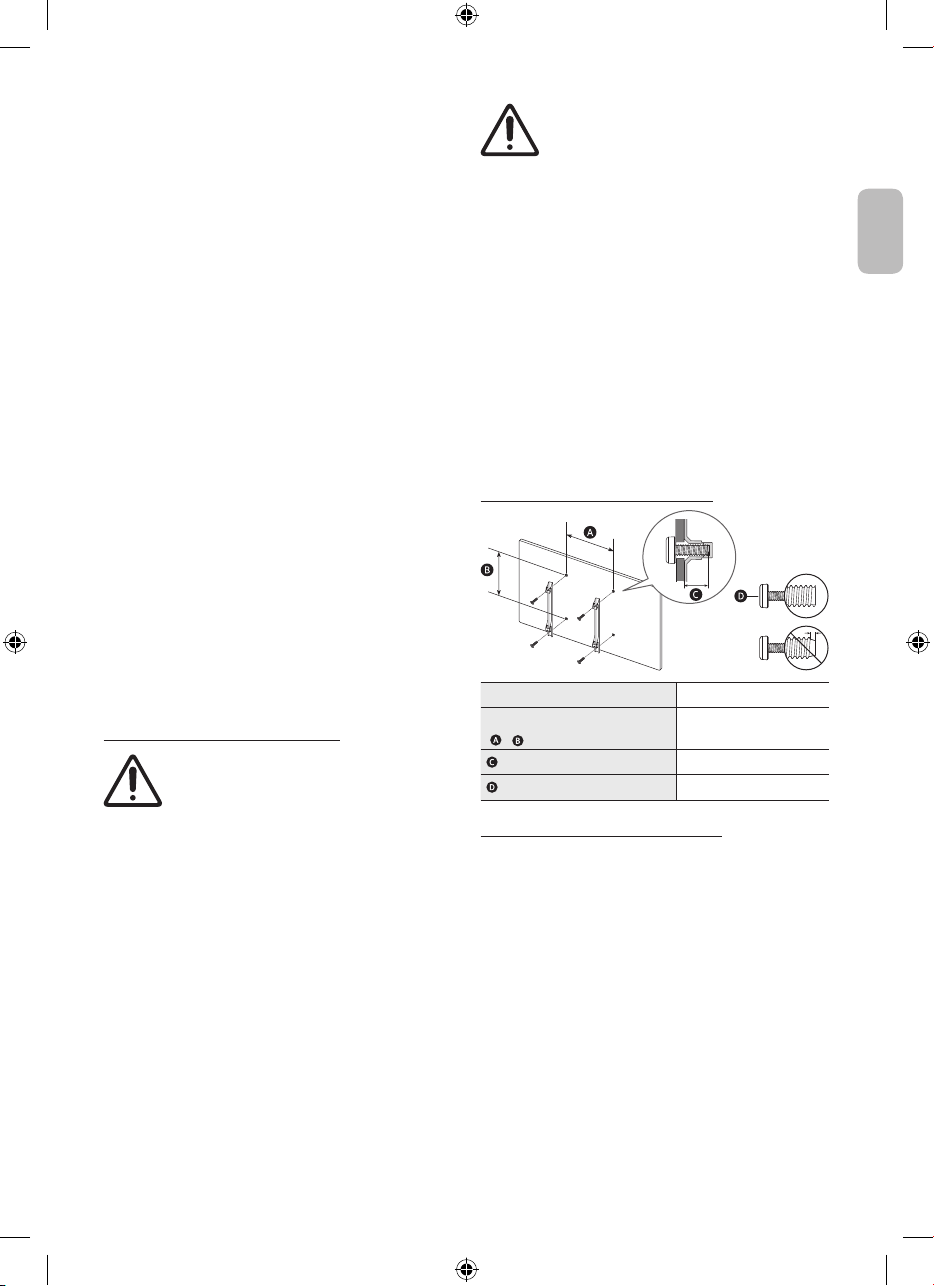

Wall Mount Specifications (VESA)
MICRO LED size in inches 110
VESA screw hole specs
(x)(mm)800 x 800
(mm)10
x4M8
Providing properventilation foryour MICRO LED
When you install your MICRO LED and One Connect Box,
maintain a distance of at least10 cm between the MICRO LED,
One Connect Box, and otherobjects (walls, cabinet sides, etc.) to
ensure properventilation. Failing to maintain properventilation
may result in a fire ora problem with the product caused byan
increase in its internal temperature.
When you install your MICRO LED with a wall mount, we
strongly recommend you use parts provided bySamsung only.
Using parts provided by anothermanufacturermay cause
difficulties with the product orresult in injury caused bythe
product falling.
English - 3
English

Operation
This apparatus uses batteries. Inyour community, there might
be environmental regulations that require you to dispose of
these batteries properly. Please contact yourlocal authorities
fordisposal or recycling information.
Store the accessories (remote control, batteries, oretc.) in a
location safely out of the reach of children.
Do not drop orstrike the product. If the product is damaged,
disconnect the powercord and contact a Samsung service
centre.
Do not dispose of remote control orbatteries in a fire.
Do not short-circuit, disassemble, oroverheat the batteries.
CAUTION: There is dangerof an explosion ifyou replace the
batteries used in the remote with the wrong type of battery.
Replace onlywith the same or equivalent type.
WARNING - TO PREVENTTHE SPREAD OF
FIRE, KEEP CANDLESAND OTHER ITEMS
WITH OPEN FLAMES AWAY FROM THIS
PRODUCTAT ALL TIMES.
Caring forthe MICRO LED
To clean this apparatus, unplug the powercord from thewall
outlet and wipe the productwith a soft, dry cloth. Do not
use any chemicals such as wax, benzene, alcohol, thinners,
insecticide, aerial fresheners, lubricants, ordetergents. These
chemicals can damage the appearance of the MICRO LED or
erase the printing on the product.
The exteriorand screen of the MICRO LED can get scratched
during cleaning. Be sure to wipe the exteriorand screen
carefully using a soft cloth to prevent scratches.
Do not spraywaterorany liquid directlyonto the MICRO LED.
Anyliquid that goes into the product may cause a failure, fire,
orelectric shock.
01 What's in the Box?
Make sure the following items are includedwith yourMICRO LED.
If any items are missing, contactyour dealer.
Samsung Smart Remote
UserManual
Warranty Card / RegulatoryGuide (Not available in some
locations)
MICRO LED PowerCable x 3
IR Cable x 4
One Connect Box
One Connect PowerCable x 2
One Connect Cable
One Connect Cable Gender
The provided cables maydifferdepending on the country. Be
sure to use the powercable that is suitable foryour region.
The type of battery mayvary depending on the model.
The items’ colours and shapes mayvary depending on the
models.
Cables not included can be purchased separately.
Check forany accessories hidden behind orin the packing
materials when opening the box.
Warning: Screens can be damaged from direct
pressure when handled incorrectly.As shown
in the figure, make sure to use the side handles
when you lift the MICRO LED.
Do Not Touch
This Screen!
English - 4

Using the IR Cable
When using the Multi HDMI function, HDMI 1 to 4 ports can
be operatedvia IR cable connected to each IR . Check the
e-Manual ( > Settings > e-Manual) forinstructions on how
to use the Multi HDMI function.
IR ( )1 ( )2 ( )3 ( )4 ( )
kkkk
HDMI ( )1 ( )2 ( )3 ( )4 ( )
02 Connecting the MICRO LED to
the One Connect Box
1-1 1-2 2
4
34
1
2
3
10 cm
MICRO LED
One Connect Box
Referto the picture and connect the MICRO LED and One Connect
Box with the One Connect cable provided as a component.
Do not use the One Connect Box in the upside-
down orupright position.
Make sure that the cable is not twisted during
connection. Otherwise, the product performance
may be degraded orthe cable maybe damaged.
When arranging the remaining cable, referto the
picture above to arrange it.
Bending Twisting Pulling Pressing on
English - 5
