Samsung QE75LST7TCUXXC User manual

Thank you for purchasing this Samsung product.
To receive more complete service, please registeryour product at www.samsung.com
Model Serial No.
USER MANUAL
LST7T
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Samsung LST7T 75"
(QE75LST7TCUXXC) o cerca il tuo prodotto tra le migliori offerte di Televisori

Before Reading This User Manual
This TV comes with this user manual and an embedded e-Manual.
Before reading this user manual, review the following:
User Manual Read this provided user manual to see
information about product safety, installation,
accessories, initial configuration, and product
specifications.
e-Manual For more information about this TV, read the
e-Manual embedded in the product.
To open the e-Manual,
> Settings > Support > Open
e-Manual
On the website (www.samsung.com), you can download the manuals and see its contents on
your PC or mobile device.

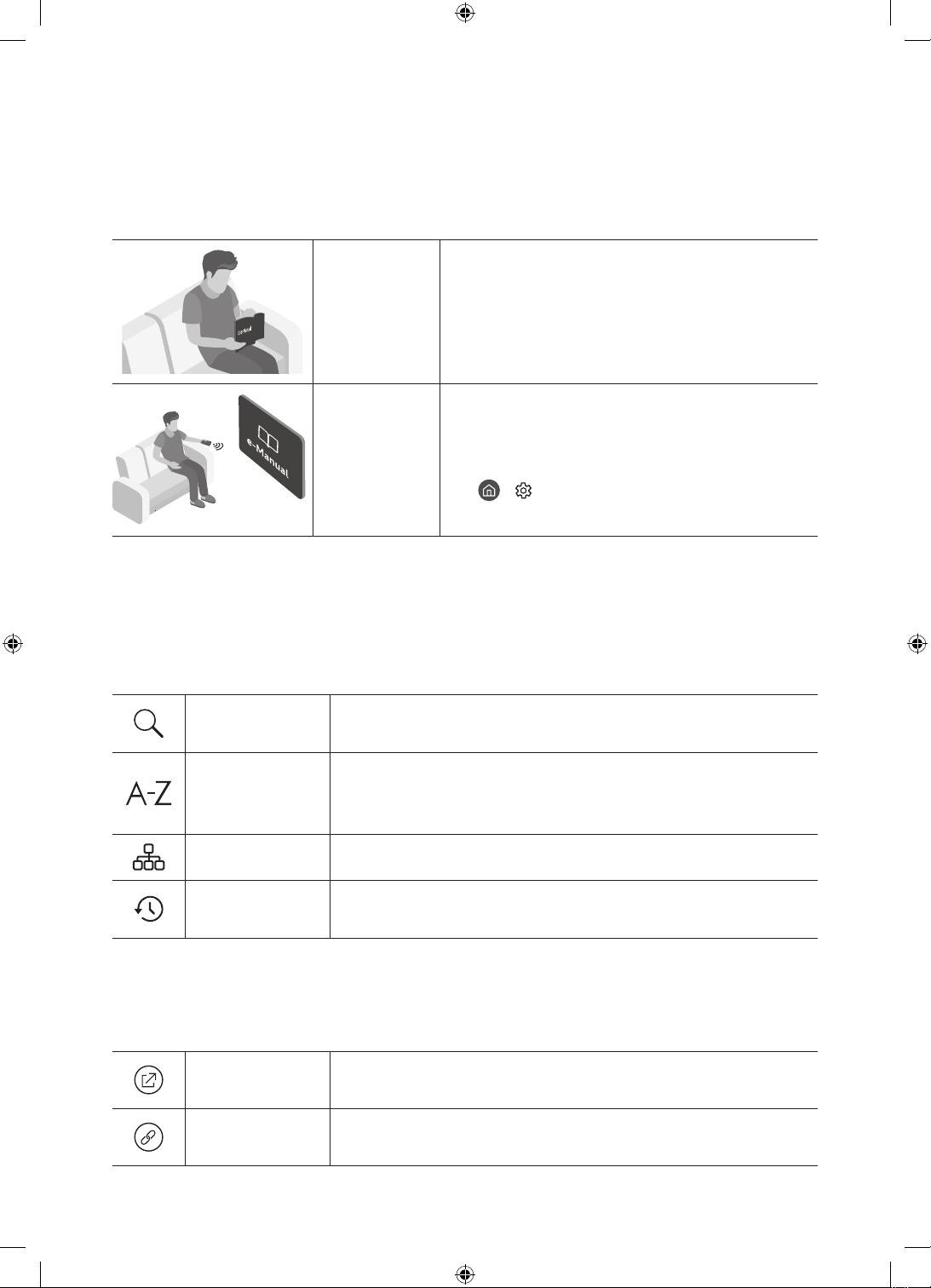

Learning the e-Manual's assistance functions
Some menu screens cannot be accessed from the e-Manual.
Search Select an item from the search results to load the
corresponding page.
Index
Select a keyword to navigate to the relevant page.
– The menus may not appear depending on the geographical
area.
Site Map It displays the lists for each item in e-Manual.
Recently
Viewed Topics Select a topic from the list of recently viewed topics.
Learning the functions of the buttons that appear on e-Manual
topic pages
Try Now Allows you to access the corresponding menu item and try out
the feature right away.
Link Access an underlined topic referred to on an e-Manual page
immediately.
English
English - 2

Features of your new TV

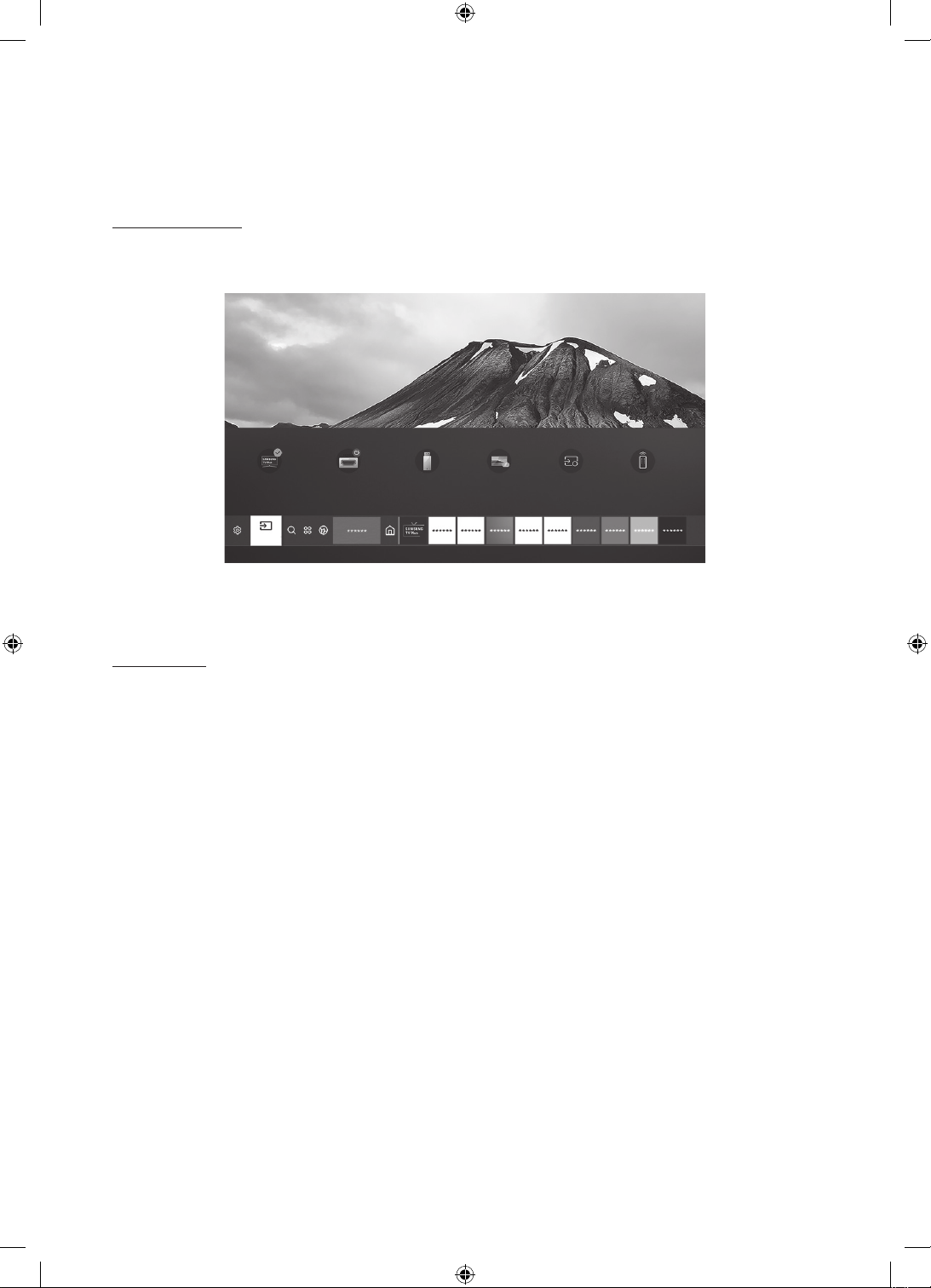

Home Screen
In Home Screen, you can easily run the apps that have been used previously or frequently. The
apps can also be moved or deleted in the screen.
Source
Sources
TV HDMI 1 USB Remote Access Connection Guide Universal Remote
The image on your TV may differ from the image above depending on the model and
geographical area.
e-Manual
Get help from a detailed, on-screen user's manual built into your TV.
English - 3

Warning! Important Safety Instructions
Please read the Safety Instructions before using your TV.
Refer to the table below for an explanation of symbols which may be on your Samsung
product.
CAUTION Class II product: This symbol
indicates that a safety connection
to electrical earth (ground) is
not required. If this symbol is
not present on a product with a
mains lead, the product MUST
have a reliable connection to
protective earth (ground).
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). THERE ARE NO USER
SERVICEABLE PARTS INSIDE. REFER ALL
SERVICING TO QUALIFIED PERSONNEL.
AC voltage: Rated voltage
marked with this symbol is AC
voltage.
This symbol indicates that high
voltage is present inside. It is
dangerous to make any kind of
contact with any internal part of
this product.
DC voltage: Rated voltage
marked with this symbol is DC
voltage.
This symbol indicates that this
product has included important
literature concerning operation
and maintenance.
Caution. Consult instructions
for use: This symbol instructs
the user to consult the user
manual for further safety related
information.
Do not place this apparatus near or over a radiator or heat register, or where it is exposed to
direct sunlight.
This apparatus uses batteries. In your community, there might be environmental
regulations that require you to dispose of these batteries properly. Please contact your
local authorities for disposal or recycling information.
Do not overload wall outlets, extension cords, or adaptors beyond their capacity, since this
can result in fire or electric shock.
English - 4

Power-supply cords should be placed so that they are not likely to be walked on or pinched
by items placed upon or against them. Pay particular attention to cords at the plug end, at
wall outlets, and at the point where they exit from the appliance.
To protect this apparatus from a lightning storm, orwhen left unattended and unused for
long periods of time, unplug it from the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the set due to lightning and power line surges.
Before connecting the AC power cord to the DC adaptor outlet, make sure that the voltage
designation of the DC adaptor corresponds to the local electrical supply.
Never insert anything metallic into the open parts of this apparatus. This may cause a
danger of electric shock.
To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician
should open this apparatus.
Be sure to plug in the power cord until it is firmly seated. When unplugging the power cord
from a wall outlet, always pull on the power cord's plug. Never unplug it by pulling on the
power cord. Do not touch the power cord with wet hands.
If this apparatus does not operate normally - in particular, if there are any unusual sounds
or smells coming from it - unplug it immediately and contact an authorised dealer or
Samsung service centre.
Be sure to pull the power plug out of the outlet if the TV is to remain unused or if you are
going to leave the house for an extended period of time (especially when children, elderly,
or disabled people will be left alone in the house).
– Accumulated dust can cause an electric shock, an electric leakage, or a fire by causing
the power cord to generate sparks and heat or by causing the insulation to deteriorate.
English - 5

This TV is designed and intended for general consumer usage and should not be used for
commercial applications including timetables, static display, digital signage, shop displays,
and video wall displays.
Use only a properly grounded plug and wall outlet.
– An improper ground may cause electric shock or equipment damage. (Class l Equipment
only.)
To turn off this apparatus completely, disconnect it from the wall outlet. To ensure you can
unplug this apparatus quickly if necessary, make sure that the wall outlet and power plug
are readily accessible.
Store the accessories (batteries, etc.) in a location safely out of the reach of children.
Do not drop or strike the product. If the product is damaged, disconnect the power cord and
contact a Samsung service centre.
To clean this apparatus, unplug the power cord from the wall outlet and wipe the product
with a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners,
insecticide, aerial fresheners, lubricants, or detergents. These chemicals can damage the
appearance of the TV or erase the printing on the product.
Do not dispose of batteries in a fire.
Do not short-circuit, disassemble, or overheat the batteries.
CAUTION: There is danger of an explosion if you replace the batteries used in the remote
with the wrong type of battery. Replace only with the same or equivalent type.
* The figures and illustrations in this User Manual are provided for reference only and may
differ from the actual product appearance. The product design and specifications may change
without notice. CIS languages (Russian, Ukrainian, Kazakhs) are not available for this product,
since this is manufactured for customers in the EU region.
English - 6

English - 7
Before Reading This User Manual ---------------------------------------------------------------- 2
Features of your new TV ---------------------------------------------------------------- 3
Warning! Important Safety Instructions ---------------------------------------------------------------- 4
01 What's in the Box?
Using the Holder-Cable ---------------------------------------------------------------- 10
02 TV Installation
Planning the location ---------------------------------------------------------------- 11
Media Bay ---------------------------------------------------------------- 12
Before connecting cables ---------------------------------------------------------------- 13
Mounting the TV on a wall ---------------------------------------------------------------- 15
Providing proper ventilation for your TV ---------------------------------------------------------------- 16
Durability ---------------------------------------------------------------- 17
03 The TV Control Stick
Using the TV Controller ---------------------------------------------------------------- 18
04 The Remote Control
About the Buttons on the Remote Control ---------------------------------------------------------------- 19
05 The Samsung Smart Remote
About the Buttons on the
Samsung Smart Remote ---------------------------------------------------------------- 21
Installing batteries into the
Samsung Smart Remote ---------------------------------------------------------------- 22
About the Samsung Smart Remote ---------------------------------------------------------------- 22
Controlling External Devices with a Samsung
Remote Control - Using the Universal Remote ---------------------------------------------------------------- 24
06 Performing the initial setup
Initial setup ---------------------------------------------------------------- 25
Contents

07 Connections
Connecting devices to your TV ---------------------------------------------------------------- 26
Connecting to the Internet ---------------------------------------------------------------- 27
08 Connecting the HDBase-T
General ---------------------------------------------------------------- 28
Guidelines for connection ---------------------------------------------------------------- 28
Constraints ---------------------------------------------------------------- 29
09 Using the Outdoor Mode (or Cold Weather Mode)
Temperature protection ---------------------------------------------------------------- 30
Sunlight Protection ---------------------------------------------------------------- 30
10 Using the Adaptive Picture
11 Selecting Connected Devices
Changing the input signal ---------------------------------------------------------------- 31
Editing external devices ---------------------------------------------------------------- 31
Using additional functions ---------------------------------------------------------------- 31
12 Troubleshooting and Maintenance
Troubleshooting ---------------------------------------------------------------- 32
What is Remote Support? ---------------------------------------------------------------- 34
Eco Sensor and screen brightness ---------------------------------------------------------------- 35
Caring for the TV ---------------------------------------------------------------- 35
13 Specifications and Other Information
Specifications ---------------------------------------------------------------- 36
Environmental Considerations ---------------------------------------------------------------- 37
Decreasing power consumption ---------------------------------------------------------------- 37
Licences ---------------------------------------------------------------- 37
Warranty Card ---------------------------------------------------------------- 39
WARRANTY CONDITIONS ---------------------------------------------------------------- 39
English - 8

01 What's in the Box?
Make sure the following items are included with your TV. If any items are missing, contact your
dealer.
Samsung Smart
Remote & Batteries
(AAA x 2)
Remote Control &
Batteries
(AAA x 2)
User Manual Regulatory Guide
x 2
(M4 x L7)
TV Power Cable CI Card Adapter Holder-Cable
The items’ colours and shapes may vary depending on the models.
Cables not included can be purchased separately.
Check for any accessories hidden behind or in the packing materials when opening the box.
English - 9

An administration fee may be charged in the following situations:
(a) An engineer is called out at your request, but it is found that the product has no defect
(i.e., where the user manual has not been read).
(b) You bring the unit to the Samsung service centre, but it is found that the product has no
defect (i.e., where the user manual has not been read).
You will be informed of the administration fee amount before a technician visits.

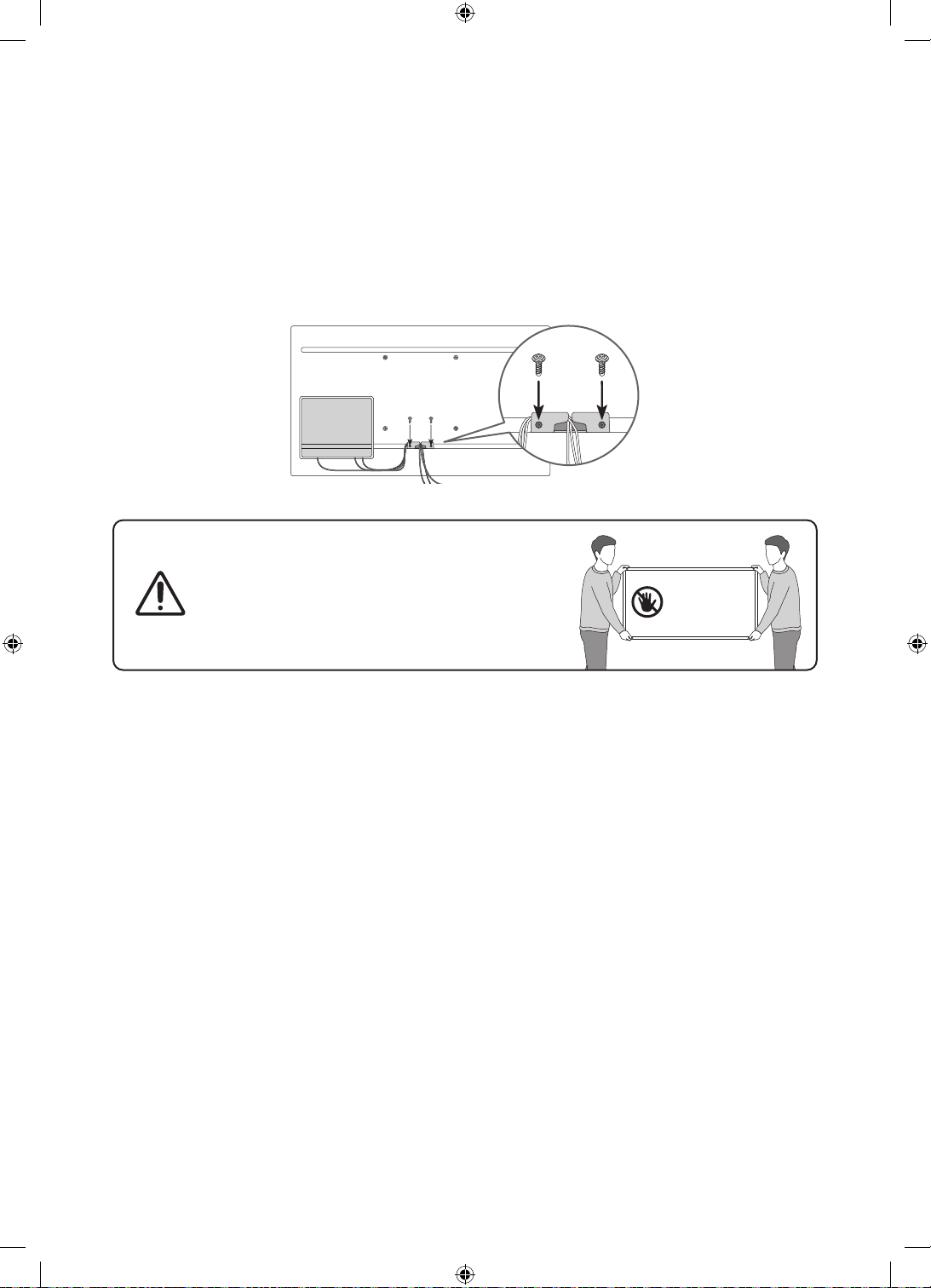

Using the Holder-Cable
Warning: Screens can be damaged from
direct pressure when handled incorrectly. We
recommend lifting the TV at the edges, as shown.
Do Not Touch
This Screen!
English - 10

02 TV Installation

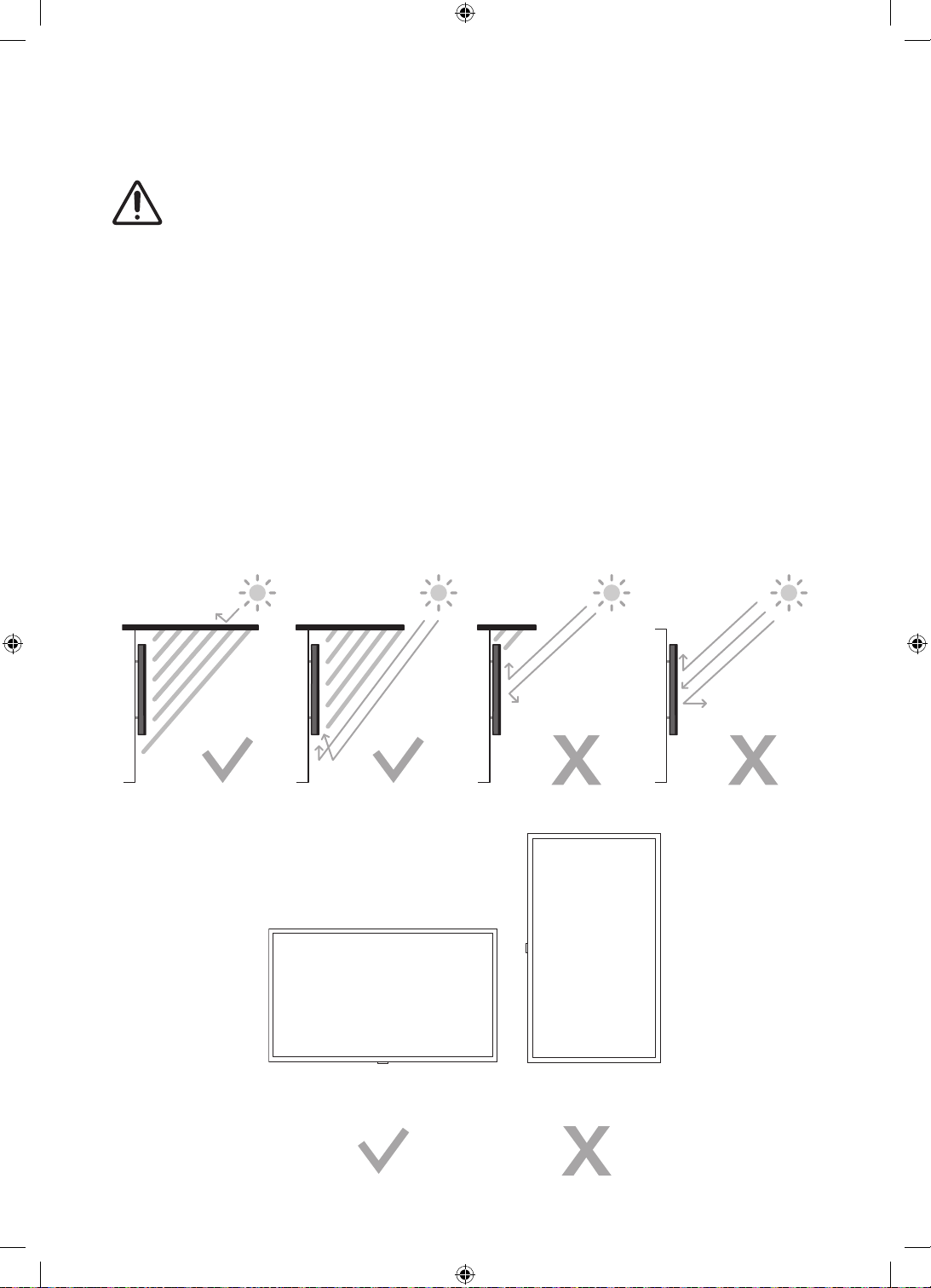

TV screen must not be exposed to direct sunlight.
– If the TV screen is exposed to direct sunlight, it can develop dark areas. This
is a common symptom of LCD Panel and dark areas will disappearwhen the
screen is taken out of direct sunlight.
– Continuous exposure to direct sunlight may cause damage to the TV screen.
The brightness sensor, which is located at the bottom right side of the product,
should not be covered by any object and totally exposed to outside.
– The TV will activate "Sunlight Protection" if it senses too much brightness in the
surrounding area. The luminance may be lowered to protect the TV screen.
For the stable use of the product, it should be installed in a place where there is
no risk of freezing due to snow accumulation or exposure to rain for a long time.
It cannot be installed in a recessed space.
The Terrace must be installed only in Landscape orientation, not in Portrait orientation.
Planning the location
Landscape Portrait
English - 11

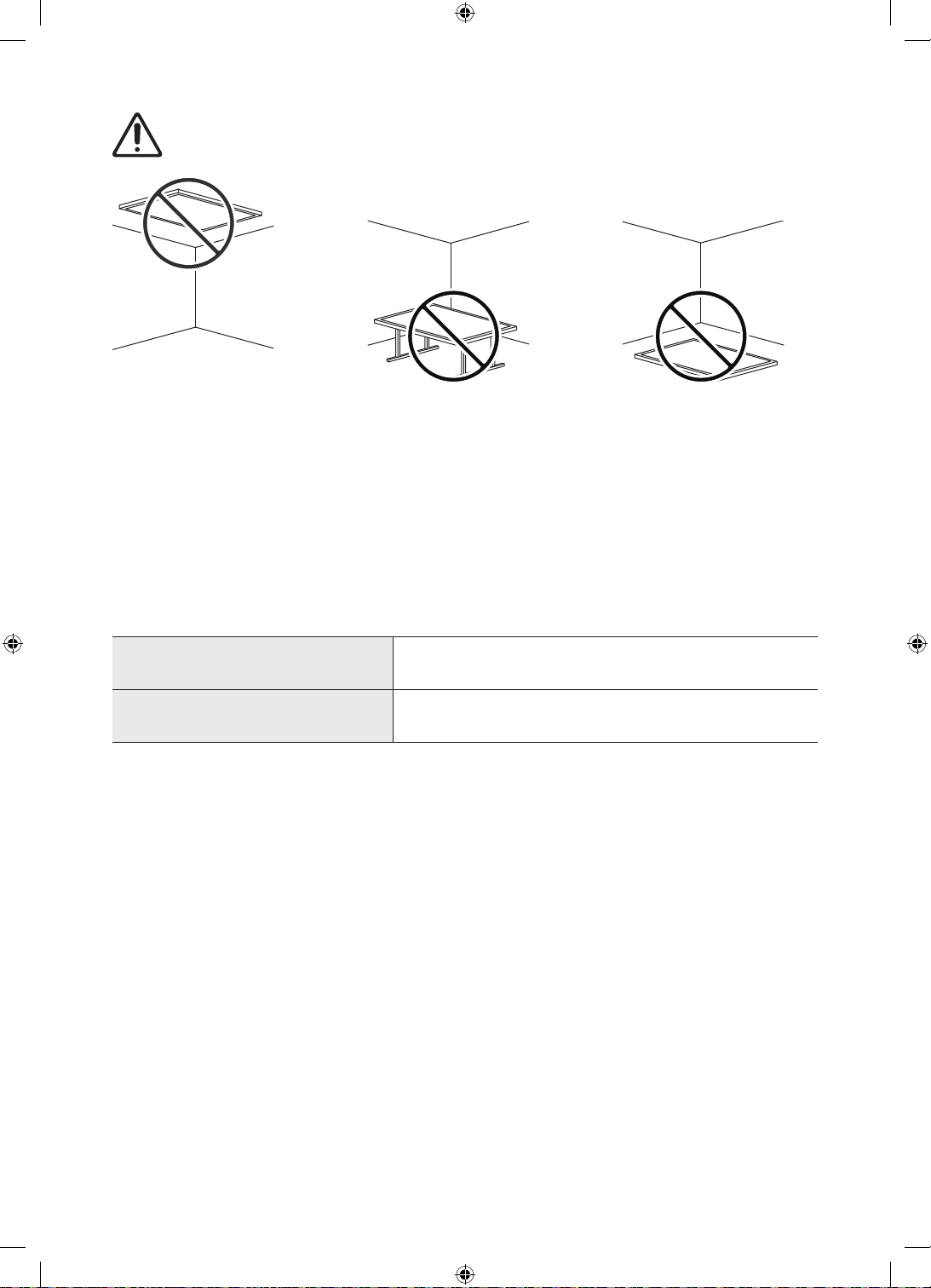

Do not install The Terrace on a celling, floor, or table.
Media Bay
The Terrace provides space (Media Bay) to install Media Players where Weather-Resistant
is guaranteed on the rear of the product.
The media player listed below can be installed on the rear space (Media Bay) of the
product.
– Media player: Amazon Fire Stick, Google Chromecast, Roku Ultra Streaming M Player
Make sure to close the cover and fasten the screws to ensure it is water tight. (Use the
provided screws. Otherwise, it may cause problems such as improper Weather-Resistant.)
Media Bay
Dimensions (W x H x D) 210.0 x 270.0 x 25.0 mm
Media player
Installation space (W x H x D) 140.0 x 200.0 x 25.0 mm
English - 12

Before connecting cables

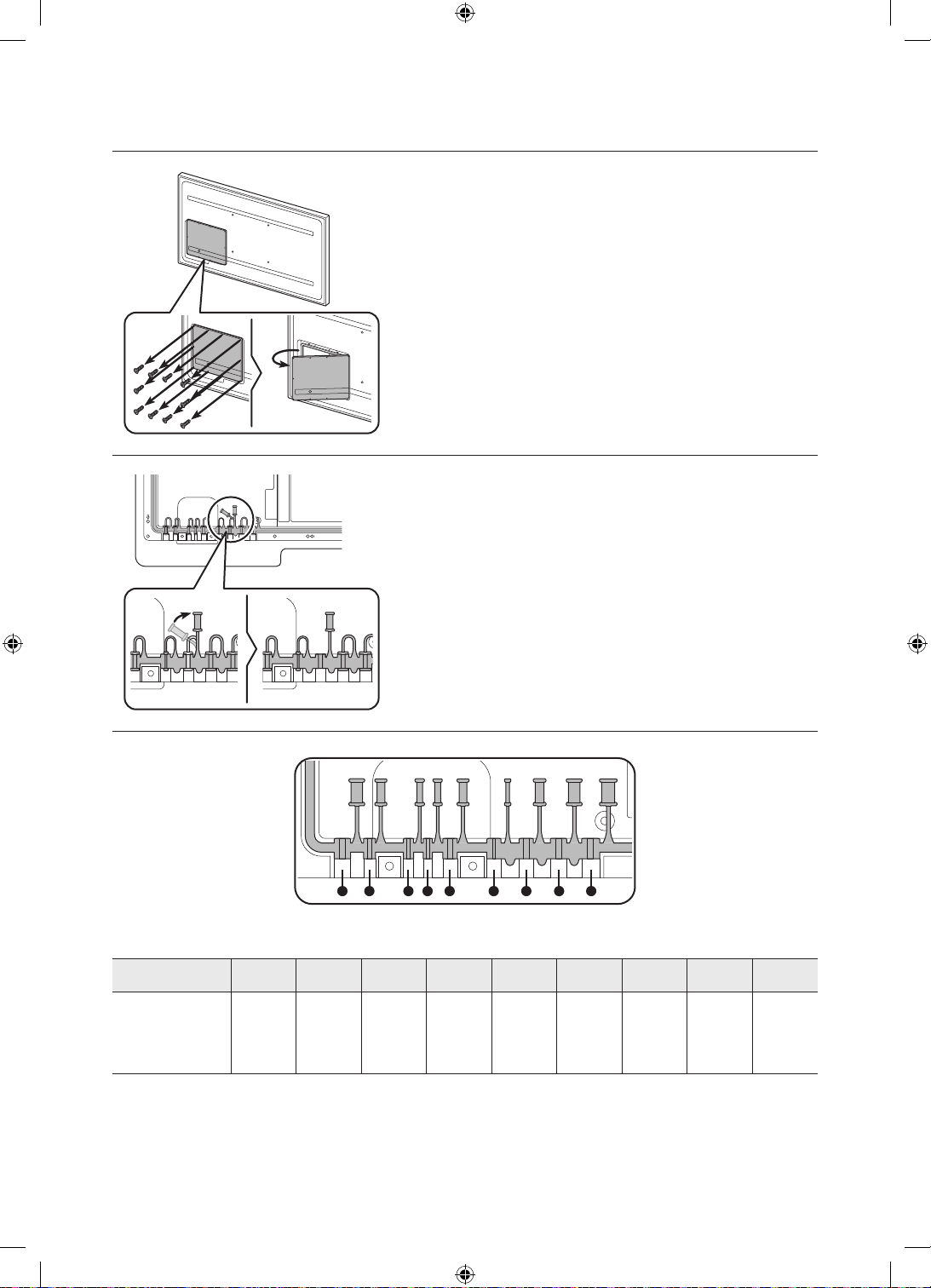

1. Unfasten the screws, then open the cover.
2. Remove the appropriate silicone bar for the thickness
of the cable to connect.
1 2 3 4 5 6 7 8 9
Different hole sizes and corresponding cable thickness for each:
Position 1 2 3 4 5 6 7 8 9
Cable

mm)
7.0 4.0 3.0 3.0 5.5 1.6 5.5 7.0 8.0
English - 13

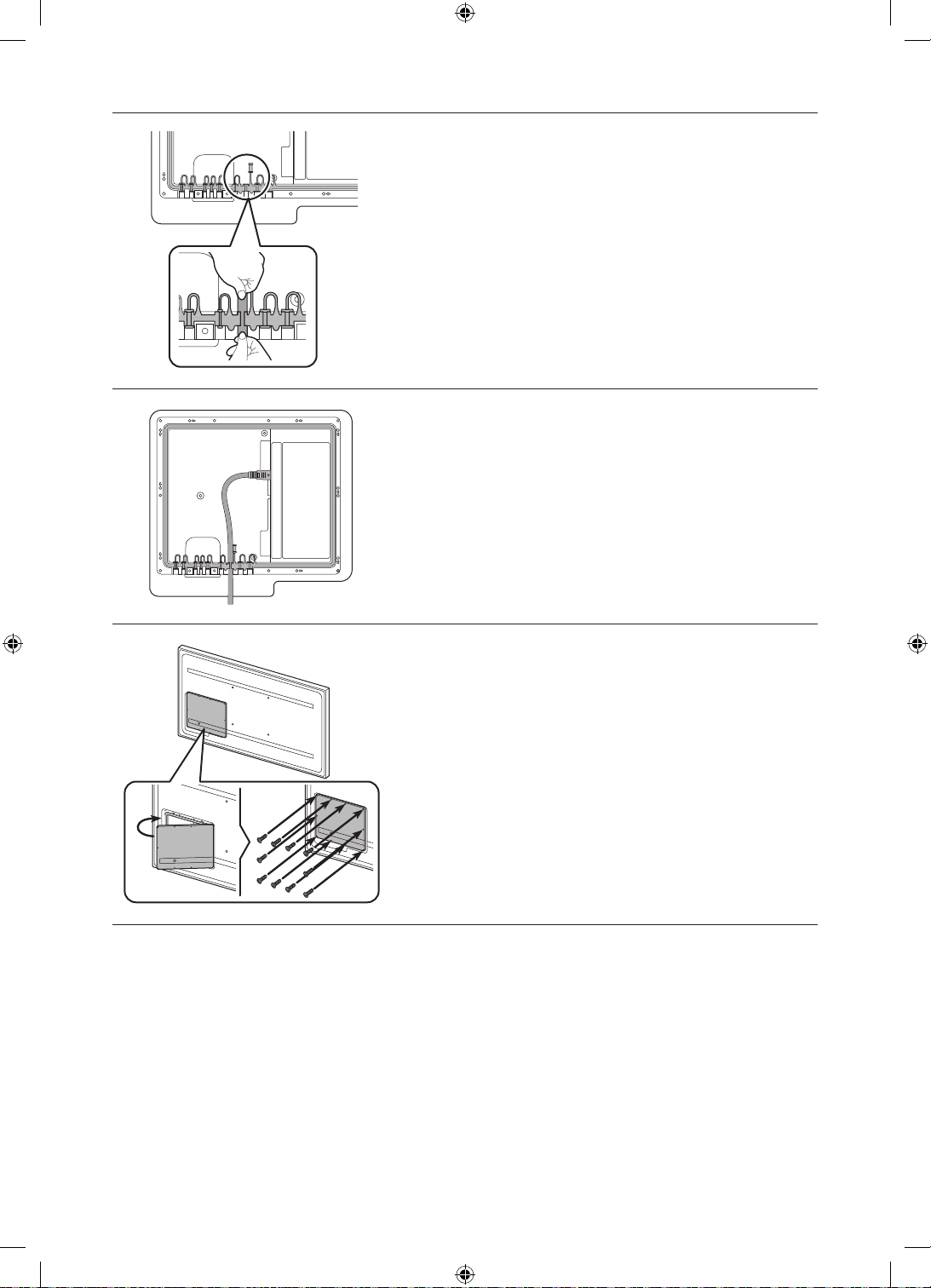

3. Insert the appropriate cable into the hole from which
the silicone bar was removed.
4. The cable should be connected as shown.
5. Close the cover, then fasten the screws.
– After all the cables are connected, make sure to
close the cover and fasten the screws to ensure
it is water tight. (Use the provided screws.
Otherwise, it may cause problems such as
improper Weather-Resistant.)
Recommended torque : 10 - 12 kgf.cm
English - 14

Mounting the TV on a wall
Because access to Media Bay of the TV may be limited due to the design of the wall-
mount that you use, connecting all cables and devices that you need prior to hanging
the TV on the wall is recommended. When connecting additional cables and devices
to the TV after hanging on the wall, you may need to separate the TV from wall-
mount.
If you mount this TV on a wall, follow the instructions exactly as set out by the
manufacturer. Unless it is correctly mounted, the TV may slide or fall and cause
serious injury to a child or adult and serious damage to the TV.
You can mount the TV on the wall using a wall mount kit (sold separately).
Refer to the installation manual included with the Samsung wall mount kit.
TV
Wall mount
bracket
C
Samsung is not responsible for any damage to the product or injury to yourself or others if
you choose to install the wall mount on your own.
You can install your wall mount on a solid wall perpendicular to the floor. Before attaching
the wall mount to surfaces other than plaster board, contact your nearest dealer for
additional information. If you install the TV on a ceiling or slanted wall, it may fall and
result in severe personal injury.

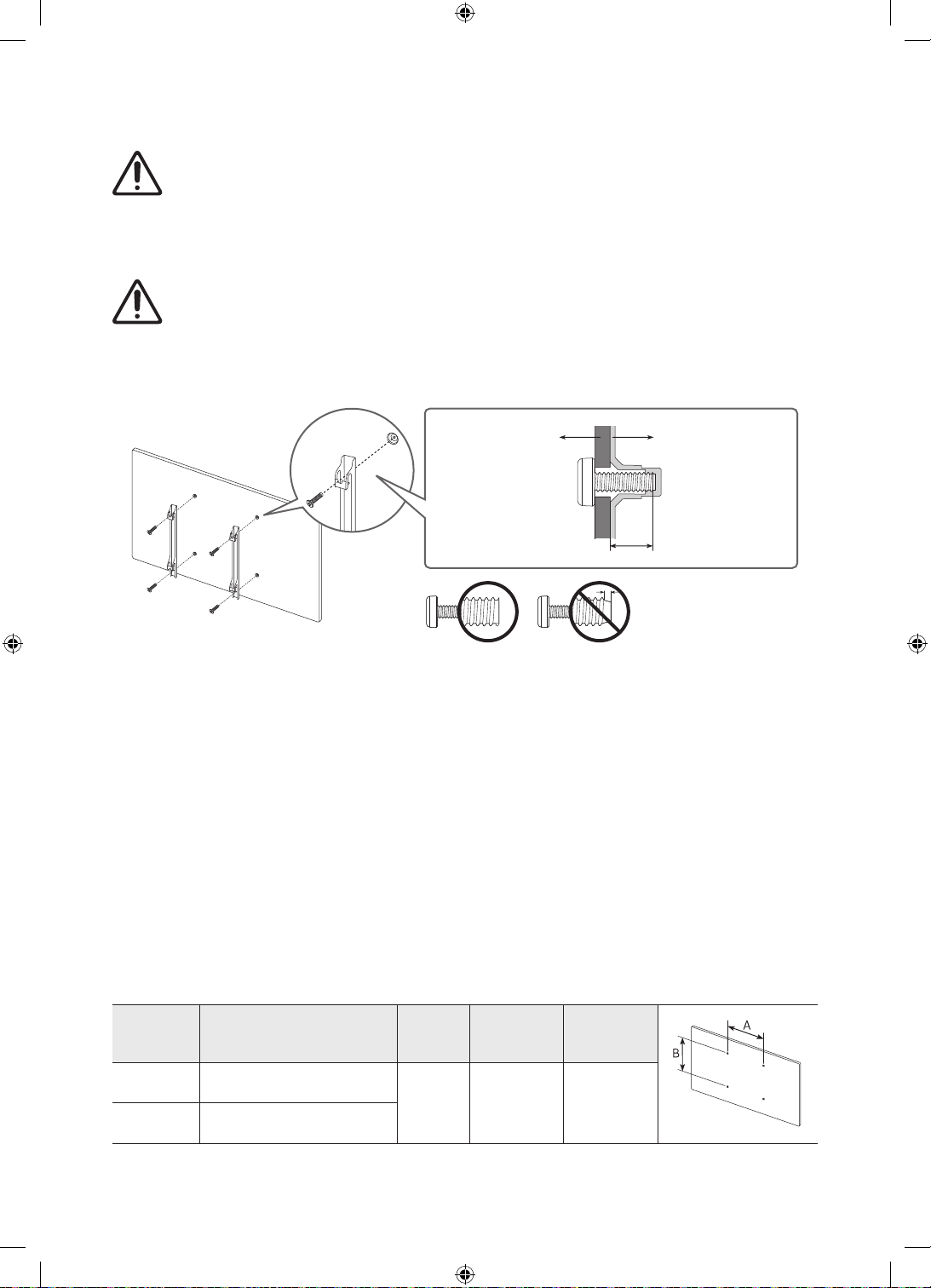

Standard dimensions for wall mount kits are shown in the table below.
If you are installing a third-party wall mount, note that the length of the screws you can
use to attach the TV to the wall mount is shown in column C in the table below.
When installing a wall mount kit, we recommend you fasten all fourVESA screws.
If you want to install a wall mount kit that attaches to the wall using two top screws only,
be sure to use a Samsung wall mount kit that supports this type of installation. (You may
not be able to purchase this type of wall mount kit, depending on the geographical area.)
TV size in
inches
VESA screw hole specs
(A * B) in millimetres C (mm) Standard
Screw Quantity
55 200 x 200
11.8 M8 4
65-75 400 x 400
Recommended torque : 10 - 12 kgf.cm
English - 15

Do not install yourwall mount kit while your TV is turned on. This may result in
personal injury from electric shock.
Do not use screws that are longer than the standard dimension or do not comply with the
VESA standard screw specifications. Screws that are too long may cause damage to the
inside of the TV set.
For wall mounts that do not comply with the VESA standard screw specifications, the
length of the screws may differ depending on the wall mount specifications.
Do not fasten the screws too firmly. This may damage the product or cause the product to
fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
Samsung is not liable for product damage or personal injury when a non-VESA or non-
specified wall mount is used orwhen the consumer fails to follow the product installation
instructions.
Always have two people mount the TV onto a wall.
WARNING: This apparatus must be securely attached to the wall.
"Tipping, shaking, or rocking the machine may cause injury/death". (CSA60065)
Providing properventilation foryour TV
When you install your TV, maintain a distance of at least 38 mm between the TV and other
objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper
ventilation may result in a fire or a problem with the product caused by an increase in its
internal temperature.
When you install your TV with a wall mount, we strongly recommend you use parts provided
by Samsung only. Using parts provided by another manufacturer may cause difficulties with
the product or result in injury caused by the product falling.

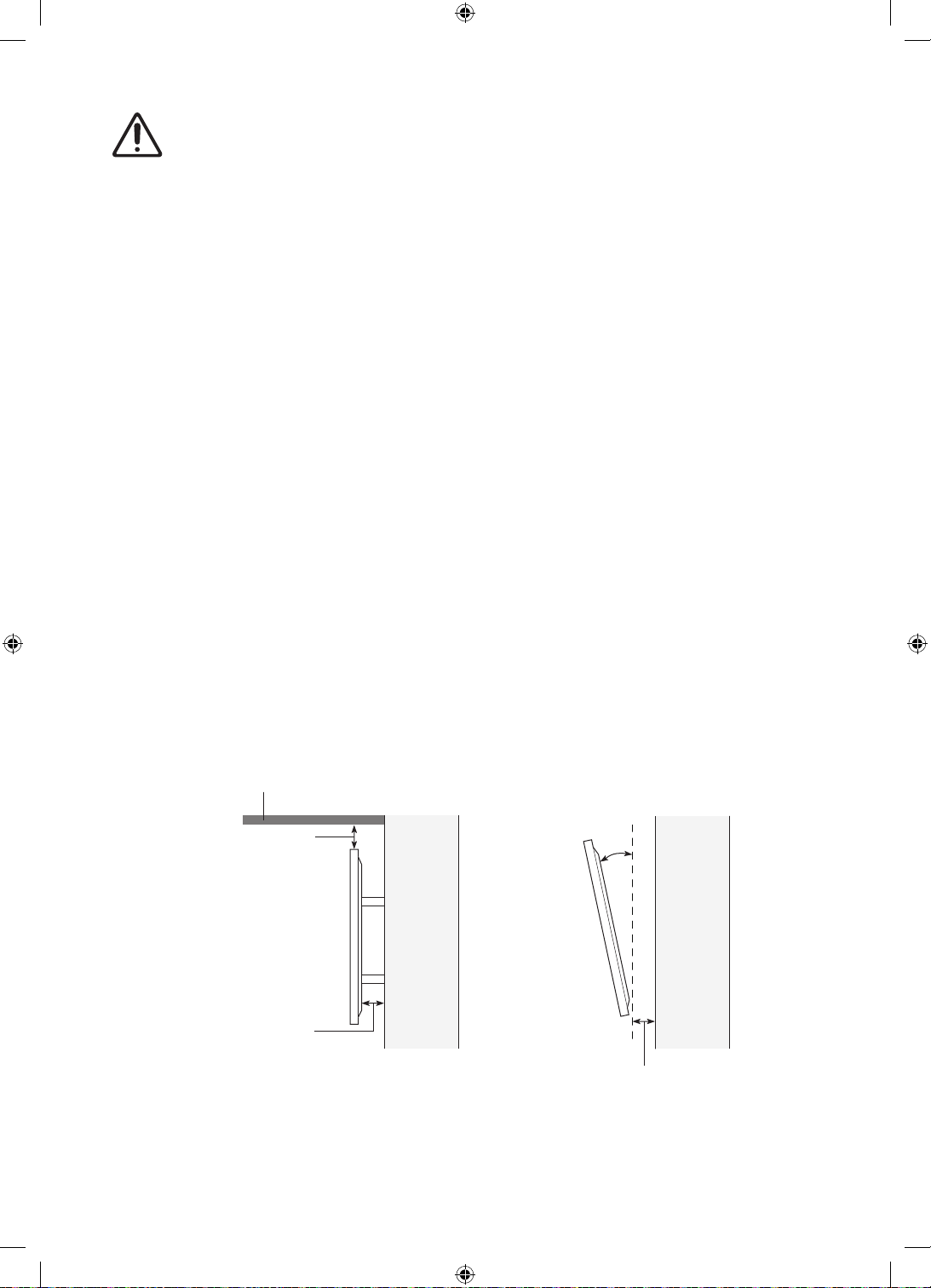

The Terrace can be installed in a tilted position on a wall or a cabinet side, up to 15°.
38 mm or more
15°
Wall or
cabinet
side
38 mm or more
At least 200 mm
Sunlight barrier
Wall or
cabinet
side
English - 16

Other Cautions
The actual appearance of the TV may differ from the images in this manual, depending on
the model.
Be careful when you touch the TV. Some parts can be somewhat hot.
Durability
The TV provides the robust durability by IP55 so that it can be used in outdoor environment
(when installed and used as per the instructions in this User Manual).
The remote control of this product provides durability by IP56.
Protection against solids IP Protection against water
5 5
No protection 0 0 No protection
Solids > 50 mm 1 1 Vertically falling water
Solids > 12 mm 2 2 Vertically water - enclosure tilted 15°
Solids > 2.5 mm 3 3 Sprayed water 60° from vertical
Solids > 1.0 mm 4 4 Splashed water from all directions
Dust Protected 5 5 Hosing jets from all directions
Dust tight 6 6 Strong hosing jets from all directions
- 7 Temporary Immersion: 1 m for 30 minutes
- 8 Immersion: manufacturer defined depth
and time
Despite the IP55 and IP56 ratings, your TV and remote control are not impervious to water
damage in any situation. To help prevent damage to your products, avoid the products being
subjected to:
Water projected by a source greater than 6.3mm against enclosure from any direction or
submersion in water.
Water projected at greater than 30KPa (4.4 PSI) with a water volume greater than 12.5litres/
minute for more than 3 minutes and extreme weather conditions.
If you have purchased or been provided a Dust Cover in the box with the TV, be sure to apply
the Dust Cover to the TV whenever the TV is not in use for an extended period of time.
The Dust Cover will help prevent dust, dirt, and more from accumulating on the TV. Please
refer to the guide provided with the Dust Cover for installation/usage guidelines.
English - 17

03 The TV Control Stick
Using the TV Controller

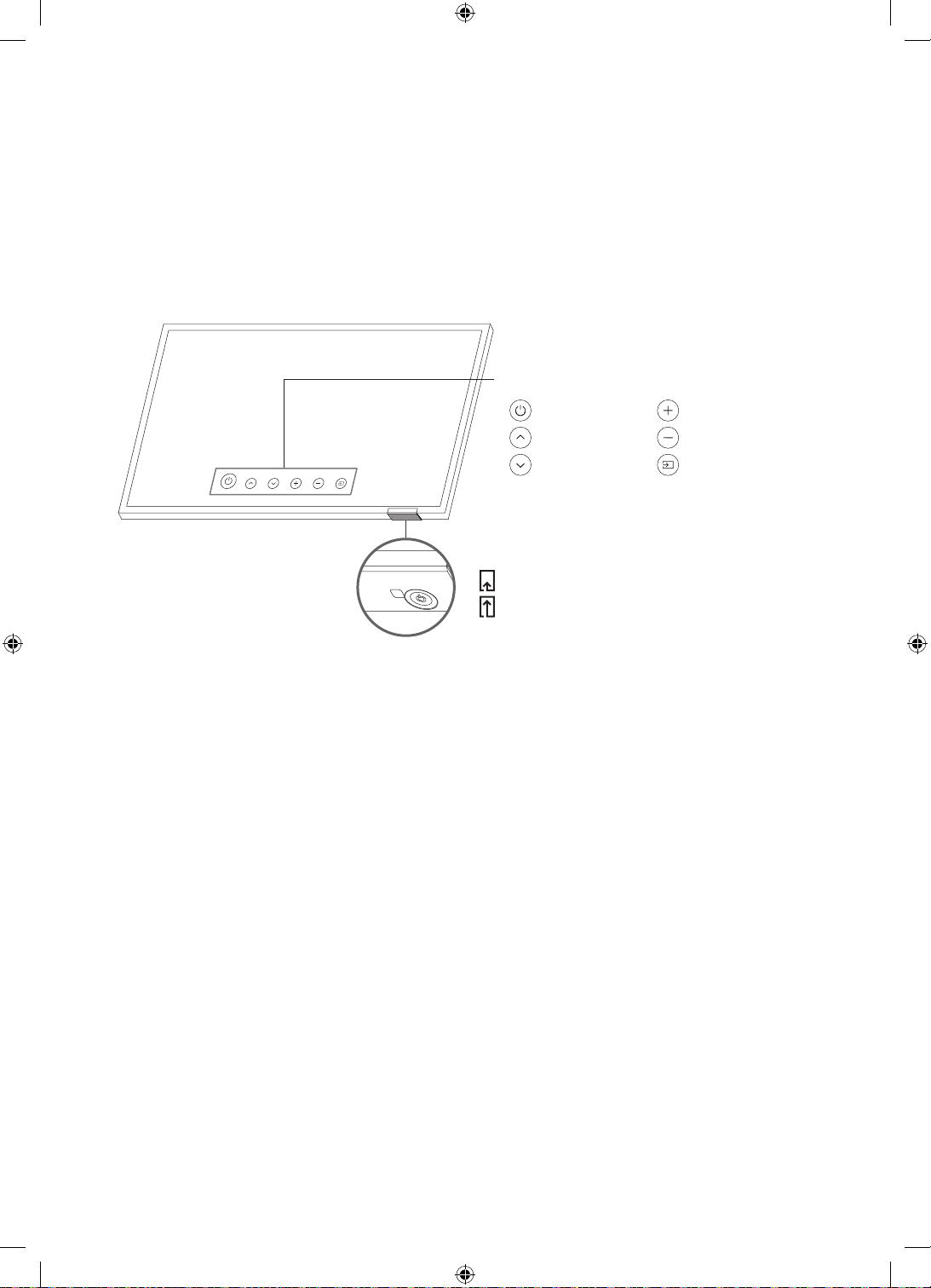

You can turn on the TV with the TV Controller button at the bottom of the TV, and then use the
Control menu. The Control menu appears when the TV Controller button is pressed while the
TV is On. For more information about its usage, refer to the figure below.
Control menu
:Power off :Volume Up
:Channel Up :Volume Down
:Channel Down :Source
TV Controller button / Remote control sensor
Press: Move
Press & Hold: Select
The TV Controller button is located on the bottom of the TV.
English - 18

04 The Remote Control
About the Buttons on the Remote Control
This remote control has Braille points on the Power, Channel, Volume, and Select buttons
and can be used by visually impaired persons.
The images, buttons, and functions of the remote control may differ depending on the
model.
If you use the remote control that comes with your TV to control another TV, some functions
may not operate normally.
Displays and selects available
video sources.
Turns the sound on/off.
Launches the Channel List.
Changes the current channel.
Exits the menu.
Use these buttons according to
the directions on the TV screen.
Use these buttons with specific
features. Use these buttons
according to the directions on
the TV screen.
Press each button to run its
function.
Displays the Guide screen.
Moves the cursor, selects the
on-screen menu items, and
changes the values seen on the
TV's menu.
P(Power)
Turns the TV on and off.
Adjusts the volume.
Alternately selects Teletext
mode, Full TTX / Double TTX /
Mix / Live TV.
Returns to the previous channel.
Gives direct access to channels.
Press each button to run its
function.
Returns to the previous menu or
channel.
SETTINGS
Displays the main on-screen
menu.
INFO
Displays information about the
current programme or content.
AD/SUBT.
Displays the Accessibility
Shortcuts.
E(Select)
Selects or runs a focused item.
(Smart Hub)
Launches Home Screen.
English - 19

Installing batteries into the remote control (Battery size: AAA)
Match the polarities of the batteries to the symbols on the battery compartment.
2
3
1
The colour and shape of the remote may vary depending on the model.
Use the remote control within 7 m of the TV.
Bright lights may affect the performance of the remote control. Avoid using the remote
control near special fluorescent lights or neon signs.
Alkaline batteries are recommended for longer battery life.
1. Gently pull on the battery cover's notch and then remove the cover completely once it
comes loose.
2. Insert 2 AAA alkaline batteries, making sure to align the positive and negative polarities
correctly.
3. Place the battery cover on the remote control and insert the cover into the remote control.
4. Slide the battery cover in the order shown above so that the cover is completely attached
to the remote control.
English - 20
