Samsung OH55F User manual

Outdoor Installation Guide
© Samsung Electronics
Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Trademarks other than Samsung Electronics are
property of their respective owners.
OH46F OH55A OH55F OH75A OH75F OH85F
Follow the instructions provided in this guide when installing the product.
Samsung will not provide warranty coverage for problems that may arise as a result of failure to
follow the guide.
The color and shape of the product may vary. In addition, instructions in the installation guide
may change without prior notice when necessary to improve the product.
2021.12

2
Notice
1. When installing signage, Samsung Electronics recommends that Signage is installed by itself, without an enclosure.
2. When installing signage with an enclosure, it requires the enclosure review process by engineering team in Samsung Electronics.

Table of contents
Enclosure unit design guide
Air flow direction 4
Enclosure unit partition design 5
Partition design guide 5
Partitions when installing with an optional
media player 6
Inlet and outlet types 7
Total open area of the ventilation holes and
ratio 7
Single enclosure unit 8
1 x N one-side enclosure unit 10
Double-sided enclosure unit 11
Precautions for enclosure unit designing 13
No additional front glass (tempered glass) 13
3
Handling guide
Moving by crane 22
Cleaning and cautions
Cleaning 23
Cleaning the protection glass 23
Cleaning the inlet and outlet 23
Cleaning the inlet and outlet 24
Heat Exchanger cleaning/Maintenance 25
Precautions 26
Cautions when routing cables 26
Cautions when connecting cables 27
Cautions when replacing parts 28
Installation requirements
Surrounding environment 14
Rotation and tilt angle 16
Installing the wall-mount 17
The mount hole depth 17
Installing the wall-mount brackets 17
Wall-mount standard (VESA) 18
Clearance for wall mounting 19
Installing the outdoor unit only 19
Installing with enclosure unit 20
Clearance for built-in installation 21
Installing the outdoor unit only 21

4
Enclosure unit design guide
Chapter 01

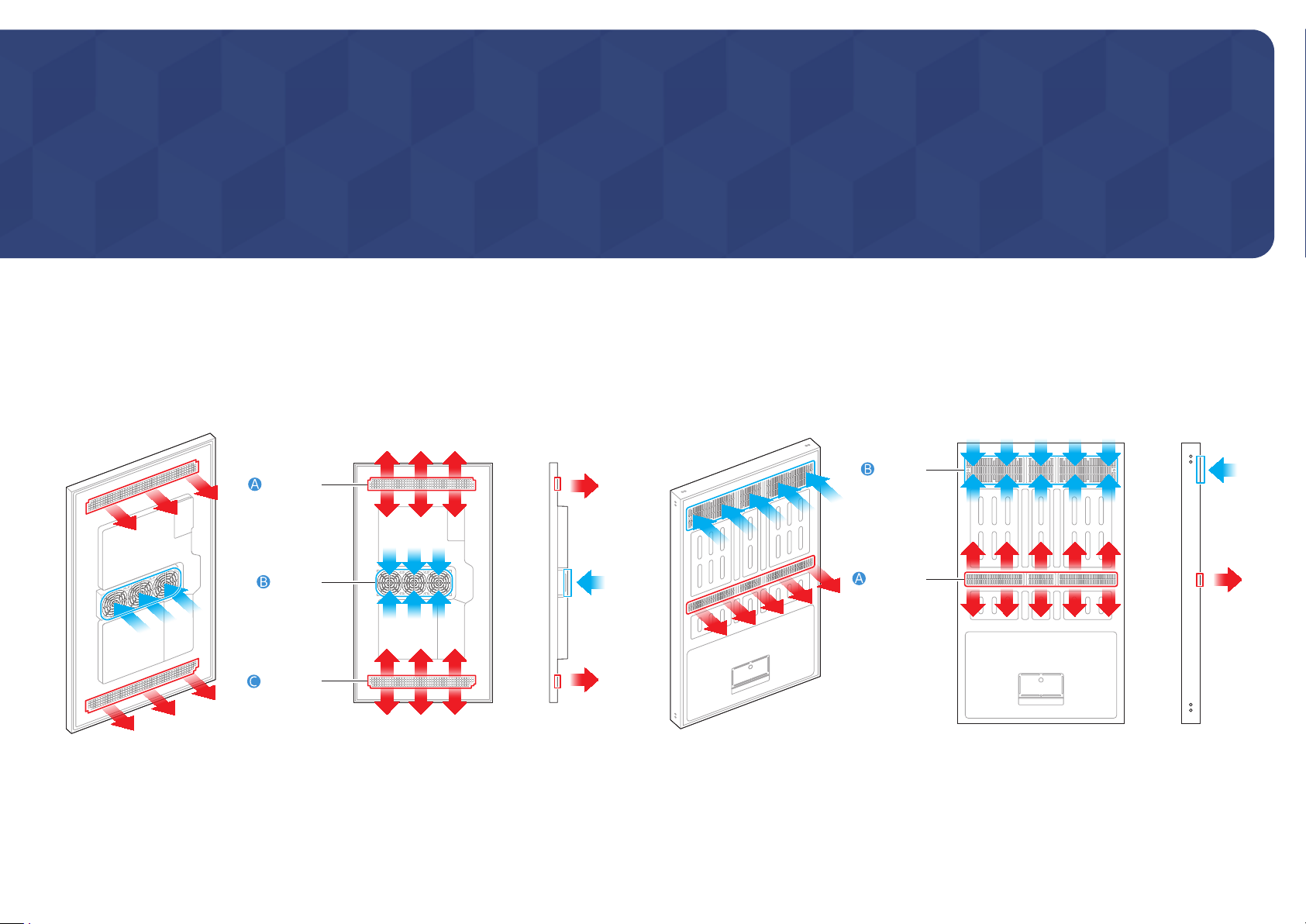

Air ow direction
The outdoor unit uses cooling fans to take in outside air to lower the internal temperature and discharge the hot air.
"When installing an outdoor unit, remove any obstacles near the air inlet and outlet that may affect air flow.
OH46F/OH55A/OH55F
Air outlet
Air inlet
Air outlet
Back Side view
OH75A/OH75F/OH85F
Air inlet
Air outlet
Back Side view

5
Enclosure unit partition design

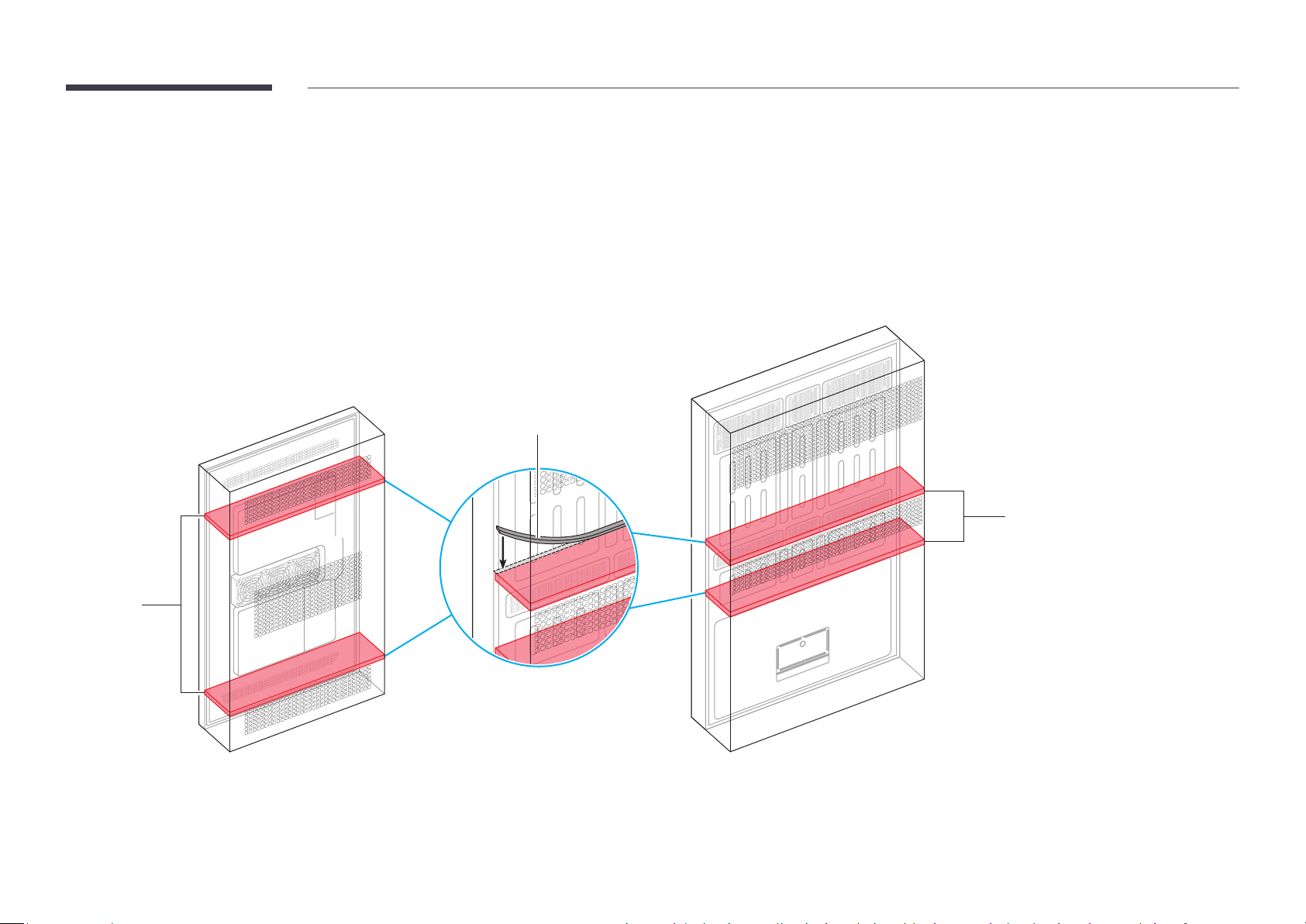

Partition design guide
•For outdoor units, add partitions between the inlet and outlet inside the enclosure unit to keep air paths separated.
•Partitions should fit perfectly inside the enclosure unit, with no gap between the outdoor unit and enclosure unit. If there is a gap, use a foam tape to fill it.
Partition
Partition
Foam tape
OH46F/OH55A/OH55F OH75A/OH75F/OH85F

6
Partitions when installing with an optional media player
To install an optional media player with the outdoor unit, use partitions to isolate the player.
"There should be no gap between the media player and outdoor unit; only allow cables through the partition.
"The optional media player is an additional source of heat and the increased temperature inside the enclosure unit may cause the outdoor unit to malfunction; a malfunction occurring in this
manner will not be covered by the warranty.
Media Player
Unit

7

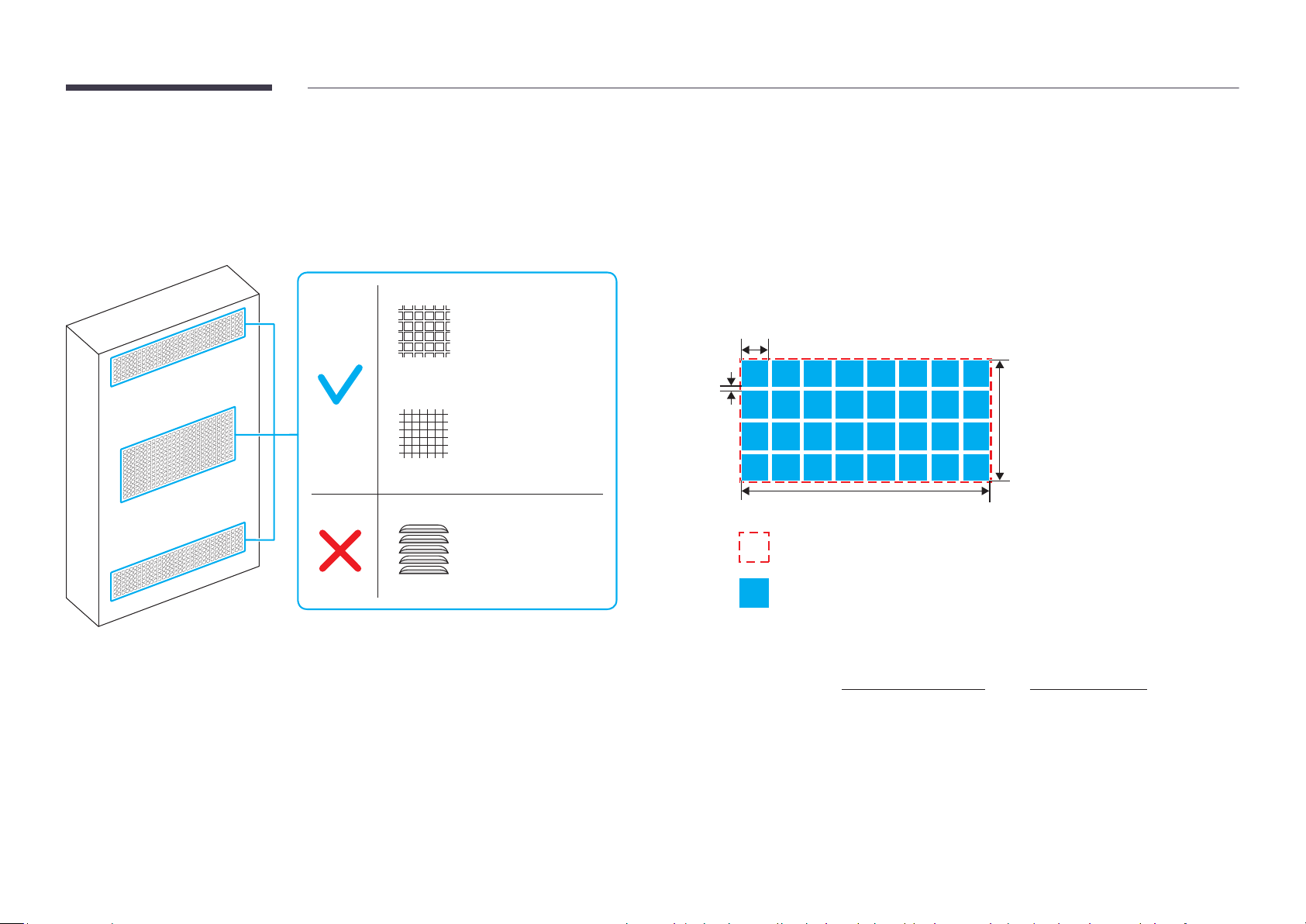

Inlet and outlet types
Ventilation opening ratio for air inlet and outlet should be minimum 50%.
Air inlet and outlet should be grid or mesh types.
"Do not use the louver type as it has a limited intake size.
Grid type
Mesh type
Louver type
Total open area of the ventilation holes and
ratio
Follow the guide when combining the outdoor unit with the enclosure unit.
"If the instructions provided in this guide are not observed, the cooling system may not work
properly and may cause a malfunction, which will not be covered by warranty.
"Calculating Total open area of the ventilation and Ventilation opening ratio
Total Area of the Ventilation: 181 x 89 = 16109 mm⁲
Total open area of Ventilation holes : 20 x 20 x 32 = 12800 mm⁲
181 mm
3mm
20 mm
89 mm
Total open area of
Ventilation holes
Total Area of the
Ventilation
Ventilation opening ratio: =12800 mm⁲
16109 mm⁲ x 100 = 79 %

8

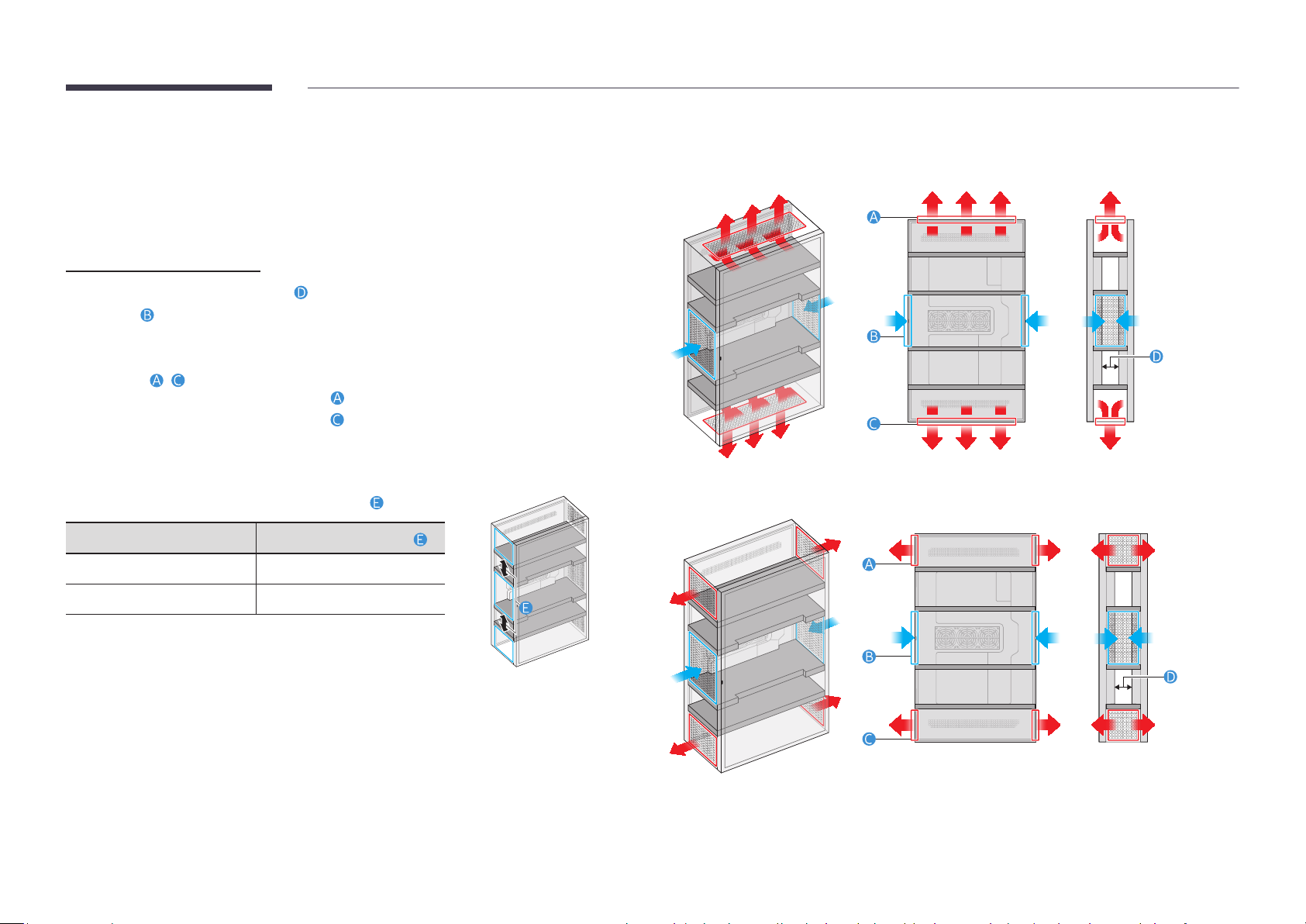

Single enclosure unit
Design the outdoor unit according to the following specications to keep discharged hot air from owing back
into the inlet.
OH46F/OH55A/OH55F
•Air inlet( )
Total open area of the ventilation holes: 53000 mm⁲ or more
Ventilation opening ratio (% of total opening): 50 % or more
•Air outlet( , )
Total open area of the ventilation holes ( ): 29000 mm⁲ or more
Total open area of the ventilation holes ( ): 29000 mm⁲ or more
Ventilation opening ratio (% of total opening): 50 % or more
"Design the locations of the enclosure unit inlet and outlet to match the locations of the
outdoor unit inlet and outlet.
"Ensure the minimum clearance between inlet and outlet of the enclosure.
•Minimum separation distance for each model ( )
Model name Minimum clearance( )
OH46F 235 mm
OH55A/OH55F 286 mm
Example 1
Back Side view
Example 2
Back Side view

9
OH75A/OH75F/OH85F
•Air inlet( )
Total open area of the ventilation holes: 63000 mm⁲ or more
Ventilation opening ratio (% of total opening): 50 % or more
•Air outlet( )
Total open area of the ventilation holes: 57000 mm⁲ or more
Ventilation opening ratio (% of total opening): 50 % or more
"Design the locations of the enclosure unit inlet and outlet to match the locations of the
outdoor unit inlet and outlet.
"Ensure the minimum clearance between inlet and outlet of the enclosure.
•Minimum separation distance for each model ( )
Model name Minimum clearance( )
OH75A/OH75F 380 mm
OH85F 380 mm
Back Side view

10

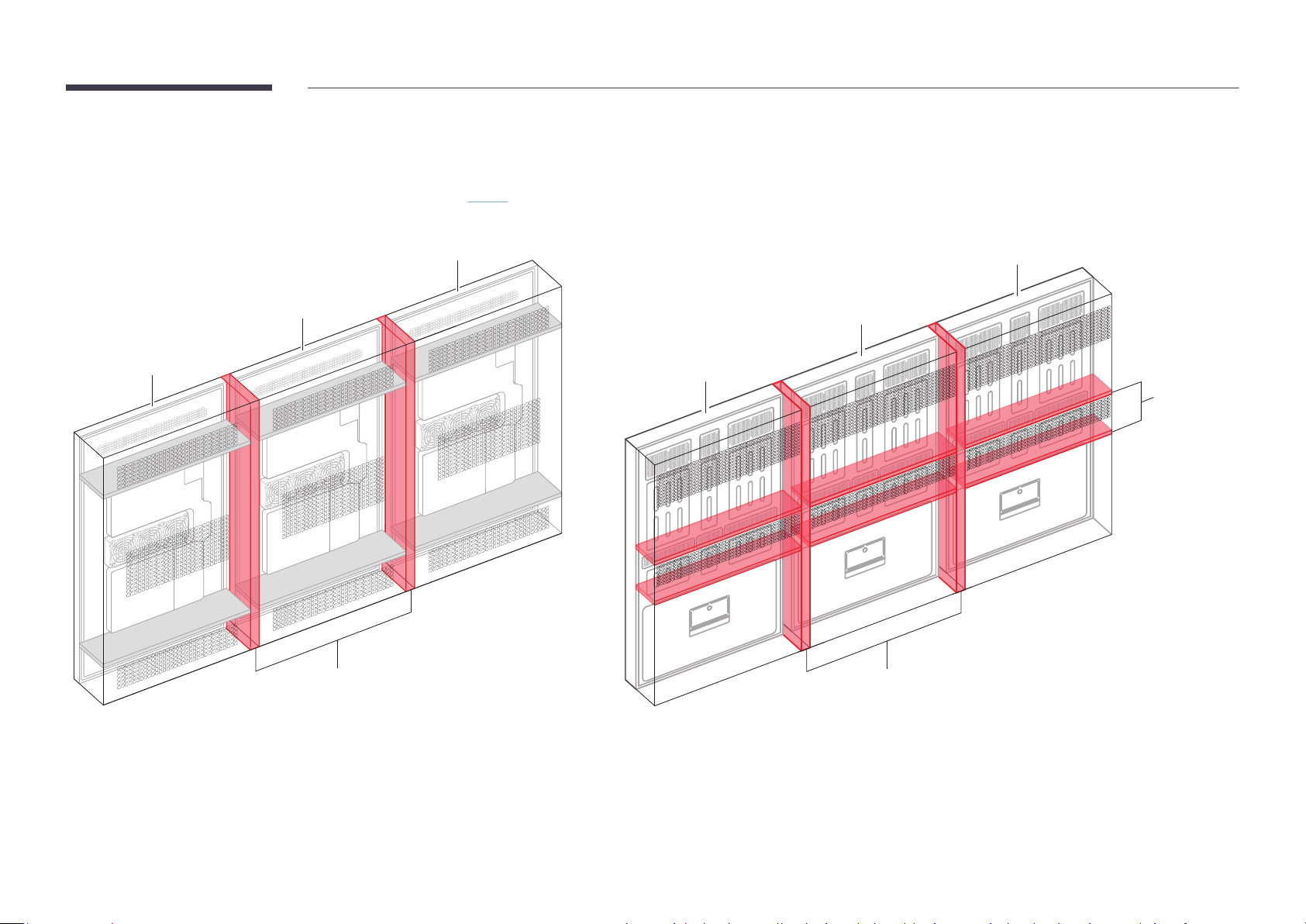

1 x N one-side enclosure unit
When designing the 1 x N one-side enclosure unit, add partitions between the products to keep the air paths separated.
"Refer to the 'Total open area of the ventilation holes and ratio’. (Page 6)
"Make sure there is no gap between the partitions and the enclosure unit.
Product 2
Partition
Product 1
Product 3
Product 2
Partition
Partition
Product 1
Product 3

11
Double-sided enclosure unit
Design your outdoor unit to keep discharged hot air from owing back into the inlet.
"When designing double-sided enclosure units, position the inlet on the top or to the side.
"Outlet can be on the top/bottom or on the side.
OH46F/OH55A/OH55F
•Clearance between outdoor units ( ): 100 mm or more
•Air inlet( )
Total open area of the ventilation holes: 106000 mm⁲ or more
Ventilation opening ratio (% of total opening): 50 % or more
•Air outlet( , )
Total open area of the ventilation holes ( ): 58000 mm⁲ or more
Total open area of the ventilation holes ( ): 58000 mm⁲ or more
Ventilation opening ratio (% of total opening): 50 % or more
"Ensure the minimum clearance between inlet and outlet of the enclosure.
•Minimum separation distance for each model ( )
Model name Minimum clearance( )
OH46F 235 mm
OH55A/OH55F 286 mm
Example 1
Back Side view
Example 2
Back Side view

12

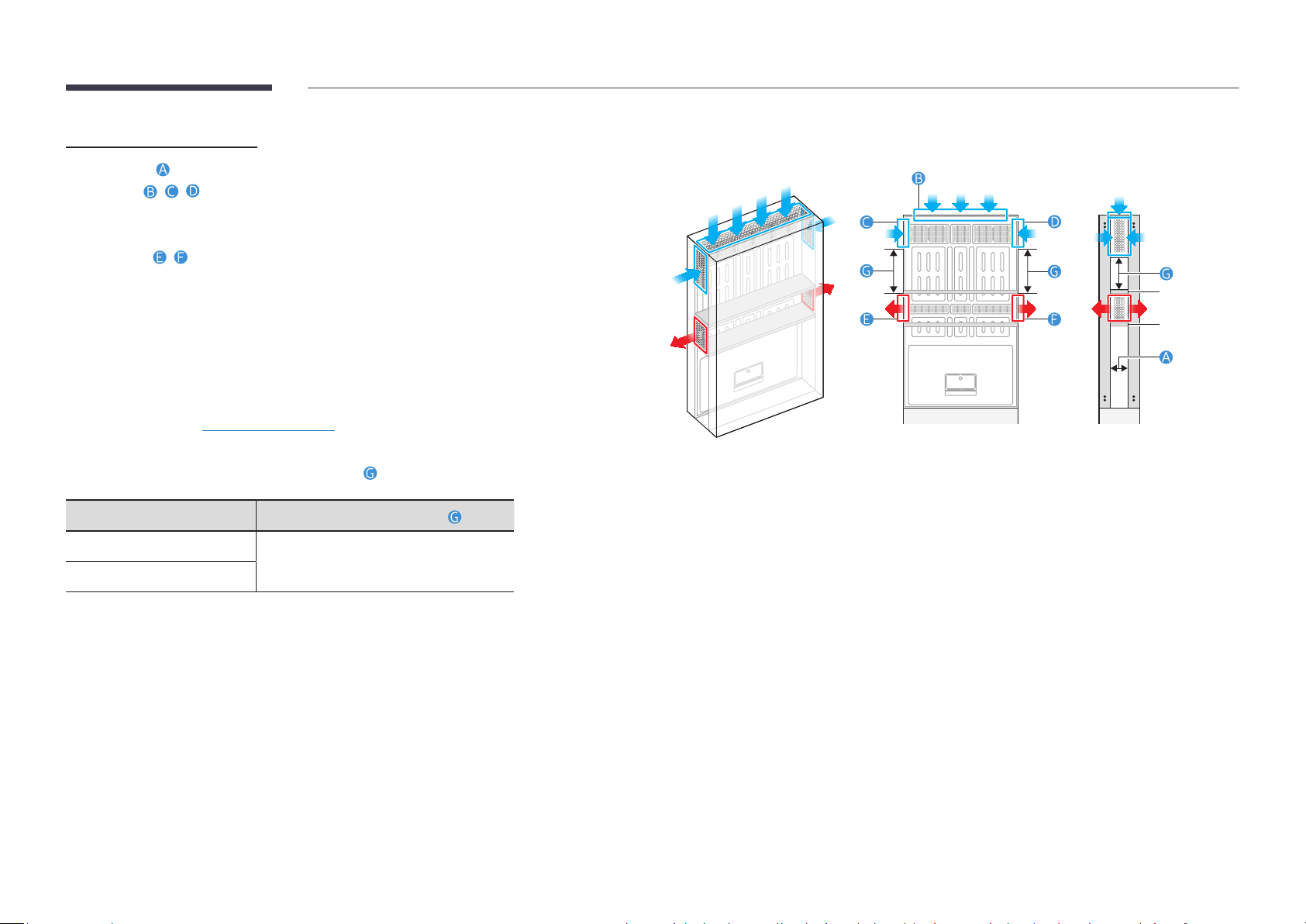

OH75A/OH75F/OH85F
•Clearance ( ): 400 mm or more
•Air inlet ( , , )
Total open area of the ventilation holes: 126000 mm⁲ or more
Ventilation opening ratio (% of total opening): 50 % or more
•Air outlet ( , )
Total open area of the ventilation holes: 114000 mm⁲ or more
Ventilation opening ratio (% of total opening): 50 % or more
"Add partitions without any gap to completely separate the inlet and outlet.
– Secure at least 400 mm of clearance between two products.
"The structure of the enclosure must be designed to clean the inlet / outlet / heat exchanger
regularly.
Ex) Add a door for workers to ensure access for cleaning with the tools.
– For details, see Cleaning and cautions.
"Ensure the minimum clearance between inlet and outlet of the enclosure.
•Minimum separation distance for each model( )
Model name Minimum clearance( )
OH75A/OH75F
380 mm
OH85F
Example 1
At least 400 mm of clearance
between products
Partition
Partition
Back Side view

13
Precautions for enclosure unit designing
No additional front glass (tempered glass)
•Applying tempered glass on the front side of the display is prohibited.
•Consider the location of the IR Remote and Eco Sensor on your product when designing an
enclosure unit.
"The sensor may not operate or may cause the screen to darken if the sensor is not
sufficiently exposed.
•If the product temperature increases due to high outside temperature or the environment
in which the product is installed, the luminance decreases for product overheating
mitigation and accident prevention.
OH46F/OH55A/OH55F
Landscape Portrait
OH75A/OH75F/OH85F
IR Remote Sensor/Eco Sensor

14
Installation requirements
Chapter 02

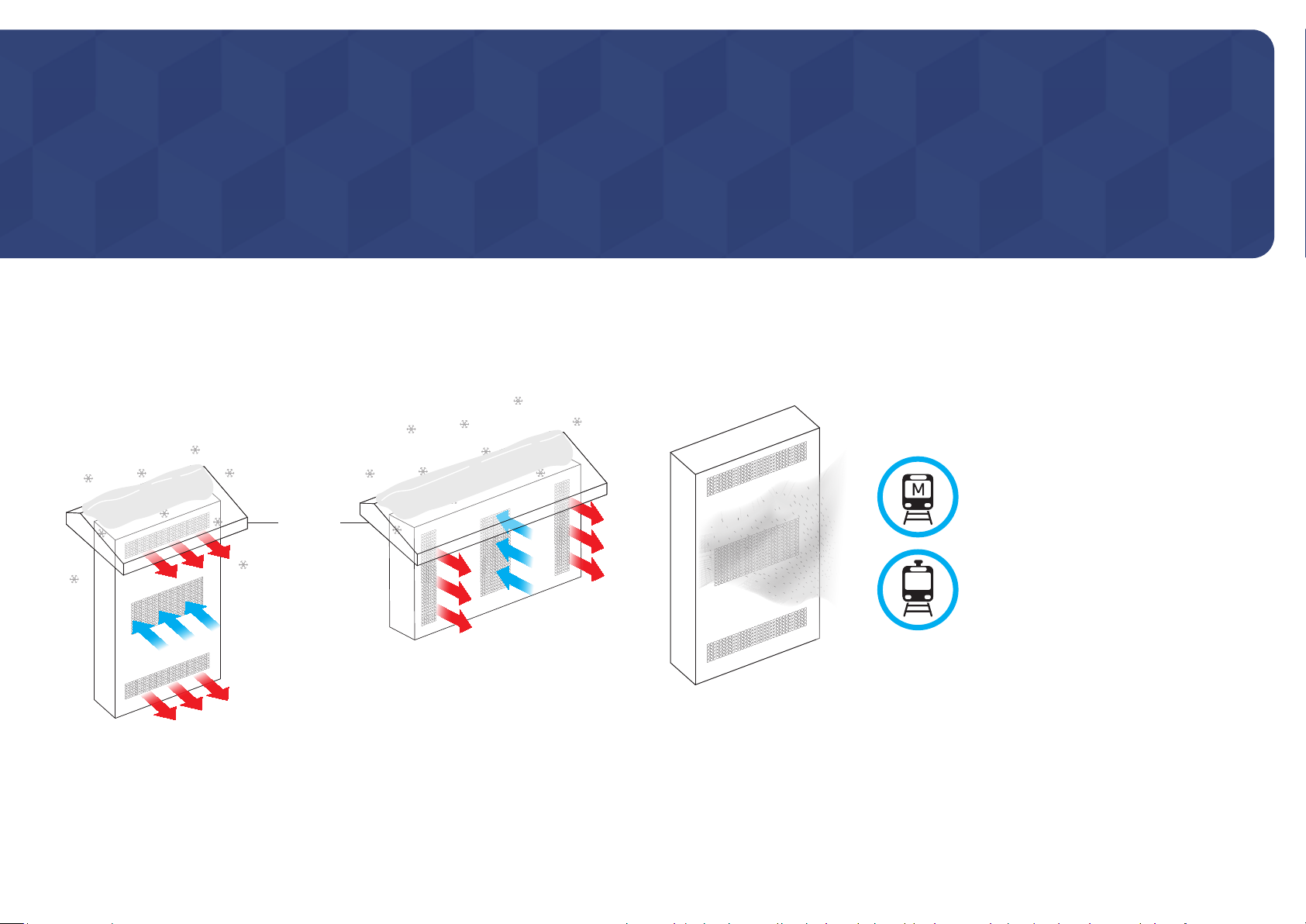

Surrounding environment
•When installed in places such as a ski resort, fans may not operate if the inlet is blocked by
a pile of snow. Install a cover to avoid snow piling directly onto the inlet
Cover
•The product can be used in a train or subway station.
The outdoor unit is designed to keep out iron dust.

15
•When installed on beach area, make sure the display is placed where seawater is not accessible.
"Ensure the display unit installed location is within safe distance from the possible contact from rising seawater due to strong winds due to storm or other natural phenomenon.

16
Rotation and tilt angle
•The outdoor unit can be installed in Landscape or Portrait orientations.
•The outdoor unit can be installed in a tilted position on a vertical wall or an
obstacle, up to 15°.
15°
Θ°
Wall or
obstacle
Wall or
obstacle
OH46F/OH55F/OH55A
Landscape Portrait Back
"Do not use this model installed on a ceiling, floor, or table.
OH75A/OH75F/OH85F
Back
Landscape Portrait

17
Installing the wall-mount
The mount hole depth
Model name Mount hole (a * b) (mm) The mount hole depth(C) Standard Screw Quantity
OH46F 995 x 500 14
M8 4OH55F
1186 x 560
14
OH55A 11
Installing the wall-mount brackets
•To use a VESA compatible wall-mount, you must first install the appropriate brackets.
•If you have any questions regarding wall-mount brackets, please contact your provider or the Samsung Electronics Service Center.
1
Remove the bolts ( ) from the product.
(M8 x L18)
b
a
2
Place the wall-mount brackets on the product, adjust the position, and fasten the bolts ( ).
"Torque: 12~15 kgf.cm
(M8 x L18)
C

18
Wall-mount standard (VESA)
Model name VESA standard (A * B) in millimetres (inches) Standard Screw Quantity
OH46F 1000 x 400 (39.4 x 15.7)
M8 4
OH55A/OH55F 1200 x 400 (4 7. 2 x 15.7)
"For more information about wall mounting, refer to the user guide enclosed with the wall-mount parts.
"Installation of the wall-mount must be performed by a technician.
"Samsung is not responsible for any damage or injury caused to the product, you or other people by installing the product without expert help.
50 mm or more
Wall-mount brackets
Wall or
obstacle
Back Side view
B
A
VESA hole
VESA hole
VESA hole
VESA hole
M8
12.5 mm
Product
Partition
Partition

19
Clearance forwall mounting
Installing the outdoor unit only
•When installing close to the wall, maintain a sufficient clearance in order to secure air flow.
•Clearance for OH46F/OH55A/OH55F ( ): 50 mm or more
•Clearance for OH75A/OH75F/OH85F ( )
– Example 1) Exposure to direct sunlight: 200 mm or more
– Example 2) Atmospheric temperatures under 35 ℃ without direct sunlight: 60 mm or
more
•Add partitions between the inlet and outlet to prevent discharged air from flowing back
into the inlet.
"If the unit is subjected to excess heat due to an insufficient gap, this may cause a
malfunction, which will not be covered by the warranty.
•If the distance between the back of the product and the wall is too large, the following
types of partitions can be installed.
45 mm
50 mm
Min. 95 mm
– OH46F: 570 mm
– OH55A/OH55F: 650 mm
650 mm
Wall or
obstacle
OH46F/OH55A/OH55F
Partition
Partition
Side view Back Back
OH75A/OH75F/OH85F
Wall or
obstacle
Partition
Side view

20
Installing with enclosure unit
•When installing an enclosure unit close to the wall, maintain the clearance in order to secure air flow. Consult your provider for detailed requirements before installing the product. Excessive
heat due to the use of the enclosure unit with an obstacle or a wall may cause a malfunction or a problem with the product.
•Clearance for OH46F/OH55A/OH55F ( ): 100 mm or more
•Clearance for OH75A/OH75F/OH85F ( ): 200 mm or more
•Remove any obstacles near the inlet and outlet that may affect air flow.
"If the unit is subjected to excess heat due to an insufficient gap, this may cause a malfunction, which will not be covered by the warranty.
Back
Wall or
obstacle
OH46F/OH55A/OH55F
Partition
Partition
Side view Back
OH75A/OH75F/OH85F
Wall or
obstacle
Partition
Side view
Partition
