Samsung SyncMaster 2043SN User manual

ii
LCD MONITOR
quick start guide
2043SN 2043SNX 2243SN 2243SNX 2243LNX

Introduction
{2243LNX} Package Contents
Note
Please make sure the following items are included with your monitor.
If any items are missing, contact your dealer.
Contact a local dealer to buy optional items.
Unpacking
Type 1
Monitor & Simple stand
Note
MagicRotation program can not be provided as Simple Stand does not support Pivot function.
Type 2
Monitor & HAS stand
Manuals
Quick Setup Guide Warranty Card
(Not available in all loca-
tions)
User's Guide

Cables
D-Sub Cable Power Cord
Others
Cleaning Cloth
Note
Cleaning Cloth is only provided for highly polished black products as a product feature.
Your Monitor
Initial Settings
Select the language using the up or down key.
The displayed content will disappear after 40 seconds.
Turn the Power button off and on. It will be displayed again.
It can be displayed up to three (3) times. Make sure to adjust the resolution of your PC before
reaching the maximum count.
Note
The resolution displayed on the screen is the optimal resolution for this product.
Adjust your PC resolution so that it is the same as the optimal resolution for this product.
Introduction

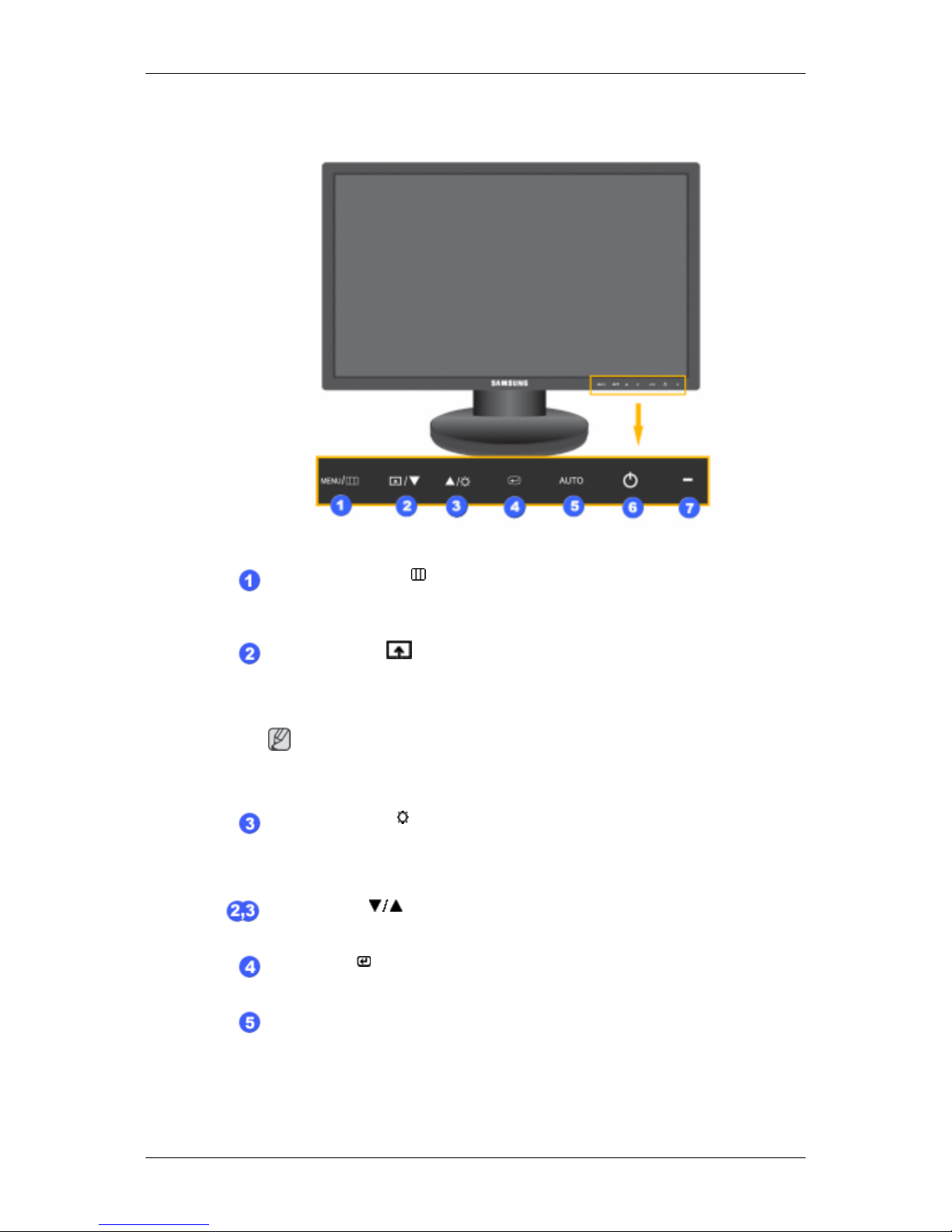

Front
MENU button [MENU/ ]
Opens the on-screen menu and exits from the menu. Also use to exit the
OSD menu or return to the previous menu.
Customized Key[ ]
You can customize key assignment for the Custom button according to
your preferences.
Note
You can configure the customized key for a required function via Setup >
Customized Key.
Brightness button [ ]
When OSD is not on the screen, push the button to adjust brightness.
>> Click here to see an animation clip
Adjust buttons [ ]
These buttons allow you to adjust items in the menu.
Enter button [ ]
Activates a highlighted menu item.
AUTO button
Use this button for auto adjustment.
>> Click here to see an animation clip
Introduction

Power button [ ]
Use this button for turning the product on and off.
Power Indicator
This light is lit when operating normally, and blinks once when your
adjustments are saved.
Note
See PowerSaver described in the manual for further information regarding
power saving functions. For energy conservation, turn your monitor OFF
when it is not needed or when leaving it unattended for long periods.
Rear
Note
The configuration at the back of the product may vary from product to product.
Simple Stand HAS Stand
POWER port
Connect the power cord for your monitor to the POWER port on the back of
the product.
RGB IN port
Connect the D-sub cable to the 15-pin, RGB IN port on the back of your mon-
itor.
Kensington Lock
The Kensington lock is a device used to physically fix the system when using
it in a public place. (The locking device has to be purchased separately.) For
using a locking device, contact where you purchase it.
Note
The location of the Kensington Lock may be different depending on its model.
Using the Anti-Theft Kensington Lock
1. Insert the locking device into the Kensington slot on the Monitor and
turn it in the locking direction .
Introduction

2. Connect the Kensington Lock cable.
3. Fix the Kensington Lock to a desk or a heavy stationary object.
Note
See Connecting Cables for further information regarding cable connec-
tions.
Cable holding ring
• Fix the cables using the holding ring, as shown in the figure.
{2043SN/2043SNX/2243SN/2243SNX} Package Contents
Note
Please make sure the following items are included with your monitor.
If any items are missing, contact your dealer.
Contact a local dealer to buy optional items.
Unpacking
Type 1
Monitor & Simple stand
Note
MagicRotation program can not be provided as Simple Stand does not support Pivot function.
Type 2
Introduction

Monitor & HAS stand
Type 3
Monitor & Dual Hinge Stand
Manuals
Quick Setup Guide Warranty Card
(Not available in all loca-
tions)
User's Guide
Cables
D-Sub Cable Power Cord
Others
Cleaning Cloth
Note
Cleaning Cloth is only provided for highly polished black products as a product feature.
Introduction

Your Monitor
Initial Settings
Select the language using the up or down key.
The displayed content will disappear after 40 seconds.
Turn the Power button off and on. It will be displayed again.
It can be displayed up to three (3) times. Make sure to adjust the resolution of your PC before
reaching the maximum count.
Note
The resolution displayed on the screen is the optimal resolution for this product.
Adjust your PC resolution so that it is the same as the optimal resolution for this product.
Front
MENU button [MENU/ ]
Opens the on-screen menu and exits from the menu. Also use to exit the
OSD menu or return to the previous menu.
Customized Key[ ]
Introduction

You can customize key assignment for the Custom button according to
your preferences.
Note
You can configure the customized key for a required function via Setup >
Customized Key.
Brightness button [ ]
When OSD is not on the screen, push the button to adjust brightness.
>> Click here to see an animation clip
Adjust buttons [ ]
These buttons allow you to adjust items in the menu.
Enter button [ ]
Activates a highlighted menu item.
AUTO button
Use this button for auto adjustment.
>> Click here to see an animation clip
Power button [ ]
Use this button for turning the product on and off.
Note
See PowerSaver described in the manual for further information regarding
power saving functions. For energy conservation, turn your monitor OFF
when it is not needed or when leaving it unattended for long periods.
Rear
Note
The configuration at the back of the product may vary from product to product.
Simple Stand HAS Stand
Introduction
Power Indicator
This light is lit when operating normally, and blinks once when your
adjustments are saved.

POWER port
Connect the power cord for your monitor to the POWER port on the back of
the product.
RGB IN port
Connect the D-sub cable to the 15-pin, RGB IN port on the back of your mon-
itor.
Kensington Lock
The Kensington lock is a device used to physically fix the system when using
it in a public place. (The locking device has to be purchased separately.) For
using a locking device, contact where you purchase it.
Note
The location of the Kensington Lock may be different depending on its model.
Using the Anti-Theft Kensington Lock
1. Insert the locking device into the Kensington slot on the Monitor and
turn it in the locking direction .
2. Connect the Kensington Lock cable.
3. Fix the Kensington Lock to a desk or a heavy stationary object.
Note
See Connecting Cables for further information regarding cable connec-
tions.
Cable holding ring
• Fix the cables using the holding ring, as shown in the figure.
Introduction

Connections

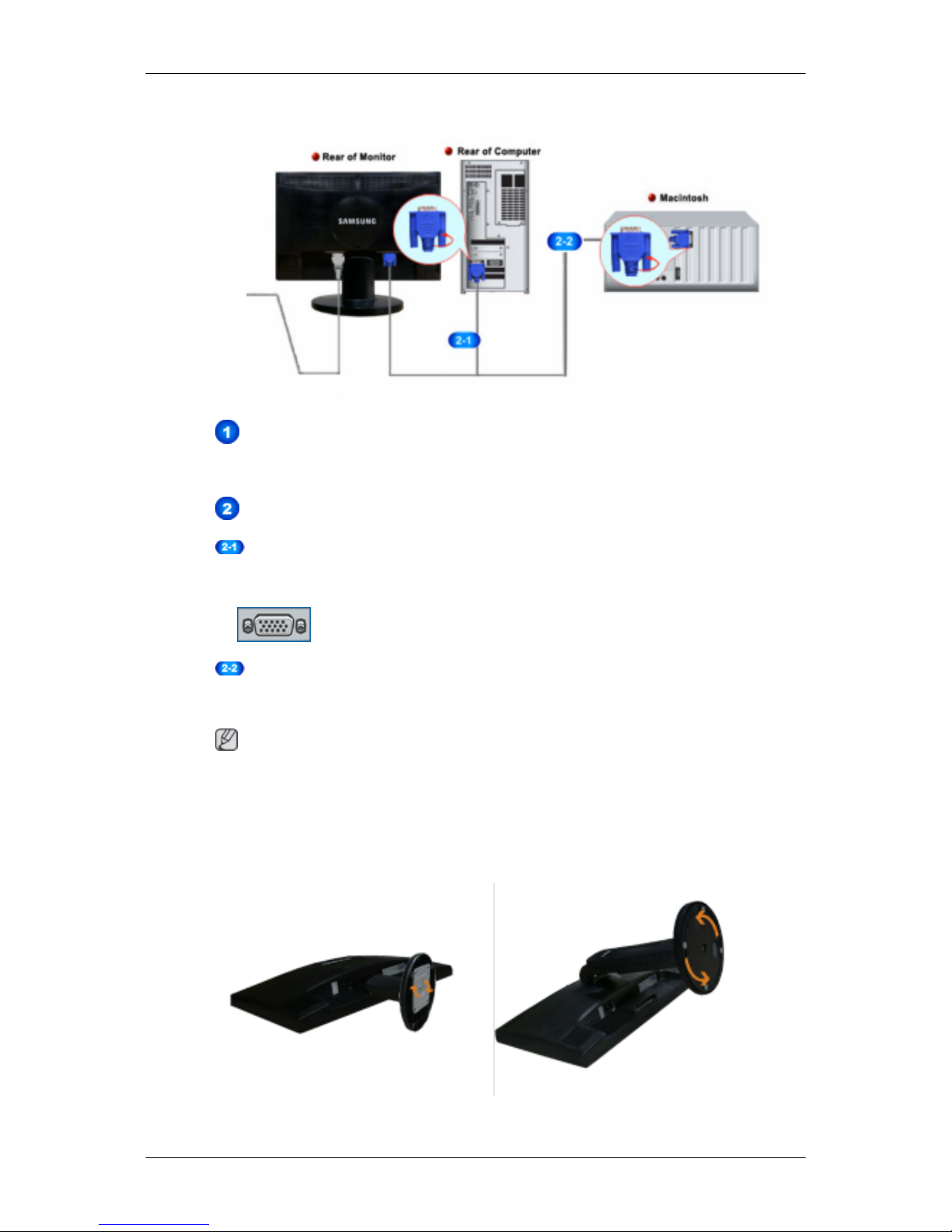

{2043SN/2043SNX} Connecting Cables
Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
Use a connection appropriate for your computer.
Using the D-sub (Analog) connector on the video card.
• Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.
[RGB IN]
Connected to a Macintosh.
• Connect the monitor to the Macintosh computer using the D-sub connection cable.
Note
If the monitor and the computer are connected, you can turn them on and use them.

Using the Stand
Monitor Assembly
Simple Stand
HAS Stand
Dual Hinge Stand
Monitor and Bottom
Attaching a Base
This monitor accepts a 75 mm x 75 mm VESA-compliant mounting interface pad.
Connections

Simple Stand(Dual Hinge Stand) HAS Stand
A. Monitor
B. Mounting interface pad (Sold separately)
1. Turn off your monitor and unplug its power cord.
2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the
screen.
3. Remove two screws and then remove the stand from the LCD monitor.
4. Align the mounting interface pad with the holes in the rear cover mounting pad and secure
it with four screws that came with the arm-type base, wall mount hanger or other base.
•Do not use screws longer than the standard dimension, as they may dam-
age the inside of the Monitor.
•For wall mounts that do not comply with VESA standard screw specifica-
tions, the length of the screws may differ depending on their specifications.
•Do not use screws that do not comply with the VESA standard screw
specifications.
Do not fasten the screws too tightly, as this may damage the product or
cause the product to fall, leading to personal injury.
Samsung is not liable for these kinds of accidents.
•Samsung is not liable for product damage or personal injury when a non-
VESA or non-specified wall mount is used or the consumer fails to follow
the product installation instructions.
•To mount the monitor on a wall, you should purchase the wall mounting
kit that allows you to mount the monitor at least 10 cm away from the wall
surface.
•Contact the nearest Samsung Service Center for more information. Sam-
sung Electronics will not be responsible for damages caused by using a
base other than those specified.
• Please use Wall Mount according to the International standards.
Connections

{2243SN/2243SNX} Connecting Cables
Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
Use a connection appropriate for your computer.
Using the D-sub (Analog) connector on the video card.
• Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.
[RGB IN]
Connected to a Macintosh.
• Connect the monitor to the Macintosh computer using the D-sub connection cable.
Note
If the monitor and the computer are connected, you can turn them on and use them.
Using the Stand
Monitor Assembly
Simple Stand HAS Stand
Connections

Using the Stand
Monitor Assembly
Simple Stand
HAS Stand
Dual Hinge Stand
Monitor and Bottom
Attaching a Base
This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad.
Connections

Simple Stand(Dual Hinge Stand) HAS Stand
A. Monitor
B. Mounting interface pad (Sold separately)
1. Turn off your monitor and unplug its power cord.
2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the
screen.
3. Remove two screws and then remove the stand from the LCD monitor.
4. Align the mounting interface pad with the holes in the rear cover mounting pad and secure
it with four screws that came with the arm-type base, wall mount hanger or other base.
•Do not use screws longer than the standard dimension, as they may dam-
age the inside of the Monitor.
•For wall mounts that do not comply with VESA standard screw specifica-
tions, the length of the screws may differ depending on their specifications.
•Do not use screws that do not comply with the VESA standard screw
specifications.
Do not fasten the screws too tightly, as this may damage the product or
cause the product to fall, leading to personal injury.
Samsung is not liable for these kinds of accidents.
•Samsung is not liable for product damage or personal injury when a non-
VESA or non-specified wall mount is used or the consumer fails to follow
the product installation instructions.
•To mount the monitor on a wall, you should purchase the wall mounting
kit that allows you to mount the monitor at least 10 cm away from the wall
surface.
•Contact the nearest Samsung Service Center for more information. Sam-
sung Electronics will not be responsible for damages caused by using a
base other than those specified.
• Please use Wall Mount according to the International standards.
Connections

{2243LNX} Connecting Cables
Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
Use a connection appropriate for your computer.
Using the D-sub (Analog) connector on the video card.
• Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.
[RGB IN]
Connected to a Macintosh.
• Connect the monitor to the Macintosh computer using the D-sub connection cable.
Note
If the monitor and the computer are connected, you can turn them on and use them.
Using the Stand
Monitor Assembly
Simple Stand HAS Stand
Connections

Monitor and Bottom
Attaching a Base
This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad.
Simple Stand HAS Stand
A. Monitor
B. Mounting interface pad (Sold separately)
1. Turn off your monitor and unplug its power cord.
2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the
screen.
3. Remove two screws and then remove the stand from the LCD monitor.
4. Align the mounting interface pad with the holes in the rear cover mounting pad and secure
it with four screws that came with the arm-type base, wall mount hanger or other base.
•Do not use screws longer than the standard dimension, as they may dam-
age the inside of the Monitor.
•For wall mounts that do not comply with VESA standard screw specifica-
tions, the length of the screws may differ depending on their specifications.
•Do not use screws that do not comply with the VESA standard screw
specifications.
Do not fasten the screws too tightly, as this may damage the product or
cause the product to fall, leading to personal injury.
Samsung is not liable for these kinds of accidents.
•Samsung is not liable for product damage or personal injury when a non-
VESA or non-specified wall mount is used or the consumer fails to follow
the product installation instructions.
•To mount the monitor on a wall, you should purchase the wall mounting
kit that allows you to mount the monitor at least 10 cm away from the wall
surface.
•Contact the nearest Samsung Service Center for more information. Sam-
sung Electronics will not be responsible for damages caused by using a
base other than those specified.
• Please use Wall Mount according to the International standards.
Connections

Troubleshooting
Note
Your monitor provides a self test feature that allows you to check whether your monitor is
functioning properly.
Self-Test Feature Check
1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer.
3. Turn on the monitor.
If the monitor is functioning properly, you will see a box in the illustration below.
This box appears during normal operation if the video cable becomes disconnected or
damaged.
4. Turn off your monitor and reconnect the video cable; then turn on both your computer
and the monitor.
If your monitor screen remains blank after using the previous procedure, check your video
controller and computer system; your monitor is functioning properly.
Warning Messages
If there is something wrong with the input signal, a message appears on the screen or the
screen goes blank although the power indicator LED is still on. The message may indicate
that the monitor is out of scan range or that you need to check the signal cable.
{2043SN/2043SNX} Self-Test Feature Check

Environment
The location and the position of the monitor may influence the quality and other features of
the monitor.
If there are any sub woofer speakers near the monitor, unplug and relocate the woofer to
another room.
Remove all electronic devices such as radios, fans, clocks and telephones that are within 3
feet (one meter) of the monitor.
Useful Tips
A monitor recreates visual signals received from the computer. Therefore, if there is a problem
with the computer or the video card, this can cause the monitor to become blank, have poor
coloring, become noisy, and video mode not supported, etc. In this case, first check the source
of the problem, and then contact the Service Center or your dealer.
Judging the monitor's working condition
If there is no image on the screen or a "Not Optimum Mode", "Recommended Mode 1600
x 900 60 Hz" message comes up, disconnect the cable from the computer while the monitor
is still powered on.
If there is a message coming up on the screen or if the screen goes white, this means the
monitor is in working condition.
In this case, check the computer for trouble.
Check List
Note
Before calling for assistance, check the information in this section to see if you can remedy
any problems yourself. If you do need assistance, please call the phone number on the In-
formation section or contact your dealer.
No images on the screen. I cannot turn on the monitor.
Q: Is the power cord connected properly?
A: Check the power cord connection and supply.
Troubleshooting
