LCD DISPLAY
quick start guide
230TSN, 230MXN

Introduction
Package Contents
Note
Please make sure the following items are included with your LCD Display.
If any items are missing, contact your dealer.
Contact a local dealer to buy optional items.
Unpacking
LCD Display
Manuals
Quick Setup Guide Warranty Card
(Not available in all loca-
tions)
User's Guide, MagicInfo
Software CD, MagicInfo
Manual CD
Cables
Power Cord
Others

Others
Remote Control Batteries (AAA X 2)
(Not available in all loca-
tions)
Ferrite Core for LAN cable
Sold separately
Wall Mount KIT D-Sub Cable LAN Cable
USB Cable HDMI Cable RS232C Cable
Ferrite Core
•The ferrite cores are used to shield the cables from interfer-
ence.
• When connecting a cable, open the ferrite core and clip it
around the cable near the plug.
Installing a Wall Mount
This product provides a wall mount of 100 mm x 100 mm that complies with the VESA spec-
ifications.
100 mm x 100 mm
A. Wall Mount Base
B. Wall Mount Kit (Optional)
1. Turn the product off and unplug the power cord from the wall outlet.
2. Place a soft cloth or cushion on a flat surface to protect the panel and place the product
face down.
3. Separate the stand.
4. Align the groove of the Monitor's wall mount base with the groove in the wall mount ki
and firmly fix the wall mount kit by fastening the screws.
Introduction

Note
•If you use a screw that is longer than the standard specifications, the inside of the product
may be damaged.
• For wall mounts that are not compatible with the standard VESA specifications, the length
of the screw may differ depending on the corresponding specifications.
• Do not use screws that are incompatible with the standard VESA specifications and do
not assemble them using excessive force.
This may result in damage to the product or injury due to the product falling. Samsung
shall not be held liable for any damage or injury.
• Samsung shall not be held liable for any damage to the product or injury caused by using
a stand that is not compatible with the specified specifications or due to an installation not
performed by an authorized installation engineer.
• When installing the product using a wall mount, purchase a wall mount that provides at
least 4 inches (10 cm) of space from the wall.
• Samsung shall not be held liable for any problems caused by using a stand that is not
compatible with the specified specifications.
• Use a wall mount according to specifications of your country.
Your LCD Display

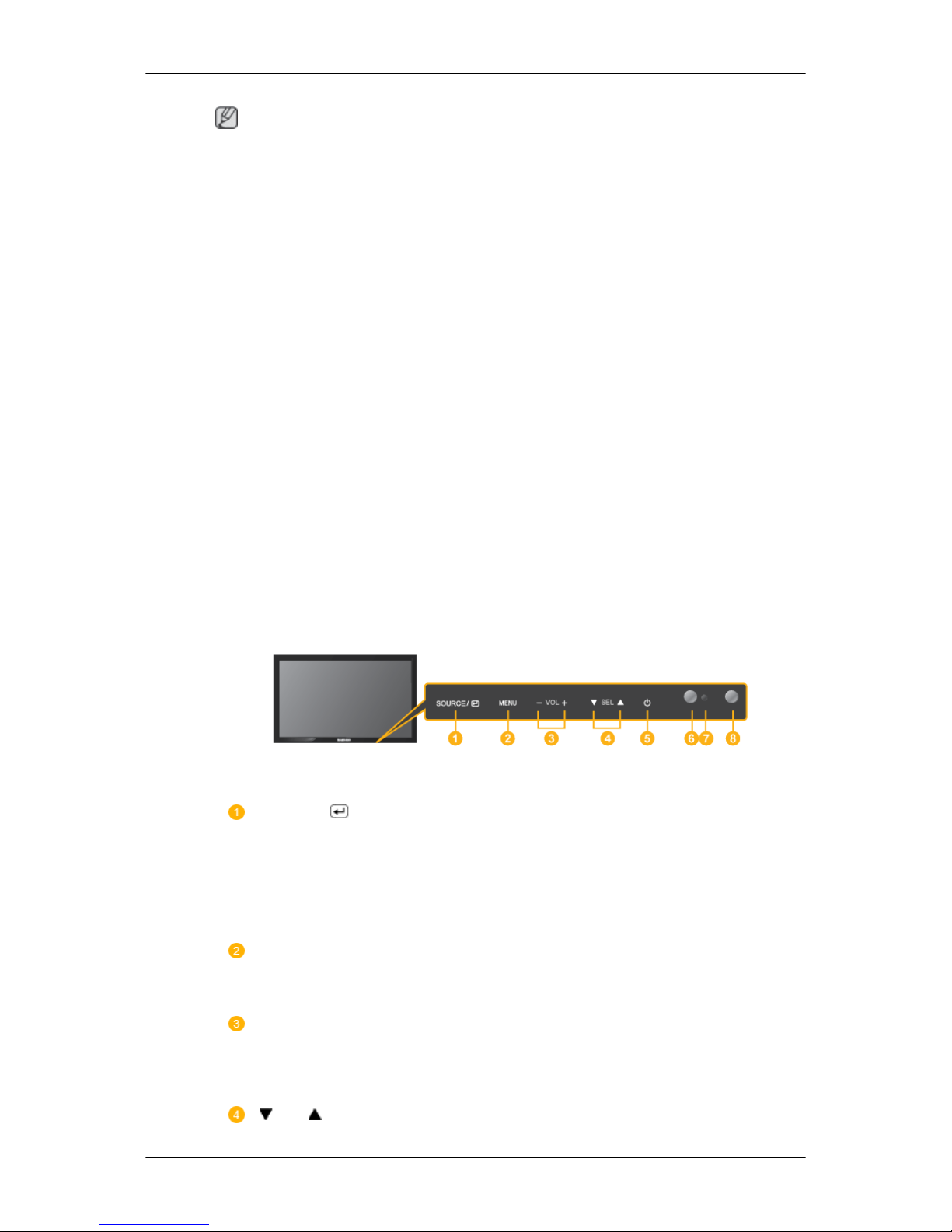

Front
SOURCE/[ ] button
Switches from PC mode to Video mode. Selects the input source that an
external device is connected to.
[PC] →[HDMI] →[MagicInfo]
Activates a highlighted menu item.
MENU button [MENU]
Opens the on-screen menu and exits from the menu. Also use to exit the
OSD menu or return to the previous menu.
- VOL +
Moves from one menu item to another horizontally or adjusts selected
menu values. When OSD is not on the screen, press the button to adjust
volume.
SEL
Introduction

Moves from one menu item to another vertically or adjusts selected menu
values.
Power button [ ]
Use this button for turning the LCD Display on and off.
Brightness Sensor
Automatically detects the surrounding brightness it accordingly.
Power indicator
Shows PowerSaver mode by blinking green
Note
See PowerSaver described in the manual for further information regarding
power saving functions. For energy conservation, turn your LCD Display
OFF when it is not needed or when leaving it unattended for long periods.
Remote Control Sensor
Aim the remote control towards this spot on the LCD Display.
Rear
Note
For detailed information concerning cable connections, refer to Connecting Cables under
Setup. The LCD Display 's configuration at the back may vary slightly depending on the model.
POWER S/W ON [ │ ] / OFF [O]
Switches the LCD Display On/Off.
POWER
The power cord plugs into the LCD Display
and the wall outlet.
Introduction

RGB IN
Connect the RGB IN terminal at the back of
your product to your computer.

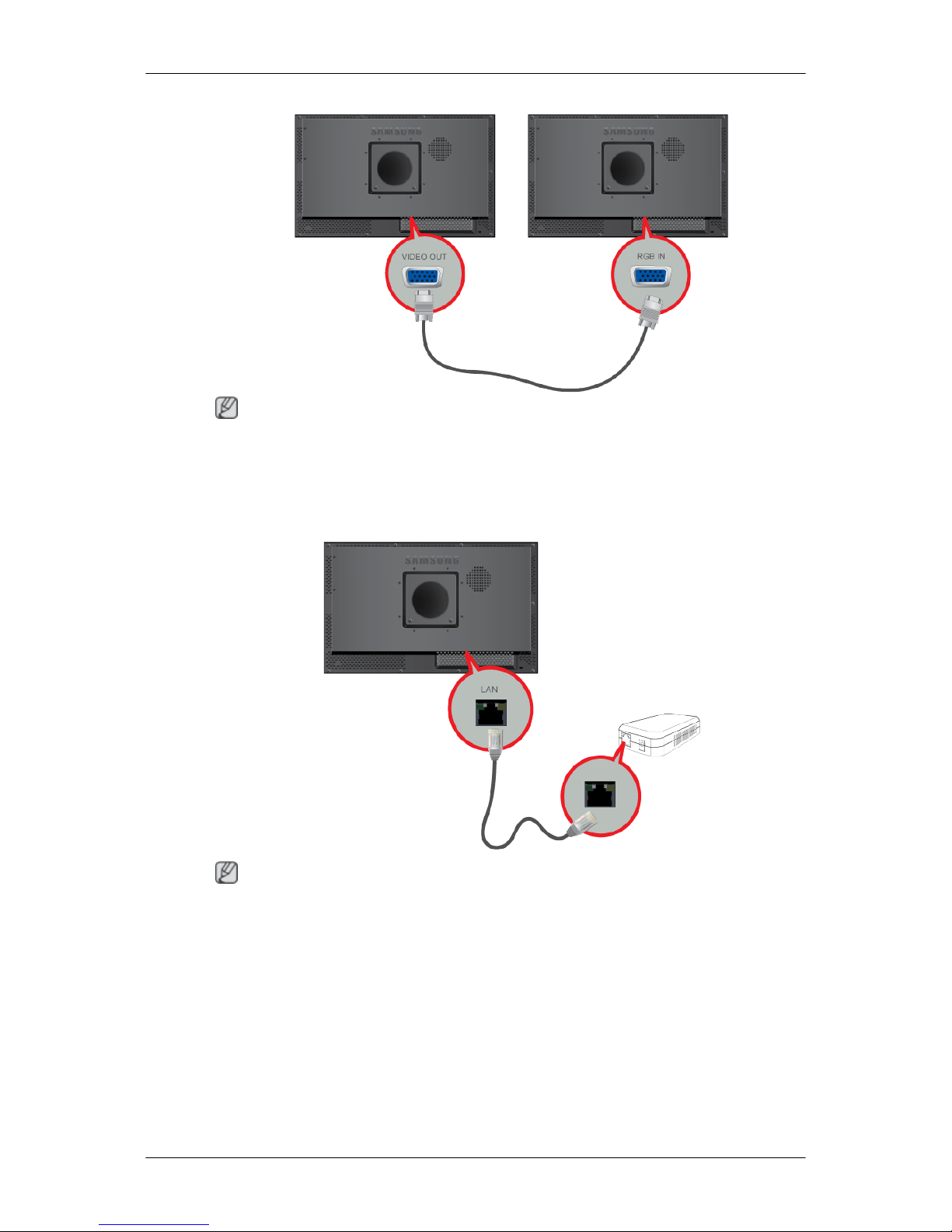

VIDEO OUT
Connect between the [VIDEO OUT] port on
the product and the D-Sub port on your mon-
itor using a D-Sub cable.

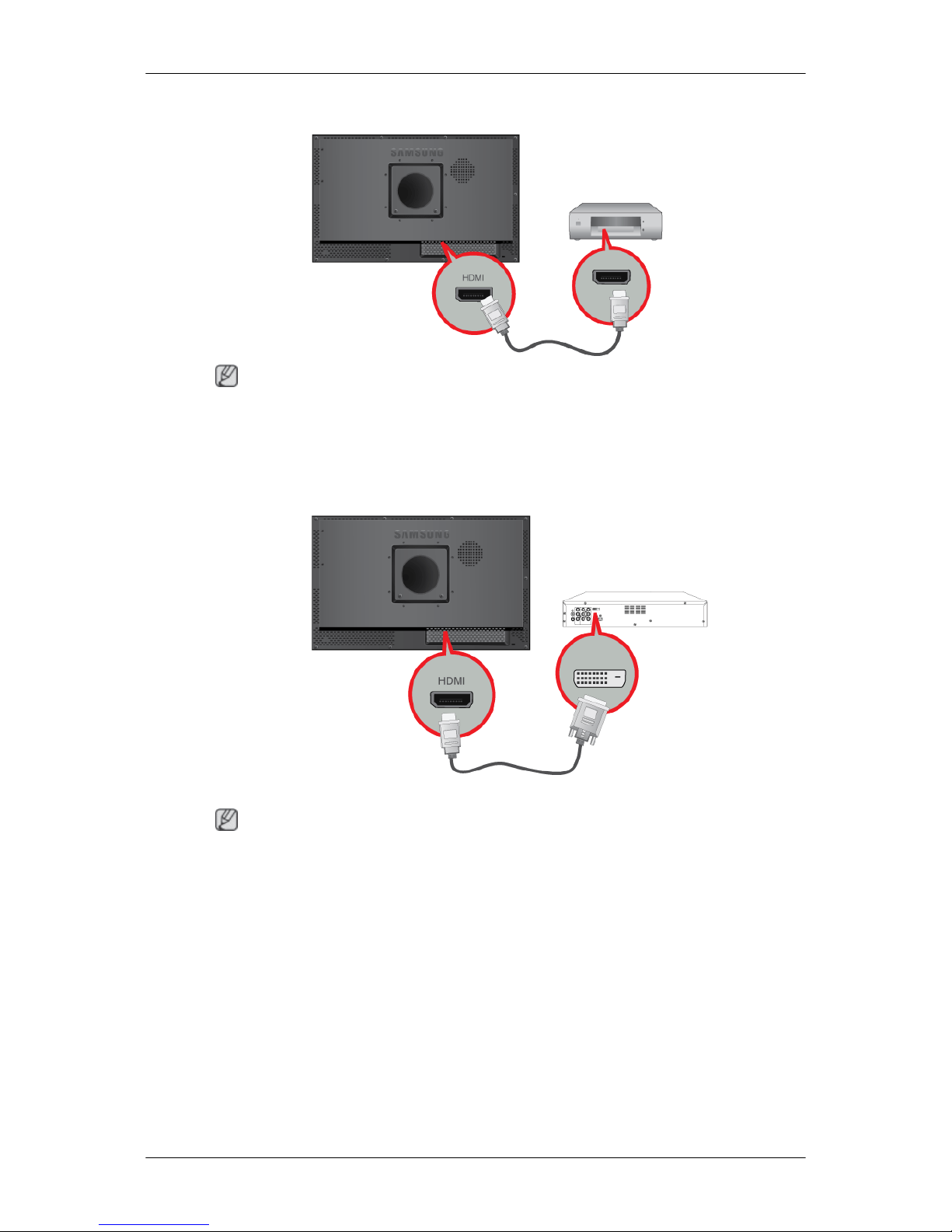

HDMI IN
Connect the HDMI terminal at the back of
your LCD Display to the HDMI terminal of
your digital output device using a HDMI ca-
ble.
Connect your headphones to the Head-
phone connection terminal.
LAN
LAN Connection Terminal

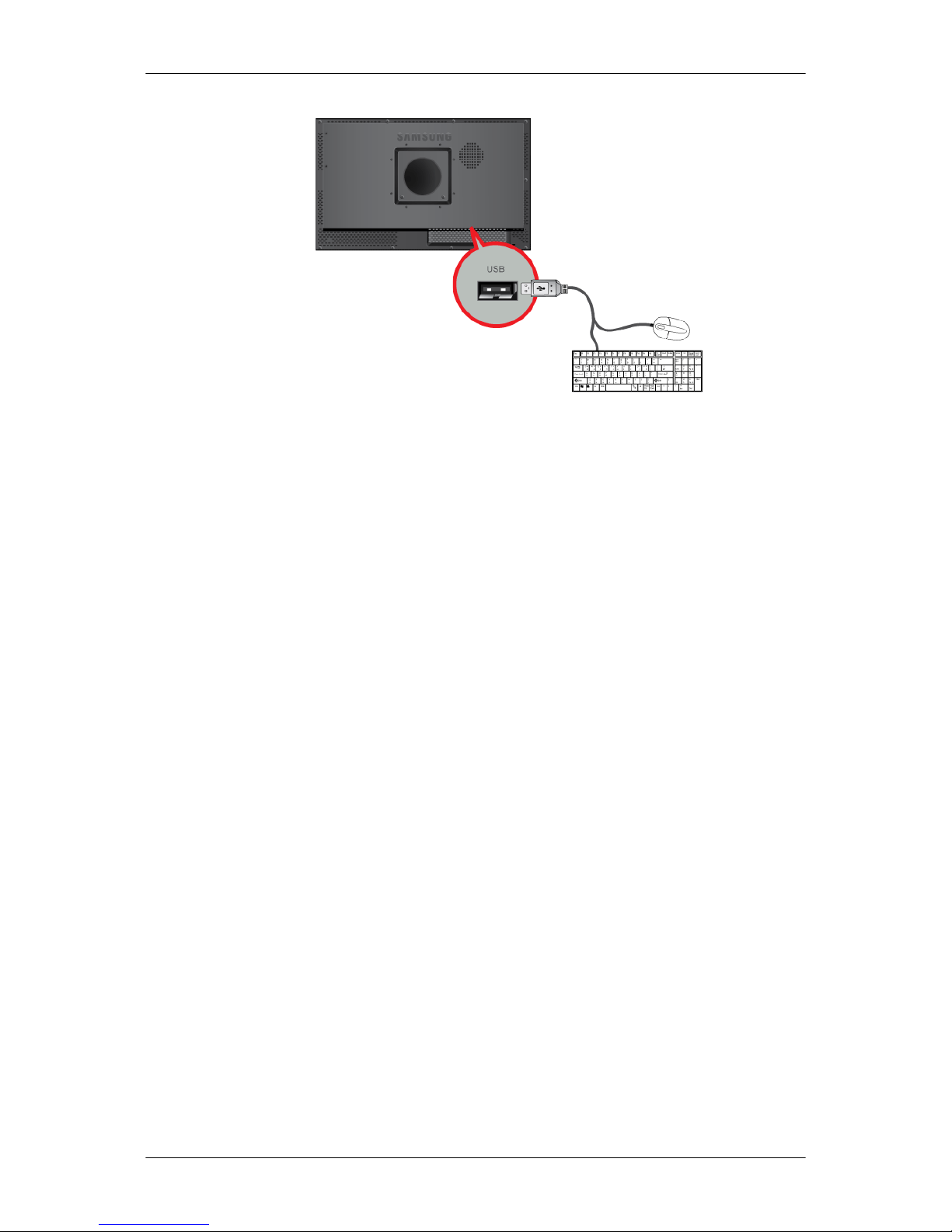

Keyboard / Mouse, Mass Storage Device
Compatible.
AUDIO IN
Connect the audio cable for your product to
the audio port on the back of your computer.
RS232C IN
MDC(Multiple Display Control) Program Port
Introduction

Kensington Lock
The Kensington Lock is a device used to
physically fix the system when using it in a
public place. The locking device has to be
purchased separately. The appearance and
locking method may differ from the illustra-
tion depending on the manufacturer. Refer to
the manual provided with the Kensington
Lock for proper use. The locking device has
to be purchased separately.
Note
The location of the Kensington Lock may be
different depending on the model.
Using the Anti-Theft Kensington Lock
1. Insert the locking device into the Ken-
sington slot on the Monitor and turn
it in the locking direction .
2. Connect the Kensington Lock cable.
3. Fix the Kensington Lock to a desk or a
heavy stationary object.
Note
See Connecting Cables for further information regarding cable connections.
Remote Control
Note
The performance of the remote control may be affected by a TV or other electronic device
operating near the LCD Display , causing a malfunction due to interference with the frequen-
cy.
Introduction

POWER
OFF
Number Buttons
DEL / GUIDE button
+ VOL -
SOURCE
D.MENU
TOOLS
Up-Down Left-Right buttons
INFO
COLOR BUTTONS
TTX/MIX
MTS/DUAL
ENTER/PRE-CH
MUTE
CH/P
TV
MENU
RETURN
EXIT
MagicInfo
1. POWER Turns the product On.
2. OFF Turns the product Off.
3. Number Buttons Used to enter the password during the OSD adjustment or
to use MagicInfo.
4. DEL / GUIDE but-
ton
The "-" button is used to select Digital channels.
Electronic Program Guide (EPG) display.
- This function does not work for this LCD Display.
5. + VOL - Adjusts the audio volume.
6. SOURCE Press the button to change the input signal SOURCE.
Changing the SOURCE is only allowed for external devices
that are connected to the LCD Display at the time.
7. D.MENU DTV menu display
- This function does not work for this LCD Display.
8. TOOLS Use to quickly select frequently used functions.
Introduction

- This function does not work for this LCD Display.
9. Up-Down Left-Right but-
tons
Moves from one menu item to another horizontally, vertically
or adjusts selected menu values.
10. INFO Current picture information is displayed on the upper left
corner of the screen.
11. COLOR BUTTONS Press to add or delete channels and to store channels to the
favorite channel list in the “Channel List” menu.
- This function does not work for this LCD Display.
12. TTX/MIX TV channels provide written information services via tele-
text.
- Teletext Buttons
- This function does not work for this LCD Display.
13. MTS/DUAL - This function does not work for this LCD Display.
MTS-
You can select MTS (Multichannel Television Stereo) mode.
Audio Type MTS/S_Mode Default
FM Stereo Mono Mono Manual
Change
Stereo Mono ↔ Stereo
SAP Mono ↔ SAP Mono
DUAL-
STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM
MONO/NICAM STEREO can be operated depending on the
broadcasting type by using the DUAL button on the remote
control while watching TV.
14. ENTER/PRE-CH This button is used to return to the immediately previous
channel.
- This function does not work for this LCD Display.
15. MUTE Pauses (mutes) the audio output temporarily. The audio
comes back on if MUTE or - VOL + is pressed in the Mute
mode.
16. CH/P In TV mode, selects TV channels.
- This function does not work for this LCD Display.
17. TV Selects the TV mode directly.
- This function does not work for this LCD Display.
18. MENU Opens the on-screen menu and exits from the menu or
closes the adjustment menu.
Introduction

19. RETURN Returns to the previous menu.
20. EXIT Exits from the menu screen.
21. MagicInfo MagicInfo Quick Launch Button.
