Samsung NV60K5140BB/TR User manual

User Manual
NV60K5140BB / TR
Built-in Oven

2
Dear Customer,
Thank you for relying on this product.
We aim to allow you to optimally and efciently use this
environment-friendly product produced in our modern facilities under
precise conditions with respect to sense of quality in total.
We advise you to read these operating manual thoroughly before using
the oven and keep it permanently so that the features of the built-in oven
you have purchased will stay the same as the rst day for a long time.
NOTE:
This Operating Manual is prepared for multiple models. Your appliance
may not feature some functions specied in the manual.
The product images are schematic.
This product has been produced in modern environment-friendly
facilities without adversely affecting nature.
Products marked with (*) are optional.
"Complies with AEEE Regulation"
GB

3
CONTENTS
Important Warnings 4
Introducing The Appliance 6
Technical Specications 7
Installation Of Appliance 7
Important Warnings 13
Control Panel 14
Program Types 15
Cooking Recommendations 16
Cooking Table 16
Using The Oven 17

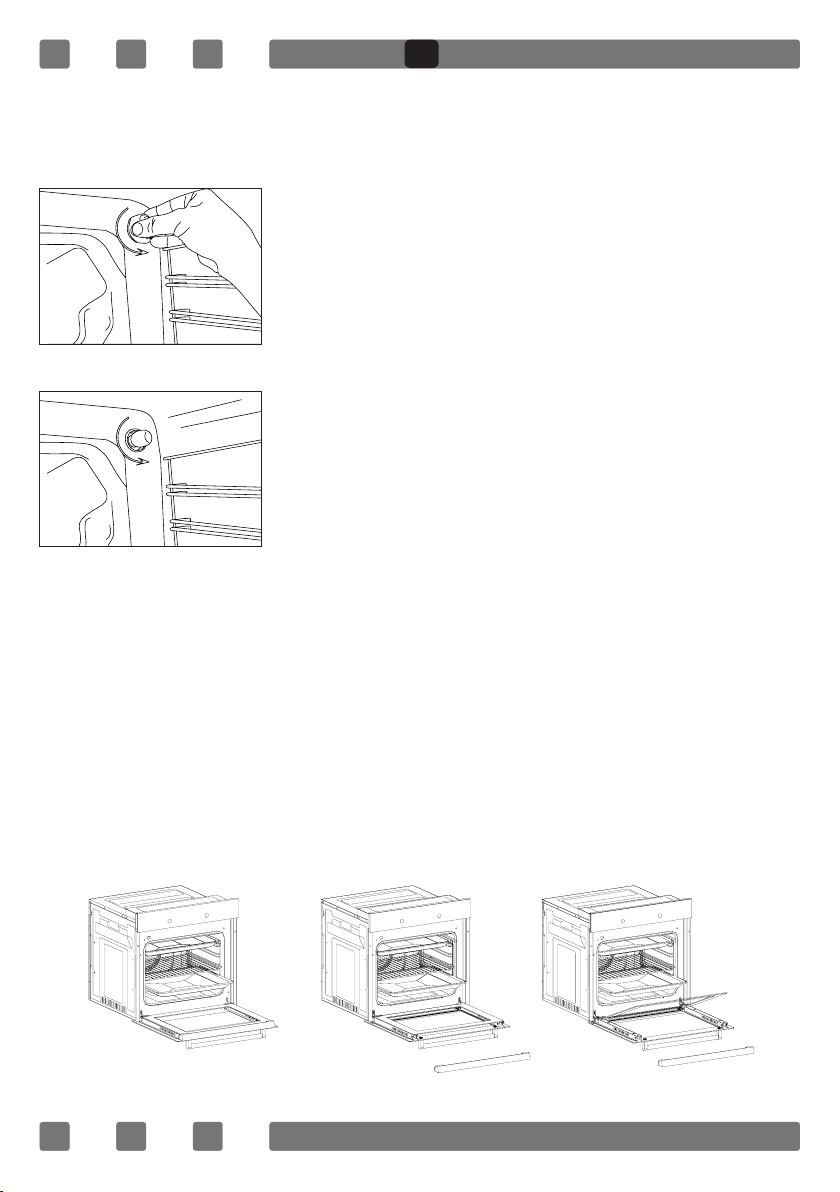

Replacing Oven Lamp 18
Cleaning Oven Glass 18
Cleaning And Mounting Oven Door 19
Maintenance And Cleaning 20
Accessories 21
Troubleshooting 22
Handling Rules 24
Customers’ Right Of Choice 25
Environmentally-Friendly Disposal 26
Package Information 26
Service List 27
GB

4
IMPORTANT WARNINGS
1. WARNING: To avoid electric shock, ensure that the
appliance circuit is open before changing the lamp.
2. WARNING: All supply circuit connections must be
disconnected before accessing terminals.
3. WARNING: The accessible parts may be hot during
use of grid. Children must be kept away.
4. WARNING: Fire hazard; do not store materials on
cooking surface.
5. WARNING: If the surface is cracked, open the
appliance circuit to avoid risk of electric shock.
6. WARNING: Appliance and its accessible parts are
hot during operation.
7. Setting conditions of this appliance are specied
on the label.(Or on the data plate)
8. Accessible parts might be hot during use of grill.
Small children should be kept away.
9. WARNING: Appliance is intended for cooking only.
It should not be used for other purposes like heating a
room.
10. There are additional protective tools avoiding
contact with oven doors. This part must be attached
when it’s likely that there are children around.
11. Do not use steam cleaners to clean the appliance.
12. NEVER try to put out the re with water.Only
shut down the appliance circuit and then cover the
ame with a cover or a re blanket.
GB

5
13. Hard and abrasive cleaners or hard metal scrapers
should not be used to clean the oven glass door, as
these can scratch the surface and cause breaking.
14. Ensure that door is fully closed after food is
placed.
15. Children under 8 years of age should be kept away,
if they cannot be monitored continuously.
16. Touching the heating elements should be avoided.
17. This appliance can be used by children over 8
years of age, people with physical, hearing or mental
challenges or people with lack of experience or
knowledge; as long as control is ensured or
information is provided regarding the dangers.
18. The appliance hasn’t been designed for
operation with an external time or a separate remote
control system.
19.This device has been designed for domestic use.
20. Cleaning and user maintenance can’t be made
by children without adult supervision.
21. Children must not play with the appliance.
Cleaning and user maintenance shouldn’t be made
by children unless they are older than 8 years old and
under adult supervision.
22. Make sure that children at and under 8 can’t reach
appliance and appliance cable.
23. Keep curtains, tissue paper or combustible
(inammable) materials away from appliance before
starting to use it. Do not place inammable or
combustible materials in or on the appliance.
GB

6

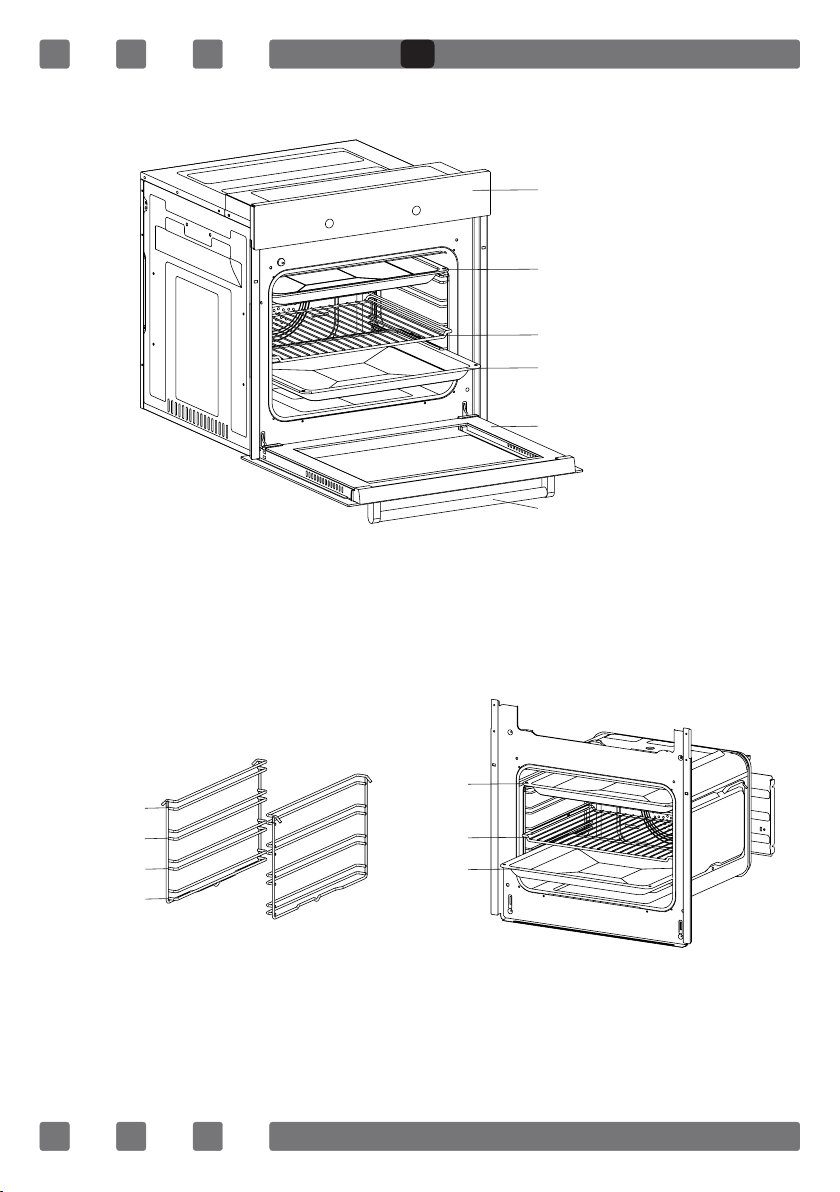

INTRODUCING THE APPLIANCE
1.Control Panel 4. Deep Tray
2.Standard Tray 5. Oven door
3.Wire Grill 6. Handle
7. Standard Tray
8. Wire Grill
9. Deep Tray
1
2
3
4
5
6
7
8
9
Rack 4
Rack 3
Rack 2
Rack 1
GB

7
TECHNICAL SPECIFICATIONS
SPECIFICATIONS 60 cm Built-In Oven
Lamp Power 15W
Thermostat 40-250 / Max °C
Lower Heater 1200W
Upper Heater 1000W
Grill Heater Small Grill 1000W Big Grill 2000W
Supply Voltage 220V-240V 50 Hz
Technical specications can be changed without prior notice to improve
product quality.
The values provided with the appliance or its accompanying documents
are laboratory readings in accordance with the respective standards.
These values may differ depending on the use and ambient conditions.
Figures in this guide are schematic and may not be exactly match your
product.
INSTALLATION OF APPLIANCE
Ensure that electrical installation is suitable for operationalising the
appliance. If not, call an electrician and plumber to make necessary
arrangements. Manufacturing rm can't be hold responsible for damages
to arise due to operations by unauthorized people and product warranty
becomes void.
WARNING: It is customer's responsibility to prepare the location the
product shall be placed on and also have power utility prepared.
WARNING: The rules about electrical local standards must be adhered to
during product installation.
WARNING: Check for any damage on the product before installing it.
Do not have product installed if it's damaged. Damaged products pose
danger for your safety.
GB

8
Important Warnings for Installation:

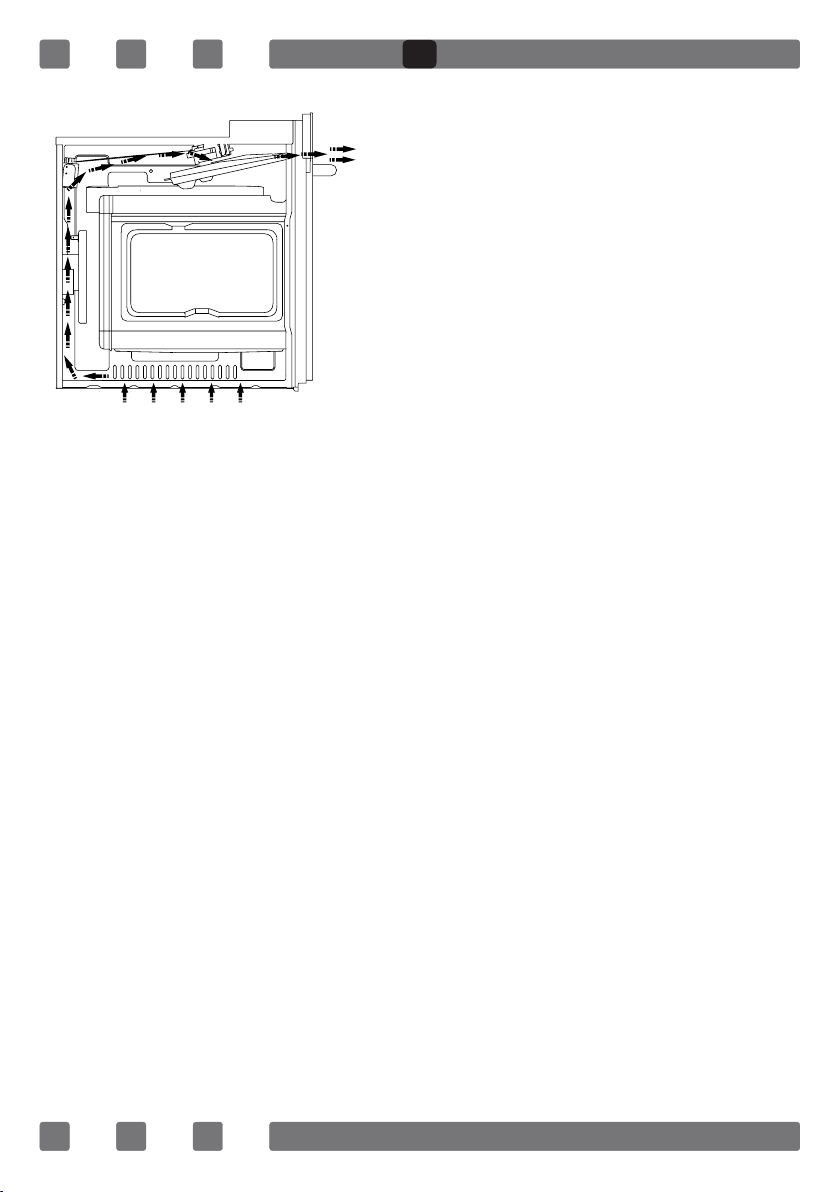

Cooling fan shall take extra steam out
and prevent outer surfaces of appliance
from overheating during operation of
oven. This is a necessary condition for
better appliance operation and better
cooking.
Cooling fan shall continue operation
after cooking is nished. Fan shall
automatically stop after cooling is
completed.
A clearance must be left behind the enclosure where you'll place the
appliance for efcient and good operation. This clearance shouldn't be
ignored as it's required for ventilation system of the appliance to operate.
Right Place For Installation
Product has been designed to be mounted to worktops procured from
market. A safe distance must be left between the product and kitchen
walls or furniture. See the drawing provided on the next page for proper
distances. (values in mm).
• Used surfaces, synthetic laminates and adhesives must be heat
resistant. (minimum 100°C).
• Kitchen cupboards must be level with product and secured.
• If there is a drawer below the oven, a rack must be placed between
oven and drawer.
WARNING: Do not install the product next to refrigerators or coolers.
The heat emitted by the product increases the energy consumption of
cooling devices.
Figure 1
GB

9
60 cm Built-In Oven Installation and Mounting
Place of use for product must be located before starting installation.
Product mustn't be installed in places which are under the effect of
strong air ow.
Carry the product with minimum two people. Do not drag the product so
that oor isn't damaged.
Remove all transportation materials inside and outside the product.
Remove all materials and documents in the product.
Installation Under Counter
Cabin must match the dimensions provided in Figure 2.
A clearance must be provided at the rear part of the cabin as indicated
in the gure so that necessary ventilation can be achieved.
After mounting, the clearance between lower and upper part of
the counter is indicated in Figure 5 with "A". It's for ventilation and
shouldn't be covered.
Installation In An Elevated Cabinet
Cabin must match the dimensions provided in Figure 4.
The clearances with the dimensions indicated in the gure must be
provided at the rear part of cabin, upper and lower sections so that
necessary ventilation can be achieved.
Installation Requirements
Product dimensions are provided in the Figure 3.
Furniture surfaces for mounting and mounting materials to be used
must have a minimum temperature resistance of 100 °C.
Mounting cabin must be secured and its floor must be plane for product
not to tilt over.
Cabin floor must have a minimum strength that would handle a load of
60 kg.
Placing and Securing the Oven
Place the oven into the cabin with two or more people.
Ensure that oven's frame and front edge of the furniture match
uniformly.
GB

10
Supply cord mustn't be under the oven, squeeze in between oven and
furniture or bend.
Fix the oven to the furniture by using the screws provided with the
product. Screws must be mounted as shown in Figure 5 by passing
them through plastics attached to frame of the product. Scre ws mustn't
be overtightened. Otherwise, screw sockets might be worn.
Check that oven doesn't move after mounting. If oven isn't mounted in
accordance with instructions, there is a risk of tilt over during operation.
Electrical Connection
Mounting place of the product must have appropriate electrical
installation.
Network voltage must be compatible with the values provided on type
label of product.
Product connection must be made in accordance with local and
national electrical requirements.
Before starting the mounting disconnect network power. Do not connect
the product to network until its mounting is completed.
Mounting

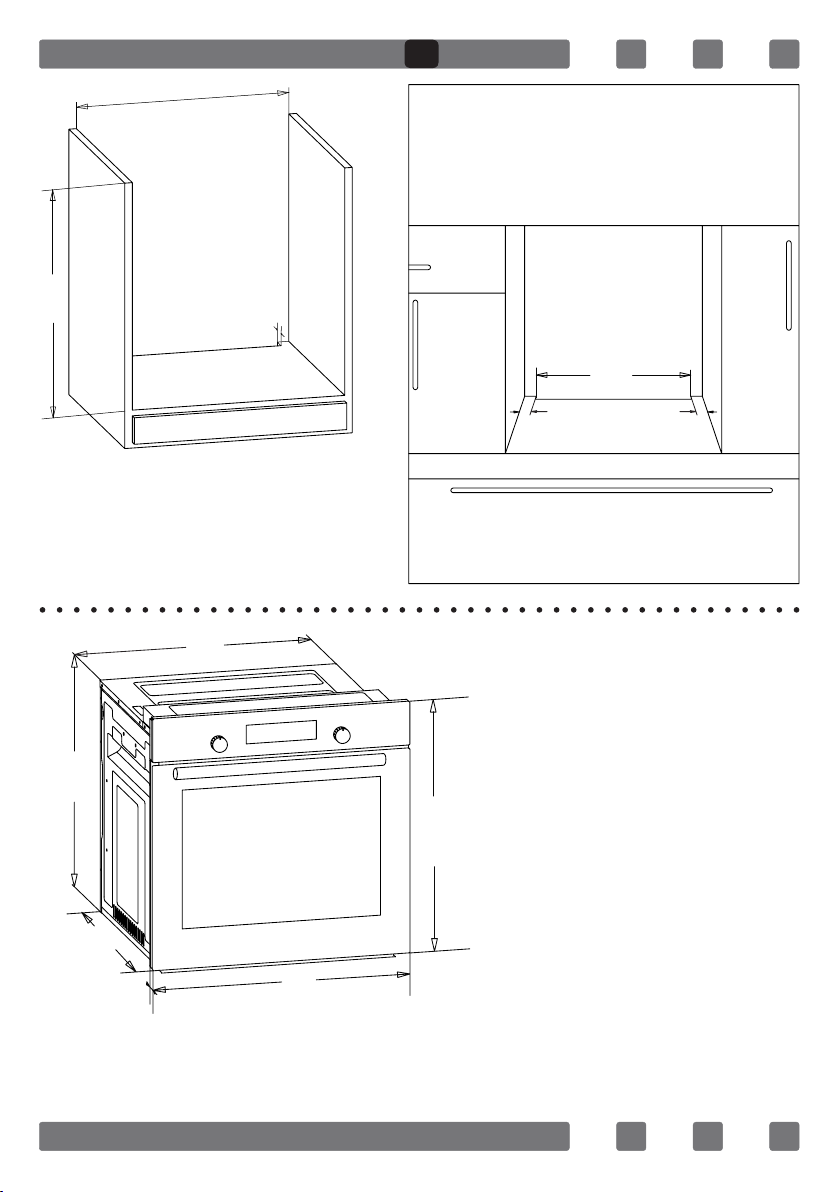

Figure 2
GB

11
560**
560
600
35
500
30 30
555
545
595
595
565
22
Figure 3
GB

12
Figure 4
590
550
560
35
500
30 30
GB

13
IMPORTANT WARNINGS
Electrical Connection and Safety
This oven must be installed and connected to its place correctly
according to manufacturer instructions and by an authorized service.
Appliance must be installed in an oven enclosure providing high
ventilation.
Electrical connections of the appliance must be made only via sockets
having earth system furnished in compliance with rules. Contact an
authorized electrician if there is no socket complying with the earthed
system at where appliance will be placed. Manufacturing company is by
no means responsible for damage resulting from connection of
non-earthed sockets to appliance.
Plug of your oven must be earthed; ensure that socket for the plug
is earthed. Plug must be located in a place that can be accessed after
installation.
A
Figure 5
GB

14
Your oven has been manufactured as 220-240 V 50 Hz. AC power
supply compliant and requires a 16 Amp fuse. If your power network
is different that these indicated values, refer to an electrician or your
authorized service.
When you need to replace the electrical fuse, please ensure that
electrical connection is made as follows:
• Phase (to live terminal) brown cable
• Blue cable to neutral terminal
• Yellow-green cable to earth terminal
Oven disconnecting switches must be in an accessible place for nal
user while oven is in its place.
Power supply cable (plug in cable) mustn't touch hot parts of the appliance.
If supply cord (plug in cable) is damaged, this cord must be replaced
by the importer or its service agent or an equally competent personnel to
prevent a hazardous situation.

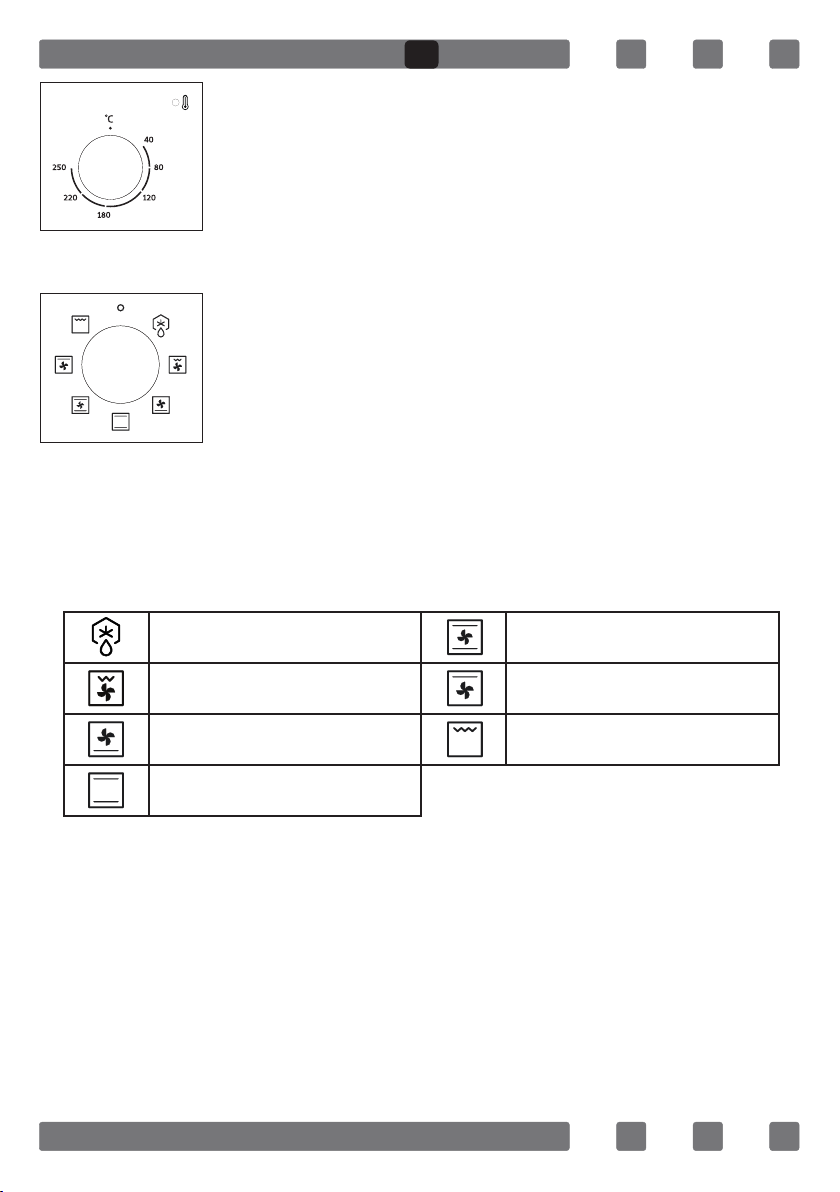

CONTROL PANEL
Adjustment can be made only when button is popped for models with
pop-up button.
Make sure that button is popped by pressing on the
button as shown in the gure at left side.
You can make necessary adjustments by turning
right or left when button is popped enough.
Figure 6
Figure 7
GB

15
Thermostat Button: Helps to set cooking temperature of
the food to be cooked in the oven. You can set the
desired temperature by turning the button after plac-
ing the food into the oven. Check cooking table related
to cooking temperatures of different foods. Oven heats
up to the adjusted temperature and maintains it.
During heating, temperature lamp stays on.
Program Button: Helps to set with which heaters the
food placed in oven will be cooked. Heater program
types in this button and their functions are stated be-
low. Every model might not have all heater types and
thus program types of these heaters.
PROGRAM TYPES
Heating program types in your appliance and important explanations
of them are provided below for you can cook different foods appealing to
your taste.
Defrost: For defrosting e.g.meat, poultry, bread and cakes. The fan
causes the air to circulate around the dish.
Grill and fan: Suitable for cooking meat type foods. Do not forget to place
a cooking tray in a lower rack inside the oven and a little water in it while
grilling.
Lower heating element and fan: Use mostly for cooking foods like fruit cake.
Lower and upper heating elements: A program that can be used for
cooking foods like cake, pizza, biscuit and cookie.
Lower and upper heating element and fan: The program suitable for
cooking foods like cakes, dried cakes, lasagne. Suitable for cooking
meat dishes, as well.
Figure 9
Defrost Lower-Upper Heating Element
and Fan
Grill and Fan Upper Heating Element and Fan
Lower Heating Element and Fan Grill
Lower and Upper Heating
Elements
GB
Figure 8

16
Upper heating element and fan: Used for post heating or roasting very
little pieces of foods.
Grill: Grill cooker is used for grilling meat like foods such as steak,
sausage and sh. While grilling, tray should be placed in the lower rack
and water must be placed in it.
COOKING RECOMMENDATIONS
You can nd in the following table the information of food types which
we tested and identied their cooking values in our labs. Cooking times
can vary depending on the network voltage, quality of material to be
cooked, quantity and temperature. Dishes to cook by using these values
might not appeal to your taste. You can set various values for obtaining
different tastes and results appealing to your taste by making tests.
WARNING: Oven must be preheated for 7-10 minutes before placing the
food in it.
COOKING TABLE
Food Cooking
Function
Cooking
Temperature (°C)
Cooking
Rack
Cooking
Time (min.)
Cake Static 160-170 2-3 40-60
Small Cake Static 170-180 2 25-30
Static +Fan 160-170 2 25-30
Pie Static +Fan 180-200 2 30-40
Pastry Static +Fan 180-200 2 15-20
Cookie Static 170-180 2 15-20
Apple Pie Static+Fan 160-170 1 60-70
Sponge cake Static 160-170 2 40-45
Static +Fan 160-170 2 35-40
Meat Pastry Static 180-190 2 35-45
Pizza Static+Fan 190-200 2 15-20
Lasagne Static 180-200 2 30-40
Meringue Static+Fan 90-100 2 50-60
Grilled Chicken* Grill+Fan 200-220 3 30-40
Grilled Fish* Grill+Fan 200-220 3 25-35
Calf Steak* Grill+Fan Max 4 15-20
Grilled Meatball* Grill+Fan Max 4 20-25
*Food must be turned after half of the cooking time.
GB

17
USING THE OVEN
Initial Use of Oven
Here are the things you must do at rst use of your oven after making
its necessary connections as per instructions:
1. Remove labels or accessories attached inside the oven. If any, take
out the protective folio on front side of the appliance.
2. Remove dust and package residues by wiping inside of the oven with
a damp cloth. Inside of oven must be empty. Plug the cable of appliance
into the electrical socket.
3. Set the thermostat button to the highest temperature (250 Max. °C)
and run the oven for 30 minutes with its door closed. Meanwhile a
slight smoke and smell might occur and that's a normal situation.
4. Wipe inside of the oven with a slightly warm water with detergent
after it becomes cold and then dry with a clean cloth. Now you can use
your oven.
Normal Use of Oven
1. Adjust thermostat button and temperature at which you want to cook
the food to start cooking.
2. You can set cooking time to any desired time by using the button at
models with mechanical timer. Timer will de-energize heaters when time
expired and provide warning beep as ringing.
3. Timer turns the heaters off and provides audible signal when cooking
time expires in line with the information entered in the models with dig-
ital timer.
4. Cooling system of the appliance will continue to operate after cooking
is completed. Do not cut the power of appliance in this situation which is
required for appliance to cool down. System will shut down after cooling
is completed.
GB

18
REPLACING OVEN LAMP
WARNING: To avoid electric shock, ensure that the appliance circuit is
open before changing the lamp. (having circuit open means power is off)
First disconnect the power of appliance and
ensure that appliance is cold.
Remove the glass protection by turning as
indicated in the gure on the left side. If you
have difculty in turning, then using plastic
gloves will help you in turning.
Then remove the lamp by turning, install the
new lamp with same specications. Lamp
specications must be as follows;
-220-240 V 50 Hz AC, -15 W, -Type E14
Reinstall glass protection, plug the power cable
of appliance into electrical socket and complete
replacement. Now you can use your oven.
CLEANING OVEN GLASS
Hold the plastic prole from the left and right holding points as shown
in Figure 12 and than pull the prole toward yourself as in Figure 13.
Glass is released after prole is removed as shown in Figure 14. Remove
the released glass by pulling toward yourself carefully. Outer glass is
xed to oven door prole. You can perform glass cleaning easily after
glasses are released. You can mount glasses back by performing the
operations reversely after cleaning and maintenance are completed.
Ensure that prole is seated properly in place.
Figure 10
Figure 11
Figure 12 Figure 13 Figure 14
GB

19
CLEANING AND MOUNTING OVEN DOOR
Reversely perform respectively what you did while opening door to
reinstall oven door back.
Figure 15
Figure 15.1 Figure 15.2 Figure 16.1 Figure 16.2
Figure 16
Open the door fully
by pulling the oven
door toward your-
self. Then perform
unlock operation
by pulling the
hinge lock
upwards with the
aid of screwdriver
as indicated in
Figure 15.1.
Set the hinge lock
to the widest angle
as in Figure 15.2.
Adjust both hinges
connecting oven
door to the oven to
the same position.
Later, close the
opened oven door
so that it will be
in a position to
contact with
hinge lock as in
Figure 16.1.
For easier removal
of oven door, when
it comes close to
closed position,
hold the cover
with two hands as
in Figure 16.2
and pull upwards.
GB

20
MAINTENANCE AND CLEANING
1. Remove the power plug from electrical socket.
2. Do not clean inner parts, panel, trays and other parts of the product
with hard tools such as bristle brush, wire wool or knife. Do not use abra-
sive, scratching materials or detergent.
3. Rinse after wiping the parts at inner parts of the product with soapy
cloth, then dry thoroughly with a soft cloth.
4. Clean glass surfaces with special glass cleaning material.
5. Do not clean your product with steam cleaners.
6. Never use combustibles like acid, thinner and gas while cleaning your
product.
7. Do not wash any part of the product in dishwasher.
8. "Use potassium stearate (soft soap) for dirt and stains.
You can perform cleaning with a soft textured cloth not to scratch
surfaces according to the gures below.
Figure 17
GB
