Samsung NV75J5540RS Guide

Built-in Oven
User & installation manual
NV75J5540RS
NV75J5540RS_EU_DG68-00616E-00_EN.indd 1 2015-05-20 �� 11:03:09

2 English
Contents
Contents
Using this manual 4
The following symbols are used in this User Manual: 4
Safety instructions 5
Important safety precautions 5
Correct Disposal of This Product (Waste Electrical & Electronic Equipment) 9
Auto energy saving function 9
Installation 10
What’s included 10
Power connection 12
Cabinet mount 13
Before you start 16
Initial settings 16
New oven smell 17
Smart safety mechanism 17
Soft Closing Door (Gentle, Safe, and Silent) 17
Accessories 18
Dual cook mode 20
Operations 21
Control panel 21
Common settings 22
Cooking modes (except for Grill) 28
Cooking modes (Grill) 31
Dual cook mode temperature setting range 33
To stop cooking 35
Special function 36
Auto cook 37
Steam cleaning 38
Timer 40
Sound On/Off 40
NV75J5540RS_EU_DG68-00616E-00_EN.indd 2 2015-05-20 �� 11:03:09

English 3
Contents
Cooking Smart 41
Manual cooking 41
Auto cook programmes 48
Test Dishes 56
Collection of frequent Auto cook recipes 58
Maintenance 62
Cleaning 62
Replacement 69
Troubleshooting 70
Checkpoints 70
Information codes 73
Appendix 75
Product data sheet 75
NV75J5540RS_EU_DG68-00616E-00_EN.indd 3 2015-05-20 �� 11:03:09

4 English
Using this manual
Using this manual
Thank you for choosing SAMSUNG Built-In Oven.
This User Manual contains important information on safety and instructions intended to assist
you in the operation and maintenance of your appliance.
Please take the time to read this User Manual before using your oven and keep this book for
future reference.
The following symbols are used in this User Manual:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or property
damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Useful tips, recommendations, or information that helps users manipulate the product.
NV75J5540RS_EU_DG68-00616E-00_EN.indd 4 2015-05-20 �� 11:03:09

English 5
Safety instructions
Safety instructions
Installation of this oven must be performed only by a licensed electrician. The installer is
responsible for connecting the appliance to the mains power supply in observance of the
relevant safety recommendations.
Important safety precautions
WARNING
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the
appliance.
If the supply cord is defective, it must be replaced by a special cord
or assembly available from the manufacturer or an authorized service
agent. (Fixed wiring type model only)
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a
hazard. (Power cord type model only)
This Appliance should be allowed to disconnection from the supply
after installation. The disconnection may be achieved by having the
plug accessible or by incorporating a switch in the xed wiring in
accordance with the wiring rules.
The method of xing is not to depend on the use of adhesives since
they are not considered to be a reliable xing means.
During use the appliance becomes hot. Care should be taken to avoid
touching heating elements inside the oven.
NV75J5540RS_EU_DG68-00616E-00_EN.indd 5 2015-05-20 �� 11:03:09

6 English
Safety instructions
Safety instructions
Accessible parts may become hot during use. Young children should be
kept away.
If this appliance has steam or self cleaning function, excess spillage
must be removed before cleaning and all utensils should not be left in
the oven during steam cleaning or self cleaning. The cleaning function
depends on the model.
If this appliance has self cleaning functions, during self cleaning the
surfaces may get hotter than usual and children should be kept away.
The cleaning function depends on the model.
Only use the temperature probe recommended for this oven. (Meat
probe model only)
A steam cleaner is not to be used.
Ensure that the appliance is switched off before replacing the lamp to
avoid the possibility of electric shock.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the
oven door glass since they can scratch the surface, which may result in
the glass shattering.
The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless
continuously supervised.
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children should not play with the
appliance. Cleaning and user maintenance should not be made by
children without supervision.
NV75J5540RS_EU_DG68-00616E-00_EN.indd 6 2015-05-20 �� 11:03:09

English 7
Safety instructions
The temperature of external surfaces may be high when the appliance
is operating.
The door or the outer surface may get hot when the appliance is
operating.
Keep the appliance and its cord out of reach of children less than 8
years.
Appliances are not intended to be operated by means of an external
timer or separate remote-control system.
Insert the wire rack into position
with the protruding parts
(stoppers on both sides) towards
the front so that the wire rack
supports the rest position for
large loads.
CAUTION
If the oven has been damaged in transport, do not connect it.
This appliance must be connected to the mains power supply only by a specially licensed
electrician.
In the event of a fault or damage to the appliance, do not attempt to operate it.
Repairs should be performed by a licensed technician only. Improper repair may result in
considerable danger to you and others. If your oven needs repair, contact a SAMSUNG Service
center or your dealer.
Electrical leads and cables should not be allowed to touch the oven.
The oven should be connected to the mains power supply by means of an approved circuit
breaker or fuse. Never use multiple plug adapters or extension leads.
The power supply of the appliance should be turned off when it is being repaired or cleaned.
Take care when connecting electrical appliances to sockets near the oven.
If this appliance has a vapour or steam cooking function, do not operate this appliance when
the water supply cartridge is damaged. (Vapour or steam function model only)
NV75J5540RS_EU_DG68-00616E-00_EN.indd 7 2015-05-20 �� 11:03:09

8 English
Safety instructions
Safety instructions
When the cartridge is cracked or broken, do not use it and contact your nearest service
center. (Vapour or steam function model only)
This oven has been designed only for the cooking of household foods.
During use, the oven interior surfaces become hot enough to cause burns. Do not touch
heating elements or interior surfaces of the oven until they have had time to cool.
Never store ammable materials in the oven.
The oven surfaces become hot when the appliance is operated at a high temperature for an
extended period of time.
When cooking, take care when opening the oven door as hot air and steam can escape
rapidly.
When cooking dishes that contain alcohol, the alcohol may evaporate due to the high
temperatures and the Vapour can catch re if it comes into contact with a hot part of the
oven.
For your safety, do not use high-pressure water cleaners or steam jet cleaners.
Children should be kept at a safe distance when the oven is in use.
Frozen foods such as pizzas should be cooked on the big grid. If the baking tray is used, it
may become deformed due to the great variation in temperatures.
Do not pour water into the bottom of the oven when it is hot. This could cause damage to the
enamel surface.
The oven door must be closed during cooking.
Do not line the bottom of the oven with aluminum foil and do not place any baking trays
or tins on it. The aluminum foil blocks the heat, which may result in damage to the enamel
surfaces and cause poor cooking results.
Fruit juices will leave stains, which can become permanent on the enamel surfaces of the
oven.
When cooking very moist cakes, use the deep pan.
Do not rest bakeware on the open oven door.
Keep children away from the door when opening or closing it as they may bump themselves
on the door or catch their ngers in the door.
Do not step, lean, sit or place heavy items on the door.
Do not open the door with unnecessarily strong force.
NV75J5540RS_EU_DG68-00616E-00_EN.indd 8 2015-05-20 �� 11:03:09

English 9
Safety instructions
WARNING: Do not disconnect the appliance from the main power supply even after the
cooking process is completed.
WARNING: Do not leave the door open while oven is cooking.
Correct Disposal of This Product (Waste Electrical & Electronic
Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that
the product and its electronic accessories (e.g. charger, headset,
USB cable) should not be disposed of with other household waste
at the end of their working life. To prevent possible harm to the
environment or human health from uncontrolled waste disposal,
please separate these items from other types of waste and recycle
them responsibly to promote the sustainable reuse of material
resources.
Household users should contact either the retailer where they
purchased this product, or their local government ofce, for details
of where and how they can take these items for environmentally
safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for
disposal.
Auto energy saving function
• If no user input is made for a certain time while the appliance is operating, the appliance
stops operation and goes to Standby state.
• Light : During cooking process, you can switch off Oven lamp by pressing ‘Oven light’
button. For energy saving, the oven lighting is switched off a few minutes after cooking
program has started.
NV75J5540RS_EU_DG68-00616E-00_EN.indd 9 2015-05-20 �� 11:03:09

10 English
Installation
Installation
WARNING
This oven must be installed by a qualied technician. The installer is responsible for
connecting the oven to the main power, while observing the relevant safety regulations of
your area.
What’s included
Make sure all parts and accessories are included in the product package. If you have a
problem with the oven or accessories, contact a local Samsung customer centre or the
retailer.

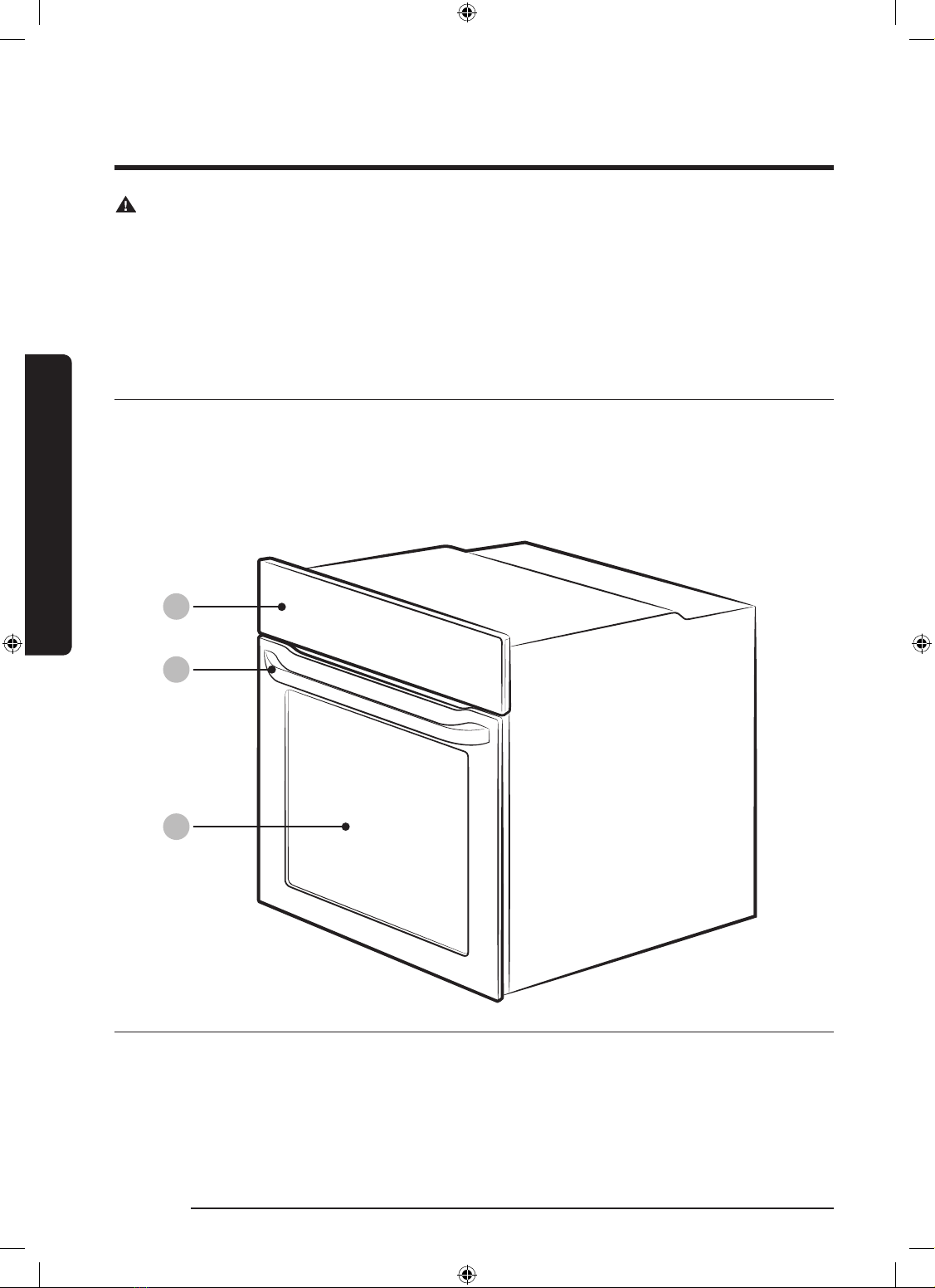

Oven at a glance
01
02
03
01 Control panel 02 Door handle 03 Door
NV75J5540RS_EU_DG68-00616E-00_EN.indd 10 2015-05-20 �� 11:03:10

English 11
Installation

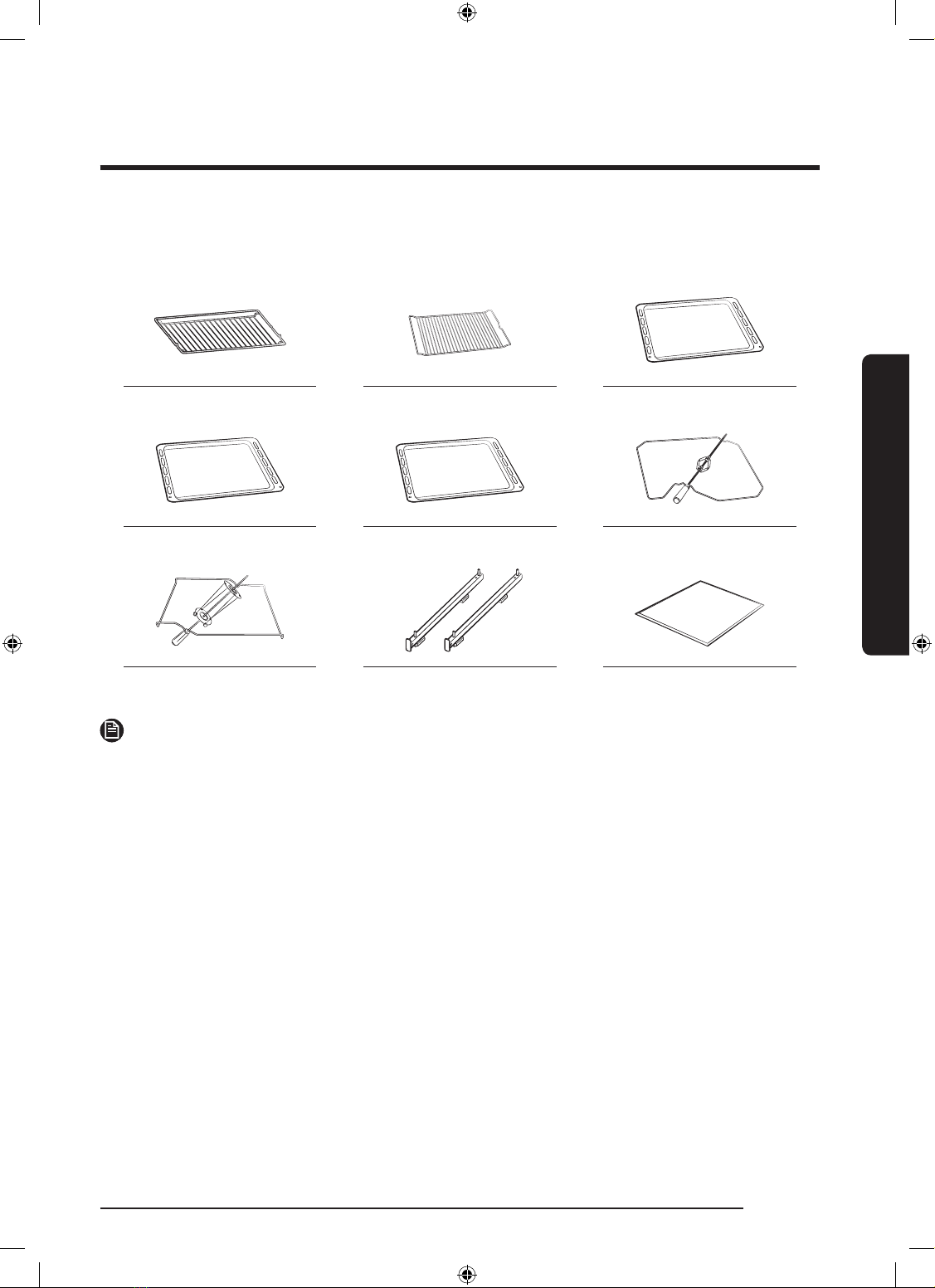

Accessories
The oven comes with different accessories that help you prepare different types of food.
Wire rack Wire rack insert * Baking tray *
Universal tray * Extra-deep tray * Rotisserie spit *
Rotisserie spit and Shashlik * Telescopic rail * Divider
NOTE
Availability of accessories with an asterisk (*) depends on the oven model.
NV75J5540RS_EU_DG68-00616E-00_EN.indd 11 2015-05-20 �� 11:03:10

12 English
Installation
Installation

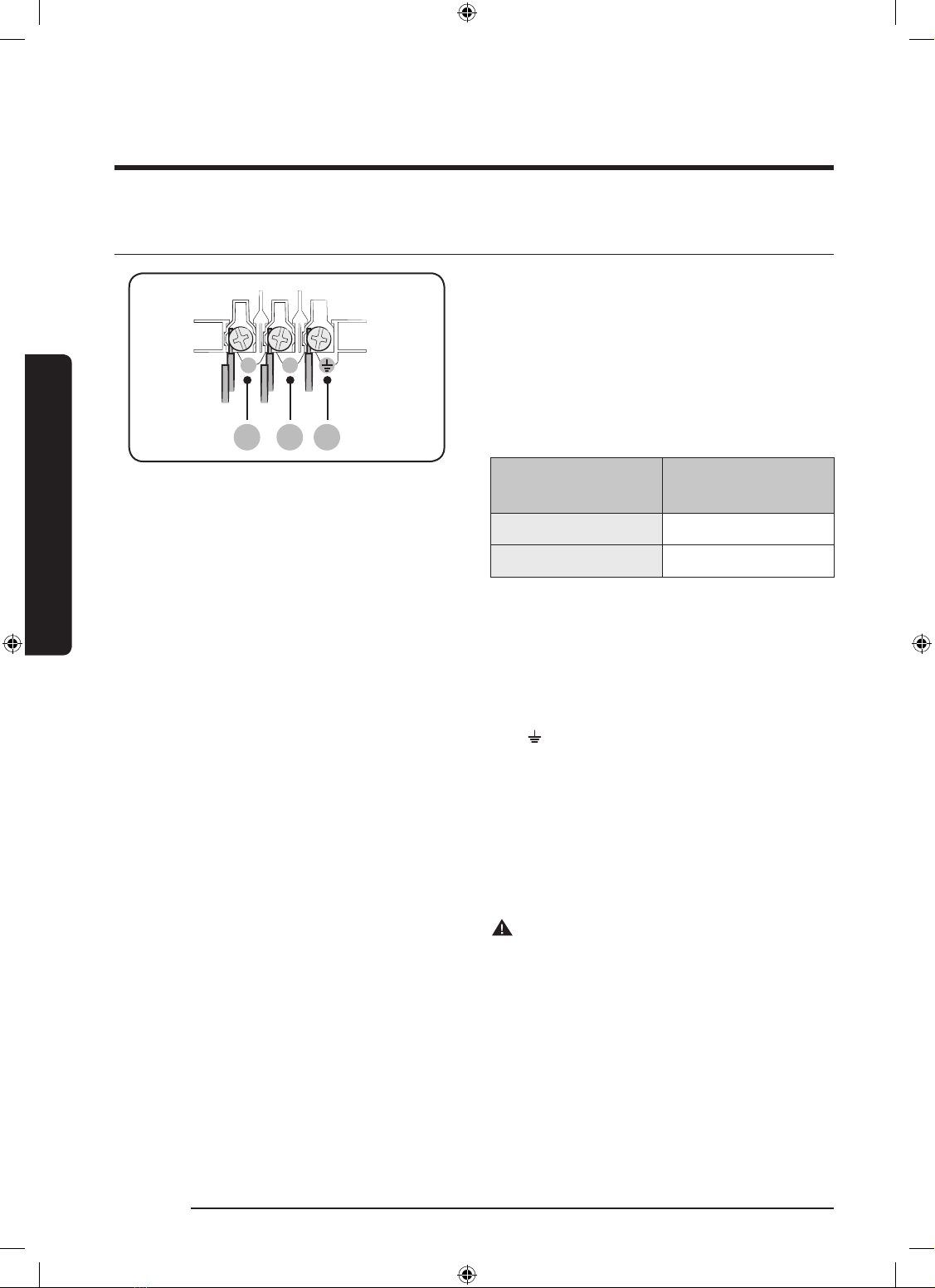

Power connection
01 02 03
L N
01 BROWN or BLACK
02 BLUE or WHITE
03 YELLOW and GREEN
Plug the oven into an electrical socket. If
a plug-type socket is not available due to
allowable current limitations, use a multi-
pole isolator switch (with at least 3 mm
spacing in-between) in order to meet safety
regulations. Use a power cord of sufcient
length that supports the specication H05
RR-F or H05 VV-F, min. 1.5~2.5 mm².
Rated current(A) Minimum cross-
sectional area
10 < A ≤16 1.5 mm2
16 < A ≤25 2.5 mm2
Check the output specications on the label
attached to the oven.
Open the rear cover of the oven using a
screwdriver, and remove the screws on the
cord clamp. Then, connect the power lines to
the relevant connection terminals.
The ( )-terminal is designed for
earthgrounding. First connect the yellow
and green lines (earthgrounding), which
must be longer than the others. If you use
a plug-type socket, the plug must remain
accessible after the oven is installed.
Samsung is not responsible for accidents
caused by missing or faulty earthgrounding.
WARNING
Do not step on or twist the wires during
installation, and keep them away from heat-
emitting parts of the oven.
NV75J5540RS_EU_DG68-00616E-00_EN.indd 12 2015-05-20 �� 11:03:10

English 13
Installation
Cabinet mount
If installing the oven in a built-in cabinet, the cabinet must have its plastic surfaces and
adhesive parts resistant up to 90 °C, and adjacent furniture must be resistant up to 75 °C.
Samsung is not responsible for damage to furniture from the oven’s heat emission.
The oven must be properly ventilated. For ventilation, leave a gap of about 50 mm between
the lower shelf of the cabinet and the supporting wall. If you install the oven under a
cooktop, follow the cooktop’s installation instructions.
Required Dimensions for Installation
D
E
C
B
A
L
K
J
I
F
H
G
Oven (mm)
A560 GMax. 506
B175 HMax. 494
C370 I21
DMax. 50 J545
E595 K572
F595 L550
D
C
B
A
E
Built-in cabinet (mm)
AMin. 550
BMin. 560
CMin. 50
DMin. 590 - Max. 600
EMin 460 x Min. 50
NOTE
The built-in cabinet must have vents (E) to
ventilate heat and circulate the air.
NV75J5540RS_EU_DG68-00616E-00_EN.indd 13 2015-05-20 �� 11:03:11

14 English
Installation
Installation
D
C
B
A

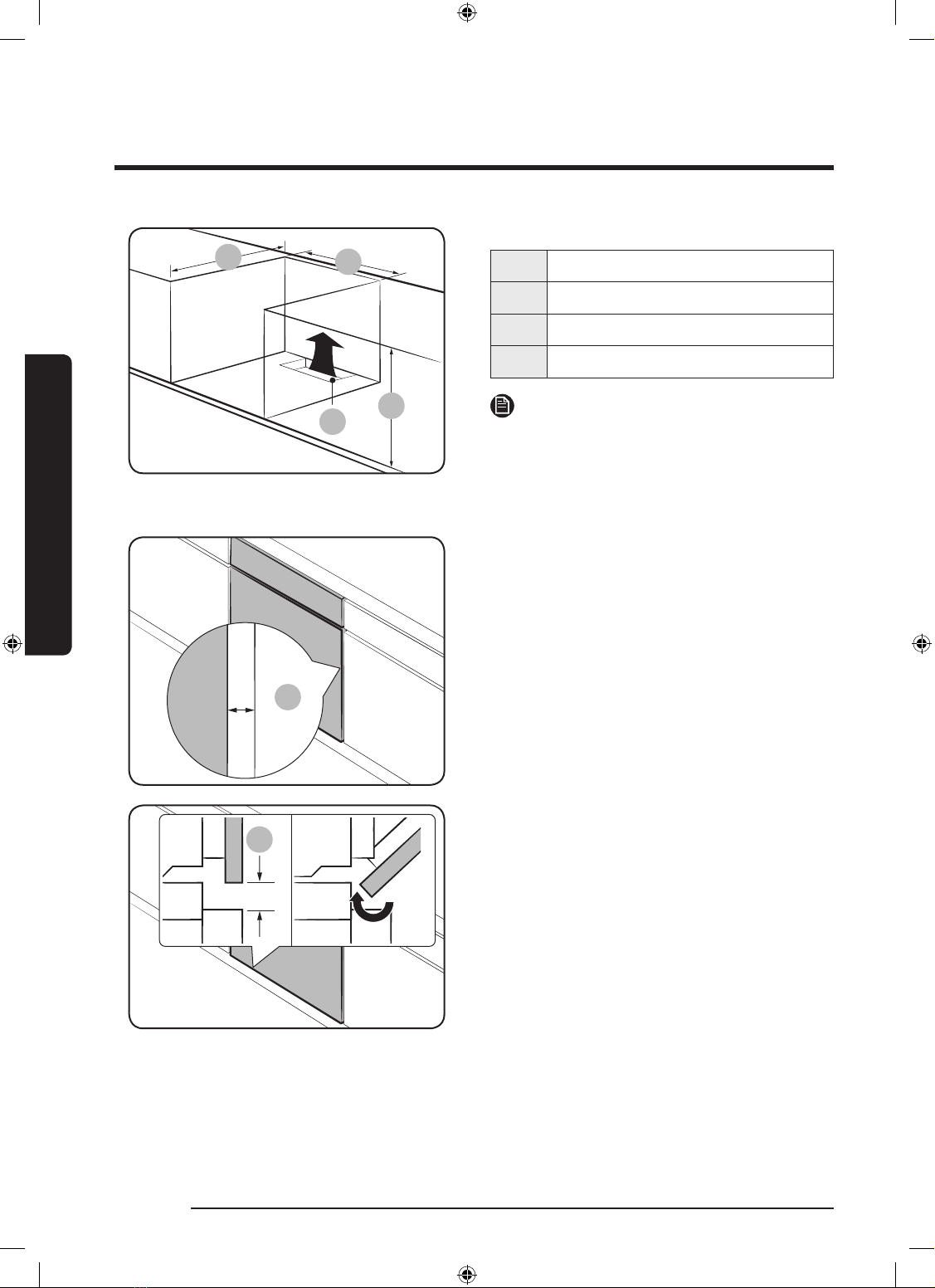

Under-sink cabinet (mm)
AMin. 550
BMin. 560
CMin. 600
DMin 460 x Min. 50
NOTE
The built-in cabinet must have vents (D) to
ventilate heat and circulate the air.
Mounting the oven
A
Make sure to leave a gap (A) of at least 5
mm between the oven and each side of the
cabinet.
B
Secure at least 3 mm of gap (B) so that the
door opens and closes smoothly.
NV75J5540RS_EU_DG68-00616E-00_EN.indd 14 2015-05-20 �� 11:03:11

English 15
Installation
Fit the oven into the cabinet and x the
oven rmly on both sides using 2 screws.
After installation is complete, remove the
protective lm, tape, and other packing
material, and take out the provided
accessories from inside the oven. To remove
the oven from the cabinet, rst disconnect
power to the oven and remove 2 screws on
both sides of the oven.
WARNING
The oven requires ventilation for normal
operation. Do not block the vents under any
circumstance.
NOTE
The actual appearance of the oven may
differ with the model.
NV75J5540RS_EU_DG68-00616E-00_EN.indd 15 2015-05-20 �� 11:03:11

16 English
Before you start
Before you start

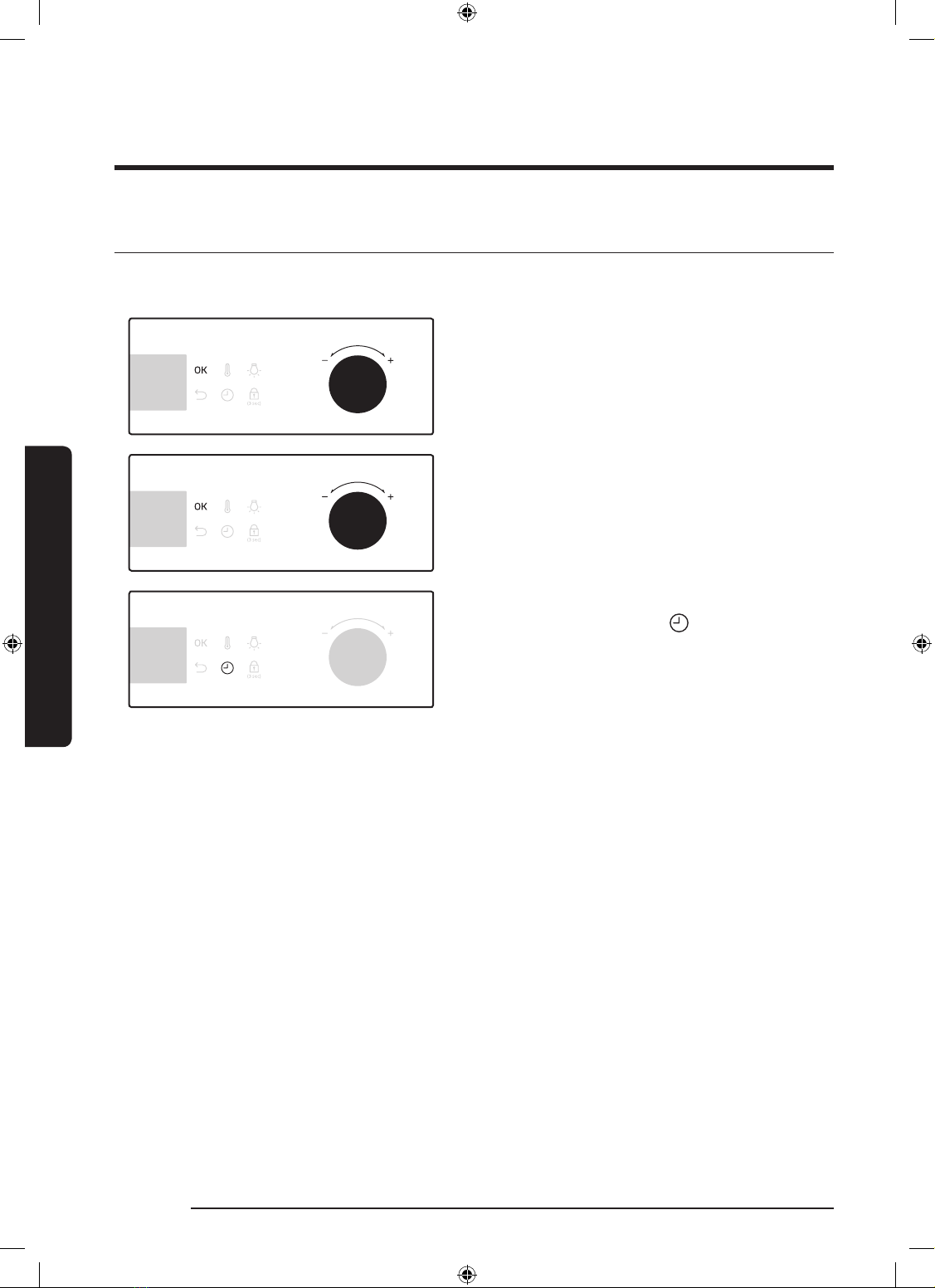

Initial settings
When you power on the oven for the rst time, the default time of “12:00” appears on the
display where the hour element (“12”) blinks. Follow the steps below to set the current time.
1. With the hour element blinking, turn the
value dial (right-sided dial) to set the
hour, and then press OK to move to the
minute element.
2. With the minute element blinking, turn
the value dial to set the minute, and
then press OK.
To change the current time after this initial
setting, hold down the button for 3
seconds and follow the above steps.
NV75J5540RS_EU_DG68-00616E-00_EN.indd 16 2015-05-20 �� 11:03:11

English 17
Before you start
New oven smell
Before using the oven for the rst time, clean inside the oven to remove the new oven smell.
1. Remove all accessories from inside the oven.
2. Run the oven with Convection 200 °C or Conventional 200 °C for an hour. This will burn
any remaining production substances in the oven.
3. When complete, turn off the oven.
Smart safety mechanism
If you open the door while the oven is operating, the oven light turns on and both the fan
and the heating elements stop operation. This is to prevent physical injuries such as burns as
well as to prevent unnecessary energy loss. When this happens, simply close the door and
the oven continues to operate normally because this is not a system failure.
Soft Closing Door (Gentle, Safe, and Silent)
The Samsung Built-in Oven features a soft closing door that gently, safely, and silently closes.
When closing the door, the specially designed hinges catch the door a few centimetres before
the nal position. This is the perfect touch for added comfort, allowing the door to be closed
silently and gently. (Availability of this feature depends on the oven model.)
The door starts to be closed softly at about
15 degrees and completely closed within
approx. 5 seconds.
NV75J5540RS_EU_DG68-00616E-00_EN.indd 17 2015-05-20 �� 11:03:11

18 English
Before you start
Before you start
Accessories
For rst time use, clean the accessories thoroughly with warm water, detergent and a soft
clean cloth.
05
04
03
02
01
01 Level 1 02 Level 2
03 Level 3 04 Level 4
05 Level 5
• Insert the accessory to the correct position
inside of the oven.
• Allow at least a 1 cm space from the
accessory and the bottom of the oven, and
from any other accessory.
• Take caution in removing cookware and/or
accessories out of the oven. Hot meals or
accessories can cause burns.
• The accessories may be deformed while
they are gaining heat. Once they have
cooled down, they will recover their
original appearance and performance.
Basic use
For better cooking experience, familiarise yourself with how to use each accessory.
Wire rack The wire rack is designed for grilling and roasting. Insert the wire
rack into position with the protruding parts (stoppers on both
sides) towards the front
Wire rack insert * The wire rack insert is used with the tray, and prevents liquid
from dropping onto the bottom of the oven.
Baking tray * The baking tray (depth: 20 mm) is used to bake cakes, cookies, and
other pastries. Put the slanted side to the front.
Universal tray * The universal tray (depth : 30 mm) is used for cooking and
roasting. Use the wire-tray insert to prevent liquid from dropping
onto the bottom of the oven.
Put the slanted side to the front.
Extra-deep tray * The extra-deep tray (depth: 50 mm) is used for roasting with or
without the wire-tray insert. Put the slanted side to the front.
Rotisserie spit * The rotisserie spit is used for grilling food such as chicken. Use the
rotisserie spit only in Single mode at level 4 where the spit
adapter is available. Unscrew the spit handle to remove while
grilling.
NV75J5540RS_EU_DG68-00616E-00_EN.indd 18 2015-05-20 �� 11:03:11

English 19
Before you start
Rotisserie spit and
Shashlik *
Put the tray at rack position 1 to collect cooking juices, or on the
bottom of the oven for a large serving of meat. It is recommended
to use the spit accessories for meat under 1.5 kg.
1. Insert the spit into the meat. To help insert the spit, screw the
spit handle toward the blunt end.
2. Put parboiled potatoes and vegetables around the meat.
3. Put the cradle at the middle tray position with the “V” shape
to the front. Rest the spit onto the cradle with the pointed
end backward and gently push until the tip of the spit enters
the turning mechanism at the back of the oven. The blunt end
of the spit must rest on the “V” shape. (The spit has two lugs
which should be nearest to the oven door so to stop the spit
going forward, the lugs also act as a grip for the handle.)
4. Unscrew the handle before cooking.
5. After cooking, screw the handle back to help remove the spit
from the cradle.
Telescopic rails * Use the telescopic rail plate to insert the tray as follows:
1. Stretch the rail plate out from the oven.
2. Put the tray on the rail plate and slide the rail plate into the
oven.
3. Close the oven door.
Divider The divider is designed to separate the oven in two compartments.
Use the divider with Dual cook mode.
NOTE
Availability of accessories with an asterisk (*) depends on the oven model.
NV75J5540RS_EU_DG68-00616E-00_EN.indd 19 2015-05-20 �� 11:03:11

20 English
Before you start
Before you start
Dual cook mode
You can use both the upper and lower compartments to cook two different recipes, or simply
choose one compartment to cook with.
Insert the divider in level 3 to separate the
cooking chamber in two compartments. The
oven senses the divider and activates the
upper compartment by default.
NOTE
Availability of Dual cook mode depends on
the recipe. For more information, see the
Cooking Guide section in this manual.
NV75J5540RS_EU_DG68-00616E-00_EN.indd 20 2015-05-20 �� 11:03:12
