Samsung FE-N500WX User manual

imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
1-800-SAMSUNG(726-7864)
Electric Range
installation manual
ENGLISH
This manual is made with 100% recycled paper.
FTQ386*/
FTQ352*/
FCQ321*/
FTQ387*/
FTQ353*/
FTQ307*/
FE-R300*
FE-R400*
FE-R500*
FE-R700*
FE-N300*
FE-N500*
Installation-USA DG68-00108E-01_EN.indd 1 2011-03-18 �� 4:06:26

2_ Before you begin
before you begin
About this mAnuAl
READ THESE INSTRUCTIONS COMPLETELY AND CAREFULLY.
Important note to the installer
• Read all instructions contained in these installation instructions before installing range.
• Remove all packing materials from the oven compartments before connecting the electrical supply
to the range.
• Observe all governing codes and ordinances.
• Be sure to leave these instructions with the consumer.
Important note to the consumer
Keep these instructions for the local electrical inspector’s use.
• As when using any appliance generating heat, there are certain safety precautions you should follow.
• Be sure your range is installed and grounded properly by a qualified installer or service technician.
• Make sure the wall coverings around the range can withstand the heat generated by the range.
• To eliminate the need to reach over the surface elements, cabinet storage space above the elements
should be avoided.
• The range should not be placed on a base.
FoR YouR sAFEtY
WARNING WARNING If the information in this manual is not followed exactly, a fire or electrical
shock may result causing property damage, personal injury or death.
WARNING WARNING Before beginning the installation, switch power off at the service panel and
lock the service disconnecting means to prevent power from being switched on accidentally. When the
service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a
tag, to the service panel.
WARNING WARNING This appliance must be properly grounded.

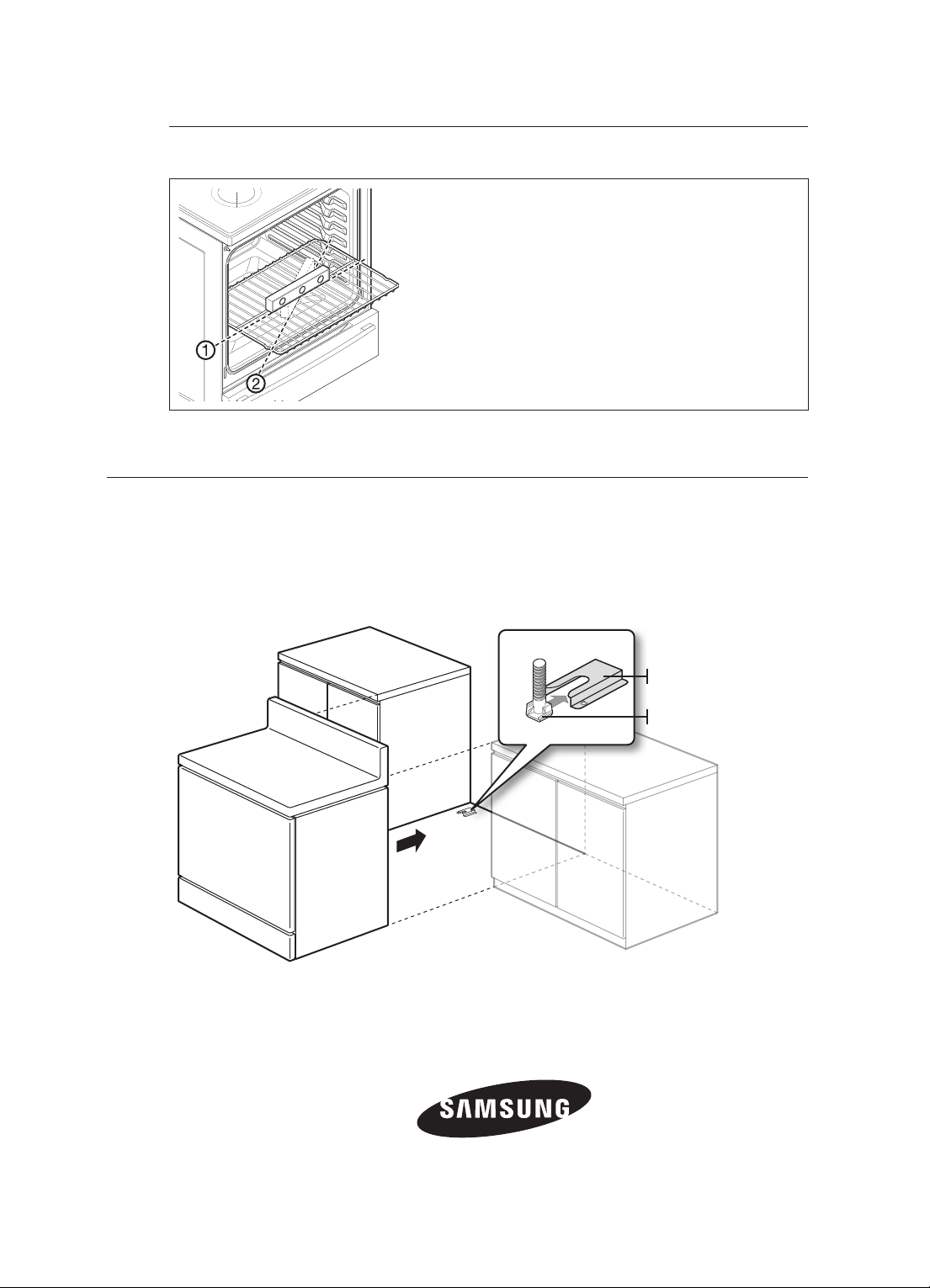

Anti-tiP DEViCE
TO REDUCE THE RISK OF TIPPING, THE APPLIANCE MUST BE SECURED BY PROPERLY
INSTALLING THE ANTI-TIP BRACKET PROVIDED WITH THIS APPLIANCE.
WARNING WARNING
• ALL RANGES CAN TIP
• INJURY TO PERSONS COULD RESULT
• INSTALL ANTI-TIP BRACKET PACKED WITH RANGE
• SEE INSTALLATION MANUAL
If you pull the range out and away from the wall for any reason, make sure the Anti-Tip bracket is
engaged when the range is pushed back against the wall.
Installation-USA DG68-00108E-01_EN.indd 2 2011-03-18 �� 4:06:26

01 PREPARING TO INSTALL
Preparing to install the range _3
preparing to install the range
REmoVE PACKAGinG
Remove packaging materials. Failure to remove packaging materials could result in damage to the
appliance.
PREPARE tools & PARts
What tools you will need
Drill Adjustable Wrench Pliers 1/4˝ Nut Driver
Phillips Screwdriver Flat Screwdriver Pencil Level
What’s included with your range
Template Anti-Tip Bracket Screws (2 ea)
What’s not included
4-Wire Cord or 3-Wire Cord
(UL Approved 40 or 50 AMP)
Strain Relief
(For Conduit Installation Only)
Installation-USA DG68-00108E-01_EN.indd 3 2011-03-18 �� 4:06:26

4_ Preparing to install the range
ChECKinG thE instAllAtion sitE
Clearances and dimensions
To install the range, refer to the following figure.
For installation in CANADA, a Free-standing range is not to be installed closer than 12mm
from any adjacent surface.
CAUTION CAUTION This range has been designed to comply with the maximum allowable wood
cabinet temperatures of 194°F. Make sure the wall covering, countertops and cabinets around the
range can withstand the heat (up to 194°F) generated by the range. If not, discoloration, delamination
or melting may occur.
A
B
36”
30”
24”
6”
25”
3”
24” 3”
A : Cabinet opening
30” For U.S.A,
30”~31” For CANADA.
B : Acceptable electrical
outlet area
Minimum dimensions
IMPORTANT To eliminate the risk of burns or fire caused by reaching over heated surface
units, cabinet storage space located above the surface units should be avoided. If cabinet storage is to
be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of
5” beyond the bottom of the cabinets.
* 30”
30”
** 15” * 30” minimum clearance between the top
of the cooking surface and the bottom of
an unprotected wood or metal cabinet;
or 24” minimum when the bottom of the
wood or metal cabinet is protected by not
less than 1/4” flame retardant millboard
covered with not less than no.28 MSG
sheet steel, 0.015” stainless steel, 0.024”
aluminum or 0.020” copper.
** 15” minimum between the countertop and
the adjacent cabinet bottom.
Installation-USA DG68-00108E-01_EN.indd 4 2011-03-18 �� 4:06:27

02 CONNECTING THE POWER
Connecting the power _5
connecting the power

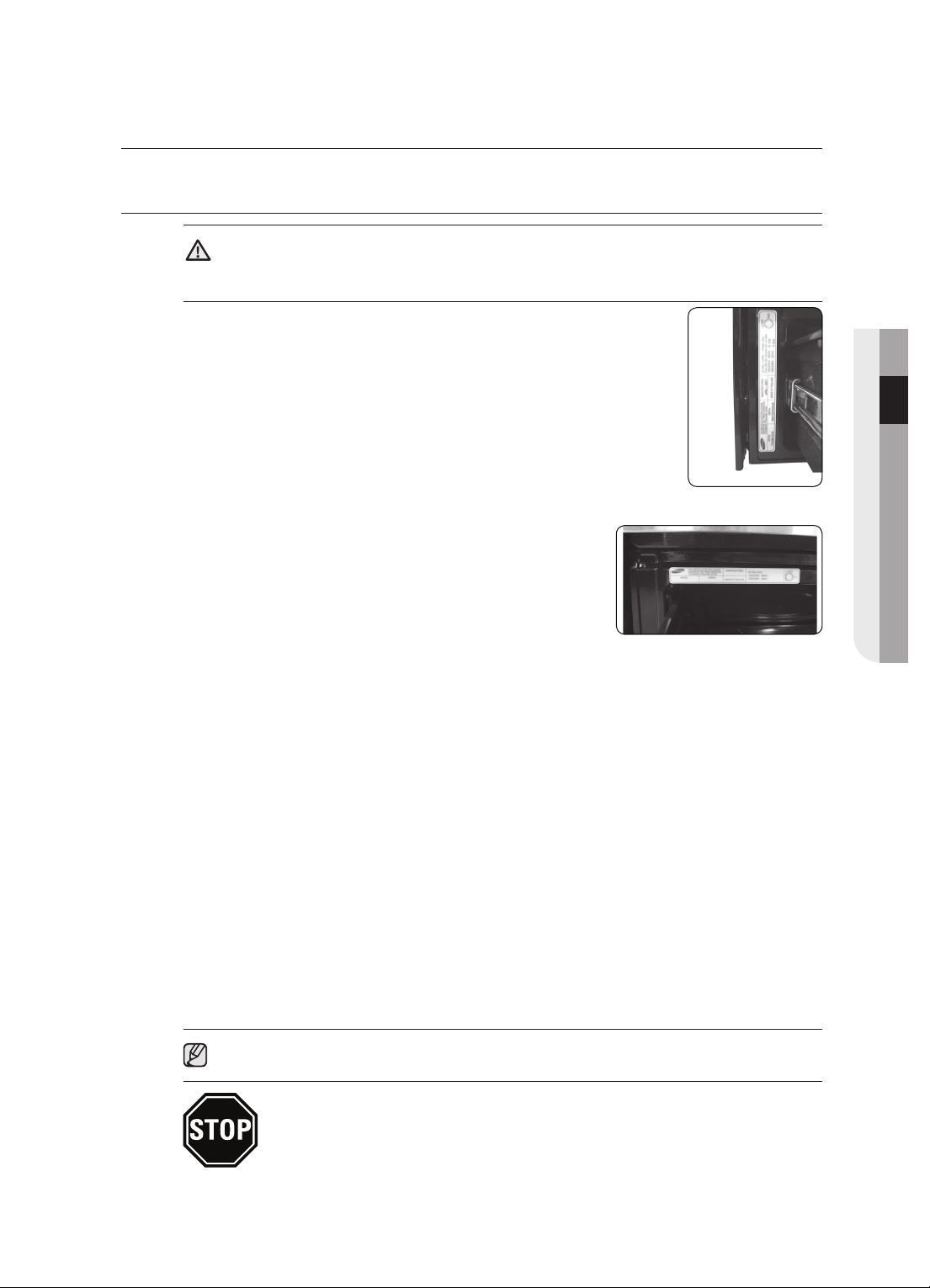

stEP 1. mEEtinG ElECtRiCAl ConnECtion REQuiREmEnts
CAUTION CAUTION For personal safety, do not use an extension cord with this appliance.
Remove house fuse or open circuit breaker before beginning installation.
This appliance must be supplied with the proper voltage and frequency, and
connected to an individual properly grounded branch circuit, protected by a
circuit breaker or fuse having amperage as specified on the rating plate. The
rating plate is located above the drawer on the oven frame. (Fig. 1 or Fig. 2)
We recommend you have the electrical wiring and hookup of your range
connected by a qualified electrician. After installation, have the electrician show
you where your main range disconnect is located.
Check with your local utilities for electrical codes which apply in your area.
Failure to wire your oven according to governing codes could result in a
hazardous condition. If there are no local codes, your range must be wired and
fused to meet the requirements of the National Electrical Code, ANSI/NFPA No.
70–Latest Edition. You can get a copy by writing:
National Fire Protection Association
Batterymarch Park
Quincy, MA 02269
Effective January 1, 1996, the National Electrical Code requires that new construction (not
existing) utilize a 4-conductor connection to an electric range.
When installing an electric range in new construction, follow Steps 2 and 3 for 4-wire
connection.
You must use a 3-wire, single-phase A.C. 208Y/120 Volt or 240/120 Volt, 60 hertz electrical system.
If the electrical service provided does not meet the above specifications, have a licensed electrician
install an approved outlet.
Use only a 3-conductor or a 4-conductor UL-listed range cord. These cords may be provided with ring
terminals on wire and a strain relief device.
A range cord rated at 40 amps with 125/250 minimum volt range is required. A 50 amp range cord
is not recommended but if used, it should be marked for use with nominal 13⁄8” diameter connection
openings. Care should be taken to center the cable and strain relief within the knockout hole to keep
the edge from damaging the cable.
• Because range terminals are not accessible after range is in position, flexible service conduit or cord
must be used.
NOTE If conduit is being used, go to Step 4 on page 9.
ALL NEW BRANCH-CIRCUIT CONSTRUCTIONS, MOBILE HOMES,
RECREATIONAL VEHICLES AND INSTALLATIONS WHERE LOCAL CODES DO
NOT ALLOW GROUNDING THROUGH NEUTRAL, REQUIRE A 4-CONDUCTOR
UL-LISTED RANGE CORD.
(Fig. 1)
(Fig. 2)
Installation-USA DG68-00108E-01_EN.indd 5 2011-03-18 �� 4:06:27

6_ Connecting the power

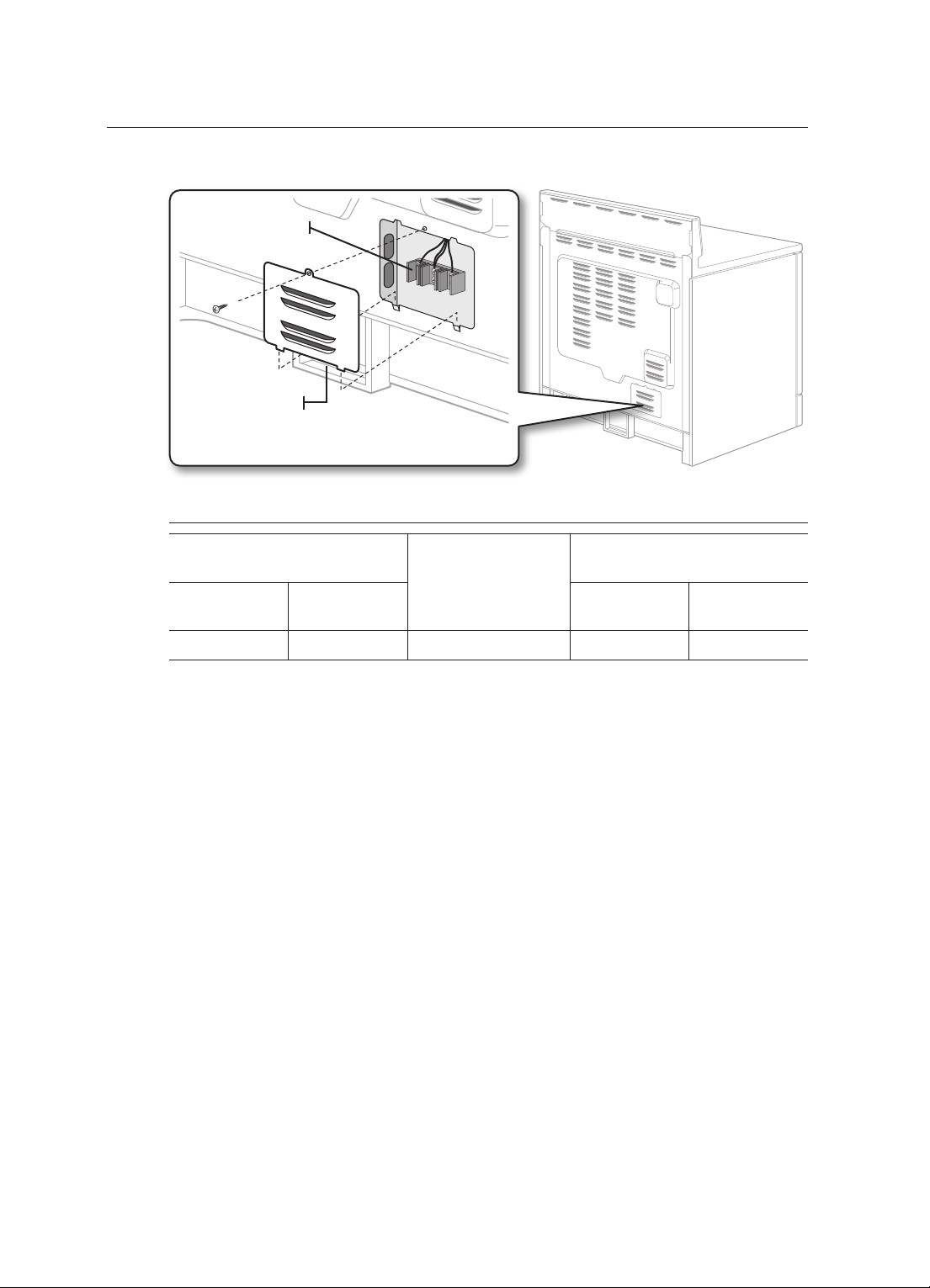

stEP 2. ACCEssinG thE PoWER CoRD ConnECtion
Remove the rear access cover and loosen the screw with a screwdriver. The terminal block will then be
accessible.
Access cover
Terminal block
Specified power-supply-cord kit rating
Range rating, watts Specified rating of
power-supply-cord kit,
amperes
Diameter (inches) of range
connection opening
120/240 volts
3-wire
120/208 volts
3-wire Power cord Conduit
8,750 - 16,500 7,801 - 12,500 40 or 50A 13/8” 11/8”
Installation-USA DG68-00108E-01_EN.indd 6 2011-03-18 �� 4:06:27

02 CONNECTING THE POWER
Connecting the power _7
stEP 3. instAllinG thE PoWER CoRD
For power cord installations, hook the strain relief over the power cord hole (13/8”) located below the
rear of the drawer body. Insert the power cord through the strain relief and tighten the device.
Strain relief
Power cord
Conduit connection plate
• You must install the power cord with a strain relief.
• Attach the strain relief to the 13/8” opening in conduit connection plate.

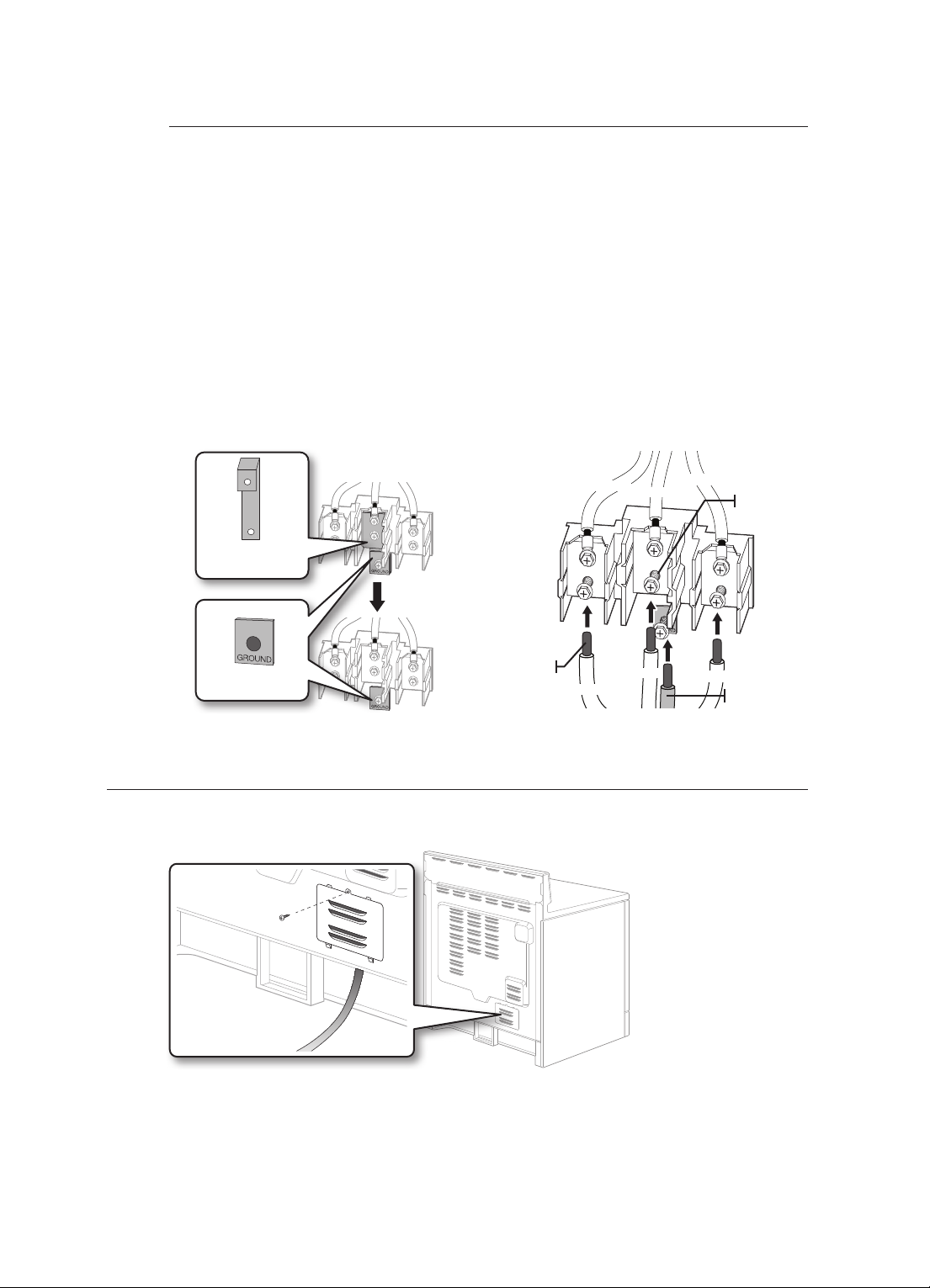

Installing a 3-wire power cord
WARNING WARNING The neutral or ground wire of the power cord must be connected to the
neutral terminal located in the center of the terminal block. The power leads must be connected to the
lower left and the lower right terminals of the terminal block.
1. Remove the 3 lower terminal screws from the
terminal block.
2. Insert the 3 terminal screws through each
power cord terminal ring and into the lower
terminals of the terminal block. Be certain that
the center wire (white/neutral) is connected to
the center lower position of the terminal block.
3. Tighten screws securely into the terminal
block. DO NOT remove the ground strap
connection.
4. Go to step 5 on page 10 and proceed with
the installation.
Ground strap
Neutral
terminal
Black
White
Red
Black White
Red
Installation-USA DG68-00108E-01_EN.indd 7 2011-03-18 �� 4:06:27

8_ Connecting the power

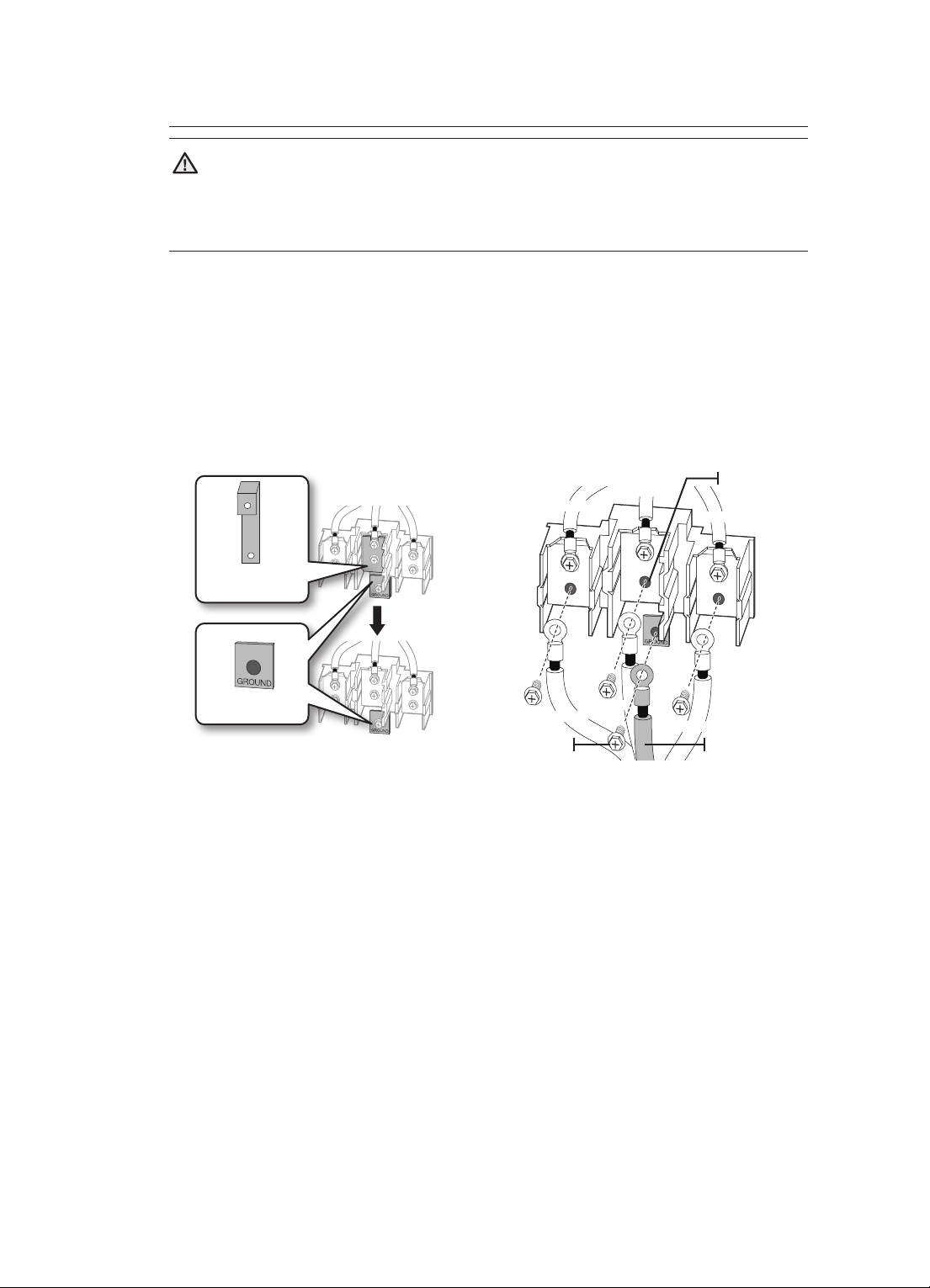

Installing a 4-wire power cord
WARNING
WARNING The neutral wire of the supply circuit must be connected to the neutral terminal
located in the lower center of the terminal block. The power leads must be connected to the lower left
and the lower right terminals of the terminal block. The 4th grounding lead must be connected to the
frame of the range with the ground plate and the ground screw.
1. Remove the 3 lower terminal screws from the terminal block. Remove the ground screw and
ground plate and retain them.
2. Cut and discard the ground strap. Do not discard any screws.
3. Insert the one ground screw into the power cord ground wire terminal ring, through the ground
plate, and into the frame of the range.
4. Insert the 3 terminal screws (removed earlier) through each power cord terminal ring and into the
lower terminals of the terminal block. Be certain that the center wire (white/neutral) is connected
to the center lower position of the terminal block. Tighten screws securely into the terminal block.
5. Go to step 5 on page 10 and proceed with the installation.
Ground strap
Ground plate
Ground
screw
Neutral
terminal
Ground
wire (Green)
White
Black
Red
Black
White
Red
Installation-USA DG68-00108E-01_EN.indd 8 2011-03-18 �� 4:06:28

02 CONNECTING THE POWER
Connecting the power _9
stEP 4. instAllinG thE ConDuit
Remove the conduit connection plate from the rear of the drawer body and rotate it as shown below.
The conduit hole (11/8”) must be used.
11/8”13/8”
11/8”13/8”
1. Prepare the conduit cord shown in Figure 1.
2. Install the conduit cord as shown in Figure 2.
Conduit connection plate
Strain relief
Ring
Body
Figure 2
1”
31/2”
3/8” 1”
31/2”
3 wire 4 wire
Knockout surface
Figure 1
3/8”
For conduit installations, insert the strain relief (not included) into the conduit hole (11/8”). Then thread
the conduit cord through the body of the strain relief and fasten the ring. Reinstall the bracket.
Installing a 3-wire conduit
• Aluminum building wire may be used but it must be rated for the correct amperage and voltage to
make the connection. Connect wires according to Step 4 depending on the number of wires.
• Wire used, location and enclosure of splices, etc., must conform to good wiring practices and local
codes.
1. Loosen the 3 lower terminal screws from the terminal
block.
2. Insert the center bare wire (white/neutral) tip through
the bottom center terminal block opening. On certain
models, the wire will need to be inserted through the
ground strap opening and then into the bottom center
block opening.
3. Insert the two side bare wire tips into the lower left
and the lower right terminal block openings.
4. Tighten the screws until the wire is firmly secured (35
to 50 inch-lbs.). Do not over-tighten the screws since
it could damage the wires.
5. Go to step 5 on page 10 and proceed with the
installation.
White
Black Red
Ground
strap
Neutral
terminal
Wire tips
Red
White
Black
Installation-USA DG68-00108E-01_EN.indd 9 2011-03-18 �� 4:06:28

10_ Connecting the power
Installing a 4-wire conduit
• Aluminum building wire may be used but it must be rated for the correct amperage and voltage to
make the connection. Connect wires according to this Step 4 depending on the number of wires.
• Wire used, location and enclosure of splices, etc., must conform to good wiring practices and local
codes.
1. Loosen the 3 lower terminal screws from the terminal block. Remove the ground screw and
ground plate and retain them.
2. Cut and discard the ground strap. Do not discard any screws.
3. Insert the ground bare wire tip between the range frame and the ground plate (removed earlier)
and secure it in place with the ground screw (removed earlier).
4. Insert the bare wire (white/neutral) tip through the bottom center of the terminal block opening.
5. Insert the two side bare wire tips into the lower left and the lower right terminal block openings.
6. Tighten the screws until the wire is firmly secured (35 to 50 inch-lbs.). Do not over-tighten the
screws since it could damage the wires.
7. Go to step 5 and proceed with the installation.
Ground strap
Ground plate
White
Black Red
Neutral
terminal
Ground
wire (Green)
Wire tips White
Black
Red
stEP 5. REPlACinG thE ACCEss CoVER
Replace the access cover on the range back. To replace the wire cover, insert double projections in the
pockets located below the opening and tighten the screw.
Installation-USA DG68-00108E-01_EN.indd 10 2011-03-18 �� 4:06:29

Installing the range _11
03 INSTALLING THE RANGE
installing the range
instAllinG thE Anti-tiP DEViCE
WARNING
WARNING To reduce the risk of tipping, the appliance must be secured by properly
installing the Anti-Tip device packed with the appliance.
• Refer to the installation instructions supplied with the bracket.
• Unless properly installed, the range could be tipped by stepping or sitting on the door. Injury may
result from spilled hot liquids or from the range itself.
Anti-Tip
bracket
Screw must enter wood or
concrete
*approximately
21/32”(16.5mm) *NOTE: To install Anti-Tip bracket,
release the leveling leg. A minimum
clearance of 21/32”(16.5mm) is required
between the range bottom and the
kitchen floor.
1. Locate the bracket using the template
The Anti-Tip bracket is packaged with a template. The instructions include information necessary to
complete the installation. Read and follow the instructions on the sheet (template) for range installation.
2. Level the range
Level the range by adjusting the leveling legs with a wrench.
Lower range
Raise range
Leveling leg
Installation-USA DG68-00108E-01_EN.indd 11 2011-03-18 �� 4:06:29

12_ Installing the range
3. Check your adjustments
Use a spirit level to check your adjustments. Place the level diagonally on the oven rack, and check
each direction for level.
1. Check direction 1.
2. Check direction 2.
If the spirit level doesn’t show level on the rack, adjust the
leveling legs with a wrench.
FinAliZinG thE instAllAtion
• Move range close enough to the opening to plug into the receptacle.
• Slide range into position insuring that the rear left(or rear right) leg slides under the Anti-Tip bracket.
The range will sit 0” away from the back wall when properly installed.
• Carefully tip the range forward to insure that the Anti-Tip bracket engages the back brace and
prevents tip-over.
• Turn on the electrical power. Check the range for proper operation as described in the user manual.
Anti-Tip bracket
Leveling leg
DG68-00108E-01_EN
Installation-USA DG68-00108E-01_EN.indd 12 2011-03-18 �� 4:06:29
