Samsung FTQ307 Series User manual

imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/global/register
Electric Induction
Range
user manual
FTQ307NWGX
FTQ307NWGX_XAA DG68-00228A.indd 1 2009-06-30  1:54:22

2_ Features of your new range
features of your new range
Enhanced convenience. Better cooking. Easy maintenance. Your new electric range has been designed to
bring you these benefits and more.
The latest in heat-distribution technology•
Other ranges with just one fan tend to make a swirl of heat that fails to cover the whole inside of
the oven. This means uneven heat distribution and uneven cooking. Your new range has Surround
Airvection™, which Samsung innovated by adding a third heating element and a multi-fan system
that circulates the heat evenly in all directions. You get more efficient energy consumption and
more even cooking.
Steam Quick cleaning•
Thanks to Steam Quick™, Samsung’s unique technology for light-duty cleaning jobs, keeping
your oven spick-and-span is a snap — no hassle, no odor, no chemicals. Steam Quick™ cleans
the inside of your range with high-temperature steam in just 20 minutes.
Bigger is better•
With a capacity of 5.9 cubic feet, your new range is equipped with more space than any of its
competitors in the U.S. market. This means greater convenience for you when cooking for the
holidays or when entertaining.
Induction Cooktop Features•
Fast and Efficient - Induction cooking heats faster while using less energy. Induction power
levels are quick to boil and efficient when simmering.
A Cooler Cooktop- A unique feature of the Induction Cooktop is whether turned ON or OFF, the
cooktop surface remains cooler than Radiant ceramic style cooktops. Virtually no wasted heat is
produced since the heat begins with the presence of a pan.
Easy Clean-ups- The cooler cooktop surface (when compared to a Radiant cooktop) makes
clean-ups easier. Spills resist sticking or burning so they wipe up easier.
Magnetic Detector - The coil sensor automatically detects whether the pan is magnetic and
eliminates any accidental “turn-ONs” ; such as setting down cooking utensils like spatulas or
spoons.
Pan Size Detection - The pan size recognition sensor automatically detects and adapts the
Cooking Zones to the pan sizes in use for consistent, more even cooking.
More Responsive - Induction cooktops are more responsive than their electric or gas
counterparts because only the pan heats. This type of cooking heats easier and will be just as
responsive when reducing to a simmer.
CAUTION -The Cooking Zones may appear to be cool while turned ON and after they have been
turned OFF. The ceramic glass surface may be HOT from residual heat transfered from the
cookware and burns may occur.
FTQ307NWGX_XAA DG68-00228A.indd 2 2009-06-30  1:54:23

Important safety instructions _3
important safety instructions
Read and follow all instructions before using your oven to prevent the
risk of fire, electric shock, personal injury, or damage when using the
range. This guide does not cover all possible conditions that may occur. Always
contact your service agent or manufacturer about problems that you do not
understand.
SAFETY SYMBOLS
WARNING: This symbol alerts you to hazards or unsafe
practices that could cause serious bodily harm or death.
CAUTION: This symbol alerts you to hazards or unsafe practices
that could cause bodily injury or property damage.
Do not attempt or use.
Do not disassemble.
Do not touch.
Follow directions explicity.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
Note
FTQ307NWGX_XAA DG68-00228A.indd 3 2009-06-30  1:54:23

4_ Important safety instructions
ANTI-TIP DEVICE
WARNING-To reduce the risk of tipping the range, the range must be
secured by a properly installed Anti-Tip device. TO CHECK IF THE
DEVICES ARE INSTALLED PROPERLY, REMOVE (necessary
part or parts) AND VERIFY THAT THE ANTI-TIP DEVICES ARE
ENGAGED. Refer to the installation manual for instructions.
WARNING
ALL RANGES CAN TIP AND CAUSE INJURIES TO
PERSONS
INSTALL THE ANTI-TIP DEVICE PACKED WITH RANGE
FOLLOW ALL INSTALLATION INSTRUCTIONS
Do not step, lean, or sit on the doors of the range. These can cause
the range to tip, resulting in burns or serious injuries.
Check to see that the Anti-Tip device is installed properly. Then grasp the
top rear edge of the range and carefully attempt to tilt it forward. Verify
that the Anti-Tip device is engaged.
If you pull the range out from the wall for any reason, make sure the
device is properly engaged when you push the range back against the
wall. If it is not, there is a possible risk of the range tipping over and
causing injury if you or a child stand, sit or lean on an open door.
FOR YOUR SAFETY
When using electrical appliances, basic safety precautions should be
followed, including the following:
Use this appliance only for its intended purpose as described in this
Owner’s Manual.
Potentially hot surfaces include the cooktop, areas facing the cooktop,
oven vent opening, surfaces near the opening, crevices around the oven
door.
User servicing- Do not repair or replace any part of the appliance unless
specifically recommended in the manual. All other servicing should be
referred to a qualified technician.
Always disconnect power to appliance before servicing by removing the
fuse or switching off the circuit breaker.
FTQ307NWGX_XAA DG68-00228A.indd 4 2009-06-30  1:54:24

Important safety instructions _5
Do not enter inside the oven.
CAUTION - Do not store items of interest to children in cabinets above a
range or on the back guard of a range. Children climbing on the range to
reach items could be seriously injured.
Do not leave children alone. Children should not be left alone or
unattended in an area where appliance is in use. They should never be
allowed to sit or stand on any part of the appliance.
Never use your appliance for warming or heating the room.
Do not use water on grease fires. Turn off the oven to avoid spreading
the flame. Smother the fire or flame by closing the door or use dry
chemical, baking soda, or a foam-type extinguisher.
Storage in or on appliance. Flammable materials should not be
stored in an oven or near surface units. Be sure all packing materials are
removed from the appliance before operating it. Keep plastics, clothes,
and paper away from parts of the appliance that may become hot.
Wear proper apparel. Loose-fitting or hanging garments should never
be worn while using the appliance.
Use only dry potholders. Moist or damp potholders on hot surfaces
may result in burns from steam. Do not let the potholder touch hot
heating elements. Do not use a towel or other bulky cloth.
Teach children not to play with the controls or any other part of the range.
For your safety, do not use high-pressure water cleaners or steam jet
cleaners.
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
The appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Read and follow all instructions and warnings on the cleaning cream
labels.
FTQ307NWGX_XAA DG68-00228A.indd 5 2009-06-30  1:54:24

6_ Important safety instructions
INDUCTION COOKTOP ELEMENTS
Be sure you know which touch control operates each surface
heating unit. Place a pan of food on the unit before turning it on, and
turn the unit off before removing the pan.
Use Proper Pan Size-This appliance is equipped with one or more
surface units of different sizes. Select utensils having flat bottoms large
enough to cover the surface unit heating element. The use of undersized
utensils will expose a portion of the heating element to direct contact and
may result in ignition of clothing. Proper relationship of utensil to element
will also improve efficiency.
Utensil Handles Should Be Turned inward and Not Extend Over
Adjacent Surface Elements-To reduce the risk of burns, ignition of
flammable materials, and spillage due to unintentional contact with the
utensil, the handle of the utensil should be positioned so that it is turned
inward, and does not extend over adjacent surface units.
Never Leave Surface Elements Unattended at High Heat Settings
- Boilovers cause smoking and greasy spillovers that may ignite, or a pan
that has boiled dry may melt.
Metallic objects such as knives, forks, spoons and lids should not be
placed on the Induction Cooktop surface since they can get hot.
When preparing flaming foods under a ventilating hood, turn the
fan on.
Use care when touching the cooktop. The glass surface of the
cooktop will retain heat after the controls have been turned off.
Always turn the surface units off before removing cookware.
Keep an eye on foods being fried at high or medium high heat settings.
Be careful when placing spoons or other stirring utensils on the glass
cooktop surface when it is in use. They may become hot and could
cause burns.
Do not lift the cooktop. Lifting the cooktop can lead to damage and
improper operation of the range.
Never use the glass cooktop surface as a cutting board.
Do not operate the cooktop when there is no cookware.
FTQ307NWGX_XAA DG68-00228A.indd 6 2009-06-30  1:54:24

Important safety instructions _7
ELECTRICAL SAFETY
Proper Installation- Be sure your appliance is properly installed and
grounded by a qualified technician.
The appliance should be serviced only by qualified service personnel.
Repairs carried out by unqualified individuals may cause injury or serious
malfunction. If your appliance is in need of repair, contact a Samsung
authorized service center. Failure to follow these instructions may result in
damage and void the warranty.
Flush - mounted appliances may be operated only after they have
been installed in cabinets and workplaces that conform to the relevant
standards. This ensures sufficient protection against contact for electrical
units as required by the essential safety standards.
If your appliance malfunctions or if fractures, cracks or splits appear:
- switch off all cooking zones;
- disconnect the Induction Cooktop from the mains supply; and
- contact your local service centre.
The oven must be switched off before removing the guard and that, after
cleaning, the guard must be replaced in accordance with the instructions
If the surface is cracked, switch off the appliance to avoid the possibility
of electrical shock.Do not use your Induction Cooktop until the glass
surface has been replaced.
WARNING- Ensure that the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
CHILD SAFETY
This appliance is not intended for use by young children or infirm persons
without the adequate supervision of a responsible adult.
Young children should be supervised to ensure that they do not play with
the appliance.
The cooking zones will become hot when you cook. Always keep small
children away from the appliance.
During cleaning, the surfaces may get hotter than usual and children
should be kept away.
WARNING- Accessible parts may become hot during use. To avoid
burns, young children should be kept away.
FTQ307NWGX_XAA DG68-00228A.indd 7 2009-06-30  1:54:24

8_ Important safety instructions
OVEN
DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES
OF THE OVEN. Heating elements may be hot even though they are dark
in color. Interior surfaces of an oven become hot enough to cause burns.
During and after use, do not touch or let clothing or other flammable
materials contact heating elements or interior surfaces of oven until
they have had sufficient time to cool. Other surfaces of the appliance
may become hot enough to cause burns. Among these surfaces are
oven vent openings and surfaces near these openings, oven doors, and
windows of oven doors.
Do not heat unopened food containers. Build-up of pressure may
cause the container to burst and result in injury.
Do not use the oven to dry newspapers. If overheated, they can
catch on fire.
Do not use the oven for a storage area. Items stored in an oven can
ignite.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the
oven door glass since they can scratch the surface, which may result in
shattering of the glass
Use care when opening door. Let hot air or steam escape before you
remove or replace food in the oven.
Protective liners. Do not use aluminum foil to line the oven bottoms,
except as suggested in the manual. Improper installation of these liners
may result in a risk of electric shock or fire.
Keep oven vent ducts unobstructed. The oven vent is located above
the right rear surface unit. this area could become hot during oven use.
Never block this vent or place plastic or heat-sensitive items on it.
Placement of oven racks. Always place oven racks in the desired
location while the oven is cool. If the rack must be moved while the oven
is hot, do not let the potholder come in contact with the hot heating
element in the oven.
During use the appliance becomes hot. Care should be taken to
avoid touching heating elements inside the oven.
Do not allow aluminum foil or a meat probe to contact heating elements.
FTQ307NWGX_XAA DG68-00228A.indd 8 2009-06-30  1:54:24

Important safety instructions _9
WARMING DRAWER
DO NOT TOUCH THE HEATING ELEMENT OR THE INTERIOR
SURFACE OF THE DRAWER. These surfaces may be hot enough to
burn.
REMEMBER: The inside surface of the drawer may be hot when the
drawer is opened.
The purpose of the warming drawer is to hold hot cooked foods at
serving temperature. Always start with hot food; cold food cannot be
heated or cooked in the warming drawer.
Use care when opening the drawer. Open the drawer a crack and
let hot air or steam escape before removing or replacing food. Hot air or
steam which escapes can cause burns to hands, face and/or eyes.
Do not use the drawer to dry newspapers. If overheated, they can
catch on fire.
Do not use aluminum foil to line the drawer. Foil is an excellent heat
insulator and will trap heat beneath it. This will upset the performance of
the drawer and it could damage the interior finish.
Do not leave paper products, plastics, canned food or combustible
materials in the drawer.
Never leave jars or cans of fat drippings in or near your drawer.
Do not warm food in the drawer for more than three hours.
FTQ307NWGX_XAA DG68-00228A.indd 9 2009-06-30  1:54:24

10_ Important safety instructions
SELF-CLEANING OVENS
Do not clean the door gasket. The door gasket is essential for a good
seal. Care should be taken not to rub, damage, or move the gasket.
Never keep pet birds in the kitchen. The health of birds is extremely
sensitive to the fumes released during an oven self-clean cycle. Fumes
may be harmful or fatal to birds. Move birds to a well-ventilated room.
Clean only parts listed in this manual in the self-clean cycle. Before
self-cleaning the oven, remove the broil pan, rack, utensils, and food.
No commercial oven cleaner or oven liner protective coating of any kind
should be used in or on the outside of the oven. Use only a ceramic
cooktop cleaner or the cleaner supplied with this appliance on the glass
cooktop.
Nickel oven shelves should be removed from the oven before beginning
the self-cleaning cycle, or they may discolor.
If the self-clean mode malfunctions, turn the oven off and disconnect the
power supply. Have it serviced by a qualified technician.
Excess spillage and all utensils should be removed before performing self
cleaning.
VENTILATING HOOD
Clean ventilating hoods frequently. Grease should not be allowed to
accumulate on the hood or filter.
When flaming foods under the hood, turn the fan on.
FTQ307NWGX_XAA DG68-00228A.indd 10 2009-06-30  1:54:24

Important safety instructions _11
GLASS/CERAMIC COOKING SURFACES
DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS.
Surface units may be hot even though they are dark in color. Areas near
surface units may become hot enough to cause burns. During and after
use, do not touch, or let clothing or other flammable materials contact
surface units or areas near units until they have had sufficient time to
cool. Among these areas are the cook-top and facing the cook-top.
Do not cook on broken cooktop. If cooktop should break, cleaning
solutions and spillovers may penetrate the broken cook-top and create a
risk of electric shock. Contact a qualified technician immediately.
Clean cooktop with caution. If a wet sponge or cloth is used to wipe
spills on a hot cooking area, be careful to avoid steam burn. Some
cleaners can produce noxious fumes if applied to a hot surface.
BEFORE YOU BEGIN
Clean the oven thoroughly before using for the first time. Remove
accessories and operate the oven at the bake setting at 400°F for 1 hour
before using. There will be a distinctive odor; this is normal, but ensure
your kitchen is well ventilated during this conditioning period.
FTQ307NWGX_XAA DG68-00228A.indd 11 2009-06-30  1:54:25

12_ Contents
contents
INTRODUCING YOUR NEW RANGE
13
13 Overview
13 What’s included with your range
INDUCTION COOKING
14
14 About induction cooktop cooking
16 Location of the Induction Cooktop elements and
controls
16 Cookware for induction cooking zones
17 USE THE CORRECT SIZE COOKWARE
17 Before Using the Cooktop
19 Induction touch control
19 Using the touch control sensors
20 How to set the appliance for induction cooktop
cooking
20 Switching the appliance on
20 Select cooking zone and heat seting
21 Power boost control
21 Simmer Control
21 Switching the appliance off
22 Switching a cooking zone off
22 Using the child safety lock
USING THE WARMING DRAWER
27
28 Turning the warming drawer on or off
OPERATING THE OVEN
29
29 The oven control panel
30 Setting the clock
31 Minimum and maximum settings
31 Setting the kitchen timer
32 Using the oven racks
33 Baking
34 Convection baking
36 Convection roasting
38 Timed cooking
39 Delay timed cooking
40 Broiling
42 Using the custom cook feature
43 Proong
44 Using the keep warm function
45 Extra features
47 Turning the oven light on and off
MAINTAINING YOUR APPLIANCE
49
49 Self-cleaning
51 Steam-cleaning
52 Care and cleaning of the oven
54 Care and cleaning of the glass cooktop
56 Removing and replacing the oven door
57 Removing and replacing the warming drawer
58 Changing the oven light
TROUBLESHOOTING
59
59 Troubleshooting
WARRANTY
64
FTQ307NWGX_XAA DG68-00228A.indd 12 2009-06-30  1:54:25

01 INTRODUCING
Introducing your new range _13

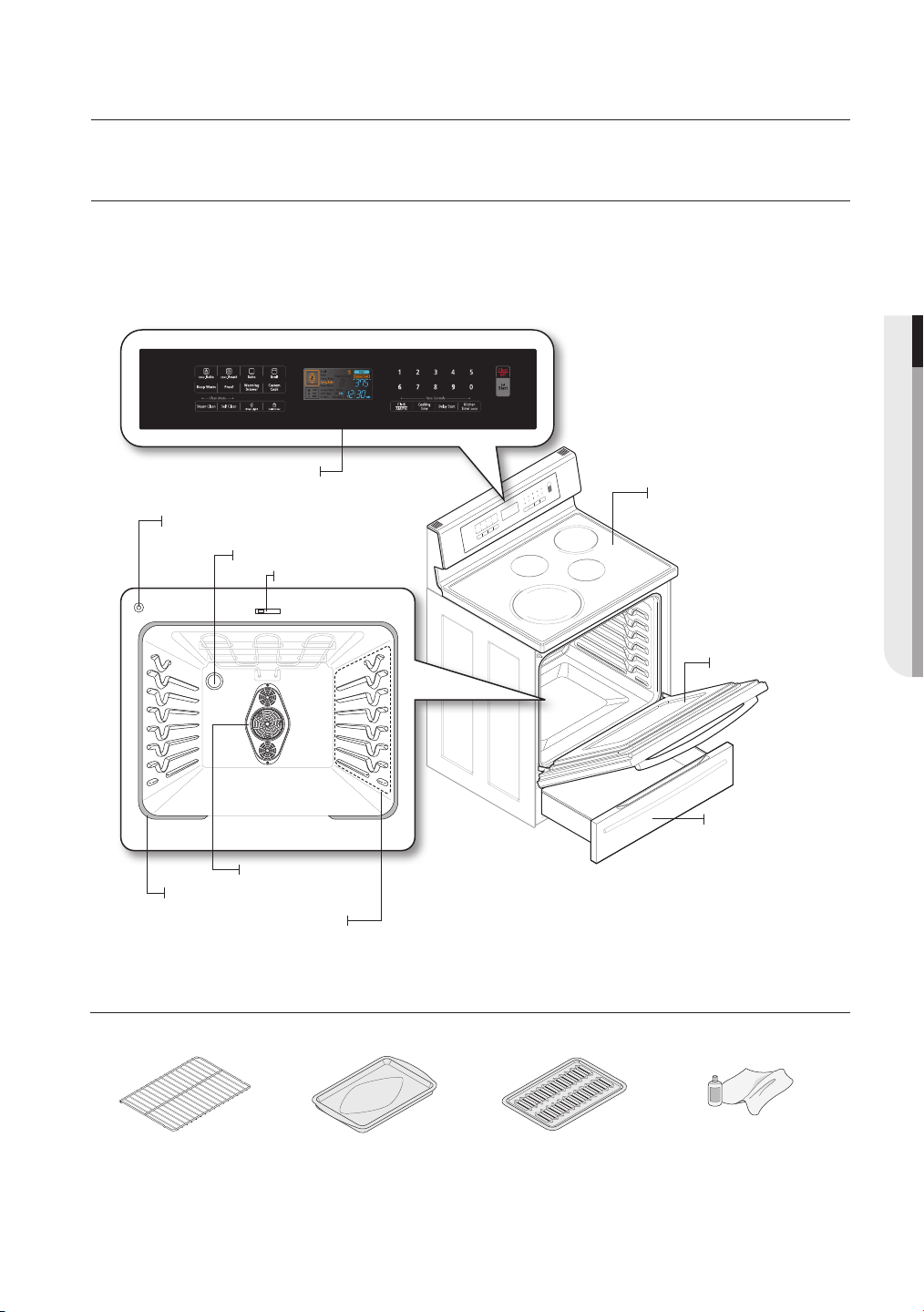

OVERVIEW
introducing your new range
Warming drawer
Oven door
Convection fan
Shelf position
Induction Cooktop
Automatic oven
light switch
Oven light
Self/steam clean latch
Gasket
Oven control panel
See page 29 for more
information
WHAT’S INCLUDED WITH YOUR RANGE
Wire racks Broil pan Broil pan insert Cleaner &
cleaning pad
DG75-01001A DG63-00067A DG63-00068A DG97-00085A
FTQ307NWGX_XAA DG68-00228A.indd 13 2009-06-30  1:54:28

14_ Surface cooking
induction cooking
ABOUT INDUCTION COOKTOP COOKING
CAUTION
BEFORE COOKING
Do not use the Induction cooktop surface as a cutting board.•
Do not place or store items that can melt or catch fire on the Induction cooktop, even•
when it is not being used.
Turn the Induction on only after placing the cookware on them.•
Do not store heavy items above the cooktop surface. They could fall and damage it.•
CAUTION
DURING COOKING
Metallic objects such as knives, forks, spoons and lids should not be placed on the•
induction surface since they can get hot.
After use, switch off the induction element by its control and do not rely on the pan•
detector.
This appliance is to be used only for normal cooking and frying in the home. It is not•
designed for commercial or industrial use.
Never use the induction for heating the room.•
Take care when plugging electrical appliances into a power outlet near the cooktop.•
Power cords must not come into contact with the cooktop.
Overheated fat and oil can catch fire quickly. Never leave surface units unattended•
when preparing foods in fat or oil, for example, when cooking chips.
Turn the cooking zones off after use.•
Always keep the control panels clean and dry.•
Never place combustible items on the induction. It may cause fire.•
Do not use the induction to heat aluminium foil, products wrapped in aluminium foil or•
frozen foods packaged in aluminium cookware.
There is the risk of burns from the appliance if used carelessly.•
Cables from electrical appliances must not touch the hot surface of the induction or•
hot cookware.
Do not use the induction to dry clothes.•
Never store flammable materials such as aerosols and detergents in draws or•
cupboards under the induction.
WARNING
Users with Pacemakers and Active Heart Implants must keep their upper body at a•
minimum distance of 1 ft. (30cm) from induction cooking zones when turned on. If in
doubt, you should consult the manufacturer of your device or your doctor.
FTQ307NWGX_XAA DG68-00228A.indd 14 2009-06-30  1:54:28

02 INDUCTION COOKING
Surface cooking _15
CAUTION
AFTER COOKING
Do not touch the Induction elements until they have cooled down.•
The surface may be still be hot and burns may occur if the glass surface is touched•
before it has cooled down sufficiently.
Immediately clean spills on the cooking area to prevent a tough cleaning chore later.•
If cabinet storage is provided directly above the cooking surface, make sure that the•
items are infrequently used and can be safely stored in an area subjected to heat.
Temperatures may be unsafe for items such as volatile liquids, cleaners or aerosol
sprays.
FTQ307NWGX_XAA DG68-00228A.indd 15 2009-06-30  1:54:28

16_ Surface cooking

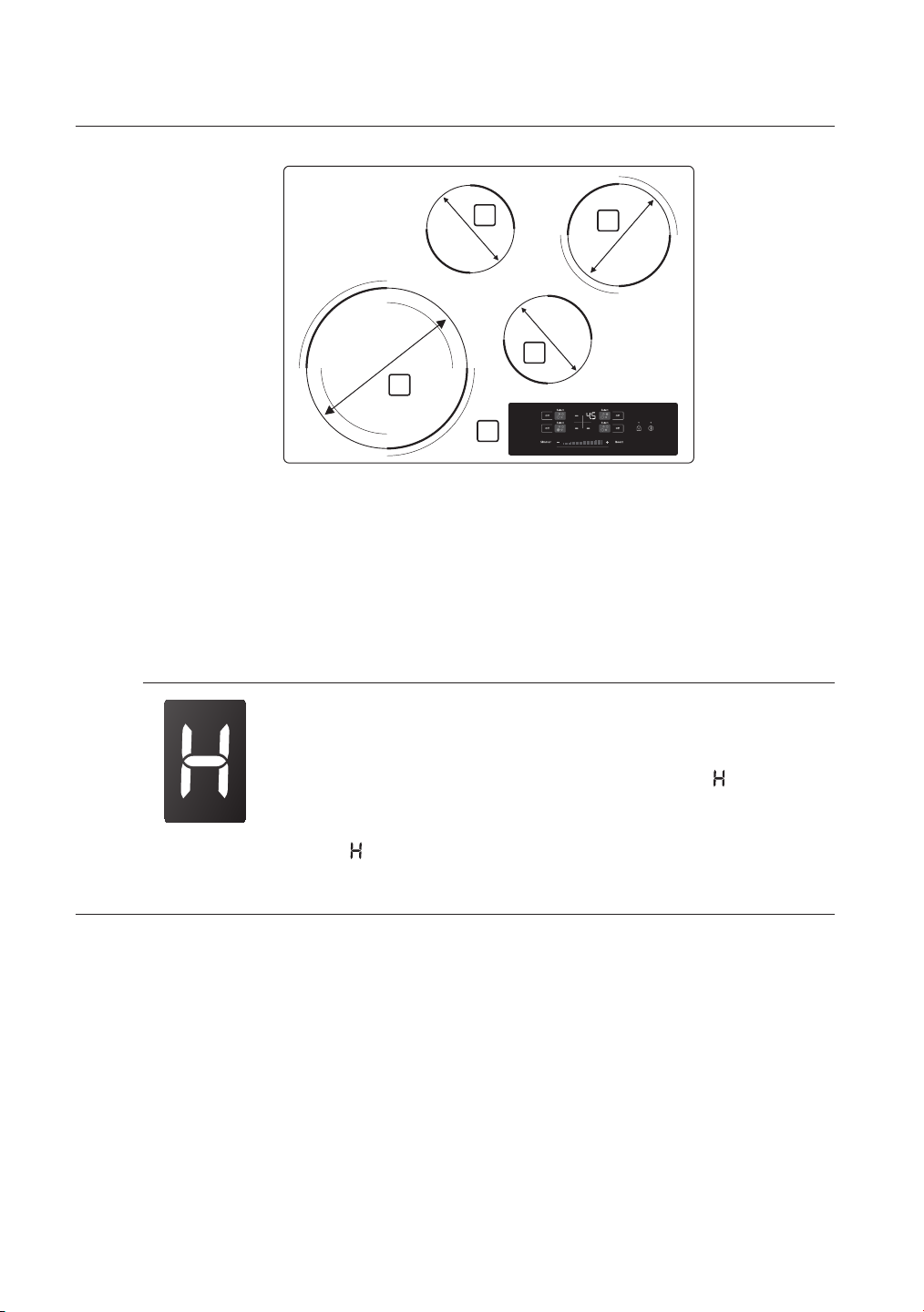

LOCATION OF THE INDUCTION COOKTOP ELEMENTS AND
CONTROLS
24
1
5
3
6 inch 6 inch
11 inch
7 inch
1. Induction Left Front Cooking zone 2400W; with Power Boost 3700W (11 inches/ 280 mm)
2. Induction Left Rear Cooking zone 1400W; with Power Boost 2000W (6 inches/ 160 mm)
3. Induction Right Front Cooking zone 1400W; with Power Boost 2000W (6 inches/ 160 mm)
4. Induction Right Rear Cooking zone 1800W; with Power Boost 2600W (7 inches/ 180 mm)
5. Touch Control
Safety instructions. Residual heat
The Induction cooktop has a residual heat indicator for each hotplate. It•
shows which hotplates are still hot. You should, therefore, avoid touching the
hotplate when this indicator is shown.
Although the Induction cooktop is switched off, the indicator• will stay lit
while the hotplate is still hot.
if the pan has been removed but the hotplate has not been swiched off, the•
indicator will flash, showing the power level selected.
COOKWARE FOR INDUCTION COOKING ZONES
The Induction Cooktop can only be turned on when cookware with a magnetic base is placed on
one of the cooking zones. You can use the following suitable cookware.
FTQ307NWGX_XAA DG68-00228A.indd 16 2009-06-30  1:54:30

02 INDUCTION COOKING
Surface cooking _17

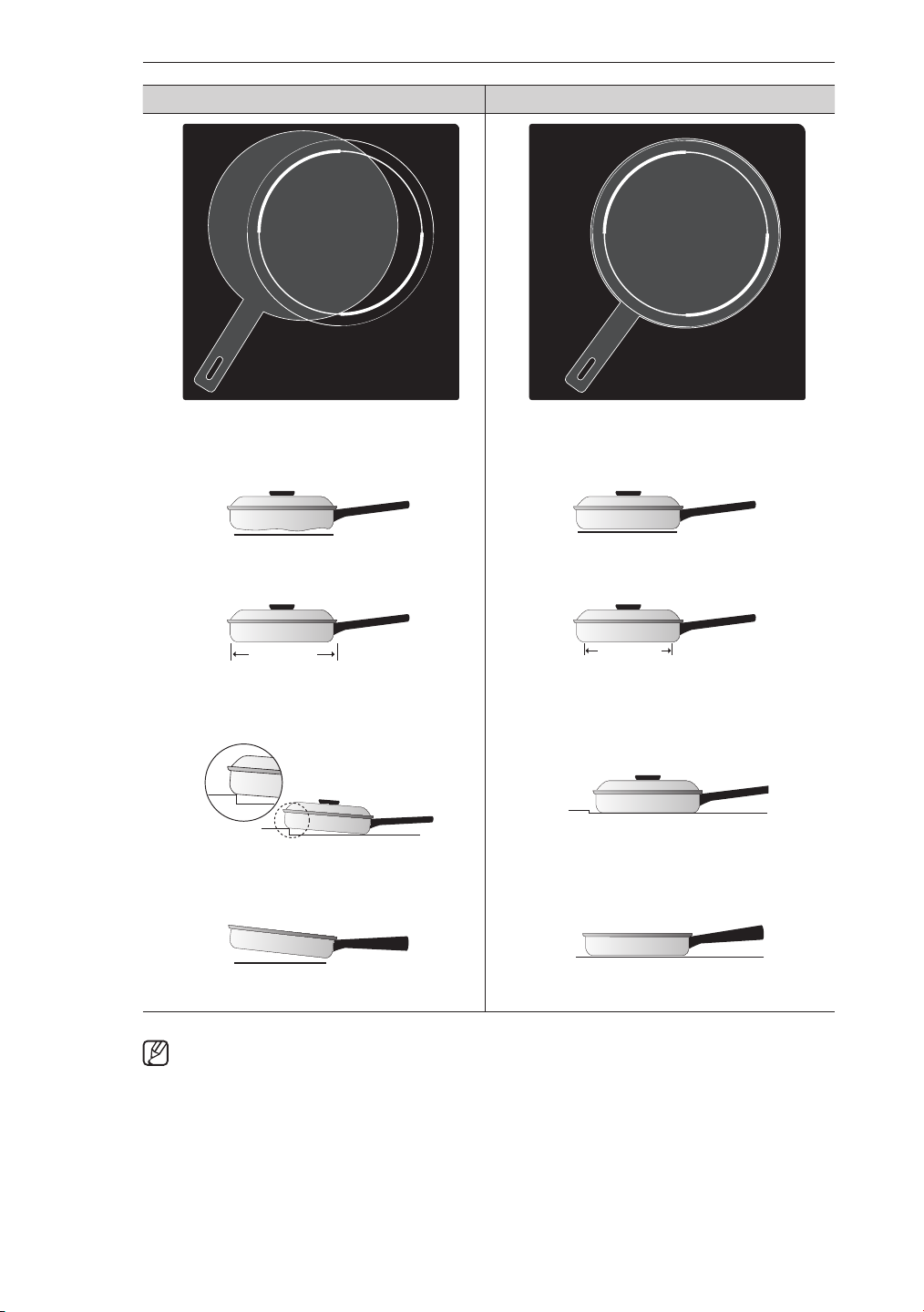

USE THE CORRECT SIZE COOKWARE
The 4 Cooking Zones available on the Induction Cooktop require a• minimum pan size to
be used at each location. The inner ring of each Cooking Zone is your guide to the correct
minimum pan size. The pan bottom must fully cover the inner ring for proper cooking to occur.
The thicker outer ring at each Cooking Zone is helpful to determine the• maximum pan size.
After centering the cookware of the cooktop, make sure the cookware does not extend more
than 1/2” beyond the thicker line on the Cooking Zone. The pan must fully contact the glass
surface without the bottom of the pan touching the metal cooktop trims.
If a pan made of the correct material is centered properly on any of the active Cooking
Zones but is too small, the affected Cooking Zone display will flash and the pan will not
heat.

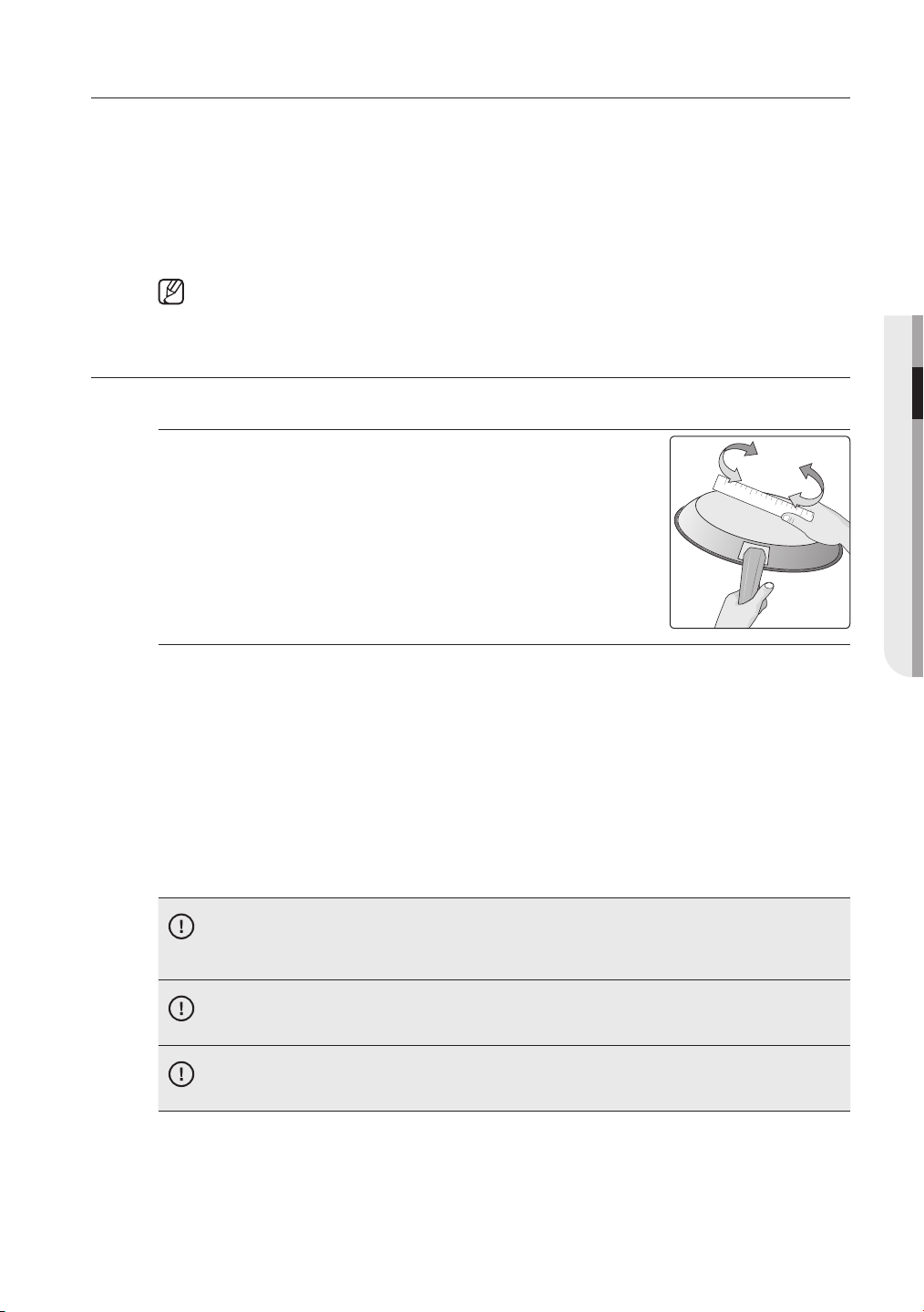

BEFORE USING THE COOKTOP
Use Quality Cookware in Good Condition
The cookware used with the Induction Cooktop should have flat
bottoms that make good contact with the entire surface of the Cooking
Zone. Check for flatness by rotating a ruler across the bottom of
the cookware. Be sure to follow all the recommendations for using
cookware.
Also remember to:
Use cookware made with the correct material type for Induction Cooking. See the “Correct•
Cookware Type” in the “Before Using the Cooktop” section.
Use quality cookware with heavier bottoms for better heat distribution allowing for more even•
cooking results.
The pan size should match the amount of food being prepared.•
Do not let pans boil dry.• This may cause permanent damage in the form of breakage, fusion,
or marring that can affect the ceramic cooktop. (This type of damage is not covered by your
warranty).
Do not use dirty pans with grease buildup. Always use pans that are easy to clean after•
cooking.
CAUTION
The Cooking Zones may appear to be cool while turned ON and after they have been•
turned OFF. The glass surface may be HOT from residual heat transfered from the
cookware and burns may occur.
CAUTION
DO NOT TOUCH HOT COOKWARE or PANS directly with your hands.• Always
use oven mitts or pot holders protect your hands from burns.
CAUTION
DO NOT SLIDE Cookware across the cooktop surface.• Doing so may
permanently damage the appearance of the ceramic cooktop.
FTQ307NWGX_XAA DG68-00228A.indd 17 2009-06-30  1:54:30

18_ Surface cooking
Use Quality Cookware in Good Condition
INCORRECT CORRECT
Cookware not centered on Cooking Zone•
surface.
Cookware centered correctly on Cooking•
Zone surface.
Curved or warped pan bottoms or sides.• Flat pan bottom & straight sides.•
Min.size
Min.size
Pan does not meet the minimum size•
required for the Cooking Zone used.See the
“Size of pan” section.
Pan size meets or exceeds the•
recommended minimum size for the Cooking
Zone.See the “Size of pan” section.
Pan bottom rests on cooktop trim or does•
not rest completely on the cooktop surface.
Pan rests completely on the Cooktop•
surface.
Heavy handle tilts pan.• Pan is properly balanced.•
ANY one of the incorrect conditions listed above in may be detected by the sensors located
below the ceramic cooktop surface. If the cookware does not meet any of these conditions,
one or more of the Cooking Zones will not heat, indicated by the setting flashing in the
affected Cooking Zone display. Correct the problems before attempting to activate the
cooktop.
FTQ307NWGX_XAA DG68-00228A.indd 18 2009-06-30  1:54:32

02 INDUCTION COOKING
Surface cooking _19
INDUCTION TOUCH CONTROL
2 14
5
6
3
1. POWER ON/OFF CONTROL SENSOR
2. LOCK
3. COOKING ZONE SELECTORS
4. HEAT LEVEL SETTING SELECTORS
a. -,+,Slide
b. Simmer
c. Boost
5. BURNER OFF
6. INDICATIONS FOR
a. Heat Setting (Lo~Hi)
b. Simmer (Si)
c. Boost (P)
d. Hot Surface (H)
• Power Boost : Use this function to heat up the contents of the pan faster than
maximum power level ‘ ’. ( The display will show ‘ ’ )
• Digital displays: The four display fields are assigned to the four cooking zones.
They show the following information:
- the appliance has been switched on
- ,to , , ,selected heat level settings
- residual heat
- the child lock is activated
- error message, the sensor has been touched for longer than 10 seconds.
ex) control touch is partially covered by a damp cloth or liquid has boiled over.
To reset, touch the On/Off control
- error message, when the Induction cooktop is overheated because of abnormal
operation. (example : operation with empty cookware)
- error message, cookware is unsuitable or too small or no cookware has been placed
on the cooking zone.
USING THE TOUCH CONTROL SENSORS
To operate the touch control sensors, touch the desired panel with the tip of your pointed finger
until the relevant displays illuminate or go out, or until the desired function is activated. Ensure that
you are touching only one sensor panel when operating the appliance. If your finger is too flat on
the panel, an adjacent sensor may be activated as well.
FTQ307NWGX_XAA DG68-00228A.indd 19 2009-06-30  1:54:34

20_ Surface cooking
HOW TO SET THE APPLIANCE FOR INDUCTION COOKTOP
COOKING
CAUTION
The induction cooktop elements may be hot and burns may occur. Do not touch the•
surface elements until they have cooled down sufficiently.
At high or over the 6 level, never leave food unattended. Boilovers cause smoking and•
greasy spillovers may catch on fire.
Be sure you turn the Touch control to• OFF when you finish cooking.
SWITCHING THE APPLIANCE ON
1. Touch the Lock control sensor for approximately 3
seconds.
2. The appliance is switched on using the On/Off control
sensor.
Touch the On/Off control sensor for 2 seconds.
The digital displays will show
approx
2 sec.
After the On/Off control sensor has been activated to switch on your appliance, a heat
setting must be selected within approximately 10 seconds. Otherwise, the appliance will
switch itself off for safety reasons.
SELECT COOKING ZONE AND HEAT SETING
1. To select the cooking zone, touch the corresponding cooking
zone’s key.
2. Within the next 5 seconds, slide your finger along the control
panel until the desired heat level setting appears in the
hotplate display.
Heat level 1.5 = lowest power level•
Heat level 9 = highest power level•
The heat level setting display lights up continuously after 5
seconds. The hotplate is switched on.
Sliding
zone
FTQ307NWGX_XAA DG68-00228A.indd 20 2009-06-30  1:54:36
