Samsung RB46TS154WW User manual

English
User servicing manual
1. You can check where to buy replacement parts at http://samsung.com
2. Visit the part purchase site and enter the model code of your product to check the parts
available for purchase. The model code is labelled on the outer side of your product.
- You can check the model code and version on the barcode label at the bottom left of
the product.
3. For replacement parts, make sure the part name matches that of the illustration in this
manual.
- User-serviceable parts are limited to handles (some models only), gaskets, drawers, and
hinges.
NOTE
Following the repair by a non-authorised service provider, self-repair or non-professional
repair of the product, Samsung is not liable for any damage to the product, any injury or
any other product safety issue caused by any attempt to repair the product which does
not carefully follow these repair and maintenance instructions. Any damage to the product
caused by an attempt to repair the product by any person other than a Samsung certied
service provider will not be covered by the warranty.
CAUTION
• The part name listed on the site may differ from that in this manual. Please make sure you
choose the right part name.
• Replacing hinges requires extreme caution because it involves detaching the door.
• Be sure to wear safety gloves while making repairs.
RB3000RM_RB3VTS-RB46TS_User-servicing-manual_26langs.indb 1 2021-01-07  4:56:00
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Samsung RB46TS154WW o
cerca il tuo prodotto tra le migliori offerte di Frigoriferi e Congelatori

English

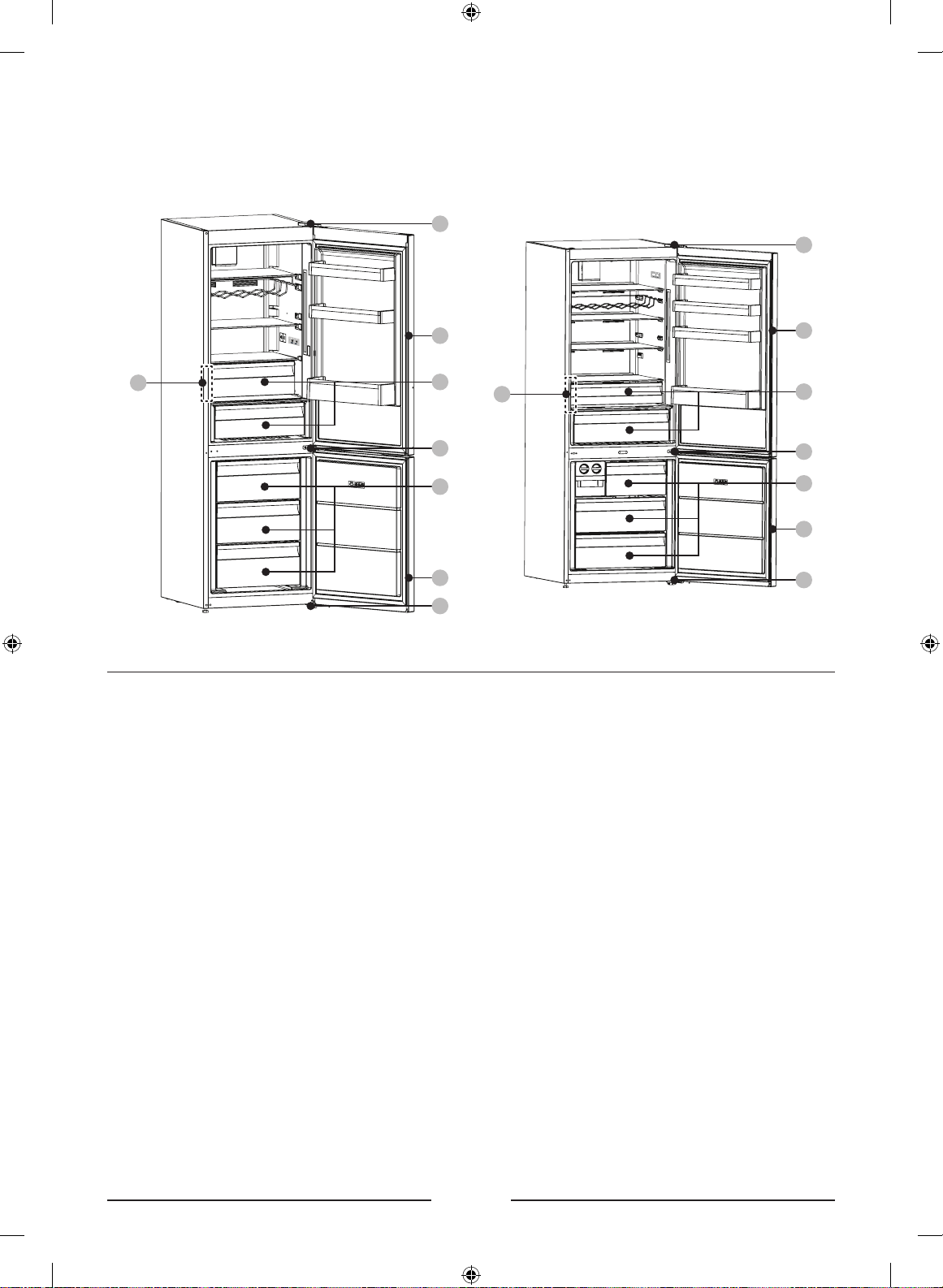

The actual image and provided parts of the refrigerator may differ, depending on the model
and the country.
RB3VTS RB46TS
01
03
05
04
02
02
06
03
01
03
05
04
02
02
06
03
01 Top hinge 02 Gasket
03 Drawer 04 Middle hinge
05 Bottom hinge 06 Barcode label
RB3000RM_RB3VTS-RB46TS_User-servicing-manual_26langs.indb 2 2021-01-07  4:56:01

English

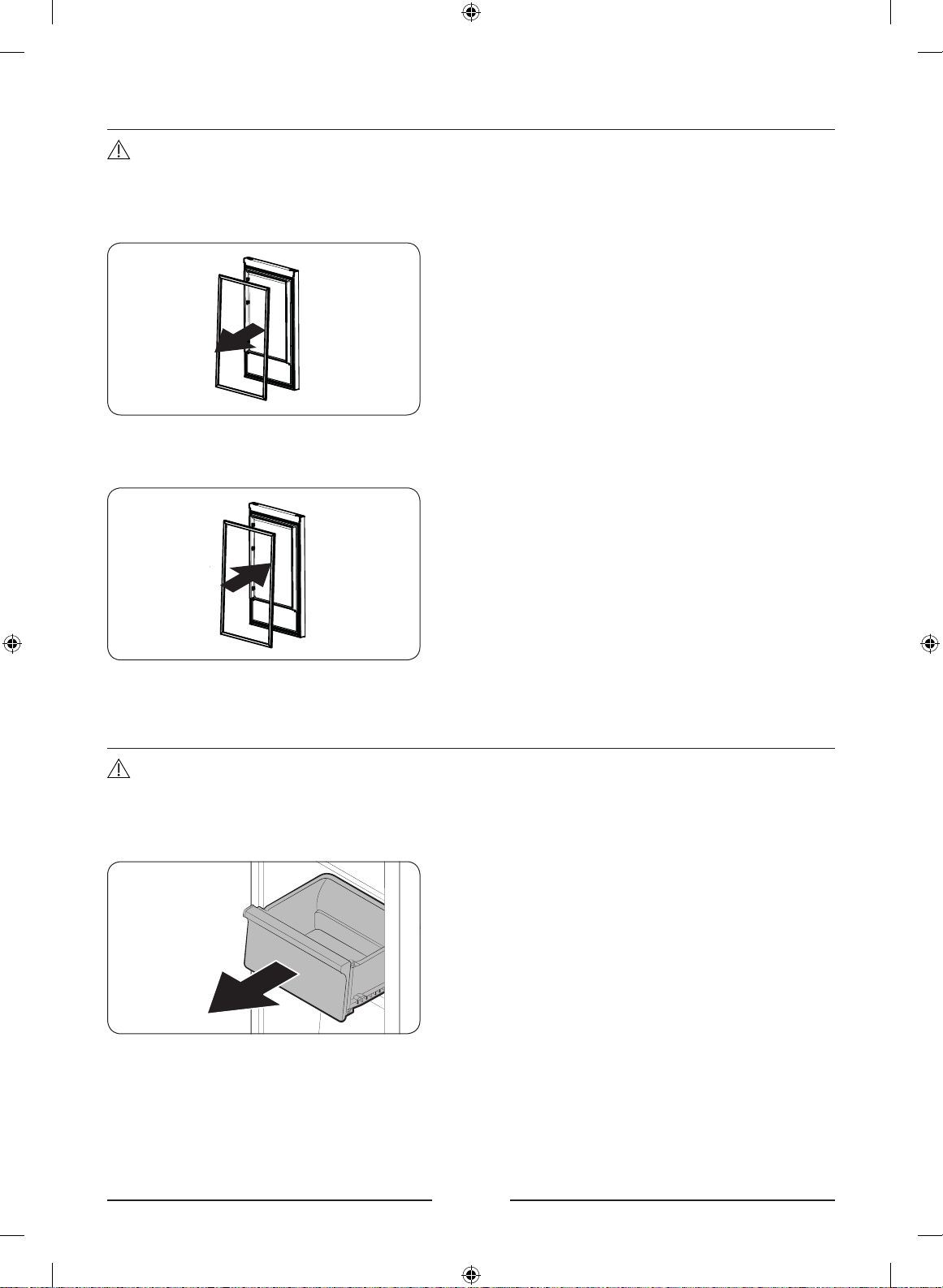

Gasket replacement
CAUTION
Make sure you rmly attach the gasket. Otherwise, cold air from the refrigerator may leak.
To remove the gasket
Open the door and remove the gasket from
the door.
To replace the gasket
Attach a new gasket to the refrigerator door.
Make sure there is no gap between the new
gasket and the door.
Drawer replacement
CAUTION
Check that the drawer is inserted properly into the rail during assembly.
To remove the drawer
Gently lift up the front of the drawer and
slide it out.
To reattach the drawers
Reattaching the drawers follows the reverse order of their respective removal steps.
RB3000RM_RB3VTS-RB46TS_User-servicing-manual_26langs.indb 3 2021-01-07  4:56:01

English
Hinge replacement
To replace the hinges, you must remove the doors rst.
CAUTION
• When removing the doors, take extreme caution because the doors are heavy.
• Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent
scratches on the door when you place the doors down.
• As the hinges must be handled carefully and replaced by two or more persons, we
recommend you to call for professional technical service.
• If you remove the hinge without holding the door, the door may fall and cause injury.
• Ensure that the shaft is rmly tightened on the hinge.
• Check that the hinge is rmly attached to the cabinet.
• Make sure the wire connectors are connected properly.
• Be careful not to damage the wires when fastening the top cover.
WARNING
• Tilting/laying the refrigerator requires a minimum of 2 people.
• Disconnect the power cord before reversing the doors.
Tools required (not provided)
Phillips screwdriver Flat-head screwdriver
NOTE
For the models with handles, reverse the handles rst. (For detailed information, see the
“Reversing the door handle position (For models with bar handles)” section.)
A
1. With the fridge door closed, use a Flat-
head screwdriver to remove top hinge
cover (A) and remove it toward that
direction. Gently lift the top hinge cover
(A) and place it on top of the refrigerator.
RB3000RM_RB3VTS-RB46TS_User-servicing-manual_26langs.indb 4 2021-01-07  4:56:01

English

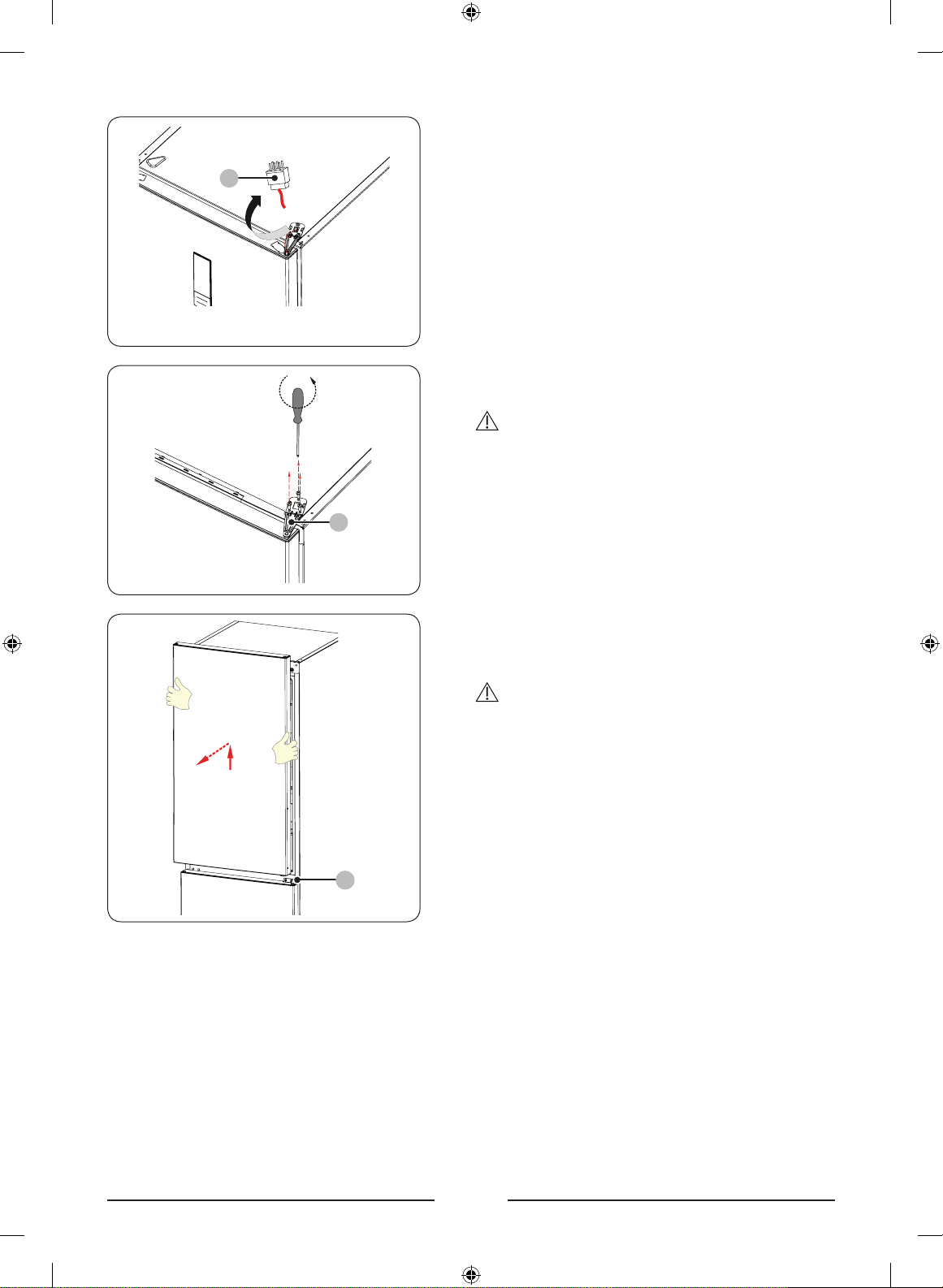

A
Display on door
2. Disconnect the wire connector (A).
- This step may not apply to some
models.
A
3. Unscrew the screws xing the top hinge
(A) and remove it.
CAUTION
To prevent the fridge door from falling,
make sure to hold it tight while removing the
screws.

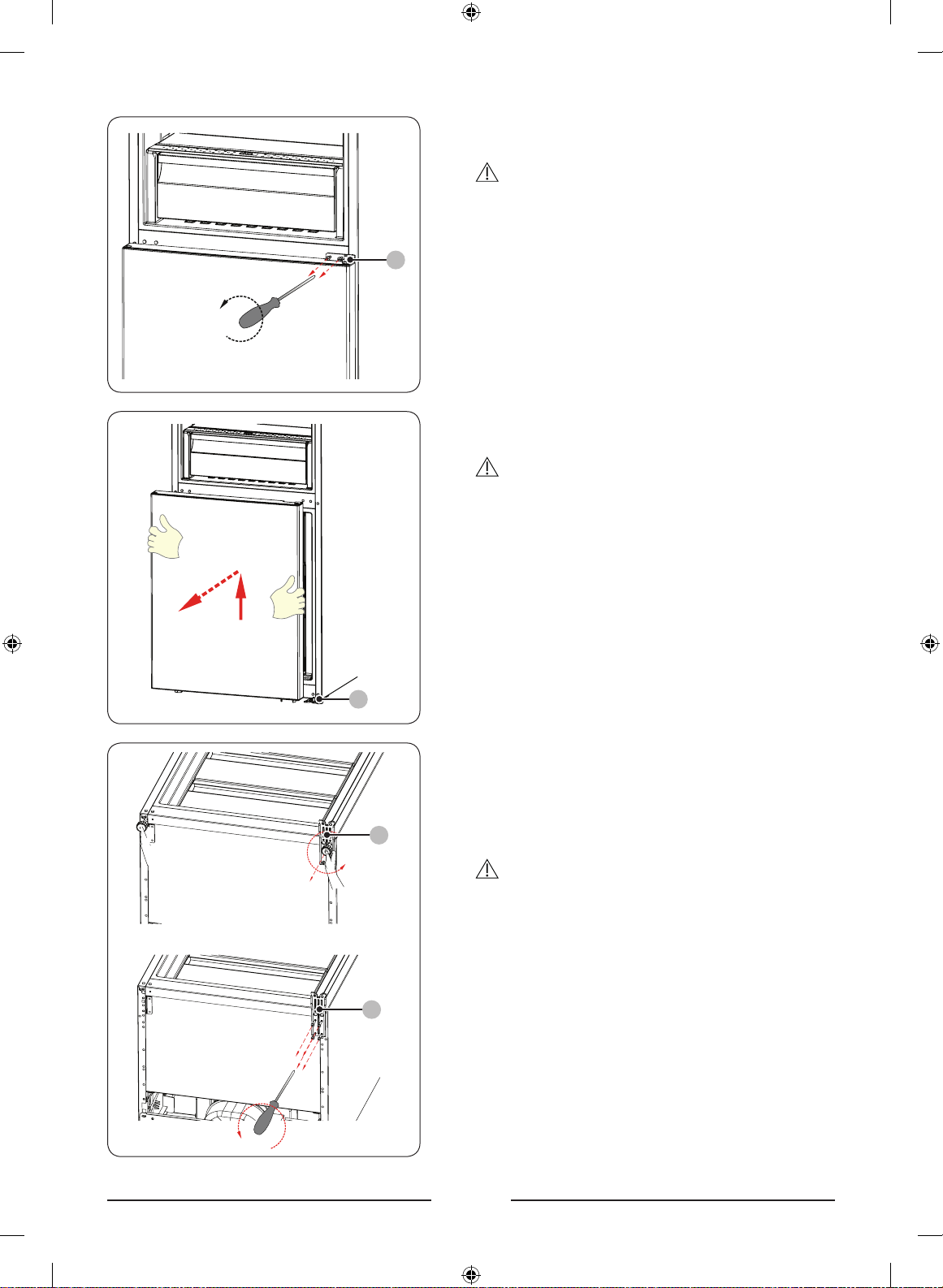

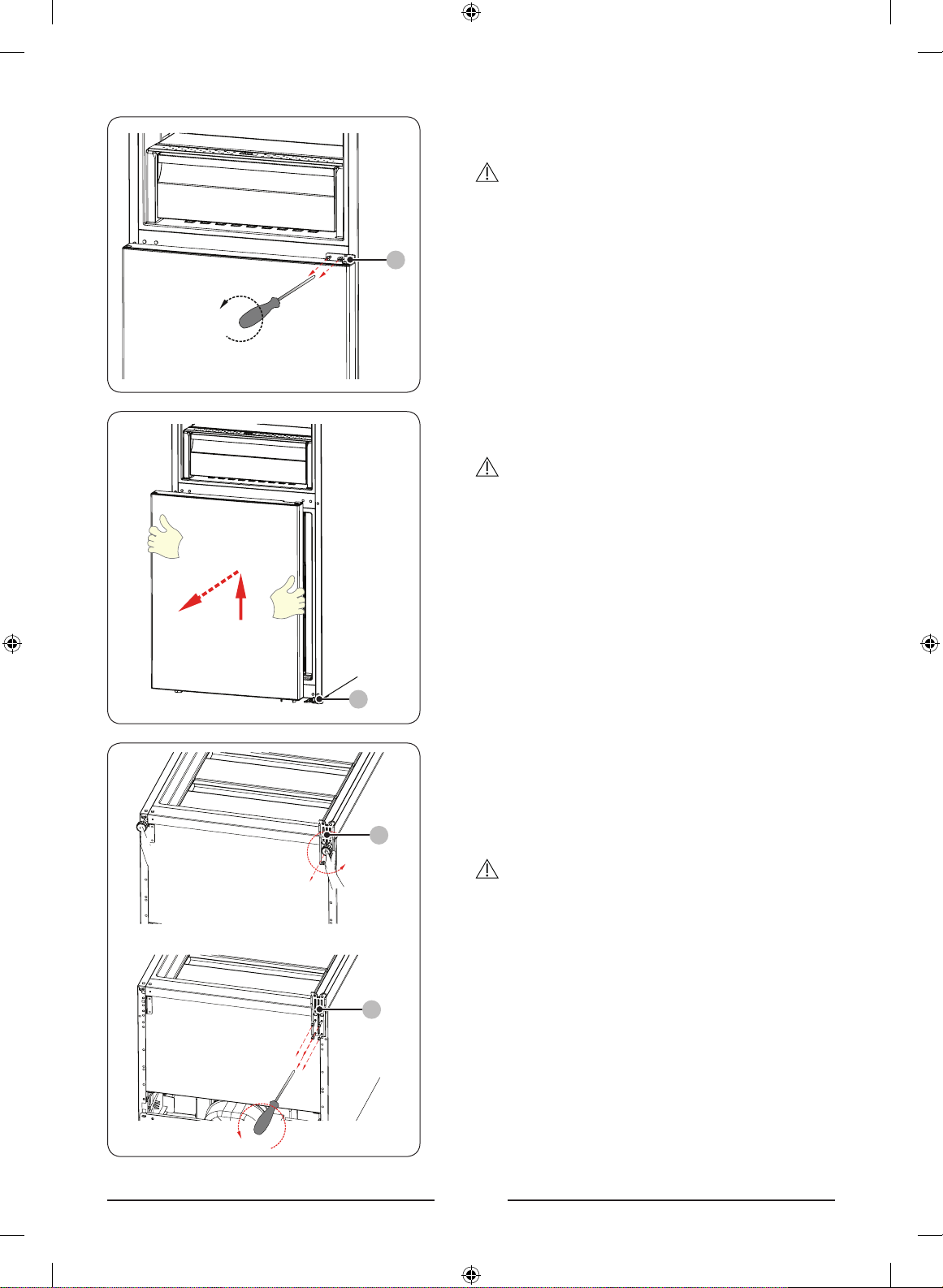

A
4. lift the fridge door to remove it from the
middle hinge (A). Keep the door in a safe
place.
CAUTION
The door is heavy. To prevent damage or
injury, use caution while removing the door.
