Samsung SRF936CLS User manual

English
Refrigerator
user manual
Free Standing Appliance
This manual is made with 100 % recycled paper.
imagine the possibilities
Thank you for purchasing this Samsung product.
DA68-02836F-06.indd 1 14. 8. 6. �� 7:46

02_ safety information
SAFETY INFORMATION
• Before operating the appliance,
please read this manual
thoroughly and retain it for your
reference.
• Use this appliance only for its
intended purpose as described
in this instruction manual.
This appliance is not intended
for use by persons (including
children) with reduced physical,
sensory or mental capabilities,
or lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use
of the appliance by a person
responsible for their safety.
• This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory
or mental capabilities or
lack of experience and
knowledge if they have
been given supervision or
instruction concerning use of
the appliance in a safe way
and understand the hazards
involved.
Children shall not play with the
appliance.
Cleaning and user
maintenance shall not be
made by children without
supervision.
• Warnings and Important Safety
Instructions in this manual
do not cover all possible
conditions and situations that
may occur.
It is your responsibility to use
common sense, caution,
and care when installing,
maintaining, and operating
your appliance.
• Because these following
operating instructions
cover various models, the
characteristics of your
refrigerator may differ slightly
from those described in this
manual.
R-600a or R-134a is used
as a refrigerant. Check the
compressor label on the rear
of the appliance or the rating
label inside the fridge to see
which refrigerant is used for
your refrigerator. When this
product contains flammable
gas (Refrigerant R-600a),
safety information
DA68-02836F-06.indd 2 14. 8. 6. �� 7:46

safety information _03
contact your local authority in
regard to safe disposal of this
product.
• In order to avoid the creation
of a flammable gas-air mixture
if a leak in the refrigerating
circuit occurs, the size of the
room in which the appliance
may be sited depends on the
amount of refrigerant used.
• Never start up an appliance
showing any signs of damage.
If in doubt, consult your dealer.
The room must be 1m³ in
size for every 8g of R-600a
refrigerant inside the appliance.
The amount of refrigerant in
your particular appliance is
shown on the identification
plate inside the appliance.
• Refrigerant squirting out of the
pipes could ignite or cause an
eye injury. When refrigerant
leaks from the pipe, avoid
any naked flames and move
anything flammable away from
the product and ventilate the
room immediately.
- Failing to do so may result in
fire or explosion.
Important safety symbols and
precautions:
WARNING
Hazards or unsafe
practices that may result
in severe personal
injury or death.
CAUTION
Hazards or unsafe
practices that may result
in minor personal injury
or property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions carefully.
Unplug the power plug
from the wall socket.
Make sure the machine
is grounded to prevent
electric shock.
Call the contact center for
help.
Note.
These warning signs are here
to prevent injury to you and
others.
Please follow them carefully.
After reading this section,
keep it in a safe place for
future reference.
DA68-02836F-06.indd 3 14. 8. 6. �� 7:46

04_ safety information
CE Notice
This product has been
determined to be in
compliance with the Low
Voltage Directive (2006/95/
EC), the Electromagnetic
Compatibility Directive
(2004/108/EC), RoHS Directive
(2011/65/EU), Commission
Delegated Regulation (EU)
No 1060/2010 and the Eco-
Design Directive(2009/125/EC)
implemented by Regulation (EC)
No 643/2009 of the European
Union. (For products sold in
European Countries only)
SEVERE WARNING
SIGNS FOR
TRANSPORTATION
AND SITE
• When transporting
and installing the
appliance,care should be
taken to ensure that no
parts of the refrigerating
circuit are damaged.
- Refrigerant leaking from the
pipe work could ignite or
cause an eye injury. If a leak
is detected, avoid any naked
flames or potential sources
of ignition and air the room in
WARNING
which the appliance is standing
for several minutes.
- This appliance contains a
small amount of isobutane
refrigerant(R-600a), a natural
gas with high environmental
compatibility that is, however,
also combustible.
When transporting and
installing the appliance, care
should be taken to ensure that
no parts of the refrigerating
circuit are damaged.
SEVERE WARNING
SIGNS FOR
INSTALLATION
• Deteriorated insulation of
electrical parts may cause
an electric shock or fire.
• Do not place this refrigerator
in direct sunlight or expose to
the heat from stoves, room
heaters or other appliance.
• Do not plug several appliances
into the same multiple power
board.
The refrigerator should always
be plugged into its own
individual electrical outlet
which has a voltage rating that
matched the rating plate.
- This provides the best
WARNING
DA68-02836F-06.indd 4 14. 8. 6. �� 7:46

safety information _05
performance and also prevents
overloading house wiring
circuits, which could cause a
fire hazard from overheated
wires.
• If the wall socket is loose, do
not insert the power plug.
- There is a risk of electric shock
or fire.
• Do not use a cord that shows
cracks or abrasion damage
along its length or at either
end.
• Do not pull or excessively bend
the power cord.
• Do not twist or tie the power
cord.
• Do not hook the power cord
over a metal object, place a
heavy object on the power
cord, insert the power cord
between objects, or push the
power cord into the space
behind the appliance.
- When moving the refrigerator,
be careful not to roll over or
damage the power cord.
- This may result in an electric
shock or fire.
• Do not use aerosols near the
refrigerator.
- Aerosols used near the
refrigerator may cause an
explosion or fire.
- Do not bend the power cord
excessively or place heavy
articles on it.
• This refrigerator must be
properly installed and
located in accordance
with the manual before it is
used.
• Do not install the refrigerator in
a damp place or place where
it may come in contact with
water.
- Deteriorated insulation of
electrical parts may cause an
electric shock or fire.
• Connect the power plug in
proper position with the cord
hanging down.
- If you connect the power plug
upside down, wire can get
cut off and a cause fire or an
electric shock.
• Make sure that the power plug
is not squashed or damaged
by the back of the refrigerator.
• When moving the refrigerator,
be careful not to roll over or
damage the power cord.
- This constitutes a fire hazard.
• Keep the packing materials out
of reach of children.
DA68-02836F-06.indd 5 14. 8. 6. �� 7:46

06_ safety information
- There is a risk of death from
suffocation if children put them
on their head.
• This appliance should be
positioned in such a way that
it is accessible to the power
plug.
- Failing to do so may result in
an electric shock or fire due to
electric leakage.
• Do not install this appliance
near a heater, inflammable
material.
• Do not install this appliance in
a humid, oily or dusty location,
in a location exposed to direct
sunlight and water (rain drops).
• Do not install this appliance in
a location where gas may leak.
- This may result in an electric
shock or fire.
• If any dust or water is in the
refrigerator, pull out power plug
and contact your Samsung
Electronics service center.
- Otherwise there is a risk of fire.
• Do not stand on top of the
appliance or place objects
(such as laundry, lighted
candles, lighted cigarettes,
dishes, chemicals, metal
objects, etc.) on the appliance.
- This may result in an electric
shock, fire, problems with the
product, or injury.
• This appliance must be
properly grounded.
• Do not ground the appliance
to a gas pipe, plastic water
pipe, or telephone line.
- You must ground the
refrigerator to prevent any
power leakages or electric
shocks caused by current
leakage from the refrigerator.
- This may result in an electric
shock, fire, explosion, or
problems with the product.
- Never plug the power cord into
a socket that is not grounded
correctly and make sure that it
is in accordance with local and
national codes.
• If the power cord is
damaged, have it replaced
immediately by the
manufacturer or its service
agent.
• The fuse on the refrigerator
must be changed by a qualified
technician or service company.
- Failing to do so may result in
an electric shock or personal
injury.
DA68-02836F-06.indd 6 14. 8. 6. �� 7:46

safety information _07
CAUTION SIGNS FOR
INSTALLATION
• Keep ventilation opening in
the appliance enclosure or
mounting structure clear
of obstruction.
• Allow the appliance to stand
for 2 hours after installation.
• The installation or any
service of this appliance is
recommended by a qualified
technician or service company.
- Failing to do so may result
in an electric shock, fire,
explosion, problems with the
product, or injury.
SEVERE WARNING
SIGNS FOR USING
• Do not touch the power
plug with wet hands.
- This may result in an electric
shock.
• Do not store articles on the top
of the appliance.
- When you open or close the
door, the articles may fall and
cause a personal injury and/or
material damage.
• Do not put items filled with
water on the refrigerator.
- If spilled, there is a risk of fire
or electric shock.
CAUTION
WARNING
• Do not touch the inside walls
of the freezer or products
stored in the freezer with wet
hands.
- This may cause frostbite.
• Do not use or place any
substances sensitive
to temperature such
as inflammable sprays,
inflammable objects, dry ice,
medicine, or chemicals near
the refrigerator.
Do not keep volatile or
inflammable objects or
substances (benzene, thinner,
propane gas, alcohol, ether, LP
gas and other such products
etc.) in the refrigerator.
- This refrigerator is for storing
food only.
- This may result in a fire or an
explosion.
• Do not store pharmaceuticals
products, scientifi c materials
or temperature-sensitive
products in the refrigerator.
- Products that require strict
temperature controls must not
be stored in the refrigerator.
• Do not place or use electrical
appliance inside the
refrigerator/freezer, unless they
are of a type recommended by
the manufacturer.
DA68-02836F-06.indd 7 14. 8. 6. �� 7:46

08_ safety information
• If you smell pharmaceutical or
smoke, pull out power plug
immediately and contact your
Samsung Electronics service
center.
• If any dust or water is in
Refrigerator, pull out power
plug and contact your
Samsung Electronics service
center.
- Otherwise there is a risk of fire.
• If gas leak is detected, avoid
any naked flames or potential
sources of ignition and air the
room in which the appliance is
standing for several minutes.
• Do not use mechanical
devices or any other means
to accelerate the defrosting
process, other than those
recommended by the
manufacturer.
• Do not damage the refrigerant
circuit.
• Do not spray volatile material
such as insecticide onto the
surface of the appliance.
- As well as being harmful to
humans, it may also result
in an electric shock, fire or
problems with the product.
• Do not use a hair dryer to dry
the inside of the refrigerator.
Do not place a lighted candle
in the refrigerator for removing
bad odours.
- This may result in an electric
shock or fire.
• Fill the water tank, ice tray,
water cubes only with potable
water.
• Do not let children hang on the
door.
If not, a serious injury may
occur.
- Risk of children entrapment.
Do not let children enter inside
the refrigerator.
• Do not leave the doors of the
refrigerator open while the
refrigerator is unattended and
do not let children enter inside
the refrigerator.
• Do not allow babies or children
go inside the drawer.
- It can cause death from
suffocation by entrapment or
personal injury.
• Do not sit on the Freezer door.
- The door may be broken and
cause a personal injury.
• To prevent children
entrapment, you must reinstall
the divider using provided
screws after cleaning or other
actions if you removed the
DA68-02836F-06.indd 8 14. 8. 6. �� 7:46

safety information _09
divider from the drawer.
• Do not use mechanical
devices or any other means
to accelerate the defrosting
process, other than those
recommended by the
manufacturer.
• Do not damage the refrigerant
circuit.
• In the event of a gas leak
(such as propane gas,
LP gas, etc.), ventilate
immediately without
touching the power
plug. Do not touch the
appliance or power cord.
- Do not use a ventilating fan.
- A spark may result in an
explosion or fire.
• Use only the LED Lamps
provided by manufacturer or
service agent.
• Children should be supervised
to ensure that they do not play
with the appliance.
• Keep fingers out of “pinch
point” areas; clearances
between the doors and cabinet
are necessarily small.
• Do not let children hang on the
door.
If not, a serious injury may
occur.
• There is a Risk of children
entrapment.
Do not let children enter inside
the refrigerator.
• Bottles should be stored tightly
together so that they do not
fall out.
• This product is intended only
for the storage of food in a
domestic environment.
• Do not insert hands, feet
or metal objects (such as
chopsticks, etc.) into the
bottom or the back of the
refrigerator.
- This may result in an electric
shock or injury.
- Any sharp edges may cause a
personal injury.
• Do not attempt to repair,
disassemble, or modify
the appliance yourself.
- Do not use any fuse(such as
cooper, steel wire, etc.) other
than the standard fuse.
- When repairing or reinstalling
the appliance is required,
contact your nearest service
center.
- Failing to do so may result
in an electric shock, fire,
problems with the product, or
injury.
DA68-02836F-06.indd 9 14. 8. 6. �� 7:46

10_ safety information
• If the appliance generates
a strange noise, a burning
or smell or smoke,
unplug the power plug
immediately and contact
your nearest service
center.
- Failing to do so may result in
an electric or fire hazards.
• Pull the power plug out of the
socket before changing the
interior lamps of the refrigerator
- Otherwise, there is a risk of
electric shock.
• If you experience difficulty
when changing the light,
contact service agent.
• If the products is equipped
with the LED Lamp, do not
disassemble the Lamp Cover
and LED Lamp by yourself.
- Please contact your service
agent.
• Plug the power plug into the
wall socket firmly. Do not
use a damaged power plug,
damaged power cord or loose
wall socket.
- This may result in an electric
shock or fire.
• Do not put a container filled
with water on the appliance.
- If spilled, there is a risk of fire
or electric shock.
• Never stare directly at the UV
LED lamp for long periods of
time.
- This may result in eye strain
due to the ultraviolet rays.
CAUTION SIGNS FOR
USING
• To get best performance
from the product,
- Do not place foods too closely
in front of the vents at the
rear of the appliance as it can
obstruct free air circulation in
the refrigerator compartment.
- Wrap the food up properly or
place it in airtight containers
before putting it into the
refrigerator.
- Do not put any newly
introduced food for freezing
near to already existing food.
• Do not place glass or bottles
or carbonated beverages into
the freezer.
- The container may freeze and
break, and this may result in
injury.
• Please observe maximum
storage times and expiry dates
of frozen goods.
CAUTION
DA68-02836F-06.indd 10 14. 8. 6. �� 7:46

safety information _11
• There is no need to disconnect
the refrigerator from the power
supply if you will be away for
less than three weeks. But,
remove all the food if you
are going away for the three
weeks or more. Unplug the
refrigerator and clean it, rinse
and dry.
• Do not place carbonated
or fizzy drinks in the freezer
compartment.
Do not put bottles or glass
containers in the freezer.
- When the contents freeze, the
glass may break and cause
personal injury and property
damage.
• Do not change or modify the
functionality of the refrigerator.
- Changes or modifications may
result in a personal injury and/
or property damage.
Any changes or modifications
performed by a 3rd party on
this completed appliance
are neither covered under
Samsung warranty service,
nor is Samsung responsible
for safety issues and damages
that result from 3rd party
modifications.
• Do not block air holes.
- If the air holes are blocked,
especially with a plastic bag,
the refrigerator can be over
cooled. If this cooling period
lasts too long, the water filter
may break and cause water
leakage.
• Wipe excess moisture from
the inside and leave the doors
open.
- Otherwise, odor and mold may
develop.
• When the refrigerator got
wet by water, pull out the
power plug and contact your
Samsung Electronics service
center.
CAUTION SIGNS
FOR CLEANING AND
MAINTENANCE
• Do not spray cleaning
products directly on the
display.
- Printed letters on the display
may come off.
• If any foreign substance such
as water has entered the
appliance, unplug the power
plug and contact your nearest
service center.
- Failing to do so may result in
an electric shock or fire.
• Remove all foreign substances
CAUTION
DA68-02836F-06.indd 11 14. 8. 6. �� 7:46

12_ safety information
such as dust or water from
the power plug terminals and
contact points using a dry
cloth on a regular basis.
- Unplug the power plug and
clean it with a dry cloth.
- Failing to do so may result in
an electric shock or fire.
• Do not clean the appliance by
spraying water directly onto it.
• Do not use benzene, thinner, or
Clorox, Chloride for cleaning.
- They may damage the surface
of the appliance and may
cause a fire.
• Before cleaning or
performing maintenance,
unplug the appliance from
the wall socket.
- Failing to do so may result in
an electric shock or fire.
SEVERE WARNING
SIGNS FOR DISPOSAL
• Leave the shelves in place
so that children may not
easily climb inside.
• Ensure that none of the pipes
on the back of the appliance
are damaged prior to disposal.
• R-600a or R-134a is used
as a refrigerant. Check the
compressor label on the rear
of the appliance or the rating
label inside the refrigerator to
see which refrigerant is used
for your refrigerator.
When this product contains
flammable gas (Refrigerant
R-600a), contact your local
authority in regard to safe
disposal of this product.
Cyclopentane is used as an
insulation blowing gas.
The gases in insulation material
require special disposal
procedure.
Please contact your local
authorities in regard to the
environmentally safe disposal
of this product. Ensure that
none of the pipes on the back
of the appliances are damaged
prior to disposal.
The pipes shall be broken in
the open space.
WARNING
DA68-02836F-06.indd 12 14. 8. 6. �� 7:46

safety information _13
• It is hazardous for anyone
other than an Authorised
Service Person to service this
appliance. In Queensland –
the authorized Service Person
MUST hold a Gas Work
Authorisation or Licence for
hydrocarbon refrigerants, to
carry out Servicing or repairs
which involve the removal of
covers. (For Australia only)
• When disposing of this or
other refrigerator/s, remove
the door/door seals, door latch
so that children or animals
cannot become trapped
inside. Children should be
supervised to ensure that they
do not enter and play with the
appliance.
- If trapped inside, the child may
become injury and suffocate to
death.
• Please dispose of the
packaging material for this
product in an environmentally
friendly manner.
• Keep all packaging materials
well out of the reach of
children, as packaging
materials can be dangerous to
children.
- If a child places a bag over
its head, it may result in
suffocation.
ADDITIONAL TIPS FOR
PROPER USAGE
• In the event of a power failure,
call the local office of your
Electricity Company and ask
how long it is going to last.
- Most power failures that are
corrected within an hour or two
will not affect your refrigerator
temperatures.
However, you should minimize
the number of door openings
while the power is off.
- But should the power failure
last more than 24 hours,
remove all frozen food.
• If keys are provided with the
refrigerator, the keys should
be kept out of the reach of
children and not be in the
vicinity of the appliance.
• The appliance might not
operate consistently (possibility
of defrosting of contents
or temperature becoming
too warm in the frozen food
compartment) when sited for
an extended period of time
below the cold end of the
range of temperature for which
the refrigerating appliance is
designed.
DA68-02836F-06.indd 13 14. 8. 6. �� 7:46

14_ safety information
• Do not store food which goes
bad easily at low temperature,
such as bananas, melons.
• Your appliance is frost free,
which means there is no
need to manually defrost
your appliance, as this will be
carried out automatically.
• Temperature rise during
defrosting can comply with
ISO requirements.
But if you want to prevent an
undue rise in the temperature
of the frozen food while
defrosting the appliance,
please wrap the frozen food up
in several layers of newspaper.
• Any increase in temperature of
frozen food during defrosting
can shorten its storage life.
• Do not re-freeze frozen foods
that have thawed completely.
Saving Energy Tips
- Install the appliance in a
cool, dry room with adequate
ventilation.
Ensure that it is not exposed
to direct sunlight and never put
it near a direct source of heat
(radiator, for example).
- Never block any vents or grilles
on the appliance.
- Allow warm food to cool
down before placing it in the
appliance.
- Put frozen food in the
refrigerator to thaw.
You can then use the low
temperatures of the frozen
products to cool food in the
refrigerator.
- Do not keep the door of the
appliance open for too long
when putting food in or taking
food out. The shorter time for
which the door is open, the
less ice will form in the freezer.
- Allow clearance to the right,
left, back and top when
installing.
This will help reduce power
consumption and keep your
energy bills lower.
- For the most efficient use
of energy, please keep the
all inner fittings such as
DA68-02836F-06.indd 14 14. 8. 6. �� 7:46

safety information _15
baskets, drawers, shelves
on the position supplied by
manufacturer.
This appliance is intended
to be used in household and
similar applications such as
- staff kitchen areas in shops,
offices and other working
environments;
- farm houses and by clients
in hotels, motels and other
residential type environments;
- bed and breakfast type
environments;
- catering and similar non-retail
applications.
contents
SETTING UP YOUR REFRIGERATOR…………………………………… 16
OPERATING YOUR SAMSUNG REFRIGERATOR …………………… 21
TROUBLESHOOTING……………………………………………………… 25
DA68-02836F-06.indd 15 14. 8. 6. �� 7:46

16_ setting up
GETTING READY TO INSTALL THE
REFRIGERATOR
Congratulations on your purchase of the Samsung
refrigerator. We hope you enjoy the state-of-art
features and efficiencies that this new appliance
offers.
Selecting the best location for the
Refrigerator
Choose :
• A location with easy access to the water supply.
• A location without direct exposure to sunlight.
• A location with level (or nearly level) flooring.
• A location with enough space for the refrigerator
doors to open easily.
• A location that allows sufficient space to the
right, left, back, and top for air circulation. If the
refrigerator does not have enough space, the
internal cooling system may not work properly.
• A location that allows you to move the
refrigerator easily if it needs maintenance or
service.
• Do not install the refrigerator in locations where
the temperature is over 43°C or below 5°C.
AA
B
B
C
CD
D
EE
Depth “A” 908 mm
Width “B” 908 mm
Height “C” 1822 mm
Overall Height “D” 1850 mm
1519mm
305.5mm
125°125°
50mm
908mm
785mm
72.3mm
43mm
1260mm
• Each measurement based on the design
dimension, so it may differ depending on
the measuring method.
When moving your refrigerator
To prevent floor damage, be sure the front leveling
legs are in the up position (above the floor).
Refer to “HOW TO LEVEL THE REFRIGERATOR”
in the manual on page 19.
FLOORING
For proper installation, you must place this
refrigerator on a level, hard surface that is the same
height as the rest of the floor.
This surface should be strong enough to support a
fully loaded refrigerator.
To protect the finish of the flooring, cut a large
section of the cardboard carton and place it under
the refrigerator where you are working. When
moving the refrigerator, you need to pull and push
it straight forwards or back. Do not wiggle it from
side to side.
setting up your refrigerator
DA68-02836F-06.indd 16 14. 8. 6. �� 7:46

setting up _17
01 SETTING UP
REMOVING THE REFRIGERATOR
DOORS
If the refrigerator is too large to pass through your
doorway easily, you can remove the refrigerator
doors.
Tools you will need (Not provided)
Philips screwdriver
(+)
Flat-blade
screwdriver (-)
Socket wrench
(10mm)
Pliers Allen wrench
(4mm)
Allen wrench
(5mm)
Disconnect power to the refrigerator before
removing the doors or drawers.
• Be careful not to drop, damage or
scratch the doors/drawers while
removing them.
• Use care when you remove the doors/drawers.
The doors are heavy and you could injure
yourself.
• Re-attach the doors/drawers properly to avoid:
- Moisture from air leakage.
- Uneven door alignment.
- Wasting energy due to improper door seal.
WARNING
DISASSEMBLE THE
REFRIGERATOR DOORS
1. With the door closed, remove the 3 screws
holding the Top Cover (A) with a Phillips (+)
Screwdriver, and then remove the Top Cover
with the entire wire-harnesses attached.
2. Disconnect the two wire-harnesses on the left
door and one on the right door. (It may differ by
models.)
3. Pull up the Fixer Lever (B), and then pull it
forward.
4. Remove the Hinge (C).
5. Lift up the Fridge Door and take it off.
• While disassembling and reassembling
the door, make sure that the electric
wires are not peeled off.
• Do not let the door fall down.
A
B
B
C
CAUTION
DA68-02836F-06.indd 17 14. 8. 6. �� 7:46

18_ setting up

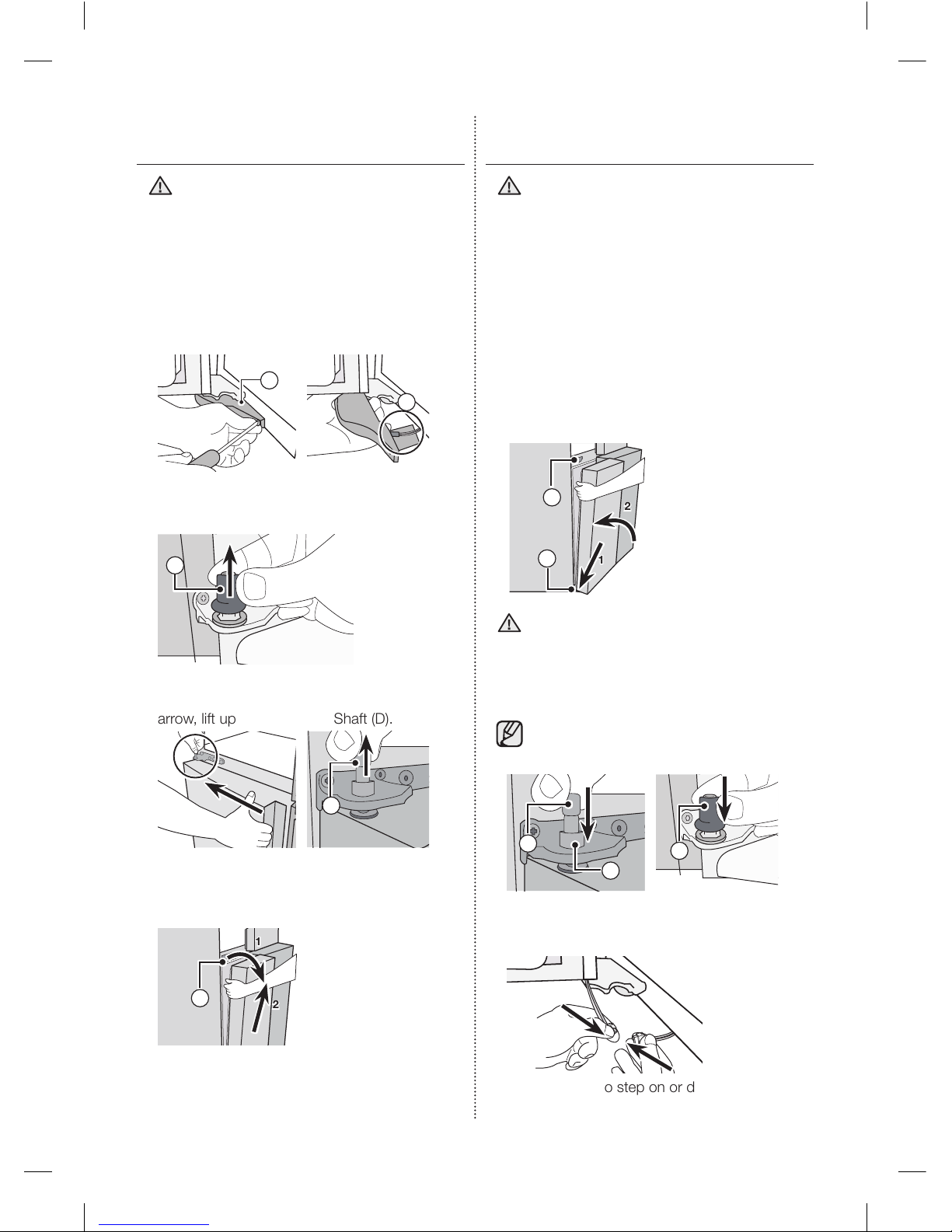

DISASSEMBLE THE FREEZER
DOORS
• Be sure to remove the Fridge Door
before removing the Freezer Door.
• Be careful with the wires attached to
the bottom of the Freezer Door while
disassembling.
1. With the door open, remove the screw holding
the cover (A) of the Adjustable Leg at the
bottom of the door with a Phillips (+)
Screwdriver, and then disassemble the
Connector (B).
2. Lift up and remove the Mid Hinge Cap (C) on
the Door Hinge above the Freezer Door.
3. While pushing the door in the direction of the
arrow, lift up the Mid Hinge Shaft (D).
4. Being careful that the door does not touch the
Mid Hinge (E), tilt the Door forward a little, and
then lift it up to remove.
CAUTION
A
B
C
D
1
2
E
RE-ATTACHING THE
REFRIGERATOR DOORS
• Be sure to re-attach the Freezer Door
before re-attaching the Fridge Door.
• Before re-attaching, make sure that all
the wire connectors at the bottom of the
Freezer Door are connected.
How to Re-attach the Freezer Door
1. Insert the door into the lower hinge (A) in the
direction of (1) and then push the door in the
direction of (2). Take care not to scratch the
door with the Mid-Hinge (B).
• Be careful not to damage the wires on
the bottom of the door. Avoid stepping
on them, etc.
2. Insert the Hinge Shaft (C) into the Mid Hinge
Hole (D) and put on the Hinge Cap (E).
When assembling the Hinge Shaft and the
Hinge Cap, be sure to assemble them in
the correct direction.
3. With the door open, join the connectors on the
bottom of the door.
- Be careful not to step on or damage the
connectors.
CAUTION
1
2
A
B
CAUTION
C
D
E
DA68-02836F-06.indd 18 14. 8. 6. �� 7:46

setting up _19
01 SETTING UP
4. Attach the Adjustable Leg Cover using a Phillips
(+) Screwdriver.
How to Assemble Fridge Door
1. Attach the detached Fridge Door to the Mid
Hinge.
2. Slide the Fridge Hinge (C) into the fixing slot,
and then press it down so that it is aligned with
the hole in the door.
3. Inserting the Fixer Lever (B) in the direction of
the arrow, and then flip it down to assemble.
4. Assemble the Wire Connector.
C
B
B
5. Connect the Water Tube [E]. If the model has
red clips, attach them now to the Coupler [F].
Connect the connector [G] on the left door and
the connector [H] on the right door.
• Assemble the Door in the reverse order
of the disassembling. It is the same for
both of the Fridge and the Freezer Doors.
• When the Wire Connectors are being
cross-assembled, the display may not
work normal.
LEVELING THE REFRIGERATOR
AND ADJUSTING HEIGHT AND
GAP OF THE DOORS
HOW TO LEVEL THE REFRIGERATOR
If the Refrigerator is put on a floor that is not level,
it can cause a height difference between the doors.
• Insert a Flat-Head (-) Screwdriver into the slot in
the Leveling Leg Control Lever and adjust the
level by turning the Control Lever clockwise or
counter-clockwise. When you rotate the Lever
clockwise, you raise the refrigerator. When you
rotate the Lever counter-clockwise, you lower
the refrigerator.
• If the Refrigerator is not level back and
front, put a solid panel (such as a plastic
panel, a plastic ruler, etc.) on the floor
where the rear legs will rest, and then fix
it in place with plastic tape. When you
push in the Refrigerator, make sure the
rear legs rest on the panel.
• If you have a wooden floor or similar soft
floor, take care not to damage the floor
when pushing the Refrigerator into place.
CAUTION
flat-blade
screwdriver(-)
Control Lever
DA68-02836F-06.indd 19 14. 8. 6. �� 7:46

20_ setting up
HOW TO ADJUST THE DOOR
HEIGHT
If any one of the doors is lower than
the other:
• Check if the Refrigerator is level
before adjusting the door.
• Adjust the door height difference
by inserting a Snap Ring ( 1) as
shown between the door and the
hinge. You can use the rings on the right side
door of the fresh food compartment and both
sides of the freezer compartment.
• After checking the height difference, select one
Snap Ring with a suitable thickness. Insert one
Snap Ring only, Inserting two or more Snap
Rings may cause the Snap Rings to slip out or
make a rubbing noise.
• Lift up the lower door and insert the Snap
Ring into the space between the Door and the
Hinge.
• To avoid injury, insert or remove Snap
Rings carefully.
• Keep the Snap Rings out of the reach of
children and make sure that children do
not play with them or put them into their
mouths.
• 1 mm, 1.5 mm, 2 mm, and 2.5 mm Snap
Rings come with the Refrigerator.
• If the Refrigerator is level before you
load it with food, the Refrigerator may
become unbalanced due to the weight
of the food. If this occurs, adjust the level
again using the same procedure.
• If you raise the door too far, it can rub
against the Top Cover.
Snap Rings included with the refrigerator:
1mm 1.5mm 2mm 2.5mm
1
CAUTION
HOW TO ADJUST THE DOOR GAP
If the gap between the left and right fridge
compartment doors is not even.
• You can adjust the gap by turning
the bolt at the top right of the cold
storage compartment door.
• Do not turn the bolt too far. You
can break it.
1. With the doors closed, remove the 3 screws
holding the top cover using a Phillips
screwdriver, and then lift it off together with the
connected cables.
2. Turn the bolt with a 4 mm
hexagonal L-wrench to adjust
the gap. (Not provided)
3. Turn the bolt clockwise to ( ) widen the gap.
Turn the bolt counter clockwise ( ) to narrow
the gap.
DA68-02836F-06.indd 20 14. 8. 6. �� 7:47
