Samsung RF265 User manual

imagine the possibilities
Thank you for purchasing your Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/global/register
RF265AB
RF266AB
English
Refrigerator
user manual

Features of your new Refrigerator
KEY FEATURES OF YOUR NEW REFRIGERATOR
Your Samsung French Door Refrigerator comes equipped with various innovative storage and energy-efficient
features.
• Twin Cooling System
The Refrigerator and Freezer have separate evaporators. Due to this independent cooling system,
the Freezer and Refrigerator cool more efficiently.
Additionally, this separate air flow system prevents food odor of one compartment from seeping into
other compartments.
• Cool Select PantryTM
The Cool Select PantryTM is a full-width drawer with adjustable temperature control.
• Bigger & Wider Space
The wide shelf area and pantry provide enough space for larger items such as a pizza box, etc.
The wide freezer drawer also provides enough space for 2~3 turkeys.
• Secure Auto Close
The Secure Auto Close feature will automatically close a door that is slightly open.
• Digital Display and Temperature Control
• Water Filtration System
• Door Alarm
A helpful beeper alerts you if the door is ajar.
• Tilting Pocket
The Tilting pocket can be used to store up to a 16” pizza.
• Auto Pull Out Drawer
The upper drawer in the freezer comes out automatically as you just open the freezer door.
• Easy Handle
Freezer door can be opened with less effort.
• Energy Star
Energy star labeled this product could save your energy costs.
For easy future reference, write the model and
serial number down. You will find your model
number and serial number on the left side of the
refrigerator.
Model #
Serial #
2_ Features

Safety Information
SAFETY INFORMATION
Before using your new Samsung French Door Refrigerator, please read this manual thoroughly
to ensure that you know how to safely and efficiently operate the features and functions that your
new appliance offers.
Because the following instruction covers various models, the characteristics of your Refrigerator
may differ slightly from the Refrigerator described in this manual. If you have any question, contact
us at 1-800-SAMSUNG or find help and information online at www.samsung.com.
What the icons and signs in this user manual mean :
WARNING Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property
damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when using your
refrigerator, follow these basic safety precautions:
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
These warning signs are here to prevent injury to you and others.
Please follow them explicitly
Keep this manual in a safe place for future reference.
SEVERE WARNING SIGNS
Do not plug several appliances into the same power receptacle.
• Large appliances draw a lot of power. Powering more than one appliance or machine from a single power source
could cause overheating and cause a fire.
Make sure that the power plug is not kinked or damaged by the back of the Refrigerator.
• A damaged power plug may overheat and cause a fire.
Do not spray water directly into or on the outside of the Refrigerator/Freezer drawer.
• Water could get into the interior machine parts and cause electric shock.
Do not use aerosols near the Refrigerator.
• Aerosols used near the Refrigerator may cause an explosion or fire.
Safety Information _3

Do not put undue stress on the power cord or place heavy articles on it.
• Placing heavy articles on the power cord create the risk of explosion or fire.
Do not insert the power plug with wet hands.
• It may cause electric shock.
Do not put a container filled with water on the Refrigerator.
• If it spills, it may cause fire or electric shock.
Do not install the Refrigerator in a damp place or place where it may come in contact
with water.
• Wet and/or deteriorated insulation of the internal electrical parts may cause electric shock or fire.
Do not store volatile, flammable or high evaporating substances in the refrigerator.
• Storing benzene, thinner, alcohol, ether, LP gas, dryice, and other such products may cause explosions.
Do not disassemble or repair the Refrigerator by yourself.
• You run the risk of fire, appliance malfunctions and/or personal injury. Call your nearest service center for
help from a qualified service technician.
Unplug the Refrigerator before changing the interior light.
• Changing the light while the Refrigerator is plugged in may cause electric shock.
If you wish to dispose of the Refrigerator, remove the doors and seals before throwing
it away.
• The doors(and their seals) can entrap a child if they climb into the Refrigerator.
Make sure that the doors are off, and ensure that no one is suffocated by being locked inside.
The Refrigerator must be safely grounded
• Always make sure that you have grounded the Refrigerator before attempting to investigate or repair any
part of the appliance. Power leakages can cause severe electric shock.
Never use gas pipes, telephone lines or other potential lightning attractors as an
electrical ground.
• Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an
extension cord to power the Refrigerator, use only a 3-wire extension cord that has a 3-blade ground
plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extention
cord should be AC 115V~120V, 10A, or more. Additionally, if a grounding adapter is used, make sure the
receptacle box is also fully grounded.
Safety Information
4_ Safety Information

CAUTION SIGNS
Use good judgment when filling the Refrigerator with food and drinks.
• In an overfull Refrigerator, heavy, fragile, bulky or breakable items may fall out and cause personal injury
and/or damage to surrounding objects.
Do not put bottles or glass containers in the Freezer drawer.
• When the contents freeze and then expand, the glass may break and cause personal injury or leave
dangerous glass shards in the Freezer.
If the electrical wall socket is loose, do not insert the power plug.
• There is a risk of electric shock or fire. Have the plug looked at by a licensed electrician.
Never unplug your Refrigerator by pulling on the power cord.
• Always grip the power cord firmly and pull straight out from the outlet. Yanking or pulling on the power
cord may cause a short-circuit, fire and/or electric shock.
• A damaged power cord must be replaced by the manufacturer, a certified service agent or qualified
service personnel.
Do not store articles on the top of the appliance.
• When you open or close the door, the articles may fall and cause personal injury and /or damage to
surrounding objects.
Do not store pharmaceutical products, scientific materials and temperature-sensitive
products in the refrigerator.
• Products that require exact temperature controls should not be stored in the Refrigerator.
Do not allow children to climb, stand or hang on shelves and handles of the
Refrigerator. They could damage the Refrigerator and seriously injure themselves.
If you notice chemical or burning plastic smells or see smoke, unplug the Refrigerator
immediately and contact your Samsung Electronics Service Center.
After your Refrigerator is in operation, do not touch the cold surfaces in the Freezer
compartment. Particularly when hands are damp or wet, skin may adhere to these
extremely cold surfaces.
• Skin may stick to the surface and you may get frostbite.
Do not put your hands under the appliance.
• Any sharp edges may cause personal injury.
Never put fingers or other objects into the water dispenser hole or ice chute.
• It may cause personal injury and/or material damage.
Safety Information _5
CAUTION

If the Refrigerator will not be used for a long period of time (for example, over several
months), unplug the power from the wall.
• Over time, deterioration in the power cord insulation may cause fire.
Do not use a wet or damp cloth when cleaning the plug.
Remove any dust or foreign matter from the power plug pins.
• A Dirty power plug can increase the risk of fire.
If the Refrigerator is disconnected from the power supply, you should wait for at least
five minutes before plugging it back in.
Do not place the equipment directly in sunlight.
The appliance must be positioned so that the power cord is accessible after
installation.
If the power cord is damaged, it must be replaced by the manufacturer, a certified
service agent or qualified service personnel.
If you have a long vacation planned, empty the Refrigerator and turn it off.
Wipe excess moisture from the inside and leave the doors open to keep odor and mold from developing.
Service Warranty and Modification
• Any changes or modifications performed by a 3rd party on this finished appliance is not covered under
Samsung warranty service, nor can Samsung be responsible for safety issues that result from 3rd party
modifications.
Children can get trapped inside Refrigerators.
Before you throw away your old Refrigerator or Freezer, make sure that you;
• Take off the doors.
• Leave all shelves in places so that children may not easily climb inside and shut the door while they are
inside.
This appliance is not intended for use by small children or infirm persons without capable, adult
supervision. Small children should be supervised when using the appliance.
Do not block air holes
• If the air holes are blocked, especially with plastic bag, refrigerator can be over cooled.
If this cooling period lasts long, water filter will be broken and cause water leakage.
Safety Information
6_ Safety Information
CAUTION

Contents
Contents _7
SETTING UP YOUR FRENCH
DOOR REFRIGERATOR
08
08 Getting ready to install the refrigerator
09 Setting up the refrigerator
09 Removing the refrigerator doors
11 Reattaching the refrigerator doors
13 Adjusting the doors
14 Making minor adjustments between doors
15 Adjusting the freezer drawer
16 Checking the water dispenser line
17 Installing the water line
OPERATING YOUR SAMSUNG
FRENCH DOOR REFRIGERATOR
19
19 Using the control panel
20 Using the digital display
21 Controlling the temperature
21 Using the cold water dispenser
22 Parts and Features
23 Storing food
24 Using the Cool Select Pantry™
25 Removing the refrigerator accessories
26 Using the doors
27 Removing the freezer drawer accessories
28 Cleaning the refrigerator
29 Changing the interior lights
30 Changing the water filter
TROUBLESHOOTING
31
31 Troubleshooting
WARRANTY
32
32 Warranty
WIRING DIAGRAM
34
34 Wiring diagram

Setting up your French Door Refrigerator
GETTING READY TO INSTALL THE REFRIGERATOR
Congratulations on your purchase of the Samsung French Door Refrigerator. We hope you enjoy the state-of-art
features and efficiencies that this new appliance offers.
Selecting the best location for the Refrigerator
• A location with easy access to the water supply.
• A location without direct exposure to sunlight.
• A location with level (or nearly level) flooring.
• A location with enough space for the Refrigerator doors to open
easily.
• Allow sufficient space for air circulation of the internal cooling
system.
If the Refrigerator does not have enough space, the internal
cooling system may not work properly.
8_ Setting Up
Screwdriver
Control Lever
First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways
(both width and height), thresholds, ceilings, stairways, etc.
The following chart details the exact height and depth of Samsung French Door Refrigerator.
• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption
and keep your energy bills lower.
• Do not install the Refrigerator where the temperature will go below 50 ºF (10 ºC).
• Condensation may occur on the french door areas when you use Refrigerator for the first time.
The E.Saver function is automatically set to on when power is supplied to the Refrigerator.
If you experience excess condensation, press the E.Saver button again to turn the feature off.
2 inch
2 inch
1 inch
When moving your refrigerator
To prevent floor damage be sure the front levelling legs are
in the up position (above the floor). Refer to ‘Levelling the
refrigerator’ in the manual.
To protect the finish of the flooring, place the protection
sheet such as packing carton under the refrigerator.
CAUTION
When installing, servicing or cleaning behind the refrigerator,
be sure to pull the unit straight out and push back in straight
after finishing.
MODEL RF266AB(Internal water dispenser), RF265AB
Capacity(Cu.Ft) 26
Dimension (inch)
Width 35 ¾
Case Height with Hinge 70
without Hinge 68 ⅝
Depth with Door 35 ⅝
without Door 29 ⅛

Setting Up _9
SETTING UP THE REFRIGERATOR
Now that you have your new Refrigerator installed and in place, you are ready to set up and enjoy the features and
functions of the appliance.
By completing the following steps, your Refrigerator should be fully operational.
1. Place the Refrigerator in an appropriate location
with reasonable clearance between the wall and
the Refrigerator. Refer to installation instructions in
this manual.
2. Once the Refrigerator is plugged in, make sure the
interior light comes on when you open the doors.
3. Set the Temperature control to the coldest
temperature and wait for an hour. The Freezer will
get slightly chilled and the motor will run smoothly.
4. After powering the Refrigerator, it will take a few
hours to reach the appropriate temperature. You
can store food and drinks in the Refrigerator once
the temperature is sufficiently cool.
01 SETTING UP

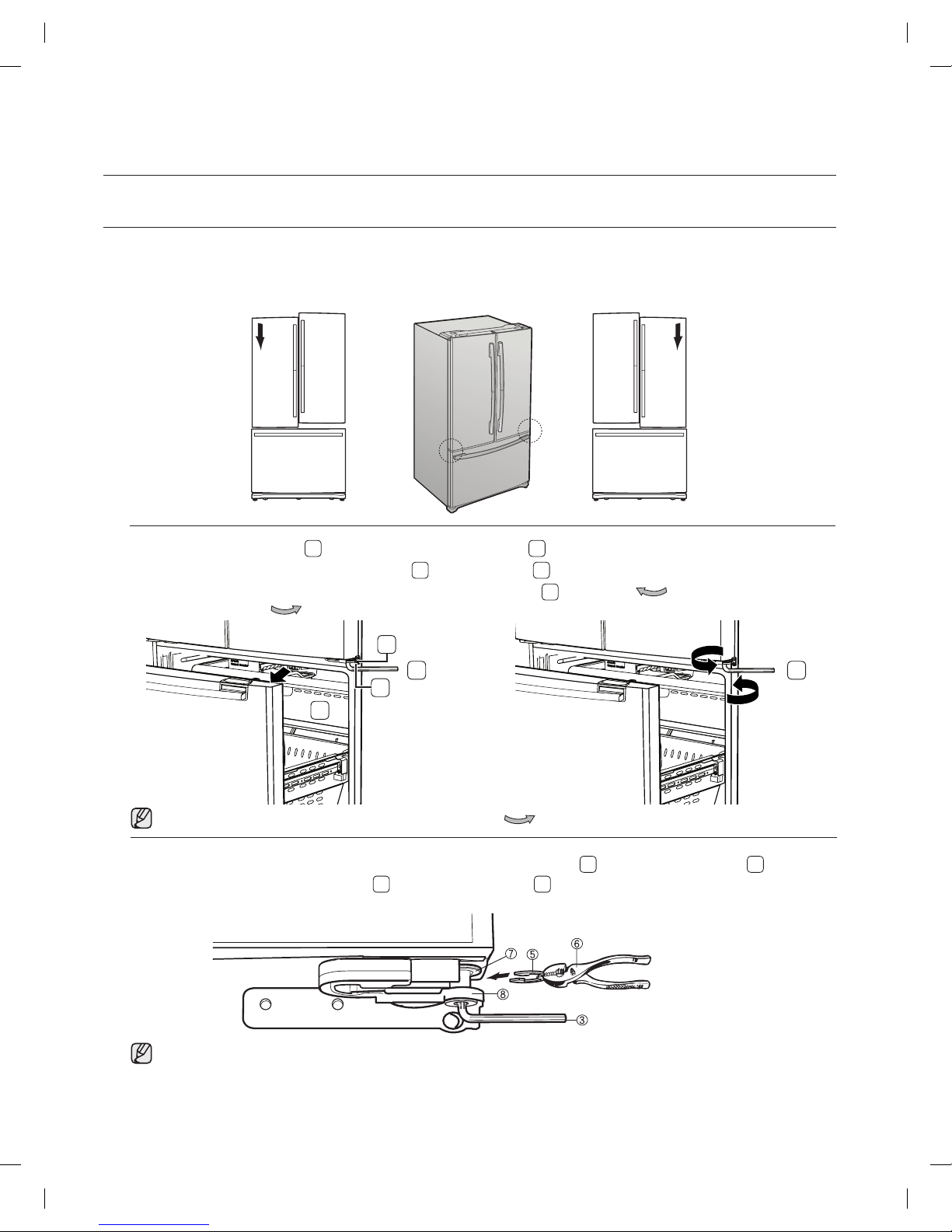

REMOVING THE REFRIGERATOR DOORS
If your entrance won’t allow the Refrigerator to pass easily
through it, you can remove the doors.
Disassemble the Refrigerator doors
1. With the door closed, remove the top table( 1 )
using a Philips screwdriver, and then disconnect the
wires( 2 ). Remove hinge screws( 3 ) and ground
screw( 4 )
2
1
3
4
2. Lift the door straight up to remove.
3. With a Philips head screwdriver, remove the two
screws( 10 ) attached to the lower left and right
door hinges.
With an Allen Wrench(3/16”), remove the two hex
head bolts( 11 ) attached to the lower left and right
door hinges.
Remove the lower left and right door hinges( 12 ).
Tools you will need
10
12
11
Philips screwdriver 10mm Socket Wrench Allen wrench(3/16”)
Flat-blade screwdriver Pliers
Check the accessory list below.
Water filter
(DA29-00003B)
Hex wrench
(DA80-00002C)
Compression
fitting
(DA62-00305A)
Compression
nut
(DA74-00070B)
Fastener
(DA60-00143B)
Washer
(DA80-00002C)

Setting up your French Door Refrigerator
Disassemble the Freezer drawer
1. Push the upper drawer until it reaches to the cabinet rear wall.
10_ Setting Up
2. Remove the tilting pocket( 1 ) by pulling on both brackets( 2 )
upward at the same time.
3. Take out the lower basket( 3 ) by lifting the basket up from
rail system.
1
2
3
4. Remove four 10mm hex-head bolts from both sides.
5. Lift the freezer door up from the rails.
Slot
Slot

Setting Up _11
12
12
10
11
01 SETTING UP
REATTACHING THE REFRIGERATOR DOORS

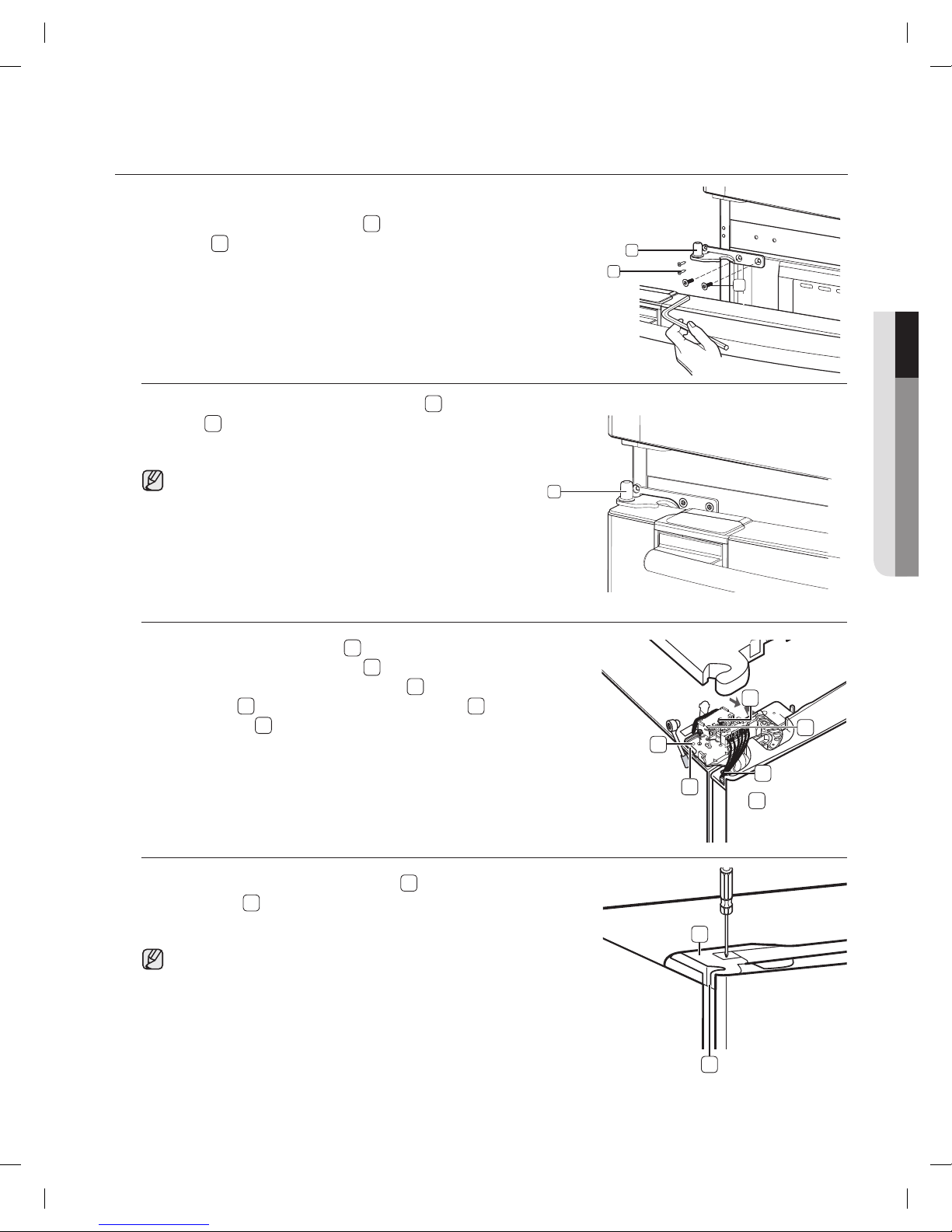

Assemble the Refrigerator doors
1. Reattach two flat head screws( 1 ) and two hex head
screws( 2 ) to the hinge completely.
2. Place the hole in the bottom of the door( 3 )over the lower
hinge ( 4 )
Be aware not to miss the hinge cap because it can
be easily taken off.
3. Insert the upper hinge shaft( 5 ) into the hole on the
corner of the Refrigerator door( 6 ). Make sure the hinge
is level between the upper hinge hole( 7 ) and the hole of
the cabinet( 8 ) and reattach the hinge screws( 9 ) and
ground screw(
10
) by turning in a clockwise direction.
Reconnect the wires.
4. Place the front edge of the top table(
11
) on the front of the
upper hinge(
12
) and reattach with three screws.
When reattaching the top table, make sure that the
wires are not pressed or damaged by the top table.
5
6
7
8
9
10
12
11

12_ Setting Up
7
8
6
4. With the drawer pulled out fully, insert the lower basket ( 6 ) into
the rail system.
5. Hook the ends of the tilting pocket ( 7 ) into both brackets ( 8 ),
and push down until they lock into place.
ASSEMBLE THE FREEZER DRAWER
2. Hang the freezer door front onto open slots on the sides.
3. Tighten four 10mm hex-head screws completely.
Setting up your French Door Refrigerator
1. Pull out the rails to the full length on each side of the cabinet evenly.
Slot
Slot
Slot
Slot
Slot
Slot

Setting Up _13
Control Lever
Screwdriver
Screwdriver
Control Lever
01 SETTING UP
ADJUSTING THE DOORS
Now that the doors are back on the Refrigerator, you want to make sure the Refrigerator is level so you can
make final adjustments. If the Refrigerator is not level, it will not be possible to get the doors perfectly even.
When the Left door is lower than the Right door.
Insert a flat-blade screwdriver into a notch on the left control lever, turn it clockwise or counter-clockwise
to level the left door.
When the Left door is higher than the Right door.
Insert a flat-blade screwdriver into a notch on the right control lever, turn it clockwise or counter-clockwise
to level the right door.
We do not recommend making small adjustments with the control lever. Instead, refer to the next page for the
best way to make minor adjustments to the doors.

Setting up your French Door Refrigerator
MAKING MINOR ADJUSTMENTS BETWEEN DOORS
Remember a level Refrigerator is necessary for getting the doors perfectly even. If you need help, review the
previous section on leveling the Refrigerator.
14_ Setting Up
When the left
door is lower
than the right
door.
When the left
door is higher
than the right
door.
Adjustment
part
Adjustment
part
3
1
3
4
2
1. If you open the drawer ( 1 ), you can see the lower hinge ( 2 ).
2. Insert the supplied Allen Wrench(3/16”) ( 3 ) into the shaft ( 4 ) of the lower hinge.
3. Please adjust the height by turning the Allen Wrench(3/16”) ( 3
) clockwise( ) or
counter-clockwise( ).
when you turn the Allen Wrench(3/16”) counter-clockwise( ), the door will move up.
1. After adjusting the doors, please insert the supplied fastener-ring ( 5 ) using a pair of pliers ( 6 ) in the
gap between the hinge-grommet ( 7 ) and the lower hinge( 8 ). The number of fastener-rings you’ll need
to insert depends on the gap.
Two fastener-rings are enclosed with the refrigerator.
Thickness of each fastener-ring is 0.04 inch.

Setting Up _15
01 SETTING UP

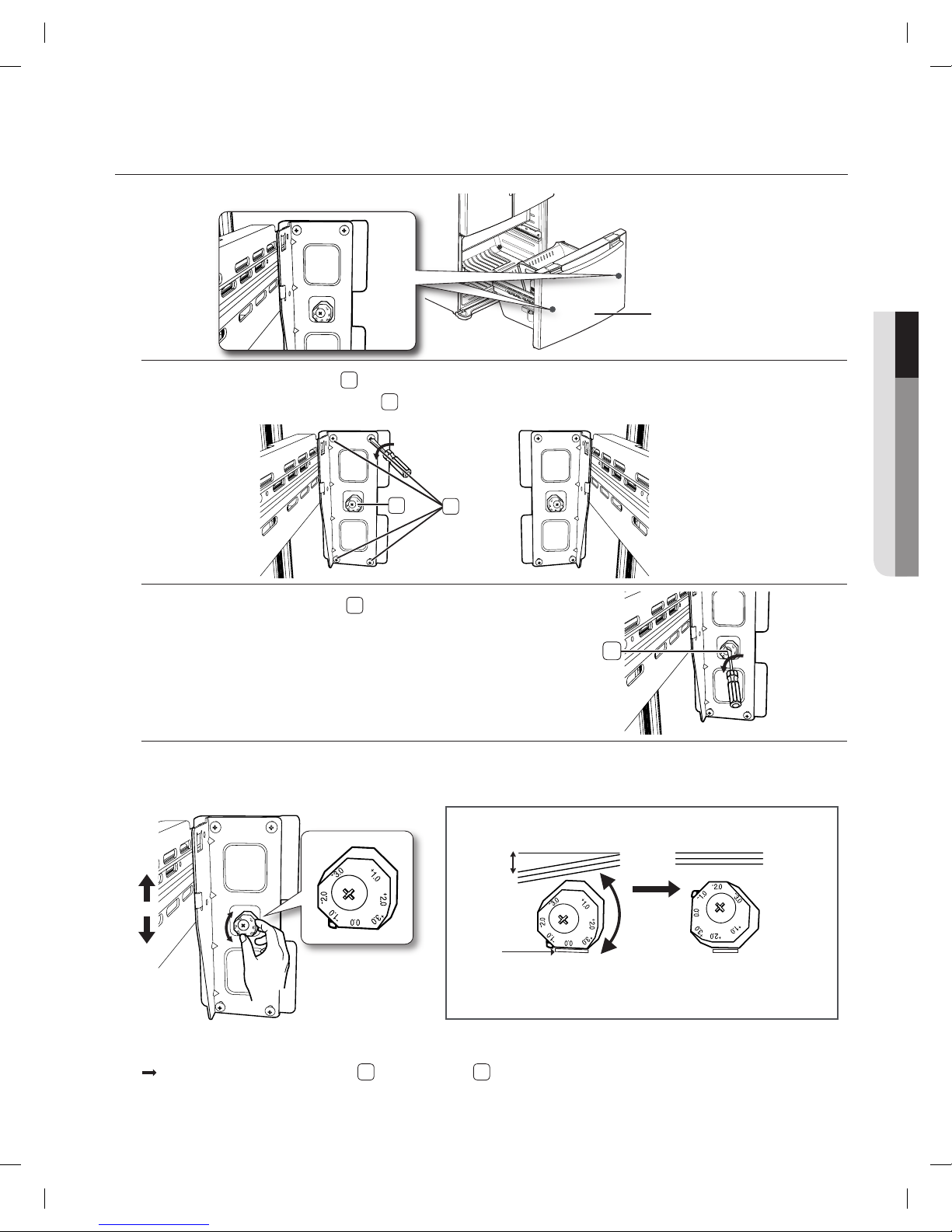

ADJUSTING THE FREEZER DRAWER LEVEL
1. Locate the height-adjuster ( 1 ) in the freezer drawer.
Unscrew the four Phillips screws ( 2 ) slightly to loosen the door.
2. Loosen the controller screw( 3
) with a Phillips
screwdriver.
3. Find the best level to align the door slope.
After adjustment, first tighten screw ( 3 ) and then screw ( 2 ).
Freezer Drawer
Adjustment part
12
3
Example) The slope is about 2mm (0.08inch) as shown below.
- Rotate the Height Adjuster to +2.0 to reduce the door
slope.
Slope
Reference
plane

Setting up your French Door Refrigerator
CHECKING THE WATER DISPENSER LINE
A water dispenser is just one of the helpful features on your new Samsung Refrigerator. To help promote better
health, the Samsung water filter removes unwanted particles from your water. However, it does not sterilize or
destroy microorganisms. You may need to purchase a water purifying system to do that.
In order for the ice maker to operate properly, a water pressure of 20~125 psi (pound per square inch) is
required.
Under normal conditions, a 170 cc (5.75 oz.) paper cup can be filled in 10 seconds.
If the Refrigerator is installed in an area with low water pressure (below 20psi), you can install a booster pump to
compensate for the low pressure.
Make sure the water storage tank inside the Refrigerator is properly filled. To do this, press the water dispenser
lever until the water runs from the water outlet.
16_ Setting Up
Water line installation kits are available at extra cost from your dealer. We recommend using a water supply kit that
contains copper tubing.

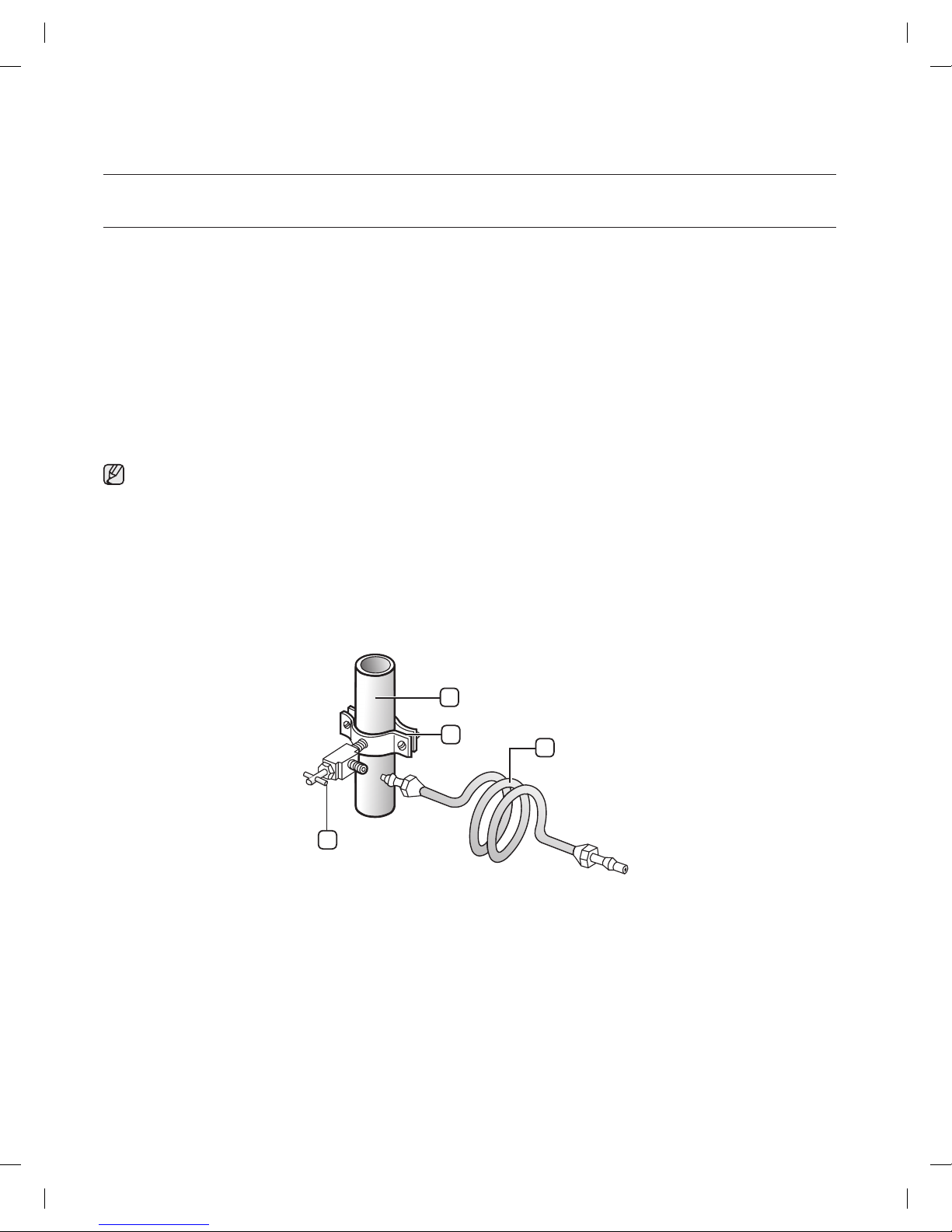

Connecting to the water supply line
1. First, shut off the main water supply line and turn the ice-maker off.
2. Locate the nearest cold, drinking water line.
3. After connecting the water supply to the water filter, turn your main water supply back on and flush four
or more gallons into a bucket to clear and prime the water filter.
1Cold water line
2Pipe clamp
3Water line installation kit
4Shut off valve

Setting Up _17
01 SETTING UP
INSTALLING THE WATER LINE
Connecting the water line to the Refrigerator.
There are several items that you need to purchase to complete this connection. You
may find these items sold as a kit at your local hardware store.
1/4” compression nut
plastic tubing copper tubing
ferrule

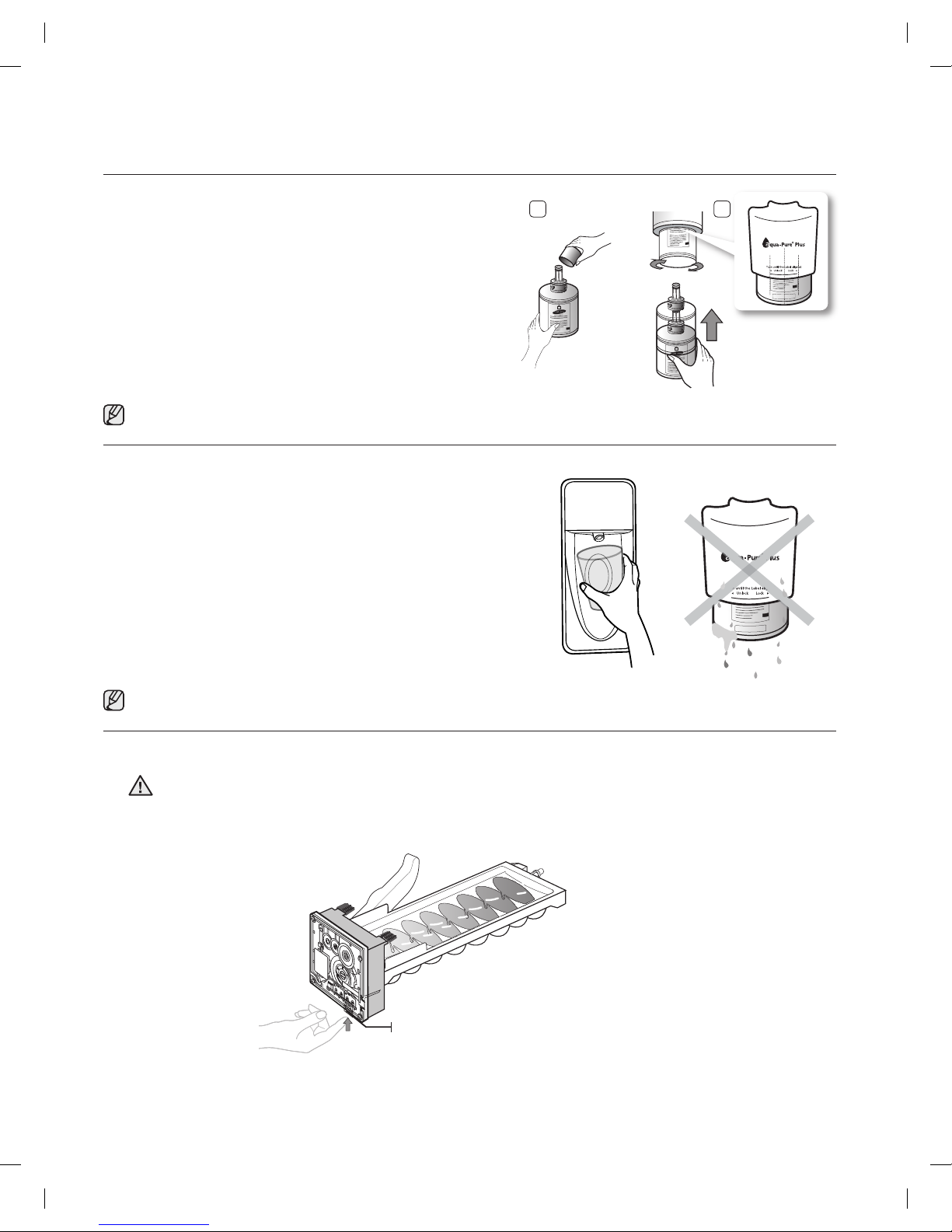

Installing the water filter.
1. Remove the water filter cover( 1 )
2. Remove the fixed cap by turning it counter clockwise.
Keep the cap in a safe place for later use if you don’t
use the filter.
3. Remove the water filter from the box and put a
replacement indicator sticker on the filter as shown.
Place a sticker on the filter that dates six months in
the future. For example, if you install the water filter in
March, put the “SEP” sticker on the filter to remind you
to replace in September. That way you’ll know when
it is time to replace the filter. Normally, a filter life is
about 6 months.
2 3
Sticker
(month indicator)
1
Only connect the water line to a drinkable water source.
If you have to repair or disassemble the water line, cut off 1/4“ of the plastic tubing to make sure you get a snug,
leak-free connection.
Do not use without the molded end(Bulb) of the plastic tubing Ⓑ.
1. Slip the compression nut Ⓐthrough the supplied plastic tubing Ⓐ.
2. Tighten the compression nut Ⓐonto the 1/4” compression fitting.
- If you are using copper tubing, slip the compression nut Ⓑ(not included) and ferrule (not included) on
copper tubing (not included) as shown.
- If you are using plastic tubing Ⓑ, insert the molded end(Bulb) of the plastic tubing Ⓑinto the
compression fitting.
3. Tighten the compression nut Ⓑonto the compression fitting. Do not over-tighten the compression nut Ⓑ.
4. Turn water on and check for any leakage.
CAUTION
Plastic tubing Ⓐ
(Supplied)
Ferrule
(Not supplied)
Compression nut
(1/4”) (Supplied) Ⓐ
Compression fitting
(Supplied)
Bulb
Compression nut Ⓑ
(1/4”) (Not supplied)
Copper tubing or Plastic tubing Ⓑ
(Not supplied) (Not supplied)
Household water line
Refrigerator

18_ Setting Up
4. Remove the filter cap and insert the filter into the filter
housing.
5. Slowly turn the water filter 90º clockwise to align with the
printing mark on the cover, locking the filter in position.
Make sure to align the water filter label mark with center of
cover filter printing as illustrated. Remember, do not over-
tighten.
You should remove the right side upper glass shelf before installing water filters.
Removing any residual matter inside the water
supply line after installing the water filter.
1. Turn ON the main water supply & turn OFF the valve to
the water supply line.
2. Run water through the dispenser until the water runs clear
(approx. 6-7 minutes). This will clean the water supply
system and remove air from the lines.
3. Additional flushing may be required in some households.
4. Open the Refrigerator door and make sure there are no
water leaks coming from the water filter.
Be sure to flush the dispenser thoroughly or water may drip from the dispenser.
This is due to the fact that there is still air in the line.
Setting up your French Door Refrigerator
Turn until the label
aligned.
Separation
of red cap.
Cover filter.
4 5
Test button
/NE4OUCH0URE7ATER
Test button
In case ice doesn’t come out, pull out the ice bucket and press test button located on the right side of ice
maker.
CAUTION

Operating _19
Operating your SAMSUNG French
Door Refrigerator

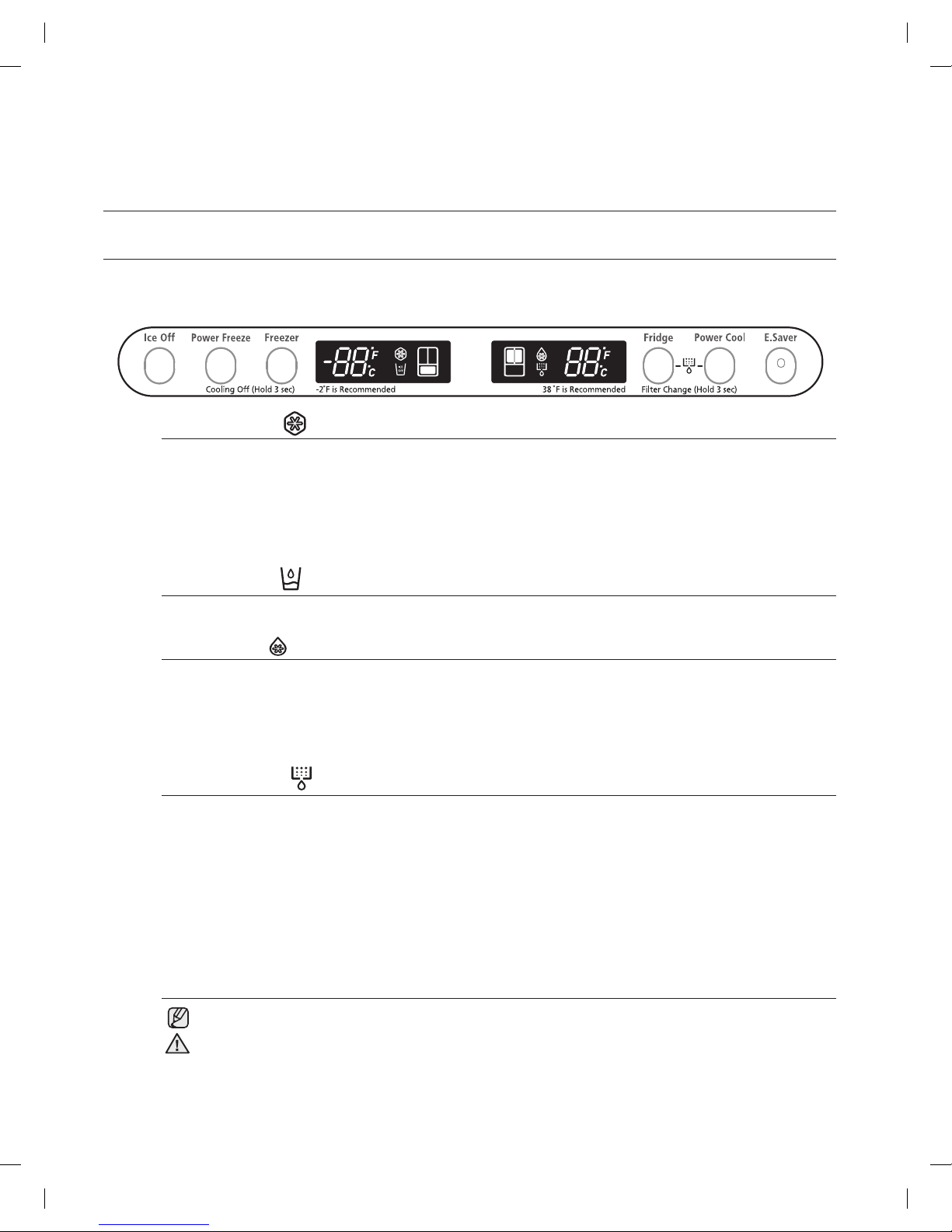

USING THE CONTROL PANEL
02 OPERATING
Speeds up the time needed to freeze products in the Freezer. It can be helpful if you need to quickly
freeze easily spoiled items or if the temperature in the Freezer has warmed dramatically (for example, if
the door was left open).
Press the Ice off button if you want to turn the ice-maker off.
(1 ) Ice Off Button
(2 ) Power Freeze Button
Press the Freezer button to set the Freezer to your desired temperature. You can set the temperature
between 8°F and -14°F.
(3 ) Freezer Button
Press the Fridge button to set the fridge to your desired temperature.
You can set temperature between 34°F and 46°F.
(4 ) Fridge Button
Speeds up the time needed to cool products in the Refrigerator. It can be helpful if you need to quickly
cool easily spoiled items or if the temperature in the fridge has warmed dramatically (For example, if the
door was left open).
(5 ) Power Cool Button
For better energy efficiency, press E.Saver button. However, if condensation occurs on the door, turn
the E.Sasver function off.
(6 ) E. Saver Button
OneTouch Pure Water
1 2 3 4 5 6

20_ Operating
USING THE DIGITAL DISPLAY
“Freezer Temp” indicates the current Freezer temperature.
“Fridge Temp” indicates the current Refrigerator temperature.
Operating your SAMSUNG French
Door Refrigerator
Power Freeze
This icon will light up when you activate the “Power Freeze” feature. “Power Freeze” is great when you
need a lot of ice.
When you have enough ice, just press the button again to cancel the “Power Freeze” mode.
If you select “Power Freeze”, the inside temperature of the Freezer will decrease for about two and a half
hours.
Ice maker off
If you don’t need ice, press the “Ice off” button to save on water and energy consumption.
Power Cool
This icon will light up when you activate the “Power Cool” button. For a quick fridge cool down, use
“Power Cool”.
If you select “Power Cool”, the inside temperature of the Fridge will decrease for about two and a half
hours.
Filter Indicator
When the filter indicator light is on, it is time to change the filter. Typically this happens about
every 6 months.
The filter Indicator will be Blue when you initially insert the water filter.
The filter Indicator will be Light Pink when you have used your water filter for 5 months.
The filter Indicator will be Red when you have used your water filter for 6 months.
After removing the old water filter and installing a new one (see page 30 for instructions on how to do
this), reset the indicator by pressing the “Fridge” and “Power Cool” button simultaneously for about 3
seconds.
Cooling Off Mode (“OF & OF” code on the display)
In Cooling Off Mode, the refrigerator works but doesn’t make cool air. To cancel this mode,
press the Power Freeze and Freezer buttons at the same time for 3 seconds until a “Ding-dong”
sound is heard and the unit will now cool.
CAUTION
This function is for store display refrigerators. It is not for customer use.
