Samsung RF265AARS RF266AARS RF26NBRS1RF265AABP RF266AABP RF26NBBP1RF265AAWP RF266AAWP RF26NBSH1RF265AASH... User manual

BOTTOM MOUNT FREEZER
BASIC : RF265AA, RF266AA
MODEL NAME : RF265AARS RF266AARS RF26NBRS1
RF265AABP RF266AABP RF26NBBP1
RF265AAWP RF266AAWP RF26NBSH1
RF265AASH RF266AASH
MODEL CODE : RF265AARS/XAA RF266AARS/XAA RF26NBRS1/SML
RF265AABP/XAA RF266AABP/XAA RF26NBBP1/SML
RF265AAWP/XAA RF266AAWP/XAA RF26NBSH1/SML
RF265AASH/XAA RF266AASH/XAA RF26NBRS1/XSA
REFRIGERATOR
REFRIGERATOR CONTENTS
For the latest parts information, Please access to our service web site
(North America : http://service.samsungportal.com Europe : http://europe.samsungportal.com
Asia : http://asia.samsungportal.com)
1. PRECAUTIONS(SAFETY WARNINGS) 4
2. PRODUCT SPECIFICATIONS 7
3. DISASSEMBLY AND REASSEMBLY 19
4. TROUBLESHOOTING 39
5 . EXPLODED VIEW & PARTS LIST 72
6. PCB DIAGRAM 110
7. WIRING DIAGRAM 116
8. SCHEMATIC DIAGRAM 118
RF265/266/26NB

IMPORTANT SAFETY NOTICE
The service guide is for service men with adequate backgrounds of
electrical, electronic, and mechanical experience. Any attempt to repair
a major appliance may result in personal injury and property damage.
The manufacturer or dealer cannot be responsible for the interpretation
of this information.
SAMSUNG ELECTRONICS AMERICA, INC.
Technical Service Guide
Copyright ⓒ2008
All rights reserved. This service guide may not be reproduced in whole or in
part in any form without written permission from the SAMSUNG ELECTRONICS
Company.
WARNING

3
Contents
1. PRECAUTIONS(SAFETY WARNINGS) 4
2. PRODUCT SPECIFICATIONS 7
3. DISASSEMBLY AND REASSEMBLY 19
4. TROUBLESHOOTING 39
5 . EXPLODED VIEW & PARTS LIST 72
6. PCB LAYOUT WITH PART POSITION 110
7. WIRING DIAGRAM SCHEMATIC 116
8. CIRCUIT PLAN 118
RF265/266/26NB

4
1. PRECAUTIONS(SAFETY WARNINGS)
● Pull the power plug out before for the change or repair of electric parts.
→ Be careful the electric shock.
● When exchanging the parts, use the correct parts.
→ Check the model name, rating voltage, rating current, running
temperature symbols.
● When troubleshooting, connect firmly the types of harness.
→ Make not to be separated when some power is imposed.
● Check the traces of water infiltration at the electric parts.
→ If there is a trace of water infiltration, exchange or tape the parts.
● Check the assemble status of parts after troubleshooting.
→ It should be done indiscriminately as before the repair.
● Check the use circumstance of refrigerator.
→ If the refrigerator is installed at the place that is damp or wet, or
status of installation is unstable, change the installation place.
● Do earth in case of need.
→ Particularly, Be sure to earth when there is a risk of an electric
leakage by humidity or wetness.
● Do not use multi plugs in a plug socket at the same time.
Check if the power cord and socket is damaged, pressed, squeezed,
or fired.
→ If the plug or plug socket is damaged, repair or exchange that
immediately.
● Do not repair the refrigerator by user himself.
● Do not store other materials except the foods.
→ Drugs or scientific materials : difficult to keep precise temperature.
→ The inflammables(alcohol, benzene, ether, LP gas, butane gas etc.):
have risk of explosion.

5
PRECAUTIONS(SAFETY WARNINGS)
Read all instructions before repairing the product and follow the instructions
in order to prevent danger or property damage.
CAUTION/WARNING SYMBOLS DISPLAYED
SYMBOLS
Indicates that a
danger of death
or serious injury
exists.
Indicates that a risk
of personal injury
or material damage
exists.
means “Prohibition”.
means “Do not disassemble”.
means “No contact”.
means ”The things to
be followed”.
means “Earth to prevent Electric
shock”.
means “Power cord should be
unplugged from the consent”
Pull the power plug out to
exchange the interior lamp
of the refrigerator.
● It may cause electric shock.
Warning
Warning & Caution
Caution
Unplug
Use the rated components
on the replacement.
● Check the correct model, rated
voltage, rated current, operating
temperature and so on.
On repair, make sure that the
wires such as harness are
bundled tightly.
● Bundle tightly wires in order not to be
detached by the external force and then not
to be wetted.
Check if there is any trace
indicating the permeation
of water.
● If there is that kind of trace, change
the related components or do the
necessary treatment
such as taping
using the
insulating tape.
After repair, check the
assembled state of components.
● It must be in the same assembled state
when compared with the state before
disassembly.
On repair, remove completely dust
or other things of housing parts,
harness parts, and check parts.
● Cleaning may prevent the possible fire by
tracking or short.
Rated
components

6
PRECAUTIONS(SAFETY WARNINGS)
❈ Please let users know following warnings & cautions in detail.
Do not allow users to put bottles or
kinds of glass in the freezer.
● Freezing of the contents may inflict a wound.
Do not allow users to store narrow
and lengthy bottles or foods in a
small multi-purpose room.
● It may hurt you when refrigerator door is
opened and closed resulting in falling stuff
down.
Do not allow users to store
pharmaceutical products, scientific
materials, etc., in the refrigerator.
● The products which temperature control
should not be stored in the refrigerator.
Do not allow users to store
articles on the product.
● Opening or closing the door may cause
things to fall down, with may inflict a
wound.
Prohibition Prohibition Prohibition
Prohibition
Warning & Caution
Do not allow users to
disassemble, repair or alter.
● It may cause fire or abnormal
operation which leads to injury.
Do not
disassemble
Do not allow users to insert the
power plugs for many products
at the same time.
● May cause abnormal generation of
heat or fire.
Prohibition
Do not allow users to bend the
power cord with excessive force
or do not have the power cord
pressed by heavy article.
● May cause fire.
Do not allow users to install the
refrigerator in the wet place or
the place where water splashes.
● Deterioration of insulation of electric
parts may cause electric shock or fire.
Make sure of the earth.
● If earthing is not done, it will cause
breakdown and electric shock.
Earth

7
2. PRODUCT SPECIFICATIONS
2-1) Introduction of main function 8
2-2)
Specifications 9
2-3)
Interior Views 10
2-4)
Model Specification &Comparison Chart 11
2-5)
Model Specification &Specification Chart 12
2-6)
Dimensions of Refrigerator (Inches) 15
2-7)
Optional Material Specification 16
2-8)
Refrigerant Route in Refrigeration cycle 17
2-9)
Cooling Air Circulation 18

8
2. PRODUCT SPECIFICATIONS
●●A newly Developed SAMSUNG bottom mount freezer in 2008 has the following
characteristics.
Surround Multi Flow
●●Uniform cooling for each shelf and even in corner in fresh
food compartment by centerpositioned fan and duct with
multiple flow effluences
Twin Cooling System
●●The refrigerator and the freezer have two evaporators.
Given this independent system, the freezer and the
refrigerator are cooled individually as required and are,
therefore, more efficient.
Food odor from the refrigerator does not affect food in the
freezer due to separate air flow circulation.
Electronic control from outside of Pantry Cover
●●Adjustable temperature control (around 34 (1 )
Chilled / around 38 (3 ) : Fresh) Temperature control
from outside of the Pantry : user friendly design helps
keep foods fresh for longer
16" Pizza Corner
●●Special Guard
●●Open Flip : Store Large Pizza
One Touch Water Dispenser (Internal)
●●One Hand Water Dispenser
Secure Auto Close Door System
●●Secure Auto Close Door System
●●Cool tight doors
●●Energy saving
●●Preventing sweat on fridge doors
2-1) Introduction of main function

9
2-2) Specifications
PRODUCT SPECIFICATIONS
Defrost Control From 24 to 32 hrs
Thermo Bimetal Protector 140°F(60 )(off) 104°F(40 )(on)
Defrost Thermistor(502AT) 50°F(10 )(off)
Electrical Rating AC115V 60Hz 11.6 Amps/220V~240V 50Hz
Maximum Current Leakage 0.25 mA
Maximum Ground Path Resistance 0.1 Ohm
Energy Consumption KWh/mo.
Ambient Temperature 70℉(21 90℉(32 )
Refrigerator,℉34℉(1 )∼46℉(8 ) 34℉(1 )∼46℉(8 )
Freezer,℉-14℉(-26 )∼8℉(-13 ) -14℉(-26 )∼8℉(-13 )
Run Time,% 󳠞40 󳠞60
Refrigerant Charge (R134a) 5.64 oz(160g)
Compressor((MK172D-R2U) 897 Btu/hr(0.263kw)
Compressor oil Freol α-10
Capillary tube(Dia, Length) 0.032＂＂,118＂＂((00..8811mmmm,, 22999977mmmm))
Dryer Molecular Sieve XH-9
Clearance must be provided for air circulation
AT TOP 1
＂＂((2255mmmm))
AT SIDES 0.5＂＂((1155mmmm))
AT REAR 1＂＂((2255mmmm))
Fan
FanFan
FanFan
(Air inlet)
(Air inlet)(Air inlet)(Air inlet)(Air inlet)
Heat exchangerHeat exchanger
FanFan
Fan
Fan
(Air inlet)(Air inlet)
(Air inlet)(Air inlet)
Heat exchanger
Heat exchanger
Compressor
C-Fan Noise FilterDryer
Sub-condenser Water Valve
ELECTRICAL SPECIFICATIONS
Freezer
Refrigerator
NO LOAD PERFORMANCE
REFRIGERATION SYSTEM
INSTALLATION

10
PRODUCT SPECIFICATIONS
2-3) Interior Views
Freezer
Refrigerator
Light
Egg Container
Digital Sensor Control
Auto Door Closer
Daily Compartment
Water Filter
Door Bin
Internal Water
Dispenser(RF266AA)
Gallon Door Bin
Cool Select PantryTM
Light
Pull Out DrawerTM
Freezer Draweer Bin
Front Leg Cover
Spill Proof
Glass Shelf
Vertical Hinged
Section
Vegetable
& Fruit Drawers
Ice Maker
Ice Bin
Tilting Pocket

11

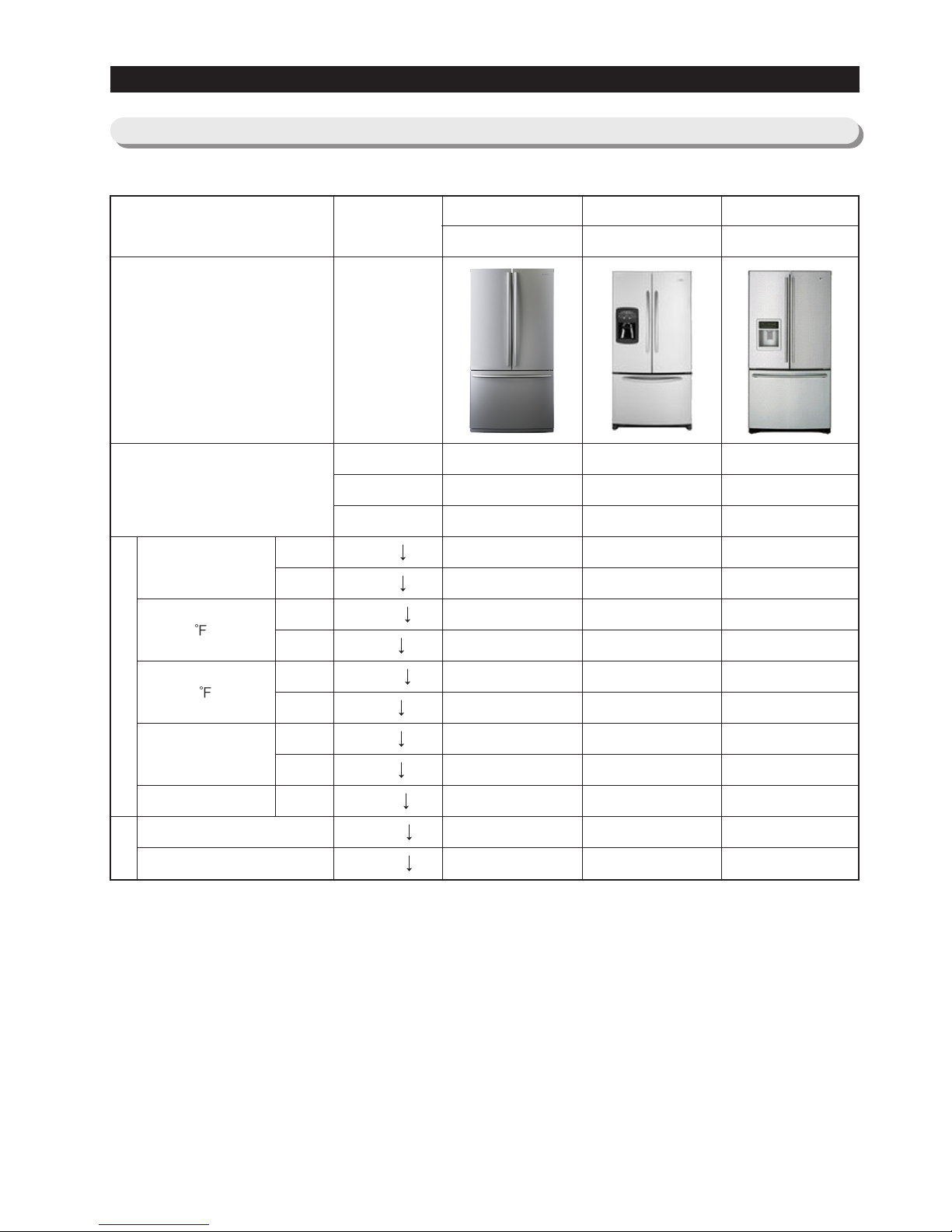

2-4) Model Specification &Comparison Chart
PRODUCT SPECIFICATIONS
F-Room
R-Room
F-Room
R-Room
F-Room
R-Room
F-Room
R-Room
N-N
Sound power level
Sound Pressure level
Cooling
Speed(Min)
Product Zone
Appearance
ITEM SPEC
89.6 (32°C)
109.4 (43°C)
Temperature
Distribution
(Fridge)
Operation rate
PerformanceNoise
Cooling Tech
Door Shape
Special Room
250
250
-26.0
2.0
-18.0
5.0
2.0
2.0
60%
46dB
45dB
SAMSUNG
RF266AA/RF26NB
Twin Cooling
Contour
Cool Select Pantry
175.4
172.8
-32.0
-1.2
-24.8
-2.5
0.3
0.5
47.4
41.8
41.2
MAYTAG
MFI2568AES
Mono Cooling
Contour
Pantry
246
575
-27.2
1.6
-20.9
5.9
0.6
1.1
60.7
47.0
48.2
LG
LFX25960ST
Mono Cooling
Contour
Pantry
224
232
-28.8
-1.8
-22.5
0.8
1.3
0.5
56.5
41.7
40.1

COLOR
ModelITEM
12
2-5) Model Specification &Specification Chart
PRODUCT SPECIFICATIONS
External size
Net
Capacity
Weight
Packing
D
H
W
Efficiency of volume
On Cabinet
W/O Handle
With Handle
W/O Hinge Cap
With Hinge Cap
Total
Freezer
Refrigerator
Set
Packing
Width
Depth
Height
Black
Real STS
White
Platinum STS
Cabinet (Both sides of Embo)
All Black
Noble STS
Snow White
Noble STS
Door
Empire Black
Versailles Stainless
Snow White
Stainless Platinum
Molding
I Black
Creamy STS
Snow White
Creamy STS
Compressor
Rated Frequency and Frequency
Refrigerant
Foaming agent
Refrigerant Input Amount
Kind of Refrigerator
Motor Rated Consumption Power
Electric Heater Rated Consumption Power
RF265
Pantry
RF26NB
No Dispenser
RF266
Int W/D with Pantry
35.7 inch (908mm)
29.1 inch (704mm)
32.9 inch (836mm)
35.6 inch (905mm)
68.6 inch (1744mm)
69.8 Inch (1778mm)
25.8Cu.ft (731.1 )
8.1Cu.ft (230.6 )
17.7Cu.ft (500.5 )
50.17%
300 Pounds (137kg)
333 Pounds (152kg)
38.6 Inch (980mm)
39.4 Inch (1001mm)
75.7 Inch (1923mm)
reciprocate
AC 115V/60Hz / AC230V50Hz
R 134a
C-Pantane
5.64 oz (160g)
Indirect Cooling Method Refrigerator
140A
385W

Items
Model
13
2-5) Model Specification &Specification Chart
PRODUCT SPECIFICATIONS
Compressor
Evaporator
Model
First Defrost Cycle (Concurrent defrost of F and R)
Defrost Cycle(FRE)
Defrost Cycle(REF)
Pause time
THERMISTOR
(F-SENSOR)
502AT
Temperature Selection
-14 (-26 )
-2 (-19 )
8(-13 )
Model
THERMISTOR
(R-SENSOR)
502AT
F Defrost-Sensor
R Defrost-Sensor
F Bimetal-thermo
Protector
R Bimetal-thermo
Protector
Temperature Selection
34 (1 )
38 (3 )
46 (8 )
Model
SPEC
Model
SPEC
Rated
Operating temperature
Rated
Operating temperature
Condenser
Dryer
Capillary tube(Dia x Length)
Refrigerant
Model
Starting type
Oil Charge
Freezer
Refrigerator
MK172D-R2U / MK190QL2U
R.S.C.R
FREOL - 10
SPLIT FIN TYPE
SPLIT FIN TYPE
Forced and natural convection type
Molecular sieve XH-9
0.032” x 118” (0.81mm x 2997mm)
R134a
6hr 10min
12~23hr(vary according to the conditions used)
6~11hr(vary according to the conditions used)
12 1min
THERMISTOR (502AT)
5.0 at 77 (25 )
THERMISTOR (502AT)
5.0 at 77 (25 )
AC 125V 10A / AC 250V 3A
Off : 140 (60 ) / On : 104 (40 )
AC 125V 10A / AC 250V 3A
Off : 140 (60 ) / On : 104 (40 )
ON( )
-11 (24 )
1(-17 )
11 (-12 )
ON( )
36 (2 )
40 (4 )
48 (9 )
OFF( )
-17 (-27 )
-5 (-21 )
5(-15 )
OFF( )
32 (0 )
36 (2 )
44 (7 )
RF265
Specification
RF266 RF26NB
Components for FreezerDefrost Related Components
FreezerRefrigerator
Defrost Cycle
Defrost SensorBimetal
Room Temperature Sensor Components

14
PRODUCT SPECIFICATIONS
Items
Model
Defrost Heater(FRE)
Defrost Heater(REF)
DISPENSER Heater
FRENCH Heater
Interlock with F-FAN
-
Running
Starting
Model
Operation
Model
Temp.ON
Temp.OFF
Condenser for COMP
(Package type)
Starting-Relay
Over load Relay
Rated Voltage
MOTOR-BLDC(FRE)
MOTOR-BLDC(REF)
MOTOR-BLDC(Circuit)
MOTOR-DAMPER(PANTRY)
Lamp(FRE)
Lamp(REF)
Conducting af F Defrost
Conducting at R Defrost
Door Switch FRE
REF
Power cord
Earth Screw
Bimetal thermo For Preventing Overheating of Refrigerator Lamp
AC 115V, 240W / AC 230V, 240W
AC 115V, 120W / AC 230V, 120W
AC 115V, 10W / AC 230V, 3W
AC 115V, 10W / AC 230V, 10W
AC125V 10A / AC250V 3A Off: 140 (60 ) / On : 104 (40 )
12 ,250V / 5 ,450V
-
J531Q33E100M200-2
10 20%
4TM435RFBYY-53
266 41 (130 5 )
141.8 48.2 (61 9 )
AC 115V/60Hz / 220~240V/50Hz
DC12V / FDQT06SS3
DC12V / FDQT06SS3
DC12V / FDQT06SS2
DC12V / NSBY001TA1
AC 120V 60W(1EA) / AC230V 40W(1EA)
AC 120V 60W(2EA) / AC 230V 60W(2EA)
AC 125V 1.5A (1EA) / AC 250V 0.5A
DC200V 1.5A / MS-406-SS-01(2EA)
AC125V 15A / AC 250V 10A
BSBN (BRASS SCREW)
RF265 RF266 RF26NB
Specification
Electric Components

15
PRODUCT SPECIFICATIONS
29.1"(739mm)
3.4"(8.6mm)
21.6"(549mm)41.7"(1059mm)
0.6"(15mm)
69.8"(1778mm)
1.3"(34mm)
32.9"(836mm)
35.6"(905mm)
35.7"(908mm)
24.3"(617mm)
3.4"
(86mm)
54.5"(1384mm)
18.7"(475mm)
47.8"(1214mm)
2-6)Dimensions of Refrigerator (Inches)

16
PRODUCT SPECIFICATIONS
2-7) Optional Material Specification
Photographe Part Name
FILTER
WATER-ASSY DA29-00003B 1
1
3
ASSY-PACKING
SUB DA99-00240G
LAMP INCANDENT 4713-001223
Part Code AMOUNT
1
1
3
AMOUNT
Photographe Part Name
ASSY-INSTALL FILTER DA97-01469W
PIPE-CONECT WATER
PACKING DA62-01329A
LAMP INCANDENT 4713-001232(REF) : 60W
4713-001201(FRE) : 40W
Part Code
RF265AA
RF26NB

17
Compressor →Sub-condenser →Hot Pipe →Dryer →Capillary Tube →Refrigerator Evaporator →Freezer
Evaporator→Suction Pipe →Compressor
Refrigerator
Evaporator
Freezer
Evaporator
Suction Pipe
Capillary Tube
Accumulator
Compressor
Sub Condenser
Hot Pipe
Muffler
PRODUCT SPECIFICATIONS
2-8) Refrigerant Route in Refrigeration cycle

18
Refrigerator
PRODUCT SPECIFICATIONS
2-9) Cooling Air Circulation
Freezer

19
3. DISASSEMBLY AND REASSEMBLY
3-1) Refrigerator Door 20
3-2) Door Switch In Refrigerator 22
3-3) Door Gasket 22
3-4) Door Handle 22
3-5) Refrigerator Light 23
3-6) Internal Water Dispenser 23
3-7) Spill Proof Glass Shelf 24
3-8) Vegetable & Fruit Drawers 24
3-9) Cool Select Pantry 25
3-10) Motor Damper 26
3-11) Water Filter 26
3-12) Gallon Door Bin 27
3-13) Vertical Hinged Section 28
3-14) Evaporator Cover In Refrigerator 29
3-15) Evaporator In Refrigerator 30
3-16) Freezer Door 31
3-17) Pull Out Drawer 32
3-18) Ice Maker 33
3-19) Freezer Light 33
3-20) Door Switch In Freezer 33
3-21) Evaporator Cover In Freezer 34
3-22) Evaporator In Freezer 34
3-23) Machine Compartment 35
3-24) Electric Box 38
