Samsung RF267AA SERIES User manual

Refrigerator
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/global/register
RF267AA

Features of your new Refrigerator
KEY FEATURES OF YOUR NEW REFRIGERATOR
Your Samsung French Door Refrigerator comes equipped with various and effective space-saving, innovative
storage and energy-efficient features.
• Twin Cooling System
The Refrigerator and Freezer have separate evaporators. Due to this independent cooling system,
the Freezer and Refrigerator cool more efficiently.
Additionally, this separate air flow system prevents food odor of one compartment from seeping into
other compartments.
• Cool Select PantryTM
The Cool Select pantryTM is a full-width drawer with adjustable temperature control.
• Bigger & Wider Space
The Wide shelf area and pantry provide enough space for larger items like a pizza box, etc.
The Wide freezer drawer also provides enough space for 2~3 turkeys.
• Secure Auto Close
The Secure Auto Close feature will automatically close a door that is slightly open.
• Compact Ice Maker
The Ice maker can dispense cubed or crushed ice.
• Digital Display and Temperature Control
• Water Filtration System
• Door Alarm
A helpful beeper alerts you if door is ajar.
• Tilting Pocket
The Tilting pocket can be used to store up to a 16” pizza.
For easy future reference, write the model and
serial number down which can be found on the left
side of the refrigerator.
Model #
Serial #
2_ Features

Safety Information
SAFETY INFORMATION
Before using your new Samsung French Door Refrigerator, please read this manual thoroughly to
ensure that you know how to safely and efficiently operate the features and functions that your
new appliance offers.
Because the following instruction covers various models, the characteristics of your Refrigerator
may differ slightly from the Refrigerator described in this manual. If you have any question, contact
us at 1-800-SAMSUNG or find help and information online at www.samsung.com.
What the icons and signs in this user manual mean :
WARNING Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property
damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when using your
refrigerator, follow these basic safety precautions:
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
These warning signs are here to prevent injury to you and others.
Please follow them explicitly
Keep this manual in a safe place for future reference.
SEVERE WARNING SIGNS
Do not plug several appliances into the same power receptacle.
• Large appliances draw a lot of power. Powering more than one appliance or machine from a single power source
could cause overheating and cause a fire.
Make sure that the power plug is not kinked or damaged by the back of the Refrigerator.
• A damaged power plug may overheat and cause a fire.
Do not spray water directly into or on the outside of the Refrigerator/Freezer drawer.
• Water could get into the interior machine parts and cause electric shock.
Do not use aerosols near the Refrigerator.
• Aerosols used near the Refrigerator may cause an explosion or fire.
Safety Information _3

Do not put undue stress on the power cord or place heavy articles on it.
• Placing heavy articles on the power cord create the risk of explosion or fire.
Do not insert the power plug with wet hands.
• It may cause electric shock.
Do not put a container filled with water on the Refrigerator.
• If it spills, it may cause fire or electric shock.
Do not install the Refrigerator in a damp place or water closed places.
• Wet and/or deteriorated insulation of the internal electrical parts may cause electric shock or fire.
Do not store volatile or flammable substances in the Refrigerator.
• Storing benzene, thinner, alcohol, ether, LP gas and other such products may cause explosions.
Do not disassemble or repair the Refrigerator by yourself.
• You run the risk of fire, appliance malfunctions and/or personal injury. Call your nearest service center for
help from a qualified service technician.
Unplug the Refrigerator before changing the interior light.
• Changing the light while the Refrigerator is plugged in may cause electric shock.
If you wish to dispose of the Refrigerator, remove the doors and seals before throwing
it away.
• The doors(and their seals) can entrap a child if they climb into the Refrigerator.
Make sure that the doors are off, and ensure that no one is suffocated by being locked inside.
The Refrigerator must be safely grounded
• Always make sure that you have grounded the Refrigerator before attempting to investigate or repair any
part of the appliance. Power leakages can cause severe electric shock.
Never use gas pipes, telephone lines or other potential lightning attractors as an
electrical ground.
• Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an
extension cord to power the Refrigerator, use only a 3-wire extension cord that has a 3-blade ground
plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extention
cord should be AC 115V~120V, 10A, or more. Additionally, if a grounding adapter is used, make sure the
receptacle box is also fully grounded.
Safety Information
4_ Safety Information

CAUTION SIGNS
Use good judgment when filling the Refrigerator with food and drinks.
• In an overfull Refrigerator, heavy, fragile, bulky or breakable items may fall out and cause personal injury
and/or damage to surrounding objects.
Do not put bottles or glass containers in the Freezer drawer.
• When the contents freeze and then expand, the glass may break and cause personal injury or leave
dangerous glass shards in the Freezer.
If the electrical wall socket is loose, do not inset the power plug.
• There is a risk of electric shock or fire. Have the plug looked at by a licensed electrician.
Never unplug your Refrigerator by pulling on the power cord.
• Always grip the power cord firmly and pull straight out from the outlet. Yanking or pulling on the power
cord may cause a short-circuit, fire and/or electric shock.
• A damaged power cord must be replaced by the manufacturer, a certified service agent or qualified service
personnel.
Do not store articles on the top of the appliance.
• When you open or close the door, the articles may fall and cause personal injury and /or damage to
surrounding objects.
Do not store pharmaceutical products, scientific materials and temperature-sensitive
products in the refrigerator.
• Products that require exact temperature controls should not be stored in the Refrigerator.
Do not allow children to climb, stand or hang on shelves and handles of the
Refrigerator. They could damage the Refrigerator and seriously injure themselves.
Do not sit on the freezer door. The door may break.
Do not allow children to climb into the freezer basket.
If you notice a chemical or burning plastic smell or see smoke, unplug the Refrigerator
immediately and contact your Samsung Electronics Service Center.
After your Refrigerator is in operation, do not touch the cold surfaces in the Freezer
compartment. Particularly when hands are damp or wet, skin may adhere to these
extremely cold surfaces.
• Skin may stick to the surface and you may get frostbite.
Do not put your hands under the appliance.
• Any sharp edges may cause personal injury.
Safety Information _5
CAUTION

Never put fingers or other objects into the water dispenser hole or ice chute.
• It may cause personal injury and/or material damage.
If the Refrigerator will not be used for a long period of time (for example, over several
months), unplug the power from the wall.
• Over time, deterioration in the power cord insulation may cause fire.
Do not use a wet or damp cloth when cleaning the plug.
Remove any dust or foreign matter from the power plug pins.
• A Dirty power plug can increase the risk of fire.
If the Refrigerator is disconnected from the power supply, you should wait for at least
five minutes before plugging it back in.
Do not place the equipment directly in sunlight.
The appliance must be positioned for easy access to power source.
If the power cord is damaged, it must be replaced by the manufacturer, a certified
service agent or qualified service personnel.
If you have a long vacation planned, empty the Refrigerator and turn it off.
Wipe excess moisture from the inside and leave the doors open to keep odor and mold from developing.
Service Warranty and Modification
• Any changes or modifications performed by a 3rd party on this finished appliance is not covered under
Samsung warranty service, nor can Samsung be responsible for safety issues that result from 3rd party
modifications.
Children can get trapped inside Refrigerators.
Before you throw away your old Refrigerator or Freezer, make sure that you;
• Take off the doors.
• Leave all shelves in places so that children may not easily climb inside and shut the door while they are
inside.
This appliance is not intended for use by small children or infirm persons without capable, adult
supervision. Small children should be supervised when using the appliance.
Safety Information
6_ Safety Information
CAUTION

Contents
SETTING UP YOUR
FRENCH DOOR REFRIGERATOR
08
OPERATING THE SAMSUNG
FRENCH DOOR REFRIGERATOR
19
TROUBLESHOOTING
37
WARRANTY
38
08 Getting ready to install the refrigerator
09 Removing the refrigerator doors
12 Reattaching the refrigerator doors
15 Adjusting the doors
16 Making minor adjustments between doors
17 Adjusting the freezer drawer level
18 Checking the water dispenser line
19 Installing the water line
21 Setting up the refrigerator
22 Using the control panel
23 Using the digital display
24 Controlling the temperature
25 Using the ice and cold water dispenser
26 Parts and Features
27 Storing food
29 Using the ice and Cool Select Pantry™
30 Removing the refrigerator accessories
32 Removing the freezer drawer accessories
33 Cleaning the refrigerator
34 Changing the interior lights
35 Changing the water filter
36 Using the doors
37 Troubleshooting
38 Warranty
Contents _7

Setting up your French Door Refrigerator
GETTING READY TO INSTALL THE REFRIGERATOR
Congratulations on your purchase of the Samsung French Door Refrigerator. We hope you enjoy the state-of-art
features and efficiencies that this new appliance offers.
Selecting the best location for the Refrigerator
• A Location with easy access to the water supply.
• A Location without direct exposure to sunlight.
• A Location with level (or nearly level) flooring.
• A Location with enough space for the Refrigerator doors to open easily.
• Allow sufficient space for air circulation of the internal cooling system.
If the Refrigerator does not have enough space, the internal cooling system may not work properly.
8_ Setting Up
First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways
(both width and height), thresholds, ceilings, stairways, etc.
The following chart details the exact height and depth of Samsung French Door Refrigerator.
• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption
and keep your energy bills lower.
• Do not install the Refrigerator where the temperature will go below 50 ºF (10 ºC).
Depth
MODEL
Capacity(Cu.Ft)
Dimensions
(inches)
Width
Case Height with Hinge
without Hinge
with Door
without Door
RF267AA
25.5
35.7
69.8
68.6
35.6
32.9
1 inch
1 inch
1/2 inch

Setting Up _9
01 SETTING UP
REMOVING THE REFRIGERATOR DOORS
If the Refrigerator is too large to pass through your doorway easily, you can remove the refrigerator doors.
Disassemble the Refrigerator doors
1. With the door opened, remove the Top Table cap
(1 ) with a Flat head screwdriver, and close the
door.
Remove the 3 screws holding down the Top Table
and remove the Top Table( 2 ).

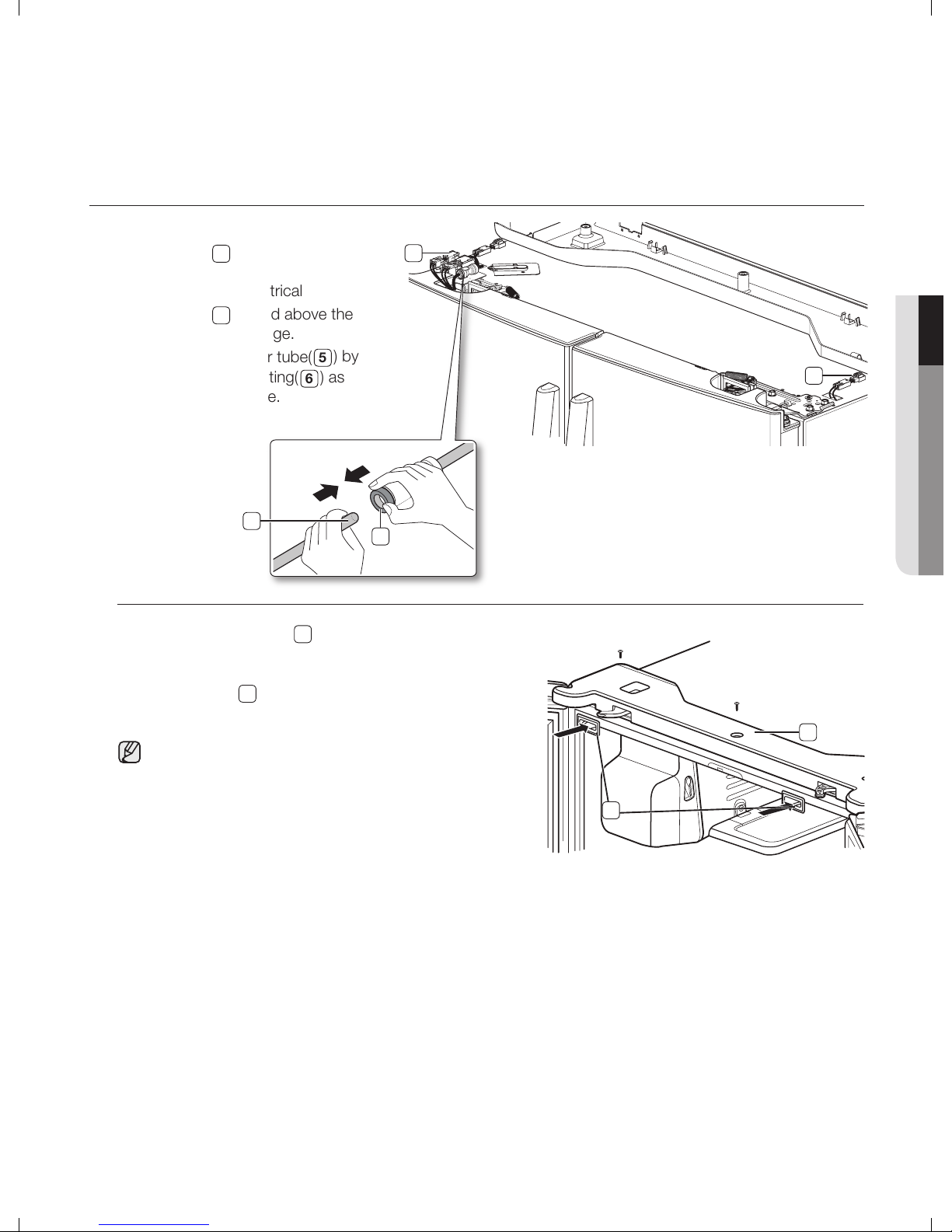

2. Disconnect the electrical connector(
3) above the upper right
door hinge and the 3 electrical
connectors( 4) above the upper left
door hinge.
Disconnect the water tube( 5) by
pulling the tube fitting( 6) apart as
shown in the picture.
Tools you will need
Philips head
screwdriver
Wrench(10mm)
Flat head screwdriver Pliers
2
1
3
4
5
6

10_ setting up
Setting up your French Door Refrigerator

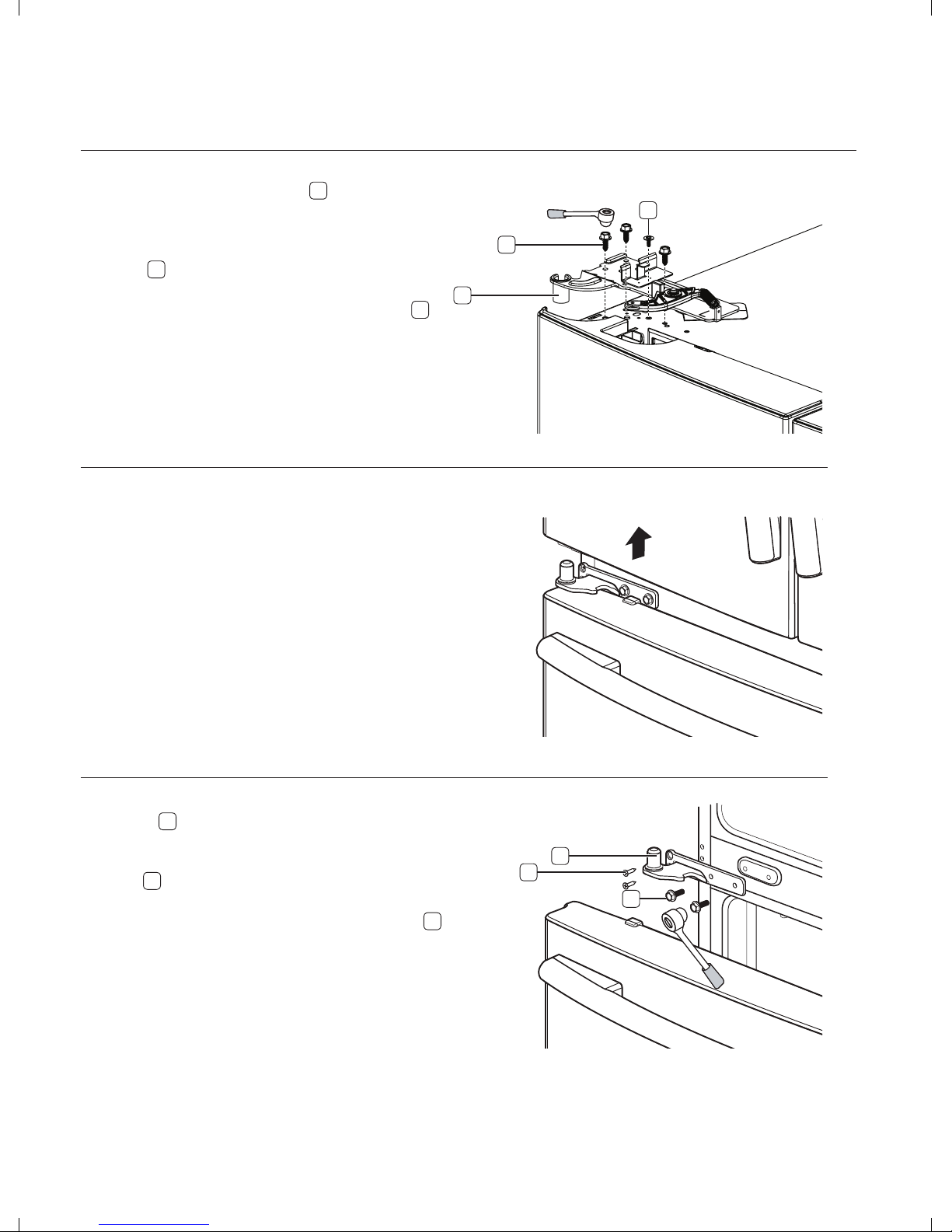

3. Remove the 3 hex head bolts( 7) found attached
to the upper left and right door hinges with a
Wrench(10mm).
With a Philips head screwdriver, remove the ground
screw( 8) found attached to the upper left and right
door hinges.
Remove the upper left and right door hinges( 9).
4. Lift the door straight up to remove.
5. With a Philips head screwdriver, remove the 2
screws( 10 ) attached to the lower left and right
door hinges.
With a Wrench(10mm), remove the 2 hex head
bolts( 11 ) attached to the lower left and right door
hinges.
Remove the lower left and right door hinges( 12 ).
7
8
9
10
11
12

setting up _11

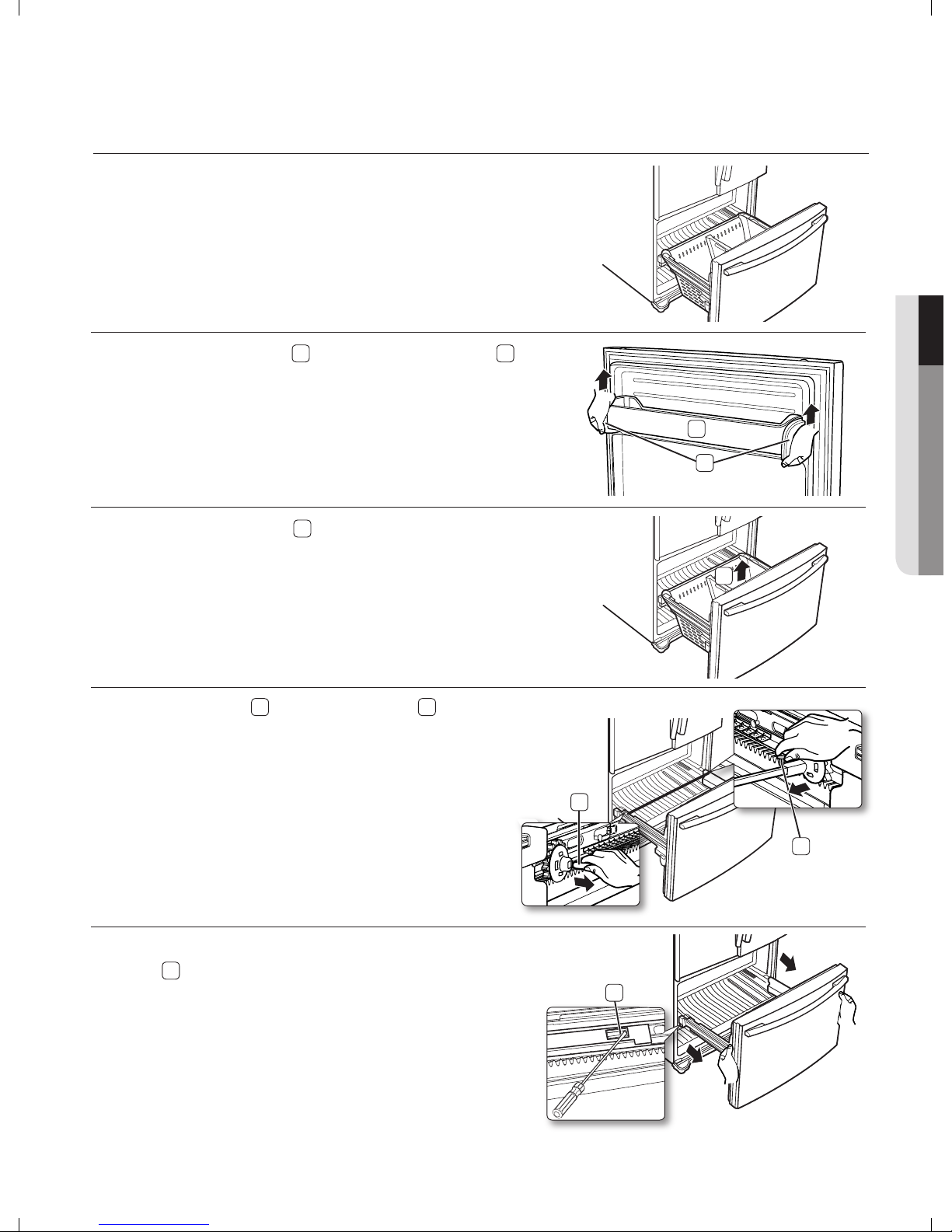

4. Remove a fixing pin( 4 ) and remove a shaft( 5 ) by
pushing it to the right side with your hand.
5. Separate the rail from the rail cover by pushing the
hooks ( 6 ) in on both sides of the rail. After pushing
the hooks in, remove the drawer by pulling towards
you with both hands.
2. Remove the tilting pocket( 1
) by pulling both brackets( 2 ) upward
at the same time.
3. Take out the lower basket( 3 ) by lifting the basket up from
rail system.
3
1
5
4
6
2
1. Pull the drawer open to full extension.
DISASSEMBLE THE FREEZER DRAWER
01 SETTING UP

12_ Setting Up
Setting up your French Door Refrigerator
REATTACHING THE REFRIGERATOR DOORS
Assemble the Refrigerator doors
1. Reattach the lower left and right door hinges( 12).
With a Philips head screwdriver, insert and tighten the
2 screws( 10) into the lower left and right door hinges.
With a Wrench(10mm), insert and tighten the 2 hex head
bolts( 11) into the lower left and right door hinges.
2. Place the hole in the bottom of the door over the lower
hinge( 12 ).
Be careful not to miss the hinge cap because it can
be easily taken off.
3. Insert the upper hinges(
9
) into the holes at the top
of the doors.
With a Wrench(10mm), insert and tighten the 3 hex
head bolts(
7
) into the upper left and right door
hinges.
With a Philips head screwdriver, insert and tighten
the ground screw(
8
) into the upper left and right
door hinges.
12
11
10
12
9
7
8

Setting Up _13
01 SETTING UP
REATTACHING THE REFRIGERATOR DOORS
4. Reconnect the 3 electrical
connector( 3 ) found above the
upper left door hinge.
Reconnect the electrical
connector( 4
) found above the
upper right door hinge.
Reattatch the water tube( 5
) by
pushing the tube fitting( 6 ) as
shown in the picture.
5. Position the Top Table( 2) in place.
With a Philips head screwdriver, insert and tighten the 3
screws into the Top Table. With the door opened, reinsert the
Top Table cap( 1
) and close the doors.
Be careful not to miss the hinge cap because it can
be easily taken off.
2
1
4
3
5
6

14_ Setting Up
ASSEMBLE THE FREEZER DRAWER
2. Push the end of the rail( 3 ) using a screwdriver until it
locks into place. Close the drawer and pull the drawer
out to full extension.
3. Insert the shaft ( 4
) on the left side pinion after inserting the
shaft on the right side pinion, and reattach the fixing pin( 5 ).
4. With the drawer pulled out to full extension, insert the lower
basket ( 6 ) into the rail system.
5. Hook the ends of the tilting pocket ( 7 ) into both brackets ( 8 ),
and push down until they lock into place.
7
8
5
4
Setting up your French Door Refrigerator
1. Attach both rails( 1 ) to both rail covers ( 2 ) and slide the drawer in. 1
2
3
6

Setting Up _15
01 SETTING UP
ADJUSTING THE DOORS
Now that the doors are back on the Refrigerator, you want to make sure the Refrigerator is level so that you can
make final adjustments. If the Refrigerator is not level, it will not be possible to get the doors perfectly even.
When the Left door is lower than the Right door.
Insert a flat-blade screwdriver into a notch on the left control lever, turn it clockwise or counter-clockwise
to level the left door.
When the Left door is higher than the Right door.
Insert a flat-blade screwdriver into a notch on the right control lever, turn it clockwise or counter-clockwise
to level the right door.
We do not recommend making small adjustments with the control lever. Instead, refer to the next page for the
best way to make minor adjustments to the doors.
Control Lever
Screwdriver
Screwdriver
Control Lever

Setting up your French Door Refrigerator
MAKING MINOR ADJUSTMENTS BETWEEN DOORS
Remember a level Refrigerator is necessary for getting the doors perfectly even. If you need help, review the
previous section on leveling the Refrigerator.
When the left
door is lower
than the right
door.
When the left
door is higher
than the right
door.
Adjustment
part
Adjustment
part
16_ Setting Up
1. If you open the drawer ( 1 ), you can see the lower hinge ( 2 ).
2. Insert the supplied hex wrench ( 3 ) into the shaft ( 4 ) of the lower hinge.
3. Please adjust the height turning the hex wrench ( 3
) clockwise( ) or counter-clockwise( ).
when you turn the hex wrench counter-clockwise( ), the door will move up.
1. After adjusting the doors, please insert the supplied fastener-ring ( 5 ) using a pair of pliers ( 6 ) in the
gap between the hinge-grommet ( 7 ) and the lower hinge( 8 ). The number of fastener-rings you’ll need
to insert depends on the gap.
Four fastener-rings are enclosed with the refrigerator.
The thickness of each fastener-ring is 0.04 inch.
1
3
4
3
2

Setting Up _17
01 SETTING UP

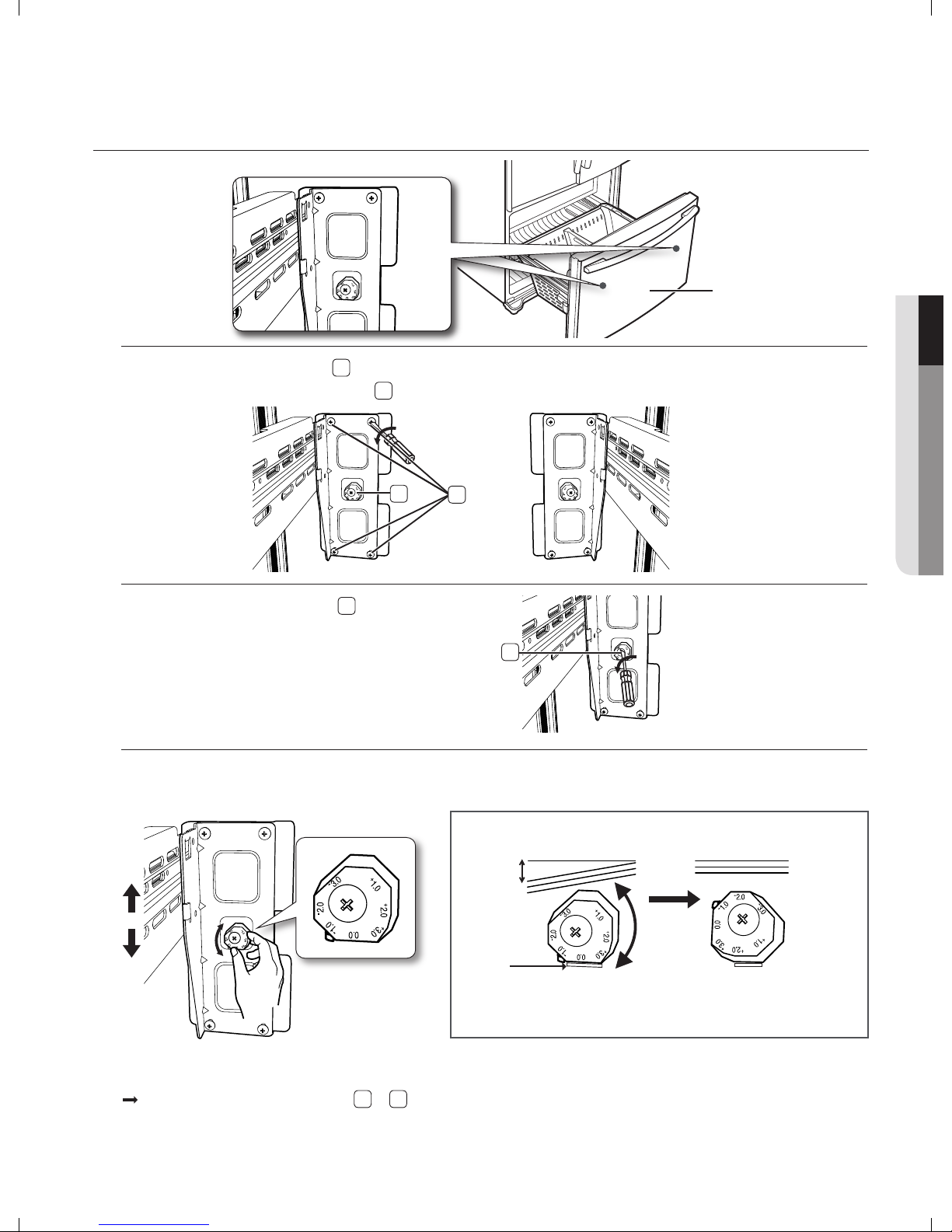

ADJUSTING THE FREEZER DRAWER LEVEL
1. Locate the height-adjuster ( 1 ) in the freezer drawer.
Unscrew the four Phillips screws ( 2 ) slightly to loosen the door.
2. Loosen the controller screw( 3
) with a Phillips
screwdriver.
3. Find the best level to align the door slope.
After adjustment, tighten the screws ( 2 )&( 3 ) in reverse order.
Example) The slope is about 2mm (0.08inch) as shown below.
- Rotate the Height Adjuster to +2.0 to reduce the door
slope.
Slope
Reference
plane
Freezer Drawer
Adjustment part
12
3

Setting up your French Door Refrigerator
CHECKING THE WATER DISPENSER LINE
A water dispenser is one of the helpful features on your new Samsung Refrigerator. To help promote better
health, the Samsung water filter removes unwanted particles from your water. However, it does not sterilize or
destroy microorganisms. You may need to purchase a water purifying system to do that.
In order for the ice maker to operate properly, a water pressure of 20~125 psi (pound per square inch) is
required.
Under normal conditions, a 170 cc (5.75 oz.) paper cup can be filled in 10 seconds.
If the Refrigerator is installed in an area with low water pressure (below 20psi), you can install a booster pump to
compensate for the low pressure.
Make sure the water storage tank inside the Refrigerator is properly filled. To do this, press the water dispenser
lever until the water runs from the water outlet.
18_ Setting Up
Water line installation kits are available at extra cost from your dealer. We recommend using a water supply kit that
contains copper tubing.

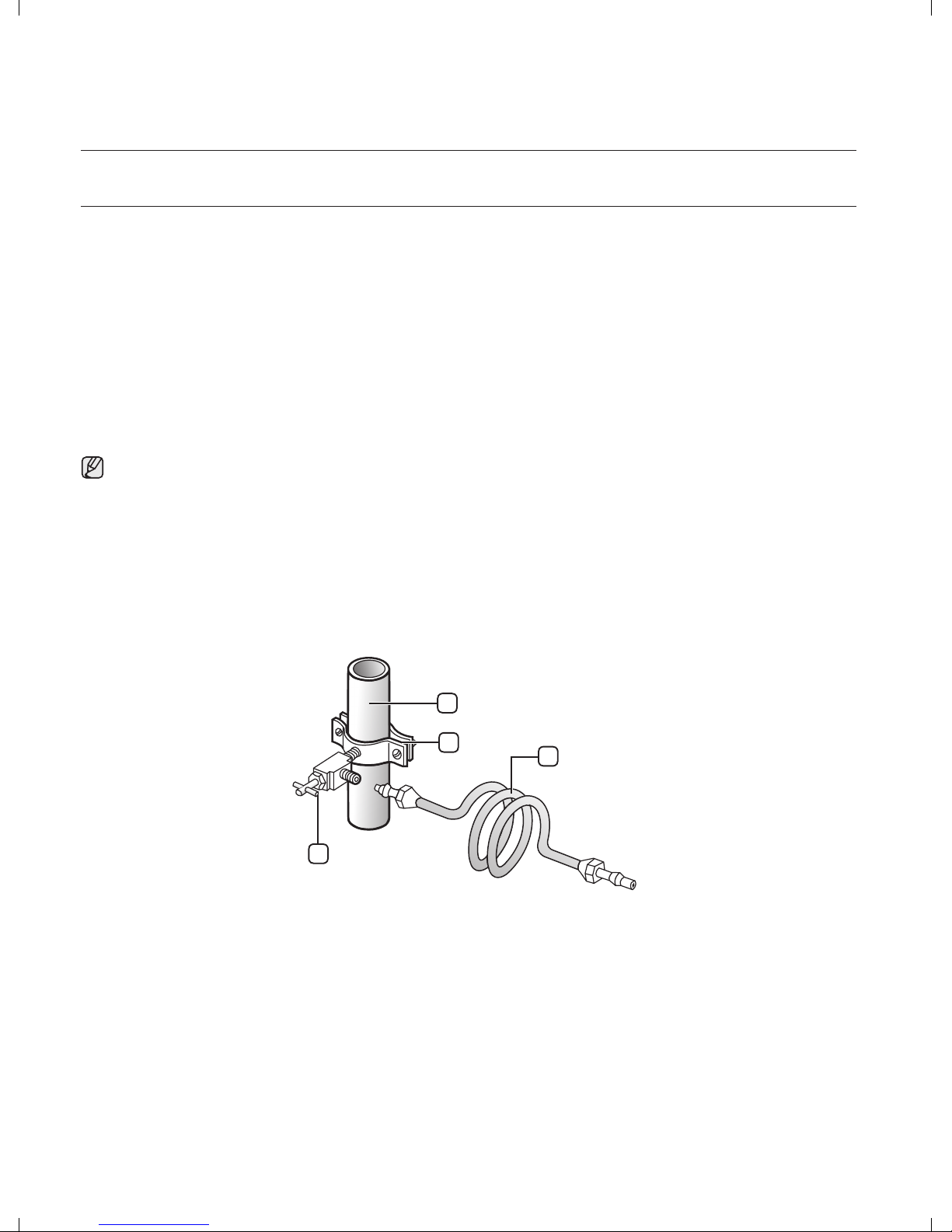

Connecting to the water supply line
1. First, shut off the main water supply line and turn the ice-maker off.
2. Locate the nearest cold, drinking water line.
3. After connecting the water supply to the water filter, turn your main water supply back on and flush 4 or
more gallons into a bucket to clear and prime the water filter.
1Cold water line
2Pipe clamp
3Water line installation kit
4Shut off valve

Setting Up _19
01 SETTING UP
1. Slip the compression nut through the supplied plastic tubing .
2. Tighten the compression nut onto the 1/4” compression fitting.
- If you are using copper tubing, slip the compression nut (not included) and ferrule (not included) on
copper tubing (not included) as shown.
- If you are using plastic tubing , insert the molded end of the plastic tubing into the compression
fitting.
3. Tighten the compression nut onto the compression fitting. Do not over-tighten the compression nut .
4. Turn water on and check for any leakage.
INSTALLING THE WATER LINE
Connecting the water line to the Refrigerator.
There are several items that you need to purchase to complete this connection. You
may find these items selling as a kit at your local hardware store.
Only connect the water line to a drinkable water source.
If you have to repair or disassemble the water line, cut off 1/4“ of the plastic tubing to make sure you get a snug,
leak-free connection.
1/4” compression nut
plastic tubing
copper tubing
ferrule
Need to purchase
Ferrule
(Not supplied)
Copper tubing
(Not supplied)
Compression fitting
(Supplied)
Installing the water filter.
1. Remove the water filter cover( 1 )
2. Remove the fixed cap by turning it counter clockwise.
Keep the cap in a safe place for later use if you don’t
use a filter.
3. Remove the water filter from the box and put a
replacement indicator sticker on the filter as shown.
Place a sticker on the filter that dates six months in
the future. For example, if you install the water filter in
March, put the “SEP” sticker on the filter to remind you
to replace in September. That way you’ll know when it
is time to replace the filter. Normally, a filter life is about
6 months.
2 3
Sticker
(month indicator)
1
Plastic tubing
(Supplied) Compression nut
(1/4”) (Supplied)
Compression nut
(1/4”) (Not supplied)
Plastic tubing
(Not supplied)

20_ Setting Up
4. Remove the filter cap and insert the filter into the filter
housing.
5. Slowly turn the water filter 90º clockwise to align with the
printing mark on the cover, locking the filter in position.
Make sure to align the water filter label mark with center of
cover filter printing as illustrated. Remember, do not over-
tighten.
You should remove the right side upper glass shelf before installing water filters.
Removing any residual matter inside the water supply line after
installing the water filter.
1. Turn ON the main water supply & turn OFF the valve to the water supply line.
2. Run water through the dispenser until the water runs clear (approx. 6-7
minutes). This will clean the water supply system and remove air from the lines.
3. Additional flushing may be required in some households.
4. Open the Refrigerator door and make sure there are no water leaks coming
from the water filter.
Be sure to flush the dispenser thoroughly, otherwise water may drip from the dispenser.
This means that there is still air in the line.
Setting up your French Door Refrigerator
Turn until the
labels are aligned.
Separation
of red cap.
Cover filter.
4 5
