Samsung RF26HF Series User manual

Refrigerator
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
Free Standing Appliance
RF26HF**
DA68-02601F-00.indb 1DA68-02601F-00.indb 1 2014. 9. 16.  9:052014. 9. 16.  9:05

English - 2
Safety information
SAFETY INFORMATION
• Before operating the
appliance, please read this
manual thoroughly and
retain it at a safe place near
the appliance for your future
reference.
• Use this appliance only for
its intended purpose as
described in this instruction
manual. This appliance is not
intended for use by persons
(including children) with
reduced physical, sensory
or mental capabilities, or
lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use
of the appliance by a person
responsible for their safety.
• This appliance can be
used by children aged
from 8 years and above
and persons with reduced
physical, sensory or mental
capabilities or lack of
experience and knowledge
if they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand the hazards
involved.
Children shall not play with
the appliance.
Cleaning and user
maintenance shall not be
made by children without
supervision.
• Warnings and Important
Safety Instructions in this
manual do not cover all
possible conditions and
Contents
SAFETY INFORMATION ……………………………………………………………… 2
SETTING UP YOUR FRENCH DOOR REFRIGERATOR ……………………… 17
OPERATING YOUR FRENCH DOOR REFRIGERATOR………………………… 25
TROUBLESHOOTING ……………………………………………………………… 31
DA68-02601F-00.indb 2DA68-02601F-00.indb 2 2014. 9. 16.  9:052014. 9. 16.  9:05

English - 3
SAFETY INFORMATION
situations that may occur.
It is your responsibility to use
common sense, caution,
and care when installing,
maintaining, and operating
your appliance.
• Because these following
operating instructions
cover various models, the
characteristics of your
refrigerator may differ slightly
from those described in this
manual and not all warning
signs may be applicable.
If you have any questions
or concerns, contact your
nearest service center or find
help and information online
at www.samsung.com.
• It is hazardous for anyone
other than an Authorised
Service Person to service
this appliance.
In Queensland – the
authorized Service Person
MUST hold a Gas Work
Authorisation or Licence for
hydrocarbon refrigerants, to
carry out Servicing or repairs
which involve the removal of
covers. (For Australia only)
Important safety symbols
and precautions :
WARNING
Hazards or unsafe
practices that may result
in severe personal
injury or death.
CAUTION
Hazards or unsafe
practices that may result
in minor personal injury
or property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions
carefully.
Unplug the power plug
from the wall socket.
Make sure the machine
is grounded to prevent
electric shock.
Call the contact center
for help.
Note.
DA68-02601F-00.indb 3DA68-02601F-00.indb 3 2014. 9. 16.  9:052014. 9. 16.  9:05

English - 4
These warning signs are
here to prevent injury to
you and others.
Please follow them
carefully.
After reading this section,
keep it in a safe place for
future reference.
CE Notice
This product has been
determined to be in
compliance with the Low
Voltage Directive (2006/95/
EC), the Electromagnetic
Compatibility Directive
(2004/108/EC), RoHS Directive
(2011/65/EU), Commission
Delegated Regulation (EU)
No 1060/2010 and the Eco-
Design Directive(2009/125/EC)
implemented by Regulation
(EC) No 643/2009 of the
European Union. (For products
sold in European Countries
only)
SEVERE WARNING
SIGNS FOR
TRANSPORTATION
AND SITE
• When transporting
and installing the
appliance,care should be
taken to ensure that no
parts of the refrigerating
circuit are damaged.
• R-600a or R-134a is used
as a refrigerant. Check the
compressor label on the rear
of the appliance or the rating
label inside the refrigerator to
see which refrigerant is used
for your refrigerator.
• When this product contains
flammable gas (Refrigerant
R-600a),
-Refrigerant leaking from the
pipe work could ignite or
cause an eye injury. If a leak
is detected, avoid any naked
flames or potential sources
of ignition and air the room
in which the appliance is
standing for several minutes.
-In order to avoid the
creation of a flammable gas-
air mixture if a leak in the
refrigerating circuit occurs,
the size of the room in which
WARNING
DA68-02601F-00.indb 4DA68-02601F-00.indb 4 2014. 9. 16.  9:052014. 9. 16.  9:05

English - 5
SAFETY INFORMATION
the appliance may be sited
depends on the amount of
refrigerant used.
-Never start up an appliance
showing any signs of
damage. If in doubt, consult
your dealer. The room
where the refrigerator will
be sited must be 1m³ in
size for every 8g of R-600a
refrigerant inside the
appliance.
The amount of refrigerant in
your particular appliance is
shown on the identification
plate inside the appliance.
-If the appliance contains
isobutane refrigerant
(R-600a), a natural gas
with high environmental
compatibility that is,
however, also combustible.
When transporting and
installing the appliance,
care should be taken to
ensure that no parts of
the refrigerating circuit are
damaged.
SEVERE WARNING
SIGNS FOR
INSTALLATION
• Do not install this
appliance in a humid,
oily or dusty location, in
a location exposed to
direct sunlight and water
(rain drops).
-Deteriorated insulation of
electrical parts may cause
an electric shock or fire.
• Do not place this refrigerator
in direct sunlight or expose
to the heat from stoves,
room heaters or other
appliances.
• Do not plug several
appliances into the same
multiple power board.
The refrigerator should
always be plugged into its
own individual electrical
outlet which has a voltage
rating that matched the
rating plate.
-This provides the best
performance and also
prevents overloading house
wiring circuits, which could
cause a fire hazard from
overheated wires. If the wall
socket is loose, do not insert
the power plug.
WARNING
DA68-02601F-00.indb 5DA68-02601F-00.indb 5 2014. 9. 16.  9:052014. 9. 16.  9:05

English - 6
-There is a risk of electric
shock or fire.
• Do not use a cord that
shows cracks or abrasion
damage along its length or
at either end.
• Do not bend the power cord
excessively or place heavy
articles on it.
• Do not use aerosols near the
refrigerator.
-Aerosols used near the
refrigerator may cause an
explosion or fire.
• Do not install this appliance
in a location where gas may
leak.
-This may result in an electric
shock or fire.
• The installation or any
service of this appliance
is recommended by a
qualified technician or
service company.
-Failing to do so may result
in an electric shock, fire,
explosion, problems with the
product, or injury.
• This refrigerator must be
properly installed and
located in accordance with
the manual before it is used.
• Do not install the refrigerator
in a damp place or place
where it may come in
contact with water.
-Deteriorated insulation of
electrical parts may cause
an electric shock or fire.
• Connect the power plug in
proper position with the cord
hanging down.
-If you connect the power
plug upside down, wire can
get cut off and a cause fire
or an electric shock.
• Do not use a cord that
shows cracks or abrasion
damage along its length or
at either end.
• Make sure that the power
plug is not squashed or
damaged by the back of the
refrigerator.
• When moving the refrigerator,
be careful not to roll over or
damage the power cord.
-This constitutes a fire hazard.
• The appliance must be
positioned so that the plug is
accessible after installation.
• Keep the packing materials
out of reach of children.
-There is a risk of death from
suffocation if children put
them on their head.
DA68-02601F-00.indb 6DA68-02601F-00.indb 6 2014. 9. 16.  9:052014. 9. 16.  9:05

English - 7
SAFETY INFORMATION
• This appliance must be
properly grounded. Do
not ground the appliance
to a gas pipe, plastic
water pipe, or telephone
line.
-You must ground the
refrigerator to prevent any
power leakages or electric
shocks caused by current
leakage from the refrigerator.
-This may result in an electric
shock, fire, explosion, or
problems with the product.
-Never plug the power
cord into a socket that is
not grounded correctly
and make sure that it is in
accordance with local and
national codes.
• If the power cord is
damaged, have it
replaced immediately by
the manufacturer or its
service agents.
• The fuse on the refrigerator
must be changed by a
qualified technician or
service company.
-Failing to do so may result in
an electric shock or personal
injury.
CAUTION SIGNS FOR
INSTALLATION
• Keep ventilation
opening in the appliance
enclosure or mounting
structure clear of
obstruction.
• Allow the appliance to stand
for 2 hours after installation.

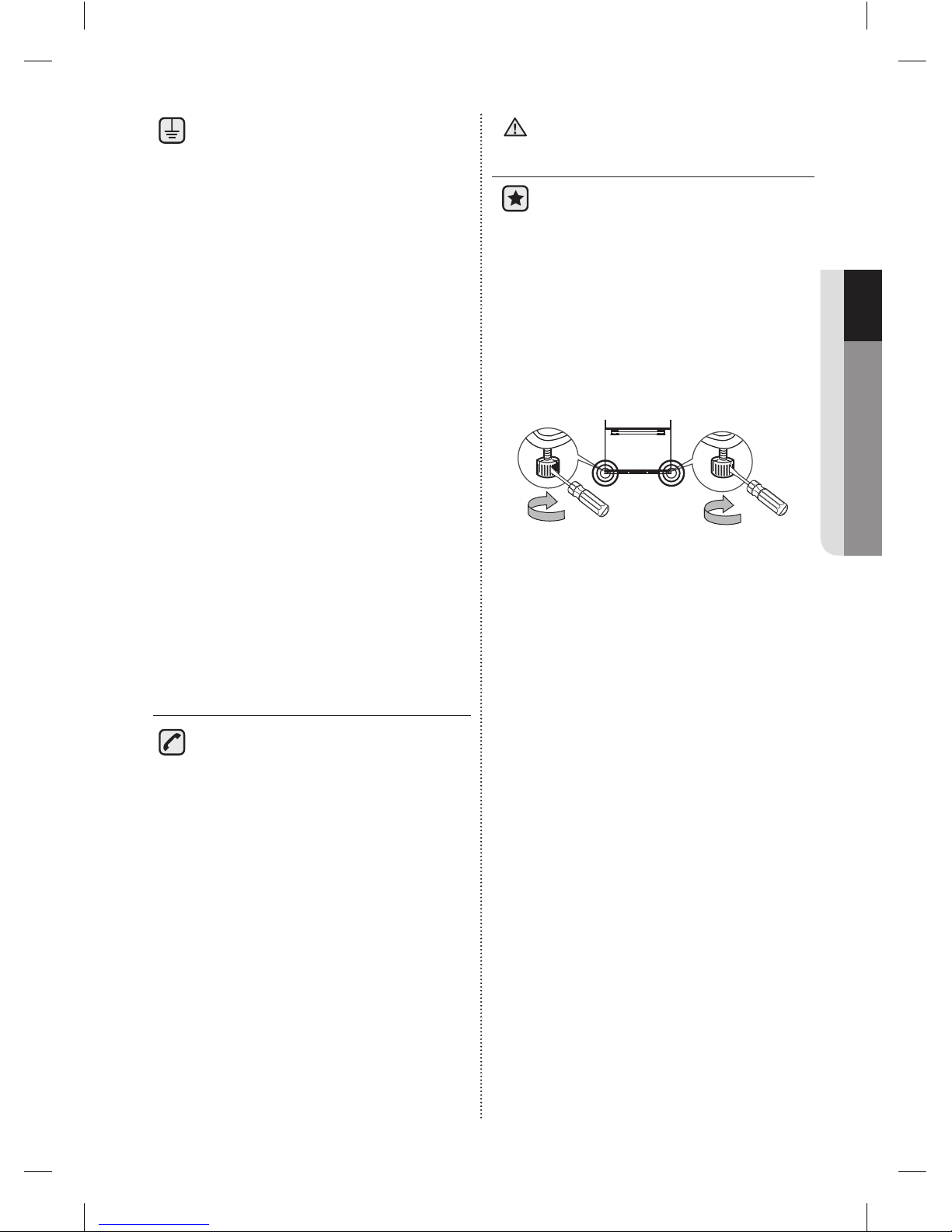

-When installing the
refrigerator, make sure both
legs contact the floor for
secure installation.
Legs are located at the
bottom back of freezer door.
Insert a flathead screwdriver
and turn it in the direction of
the arrow until it is level.
-Always balance the load on
each door.
-Overload on any one door
may fell the refrigerator,
causing physical injury.
CAUTION
DA68-02601F-00.indb 7DA68-02601F-00.indb 7 2014. 9. 16.  9:052014. 9. 16.  9:05

English - 8
SEVERE WARNING
SIGNS FOR USING
• Do not insert the power
plug with wet hands.
• Do not store articles on the
top of the appliance.
-When you open or close the
door, the articles may fall
and cause a personal injury
and/or material damage.
• Do not put items filled with
water on the refrigerator.
-If spilled, there is a risk of fire
or electric shock.
• Do not let children hang on
the door.
-Failure to do so may cause
serious personal injury.
• Do not leave the doors of
the refrigerator open while
the refrigerator is unattended
and do not let children enter
inside the refrigerator.
• Do not allow babies or
children go inside the drawer.
-It can cause death from
suffocation by entrapment or
personal injury.
• Do not sit on the Freezer
door.
-The door may be broken
and cause a personal injury.
• Children should be
WARNING supervised to ensure that
they do not play with the
appliance. Keep fingers out
of “pinch point” areas :
clearances between the
doors and cabinet are
necessarily small. Be careful
when you open the doors
when children are in the
area. Do not let children
hang on the door.
If not, a serious injury may
occur. There is a Risk of
children entrapment. Do not
let children enter inside the
refrigerator.
• To prevent children
entrapment, you must
reinstall the divider using
provided screws after
cleaning or other actions
if you removed the divider
from the drawer.
• Never put fingers or other
objects into the dispenser
hole.
-Failure to do so may cause
personal injury or material
damage.
• Do not store volatile or
flammable substances such
as benzene, thinner, alcohol,
ether or LP gas in the
refrigerator.
DA68-02601F-00.indb 8DA68-02601F-00.indb 8 2014. 9. 16.  9:052014. 9. 16.  9:05

English - 9
SAFETY INFORMATION
-The storage of any of such
products may cause an
explosion.
• Do not store low
temperature-sensitive
pharmaceutical products,
scientific materials or other
low temperature-sensitive
products in the refrigerator.
-Products that require
strict temperature controls
must not be stored in the
refrigerator.
• Do not place or use
electrical appliance inside
the refrigerator, unless they
are of a type recommended
by the manufacturer.
• Do not use a hair dryer to dry
the inside of the refrigerator.
Do not place a lighted
candle in the refrigerator for
removing bad odors.
-This may result in an electric
shock or fire.
• Do not touch the inside walls
of the freezer or products
stored in the freezer with wet
hands.
-This may cause frostbite.
• Do not use mechanical
devices or any other means
to accelerate the defrosting
process, other than those
recommended by the
manufacturer.
• Do not damage the
refrigerant circuit.
• This appliance should be
positioned in such a way that
it is accessible to the power
plug.
-Failing to do so may result in
an electric shock or fire due
to electric leakage.
• This product is intended
only for the storage
of food in a domestic
environment.
• Bottles should be stored
tightly together so that they
do not fall out.
• In the event of a gas leak
(such as propane gas,
LP gas, etc.), ventilate
immediately without touching
the power plug.
Do not touch the appliance
or power cord.
• Do not insert hands, feet
or metal objects (such as
chopsticks, etc.) into the
bottom or the back of the
refrigerator.
-This may result in an electric
shock or injury.
DA68-02601F-00.indb 9DA68-02601F-00.indb 9 2014. 9. 16.  9:052014. 9. 16.  9:05

English - 10
-Any sharp edges may cause
a personal injury.
-Do not use a ventilating fan.
-A spark may result in an
explosion or fire.
• Use only the LED Lamps
provided by manufacturer or
service agent.
• Children should be
supervised to ensure that
they do not play with and/or
climb into the appliance.
• Do not disassemble or
repair the refrigerator by
yourself.
-You run a risk of causing
a fire, malfunction and/ or
personal injury. In case of
malfunction, please contact
your service agent.
• Do not attempt to repair,
disassemble, or modify
the appliance yourself.
-Do not use any fuse(such as
cooper, steel wire, etc.) other
than the standard fuse.
-When repairing or reinstalling
the appliance is required,
contact your nearest service
center.
-Failing to do so may result
in an electric shock, fire,
problems with the product,
or injury.
• If the appliance generates a
strange noise, a burning or
smell or smoke, unplug the
power plug immediately and
contact your nearest service
center.
-Failing to do so may result in
an electric or fire hazards.
• If you experience difficulty
when changing the light,
contact service agent.
• If the products is equipped
with the LED Lamp, do not
disassemble the Lamp Cover
and LED Lamp by yourself.
-Please contact your service
agent.
• If any dust or water is in the
refrigerator, pull out power
plug and contact your
Samsung Electronics service
center.
-There is a risk of fire.
• Contains fluorinated
greenhouse gases covered
by the Kyoto Protocol.
-Hermetically sealed system.
-Do not vent gases into the
atmosphere.
-Refrigerant type : R-134a
-Quantity: 0.16kg
DA68-02601F-00.indb 10DA68-02601F-00.indb 10 2014. 9. 16.  9:052014. 9. 16.  9:05

English - 11
SAFETY INFORMATION
-Global Warming Potential
(GWP) = 1300
CAUTION SIGNS FOR
USING
• To get best performance
from the product,
-Do not place foods too
closely in front of the vents
at the rear of the appliance
as it can obstruct free air
circulation in the refrigerator
compartment.
-Wrap the food up properly or
place it in airtight containers
before putting it into the
refrigerator.
-Do not put any newly
introduced food for freezing
near to already existing food.
• Do not stand on top of the
appliance or place objects
(such as laundry, lighted
candles, lighted cigarettes,
dishes, chemicals, metal
objects, etc.) on the
appliance.
-This may result in an electric
shock, fire, problems with
the product, or injury.
• Do not place carbonated
or fizzy drinks in the freezer
CAUTION
compartment. Do not put
bottles or glass containers in
the freezer.
-When the contents freeze,
the glass may break and
cause personal injury and
property damage.
• Do not change or modify
the functionality of the
refrigerator.
-Changes or modifications
may result in a personal
injury and/or property
damage. Any changes or
modifications performed by a
3rd party on this completed
appliance are neither
covered under Samsung
warranty service, nor is
Samsung responsible for
safety issues and damages
that result from 3rd party
modifications.
• Do not block air holes.
-If the air holes are blocked,
especially with a plastic bag,
the refrigerator can be over
cooled. If this cooling period
lasts too long, the water filter
may break and cause water
leakage.
-Do not put any newly
introduced food for freezing
near to already existing food.
DA68-02601F-00.indb 11DA68-02601F-00.indb 11 2014. 9. 16.  9:052014. 9. 16.  9:05

English - 12
• Please observe maximum
storage times and expiry
dates of frozen goods.
• Fill the water tank, ice tray
and water cubes only with
potable water (mineral water
or purified water).
-Do not fill the tank with tea
or a Sports drink. This may
damage the refrigerator.
• Use only the ice-maker
provided with the refrigerator.
• The water supply to this
refrigerator must only be
installed/connected by a
suitably qualified person
and connected to a potable
water supply only.
• In order to operate the
ice-maker properly, water
pressure of 138~862
kPa(1.4~8.8 kgf/cm3) is
required.
• Do not spray volatile material
such as insecticide onto the
surface of the appliance.
-As well as being harmful to
humans, it may also result
in an electric shock, fire or
problems with the product.
• Do not apply strong shock
or excessive force onto the
surface of glass.
-Broken glass may result
in a personal injury and/or
property damage.
CAUTION SIGNS
FOR CLEANING AND
MAINTENANCE
• Do not directly spray
water inside or outside
the refrigerator.
-There is a risk of fire or
electric shock.
• Do not use or place any
substances sensitive
to temperature such
as inflammable sprays,
inflammable objects, dry
ice, medicine, or chemicals
near the refrigerator. Do not
keep volatile or inflammable
objects or substances
(benzene, thinner, propane
gas, etc.) in the refrigerator.
-This refrigerator is for storing
food only.
-This may result in a fire or an
explosion.
• Do not spray inflammable
gas near the refrigerator.
-There is a risk of explosion
or fire.
CAUTION
DA68-02601F-00.indb 12DA68-02601F-00.indb 12 2014. 9. 16.  9:052014. 9. 16.  9:05

English - 13
SAFETY INFORMATION
• Do not spray cleaning
products directly on the
display.
-Printed letters on the display
may come off.
• Remove any foreign matter
or dust from the power plug
pins. But do not use a wet
or damp cloth when cleaning
the plug, remove any foreign
material or dust from the
power plug pins.
-Otherwise there is a risk of
fire or electric shock.
• Never put fingers or other
objects into the dispenser
hole and ice chute.
-It may cause a personal
injury or material damage.
• Unplug the refrigerator
before cleaning and
performing maintenance.
• Plug the power plug into the
wall socket firmly. Do not
use a damaged power plug,
damaged power cord or
loose wall socket.
-This may result in an electric
shock or fire.
• Do not pull or excessively
bend the power cord. Do
not twist or tie the power
cord. Do not hook the power
cord over a metal object,
place a heavy object on the
power cord, insert the power
cord between objects, or
push the power cord into the
space behind the appliance.
-When moving the refrigerator,
be careful not to roll over or
damage the power cord
-This may result in an electric
shock or fire.
• Do not modify the
refrigerator. Unauthorized
modifications can cause
safety problems.
To reverse an unauthorized
modification, we will charge
the full cost of parts and
labor.
DA68-02601F-00.indb 13DA68-02601F-00.indb 13 2014. 9. 16.  9:052014. 9. 16.  9:05

English - 14
SEVERE WARNING
SIGNS FOR
DISPOSAL
• Ensure that none of the
pipes on the back of the
appliance are damaged
prior to disposal.
• R-600a or R-134a is used
as a refrigerant. Check the
compressor label on the rear
of the appliance or the rating
label inside the refrigerator
to see which refrigerant is
used for your refrigerator.
When this product contains
flammable gas (Refrigerant
R-600a), contact your local
authority in regard to safe
disposal of this product.
Cyclopentane is used as an
insulation blowing gas.
The gases in insulation
material require special
disposal procedure.
Please contact your local
authorities in regard to the
environmentally safe disposal
of this product. Ensure that
none of the pipes on the
back of the appliances are
damaged prior to disposal.
The pipes shall be broken in
the open space.
CAUTION
• When disposing of
this product or other
refrigerators, remove the
door/door seals, door latch
so that small children or
animals cannot become
trapped inside. Leave the
shelves in place so that
children may not easily climb
inside. Children should be
supervised to ensure that
they do not play with the old
appliance.
• Please dispose of the
packaging material for this
product in an environmentally
friendly manner.
• Keep all packaging materials
well out of the reach of
children, as packaging
materials can be dangerous
to children.
-If a child places a bag over
its head, it may result in
suffocation.
DA68-02601F-00.indb 14DA68-02601F-00.indb 14 2014. 9. 16.  9:052014. 9. 16.  9:05

English - 15
SAFETY INFORMATION
ADDITIONAL TIPS
FOR PROPER USAGE
• In the event of a power
failure, call the local office
of your Electricity Company
and ask how long it is going
to last.
-Most power failures that are
corrected within an hour
or two will not affect your
refrigerator temperatures.
However, you should
minimize the number of door
openings while the power is
off.
-Should the power failure last
more than 24 hours, remove
all frozen food.
• If keys are provided with the
refrigerator, the keys should
be kept out of the reach of
children and not be in the
vicinity of the appliance.
• The appliance might
not operate consistently
(possibility of temperature
becoming too warm in the
refrigerator) when sited
for an extended period of
time below the cold end of
the range of temperature
for which the refrigerating
appliance is designed.
• Do not store food which
spoils easily at low
temperature, such as
bananas, melons.
• Your appliance is frost free,
which means there is no
need to manually defrost
your appliance, as this will
be carried out automatically.
• Temperature rise during
defrosting can comply with
ISO requirements.
But if you want to prevent
an undue rise in the
temperature of the frozen
food while defrosting the
appliance, please wrap the
frozen food up in several
layers of newspaper.
• Any increase in temperature
of frozen food during
defrosting can shorten its
storage life.
• Contains fluorinated
greenhouse gases covered
by the Kyoto Protocol.
• Foam blown with fluorinated
greenhouse gases.
• Foam blown additive:
Perfluorohexane Global
Warming Potential (GWP)
= 9000
DA68-02601F-00.indb 15DA68-02601F-00.indb 15 2014. 9. 16.  9:052014. 9. 16.  9:05

English - 16
Saving Energy Tips
-Install the appliance in a
cool, dry room with adequate
ventilation.
Ensure that it is not exposed
to direct sunlight and never
put it near a direct source of
heat (radiator, for example).
-Never block any vents or
grilles on the appliance.
-Allow warm food to cool
down before placing it in the
appliance.
-Put frozen food in the
refrigerator to thaw.
You can then use the low
temperatures of the frozen
products to cool food in the
refrigerator.
-Do not keep the door of
the appliance open for too
long when putting food in or
taking food out.
The shorter time for which
the door is open, the less ice
will form in the freezer.
-Clean the rear of the
refrigerator regularly.
Dust increases energy
consumption.
-Do not set temperature
colder than necessary.
-Ensure sufficient air exhaust
at the refrigerator base
and at the back wall of the
refrigerator.
Do not cover air vent
openings.
-Allow clearance to the right,
left, top when installing.
This will help reduce power
consumption and keep your
energy bills lower.
-For the most efficient use
of energy, please keep the
all inner fittings such as
baskets, drawers, shelves
on the position supplied by
manufacturer.
This appliance is intended
to be used in household and
similar applications such as
-staff kitchen areas in shops,
offices and other working
environments;
-farm houses and by
clients in hotels, motels
and other residential type
environments;
-bed and breakfast type
environments;
-catering and similar non-
retail applications.
DA68-02601F-00.indb 16DA68-02601F-00.indb 16 2014. 9. 16.  9:052014. 9. 16.  9:05

English - 17
SETTING UP
Setting up your French Door
Refrigerator
GETTING READY TO INSTALL
THE REFRIGERATOR
Congratulations on your purchase of this Samsung
French Door Refrigerator.
We hope you enjoy the state-of-art features and
efficiencies that this new appliance offers.
Selecting the best location for the
refrigerator
• A location with easy access to a water supply.
• A location without direct exposure to sunlight.
• A location with a leveled floor.
• A location with enough space for the
refrigerator doors to open easily.
• A location that allows sufficient space to the
right, left, back and top for air circulation.
• A location that allows you to move the
refrigerator easily if it needs maintenance or
service.
• Do not install the refrigerator where the
temperature will go below 10ºC.
• Do not locate the refrigerator where it may
become wet.
If the refrigerator does not have enough space,
the internal cooling system may not work properly.
If your refrigerator has an ice maker, allow extra
space at the back for the water line connections.
When you install the refrigerator next to a fixed
wall, you need a minimum clearance of 95mm
between the refrigerator and wall to allow the door
to swing open.
First thing! Make sure that you can easily move
your refrigerator to its final location by measuring
doorways (both width and height), thresholds,
ceilings, stairways, etc.

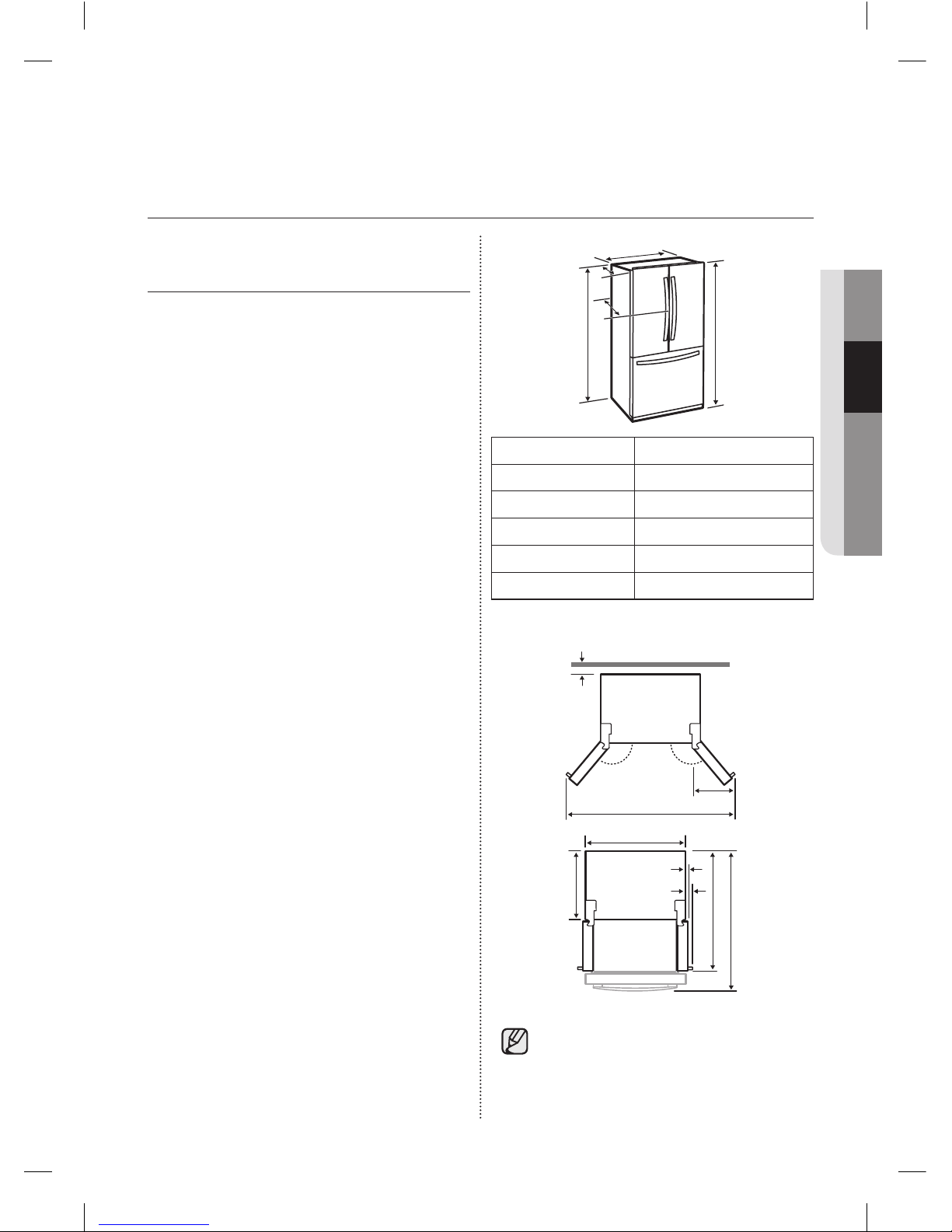

The following chart details the exact height and
depth of this Samsung French Door Refrigerator.
A
A
B
B
C
C
D
D
E
E
Model RF26HF**
Depth “A” 860mm
Width “B” 908mm
Height “C” 1737mm
Overall Height “D” 1778mm
Depth “E” 920mm
1650mm
1650mm
387mm
387mm
130°
130°
130°
130°
50mm
50mm
908mm
908mm
745mm
745mm
1220mm
1220mm
46mm
46mm
108mm
108mm
1324mm
1324mm
Each measurement based on the design
dimension, so it may differ depending on
the measuring method.
DA68-02601F-00.indb 17DA68-02601F-00.indb 17 2014. 9. 16.  9:052014. 9. 16.  9:05

English - 18

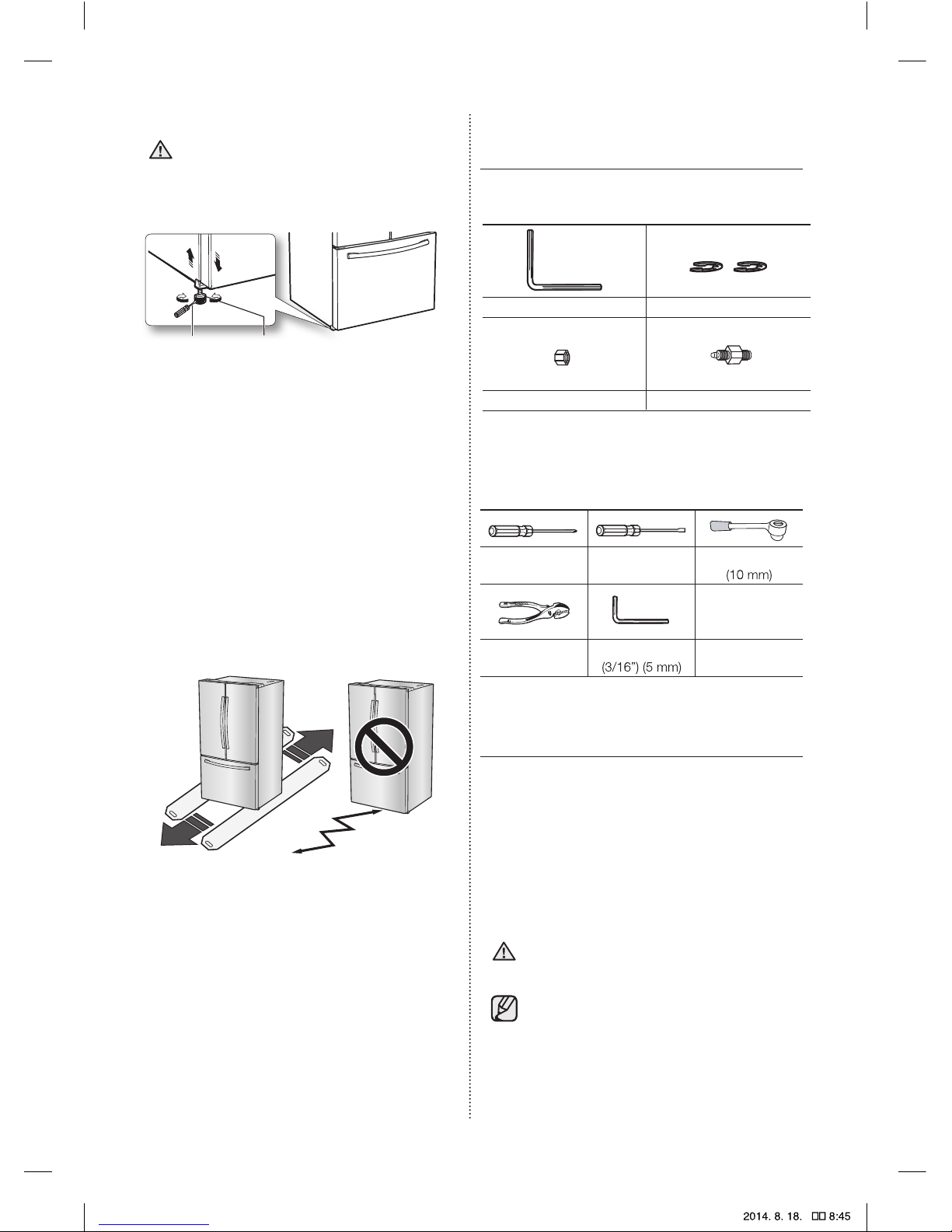

When moving your refrigerator
To prevent floor damage, be sure the front
adjusting legs are in the up position (above
the floor). Refer to ‘Adjusting the Level’ in
the manual (on page 22).
Flat-blade screw
driver(-)
Control Lever
FLOORING
For proper installation, you must place this
refrigerator on a level, hard surface that is the
same height as the rest of the floor.
This surface should be strong enough to support
a fully loaded refrigerator.
To protect the finish of the flooring, cut a large
section of the cardboard carton and place it under
the refrigerator where you are working.
When moving the refrigerator, you need to pull
and push it straight forwards or back.
Do not wiggle it from side to side.
CAUTION
ACCESSORIES AND
REQUIRED TOOLS
The following accessories are included with your
refrigerator:
Hex wrench Fastener
Required Tools (Not provided)
You need the following tools to complete the
installation of your refrigerator:
Philips
screwdriver(+)
Flat-blade screw
driver(-)
Socket wrench
Pliers Allen wrench
REMOVING THE
REFRIGERATOR DOORS
For some installations you need to remove the
fridge and freezer drawers so you can move the
refrigerator to its final location. Do not remove
the doors/drawer if you don’t need to. If you do
not need to remove the refrigerator doors, go to
Adjusting the Level on page 22. If you need to
remove the doors. continue below.
Before removing the door/drawer, make sure you
read the following items:
Disconnect power to the refrigerator before
removing the door or drawer.
•Be careful not to drop, damage or
scratch the door/drawer while removing
them.
•Use care when remove the doors/drawer.
The doors are heavy and you could injure
yourself.
WARNING
DA68-02601F-00.indb
(1/4") Compression FittingCompression Nut

English - 19
SETTING UP
• Reattach the doors/drawer properly to avoid:
- Moisture from air leakage.
- Uneven door alignment.
- Wasting energy due to improper door seal.
HOW TO ASSEMBLE THE HANDLE
Fridge door handle assembly
Check the direction of Handle assembly.
(Assemble the side of the handle attached a
sticker toward toward the upper direction.)
Fix the handles to the doors
by sliding them down firmly.
Tighten with wrench firmly.
Drawer door handle assembly
Check the direction of
Handle assembly.
Fix the handles to the
doors by sliding them left
side firmly.
Fix the handles to the doors by sliding them down
firmly.
Tilt up the Handle bar and tighten with wrench firmly.
DA68-02601F-00.indb 19DA68-02601F-00.indb 19 2014. 9. 16.  9:052014. 9. 16.  9:05

English - 20

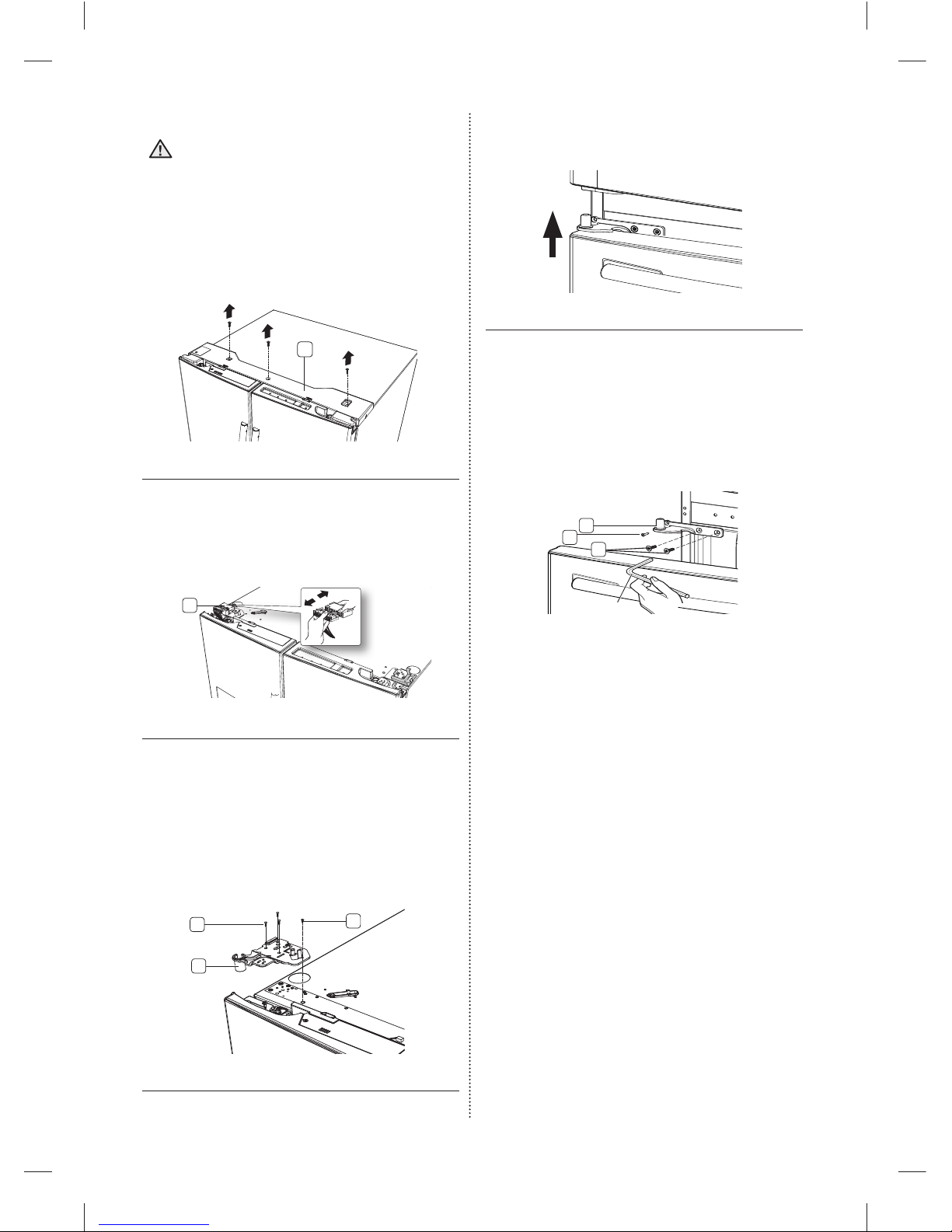

Disassemble the refrigerator doors
Be careful not to drop and scratch the
doors while removing them.
With the door opened
1. Remove 3 screws holding down the TOP
TABLE ( 1) and turn it with wires connected.
1
2. Disconnect two connector ( 2 ) on the left side
door. To remove the water coupler from the
hinge, twist and pull it from the hinge.
2
3. Remove the bolt (3) attached to the upper
hinge with Socket wrench (10mm). Remove
the ground screw ( 4) attached to the upper
left door hinges with a philips screwdriver (+).
Remove the upper left and right door hinges
( 5).
34
5
WARNING
4. Lift the door straight up to remove.
5. Remove the screw ( 6 ) attached to the
lower left and right door hinges with a philips
screwdriver (+). Remove the 2 hex head bolts
( 7) attached to the lower left and right door
hinges with an allen wrench (5mm). Remove
the lower left and right door hinges ( 8).
Allen wrench
Allen wrench
8
6
7
DA68-02601F-00.indb 20DA68-02601F-00.indb 20 2014. 9. 16.  9:052014. 9. 16.  9:05
