Safety information
SAFETY INFORMATION
• Before operating the
appliance, please read this
manual thoroughly and
retain it at a safe place near
the appliance for your future
reference.
• Use this appliance only for
its intended purpose as
described in this instruction
manual. This appliance is not
intended for use by persons
(including children) with
reduced physical, sensory
or mental capabilities, or
lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use
of the appliance by a person
responsible for their safety.
• This appliance can be
used by children aged
from 8 years and above
and persons with reduced
physical, sensory or mental
capabilities or lack of
experience and knowledge
if they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand the hazards
involved.
Children shall not play with
the appliance.
Cleaning and user
maintenance shall not be
made by children without
supervision.
Contents
SAFETY INFORMATION ………………………………………………………………………………………2
SETTING UP YOUR FRENCH DOOR REFRIGERATOR ……………………………………………… 17
OPERATING YOUR FRENCH DOOR REFRIGERATOR ………………………………………………… 30
TROUBLESHOOTING ……………………………………………………………………………………… 58
English - 2
DA68-03022B (EN)-04.indd 2 14. 6. 23. �� 2:47

• Warnings and Important
Safety Instructions in this
manual do not cover all
possible conditions and
situations that may occur.
It is your responsibility to use
common sense, caution,
and care when installing,
maintaining, and operating
your appliance.
• Because these following
operating instructions
cover various models,
the characteristics of your
refrigerator may dier slightly
from those described in this
manual and not all warning
signs may be applicable.
If you have any questions
or concerns, contact your
nearest service center or find
help and information online
at www.samsung.com.
• It is hazardous for anyone
other than an Authorised
Service Person to service
this appliance.
In Queensland – the
authorized Service Person
MUST hold a Gas Work
Authorisation or Licence for
hydrocarbon refrigerants, to
carry out Servicing or repairs
which involve the removal of
covers. (For Australia only)
Important safety symbols
and precautions :
WARNING
Hazards or unsafe
practices that may result
in severe personal
injury or death.
CAUTION
Hazards or unsafe
practices that may result
in minor personal injury
or property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions
carefully.
Unplug the power plug
from the wall socket.
Make sure the machine
is grounded to prevent
electric shock.
Call the contact center
for help.
Note.
English - 3
SAFETY INFORMATION
DA68-03022B (EN)-04.indd 3 14. 6. 23. �� 2:47

These warning signs are
here to prevent injury to
you and others.
Please follow them carefully.
After reading this section,
keep it in a safe place for
future reference.
CE Notice
This product has been
determined to be in
compliance with the Low
Voltage Directive (2006/95/
EC), the Electromagnetic
Compatibility Directive
(2004/108/EC), RoHS Directive
(2011/65/EU), Commission
Delegated Regulation (EU)
No 1060/2010 and the Eco-
Design Directive(2009/125/EC)
implemented by Regulation
(EC) No 643/2009 of the
European Union. (For products
sold in European Countries
only)
SEVERE WARNING
SIGNS FOR
TRANSPORTATION
AND SITE
• When transporting
and installing the
appliance,care should
be taken to ensure
that no parts of the
refrigerating circuit are
damaged.
• R-600a or R-134a is used
as a refrigerant. Check the
compressor label on the rear
of the appliance or the rating
label inside the refrigerator to
see which refrigerant is used
for your refrigerator.
• When this product contains
flammable gas (Refrigerant
R-600a),
- Refrigerant leaking from the
pipe work could ignite or
cause an eye injury. If a leak
is detected, avoid any naked
flames or potential sources
of ignition and air the room
in which the appliance is
standing for several minutes.
- In order to avoid the creation
of a flammable gas-air
mixture if a leak in the
refrigerating circuit occurs,
WARNING
English - 4
DA68-03022B (EN)-04.indd 4 14. 6. 23. �� 2:47

the size of the room in which
the appliance may be sited
depends on the amount of
refrigerant used.
- Never start up an appliance
showing any signs of
damage. If in doubt, consult
your dealer. The room
where the refrigerator will
be sited must be 1m³
in size for every 8g of
R-600a refrigerant inside the
appliance. The amount of
refrigerant in your particular
appliance is shown on the
identification plate inside the
appliance.
- If the appliance contains
isobutane refrigerant
(R-600a), a natural gas
with high environmental
compatibility that is,
however, also combustible.
When transporting and
installing the appliance,
care should be taken to
ensure that no parts of
the refrigerating circuit are
damaged.
SEVERE WARNING
SIGNS FOR
INSTALLATION
• Do not install this
appliance in a humid,
oily or dusty location, in
a location exposed to
direct sunlight and water
(rain drops).
- Deteriorated insulation of
electrical parts may cause
an electric shock or fire.
• Do not place this refrigerator
in direct sunlight or expose
to the heat from stoves,
room heaters or other
appliances.
• Do not plug several
appliances into the same
multiple power board.
The refrigerator should
always be plugged into its
own individual electrical
outlet which has a voltage
rating that matched the
rating plate.
- This provides the best
performance and also
prevents overloading house
wiring circuits, which could
cause a fire hazard from
overheated wires. If the wall
socket is loose, do not insert
WARNING
English - 5
SAFETY INFORMATION
DA68-03022B (EN)-04.indd 5 14. 6. 23. �� 2:47

the power plug.
- There is a risk of electric
shock or fire.
• Do not use a cord that
shows cracks or abrasion
damage along its length or
at either end.
• Do not bend the power cord
excessively or place heavy
articles on it.
• Do not use aerosols near the
refrigerator.
- Aerosols used near the
refrigerator may cause an
explosion or fire.
• Do not install this appliance
in a location where gas may
leak.
- This may result in an electric
shock or fire.
• The installation or any
service of this appliance
is recommended by a
qualified technician or
service company.
- Failing to do so may result
in an electric shock, fire,
explosion, problems with the
product, or injury.
• This refrigerator must be
properly installed and
located in accordance with
the manual before it is used.
• Do not install the refrigerator
in a damp place or place
where it may come in
contact with water.
- Deteriorated insulation of
electrical parts may cause
an electric shock or fire.
• Connect the power plug in
proper position with the cord
hanging down.
- If you connect the power
plug upside down, wire can
get cut o and a cause fire
or an electric shock.
• Do not use a cord that
shows cracks or abrasion
damage along its length or
at either end.
• Make sure that the power
plug is not squashed or
damaged by the back of the
refrigerator.
• When moving the
refrigerator, be careful not
to roll over or damage the
power cord.
- This constitutes a fire
hazard.
• The appliance must be
positioned so that the plug is
accessible after installation.
• Keep the packing materials
out of reach of children.
English - 6
DA68-03022B (EN)-04.indd 6 14. 6. 23. �� 2:47

- There is a risk of death from
suocation if children put
them on their head.
• This appliance must
be properly grounded.
Do not ground the
appliance to a gas pipe,
plastic water pipe, or
telephone line.
- You must ground the
refrigerator to prevent any
power leakages or electric
shocks caused by current
leakage from the refrigerator.
- This may result in an electric
shock, fire, explosion, or
problems with the product.
- Never plug the power
cord into a socket that is
not grounded correctly
and make sure that it is in
accordance with local and
national codes.
• If the power cord is
damaged, have it
replaced immediately by
the manufacturer or its
service agents.
• The fuse on the refrigerator
must be changed by a
qualified technician or
service company.
- Failing to do so may result in
an electric shock or personal
injury.
CAUTION SIGNS FOR
INSTALLATION
• Keep ventilation
opening in the appliance
enclosure or mounting
structure clear of
obstruction.
• Allow the appliance to stand
for 2 hours after installation.
- When installing the
refrigerator, make sure both
legs contact the floor for
secure installation.
Legs are located at the
bottom back of freezer door.
Insert a flathead screwdriver
and turn it in the direction of
the arrow until it is level.
CAUTION
English - 7
SAFETY INFORMATION
DA68-03022B (EN)-04.indd 7 14. 6. 23. �� 2:47

- Always balance the load on
each door.
- Overload on any one door
may fell the refrigerator,
causing physical injury.
SEVERE WARNING
SIGNS FOR USING
• Do not insert the power
plug with wet hands.
• Do not store articles on the
top of the appliance.
- When you open or close the
door, the articles may fall
and cause a personal injury
and/or material damage.
• Do not put items filled with
water on the refrigerator.
- If spilled, there is a risk of fire
or electric shock.
• Do not let children hang on
the door.
- Failure to do so may cause
serious personal injury.
• Do not leave the doors of
the refrigerator open while
the refrigerator is unattended
and do not let children enter
inside the refrigerator.
• Do not allow babies or
children go inside the
WARNING
drawer.
- It can cause death from
suocation by entrapment or
personal injury.
• Do not sit on the Freezer
door.
- The door may be broken
and cause a personal injury.
• Children should be
supervised to ensure that
they do not play with the
appliance. Keep fingers out
of “pinch point” areas :
clearances between the
doors and cabinet are
necessarily small. Be careful
when you open the doors
when children are in the
area. Do not let children
hang on the door.
If not, a serious injury may
occur. There is a Risk of
children entrapment. Do not
let children enter inside the
refrigerator.
• To prevent children
entrapment, you must
reinstall the divider using
provided screws after
cleaning or other actions
if you removed the divider
from the drawer.
• Never put fingers or other
objects into the dispenser
English - 8
DA68-03022B (EN)-04.indd 8 14. 6. 23. �� 2:47

hole.
- Failure to do so may cause
personal injury or material
damage.
• Do not store volatile or
flammable substances such
as benzene, thinner, alcohol,
ether or LP gas in the
refrigerator.
- The storage of any of such
products may cause an
explosion.
• Do not store low
temperature-sensitive
pharmaceutical products,
scientific materials or other
low temperature-sensitive
products in the refrigerator.
- Products that require
strict temperature controls
must not be stored in the
refrigerator.
• Do not place or use
electrical appliance inside
the refrigerator, unless they
are of a type recommended
by the manufacturer.
• Do not use a hair dryer
to dry the inside of the
refrigerator. Do not place
a lighted candle in the
refrigerator for removing bad
odors.
- This may result in an electric
shock or fire.
• Do not touch the inside walls
of the freezer or products
stored in the freezer with wet
hands.
- This may cause frostbite.
• Do not use mechanical
devices or any other means
to accelerate the defrosting
process, other than those
recommended by the
manufacturer.
• Do not damage the
refrigerant circuit.
• This appliance should be
positioned in such a way
that it is accessible to the
power plug.
- Failing to do so may result in
an electric shock or fire due
to electric leakage.
• This product is intended
only for the storage
of food in a domestic
environment.
• Bottles should be stored
tightly together so that they
do not fall out.
• In the event of a gas leak
(such as propane gas,
LP gas, etc.), ventilate
immediately without
touching the power plug.
English - 9
SAFETY INFORMATION
DA68-03022B (EN)-04.indd 9 14. 6. 23. �� 2:47

Do not touch the appliance
or power cord.
• Do not insert hands, feet
or metal objects (such as
chopsticks, etc.) into the
bottom or the back of the
refrigerator.
- This may result in an electric
shock or injury.
- Any sharp edges may cause
a personal injury.
- Do not use a ventilating fan.
- A spark may result in an
explosion or fire.
• Use only the LED Lamps
provided by manufacturer or
service agent.
• Children should be
supervised to ensure that
they do not play with and/or
climb into the appliance.
• Do not disassemble or
repair the refrigerator by
yourself.
- You run a risk of causing
a fire, malfunction and/ or
personal injury. In case of
malfunction, please contact
your service agent.
• Do not attempt to repair,
disassemble, or modify
the appliance yourself.
- Do not use any fuse(such
as cooper, steel wire, etc.)
other than the standard fuse.
- When repairing or reinstalling
the appliance is required,
contact your nearest service
center.
- Failing to do so may result
in an electric shock, fire,
problems with the product,
or injury.
• If the appliance generates a
strange noise, a burning or
smell or smoke, unplug the
power plug immediately and
contact your nearest service
center.
- Failing to do so may result in
an electric or fire hazards.
• If you experience diculty
when changing the light,
contact service agent.
• If the products is equipped
with the LED Lamp, do
not disassemble the Lamp
Cover and LED Lamp by
yourself.
- Please contact your service
agent.
• If any dust or water is in the
refrigerator, pull out power
plug and contact your
Samsung Electronics service
center.
English - 10
DA68-03022B (EN)-04.indd 10 14. 6. 23. �� 2:47

- There is a risk of fire.
CAUTION SIGNS FOR
USING
• To get best performance
from the product,
- Do not place foods too
closely in front of the vents
at the rear of the appliance
as it can obstruct free air
circulation in the refrigerator
compartment.
- Wrap the food up properly or
place it in airtight containers
before putting it into the
refrigerator.
- Do not put any newly
introduced food for freezing
near to already existing food.
• Do not place carbonated
or fizzy drinks in the freezer
compartment. Do not put
bottles or glass containers in
the freezer.
- When the contents freeze,
the glass may break and
cause personal injury and
property damage.
• Do not change or modify
the functionality of the
refrigerator.
CAUTION
- Changes or modifications
may result in a personal
injury and/or property
damage. Any changes or
modifications performed
by a 3rd party on this
completed appliance are
neither covered under
Samsung warranty service,
nor is Samsung responsible
for safety issues and
damages that result from
3rd party modifications.
• Do not block air holes.
- If the air holes are blocked,
especially with a plastic bag,
the refrigerator can be over
cooled. If this cooling period
lasts too long, the water filter
may break and cause water
leakage.
- Do not put any newly
introduced food for freezing
near to already existing food.
• Please observe maximum
storage times and expiry
dates of frozen goods.
• Fill the water tank, ice tray
and water cubes only with
potable water (mineral water
or purified water).
- Do not fill the tank with tea
or a Sports drink. This may
damage the refrigerator.
English - 11
SAFETY INFORMATION
DA68-03022B (EN)-04.indd 11 14. 6. 23. �� 2:47

• Use only the ice-maker
provided with the
refrigerator.
• The water supply to this
refrigerator must only be
installed/connected by a
suitably qualified person
and connected to a potable
water supply only.
• In order to operate the
ice-maker properly, water
pressure of 138~862
kPa(1.4~8.8 kgf/cm3) is
required.
• Do not spray volatile material
such as insecticide onto the
surface of the appliance.
- As well as being harmful to
humans, it may also result
in an electric shock, fire or
problems with the product.
• Do not apply strong shock
or excessive force onto the
surface of glass.
- Broken glass may result
in a personal injury and/or
property damage.
CAUTION SIGNS
FOR CLEANING AND
MAINTENANCE
• Do not directly spray
water inside or outside
the refrigerator.
- There is a risk of fire or
electric shock.
• Do not use or place any
substances sensitive
to temperature such
as inflammable sprays,
inflammable objects, dry
ice, medicine, or chemicals
near the refrigerator. Do not
keep volatile or inflammable
objects or substances
(benzene, thinner, propane
gas, etc.) in the refrigerator.
- This refrigerator is for storing
food only.
- This may result in a fire or an
explosion.
• Do not spray inflammable
gas near the refrigerator.
- There is a risk of explosion
or fire.
• Do not spray cleaning
products directly on the
display.
- Printed letters on the display
may come o.
• Remove any foreign matter
CAUTION
English - 12
DA68-03022B (EN)-04.indd 12 14. 6. 23. �� 2:47

or dust from the power
plug pins. But do not use
a wet or damp cloth when
cleaning the plug, remove
any foreign material or dust
from the power plug pins.
- Otherwise there is a risk of
fire or electric shock.
• Never put fingers or other
objects into the dispenser
hole and ice chute.
- It may cause a personal
injury or material damage.
• Unplug the refrigerator
before cleaning and
performing maintenance.
• Plug the power plug into the
wall socket firmly. Do not
use a damaged power plug,
damaged power cord or
loose wall socket.
- This may result in an electric
shock or fire.
• Do not pull or excessively
bend the power cord. Do
not twist or tie the power
cord. Do not hook the power
cord over a metal object,
place a heavy object on the
power cord, insert the power
cord between objects, or
push the power cord into the
space behind the appliance.
- When moving the
refrigerator, be careful not
to roll over or damage the
power cord
- This may result in an electric
shock or fire.
• Do not modify the
refrigerator. Unauthorized
modifications can cause
safety problems.
To reverse an unauthorized
modification, we will charge
the full cost of parts and
labor.
SEVERE WARNING
SIGNS FOR
DISPOSAL
• Ensure that none of the
pipes on the back of the
appliance are damaged
prior to disposal.
• R-600a or R-134a is used
as a refrigerant. Check the
compressor label on the rear
of the appliance or the rating
label inside the refrigerator
to see which refrigerant is
used for your refrigerator.
When this product contains
flammable gas (Refrigerant
CAUTION
English - 13
SAFETY INFORMATION
DA68-03022B (EN)-04.indd 13 14. 6. 23. �� 2:47

R-600a), contact your local
authority in regard to safe
disposal of this product.
Cyclopentane is used as an
insulation blowing gas.
The gases in insulation
material require special
disposal procedure.
Please contact your local
authorities in regard to
the environmentally safe
disposal of this product.
Ensure that none of the
pipes on the back of the
appliances are damaged
prior to disposal. The pipes
shall be broken in the open
space.
• When disposing of
this product or other
refrigerators, remove the
door/door seals, door latch
so that small children or
animals cannot become
trapped inside. Leave the
shelves in place so that
children may not easily climb
inside. Children should be
supervised to ensure that
they do not play with the old
appliance.
• Please dispose of the
packaging material
for this product in an
environmentally friendly
manner.
• Keep all packaging materials
well out of the reach of
children, as packaging
materials can be dangerous
to children.
- If a child places a bag over
its head, it may result in
suocation.
ADDITIONAL TIPS
FOR PROPER USAGE
• In the event of a power
failure, call the local oce
of your Electricity Company
and ask how long it is going
to last.
- Most power failures that are
corrected within an hour
or two will not aect your
refrigerator temperatures.
However, you should
minimize the number of door
openings while the power is
o.
- Should the power failure last
more than 24 hours, remove
all frozen food.
• If keys are provided with the
refrigerator, the keys should
English - 14
DA68-03022B (EN)-04.indd 14 14. 6. 23. �� 2:47

be kept out of the reach of
children and not be in the
vicinity of the appliance.
• The appliance might
not operate consistently
(possibility of temperature
becoming too warm in the
refrigerator) when sited
for an extended period of
time below the cold end of
the range of temperature
for which the refrigerating
appliance is designed.
• Do not store food which
spoils easily at low
temperature, such as
bananas, melons.
• Your appliance is frost free,
which means there is no
need to manually defrost
your appliance, as this will
be carried out automatically.
• Temperature rise during
defrosting can comply with
ISO requirements.
But if you want to prevent
an undue rise in the
temperature of the frozen
food while defrosting the
appliance, please wrap the
frozen food up in several
layers of newspaper.
• Any increase in temperature
of frozen food during
defrosting can shorten its
storage life.
Except for RF24HS**C**,
RF23HS**C** model
• Contains fluorinated
greenhouse gases covered
by the Kyoto Protocol.
• Foam blown with fluorinated
greenhouse gases.
• Foam blown additive:
Perfluorohexane Global
Warming Potential (GWP)
= 9000
English - 15
SAFETY INFORMATION
DA68-03022B (EN)-04.indd 15 14. 6. 23. �� 2:47

Saving Energy Tips
- Install the appliance in
a cool, dry room with
adequate ventilation.
Ensure that it is not exposed
to direct sunlight and never
put it near a direct source of
heat (radiator, for example).
- Never block any vents or
grilles on the appliance.
- Allow warm food to cool
down before placing it in the
appliance.
- Put frozen food in the
refrigerator to thaw.
You can then use the low
temperatures of the frozen
products to cool food in the
refrigerator.
- Do not keep the door of
the appliance open for too
long when putting food in or
taking food out.
The shorter time for which
the door is open, the less ice
will form in the freezer.
- Clean the rear of the
refrigerator regularly.
Dust increases energy
consumption.
- Do not set temperature
colder than necessary.
- Ensure sucient air exhaust
at the refrigerator base
and at the back wall of the
refrigerator.
Do not cover air vent
openings.
- Allow clearance to the right,
left, top when installing.
This will help reduce power
consumption and keep your
energy bills lower.
- For the most ecient use
of energy, please keep the
all inner fittings such as
baskets, drawers, shelves
on the position supplied by
manufacturer.
This appliance is intended
to be used in household and
similar applications such as
- sta kitchen areas in shops,
oces and other working
environments;
- farm houses and by
clients in hotels, motels
and other residential type
environments;
- bed and breakfast type
environments;
- catering and similar non-
retail applications.
English - 16
DA68-03022B (EN)-04.indd 16 14. 6. 23. �� 2:47

Setting up your French Door
Refrigerator
GETTING READY TO INSTALL
THE REFRIGERATOR
Congratulations on your purchase of this
Samsung French Door Refrigerator.
We hope you enjoy the state-of-art features and
eciencies that this new appliance oers.
Selecting the best location for the
refrigerator
Choose :
• A location with easy access to a water supply.
• A location without direct exposure to sunlight.
• A location with a level floor.
• A location with enough space for the
refrigerator doors to open easily.
• A location that allows sucient space to the
right, left, back, and top for air circulation.
If the refrigerator does not have enough space,
the internal cooling system may not work
properly.
• A location that allows you to move the
refrigerator easily if it needs maintenance or
service.
• Do not install the refrigerator where the
temperature will go below 10ºC.
• Do not locate the refrigerator where it may
become wet.
If the refrigerator does not have enough space,
the internal cooling system may not work properly.
If your refrigerator has an ice maker, allow extra
space at the back for the water line connections.
When you install the refrigerator next to a fixed
wall, you need a minimum clearance of 95mm
between the refrigerator and wall to allow the door
to swing open.
Important : Make sure that you can easily move
your refrigerator to its final location by measuring
doorways (both width and height), thresholds,
ceilings, stairways, etc.

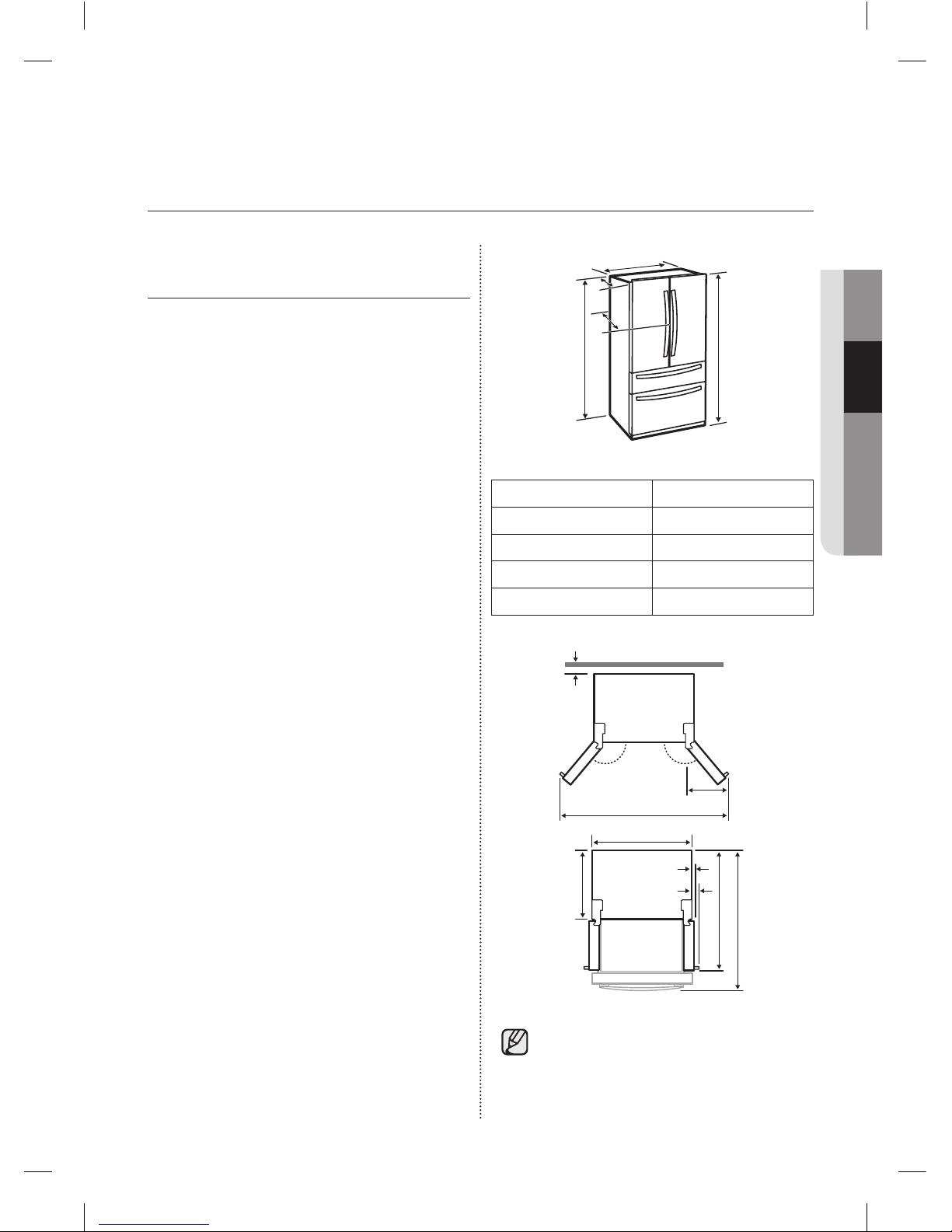

The following chart details the exact height and
depth of this Samsung French Door Refrigerator.
AA
B
B
C
CD
D
EE
Depth “A” 726mm
Width “B” 908mm
Height “C” 1749mm
Overall Height “D” 1777mm
Depth “E” 788mm
1526mm 309mm
120°120°
50mm
908mm
610mm
1088mm
1125mm
122mm
61mm
Each measurement based on the design
dimension, so it may dier depending on
the measuring method.
English - 17
SETTING UP
DA68-03022B (EN)-04.indd 17 14. 6. 23. �� 2:47

When moving your refrigerator
To prevent floor damage, be sure the
front adjusting legs are in the up position
(above the floor).
Refer to ‘Leveling the Refrigerator’ in the
manual (on page 23).
Flat-blade screw
driver (-)
Control Lever
FLOORING
For proper installation, you must place this
refrigerator on a level, hard surface that is the
same height as the rest of the floor.
This surface should be strong enough to support
a fully loaded refrigerator.
To protect the finish of the flooring, cut a large
section of the cardboard carton and place it under
the refrigerator where you are working.
When moving the refrigerator, you need to pull
and push it straight forwards or back.
Do not wiggle it from side to side.
CAUTION
ACCESSORIES AND
REQUIRED TOOLS
The following accessories are included with your
refrigerator:
Hex wrench
Required Tools (Not provided)
You need the following tools to complete the
installation of your refrigerator:
Philips
screwdriver (+)
Flat-blade
screw driver (-)
Socket wrench
(10mm)
Pliers Allen wrench
(5mm)
English - 18
DA68-03022B (EN)-04.indd 18 14. 6. 23. �� 2:47

REMOVING THE
REFRIGERATOR DOORS
For some installations you need to remove the
fridge and freezer drawers so you can move the
refrigerator to its final location.
Do not remove the doors/drawer if you don’t
need to.
If you need to remove the doors. continue below.
If you do not need to remove the refrigerator
doors, go to `Leveling the Refrigerator’ on page
23.
Disconnect power to the refrigerator
before removing the door or drawer.
• Be careful not to drop, damage, or
scratch the doors/drawers while
removing them.
• Use care when you remove the doors/drawers.
The doors are heavy and you could injure
yourself.
• Reattach the doors/drawers properly to avoid:
- Moisture from air leakage.
- Uneven door alignment.
- Wasting energy due to improper door seal.
WARNING
Disassemble the refrigerator doors
Be careful not to drop and scratch the
doors while removing them.
With the door opened
1. Remove the 3 screws holding down the TOP
TABLE (1) and separate the connected wires.
(1)
2. Disconnect the two connectors (2) on the left
side door.
To remove the water coupler from the hinge,
twist and pull it from the hinge. Remove the
water line (3) while pressing the marked part
(4) of the water line coupler.
If a red clip is on the coupler, you must
remove it before removing the tube.
(2)
(3)
Red Clip
(1/4")
(4)
WARNING
CAUTION
English - 19
SETTING UP
DA68-03022B (EN)-04.indd 19 14. 6. 23. �� 2:47

3. Pull and remove the hinge lever (5).
Remove the ground screw (6) attached
to the upper left door hinges with a philips
screwdriver (+).
Remove the upper left and right door hinges
(7).
(2)
(7)
(6)
4. Open the door (more than 90°), lift from the
middle hinge and remove the door.
- Due to its design features, you can
disassemble and re-assemble the door when
the door is open.
(The holes in the Door Shaft and the Door
Middle Hinge are deliberately tilted at specific
angles so that it is dicult to disassemble and
re-assemble with the door closed.)
Place the door, inside facing up, on a
non-scratching surface.
CAUTION
Auto Closing Hinge
Check the direction
Door Middle Hinge
- If the Auto Closing Hinge is aligned to be
vertical as shown in the figure, align it to be
parallel by using the Door Middle Hinge.
(Refer to No.5 for the disassembly of the Door
Middle Hinge)
Do not use a flat head screwdriver to align
the Auto close Hinge.
It may get damaged. Use the Door middle
Hinge instead.
5. Remove the screw (8) attached to the
lower left and right door hinges with a philips
screwdriver (+).
Remove the 2 hex head bolts (9) attached
to the lower left and right door hinges with an
allen wrench (5mm).
Remove the lower left and right door hinges
(10).
Allen wrench
(10)
(8)
(9)
CAUTION
English - 20
DA68-03022B (EN)-04.indd 20 14. 6. 23. �� 2:47
