Samsung RF56J9041SREG User manual

Refrigerator
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
Free Standing Appliance
DA68-03194F-04.indb 1 2017. 6. 7. �� 8:11

English - 2
SAFETY INFORMATION
• Before operating the
appliance, please read this
manual thoroughly and retain
it for your reference.
• Use this appliance only for
its intended purpose as
described in this instruction
manual.
This appliance is not
intended for use by persons
(including children) with
reduced physical, sensory
or mental capabilities, or
lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use
of the appliance by a person
responsible for their safety.
• This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory
or mental capabilities or
lack of experience and
knowledge if they have
been given supervision or
instruction concerning use of
the appliance in a safe way
and understand the hazards
involved.
Children shall not play with
the appliance.
Cleaning and user
maintenance shall not be
made by children without
supervision.
• Warnings and Important
Safety Instructions in this
Safety information
Contents
SAFETY INFORMATION ……………………………………………………… 2
SETTING UP YOUR REFRIGERATOR …………………………………… 18
OPERATING YOUR SAMSUNG REFRIGERATOR ……………………… 26
TROUBLESHOOTING ……………………………………………………… 34
DA68-03194F-04.indb 2 2017. 6. 7. �� 8:11

English - 3
SAFETY INFORMATION
manual do not cover all
possible conditions and
situations that may occur.
It is your responsibility to use
common sense, caution,
and care when installing,
maintaining, and operating
your appliance.
• Because these following
operating instructions
cover various models,
the characteristics of your
refrigerator may dier slightly
from those described in this
manual.
R-600a or R-134a is used as
a refrigerant.
Check the compressor label
on the rear of the appliance
or the rating label inside the
fridge to see which refrigerant
is used for your refrigerator.
When this product contains
flammable gas (Refrigerant
R-600a), contact your local
authority in regard to safe
disposal of this product.
• In order to avoid the
creation of a flammable gas-
air mixture if a leak in the
refrigerating circuit occurs,
the size of the room in which
the appliance may be sited
depends on the amount of
refrigerant used.
• Never start up an appliance
showing any signs of
damage.
If in doubt, consult your
dealer.
The room must be 1m³
in size for every 8g of
R-600a refrigerant inside the
appliance.
The amount of refrigerant in
your particular appliance is
shown on the identification
plate inside the appliance.
• Refrigerant squirting out of
the pipes could ignite or
cause an eye injury.
When refrigerant leaks from
the pipe, avoid any naked
flames and move anything
flammable away from the
product and ventilate the
room immediately.
-Failing to do so may result in
fire or explosion.
DA68-03194F-04.indb 3 2017. 6. 7. �� 8:11

English - 4
Important safety symbols
and precautions:
WARNING
Hazards or unsafe
practices that may result
in severe personal
injury or death.
CAUTION
Hazards or unsafe
practices that may result
in minor personal
injury or property
damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions carefully.
Unplug the power plug
from the wall socket.
Make sure the machine
is grounded to prevent
electric shock.
Call the contact center for
help.
Note.
These warning signs are
here to prevent injury to you
and others.
Please follow them carefully.
After reading this section,
keep it in a safe place for
future reference.
DA68-03194F-04.indb 4 2017. 6. 7. �� 8:11

English - 5
SAFETY INFORMATION
SEVERE WARNING
SIGNS FOR
TRANSPORTATION
AND SITE
• When transporting
and installing the
appliance,care should be
taken to ensure that no
parts of the refrigerating
circuit are damaged.
-Refrigerant leaking from the
pipe work could ignite or
cause an eye injury.
If a leak is detected, avoid
any naked flames or potential
sources of ignition and air the
room in which the appliance
is standing for several
minutes.
-This appliance contains a
small amount of isobutane
refrigerant (R-600a), a natural
gas with high environmental
compatibility that is, however,
also combustible.
When transporting and
installing the appliance,
care should be taken to
ensure that no parts of
the refrigerating circuit are
damaged.
WARNING SEVERE WARNING
SIGNS FOR
INSTALLATION
• Deteriorated insulation
of electrical parts may
cause an electric shock
or fire.
• Do not place this refrigerator
in direct sunlight or expose to
the heat from stoves, room
heaters or other appliance.
• Do not plug several
appliances into the same
multiple power board.
The refrigerator should
always be plugged into its
own individual electrical outlet
which has a voltage rating
that matched the rating plate.
-This provides the best
performance and also
prevents overloading house
wiring circuits, which could
cause a fire hazard from
overheated wires.
• If the wall socket is loose, do
not insert the power plug.
-There is a risk of electric
shock or fire.
• Do not use a cord that shows
cracks or abrasion damage
along its length or at either
end.
WARNING
DA68-03194F-04.indb 5 2017. 6. 7. �� 8:11

English - 6
• Do not pull or excessively
bend the power cord.
• Do not twist or tie the power
cord.
• Do not hook the power cord
over a metal object, place a
heavy object on the power
cord, insert the power cord
between objects, or push the
power cord into the space
behind the appliance.
-When moving the refrigerator,
be careful not to roll over or
damage the power cord.
-This may result in an electric
shock or fire.
• Do not use aerosols near the
refrigerator.
-Aerosols used near the
refrigerator may cause an
explosion or fire.
-Do not bend the power cord
excessively or place heavy
articles on it.
• This refrigerator must be
properly installed and
located in accordance
with the manual before it
is used.
• Do not install the refrigerator
in a damp place or place
where it may come in contact
with water.
-Deteriorated insulation of
electrical parts may cause an
electric shock or fire.
• Connect the power plug in
proper position with the cord
hanging down.
-If you connect the power
plug upside down, wire can
get cut o and a cause fire or
an electric shock.
• Make sure that the power
plug is not squashed or
damaged by the back of the
refrigerator.
• When moving the refrigerator,
be careful not to roll over or
damage the power cord.
-This constitutes a fire hazard.
• Keep the packing materials
out of reach of children.
-There is a risk of death from
suocation if children put
them on their head.
• This appliance should be
positioned in such a way that
it is accessible to the power
plug.
-Failing to do so may result in
an electric shock or fire due
to electric leakage.
• Do not install this appliance
near a heater, inflammable
material.
DA68-03194F-04.indb 6 2017. 6. 7. �� 8:11

English - 7
SAFETY INFORMATION
• Do not install this appliance
in a humid, oily or dusty
location, in a location
exposed to direct sunlight
and water (rain drops).
• Do not install this appliance
in a location where gas may
leak.
-This may result in an electric
shock or fire.
• If any dust or water is in the
refrigerator, pull out power
plug and contact your
Samsung Electronics service
center.
-Otherwise there is a risk of
fire.
• Do not stand on top of the
appliance or place objects
(such as laundry, lighted
candles, lighted cigarettes,
dishes, chemicals, metal
objects, etc.) on the
appliance.
-This may result in an electric
shock, fire, problems with the
product, or injury.
• This appliance must be
properly grounded.
• Do not ground the appliance
to a gas pipe, plastic water
pipe, or telephone line.
-You must ground the
refrigerator to prevent any
power leakages or electric
shocks caused by current
leakage from the refrigerator.
-This may result in an electric
shock, fire, explosion, or
problems with the product.
-Never plug the power cord
into a socket that is not
grounded correctly and make
sure that it is in accordance
with local and national codes.
• If the power cord is
damaged, have it
replaced immediately by
the manufacturer or its
service agent.
• The fuse on the refrigerator
must be changed by a
qualified technician or service
company.
-Failing to do so may result in
an electric shock or personal
injury.
DA68-03194F-04.indb 7 2017. 6. 7. �� 8:11

English - 8
CAUTION SIGNS FOR
INSTALLATION
• Keep ventilation
opening in the appliance
enclosure or mounting
structure clear of
obstruction.
• Allow the appliance to stand
for 2 hours before loading
foods after installation and
turning on.
• The installation or any
service of this appliance
is recommended by a
qualified technician or service
company.
-Failing to do so may result
in an electric shock, fire,
explosion, problems with the
product, or injury.
• When installing the
refrigerator, make sure both
legs contact the floor for
secure installation.
Legs are located at the
bottom back of freezer door.
Insert a flathead screwdriver
and turn it in the direction of
the arrow until it is level.
• Always balance the load on
each door.
• Overload on any one door
may fell the refrigerator,
causing physical injury.
CAUTION SEVERE WARNING
SIGNS FOR USING
• Do not touch the power
plug with wet hands.
-This may result in an electric
shock.
• Do not store articles on the
top of the appliance.
-When you open or close the
door, the articles may fall and
cause a personal injury and/
or material damage.
• Do not put items filled with
water on the refrigerator.
-If spilled, there is a risk of fire
or electric shock.
• Do not touch the inside walls
of the freezer or products
stored in the freezer with wet
hands.
-This may cause frostbite.
• Do not use or place any
substances sensitive
to temperature such
as inflammable sprays,
inflammable objects, dry ice,
medicine, or chemicals near
the refrigerator.
Do not keep volatile or
inflammable objects or
substances (benzene,
thinner, propane gas, alcohol,
ether, LP gas and other
WARNING
DA68-03194F-04.indb 8 2017. 6. 7. �� 8:11

English - 9
SAFETY INFORMATION
such products etc.) in the
refrigerator.
-This refrigerator is for storing
food only.
-This may result in a fire or an
explosion.
• Do not store pharmaceuticals
products, scientific materials
or temperature-sensitive
products in the refrigerator.
-Products that require
strict temperature controls
must not be stored in the
refrigerator.
• Do not place or use
electrical appliance inside
the refrigerator/freezer,
unless they are of a type
recommended by the
manufacturer.
• If you smell pharmaceutical
or smoke, pull out power
plug immediately and contact
your Samsung Electronics
service center.
• If any dust or water is in
Refrigerator, pull out power
plug and contact your
Samsung Electronics service
center.
-Otherwise there is a risk of
fire.
• If gas leak is detected, avoid
any naked flames or potential
sources of ignition and air the
room in which the appliance
is standing for several
minutes.
• Do not use mechanical
devices or any other means
to accelerate the defrosting
process, other than those
recommended by the
manufacturer.
• Do not damage the
refrigerant circuit.
• Do not spray volatile material
such as insecticide onto the
surface of the appliance.
-As well as being harmful to
humans, it may also result
in an electric shock, fire or
problems with the product.
• Do not use a hair dryer to dry
the inside of the refrigerator.
Do not place a lighted
candle in the refrigerator for
removing bad odours.
-This may result in an electric
shock or fire.
• Fill the water tank, ice tray,
water cubes only with
potable water.
-Do not fill tea or sports drink,
this may cause the damage
of refrigerator.
DA68-03194F-04.indb 9 2017. 6. 7. �� 8:11

English - 10
• Do not let children hang on
the door.
If not, a serious injury may
occur.
-Risk of children entrapment.
Do not let children enter
inside the refrigerator.
• Do not leave the doors of
the refrigerator open while
the refrigerator is unattended
and do not let children enter
inside the refrigerator.
• Do not allow babies or
children go inside the drawer.
-It can cause death from
suocation by entrapment or
personal injury.
• Do not sit on the Freezer
door.
-The door may be broken and
cause a personal injury.
• To prevent children
entrapment, you must
reinstall the divider using
provided screws after
cleaning or other actions if
you removed the divider from
the drawer.
• Do not use mechanical
devices or any other means
to accelerate the defrosting
process, other than those
recommended by the
manufacturer.
• Do not damage the
refrigerant circuit.
• In the event of a gas leak
(such as propane gas,
LP gas, etc.), ventilate
immediately without
touching the power plug.
Do not touch the
appliance or power cord.
-Do not use a ventilating fan.
-A spark may result in an
explosion or fire.
• Use only the LED Lamps
provided by manufacturer or
service agent.
• Children should be
supervised to ensure that
they do not play with the
appliance.
• Keep fingers out of “pinch
point” areas; clearances
between the doors and
cabinet are necessarily small.
• Do not let children hang on
the door.
If not, a serious injury may
occur.
• There is a Risk of children
entrapment.
Do not let children enter
inside the refrigerator.
• Bottles should be stored
DA68-03194F-04.indb 10 2017. 6. 7. �� 8:11

English - 11
SAFETY INFORMATION
tightly together so that they
do not fall out.
• This product is intended only
for the storage of food in a
domestic environment.
• Never put fingers or other
objects into the dispenser
hole, ice chute and ice maker
bucket.
-It may cause a personal injury
or material damage.
• Do not insert hands, feet
or metal objects (such as
chopsticks, etc.) into the
bottom or the back of the
refrigerator.
-This may result in an electric
shock or injury.
-Any sharp edges may cause
a personal injury.
• Do not attempt to repair,
disassemble, or modify
the appliance yourself.
-Do not use any fuse (such as
cooper, steel wire, etc.) other
than the standard fuse.
-When repairing or reinstalling
the appliance is required,
contact your nearest service
center.
-Failing to do so may result
in an electric shock, fire,
problems with the product,
or injury.
• If the appliance
generates a strange
noise, a burning or smell
or smoke, unplug the
power plug immediately
and contact your nearest
service center.
-Failing to do so may result in
an electric or fire hazards.
• Pull the power plug out of
the socket before changing
the interior lamps of the
refrigerator
-Otherwise, there is a risk of
electric shock.
• If you experience diculty
when changing the light,
contact service agent.
• If the products is equipped
with the LED Lamp, do not
disassemble the Lamp Cover
and LED Lamp by yourself.
-Please contact your service
agent.
• Plug the power plug into the
wall socket firmly.
Do not use a damaged
power plug, damaged power
cord or loose wall socket.
-This may result in an electric
shock or fire.
• Do not put a container filled
DA68-03194F-04.indb 11 2017. 6. 7. �� 8:11

English - 12
with water on the appliance.
-If spilled, there is a risk of fire
or electric shock.
• Never stare directly at the UV
LED lamp for long periods of
time.
-This may result in eye strain
due to the ultraviolet rays.
CAUTION SIGNS FOR
USING
• To get best performance
from the product,
-Do not place foods too
closely in front of the vents
at the rear of the appliance
as it can obstruct free air
circulation in the refrigerator
compartment.
-Wrap the food up properly or
place it in airtight containers
before putting it into the
refrigerator.
-Do not put any newly
introduced food for freezing
near to already existing food.
• Do not place glass or bottles
or carbonated beverages into
the freezer.
-The container may freeze and
break, and this may result in
CAUTION
injury.
• Please observe maximum
storage times and expiry
dates of frozen goods.
• Do not store low
temperature-sensitive
pharmaceutical products,
scientific materials or other
low temperature-sensitive
products in the refrigerator.
-Products that require
strict temperature controls
must not be stored in the
refrigerator.
• There is no need to
disconnect the refrigerator
from the power supply if you
will be away for less than
three weeks.
But, remove all the food if
you are going away for the
three weeks or more.
Unplug the refrigerator and
clean it, rinse and dry.
• Do not place carbonated
or fizzy drinks in the freezer
compartment.
Do not put bottles or glass
containers in the freezer.
-When the contents freeze,
the glass may break and
cause personal injury and
property damage.
• Do not modify the refrigerator.
DA68-03194F-04.indb 12 2017. 6. 7. �� 8:11

English - 13
SAFETY INFORMATION
Unauthorized modifications
can cause safety problems.
To reverse an unauthorized
modification, we will charge
the full cost of parts and
labor.
• Do not change or modify
the functionality of the
refrigerator.
-Changes or modifications
may result in a personal injury
and/or property damage.
Any changes or modifications
performed by a 3rd party on
this completed appliance
are neither covered under
Samsung warranty service,
nor is Samsung responsible
for safety issues and
damages that result from 3rd
party modifications.
• Do not block air holes.
-If the air holes are blocked,
especially with a plastic bag,
the refrigerator can be over
cooled.
If this cooling period lasts
too long, the water filter
may break and cause water
leakage.
• Use only the ice-maker
provided with the refrigerator.
• The water supply to this
refrigerator must only be
installed/connected by a
suitably qualified person and
connected to a potable water
supply only.
• If you have a long vacation
or business trip and won’t
use water or ice dispensers,
close the water valve.
-Otherwise, water leakage
may occur.
• Wipe excess moisture from
the inside and leave the
doors open.
-Otherwise, odor and mold
may develop.
• When the refrigerator got
wet by water, pull out the
power plug and contact your
Samsung Electronics service
center.
• Do not apply strong shock
or excessive force onto the
surface of glass.
-Broken glass may result
in a personal injury and/or
property damage.
• Do not sit on or hang onto
the door or home bar of
refrigerator.
-This may cause the
refrigerator to fall over, the
door to separate or a hand
being caught in the crack of
DA68-03194F-04.indb 13 2017. 6. 7. �� 8:11

English - 14
the door, and this may result in
property damage or injury.
• If the supply cord is damaged,
it must be replaced by the
manufacturer, its service agent
or similarly qualified persons in
order to avoid a hazard.
• Do not keep vegetable oil in
your refrigerator’s door bins.
The oil can solidify, making it
foul-tasting and dicult to use.
In addition, the open container
can leak and the leaked oil can
cause the door bin to crack.
After opening an oil container, it
is best to keep the container in a
cool and shaded place such as
a cupboard or pantry.
-Examples of vegetable oil: olive
oil, corn oil, grape-seed oil, etc.
CAUTION SIGNS
FOR CLEANING AND
MAINTENANCE
• Do not spray cleaning
products directly on the
display.
-Printed letters on the display
may come o.
• If any foreign substance such as
water has entered the appliance,
CAUTION
unplug the power plug and
contact your nearest service
center.
-Failing to do so may result in an
electric shock or fire.
• Remove all foreign substances
such as dust or water from
the power plug terminals and
contact points using a dry cloth
on a regular basis.
-Unplug the power plug and
clean it with a dry cloth.
-Failing to do so may result in an
electric shock or fire.
• Do not clean the appliance by
spraying water directly onto it.
• Do not use benzene, thinner, or
Clorox, Chloride for cleaning.
-They may damage the surface
of the appliance and may cause
a fire.
• Before cleaning or
performing maintenance,
unplug the appliance from
the wall socket.
-Failing to do so may result in an
electric shock or fire.
• Use a clean sponge or soft cloth
and a mild detergent in warm
water to clean the refrigerator.
• Do not use abrasive or harsh
cleansers such as window
DA68-03194F-04.indb 14 2017. 6. 7. �� 8:11

English - 15
SAFETY INFORMATION
sprays, scouring cleansers,
flammable fluids, muriatic acid,
cleaning waxes, concentrated
detergents, bleaches, or
cleansers containing petroleum
products on exterior surfaces
(doors and cabinet), plastic
parts, door and interior liners,
and gaskets.
-These can scratch or damage
the material.
• Do not clean glass shelves or
covers with warm water when
they are cold. Glass shelves and
covers may break if exposed to
sudden temperature changes
or impacts such as bumping or
dropping.
SEVERE WARNING
SIGNS FOR
DISPOSAL
• Leave the shelves in place so
that children may not easily
climb inside.
• Ensure that none of the pipes
on the back of the appliance are
damaged prior to disposal.
• R-600a or R-134a is used as a
refrigerant.
Check the compressor label on
WARNING
the rear of the appliance or the
rating label inside the refrigerator
to see which refrigerant is used for
your refrigerator.
When this product contains
flammable gas (Refrigerant
R-600a), contact your local
authority in regard to safe disposal
of this product. Cyclopentane is
used as an insulation blowing gas.
The gases in insulation material
require special disposal
procedure.
Please contact your local
authorities in regard to the
environmentally safe disposal of
this product.
Ensure that none of the pipes on
the back of the appliances are
damaged prior to disposal.
The pipes shall be broken in the
open space.
-If trapped inside, the child may
become injury and suocate to
death.
• Please dispose of the packaging
material for this product in an
environmentally friendly manner.
• Keep all packaging materials
well out of the reach of children,
as packaging materials can be
dangerous to children.
-If a child places a bag over its
head, it may result in suocation.
DA68-03194F-04.indb 15 2017. 6. 7. �� 8:11

English - 16
ADDITIONAL TIPS
FOR PROPER USAGE
• In the event of a power
failure, call the local oce of
your Electricity Company and
ask how long it is going to
last.
-Most power failures that are
corrected within an hour
or two will not aect your
refrigerator temperatures.
However, you should
minimize the number of door
openings while the power is
o.
-But should the power failure
last more than 24 hours,
remove all frozen food.
• If keys are provided with the
refrigerator, the keys should
be kept out of the reach of
children and not be in the
vicinity of the appliance.
• The appliance might
not operate consistently
(possibility of defrosting of
contents or temperature
becoming too warm in the
frozen food compartment)
when sited for an extended
period of time below the
cold end of the range of
temperature for which the
refrigerating appliance is
designed.
• In case of particular foods,
keeping it under refrigeration
can have a bad eect on
preservation due to its
properties.
• Your appliance is frost free,
which means there is no
need to manually defrost
your appliance, as this will be
carried out automatically.
• Temperature rise during
defrosting can comply with
ISO requirements.
But if you want to prevent an
undue rise in the temperature
of the frozen food while
defrosting the appliance,
please wrap the frozen
food up in several layers of
newspaper.
• Any increase in temperature
of frozen food during
defrosting can shorten its
storage life.
• Do not re-freeze frozen foods
that have thawed completely.
Saving Energy Tips
-Install the appliance in a
cool, dry room with adequate
ventilation.
Ensure that it is not exposed
DA68-03194F-04.indb 16 2017. 6. 7. �� 8:11

English - 17
SAFETY INFORMATION
to direct sunlight and never
put it near a direct source of
heat (radiator, for example).
-Not to block any vents and
grilles is recommended for
energy eciency.
-Allow warm food to cool
down before placing it in the
appliance.
-Put frozen food in the
refrigerator to thaw.
You can then use the low
temperatures of the frozen
products to cool food in the
refrigerator.
-Do not keep the door of
the appliance open for too
long when putting food in or
taking food out.
The shorter time for which
the door is open, the less ice
will form in the freezer.
-Allow clearance to the right,
left, back and top when
installing.
This will help reduce power
consumption and keep your
energy bills lower.
-For the most ecient use
of energy, please keep the
all inner fittings such as
baskets, drawers, shelves
on the position supplied by
manufacturer.
This appliance is intended
to be used in household and
similar applications such as
-sta kitchen areas in shops,
oces and other working
environments;
-farm houses and by clients
in hotels, motels and other
residential type environments;
-bed and breakfast type
environments;
-catering and similar non-retail
applications.
DA68-03194F-04.indb 17 2017. 6. 7. �� 8:11

English - 18

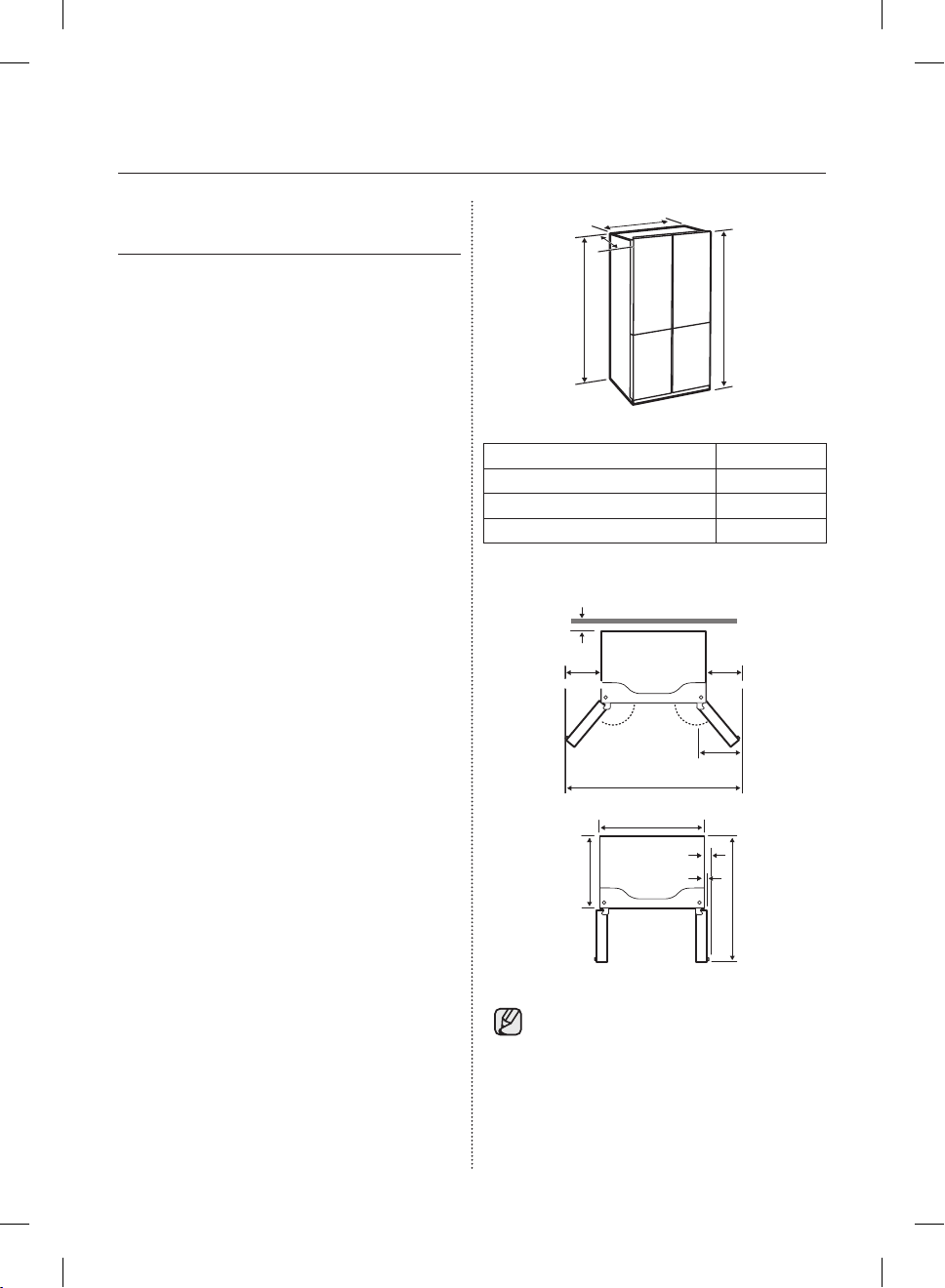

GETTING READY TO INSTALL THE
REFRIGERATOR
Congratulations on your purchase of the Samsung
refrigerator.
We hope you enjoy the state-of-art features and
eciencies that this new appliance oers.
Selecting the best location for the
Refrigerator
Choose :
• A location with easy access to the water supply.
• A location without direct exposure to sunlight.
• A location with level (or nearly level) flooring.
• A location with enough space for the refrigerator
doors to open easily.
• A location that allows sucient space to the
right, left, back, and top for air circulation.
If the refrigerator does not have enough space,
it can cause the bad influence to refrigeration
eciency and power consumption.
• A location that allows you to move the
refrigerator easily if it needs maintenance or
service.
• Do not install the refrigerator in locations where
the temperature is over 43°C or below 5°C.
AA
B
B
C
CD
D
Depth “A” 733mm
Width “B” 908mm
Height “C” 1797mm
Overall Height “D” 1825mm
1519mm
305.5mm
125°125°
50mm
908mm
610mm
72.3mm
43mm
1075mm
300mm 300mm
• Each measurement based on the design
dimension, so it may dier depending on
the measuring method.
Setting up your refrigerator
DA68-03194F-04.indb 18 2017. 6. 7. �� 8:11

English - 19
SETTING UP

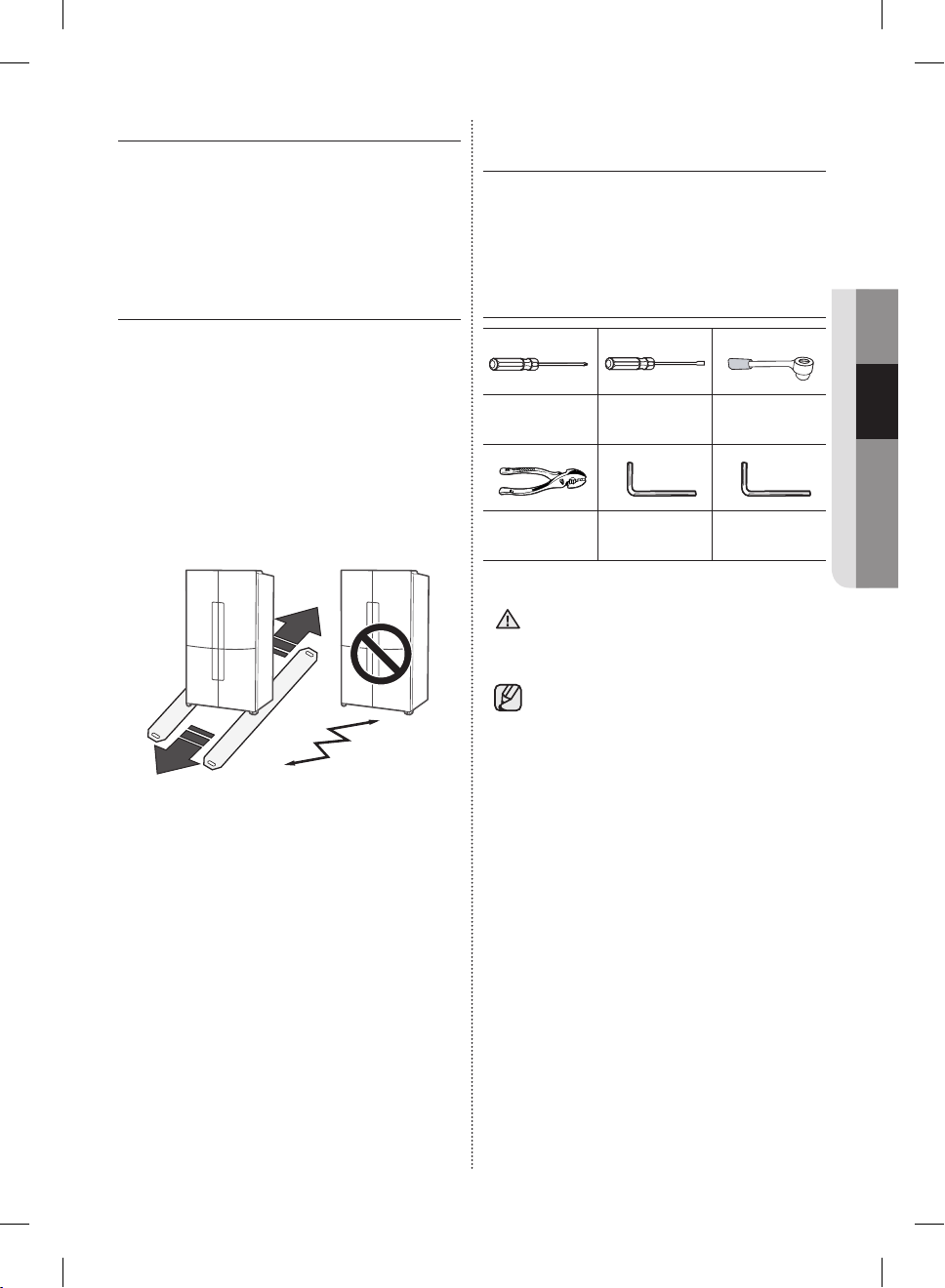

When moving your refrigerator
To prevent floor damage, be sure the front leveling
legs are in the up position (above the floor).
Refer to “HOW TO LEVEL THE REFRIGERATOR” in
the manual on page 23.
Flooring
For proper installation, you must place this
refrigerator on a level, hard surface that is the same
height as the rest of the floor.
This surface should be strong enough to support a
fully loaded refrigerator.
To protect the finish of the flooring, cut a large
section of the cardboard carton and place it under
the refrigerator where you are working.
When moving the refrigerator, you need to pull and
push it straight forwards or back.
Do not wiggle it from side to side.
REMOVING THE REFRIGERATOR
DOORS
If the refrigerator is too large to pass through your
doorway easily, you can remove the refrigerator
doors.
Tools you will need (Not provided)
Philips screwdriver
(+)
Flat-blade
screwdriver (-)
Socket wrench
(10mm)
Pliers Allen wrench
(4mm)
Allen wrench
(5mm)
• Disconnect power to the refrigerator
before removing the doors or drawers.
• Be careful not to drop, damage or
scratch the doors/drawers while
removing them.
• Use care when you remove the doors/drawers.
The doors are heavy and you could injure
yourself.
• Re-attach the doors/drawers properly to avoid:
-Moisture from air leakage.
-Uneven door alignment.
-Wasting energy due to improper door seal.
CAUTION
DA68-03194F-04.indb 19 2017. 6. 7. �� 8:11

English - 20
DISASSEMBLE THE FRIDGE
DOORS
1. With the door closed, remove the 3 screws
holding the Top Cover (A) with a Phillips (+)
Screwdriver, and then remove the Top Cover
with the entire wire-harnesses attached.
A
2. Disconnect the two wire-harnesses on the left
door and one on the right door.
(It may dier by models.)
3. Pull up the Fixer Lever (B), and then pull it
forward.
B
B
4. Remove the Hinge (C).
C
5. Lift up the Fridge Door and take it o.
• While disassembling and reassembling
the door, make sure that the electric
wires are not peeled o.
• Do not let the door fall down.
DISASSEMBLE THE FREEZER
DOORS
• Be sure to remove the Fridge Door before
removing the Freezer Door.
• Be careful with the wires attached to the bottom
of the Freezer Door while disassembling.
1. With the door open, remove the screw
holding the cover (A) of the Adjustable Leg
at the bottom of the door with a Phillips
(+) Screwdriver, and then disassemble the
Connector (B).
A
B
2. Lift up and remove the Mid Hinge Cap (C) on
the Door Hinge above the Freezer Door.
C
CAUTION
CAUTION
DA68-03194F-04.indb 20 2017. 6. 7. �� 8:11
