Samsung RH57H90507F User manual

Refrigerator
user manual
Free Standing Appliance
This manual is made with 100 % recycled paper.
imagine the possibilities
Thank you for purchasing this Samsung product.
DA68-03015D-04.indb 1DA68-03015D-04.indb 1 2015. 1. 7.  4:572015. 1. 7.  4:57

English - 2
SAFETY INFORMATION
• Before operating the
appliance, please read this
manual thoroughly and retain
it in a safe place near the
appliance for your future
reference.
• Use this appliance only for
its intended purpose as
described in this instruction
manual.
This appliance is not
intended for use by persons
(including children) with
reduced physical, sensory
or mental capabilities, or
lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use
of the appliance by a person
responsible for their safety.
• This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory
or mental capabilities or
lack of experience and
knowledge if they have
been given supervision or
instruction concerning use of
the appliance in a safe way
and understand the hazards
involved.
Children shall not play with
the appliance.
Cleaning and user
maintenance shall not be
made by children without
supervision.
Safety information
Contents
SAFETY INFORMATION ……………………………………………………… 2
SETTING UP YOUR REFRIGERATOR …………………………………… 15
OPERATING YOUR SAMSUNG REFRIGERATOR ……………………… 29
TROUBLESHOOTING ……………………………………………………… 45
DA68-03015D-04.indb 2DA68-03015D-04.indb 2 2015. 1. 7.  4:572015. 1. 7.  4:57

English - 3
SAFETY INFORMATION
• Warnings and Important
Safety Instructions in this
manual do not cover all
possible conditions and
situations that may occur.
It is your responsibility to use
common sense, caution,
and care when installing,
maintaining, and operating
your appliance.
• Because these following
operating instructions
cover various models,
the characteristics of your
refrigerator may dier slightly
from those described in this
manual and not all warning
signs may be applicable.
If you have any questions
or concerns, contact your
nearest service center or find
help and information online at
www.samsung.com.
Important safety symbols
and precautions:
WARNING
Hazards or unsafe
practices that may result
in severe personal
injury or death.
CAUTION
Hazards or unsafe
practices that may result
in minor personal
injury or property
damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions carefully.
Unplug the power plug
from the wall socket.
Make sure the machine
is grounded to prevent
electric shock.
Call the contact center for
help.
Note.
These warning signs are
here to prevent injury to you
and others.
Please follow them carefully.
After reading this section,
keep it in a safe place for
future reference.
DA68-03015D-04.indb 3DA68-03015D-04.indb 3 2015. 1. 7.  4:572015. 1. 7.  4:57

English - 4
CE Notice
This product has been
determined to be in
compliance with the Low
Voltage Directive (2006/95/
EC), the Electromagnetic
Compatibility Directive
(2004/108/EC), RoHS Directive
(2011/65/EU), Commission
Delegated Regulation (EU)
No 1060/2010 and the Eco-
Design Directive(2009/125/
EC) implemented by Regulation
(EC) No 643/2009 of the
European Union. (For products
sold in European Countries
only)
SEVERE WARNING
SIGNS FOR
TRANSPORTATION
AND SITE
• When transporting
and installing the
appliance,care should be
taken to ensure that no
parts of the refrigerating
circuit are damaged.
• R-600a or R-134a is used as
a refrigerant.
Check the compressor label
on the rear of the appliance
WARNING
or the rating label inside the
refrigerator to see which
refrigerant is used for your
refrigerator.
• When this product contains
flammable gas (Refrigerant
R-600a),
- Refrigerant leaking from the
pipe work could ignite or
cause an eye injury.
If a leak is detected, avoid
any naked flames or potential
sources of ignition and air the
room in which the appliance
is standing for several
minutes.
- In order to avoid the
creation of a flammable gas-
air mixture if a leak in the
refrigerating circuit occurs,
the size of the room in which
the appliance may be sited
depends on the amount of
refrigerant used.
- Never start up an appliance
showing any signs of
damage. If in doubt, consult
your dealer.
The room where the
refrigerator will be sited must
be 1m³ in size for every 8g
of R-600a refrigerant inside
the appliance.
The amount of refrigerant in
DA68-03015D-04.indb 4DA68-03015D-04.indb 4 2015. 1. 7.  4:572015. 1. 7.  4:57

English - 5
SAFETY INFORMATION
your particular appliance is
shown on the identification
plate inside the appliance.
• Refrigerant squirting out of
the pipes could ignite or
cause an eye injury.
When refrigerant leaks from
the pipe, avoid any naked
flames and move anything
flammable away from the
product and ventilate the
room immediately.
- Failing to do so may result in
fire or explosion.
- If the appliance contains
isobutane refrigerant
(R-600a), a natural gas
with high environmental
compatibility that is, however,
also combustible.
When transporting and
installing the appliance,
care should be taken to
ensure that no parts of
the refrigerating circuit are
damaged.
SEVERE WARNING
SIGNS FOR
INSTALLATION
• Do not install this
appliance in a humid,
oily or dusty location, in
a location exposed to
direct sunlight and water
(rain drops).
- Deteriorated insulation of
electrical parts may cause an
electric shock or fire.
• Do not place this refrigerator
in direct sunlight or expose to
the heat from stoves, room
heaters or other appliances.
• Do not plug several
appliances into the same
multiple power board.
The refrigerator should
always be plugged into its
own individual electrical outlet
which has a voltage rating
that matched the rating plate.
- This provides the best
performance and also
prevents overloading house
wiring circuits, which could
cause a fire hazard from
overheated wires.
If the wall socket is loose, do
not insert the power plug.
- There is a risk of electric
shock or fire.
WARNING
DA68-03015D-04.indb 5DA68-03015D-04.indb 5 2015. 1. 7.  4:572015. 1. 7.  4:57

English - 6
• Do not use a cord that shows
cracks or abrasion damage
along its length or at either
end.
• Do not bend the power cord
excessively or place heavy
articles on it.
• Do not use aerosols near the
refrigerator.
- Aerosols used near the
refrigerator may cause an
explosion or fire.
• Do not install this appliance
in a location where gas may
leak.
- This may result in an electric
shock or fire.
• The installation or any
service of this appliance
is recommended by a
qualified technician or
service company.
- Failing to do so may result
in an electric shock, fire,
explosion, problems with the
product, or injury.
• This refrigerator must be
properly installed and located
in accordance with the
manual before it is used.
• Connect the power plug in
the proper position with the
cord hanging down.
- If you connect the power
plug upside down, the wire
can get cut o and cause fire
or an electric shock.
• Make sure that the power
plug is not squashed or
damaged by the back of the
refrigerator.
• When moving the refrigerator,
be careful not to roll over or
damage the power cord.
- This constitutes a fire hazard.
• The appliance must be
positioned so that the plug is
accessible after installation.
• The refrigerator must be
grounded.
- You must ground the
refrigerator to prevent any
power leakages or electric
shocks caused by current
leakage from the refrigerator.
• Never use gas pipes,
telephone lines or other
potential lightening rods as
ground.
- Improper use of the ground
plug can result in an electric
shock.
• If the power cord is
damaged, have it
replaced immediately by
DA68-03015D-04.indb 6DA68-03015D-04.indb 6 2015. 1. 7.  4:572015. 1. 7.  4:57

English - 7
SAFETY INFORMATION
the manufacturer or its
service agent.
• The fuse on the refrigerator
must be changed by a
qualified technician or service
company.
- Failing to do so may result in
an electric shock or personal
injury.
CAUTION SIGNS FOR
INSTALLATION
• Keep ventilation
opening in the appliance
enclosure or mounting
structure clear of
obstruction.

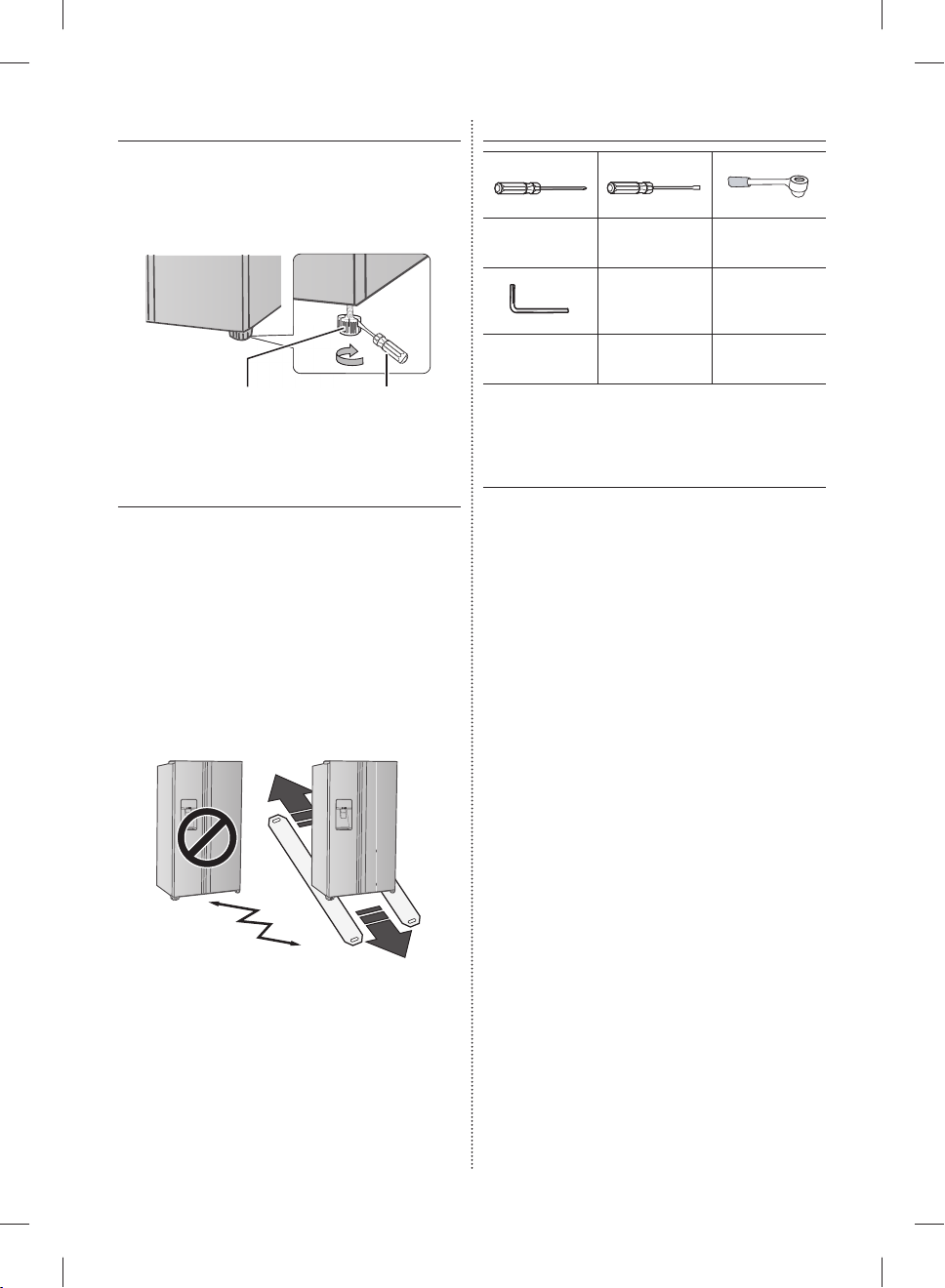

• Allow the appliance to stand
for 2 hours after installation.
- When installing the
refrigerator, make sure both
legs contact the floor for
secure installation.
Legs are located at the
CAUTION
bottom back of each door.
Insert a flathead screwdriver
and turn it in the direction of
the arrow until it is level.
- Always balance the load on
each door.
- Overload on any one door
may fell the refrigerator,
causing physical injury.
SEVERE WARNING
SIGNS FOR USING
• Do not insert the power
plug with wet hands.
• Do not store items on top of
the appliance.
- When you open or close
the door, items may fall and
cause a personal injury and/
or material damage.
• Do not put items filled with
water on the refrigerator.
- If spilled, there is a risk of fire
or electric shock.
• Do not let children hang on
the door.
- Failure to do so may cause
serious personal injury.
• Do not leave the doors of
the refrigerator open while
the refrigerator is unattended
and do not let children enter
WARNING
DA68-03015D-04.indb 7DA68-03015D-04.indb 7 2015. 1. 7.  4:572015. 1. 7.  4:57

English - 8
inside the refrigerator.
• Do not allow babies or
children to go inside the
drawers.
- It can cause death from
suocation by entrapment or
personal injury.
• Do not sit on the Freezer
door.
- The door can be broken and
cause personal injury.
• When remove the divider
from the drawer to clean
or other reason, should
reassemble the divider with
provided screws to prevent
children trapped.
• Never put fingers or other
objects into the dispenser
hole.
- Failure to do so may cause
personal injury or material
damage.
• Do not store volatile or
flammable substances such
as benzene, thinner, alcohol,
ether or LP gas in the
refrigerator.
- The storage of any of such
products may cause an
explosion.
• Do not store low
temperature-sensitive
pharmaceutical products,
scientific materials or other
low temperature-sensitive
products in the refrigerator.
- Products that require
strict temperature controls
must not be stored in the
refrigerator.
• Do not place or use electrical
appliances inside the
refrigerator, unless they are of
a type recommended by the
manufacturer.
• Do not use a hair dryer to dry
the inside of the refrigerator.
Do not place a lighted
candle in the refrigerator for
removing bad odours.
- This may result in an electric
shock or fire.
• Do not touch the inside walls
of the freezer or products
stored in the freezer with wet
hands.
- This may cause frostbite.
• Do not use mechanical
devices or any other means
to accelerate the defrosting
process, other than those
recommended by the
manufacturer.
• Do not damage the
refrigerant circuit.
DA68-03015D-04.indb 8DA68-03015D-04.indb 8 2015. 1. 7.  4:572015. 1. 7.  4:57

English - 9
SAFETY INFORMATION
• This product is intended
only for the storage
of food in a domestic
environment.
• Bottles should be stored
tightly together so that they
do not fall out.
• In the event of a gas leak
(such as propane gas,
LP gas, etc.), ventilate
immediately without touching
the power plug.
Do not touch the appliance
or power cord.
- Do not use a ventilating fan.
- A spark may result in an
explosion or fire.
• Use only the LED Lamps
provided by manufacturer or
service agent.
• Children should be
supervised to ensure that
they do not play with and/or
climb into the appliance.
• Do not disassemble or
repair the refrigerator by
yourself.
- You run a risk of causing
a fire, malfunction and/ or
personal injury.
In case of malfunction, please
contact your service agent.
• If the appliance
generates a strange
noise, a burning or smell
or smoke, unplug the
power plug immediately
and contact your nearest
service centre.
- Failing to do so may result
in an electric shock or fire
hazards.
• If you experience diculty
when changing the light,
contact service agent.
• If the products is equipped
with LED Lamps, do not
disassemble the Lamp Cover
and LED Lamps by yourself.
- Please contact your service
agent.
• If any dust or water is in the
refrigerator, pull out power
plug and contact your
Samsung Electronics service
centre.
- There is a risk of fire.
DA68-03015D-04.indb 9DA68-03015D-04.indb 9 2015. 1. 7.  4:572015. 1. 7.  4:57

English - 10
CAUTION SIGNS FOR
USING
• To get best performance
from the product,
- Do not place foods too
closely in front of the vents
at the rear of the appliance
as it can obstruct free air
circulation in the refrigerator
compartment.
- Wrap the food up properly or
place it in airtight containers
before putting it into the
refrigerator.
- Do not put any newly
introduced food for freezing
near to already existing food.
• Do not place carbonated
or fizzy drinks in the freezer
compartment.
Do not put bottles or glass
containers in the freezer.
- When the contents freeze,
the glass may break and
cause personal injury and
property damage.
• Do not change or modify
the functionality of the
refrigerator.
- Changes or modifications
may result in a personal injury
and/or property damage.
Any changes or modifications
CAUTION performed by a 3rd party on
this completed appliance
are neither covered under
Samsung warranty service,
nor is Samsung responsible
for safety issues and
damages that result from 3rd
party modifications.
• Do not block air holes.
- If the air holes are blocked,
especially with a plastic bag,
the refrigerator can be over
cooled.
If this cooling period lasts
too long, the water filter
may break and cause water
leakage.
- Do not put any newly
introduced food for freezing
near to already existing food.
• Please observe maximum
storage times and expiry
dates of frozen goods.
• Do not spray volatile material
such as insecticide onto the
surface of the appliance.
- As well as being harmful to
humans, it may also result
in an electric shock, fire or
problems with the product.
• Do not apply strong shock
or excessive force onto the
surface of glass.
DA68-03015D-04.indb 10DA68-03015D-04.indb 10 2015. 1. 7.  4:572015. 1. 7.  4:57

English - 11
SAFETY INFORMATION
- Broken glass may result
in a personal injury and/or
property damage.
CAUTION SIGNS
FOR CLEANING AND
MAINTENANCE
• Do not directly spray
water inside or outside
the refrigerator.
- There is a risk of fire or
electric shock.
• Do not use or place any
substances sensitive
to temperature such
as inflammable sprays,
inflammable objects, dry ice,
medicine, or chemicals near
the refrigerator.
Do not keep volatile or
inflammable objects or
substances (benzene,
thinner, propane gas, etc.) in
the refrigerator.
- This refrigerator is for storing
food only.
- This may result in a fire or an
explosion.
• Do not spray cleaning
products directly on the
display.
- Printed letters on the display
may come o.
CAUTION
• Remove any foreign matter
or dust from the power plug
pins.
But do not use a wet or
damp cloth when cleaning
the plug, remove any foreign
material or dust from the
power plug pins.
- Otherwise there is a risk of
fire or electric shock.
• Never put fingers or other
objects into the dispenser
hole and ice chute.
- It may cause a personal injury
or material damage.
• Clean the unreachable parts
such as hinges by using a
brush or toothbrush.
• Unplug the refrigerator
before cleaning and
performing maintenance.
• If any foreign substance
such as water has entered
the appliance, unplug the
power plug and contact your
nearest service centre.
- Failing to do so may result in
an electric shock or fire.
DA68-03015D-04.indb 11DA68-03015D-04.indb 11 2015. 1. 7.  4:572015. 1. 7.  4:57

English - 12
SEVERE WARNING
SIGNS FOR
DISPOSAL
• Ensure that none of the
pipes on the back of the
appliance are damaged
prior to disposal.
• R-600a or R-134a is used as
a refrigerant.
Check the compressor label
on the rear of the appliance
or the rating label inside the
refrigerator to see which
refrigerant is used for your
refrigerator.
When this product contains
flammable gas (Refrigerant
R-600a), contact your local
authority in regard to safe
disposal of this product.
Cyclopentane is used as an
insulation blowing gas.
The gases in insulation
material require special
disposal procedure.
Please contact your local
authorities in regard to the
environmentally safe disposal
of this product.
Ensure that none of the pipes
on the back of the appliances
are damaged prior to
disposal.
The pipes shall be broken in
WARNING the open space.
• When disposing of this
product or other refrigerators,
remove the door/door seals,
door latch so that small
children or animals cannot
become trapped inside.
Leave the shelves in place so
that children may not easily
climb inside.
Children should be
supervised to ensure that
they do not play with the old
appliance.
• Please dispose of the
packaging material for this
product in an environmentally
friendly manner.
ADDITIONAL TIPS
FOR PROPER USAGE
• In the event of a power
failure, call the local oce of
your Electricity Company and
ask how long it is going to
last.
- Most power failures that are
corrected within an hour
or two will not aect your
refrigerator temperatures.
However, you should
minimise the number of door
DA68-03015D-04.indb 12DA68-03015D-04.indb 12 2015. 1. 7.  4:572015. 1. 7.  4:57

English - 13
SAFETY INFORMATION
openings while the power is
o.
- Should the power failure last
more than 24 hours, remove
all frozen food.
• If keys are provided with the
refrigerator, the keys should
be kept out of the reach of
children and not be in the
vicinity of the appliance.
• The appliance might
not operate consistently
(possibility of temperature
becoming too warm in the
refrigerator) when sited
for an extended period of
time below the cold end of
the range of temperature
for which the refrigerating
appliance is designed.
• Do not store food which
spoils easily at low
temperature, such as
bananas, melons.
• Your appliance is frost free,
which means there is no
need to manually defrost
your appliance, as this will be
carried out automatically.
• Temperature rise during
defrosting can comply with
ISO requirements.
But if you want to prevent an
undue rise in the temperature
of the frozen food while
defrosting the appliance,
please wrap the frozen
food up in several layers of
newspaper.
• Any increase in temperature
of frozen food during
defrosting can shorten its
storage life.
• When you use this function
the energy consumption of
the refrigerator will increase.
Remember to turn it o when
you don’t need it and return
the freezer to your original
temperature setting.
If you need to freeze large
amount of food stu, activate
Power Freeze function at
least 24hours before.
Except for RH57H9060*
model
• Contains fluorinated
greenhouse gases covered
by the Kyoto Protocol.
• Foam blown with fluorinated
greenhouse gases.
• Foam blown additive:
Perfluorohexane Global
Warming Potential (GWP)
= 9000
DA68-03015D-04.indb 13DA68-03015D-04.indb 13 2015. 1. 7.  4:572015. 1. 7.  4:57

English - 14
Saving Energy Tips
- Install the appliance in a
cool, dry room with adequate
ventilation.
Ensure that it is not exposed
to direct sunlight and never
put it near a direct source of
heat (radiator, for example).
- Never block any vents or
grilles on the appliance.
- Allow warm food to cool
down before placing it in the
appliance.
- Put frozen food in the
refrigerator to thaw.
You can then use the low
temperatures of the frozen
products to cool food in the
refrigerator.
- Do not keep the door of
the appliance open for too
long when putting food in or
taking food out.
The shorter time for which
the door is open, the less ice
will form in the freezer.
- Clean the rear of the
refrigerator regularly.
Dust increases energy
consumption.
- Do not set temperature
colder than necessary.
- Ensure sucient air flow
at the refrigerator base
and at the back wall of the
refrigerator.
Do not cover air vent
openings.
- Allow clearance to the right,
left, back and top when
installing.
This will help reduce power
consumption and keep your
energy bills lower.
- For the most ecient use
of energy, please keep the
all inner fittings such as
baskets, drawers, shelves
on the position supplied by
manufacturer.
This appliance is intended
to be used in household and
similar applications such as
- sta kitchen areas in shops,
oces and other working
environments;
- farm houses and by clients
in hotels, motels and other
residential type environments;
- bed and breakfast type
environments;
- catering and similar non-retail
applications.
DA68-03015D-04.indb 14DA68-03015D-04.indb 14 2015. 1. 7.  4:572015. 1. 7.  4:57

English - 15
SETTING UP
GETTING READY TO INSTALL THE
REFRIGERATOR
Congratulations on your purchase of the Samsung
refrigerator.
We hope you enjoy the state-of-art features and
eciencies that this new appliance oers.
Selecting the best location for the
Refrigerator
• Select a location with easy access to a water
supply.
• Select a location without direct exposure to
sunlight.
• Select a location with level (or nearly level)
flooring.
• Select a location with enough space for the
refrigerator doors to open easily.
• Select a location that allows sucient space to
the right,left, back, and top for air circulation.
• Select a location that allows you to move the
refrigerator easily if it needs maintenance or
service.
• Do not install the refrigerator in locations where
the temperature is over 43°C or below 5°C.
A
A
B
B
C
C
D
D
E
E
Depth “A” 718mm
Width “B” 912mm
Height “C” 1742mm
Overall Height “D” 1774mm
Depth “E” 721mm
1725mm
1725mm
468mm
468mm
165
165
°
°
165
165
°
°
50mm
50mm
912mm
912mm
610mm
610mm
1170mm
1170mm
34mm
34mm
31mm
31mm
Each measurement based on the design
dimension, so it may dier depending on
the measuring method.
Setting up your refrigerator
DA68-03015D-04.indb 15DA68-03015D-04.indb 15 2015. 1. 7.  4:572015. 1. 7.  4:57

English - 16
When moving your refrigerator
To prevent floor damage, be sure the front leveling
legs are in the up position (above the floor).
Refer to “How to level the refrigerator” in the
manual on page 21.
Screw Driver
Leg
Leg
Flooring
For proper installation, you must place this
refrigerator on a level, hard surface that is the same
height as the rest of the floor.
This surface should be strong enough to support a
fully loaded refrigerator.
To protect the finish of the flooring, cut a large
section of the cardboard carton and place it under
the refrigerator where you are working.
When moving the refrigerator, you need to pull and
push it straight forwards or back.
Do not wiggle it from side to side.
Required Tools (Not provided)
Philips screwdriver
(+)
Flat-blade screw
driver (-)
Socket wrench
10mm
Allen wrench
5mm
SETTING UP THE REFRIGERATOR
Now that you have your new Refrigerator installed
in place, you are ready to set up and enjoy the
features and functions of the appliance.
By completing the following steps, your Refrigerator
should be fully operational.
If not, first check the power supply and electricity
source or try the troubleshooting section at the
back of this user’s guide.
If you have any further questions, contact your
Samsung Electronics service centre.
1. Place the Refrigerator in an appropriate location
with reasonable clearance between the wall and
the Refrigerator.
Refer to installation instructions in this manual.
2. Once the Refrigerator is plugged in, make sure
the interior light comes on when you open the
doors.
3. Set the Temperature control to the coldest
temperature and wait for an hour.
The Freezer will get slightly chilled and the
motor will run smoothly.
4. After powering the Refrigerator, it will take a few
hours to reach the appropriate temperature.
You can store food and drinks in the Refrigerator
after the temperature is suciently cool.
5. Once installation is complete, press the
dispenser lever to check if the water or the ice
is properly dispensed.
6. Make sure the front side of the refrigerator is 0.6
degree higher than its rear side.
DA68-03015D-04.indb 16DA68-03015D-04.indb 16 2015. 1. 7.  4:572015. 1. 7.  4:57

English - 17
SETTING UP
SETTING UP THE REFRIGERATOR
DOORS
If your entrance won’t allow the refrigerator to pass
easily through it, you can remove the doors.

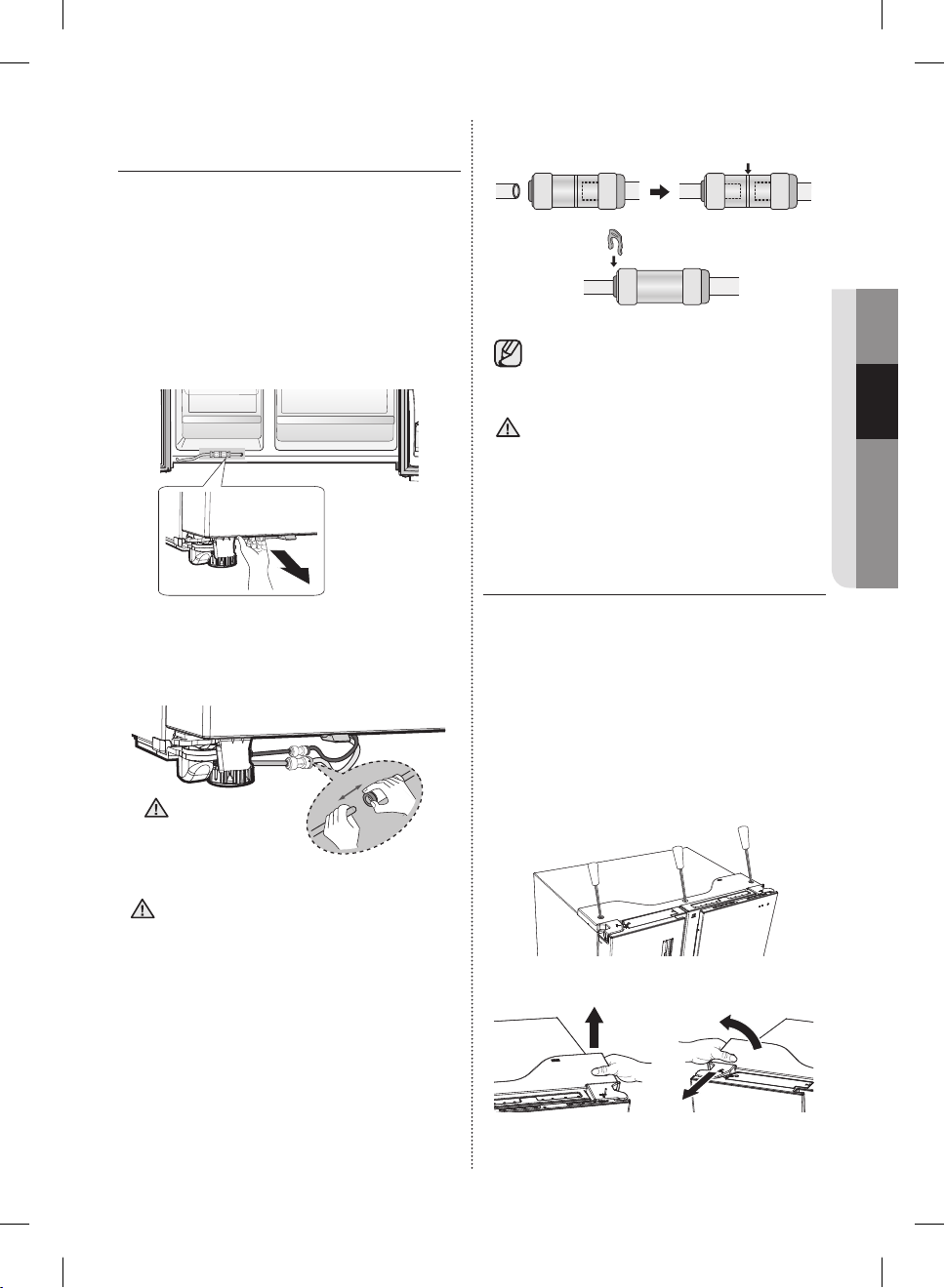

Separating the water supply line from the
refrigerator
1. Pull the two water lines (which are in the Fixer)
out to the front.
2. Remove two water lines (White one is for water
and the other one is for ice) by pressing the
coupler (1) and pulling the water line (2) away.
Make sure the
Make sure the
color of the water
color of the water
lines match.
lines match.
(1)
(1)
(2)
(2)
CAUTION
When reconnecting the supply hoses,
make sure the same colored hoses are
inserted with each other.
Reattaching the Water Supply Line
1. The Water Line must be fully Inserted to the
centre of transparent coupler to prevent water
leakage from the dispenser.
2. Insert the 2 clips in the install pack and check
that each clip holds the line firmly.
CAUTION
Center of Transparent coupler
Center of Transparent coupler
Clip A (1/4”)
Clip A (1/4”)
(6.35mm)
(6.35mm)
Do not cut the water line.
Gently separate it from the coupler.
Keep the clips out of the reach of children
and make sure that children do not play
with them or put them into their mouths.
DISASSEMBLE THE FREEZER
DOORS
1. Disconnect the power cord, and Remove 3
cover screws using a Phillips screwdriver (1).
Then open the refrigerator door and pull
the hooks on the sides to loosen the cover
(2).
Lift up the cover and towards you to
detach it (3).
- Detach the hinge cover with the door open and
then close the door once the hinge cover has
been detached.
(1)
(1)
(2)
(2)
(3)
(3)
CAUTION
DA68-03015D-04.indb 17DA68-03015D-04.indb 17 2015. 1. 7.  4:572015. 1. 7.  4:57

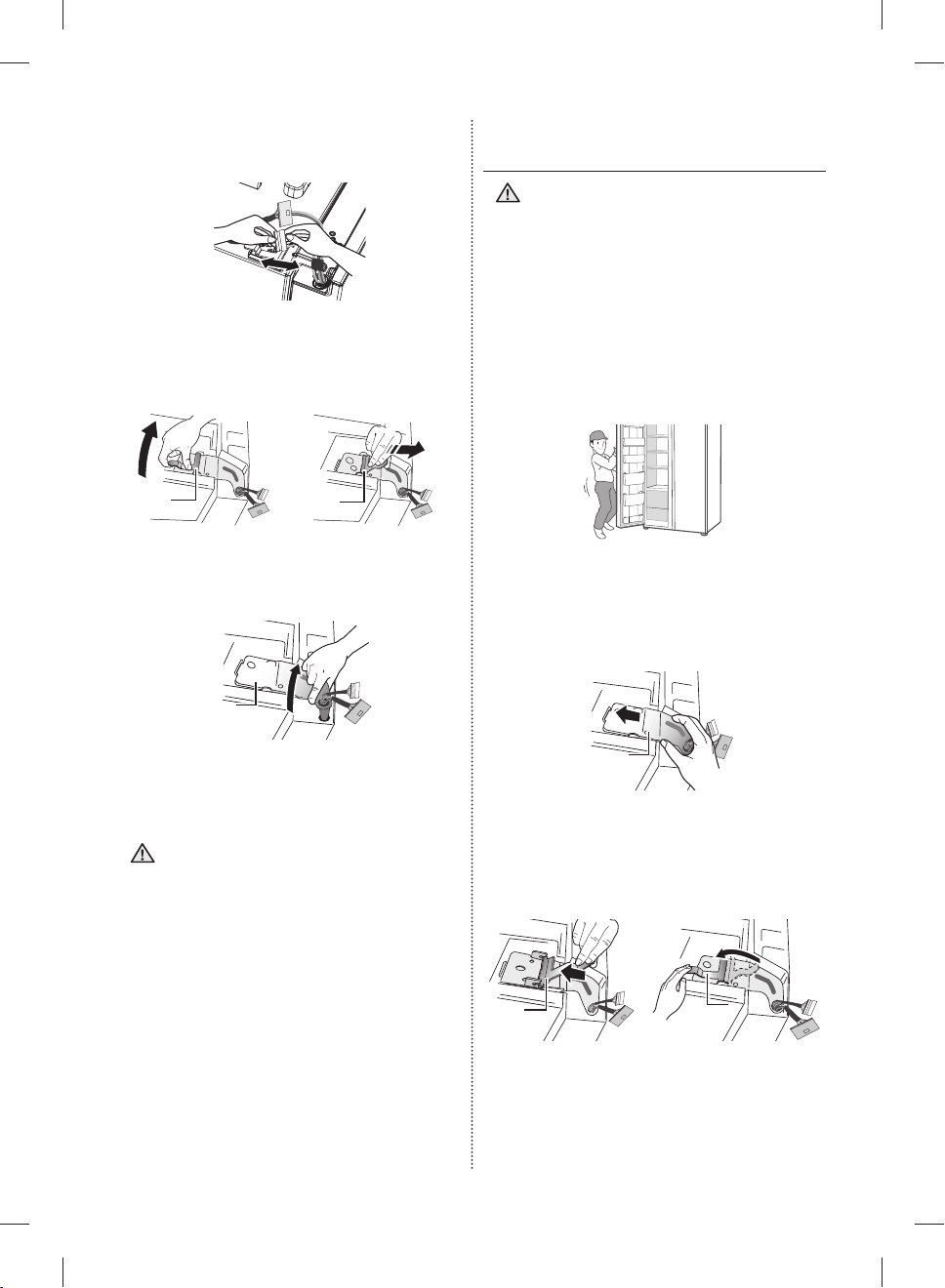

English - 18

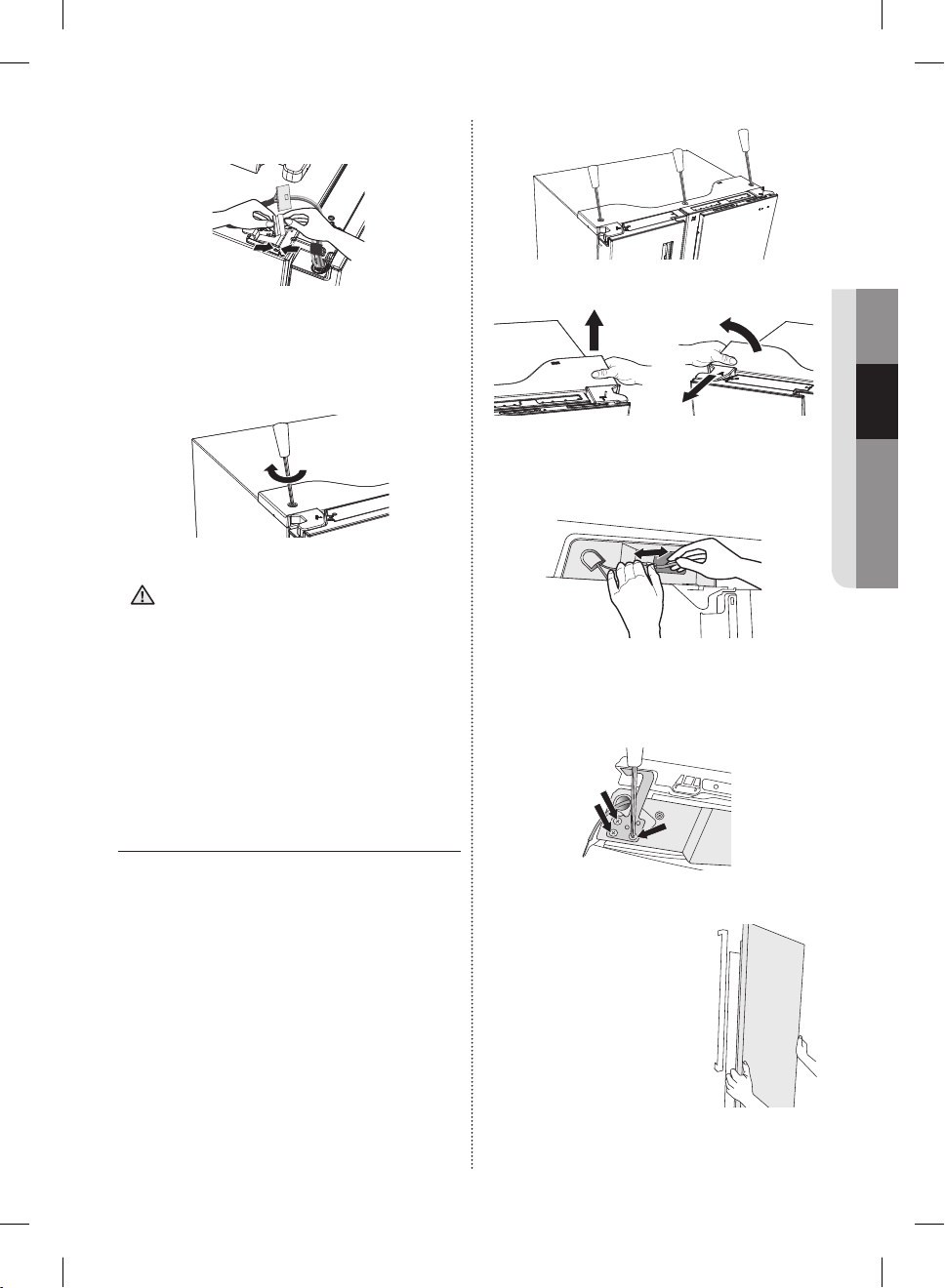

2. Remove the hinge cover and then disconnect
the electrical wire connector.
3. Flip the clamp (A) up in direction (1) and then
pull it o in direction (2).
(A)
(A)
(1)
(1)
(A)
(A)
(2)
(2)
4. Remove the hinge (B).
(B)
(B)
5. Lift up the door and detach it from the
refrigerator.
• Be careful not to damage the electrical
wires when assembling or disassembling
the doors.
• Make sure the doors do not fall over and
become damaged while they are detached from
the refrigerator.
CAUTION
RE-ATTACHING THE FREEZER
DOORS
• Be sure to re-attach the Freezer Door
before re-attaching the Fridge Door.
• Before re-attaching, make sure that all the wire
connectors at the bottom of the Freezer Door
are connected.
How to Assemble Door
1. Attach the doors to the hinges at the bottom of
the refrigerator.
2. Insert the hinge (B) into the hinge slot on the
refrigerator and then press down over the hinge
hole on the door.
(B)
(B)
3. Insert the clamp (A) in the direction of arrow
(1) and then lower it in the direction of arrow
(2) to lock it in place.
(A)
(A)
(1)
(1)
(A)
(A)
(2)
(2)
CAUTION
DA68-03015D-04.indb 18DA68-03015D-04.indb 18 2015. 1. 7.  4:572015. 1. 7.  4:57

English - 19
SETTING UP
4. Hook up the electrical wire connector.
5. Insert 2 front parts of the cover first, push down
on both side parts of the cover, and then secure
the cover in place using a Phillips screwdriver.
• The doors can be assembled in the
reverse order of their disassembly.
• The display may not function properly if you
neglect to connect the electrical wires while
assembling the door.
DISASSEMBLE THE
REFRIGERATOR DOORS
(SHOW CASE OF COLD
COMPARTMENT)
1. Disconnect the power cord, and Remove 3
cover screws using a Phillips screwdriver (1).
Then open the refrigerator door and pull
the hooks on the sides to loosen the cover
(2).
Lift up the cover and towards you to
detach it (3).
- Detach the hinge cover with the door open and
then close the door once the hinge cover has
been detached.
CAUTION
(1)
(1)
(2)
(2)
(3)
(3)
2. Disassemble the housing connector.
3. Disassemble the three fastening screws on the
top hinge of the show case.
4. Disassemble the show
case.
DA68-03015D-04.indb 19DA68-03015D-04.indb 19 2015. 1. 7.  4:572015. 1. 7.  4:57

English - 20
DISASSEMBLE THE
REFRIGERATOR DOORS
1. Disconnect the power cord, and Remove 3
cover screws using a Phillips screwdriver (1).
Then open the refrigerator door and pull
the hooks on the sides to loosen the cover
(2).
Lift up the cover and towards you to
detach it (3).
- Detach the hinge cover with the door open and
then close the door once the hinge cover has
been detached.
(1)
(1)
(2)
(2)
(3)
(3)
2. Disassemble the housing connector.
3. Push the fixer hinge up, and pull it forward to
remove it.
4. Disassemble the top hinge from the front of the
door.
5. Disassemble the show
case.
Fix the wire on the Hinge Hook to
prevent the damage on the wire when
reassembling.
RE-ATTACHING REFRIGERATOR
DOORS
To reattach the REFRIGERATOR doors, assemble
parts in reverse order.
CAUTION
DA68-03015D-04.indb 20DA68-03015D-04.indb 20 2015. 1. 7.  4:572015. 1. 7.  4:57
